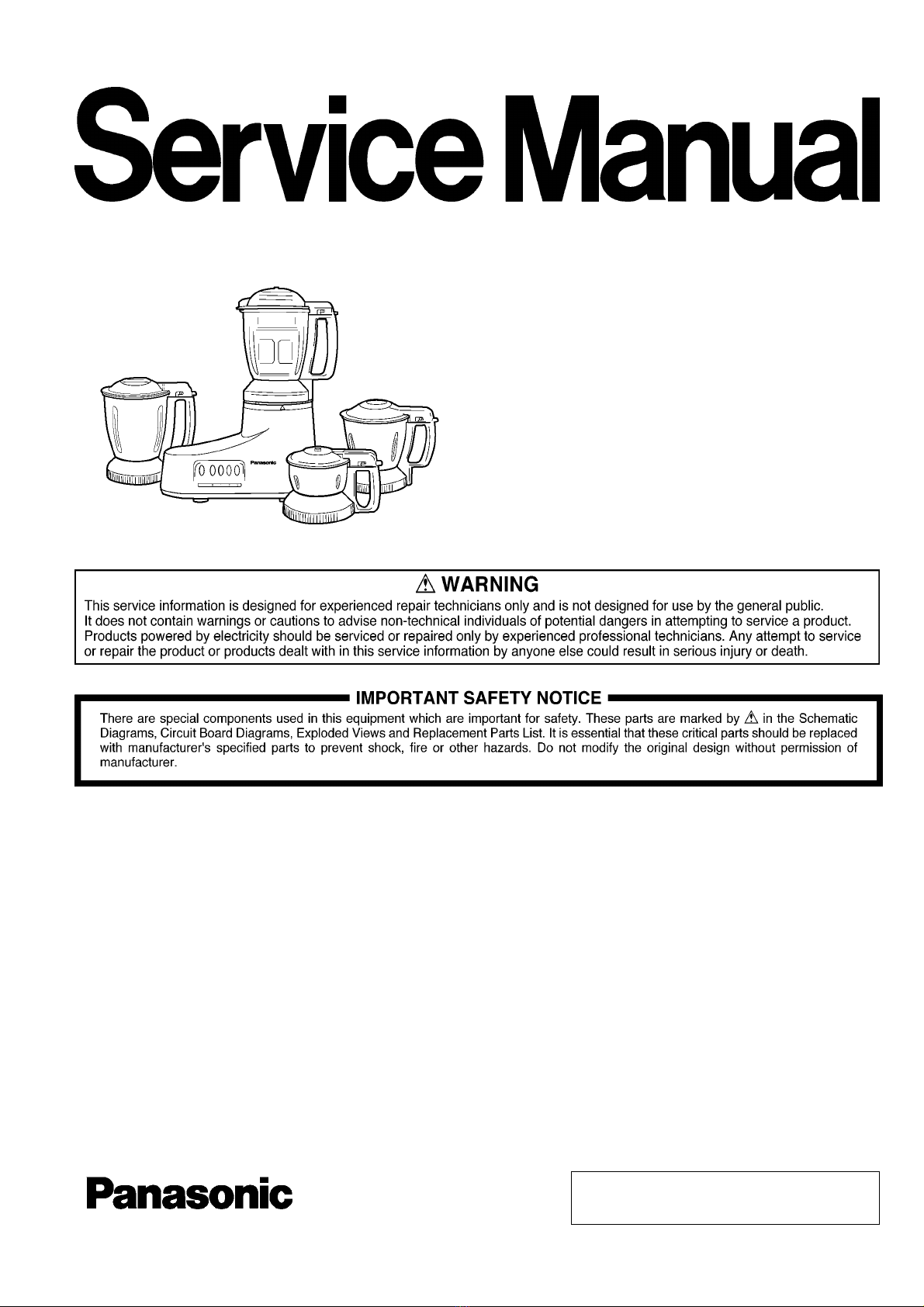

Panasonic MX-AC400WRA User manual

© Panasonic Corporation 2012 Unauthorized copy-
ing and distribution is a violation of law.
Order Number PHAI1210605CE
Mixer Grinder
Model No. MX-AC400WRA
Chassis
Product Color
Destination Vietnam
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 3
3 Location of Controls and Components ------------------- 4
3.1. Parts Identification----------------------------------------- 4
3.2. How to Use-------------------------------------------------- 6
3.3. How to Assemble / Disassemble ---------------------- 8
3.4. Safety Lock/Circuit Breaker Protection--------------- 9
3.5. How to Use Plastic jar with Filter Unit ---------------10
3.6. How to Clean ----------------------------------------------12
4 Troubleshooting Guide ----------------------------------------14
5 Disassembly and Assembly Instructions ---------------17
5.1. Rubber Cap, Connector U (lower)--------------------17
5.2. Bottom Plate -----------------------------------------------17
5.3. Power Cord U / Circuit Breaker -----------------------18
5.4. Switch Complete------------------------------------------19
5.5. Switch Complete B ---------------------------------------19
5.6. Motor Complete / Upper Body ------------------------ 20
5.7. Blender Jar Complete (PC Jar / SS Jar) / Mill
Cup Complete / Chutney Jar Complete ------------ 21
5.8. Lid C (Lid A / Lid J) -------------------------------------- 24
6 Wiring Connection Diagram--------------------------------- 25
6.1. Schematic diagram -------------------------------------- 25
6.2. Wiring diagram-------------------------------------------- 26
7 Exploded View and Replacement Parts List ----------- 27
7.1. PARTS LOCATION -------------------------------------- 27
7.2. REPLACEMENT PARTS LIST ----------------------- 28
7.3. PACKING INSTRUCTION ----------------------------- 30

2
1 Safety Precautions

3
2 Specifications

4
3 Location of Controls and Components
3.1. Parts Identification

5

6
3.2. How to Use

7

8
3.3. How to Assemble / Disassemble

9
3.4. Safety Lock/Circuit Breaker Protection

10
3.5. How to Use Plastic jar with Filter Unit

11

12
3.6. How to Clean

13

14
4 Troubleshooting Guide

15

16

17
5 Disassembly and Assembly Instructions
For assembly, refer to the Assembly Instructions, and perform
the procedures in the opposite order of disassembly.
5.1. Rubber Cap, Connector U (lower)
1. Remove Rubber Cap
2. Turn the Nut clockwise, and remove it.
3. Pull out Connector U (lower) and remove Plate Washer
and Lock Washer.
5.2. Bottom Plate
1. Remove the 6 Tapping Screws (4x20), and remove the
Bottom Plate.
2. Detach the Motor Cap and Foot from the Bottom Plate.

18
5.3. Power Cord U / Circuit Breaker
1. Remove the Screw (4x10) which fixes the Motor Com-
plete, and remove the Lead Wire (Yellow).
2. Move the 2 Insulation Tubes from the Circuit Breaker,
remove the faston terminals of Lead Wire A (U) and
Power Cord (U), and remove the Circuit Breaker.
Assembly Instructions
Attach the Lead Wire to the Circuit Breaker, and set
Insulation Tubes firmly.
3. Melt the solder which fixes the Lead Wire (Black) on
Switch Complete B, and remove the Power Cord (U).

19
5.4. Switch Complete
1. Remove the faston terminal of Lead Wire A (U).
2. Melt the solder and detach the Lead Wire Yellow, Blue,
Red from the Motor Complete.
3. Remove the Screw (4x20), and remove the Switch Com-
plete.
5.5. Switch Complete B
1. Melt the solder and detach the Lead Wire (Black) from the
Motor Complete.
2. Remove the Screws (4x20) and remove Switch Complete
B.

20
5.6. Motor Complete / Upper Body
1. Remove the 2 Screws (4x20)
2. Put the body upside-down and remove the Upper Body. 3. Remove the 4 Special Tapping Screws, which fix the
Motor Complete, and remove the Motor Complete.
Assembly Instructions
Add vaseline in 2 hole positions of Seal Cap before
assembling into the upper body.
