Panasonic PT-FX400 User manual

SPEC FILE
Produc Number : PT-FX400
Produc Name : LCD Projector
As of March 2011. Specifica ions and appearance are subjec o change wi hou no ice.
SFL11M006-1
1/13

SPEC FILE PT-FX400
LCD Projector
As of March 2011
SFL11M006-1
2/13
Specifications
Main unit
Power supply
Power consumption
LCD panel Panel size
Display method
Pixels
Pixel configuration
Lens
Throw ratio
Lamp
Screen size
Colors
Brightness*2
Center-to-corner uniformity*2
Contrast*2
Resolution
Scanning frequency HDMI/DVI-I (digital)
DVI-I (analog)/RGB
YPBPR(YCBCR)
Video/S-Video
Optical axis shift
Keystone correction range
Installation
Built-in speaker Size
Output power
Terminals HDMI IN
100–240 V AC, 3.9–1.4 A, 50/60 Hz
330 W
(0.3 W at 100–120 V AC, 0.4 W at 220–240 V AC when standby mode
set to eco,*19 W when standby mode set to normal, 20 W when
standby mode set to normal and audio monitor out.)
20.3 mm (0.8 inches) diagonal (4:3 aspect ratio)
Transparent LCD panel (× 3, R/G/B)
786,432 (1,024 × 768) × 3, total of 2,359,296 pixels
Stripe
Manual (2× zoom), manual focus F 1.7–2.6, f 24.0–47.2 mm
1.48–2.96:1
250 W UHM lamp
0.84–7.62 m (33–300 inches) diagonally, 4:3 aspect ratio
Full color (16,777,216 colors)
4,000 lumens
80%
600:1 (full on/full off)
1,024 × 768 pixels (Input signals that exceed this resolution will be
converted to 1,024 × 768 pixels.)
fH: 27.0 kHz–68.7 kHz, fV: 24.0 Hz–85.0 Hz,
dot clock: 25.2 MHz–148.5 MHz
fH: 15.6 kHz–91.1 kHz, fV: 24.0 Hz–85.1 Hz,
dot clock: 162 MHz or lower
480i (525i): fH15.75 kHz; fV60 Hz,
576i (625i): fH15.63 kHz; fV50 Hz,
480p (525p): fH31.50 kHz; fV60 Hz,
576p (625p): fH31.25 kHz; fV50 Hz,
720 (750)/60p: fH45.00 kHz; fV60 Hz,
720 (750)/50p: fH37.50 kHz; fV50 Hz,
1080 (1125)/60i: fH33.75 kHz; fV60 Hz,
1080 (1125)/50i: fH28.13 kHz; fV50 Hz,
1080 (1125)/24p: fH27.00 kHz; fV24 Hz,
1080 (1125)/60p: fH67.50 kHz; fV60 Hz,
1080 (1125)/50p: fH56.25 kHz; fV50 Hz
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Vertical: ±50% from center of screen (manual),
horizontal: ±27% from center of screen (manual)
Vertical: ±30°
Ceiling/desk, front/rear (menu selection)
4 cm (1-9/16 inches) (round) × 1
5.0 W (monaural)
HDMI 19-pin × 1, Deep Color, HDCP compatible
480p (525p), 576p (625p), 720 (750)/60p, 720 (750)/50p,
1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/24p, 1080 (1125)/60p,
1080 (1125)/50p
VGA (640 × 480)–WSXGA+(1,680 × 1,050), compatible with non-
interlaced signals only, dot clock: 25.2 MHz–146.25 MHz
Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz,
32 kHz)

SPEC FILE PT-FX400
LCD Projector
As of March 2011
SFL11M006-1
3/13
DVI-I IN*3
Digital
R, G, B
Y, PB(CB), PR(CR)
COMPUTER (RGB) IN
R, G, B
Y, PB(CB), PR(CR)
VIDEO IN
S-VIDEO IN
AUDIO IN 1
AUDIO IN 2
AUDIO IN 3
AUDIO OUT
SERIAL IN
LAN
WIRELESS MODULE
Power cord length
Cabinet materials
Dimensions (W × H × D)
Weight
Operation noise
Operating temperature
Operating humidity
Remote control unit
Power supply
Operation range*6
Dimensions (W × H × D)
Weight
Supplied accessories
DVI-I 29-pin × 1
DVI 1.0 compliant, compatible with HDCP, compatible with single link
only480p (525p), 576p (625p), 720 (750)/60p, 720 (750)/50p,
1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/24p, 1080 (1125)/60p,
1080 (1125)/50p
VGA (640 × 480)–WSXGA+(1,680 × 1,050), compatible with non-
interlaced signals only, dot clock: 25.2 MHz–146.25 MHz
G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms;
B, R: 0.7 Vp-p, 75 ohms;
HD/VD, SYNC: high impedance, TTL (positive/negative)
NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
Y: 1.0 Vp-p (including sync signal);
PB(CB), PR(CR): 0.7 Vp-p, 75 ohms
D-sub HD 15-pin (female) × 1
G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms;
B, R: 0.7 Vp-p, 75 ohms;
HD/VD, SYNC: high impedance, TTL (positive/negative)
NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
Y: 1.0 Vp-p (including sync signal);
PB(CB), PR(CR): 0.7 Vp-p, 75 ohms
RCA pin × 1, 1.0 Vp-p, 75 ohms
Mini DIN 4-pin × 1, Y: 1.0 Vp-p; C: 0.286 Vp-p, 75 ohms
M3 × 1 (L, R × 1), input impedance: 22 kilohms or more
M3 × 1 (L, R × 1), 0.5 Vrms, input impedance: 22 kilohms or more
RCA × 2 (L, R × 1), 0.5 Vrms, input impedance: 22 kilohms or more
M3 × 1 (L, R × 1) (monitor out: 0–2.0 Vrms, variable)
D-sub 9-pin × 1, for external control (parallel)
RJ-45 × 1, for network connection, 100Base-TX/10Base-T, compliant
with PJLink™
Connector for optional wireless module ET-WM200U/WM200E × 1
2.0 m (6 ft 7 in)
Molded plastic (PC + ABS)
430 mm × 125.5 mm*4× 323 mm
(16-15/16 × 4-15/16*4× 12-23/32 inches) (including the lens)
Approximately 6.0 kg (13.2 lbs)
33 dB (lamp mode: NORMAL), 29 dB (lamp mode: ECO)
0°–40°C (32°–104°F)*5
20%–80% (no condensation)
3 V DC (R6/LR6/AA type battery × 2)
Approximately 15 m (49 ft 3 in) when operated from directly in front of
the signal receptor
48 × 163 × 24.5 mm (1-13/32˝ × 6-5/8˝ × 31/32˝)
Approx. 117 g (4.1 oz) (including batteries)
Power cord with security lock (× 1)
Wireless remote control unit (× 1)
Batteries for remote control (AA/R6/LR6 type × 2)
Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring
and Control Software Ver. 2.5, Wireless Manager ME 5.5) (× 1)

SPEC FILE PT-FX400
LCD Projector
As of March 2011
SFL11M006-1
4/13
Weights and dimensions shown are approximate. Specifications subject to change without notice.
*1 When the standby mode is set to ECO, network functions such as power on over the LAN network will not operate. Also, only certain com-
mands can be received for external control using the serial terminal.
*2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*3 The DVI-I IN terminal also accepts analog signals.
*4 With legs at shortest position.
*5 Operation range differs depending on environments.
*6 The operating temperature range is 0°C–35°C (32°F–95°F) when used in High-Altitude mode (1,400 m (4,593 ft) to 2,700 m (8,858 ft)).
*7 The operation system must be pre-installed at the factory or clean installed.
Wireless Manager ME 5.5 system requirements
OS
Web browser
CPU
Memory
Free hard disk space
CD-ROM drive
Wireless LAN
Wired LAN connector
Optional accessories
Replacement lamp unit
Replacement filter unit
Ceiling mount bracket
Wireless module
To use network functions, a PC is required that meets the conditions
given below.
Microsoft®
Windows®XP: Professional 32-bit, Home Edition 32-bit, Tablet PC
Edition 2005 32-bit
Windows Vista®: Ultimate 32-bit/64-bit, Business 32-bit/64-bit, Home
Premium 32-bit/64-bit, Home Basic 32-bit/64-bit
Windows®7: Ultimate 32-bit/64-bit, Professional 32-bit/64-bit,
Home Premium 32-bit/64-bit
Apple Mac OS X*7: v10.4, v10.5, v10.6
Windows®: Internet Explorer 6.0/7.0/8.0
Mac OS: Safari 2.0/3.0/4.0
Windows®: 1 GHz or higher Intel®Pentium®III or higher, or
other compatible processor
Mac OS X: 1 GHz or higher PowerPC G4, or 1.8 GHz or higher
Intel®Core™processor
256 MB or more (512 MB or higher is recommended for Mac OS X)
60 MB or more
CD-ROM drive or DVD drive (required for installation)
The optional ET-WM200 is required.
IEEE 802.11b/g/n compatible (built-in wireless LAN system or external
IEEE 802.11b/g/n LAN card must be installed and running normally.)
NOTE: Wireless connection may not be possible with some IEEE 802.11b/g/n wireless
LAN systems. Macintosh computers must have a built-in wireless LAN adapter.
For IEEE 802.11n connection, use a wireless LAN adapter, projector and access
point that are IEEE 802.11n compatible, and connect with Infrastructure mode.
RJ-45
ET-LAF100A
ET-EMF100
ET-PKF110H (for high ceilings)
ET-PKF110S (for low ceilings)
ET-WM200U (for North America)
ET-WM200E (for Europe and Asia)

323
53 228.5
430
(2-3/32) (9)
(16-15/16)
11510.5
125.5
71
(12-23/32)
(4-17/32)(13/32)
(4-15/16)
(2-25/32)
Dimensions
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
SPEC FILE PT-FX400
LCD Projector
As of March 2011
SFL11M006-1
5/13
Terminals
AC IN
AUDIO IN AUDIO IN 3
VARIABLE
AUDIO OUT
RL
MAIN
POWER
COMPUTER IN S-VIDEO IN DVI-I IN
IN
LAN
SERIAL IN
VIDEO
IN
OFF ON
1
7891011
23456
1 LAN connector
2 HDMI input
3 DVI-I input
4 Computer input
5 S-Video input
6 Video input
7 Serial input
8 Audio input 1
9 Audio input 2
10 Audio input 3
11 Audio output

SPEC FILE PT-FX400
LCD Projector
As of March 2011
SFL11M006-1
6/13

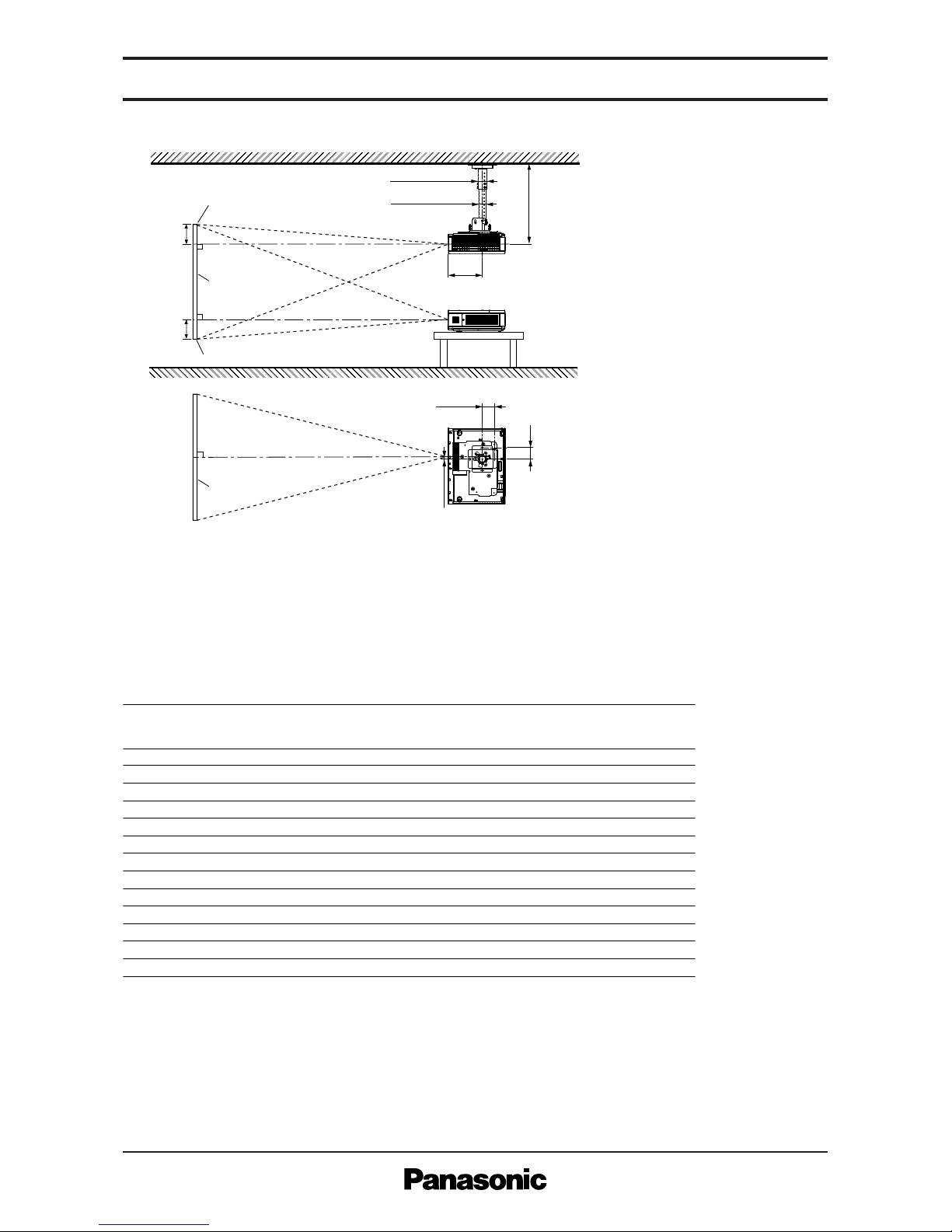

Standard setting-up position
Projected image
Lower edge of projected image
Upper edge of projected image
Projected image
369–449
(14-17/32–
17-11/16)
Adjustable in
20-mm
(15/32-inch) step.
194
∅49
∅42
65 (2-9/16)
13 (1/2)
70
(7-5/8)
(1-15/16)
(1-11/16)
(2-3/4)
L
L
L
HH
unit : mm (inch)
** Adjustable in 20 mm (25/32˝) steps.
NOTE:
Illustrations show the projector
installed using optional ceiling mount
bracket ET-PKF110H.
This illustration is not drawn to scale.
0.84 m
1.02 m
1.27 m
1.52 m
1.78 m
2.03 m
2.29 m
2.54 m
3.05 m
3.81 m
5.08 m
6.35 m
7.62 m
–
1.2
1.5
1.8
2.1
2.4
2.7
3.0
3.6
4.5
6.1
7.6
9.1
1.9
2.4
3.0
3.6
4.2
4.8
5.4
6.0
7.2
9.0
12.0
15.1
18.1
0
0
0
0
0
0
0
0
0
0
0
0
0
0.50
0.61
0.76
0.91
1.07
1.22
1.37
1.52
1.83
2.29
3.05
3.81
4.57
–
–
–
–
–
–
–
–
–
–
–
–
–
33˝
40˝
50˝
60˝
70˝
80˝
90˝
100˝
120˝
150˝
200˝
250˝
300˝
/
/
/
/
/
/
/
/
/
/
/
/
/
(–)
(3.8)
(4.8)
(5.8)
(6.8)
(7.8)
(8.9)
(9.9)
(11.9)
(14.9)
(19.9)
(24.9)
(29.9)
(6.4)
(7.8)
(9.7)
(11.7)
(13.7)
(15.7)
(17.7)
(19.7)
(23.6)
(29.6)
(39.5)
(49.4)
(59.3)
(0
(0
(0
(0
(0
(0
(0
(0
(0
(0
(0
(0
(0
1.7)
2.0)
2.5)
3.0)
3.5)
4.0)
4.5)
5.0)
6.0)
7.5)
10.0)
12.5)
15.0)
–
–
–
–
–
–
–
–
–
–
–
–
–
Projection size
[diagonal]
Projection distance [L]
Min [wide] Max [telephoto]
Height from the edge of screen
to center of lens [H]
Projection distance for 4:3 aspect ratio screen
unit: meters (feet)
NOTE:
• The value for H (the height from the edge of the screen to the centre of the lens) is the value when the horizontal optical axis shift function is
not used. The value decreases when the horizontal optical axis shift function is used. For details, see Shift range on page 7.
• The value for L (distance to screen) varies slightly depending on the zoom lens characteristics.
• At the shortest projection distance, the zoom lens characteristics may cause slight image distortion.
• When vertical keystone correction is used, the image is corrected in the direction that reduces its projected size.
• The brightness varies depending on the zoom setting.

SPEC FILE PT-FX400
LCD Projector
As of March 2011
SFL11M006-1
7/13
Calculation of the projection distance
For a screen size different from the above, use the equation below to calculate the projection distance.
Aspect ratio 4:3
minimum L (m) = (diagonal screen size in inches) × 0.0305 – 0.049
maximum L (m) = (diagonal screen size in inches) × 0.0604 – 0.050
NOTE:
Distances calculated with the above equations will include a slight error.
H
(Width of
projected image)
V
(Height of
projected image)
0.5V 0.5V
0.27H0.27H
Standard postition
of projected image
–30°
+30°
0°

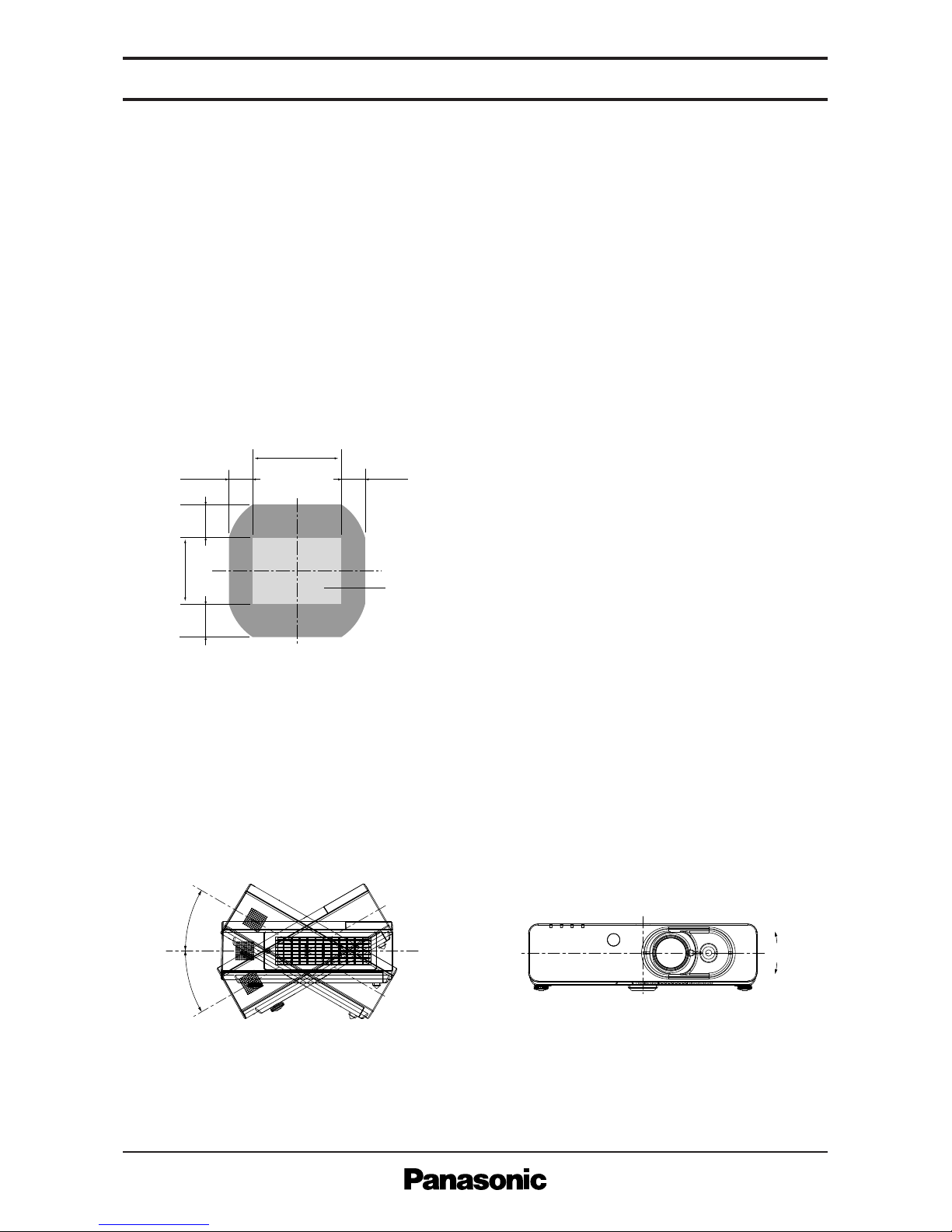

Shift range
Optical axis shift function allows to shift the position of a projected image as shown below.
Installable angle
Install the projector at an angle within the range shown below.
• Vertical direction
The projector may be installed at a vertical
angle of 30°.
• Horizontal direction
The projector may not be angled horizontally.

SPEC FILE PT-FX400
LCD Projector
As of March 2011
SFL11M006-1
8/13
List of compatible signals
The signals that can be input to this projector are shown in the table below. Horizontal scanning fre-
quencies of 15.6 kHz to 91.1 kHz, vertical scanning frequencies of 24.0 Hz to 85.1 Hz, and a dot clock
of 162 MHz maximum can be input.
NOTE: The native resolution of this projector is 1,024 × 768 pixels. If the display resolution of the input signal is different from the
native resolution, image compression or expansion will be used to convert the input signal to a level within the native resolution.
Display mode Display
resolution
(dots)*1
Scanning frequency
H
(kHz)
V
(kHz)
Dot clock
frequency
(MHz)
Format Plug and Play compatibility
HDMI
input
DVI-D input
EDID1 EDID2
Computer/
DVI-I (analog)
720 × 480i
720 × 576i
720 × 480i
720 × 576i
720 × 483
720 × 576
1,280 × 720
1,280 × 720
1,920 × 1,080i
1,920 × 1,080
640 × 400
640 × 480
800 × 600
832 × 624
1,024 × 768
1,280 × 720
1,280 × 768
1,280 × 800
1,152 × 864
1,152 × 870
1,280 × 960
1,280 × 1,024
1,400 × 1,050
1,440 × 900
1,600 × 1,200
1,680 × 1,050
1,920 × 1,200
15.7
15.6
15.7
15.6
31.5
31.3
45.0
37.5
33.8
28.1
27.0
67.5
56.3
66.6
55.6
31.5
37.9
31.5
35.0
37.9
37.5
43.3
35.2
37.9
48.1
46.9
53.7
49.7
39.6
48.4
56.5
60.0
68.7
44.8
37.1
39.6
47.8
41.3
49.1
49.7
64.0
67.5
76.7
68.7
60.0
64.0
80.0
91.1
64.0
65.1
55.9
75.0
65.3
74.6
59.9
50.0
59.9
50.0
59.9
50.0
60.0
50.0
60.0
50.0
24.0
60.0
50.0
59.9
49.9
70.1
85.1
59.9
66.7
72.8
75.0
85.0
56.3
60.3
72.2
75.0
85.1
74.6
50.1
60.0
70.1
75.0
85.0
59.9
49.8
49.9
59.9
50.0
60.2
59.8
71.2
74.9
85.0
75.1
60.0
60.0
75.0
85.0
60.0
59.9
59.9
60.0
60.0
59.9
–
–
13.5
13.5
27.0
27.0
74.3
74.3
74.3
74.3
74.3
148.5
148.5
138.5
141.5
25.2
31.5
25.2
30.2
31.5
31.5
36.0
36.0
40.0
50.0
49.5
56.3
57.3
51.9
65.0
75.0
78.8
94.5
74.5
60.5
65.3
79.5
68.0
69.1
83.5
94.2
108.0
121.5
100.0
108.0
108.0
135.0
157.5
108.0
122.4
106.5
162.0
146.3
154.0
NTSC/NTSC4.43/
PAL-M/PAL60
PAL/PAL-N/SECAM
480i (525i)
576i (625i)
480p (525p)
576p (625p)
720 (750)/60p
720 (750)/50p
1080 (1125)/60i
1080 (1125)/50i
1080 (1125)/24p
1080 (1125)/60p
1080 (1125)/50p
1920 × 1080
VESA
VGA
SVGA
MAC
XGA
WIDE750 (720)
WXGA768
WXGA800
MXGA
MAC
MSXGA
SXGA
SXGA60+
WXGA+
UXGA
WSXGA+
WUXGA
VIDEO/S-VIDEO
COMPUTER/YPBPR
HDMI/DVI/COMPUTER/YPBPR
COMPUTER
HDMI/DVI/COMPUTER
COMPUTER
HDMI/DVI/COMPUTER
COMPUTER
HDMI/DVI/COMPUTER
COMPUTER
HDMI/DVI/COMPUTER
COMPUTER
HDMI/DVI/COMPUTER
COMPUTER
HDMI/DVI/COMPUTER
COMPUTER
HDMI/DVI/COMPUTER
COMPUTER
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
No
Yes
No
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
*1 The “i” appearing after the resolution indicates an interlaced signal.

SPEC FILE PT-FX400
LCD Projector
As of March 2011
SFL11M006-1
9/13

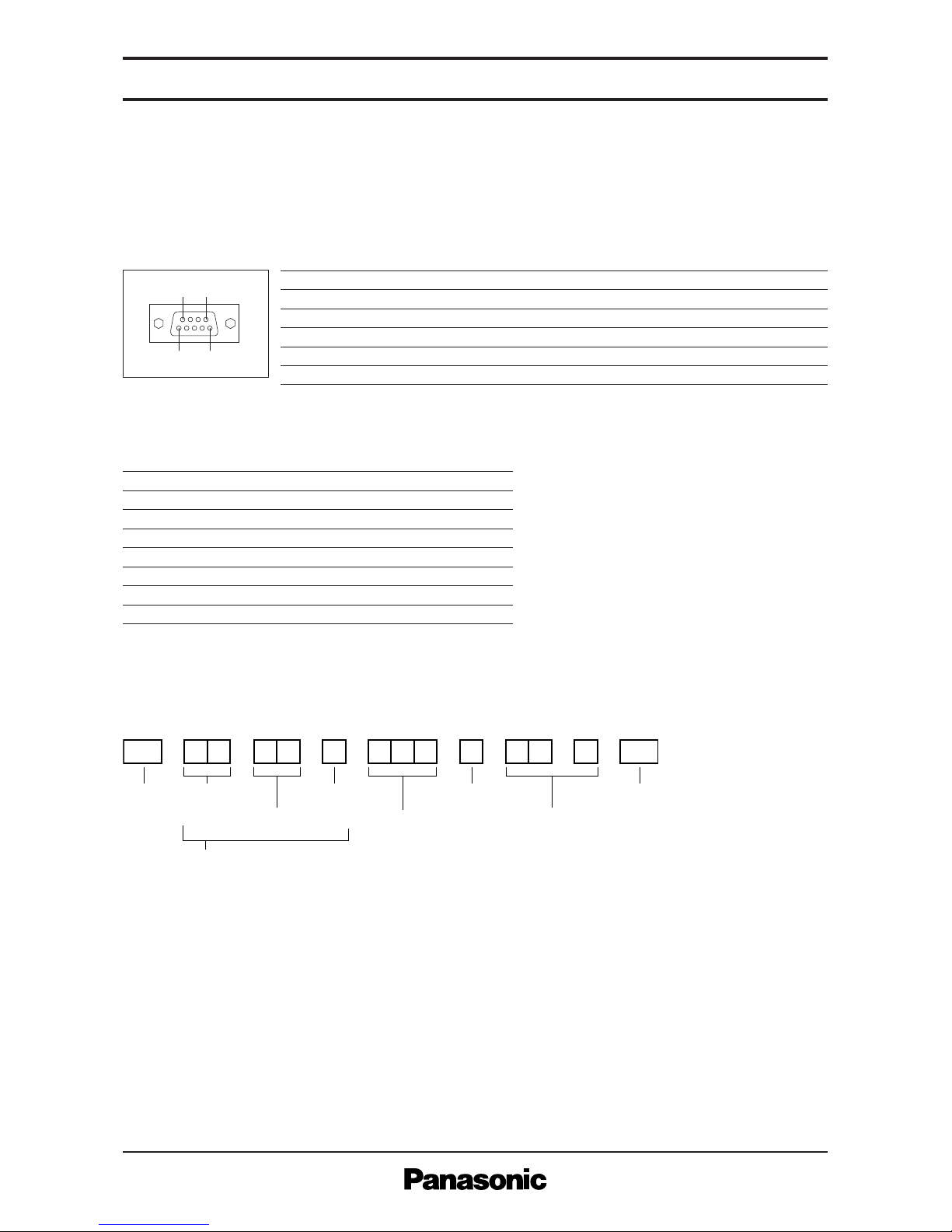

Serial connector
The serial connector complies with RS-232C. To control the projector from a personal computer, com-
mands must be input through communication software, based on the format and satisfying the commu-
nication conditions shown below.
Basic format
Transmission from the computer begins with STX, then the ID, command, parameter, and ETX are sent
in this order. Add parameters according to the details of control.
Communication conditions (factory setting)
Pin assignments and signal names
6
15
9
D-sub 9-pin (female)
Serial input
Description
NC
Send data
Receive data
NC
Ground
Signal name
–
TXD
RXD
–
GND
No.
1
2
3
4
5
Description
Connected internally
Connected internally
Connected internally
NC
Signal name
–
RTS
CTS
–
No.
6
7
8
9
CAUTION
• It may not be possible to send or receive commands for about 10 to 60 seconds when the lamp is first turned on. If this occurs, wait for 60 sec-
onds, then try sending or receiving again.
• When sending multiple commands, be sure to wait for at least 0.5 second after receiving a response from the projector before sending the next
command.
• Additional time is sometimes required for response due to processing inside the projector. Set the time-out period for command response to 10
seconds or more.
• When using two or more units, set different IDs for each unit.
Start
(1 byte)
End
(1 byte)
Colon
(1 byte)
Semicolon
(1 byte)
ID designator:
01 to 06: Projector ID number
ZZ: All units (ID ALL)
ID 2 characters
(2 bytes)
(2 bytes)
Parameters
(undefined length)
Command
(3 bytes)
(Control and/or query commands)
STX ETXC1 P1 P2 ... PnC2A D I1 I2 C3 :;
Signal level
Synchronization method
Baud rate
Parity
Character length
Stop bit
X parameter
S parameter
RS-232C-compliant
Start-stop synchronization
9,600 bps
None
8 bits
1 bit
None
None

SPEC FILE PT-FX400
LCD Projector
As of March 2011
SFL11M006-1
10/13

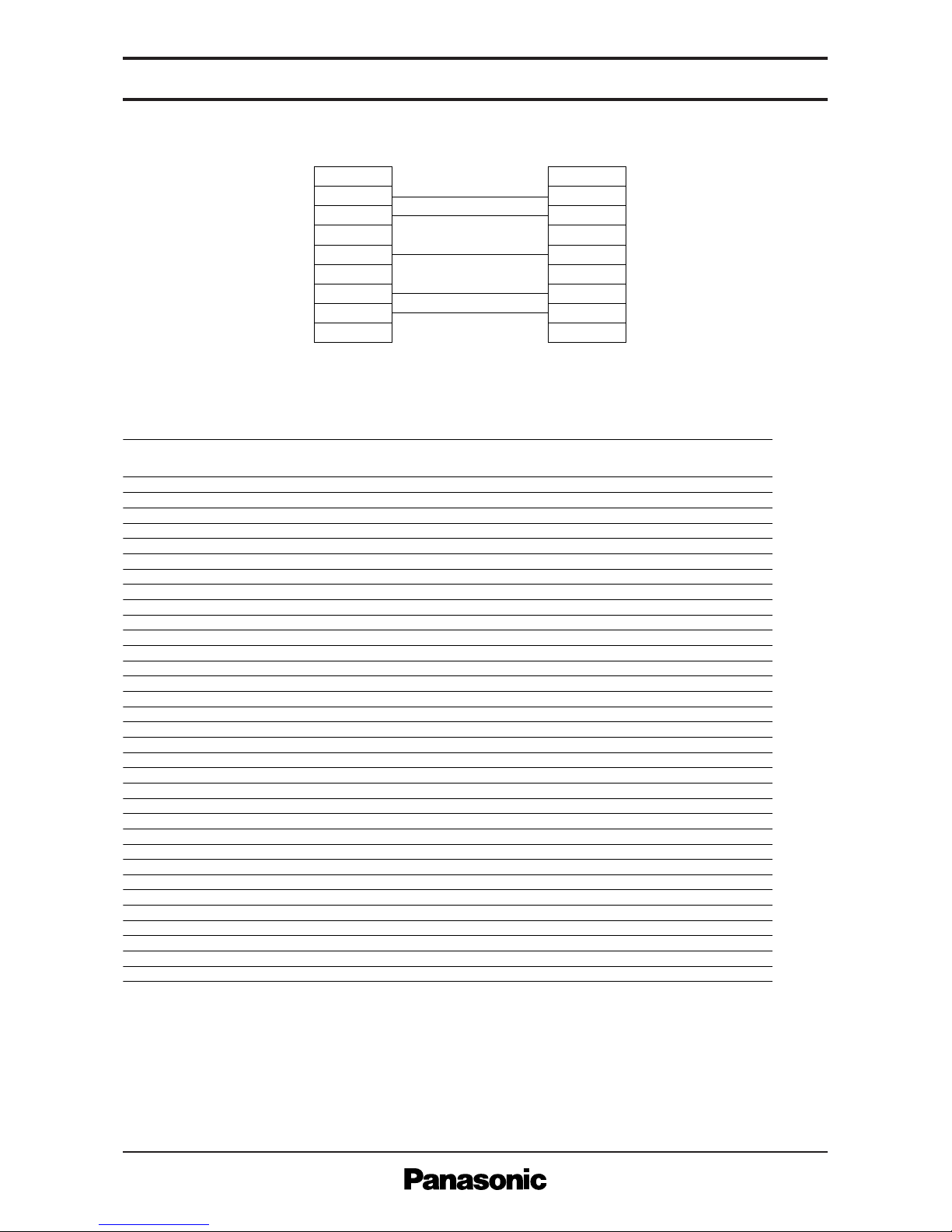

Cable specifications
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
PC (DTE)Projector
NC
NC
NC
NC
NC
NC
NC
NC
Control commands
PON*1
POF*1
AVL:<pl>
IIS:<input signal>
OST
OFZ:<off on>
OEN
OXG: 0
OXG: 1
OXG: 2
VPM:<NAT>
VPM:<STD>
VPM:<CIN>
VPM:<DYN>
VPM:<BBD>
VPM:<WBD>
VXX:DLVI0=<+00000>
VXX:DLVI0=<+00001>
VXX:DLVI0=<+00002>
AUU
AUD
OMN
OCU
OCD
OCL
OCR
OAS
OSH*1/*2
OIX
DZU
DZD
TSD:<date>
TST:<time>
Power on (standby mode on)
Power off (standby mode off)
Volume control
Input signal selection
The same function as “default” button
Freeze
Enter
Wide mode: Off
Wide mode: On
Wide mode: Auto
Picture mode: Natural
Picture mode: Standard
Picture mode: Cinema
Picture mode: Dynamic
Picture mode: Blackboard
Picture mode: Whiteboard
Daylight View: Off
Daylight View: Auto
Daylight View: On
Volume up
Volume down
Menu
Cursor up
Cursor down
Cursor left
Cursor right
Auto setup
AV mute
Index window
Digital zoom: Enlargement
Digital zoom: Reduction
Date setting
Time setting
PON*1
POF*1
AVL:<pl>
IIS:<input signal>
OST
OFZ:<off on>
OEN
OXG: 0
OXG: 1
OXG: 2
VPM:<NAT>
VPM:<STD>
VPM:<CIN>
VPM:<DYN>
VPM:<BBD>
VPM:<WBD>
VXX:DLVI0=<+00000>
VXX:DLVI0=<+00001>
VXX:DLVI0=<+00002>
AUU
AUD
OMN
OCU
OCD
OCL
OCR
OAS
OSH*1/*2
OIX
DZU
DZD
TSD:<date>
TST:<time>
–
–
0
–
–
0
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
63
–
–
1
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
Command: <Parameter> Function Callback: <Parameter> Parameter value
Min Max
*1 Do not send PON, POF or OSH commands continuously in a short period of time. Doing so may burst the lamp or shorten the lamp replace-
ment cycle.
*2 When a command that cannot be executed during standby mode is sent, the projector will send an ER401 command in reply.

SPEC FILE PT-FX400
LCD Projector
As of March 2011
SFL11M006-1
11/13
Status request commands
Command Description Callback
<Parameter>
QPW
Q$S
QIN
QAV
QVC
QVT
QVB
QVR
QVS
QHP
QVP
QCP
QDC
QSP
QLG
QXG
QVX:DLVI0
QPM
QFZ
Q$L
QSH
QKS
QTE
QGD
QGT
Standby power status
Lamp status
Input signal status
Volume adjustment value
Color adjustment value
Tint adjustent value
Brightness adjustment value
Contrast adjustment value
Sharpness adjustment value
Horizontal position adjustment value
Vertical position adjustment value
Clock phase adjustment value
Dot clock adjustment value
Projection method status
On-screen menu language
Wide mode status
Daylight View status
Picture mode status
Freeze status
Lamp run time
AV mute function status
Keystone correction status
Color temperature adjustment status
Date setting status
Time setting status
Off
On
Auto
Off
Auto
On
Natural
Standard
Cinema
Dynamic
Blackboard
Whiteboard
<power condition>
<lamp condition>
<input signal>
<pl>
<pl>
<pl>
<pl>
<pl>
<pl>
<pl>
<pl>
<pl>
<pl>
<pl>
<pl>
<0>
<1>
<2>
<+00000>
<+00001>
<+00002>
<NAT>
<STD>
<CIN>
<DYN>
<BBD>
<WBD>
<off_on>
<acctch>
<off_on>
<pl>
<color temp>
<date>
<time>
NOTE: If a wrong command is received, the projector will send an ER401 command to the computer.

SPEC FILE PT-FX400
LCD Projector
As of March 2011
SFL11M006-1
12/13
Command example
To set the volume to +30, send the command as shown below.
STX AVL : 30 ETX
Start Command Parameter End
NOTE: When sending commands without parameters, a colon (:) is not necessary.
NOTE: If a wrong command is received, the projector will send an ER401 command to the computer.
Parameter format
Parameter format Size (Byte) Definition
<pl>
<off on>
<input signal>
<power condition>
<lamp condition>
<acctch>
<color temp>
<date>
<time>
3 (1 or 2 bytes also
possible when
under control)
1
3
3
1
4
1
8
6
Decimal without signs: 0–999 (000, 001, 002...999)
Decimal with signs: -99 to +99 (-99...-01, +00, +01, +02...+99)
Callback from the projector is 3 Byte.
0 = off, 1 = on
HD1 = HDMI, DVI = DVI-I, RG1 = computer,
NWP = network, VID = video, SVD = S-Video
000 = power off (standby mode off), 001 = power on (standby mode on)
0 = standby, 1 = lamp on under control, 2 = lamp off,
3 = lamp off under control
Dicimal without signs: 0000-9999 hours
0 = low, 1 = default, 2 = high
y1y2y3y4m1m2d1d2w = year (y) month (m) day (d) day of week (w)
Day of week: Monday = 1, Tuesday = 2, ... Sunday = 7
h1h2m1m2s1s2 = hour (h) minute (m) second (s)

SPEC FILE PT-FX400
LCD Projector
As of March 2011
SFL11M006-1
13/13

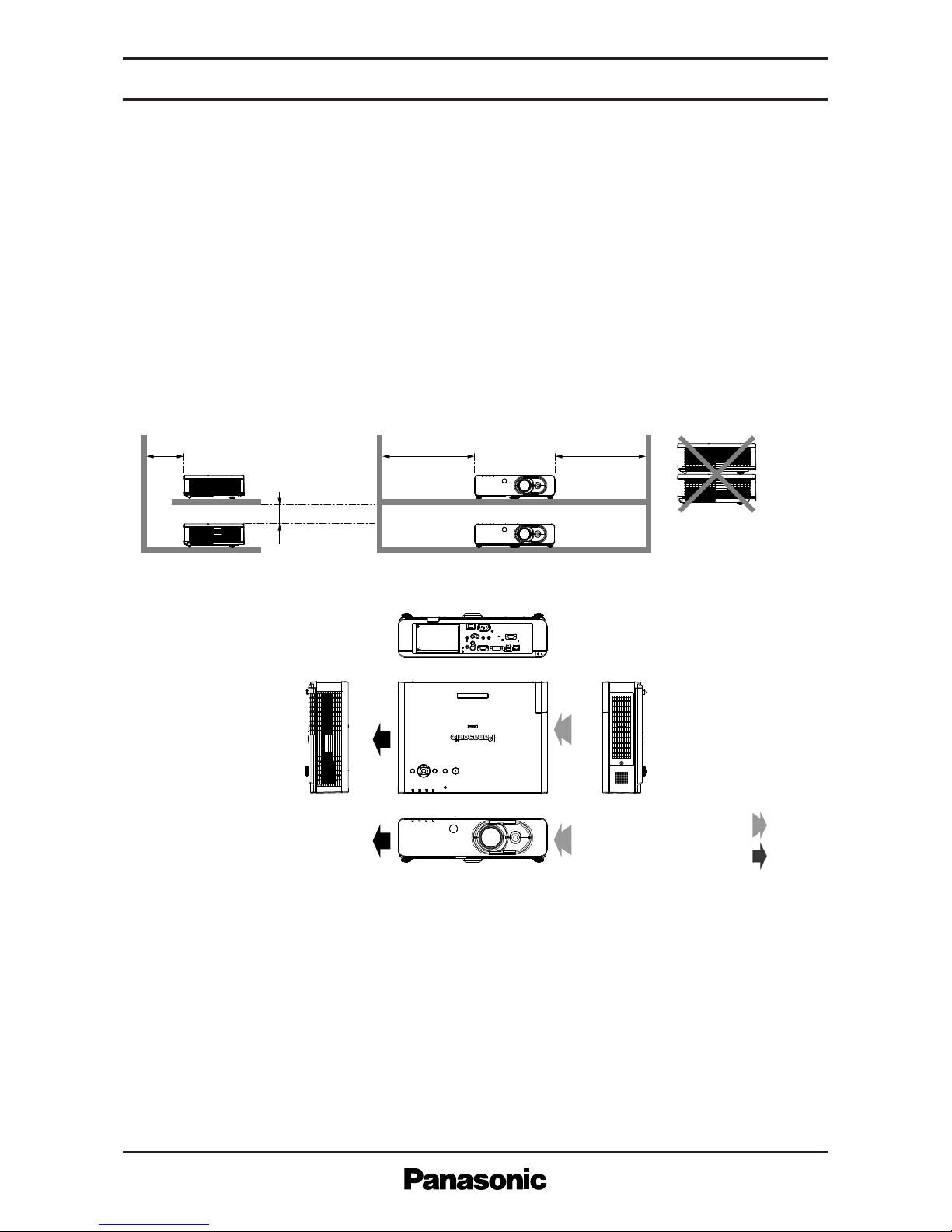

Notes on projector placement and operation
The projector uses a high-wattage lamp that becomes very hot during operation. Please observe the
following precautions.
1. Never place objects on top of the projector while it is operating.
2. Make sure there is an unobstructed space of 500 mm (19-11/16˝) or more around the projector’s
exhaust openings. In addition to this space, also ensure that there is a sufficient work space for
removing and installing the lamp, filter and other parts.
3. Do not stack projector units directly on top of one another for the purpose of multiple (stacked)
projection. When stacking projector units, be sure to provide the amount of space indicated below
between them. These space requirements also apply to installations where only one projector unit is
operating at one time and the other unit is used as a backup.
3. If the projector is installed in an enclosed space, ensure that the projector’s intake and exhaust
openings are not blocked. Take particular care to ensure that hot air from the exhaust openings is
not sucked into the intake openings.
200 mm (7-7/8˝ ) or more
500 mm (19-11/16˝)
or more
500 mm (19-11/16˝)
or more
Do not stack projector
units directly on top of
one another.
100 mm
(3-15/16˝ )
or more
Operating the projector continuously
1. If the projector is to be operated continuously 10 hours or more, lamp replacement cycle duration
becomes shorter.
2. The lamp replacement cycle duration becomes shorter if the projector is operated repeatedly for short
periods (one hour or less).
Intake
Exhaust
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
Product availability differs depending on region and country. This product may be subject to export control regulations.
PJLink is a registered trademark, or a trademark application has been filed, in Japan, the United States, and other countries and regions.
Intel, Pentium, and Intel Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other coun-
tries. Microsoft, Windows Vista and Windows are either registered trademarks or trademarks of Microsoft Corp. in the United States and/or other
countries. Apple, Mac, Mac OS, and Macintosh are trademarks of Apple Inc., registered in the U.S. and other countries. PowerPC is a trademark of
International Business Machines Corporation, registered in the U.S.
All other trademarks are the property of their respective trademark owners.
Direction of air intake and exhaust
