Panasonic PT-MZ16K User manual

Thank you for purchasing this Panasonic product.
■This manual is common to all the models regardless of sufxes of the Model No.
zfor USA, Canada, EU countries, Korea
LB: Black model LW: White model
zfor India
LBD: Black model
zfor Taiwan
LB: Black model
zfor other countries or regions with power cord for 100 V - 120 V
LBX: Black model LWX: White model
zfor other countries or regions with power cord for 200 V - 240 V
LBE: Black model LWE: White model
■Before operating this product, please read the instructions carefully and save this manual
for future use.
■Before using this product, be sure to read “Read this rst!” (xpages 5 to 16).
LCD Projector Commercial Use
Operating Instructions
Functional Manual
Model No. PT-MZ16K
 PT-MZ13K
 PT-MZ10K
The projection lens is sold separately.

2 - ENGLISH
Contents
Contents
Read this rst! 5
Chapter 1 Preparation
Precautions for use 20
Intended use of the product
20
Cautions when transporting
20
Cautions when installing
20
Security
23
DIGITAL LINK
23
Art-Net
23
Application software supported by the projector
23
Storing
24
Disposal
24
Cautions on use
24
Accessories
25
Optional accessories
26
About your projector
27
Remote control
27
Projector body
29

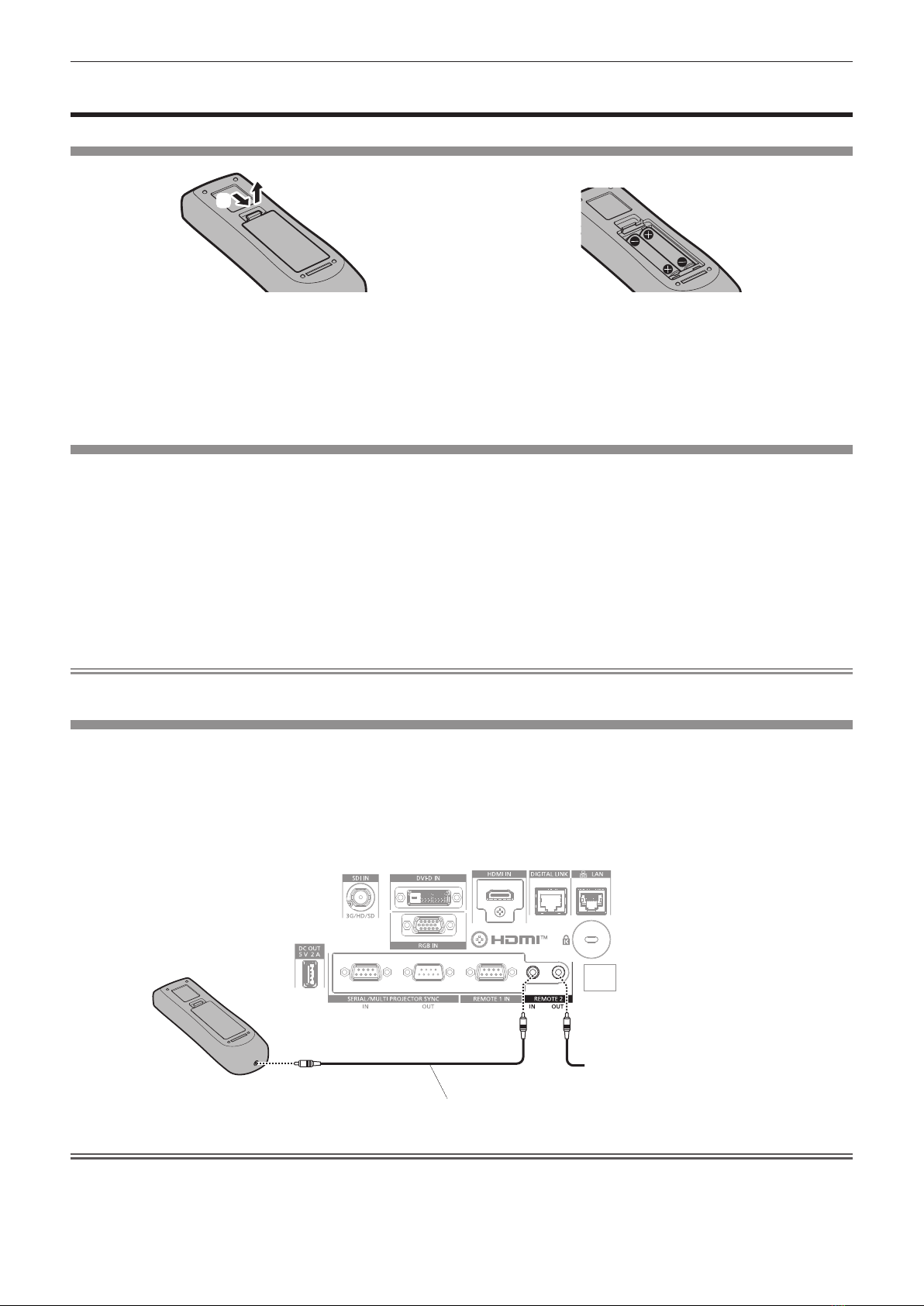

Preparing the remote control
32
Inserting and removing the batteries
32
When using the multiple projectors
32
Connecting the remote control to the projector
with a cable
32
Chapter 2 Getting Started
Setting up 34
Usable outlet
34
Installation mode
34
Parts for installation (optional)
36
Projected image and throw distance
36
Adjusting adjustable feet
42
Attaching/removing the projection lens
(optional)
43
Attaching the projection lens
43
Removing the projection lens
44
Connecting
46
Before connecting
46
Connecting example: AV equipment
47
Connecting example: Computers
48
Connecting example using DIGITAL LINK
49
Connecting example when using the
contrast synchronization function/shutter
synchronization function
50
Chapter 3 Basic Operations
Switching on/off the projector 53
Connecting the power cord 53
Power indicator 55
Switching on the projector 56
When the initial setting screen is displayed
57
Making adjustments and selections
64
Switching off the projector 65
Projecting 66
Selecting the input signal 66
Adjusting the focus, zoom, and lens shift
67
Adjusting the focus balance 68
Executing the lens calibration 69
Moving the projection lens to the home position
70
Lens shift range 71
Operating with the remote control
72
Using the shutter function 72
Using the on-screen display function
72
Using the automatic setup function
73
Using the function button 73
Displaying internal test pattern 73
Using the status function 74
Setting ID number of the remote control
74
Chapter 4 Settings
Menu navigation 76
Navigating through the menu 76
Main menu 77
Sub-menu 78
[PICTURE] menu 81
[PICTURE MODE] 81
[CONTRAST] 81
[BRIGHTNESS] 81
[COLOR] 82
[TINT] 82
[COLOR TEMPERATURE] 82
[GAMMA] 83
[SYSTEM DAYLIGHT VIEW] 84
[SHARPNESS] 84
[NOISE REDUCTION] 84
[DYNAMIC CONTRAST] 85
[SYSTEM SELECTOR] 86
[DEFAULT PICTURE MODE] 87

ENGLISH - 3
Contents
[POSITION] menu
88
[SHIFT]
88
[ASPECT]
88
[ZOOM]
89
[CLOCK PHASE]
90
[GEOMETRY]
90
[ADVANCED MENU] menu
96
[DIGITAL CINEMA REALITY]
96
[BLANKING]
96
[INPUT RESOLUTION]
97
[CLAMP POSITION]
97
[EDGE BLENDING]
98
[FRAME RESPONSE]
100
[RASTER POSITION]
100
[DISPLAY LANGUAGE] menu
101
Changing the display language
101
[DISPLAY OPTION] menu
102
[COLOR ADJUSTMENT]
102
[COLOR CORRECTION]
102
[SCREEN SETTING]
103
[AUTO SIGNAL]
103
[AUTO SETUP]
103
[BACKUP INPUT SETTING]
104
[HDMI IN]
106
[DVI-D IN]
108
[SDI IN]
109
[RGB IN]
111
[DIGITAL LINK IN]
112
[ON-SCREEN DISPLAY]
113
[MENU MODE]
115
[IMAGE ROTATION]
116
[BACK COLOR]
116
[STARTUP LOGO]
116
[UNIFORMITY]
116
[SHUTTER SETTING]
118
[FREEZE]
120
[WAVEFORM MONITOR]
120
[CUT OFF]
122
[PROJECTOR SETUP] menu 123
[PROJECTOR ID] 123
[PROJECTION METHOD] 123
[LENS] 124
[OPERATION SETTING] 126
[LIGHT OUTPUT] 128
[STANDBY MODE] 129
[QUICK STARTUP] 129
[NO SIGNAL SETTING] 130
[INITIAL STARTUP] 133
[STARTUP INPUT SELECT]
133
[DATE AND TIME] 133
[SCHEDULE] 134
[MULTI PROJECTOR SYNC]
136
[RS-232C] 138
[REMOTE1 MODE] 139
[FUNCTION BUTTON] 140
[FILTER COUNTER] 140
[STATUS] 141
[INFO MONITOR SETTING]
142
[DATA CLONING] 144
[SAVE ALL USER DATA] 144
[LOAD ALL USER DATA] 145
[INITIALIZE] 145
[SERVICE PASSWORD] 146
[TEST PATTERN] menu 147
[TEST PATTERN] 147
[SIGNAL LIST] menu 148
Registering new signals 148
Renaming the registered signal
148
Deleting the registered signal
148
Protecting the registered signal
149
Expanding signal lock-in range
149
Sub memory 150
[SECURITY] menu 151
[SECURITY PASSWORD] 151
[SECURITY PASSWORD CHANGE]
151
[DISPLAY SETTING] 151
[TEXT CHANGE] 152
[CONTROL DEVICE SETUP]
152
[CONTROL DEVICE PASSWORD CHANGE]
153
[NETWORK] menu 154
[DIGITAL LINK MODE] 154
[DIGITAL LINK STATUS] 154
[NETWORK SETUP] 155
[NETWORK CONTROL] 155
[NETWORK STATUS] 156
[DIGITAL LINK MENU] 156
[Art-Net SETUP] 156
[Art-Net CHANNEL SETTING]
157
[Art-Net STATUS] 158

4 - ENGLISH
Contents
Chapter 5 Operations
Network connection 160
Connecting via wired LAN
160
Web control function
163
Computer that can be used for setting
163
Accessing from the web browser
163
Using the information monitor function
186
Screen mode
186
Top menu
186
Sub-menu
186
Basic operation procedure in the menu
operation mode
187
[USER VIEW] menu
187
[SETUP] menu
188
[STATUS] menu
191
Error notication mode
193
Using the data cloning function
194
Copying the data to another projector via LAN
194
Updating the rmware
196
Updating the rmware via LAN
196
Chapter 6 Maintenance
Light source/temperature/lter indicators 203
When an indicator lights up
203
Maintenance/replacement
205
Before performing maintenance/replacement 205
Maintenance
205
Replacing the unit
208
Troubleshooting
209
[SELF TEST] indications
211
Chapter 7 Appendix
Technical information 214
PJLink protocol
214
Using Art-Net function
215
Control commands via LAN
219
<SERIAL/MULTI PROJECTOR SYNC
IN>/<SERIAL/MULTI PROJECTOR SYNC
OUT> terminals
223
<REMOTE 1 IN> terminal
227
Control device password
227
Upgrade Kit
228
List of compatible signals
229
Specications
234
Dimensions
237
Precautions for attaching the Ceiling Mount
Bracket
238
Index
240

18 - ENGLISH
Features of the Projector
High luminance and high contrast
and low noise
▶With a high efciency optical system and
unique drive system that draws maximum
solid-state light source output, high
luminance of 16 000 lm*1, high contrast of
3 000 000:1*2, and low noise of 38 dB*3 are
achieved with its high color reproduction
even with its compact size.
*1 A value for PT-MZ16K. A value for PT-MZ13K is 13 000 lm. A
value for PT-MZ10K is 10 000 lm.
*2 When [DYNAMIC CONTRAST] is set to [3]
*3 A value for PT-MZ16K. A value for PT-MZ13K and
PT-MZ10K is 35 dB.
When [OPERATING MODE] in [OPERATION SETTING] is
set to [NORMAL]
Easy and highly exible setup
▶In addition to DIGITAL LINK support,
Art-Net support, and abundant lineup of
optional lenses, the projector has realized
exible installation with wide latitude that
supports all 360° direction projection
utilizing the feature of solid-state light
source. More advanced rendition in wide
range of usages is now possible. With
the superior compatibility with the devices
other than projectors, more advanced
rendition in wide range of usage is
possible.
Long life and high reliability
▶The maintenance cost for long-term
operation is reduced by the unique light
source cooling control technology and
improvement of the dust resistance. Also,
it will contribute to the stable operation by
implementation of the backup function that
will continue the projection by switching to
the backup input signal immediately even
when the input signal is discontinued, in
addition to adopting solid-state light source
which has long life.
Quick Steps
For details, refer to the corresponding pages.
1. Set up the projector.
(xpage 34)
2. Attach the projection lens
(optional).
(xpage 43)
3. Connect with external devices.
(xpage 46)
4. Connect the power cord.
(xpage 53)
5. Switch on the projector.
(xpage 56)
6. Make initial settings.
(xpage 57)
Execute the lens calibration.
(xpage 69)
fTake this step when you switch on the
power for the rst time after purchasing the
projector.
7. Select the input signal.
(xpage 66)
8. Adjust the image.
(xpage 67)

ENGLISH - 19
Chapter 1 Preparation
This chapter describes things you need to know or check before using the projector.

Chapter 1 Preparation — Precautions for use
ENGLISH - 25
Accessories
Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the
number of accessories.
Wireless/wired remote control unit <1>
(N2QAYA000208)
Power cord
(K2CM3YY00028)
200 V - 240 V
(K2CT3YY00053)
200 V - 240 V
(K2CG3YY00218)
100 V - 120 V
For Korea
(K2CZ3YY00032) <1>
200 V - 240 V
For India
(K2CZ3YY00058) <1>
200 V - 240 V
For Taiwan
(K2CH3YY00009) <1>
200 V - 240 V
AAA/R03 or AAA/LR03 battery <2>
(For remote control unit)
Lens xing screw <4>
(DPHD1005ZA/X1)
Attention
fAfter unpacking the projector, discard the power cord cap and packaging material properly.
fDo not use the supplied power cord for devices other than this projector.
fFor missing accessories, consult your dealer.
fStore small parts in an appropriate manner, and keep them away from small children.
Note
fThe type and number of the supplied power cords vary depending on the country or region where you purchased the
product.
fUse one supplied lens xing screw when attaching the projection lens to the projector. In addition to the one screw to be
used, three spare screws are supplied. Store them appropriately so that they do not get lost.
fThe model numbers of accessories are subject to change without prior notice.

Chapter 1 Preparation — Precautions for use
26 - ENGLISH
Optional accessories
Optional accessories (product name) Model No.
Projection lens Zoom Lens*1 ET-EMW200, ET-EMW300, ET-EMW400, ET-EMW500,
ET-EMS600, ET-EMT700, ET-EMT800
Ceiling Mount Bracket
ET-PKD120H (for High Ceilings)
ET-PKD120S (for Low Ceilings)
ET-PKD130H (for High Ceilings, 6-axis Adjustment)
ET-PKE301B (Projector Mount Bracket)*2
Early Warning Software
(Basic license/3-year license) ET-SWA100 Series*3
Upgrade Kit ET-UK20
Auto Screen Adjustment Upgrade Kit ET-CUK10
Auto Screen Adjustment Upgrade Kit (PC) ET-CUK10P
NFC Upgrade Kit*4 ET-NUK10
Digital Interface Box ET-YFB100G
DIGITAL LINK Switcher ET-YFB200G
Replacement Filter Unit ET-RFM100
*1 The optional Zoom Lens (Model No.: ET-EMW300, ET-EMW500, ET-EMT800) is scheduled to be released in January 2020.
The optional Zoom Lens (Model No.: ET-EMW200) is scheduled to be released in April 2020.
*2 When the projector is mounted to the existing Ceiling Mount Bracket (in combination with the Model No.: ET-PKD120H (for High
Ceilings) or ET-PKD120S (for Low Ceilings), and the Model No.: ET-PKE300B (Projector Mount Bracket)), it is necessary to
replace the drop-prevention wire rope with the one corresponding to this projector. Consult your dealer.
Drop-prevention set (service model no.: DPPW1004ZA/X1)
*3 The sufx of the Model No. differs according to the license type.
*4 The availability of this product varies depending on the country. For details, contact your dealer.
Note
fThe model numbers of optional accessories are subject to change without prior notice.
fThe optional NFC Upgrade Kit (Model No.: ET-NUK10) can be used to enable the NFC function of the projector. Note that
there are some models that have the NFC function enabled from the time of factory shipment, and there are some countries
or regions where the NFC Upgrade Kit cannot be applied.
For the availability of the NFC function in the country or region where you purchased the product, visit the Panasonic website
(https://panasonic.net/cns/projector/) or consult your dealer.
fThe optional accessories may be added or changed without prior notice. The optional accessories described in this
document are as of November 2019.
For the latest information, visit the Panasonic website (https://panasonic.net/cns/projector/).

Chapter 1 Preparation — About your projector
ENGLISH - 27
About your projector
Remote control
1
3
2
4
5
7
6
8
9
10 15
12
11
13
14
16
17
Front Top
Bottom
1 Power standby <v> button
Sets the projector to the state where the projector is turned
off (standby mode) when the <MAIN POWER> switch on the
projector is set to <ON> and in projection mode.
2 Power on <b> button
Sets the projector to projection mode when the <MAIN
POWER> switch on the projector is set to <ON> and the power
is turned off (standby mode).
3 Remote control indicator
Blinks if any button in the remote control is pressed.
4 Lens buttons (<FOCUS>, <ZOOM>, <SHIFT>)
Adjusts the focus, zoom, and lens shift. (xpage 67)
5 <MENU> button/<ENTER> button/asqw buttons
Used to navigate through the menu screen. (xpage 76)
asqw buttons are also used to enter the password in
[SECURITY] or enter characters.
6 <ON SCREEN> button
Switches the on-screen display function on (display) or off
(hide). (xpage 72)
7 Input selection buttons (<RGB1/2>, <DIGITAL LINK>,
<DVI-D>, <SDI>, <HDMI>)
Switches the input signal to project. (xpage 66)
The <VIDEO> button is not used with this projector.
8 <FUNCTION> button
Assigns a frequently used operation as a shortcut button.
(xpage 73)
When the <FUNCTION> button is held down, the [FUNCTION
BUTTON] screen is displayed. (xpage 140)
9 Number (<0> - <9>) buttons
Used for entering an ID number or a password in a multiple
projector environment.
10 <AUTO SETUP> button
Automatically adjusts the image display position and signal level
while projecting the image.
[PROGRESS] is displayed while in automatic adjustment.
(xpage 73)
11 <SHUTTER> button
Used to temporarily turn off the image. (xpage 72)
12 <TEST PATTERN> button
Displays the test pattern. (xpage 73)
13 <STATUS> button
Displays the projector information.
14 <DEFAULT> button
Resets the setting of the displayed sub-menu to the factory
default. (xpage 77)
15 <ID SET> button
Sets the ID number of the remote control in a multiple projector
environment. (xpage 32)
16 Remote control signal transmitter
17 Remote control wired terminal
This is a terminal used to connect to the projector via a cable
when the remote control is used as a wired remote control.
(xpage 32)
Attention
fDo not drop the remote control.
fAvoid contact with liquids or moisture.
fDo not attempt to modify or disassemble the remote control.
fObserve the following instructions that are indicated on the caution label at the back of the remote control:
gDo not use old battery with new one.
gDo not use batteries other than the type specied.

Chapter 1 Preparation — About your projector
28 - ENGLISH
gBe sure the batteries are inserted properly.
For other instructions, read the instructions related to batteries that are described in “Read this rst!”.
Caution label at the back of the remote control
Note
fWhen operating the remote control by directly pointing at the remote control signal receiver of the projector, operate the remote control
within a distance approximately 30 m (98'5") from the remote control signal receiver. The remote control can control at angles of up to ±30°
vertically and horizontally, but the effective control range may be reduced.
fIf there are any obstacles between the remote control and the remote control signal receiver, the remote control may not operate properly.
fThe signal will be reected off the screen. However, the operating range may be limited from light reection loss due to the screen material.
fIf the remote control signal receiver directly receives strong light, such as uorescent light, the remote control may not operate properly. Use
it in a place distant from the light source.
fThe power indicator <ON (G)/STANDBY (R)> will blink if the projector receives a remote control signal.

Chapter 1 Preparation — About your projector
ENGLISH - 29
Projector body
12345
6 6
8
7
7
15
7
16
10
11
12
13
14 66
89
Front Side
Rear
19
17
18
Projection direction
BottomTop
1 Remote control signal receiver (front)
2 Power indicator <ON (G)/STANDBY (R)>
Indicates the status of the power.
3 Light source indicator <LIGHT>
Indicates the status of the light source.
4 Temperature indicator <TEMP>
Indicates the internal temperature status.
5 Filter indicator <FILTER>
Indicates the status of the air lter unit.
6 Adjustable feet
Adjusts the projection angle.
7 Intake vent
8 Exhaust vent
9 Connecting terminals (xpage 31)
10 <MAIN POWER> switch
Turns on/off the main power.
11 Power cord holder
12 <AC IN> terminal
Connect the supplied power cord.
13 Remote control signal receiver (rear)
14 Security slot
This security slot is compatible with the Kensington security
cables.
15 Control panel (xpage 30)
16 Air lter cover
There is the air lter unit inside.
17 Top slide cover
There is the lens lock lever for mounting the projection lens
inside. (xpage 43)

Chapter 1 Preparation — About your projector
30 - ENGLISH
18 NFC touch point
This is the touch point when using the near eld communication
(NFC, Near Field Communication) function. A device such as a
smartphone equipped with the NFC function can be connected
to the projector by holding it near the touch point.
19 Burglar hook port
Attaches a burglar prevention cable, etc.
Attention
fDo not block the ventilation ports (intake and exhaust) of the projector.
The components may deteriorate faster if cooling inside the projector is inhibited.
Note
fThe optional NFC Upgrade Kit (Model No.: ET-NUK10) can be used to enable the NFC function of the projector. Note that there are some
models that have the NFC function enabled from the time of factory shipment, and there are some countries or regions where the NFC
Upgrade Kit cannot be applied.
For the availability of the NFC function in the country or region where you purchased the product, visit the Panasonic website (https://
panasonic.net/cns/projector/) or consult your dealer.
fFor the connection using the NFC function, use the application software “Smart Projector Control” which performs the setting and
adjustment of the projector. For details on the “Smart Projector Control”, visit the Panasonic website (https://panasonic.net/cns/projector/).
rControl panel
7
9
6
5
8
2
10
1
3
4
1 Power on <b> button
Sets the projector to projection mode when the <MAIN
POWER> switch on the projector is set to <ON> and the power
is turned off (standby mode).
2 Power standby <v> button
Sets the projector to the state where the projector is turned
off (standby mode) when the <MAIN POWER> switch on the
projector is set to <ON> and in projection mode.
3 <MENU> button
Displays or hides the main menu. (xpage 76)
Returns to the previous menu when a sub-menu is displayed.
If you press the <MENU> button on the control panel for at least
three seconds while the on-screen display is off (hidden), the
on-screen display is turned on.
4 <SHUTTER> button
Used to temporarily turn off the image. (xpage 72)
5 Information monitor
Displays various statuses and error information. (xpage 186)
6 <INFO> button
Used to operate the information monitor. (xpage 186)
7 <INPUT SELECT> button
Switches the input signal to project. (xpage 66)
8 <ENTER> button
Determines and executes an item in the menu screen.
9 asqw selection buttons
Used to select an item in the menu screen, change the setting,
and adjust the level.
Also used to enter a password in [SECURITY] or enter
characters.
10 <LENS> button
Adjusts the focus, zoom, and lens shift.

Chapter 1 Preparation — About your projector
ENGLISH - 31
rConnecting terminals
3 4 5 61 2
11107 8 9
1 <SDI IN> terminal
This is a terminal to input the SDI signal.
2 <RGB IN> terminal
This is a terminal to input the RGB signal or YCBCR/YPBPR
signal.
3 <DVI-D IN> terminal
This is a terminal to input the DVI-D signal.
4 <HDMI IN> terminal
This is a terminal to input the HDMI signal.
5 <DIGITAL LINK> terminal
This is a terminal to connect a device that transmits video signal
via the LAN terminal. Also, this is the LAN terminal to connect to
the network.
6 <LAN> terminal
This is the LAN terminal to connect to the network.
7 <DC OUT> terminal
This is the USB terminal dedicated for power supply. (DC 5 V,
maximum 2.0 A)
Use this terminal when a power supply is required to wireless
display adapters and wireless LAN/Ethernet converters, etc.
8 <SERIAL/MULTI PROJECTOR SYNC IN> terminal
This is the RS-232C compatible terminal to externally control
the projector by connecting a computer.
This terminal is also used to connect multiple projectors when
balancing the contrast as a combined screen or synchronizing
the effects using the shutter function including the fade in/fade
out with a system using multiple projectors.
9 <SERIAL/MULTI PROJECTOR SYNC OUT> terminal
This is a terminal to output RS-232C compliant signal input to
the <SERIAL/MULTI PROJECTOR SYNC IN> terminal.
This terminal is also used to connect multiple projectors when
balancing the contrast as a combined screen or synchronizing
the effects using the shutter function including the fade in/fade
out with a system using multiple projectors.
10 <REMOTE 1 IN> terminal
This is a terminal to remotely control the projector using the
external control circuit.
11 <REMOTE 2 IN> terminal/<REMOTE 2 OUT> terminal
These are terminals to connect the remote control for serial
control in a multiple projector environment.
Attention
fWhen a LAN cable is directly connected to the projector, the network connection must be made indoors.
fWhen the [PROJECTOR SETUP] menu → [STANDBY MODE] is set to [NORMAL], power can be supplied by using the <DC OUT> terminal
even while the projector is in standby mode. If [ECO] is set, power cannot be supplied in standby mode.
fTo transmit the Ethernet and serial control signals using the <DIGITAL LINK> terminal, set the [NETWORK] menu → [NETWORK
CONTROL] → [TYPE SELECT] to [DIGITAL LINK] or [LAN & DIGITAL LINK].
fTo transmit the Ethernet signal using the <LAN> terminal, set the [NETWORK] menu → [NETWORK CONTROL] → [TYPE SELECT] to
[LAN] or [LAN & DIGITAL LINK].
fThe <DIGITAL LINK> terminal and the <LAN> terminal are connected inside of the projector when the [NETWORK] menu → [NETWORK
CONTROL] → [TYPE SELECT] is set to [LAN & DIGITAL LINK]. Do not directly connect the <DIGITAL LINK> terminal and the <LAN>
terminal using a LAN cable. Construct the system so that it is not connected to the same network via the peripherals such as the hub or the
twisted-pair-cable transmitter.

Chapter 1 Preparation — Preparing the remote control
32 - ENGLISH
Preparing the remote control
Inserting and removing the batteries
(ii)
(i)
Fig. 1 Fig. 2
1) Open the cover. (Fig. 1)
2) Insert the batteries and close the cover (insert the mside first). (Fig. 2)
fWhen removing the batteries, perform the steps in reverse order.
When using the multiple projectors
When you use the multiple projectors together, you can operate all the projectors simultaneously or each projector
individually using a single remote control, if a unique ID number is assigned to each projector.
When using the projectors by setting the ID numbers, set the ID number of the projector body after initial settings
have been completed. Then, set the ID number of the remote control. For initial settings, refer to “When the initial
setting screen is displayed” (xpage 57).
The factory default ID number of the projector (projector body and remote control) is set to [ALL], so you can use
it as it is. Set the ID numbers of the projector body and remote control as necessary.
For details on setting the ID number of the remote control, refer to “Setting ID number of the remote control”
(xpage 74).
Note
fSet the ID number of the projector body from the [PROJECTOR SETUP] menu → [PROJECTOR ID].
Connecting the remote control to the projector with a cable
To simultaneously control multiple projectors next to each other with one remote control, connect the remote
control with a commercially available M3 stereo mini jack cable using the <REMOTE 2 IN>/<REMOTE 2 OUT>
terminals.
The remote control is effective even in places where an obstacle stands in the light path or where devices are
susceptible to outside light.
Connecting terminals
Connecting to a second projector
M3 stereo mini jack cable (commercially available)
Remote control
Connecting to the remote control wired
terminal
Attention
fUse a cable that is 15 m (49'3") or shorter, with 2 core shielded. The remote control may not operate when the length of the cable exceeds
15 m (49'3") or when the shielding of the cable is inadequate.

ENGLISH - 33
Chapter 2 Getting Started
This chapter describes things you need to do before using the projector such as the setup and connections.

Chapter 2 Getting Started — Setting up
34 - ENGLISH
Setting up
Usable outlet
This projector supports AC 100 V to AC 240 V as the power supply. A grounded outlet supporting 15 A is required
with either voltage.
The shape of the usable outlet differs depending on the power supply. Following illustrations are examples.
2P/3W 15 A 250 V
2P/3W 15 A 250 V
2P/3W 20 A 250 V
2P/3W 15 A 125 V
2P/3W 15 A 250 V
Attention
fUse the supplied power cord and ground at the outlet.
fUse the power cord matching the used power supply voltage and outlet shape.
Note
fThe supplied power cords vary depending on the country or region where you purchased the product.
Installation mode
The installation modes of the projector are as follows. Set [FRONT/REAR]/[FLOOR/CEILING] in the
[PROJECTOR SETUP] menu → [PROJECTION METHOD] (xpage 123) depending on the installation mode.
Setting on a desk/oor and projecting forward Setting on a desk/oor and projecting from rear
(Using the translucent screen)
Menu item Setting value Menu item Setting value
[FRONT/REAR] [FRONT] [FRONT/REAR] [REAR]
[FLOOR/CEILING] [AUTO] or [FLOOR] [FLOOR/CEILING] [AUTO] or [FLOOR]

Chapter 2 Getting Started — Setting up
ENGLISH - 35
Mounting on the ceiling and projecting forward Mounting on the ceiling and projecting from rear
(Using the translucent screen)
Menu item Setting value Menu item Setting value
[FRONT/REAR] [FRONT] [FRONT/REAR] [REAR]
[FLOOR/CEILING] [AUTO] or [CEILING] [FLOOR/CEILING] [AUTO] or [CEILING]
Portrait setting and projecting forward Portrait setting and projecting from rear
(Using the translucent screen)
Menu item Setting value Menu item Setting value
[FRONT/REAR] [FRONT] [FRONT/REAR] [REAR]
[FLOOR/CEILING] Set in accordance with the image
to project. [FLOOR/CEILING] Set in accordance with the image to project.
Note
fIn the portrait setting, the on-screen menu is displayed sideways.
To display the on-screen menu vertically, go to the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] (xpage 113) and change the
[OSD ROTATION] setting.
fThe projector has a built-in angle sensor. The attitude of the projector is automatically detected by setting [FLOOR/CEILING] to [AUTO] in
the [PROJECTOR SETUP] menu → [PROJECTION METHOD].
rAngle sensor
The range of the installation attitude that is detected by the angle sensor built-in the projector is as follows.
30°
30°
Projection direction
Floor standing installation
Floor standing installation
Ceiling mount installation

Chapter 2 Getting Started — Setting up
36 - ENGLISH
Parts for installation (optional)
The optional Ceiling Mount Bracket is required. The Ceiling Mount Bracket (Model No.: ET-PKD120H (for High
Ceilings), ET-PKD120S (for Low Ceilings), ET-PKD130H (for High Ceilings, 6-axis Adjustment)) is used together
with the Ceiling Mount Bracket (Model No.: ET-PKE301B (Projector Mount Bracket)).
Model No.: ET-PKD120H (for High Ceilings), ET-PKD120S (for Low Ceilings), ET-PKD130H (for High
Ceilings, 6-axis Adjustment), ET-PKE301B (Projector Mount Bracket)
When the projector is mounted to the existing Ceiling Mount Bracket (in combination with the Model No.:
ET-PKD120H (for High Ceilings) or ET-PKD120S (for Low Ceilings), and the Model No.: ET-PKE300B (Projector
Mount Bracket)), it is necessary to replace the drop-prevention wire rope with the one corresponding to this
projector. Consult your dealer.
Drop-prevention set (service model no.: DPPW1004ZA/X1)
fBe sure to use the Ceiling Mount Bracket specied for this projector.
fRefer to the Installation Instructions of the Ceiling Mount Bracket when installing and setting up the projector.
Attention
fTo ensure projector performance and security, installation of the Ceiling Mount Bracket must be carried out by your dealer or a qualied
technician.
Projected image and throw distance
Install the projector referring to the projected image size and projection distance.
Attention
fBefore setting up, read “Precautions for use” (xpage 20).
Figure of projected image and throw distance
SD
L (LW/LT)
L1
L1
L (LW/LT)
SW SH
H
SH
SW
Projected image
Screen
Screen
Note
fThis illustration is prepared on the assumption that the projected image size and position have been aligned to t full in the screen.
SH Projected image height
SW Projected image width
SD Projected image size
HDistance from the lens center to the bottom edge of the projected image
L*1 (LW/LT)*2 Projection distance (distance from the front end of the projection lens to the screen)
L1 Lens protrusion dimension (distance from the front surface of the projector to the front end of the projection
lens)
*1 For details about calculating the projection distance, refer to “Formula for calculating the projection distance per projection lens” (xpage 42).
*2 LW: Minimum projection distance when the Zoom Lens is used
LT: Maximum projection distance when the Zoom Lens is used

Chapter 2 Getting Started — Setting up
ENGLISH - 37
(Unit: m)
Projection lens Model No. Lens protrusion dimension (L1) (approximate value)
ET-EMW200 0.125
ET-EMW300 0.124
ET-EMW400 0.124
ET-EMW500 0.125
ET-EMS600 0.117
ET-EMT700 0.168
ET-EMT800 0.174
Note
fFor the adjustment range of the projected image position with the lens shift, refer to “Lens shift range” (xpage 71).
[GEOMETRY] projection range
[VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above)
Screen Screen
Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above)
Screen
Projection distance
Arc radius
Screen
Projection distance
Arc radius
Arc center
Screen
Projection distance
Arc radius
Arc center
Screen
Projection distance
Arc radius

Chapter 2 Getting Started — Setting up
38 - ENGLISH
Standard status
Projection
lens Model
No.
Only [KEYSTONE] used [KEYSTONE] and [CURVED CORRECTION] used together Only [CURVED
CORRECTION] used
Vertical
keystone
correction
angle α (°)
Horizontal
keystone
correction
angle β (°)
Vertical
keystone
correction
angle α (°)
Horizontal
keystone
correction
angle β (°)
Min. value of
R2/L2
Min. value of
R3/L3
Min. value of
R2/L2
Min. value of
R3/L3
ET-EMS600 ±40 ±15 ±20 ±15 1.1 2.6 0.6 1.5
ET-EMW200 ±14 ±8 ― ― ― ― ― ―
ET-EMW300 ±14 ±8 ― ― ― ― ― ―
ET-EMW400 ±22 ±15 ±8 ±8 2 4.8 1.2 2.9
ET-EMW500 ±22 ±15 ±8 ±8 1.6 3.9 0.9 2.3
ET-EMT700 ±40 ±15 ±20 ±15 0.8 1.5 0.4 0.8
ET-EMT800 ±40 ±15 ±20 ±15 0.4 0.7 0.2 0.4
When using the optional Upgrade Kit (Model No.: ET-UK20)
Projection
lens Model
No.
Only [KEYSTONE] used*1 [KEYSTONE] and [CURVED CORRECTION] used together Only [CURVED
CORRECTION] used
Vertical
keystone
correction
angle α (°)
Horizontal
keystone
correction
angle β (°)
Vertical
keystone
correction
angle α (°)
Horizontal
keystone
correction
angle β (°)
Min. value of
R2/L2
Min. value of
R3/L3
Min. value of
R2/L2
Min. value of
R3/L3
ET-EMS600 ±40 ±40 ±20 ±15 0.9 2 0.5 1.1
ET-EMW200 ±14 ±8 ― ― ― ― ― ―
ET-EMW300 ±14 ±8 ― ― ― ― ― ―
ET-EMW400 ±22 ±15 ±8 ±8 1.5 3.7 0.9 2.2
ET-EMW500 ±22 ±15 ±8 ±8 1.2 3 0.7 1.7
ET-EMT700 ±40 ±40 ±20 ±15 0.6 1.1 0.3 0.6
ET-EMT800 ±40 ±40 ±20 ±15 0.3 0.6 0.2 0.3
*1 When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding total of 55°.
Note
fWhen [GEOMETRY] is used, the focus of the entire screen may be lost as correction increases.
fMake the curved screen a circular arc shape with one part of a perfect circle removed.
fAdjustment range of the [GEOMETRY] items may not match the listed projection range depending on the projection lens. Use this projector
within the projection range, otherwise the correction may not work.
