LCD Projector
PT-AE100U / PT-AE100E

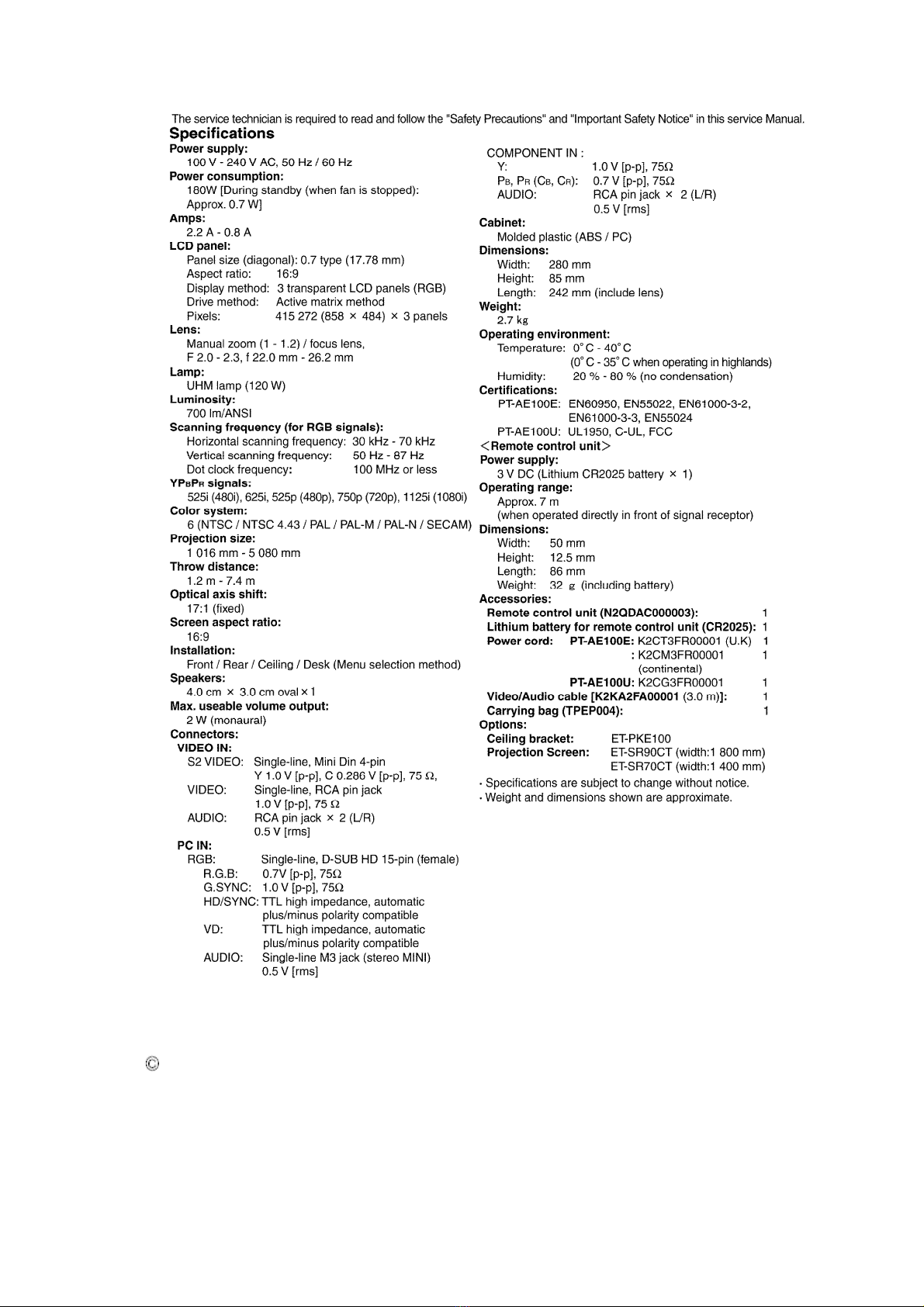

SPECIFICATIONS
1

LCD Projector 1
1. Safety Precautions 3
1.1. General Guidelines 3
1.2. Leakage Current Check 4
1.3. UV Precaution and UHM Lamp Precautions 4
2. Ext Option 5
2.1. Procedure to enter EXT OPTION 5
2.2. EXT OPTION Menu and Functions 5
2.3. Canceling EXT OPTION 7
3. Self-Check Mode 7
3.1. Procedure to enter the self-check mode 7
3.2. Self Check Display and Contents 7
3.3. Canceling the self-check mode 7
4. Service Mode 7
4.1. Procedure to enter the service mode 8
4.2. Canceling the service mode 8
5. Disassembly Instructions 8
5.1. Printed Circuit Board and Main Parts Location 8
5.2. Removal of Upper Case 10
5.3. Removal of A-P.C.Board 11
5.4. Removal of K-Module 11
5.5. Removal of S-P.C.Board 12
5.6. Removal of R-P.C.Board 13
5.7. Removal of B-Module 13
5.8. Removal of P-Module 14
5.9. Removal of Lamp Unit 15
5.10. Removal of Analysis Block, LCD Block and Lens Block 16
5.11. Replacement of Polarizer 17
5.12. Replacement of PBS Array (Analysis Block) 18
6. Measurement and Adjustments 20
6.1. Adjustment Procedure Flowchart 20
6.2. Cautions for Adjustment 20
6.3. Setting Before Adjustment 20
6.4. Software for Adjustment 20
6.4.1. Outline 20
6.4.2. Operating Procedure 21
6.4.3. Port Selection Menu 21
6.4.3.1. Explanation of Buttons 21
6.4.4. Data Send/Receive Menu 22
6.4.4.1. Explanation of Buttons 22
6.4.4.2. Receiving and sending of the data 23
6.4.5. Adjustment Menu 23
6.4.5.1. Explanation of Buttons 23
6.5. Flicker Adjustment 24
6.5.1. Adjustment Menu 24
6.5.2. Explanation of Buttons 25
6.5.3. Equipment to be used 26
6.5.4. Adjustment Procedure 26
6.6. Input Level Adjustment (RGB) 26
6.6.1. Adjustment Menu 26
6.6.2. Explanation of Buttons 27
svcdoc
I

6.6.3. Equipment to be used 27
6.6.4. Adjustment Procedure 27
6.7. Input Level Adjustment (YPBPR) 27
6.7.1. Adjustment Menu 27
6.7.2. Explanation of Buttons 27
6.7.3. Equipment to be used 28
6.7.4. Adjustment Procedure 28
6.8. Input Level Adjustment (VIDEO) 28
6.8.1. Adjustment Menu 28
6.8.2. Explanation of Buttons 28
6.8.3. Equipment to be used 28
6.8.4. Adjustment Procedure 28
6.9. Ghost Adjustment 28
6.9.1. Adjustment Menu 28
6.9.2. Explanation of Buttons 29
6.9.3. Equipment to be used 29
6.9.4. Adjustment Procedure 30
7. Troubleshooting 30
8. Interconnection Block Diagram 37
8.1. Interconnection Block Diagram (1/2) 37
8.2. Interconnection Block Diagram (2/2) 37
9. Block Diagram 37
9.1. Power Supply 37
9.2. Signal Processing (1/2) 37
9.3. Signal Processing (2/2) 37
10. Schematic Diagram 37
10.1. A-P.C.Board (1/4) 38
10.2. A-P.C.Board (2/4) 38
10.3. A-P.C.Board (3/4) 38
10.4. A-P.C.Board (4/4) 38
10.5. S-P.C.Board, R-P.C.Board 38
10.6. B-Module 38
11. Circuit Boards 38
11.1. A-P.CBoard (Foil Side) S-P.C.Board 38
11.2. A-P.C.Board (Component Side) 38
12. Terminal guide of ICs and transistors 38
13. Exploded Views 39
14. Replacement Parts List 40
15. Schematic Diagram for printing with A4 size 77
svcdoc
II

2001 Matsushita Electric Industrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law.
2

1. Safety Precautions
1.1. General Guidelines
- For continued safety, no modification of any circuit must be attempted.
- Unplug the power cord from the power outlet before disassembling this
projector.
- It is advisable to use an isolation transformer in the AC power line
before the service.
- Observe the original lead dress during the service. If a short circuit is
found, replace all the parts overheated or damaged by the short circuit.
- After the service, all the protective devices such as insulation barriers,
insulation papers, shields, and isolation R-C combinations must be
properly installed.
- After the service, check the leakage current to prevent the customer
3

from getting an electric shock.
1.2. Leakage Current Check
1. Prepare the measuring circuit as shown in Fig.1.
Be sure to use a voltmeter having the performance described in Table
1.
Fig. 1
Table 1
Fig. 2
2. Assemble the circuit as shown in Fig. 2. Plug the power cord in a
power outlet.
3. Connect M1 to T1 according to Fig. 2 and measure the voltage.
4. Change the connection of M1 from T1 to T2 and measure the voltage
again.
5. The voltmeter must read 0.375 V or lower in both of steps 3 and 4. This
means that the current must be 0.75 mA or less.
6. If the reading is out of the above standard, the projector must be
repaired and rechecked before returning to the customer because of a
possibility of an electric shock.
4

1.3. UV Precaution and UHM Lamp Precautions
- Be sure to unplug the power cord from the power outlet when replacing
the lamp.
- Because the lamp reaches a very high temperature during its operation,
wait until it cools completely when replacing the Lamp Unit.
- The lamp emits small amounts of UV-radiation, avoid direct-eye contact
with the light.
- Because the high pressure lamp involves a risk of explosion, never
touch the lamp wire lead during the service. (See Fig. 3)
Fig. 3
2. Ext Option
This projector has EXT OPTION in addition to standard on-screen menus.
- There are SELF CHECK and SERVICE MODE for service, etc.
2.1. Procedure to enter EXT OPTION
1. Press "MENU" button on the remote control unit to display "MENU"
screen, then select "OPTION" and press "ENTER" button.
2. Select "OSD" on "OPTION" menu and press "ENTER" button 3
seconds or longer.
MENU OPTION OSD
2.2. EXT OPTION Menu and Functions
5

- FREEZE MSG
Switching ON/OFF "FREEZE" on-screen display
- PIC.SHIFT
Switching ON/OFF the antipersistence function
- Shifts the picture slightly (by one dot) when every 60 minutes. (one dot
shifting three times, one dot shifting three times in reverse direction,
and repeats them alternately.)
- RUNTIME PRT
Switching ON/OFF the shutdown when the operation time for the lamp
unit is 2 000 hours or longer
- FAN CONTROL
Setting the cooling fan motor rotation mode
- NORMAL: Normal setting
- HIGH: Highlands mode
- FULL: High-speed
Notes:
- Must set HIGH when using the projector at highlands as 1 400 meters
or higher above sea level.
- Not to use the projector at highlands exceeding 2 700 meters above sea
level.
- AUTOSETUP
Setting AUTO SETUP mode
- NORMAL: To set the normal mode (the dot clock is adjusted strictly)
- SPECIAL: To set the special mode (the dot clock is adjusted roughly)
* Do not change the initial setting (NORMAL).
- SELF CHECK
6

To enter the self-check mode
- SERVICE MODE
To enter the service mode
2.3. Canceling EXT OPTION
Press "MENU" button on the remote control unit.
3. Self-Check Mode
This mode is used to narrow down the location of the failure.
3.1. Procedure to enter the self-check mode
Select "SELF CHECK" on "EXT OPTION" menu and press "ENTER" button on the remote control unit.
3.2. Self Check Display and Contents
3.3. Canceling the self-check mode
Press "MENU" button on the remote control unit.
4. Service Mode
This mode is used to display three kinds of test patterns [Horizontal lines, Vertical lines, Dots and
White (No pattern)] in the four colors (White, Red, Green and Blue).
Note:
- On the service mode, displays above patterns by each color without
test equipment such as PC or SG. Use the service mode for simplified
7

adjustments by your eyes and so on.
4.1. Procedure to enter the service mode
Select "SERVICE MODE" on "EXT OPTION" menu and press "ENTER" button on the remote control
unit.
Note:
- In the service mode, pressing the up-arrow " " or down-arrow " "
button on the remote control unit allows the testpattern selection and
the left-arrow " " or right-arrow " " button the color selection (White /
Red / Green / Blue).
4.2. Canceling the service mode
Press "MENU" button on the remote control unit.
5. Disassembly Instructions
Warning:
- Be sure to unplug the power cord from the power outlet before
disassembling this projector.
Caution:
- While turning over a printed circuit board, be sure to put a insulating
material under it to prevent a short circuit.
- Printed circuit boards and wires must not be pulled forcibly, but be
handled carefully.
- Connectors also must be handled carefully.
- After repairing this projector, be sure to put back the wires and
connectors to the original condition.

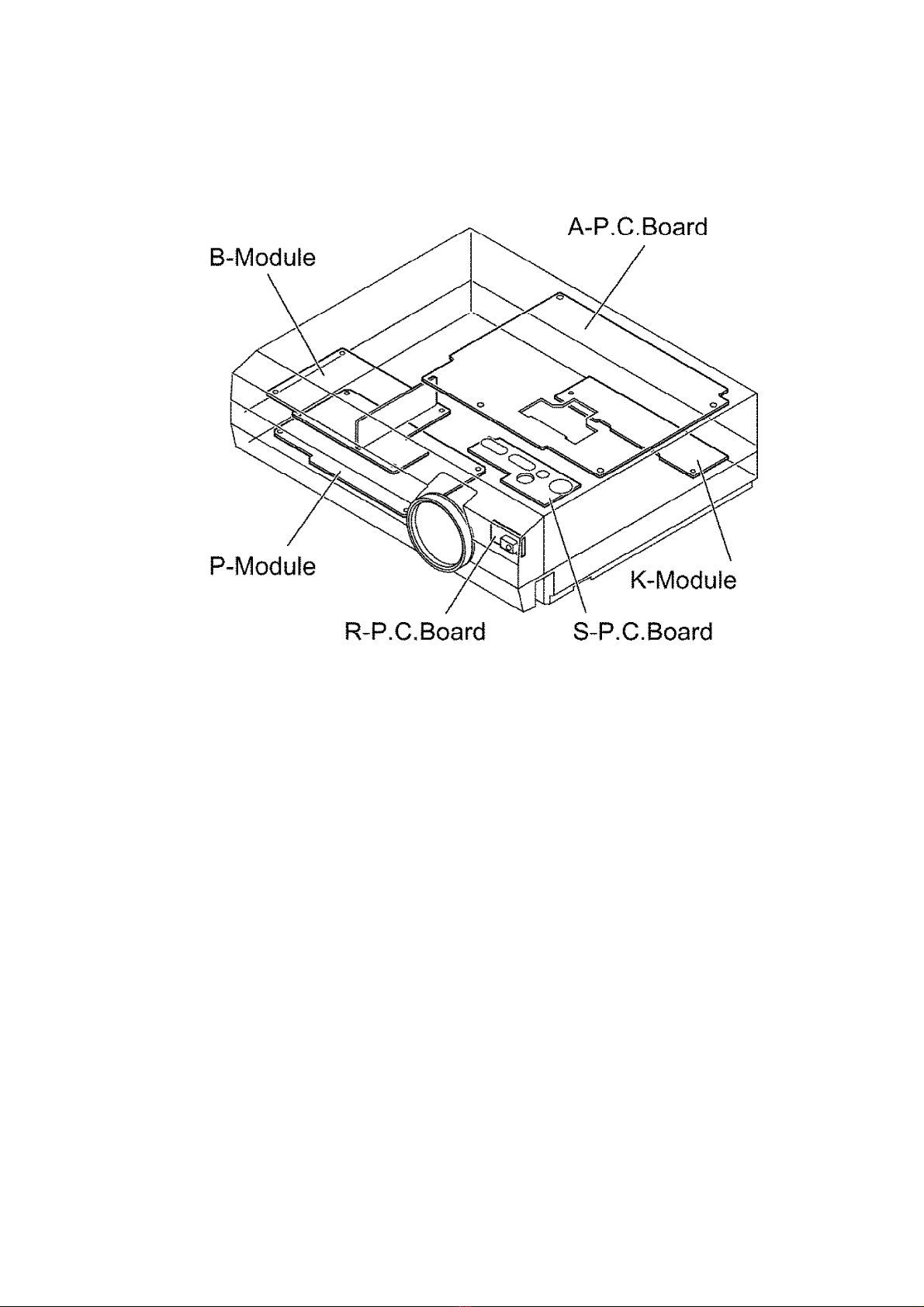

5.1. Printed Circuit Board and Main Parts Location
Electrical Parts
8

Optical Parts
9

5.2. Removal of Upper Case
1. Turn the projector upside down.
2. Unscrew the 8 screws fixing the upper case.
10

3. Return the projector to the normal position.
4. Remove the upper case.
5.3. Removal of A-P.C.Board
1. Remove the upper case according to the section 5.2. "Removal of
Upper Case".
2. Disconnect the connectors from/to the A-P.C.Board.
3. Unscrew the 5 screws and remove the terminal cover.
4. Unscrew the 3 screws and remove the A-P.C.Board.

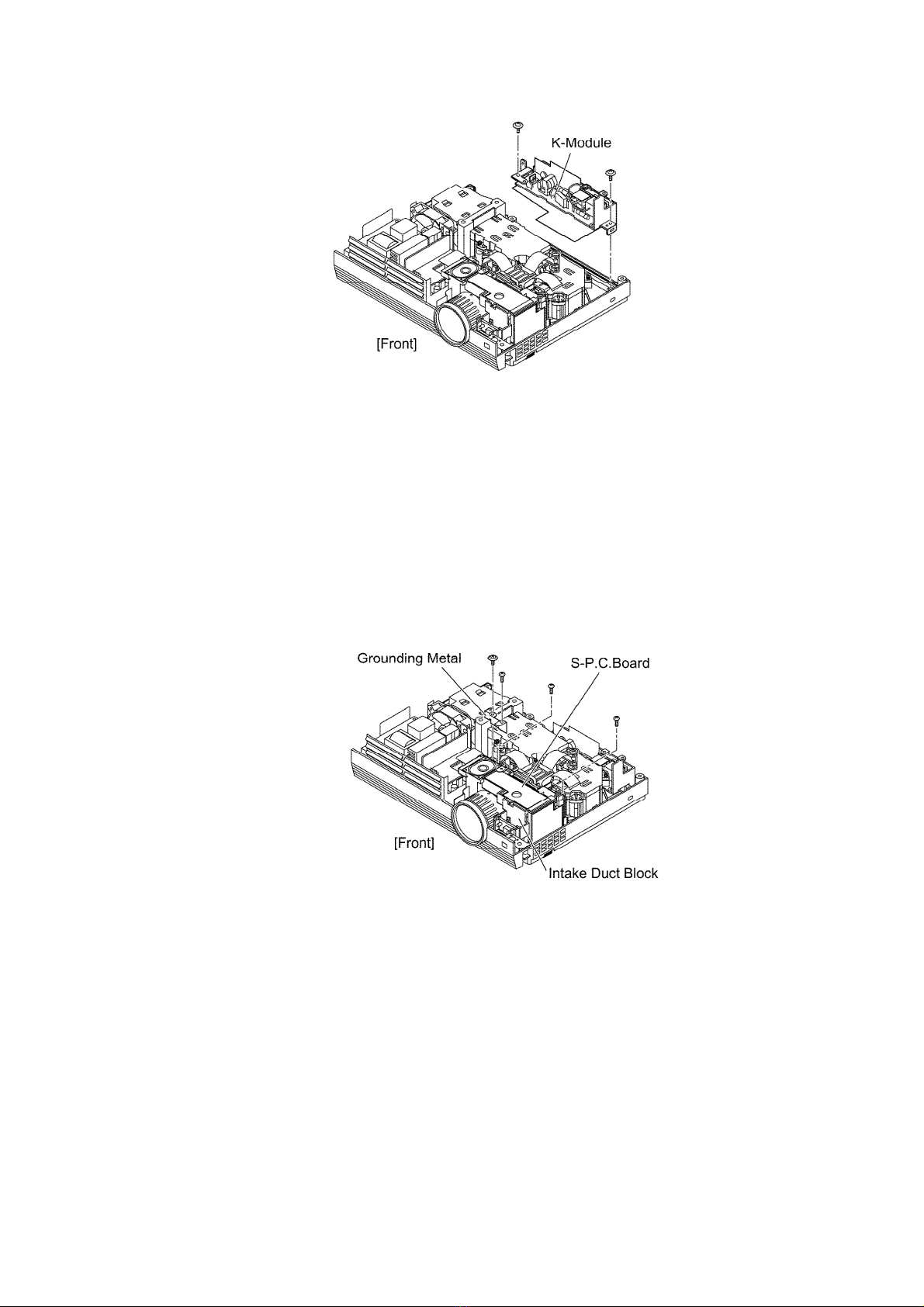

5.4. Removal of K-Module
1. Remove the upper case according to the section 5.2. "Removal of
Upper Case".
2. Remove the A-P.C.Board according to the section 5.3. "Removal of A-
P.C.Board".
3. Disconnect the 1 connector.
4. Unscrew the 2 screws and remove the K-Module.
11

5.5. Removal of S-P.C.Board
1. Remove the upper case according to the section 5.2. "Removal of
Upper Case".
2. Remove the A-P.C.Board according to the section 5.3. "Removal of A-
P.C.Board".
3. Unscrew the 2 screws and remove the grounding metal.
4. Unscrew the 2 screws and remove the intake duct block.
5. Disconnect the 4 connectors.

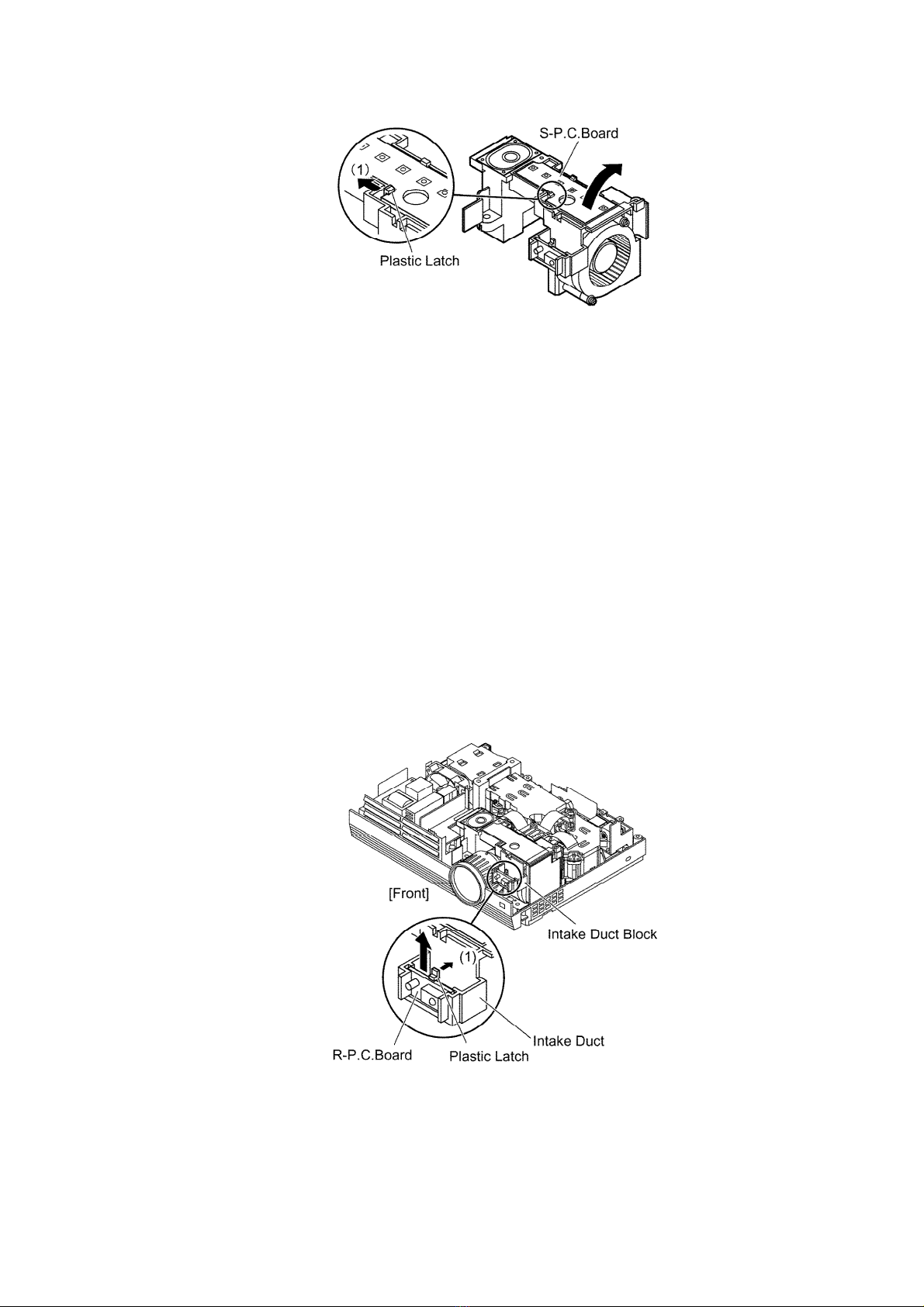

6. While pressing the plastic latch of the intake duct in the direction of
arrow (1), remove the S-P.C.Board.
12

Note:
- Work with care because the plastic latch may be damaged if it is
overforced.
5.6. Removal of R-P.C.Board
1. Remove the intake duct block according to the steps 1 through 4 in
the section 5.5. "Removal of S-P.C.Board".
2. Disconnect the 4 connectors on back of the S-P.C.Board.
3. While pressing the plastic latch of the intake duct in the direction of
arrow (1), remove the R-P.C.Board.
Note:
- Work with care because the plastic latch may be damaged if it is
overforced.
5.7. Removal of B-Module
1. Remove the upper case according to the section 5.2. "Removal of
Upper Case".
13

2. Remove the A-P.C.Board according to the section 5.3. "Removal of A-
P.C.Board".
3. Unscrew the 2 screws and remove the lamp unit terminal.
4. Unscrew the 3 screws.
5. While pressing to close the cap of the resinous stand, remove the B-
Module.
5.8. Removal of P-Module
1. Remove the intake duct block according to the steps 1 through 4 in
the section 5.5. "Removal of S-P.C.Board".
2. Remove the B-Module according to the section 5.7. "Removal of B-
Module".
3. Unscrew the 1 screw.
4. Lift the P-Module block slightly, shifting it toward the lens as shown in
the arrow, take it upward.
14

5. Remove the barrier.
6. Unscrew the 4 screws and remove the P-Module.
5.9. Removal of Lamp Unit
1. Turn the projector upside down.
2. Loosen the 2 screws until they idle, lift the lamp unit cover to remove.
15

3. Unscrew the 2 screws fixing the lamp unit and remove the lamp unit.
5.10. Removal of Analysis Block, LCD Block and Lens Block
1. Remove the lamp unit according to the section 5.9. "Removal of Lamp
Unit".
2. Remove the intake duct block according to the steps 1 through 4 in
the section 5.5. "Removal of S-P.C.Board".
3. Unscrew the 1 screw and separate the thermofuse from the analysis
block.
4. Unscrew the 3 screws and remove the analysis/LCD/lens block.
16

5. Unscrew the 4 screws A to separate the lens block and the LCD block,
unscrew the 4 screws B to separate the LCD block and the analysis
block.
5.11. Replacement of Polarizer
1. Remove the upper case according to the section 5.2. "Removal of
Upper Case".
2. Remove the A-P.C.Board according to the section 5.3. "Removal of A-
P.C.Board".
3. Mark positions of the polarizer (R/G/B).
Note:
- Mark accurately as possible because the marks will be used for
resetting the polarizer position.
4. Unscrew each screw fixing the polarizer and remove the polarizer.
5. Attach a new polarizer and align it with the mark.
6. Tighten the screw fixing the polarizer with care not to move its
17

position.
5.12. Replacement of PBS Array (Analysis Block)
1. Remove the upper case according to the section 5.2. "Removal of
Upper Case".
2. Remove the A-P.C.Board according to the section 5.3. "Removal of A-
P.C.Board".
3. Unscrew the 5 screws.
4. Disconnect 2 joint hooks of the analysis cases and remove the
analysis case (upper).
18
