Panasonic RF-2400 User manual

ORDERNO. AD0102029C1
J1
Radio
RF-2400
Colour
(S)............Silver Type
Areas
(P)............U.S.A.
(PC)..........Canada.
SPECIFICATIONS
Specifications
1

RadioFrequencyrange:
FM; 88.0- 108.0MHz
AM; 525 - 1710kHz
IntermediateFrequency:
FM; 10.7MHz
AM; 455kHz
Sensitivity:
FM; 3.55 V/50mWoutput / (-3dB
limit sens.)
AM; 178 V/m/50mWoutput /
(max.sens.)
Speaker: 10cm (4”)
Output jack: Earphone
Power requirement:
AC; 120V, 60Hz
Battery; DC6V(fourR6/LR6, AA, UM-3
batteries)
Power consumption: 3W
Dimensions(W×H×D): 234×122×82mm / (9-1/4”×4-3/4”×
3-1/4”)
Mass (without batteries): 670g(1lb. 7.6oz.)
Note: / Specificationsare subject tochangewithout notice. /
Mass and dimensionsare approximate.
[Power consumption instandbymode: 0.4W]
2001 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
1. Cabinet Parts Location
2

2. Replacement Parts List
Notes:
-Important safetynotice:
Components identified bymark have special characteristics
important for safety. / Furthermore, special parts which have
purposes of fire-retardant (resistors), high-qualitysound
(capacitors), low-noise / (resistors), etc. are used. / When
replacing anyof components, be sure to use onlymanufactures
specified parts showninthe parts list.
-The parenthesized indications inthe Remarks columns specifythe
areas. (Refer to the cover page for area.)/ Parts without these
indications can be used for all areas.
-“<IA>, <IB>”marks inRemarks indicates languages of instruction
manuals. / <IA>:English / <IB>:English, Canadian French
Ref. No. PartNo. PartName& Description Pcs Remarks
1RGWW0004-S KNOB,TUNING 1
2 RKKW0003-H BATTERYCOVER 1
3 XEARK160DA-C ROD ANTENNA 1
4XYN3+F8FY SCREW 1
A1 RJA0065-1D AC CORD 1
A2 RQT5882-P O/I BOOK 1 <IA>(P)
A2 RQT5883-C O/I BOOK 1 <IB>(PC)
K010200000YH
3

ORDERNO. AD0104103C3
FM-AM2-BAND RECEIVER
RF-2400
Colour
(S)............Silver Type
Areas
(GN)..........Oceania.
SPECIFICATIONS
Specifications
1

Radiofrequencyrange:
FM; 87.50-108.00MHz
AM; 520-1610kHz
Intermediatefrequency:
FM; 10.7MHz
AM; 459kHz
Sensitivity:
FM; 3.16 V/50mWoutput (-3dB
limit sens.)
AM; 141 V/m/50mWoutput (Max.
sens.)
Output jack: Earphone, 8
Speaker: 10cm
Power output: 770mW(RMS...max.)
Power requirement:
AC; 230-240V, 50Hz
DC; 6V (fourR6/LR6, AA, UM-3
batteries)
Power consumption: 3W
Dimensions(W×H×D): 234×122×82mm
Mass (without batteries): 670g
Playtime:
(Whenusedat 25°C on aflat, stablesurface)
Panasonicalkalinedrycell
battery: AM; About 47 hours
Fm; About 36 hours
Theplaytime maybeless depending on theoperating
conditions.
Note:
Specificationsare subject tochangewithout notice.
Mass and dimensionsare approximate.
Suppliedaccessory: AC mainslead(RJA0035-
X)...1pc.
2001 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
1. Operation Checks and Component Replacement
Procedures
-Thissection describes procedures for checking the operation of
the major printed circuitboards and replacing the main
2

components.
-For reassemblyafter operation checks or replacement, reverse the
respective procedures. Special reassemblyprocedures are
described onlywhen required.

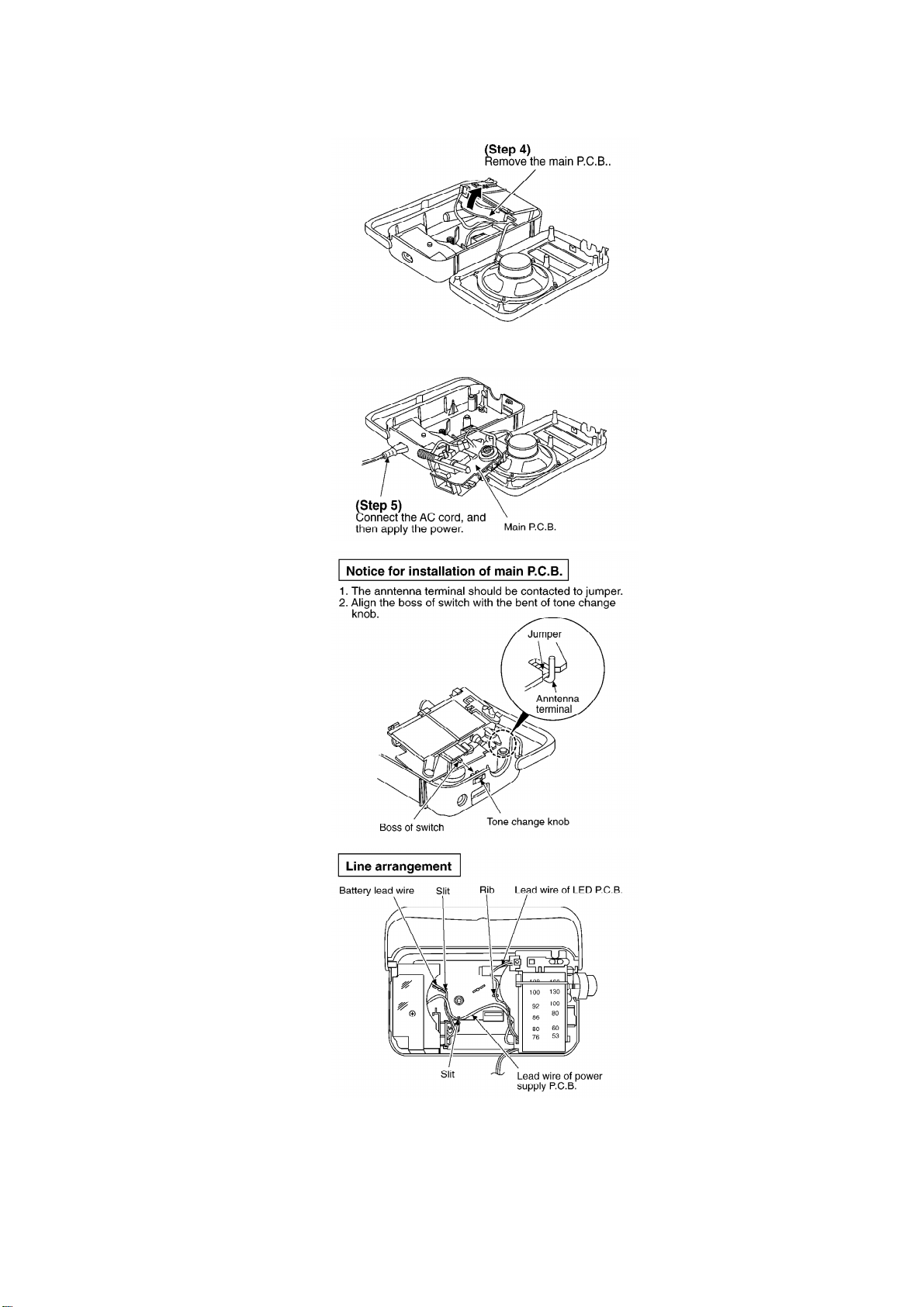

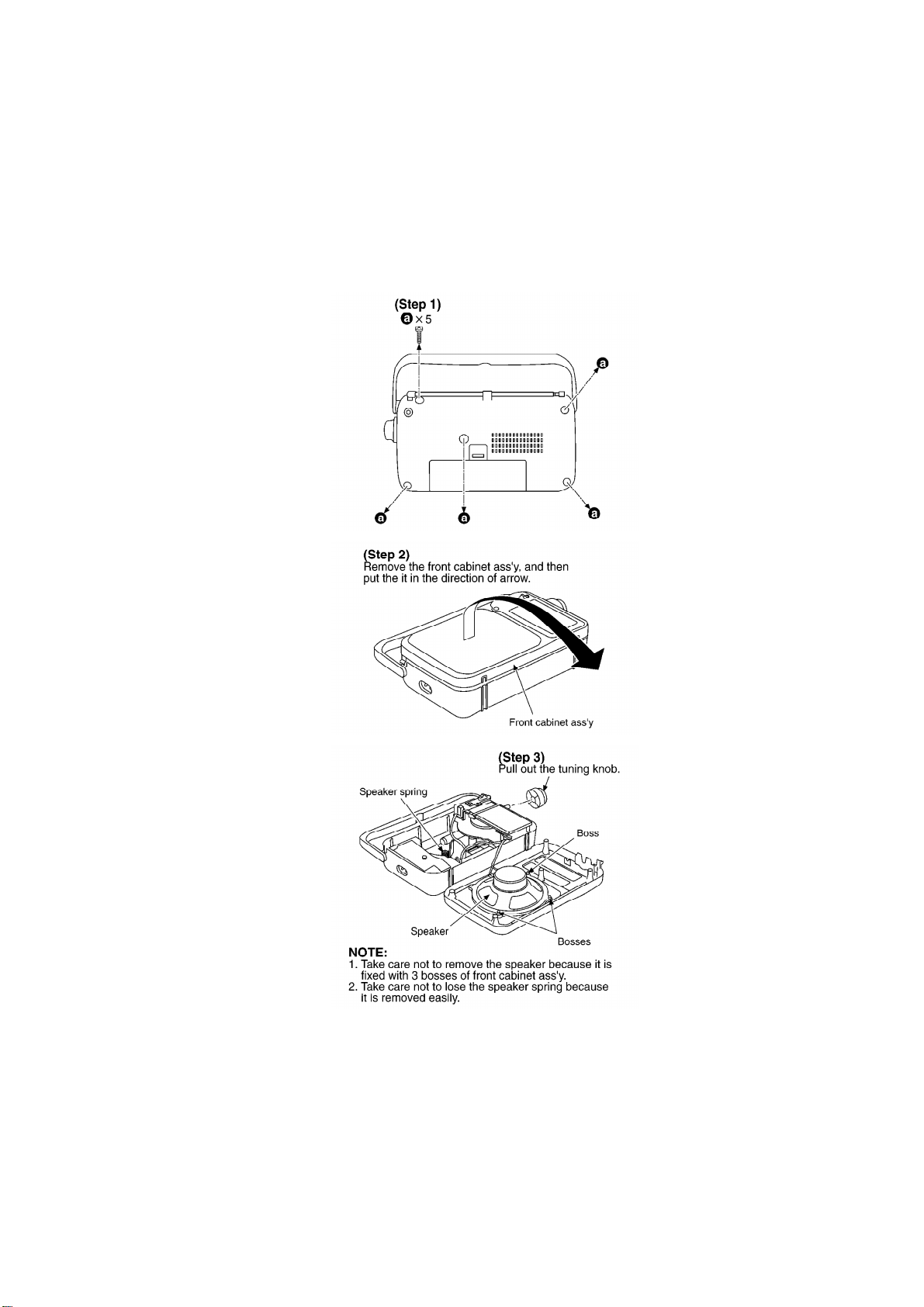

1.1. Checking for the mainP.C.B.
3

-Check the mainP.C.B. as shownbelow.
1.2. Replacement for the handle
-Follow the (Step 1) , (Step 2) of item 1.1.
4

1.3. Replacement for the speaker
-Follow the (Step 1) , (Step 2) of item 1.1.

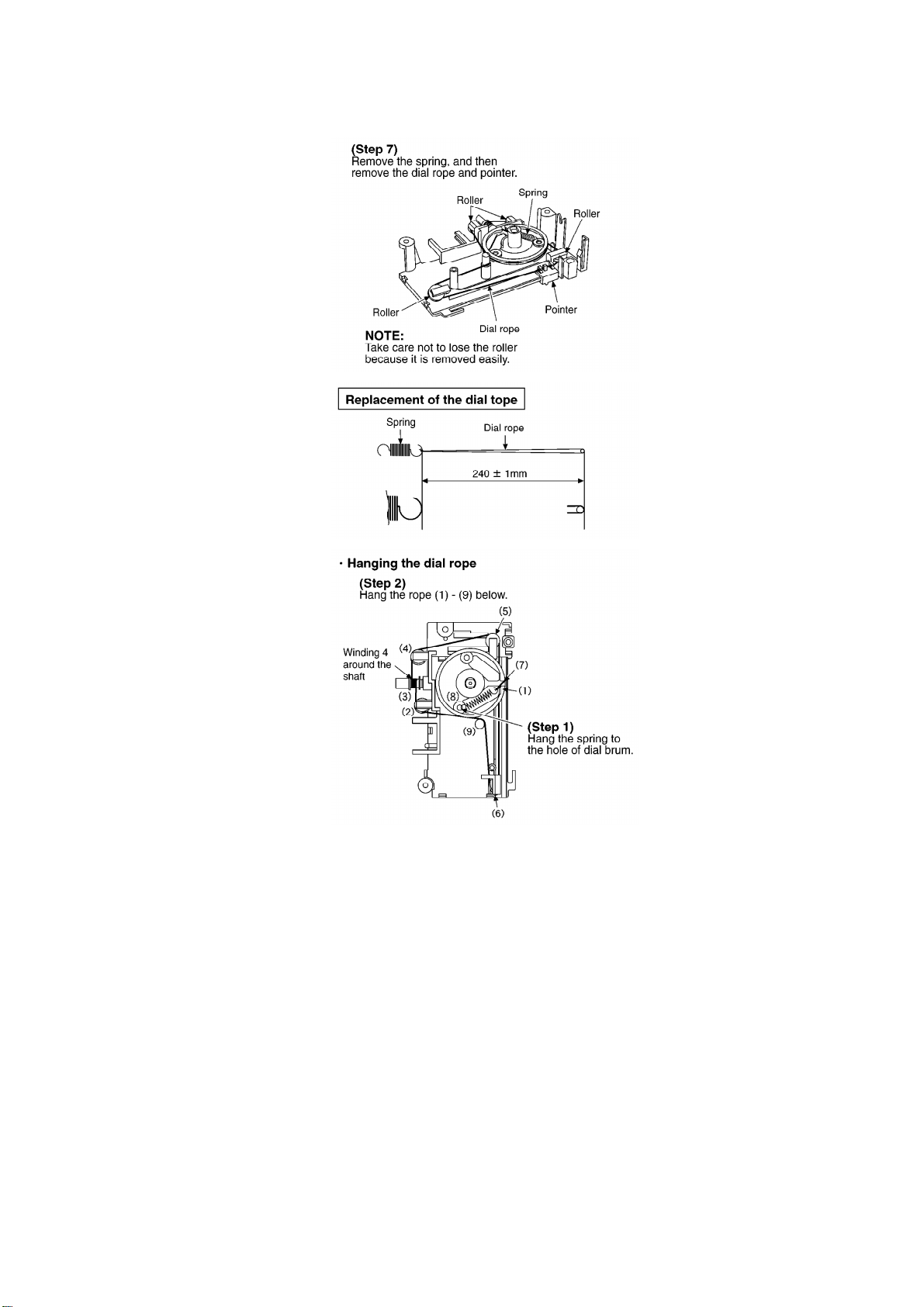

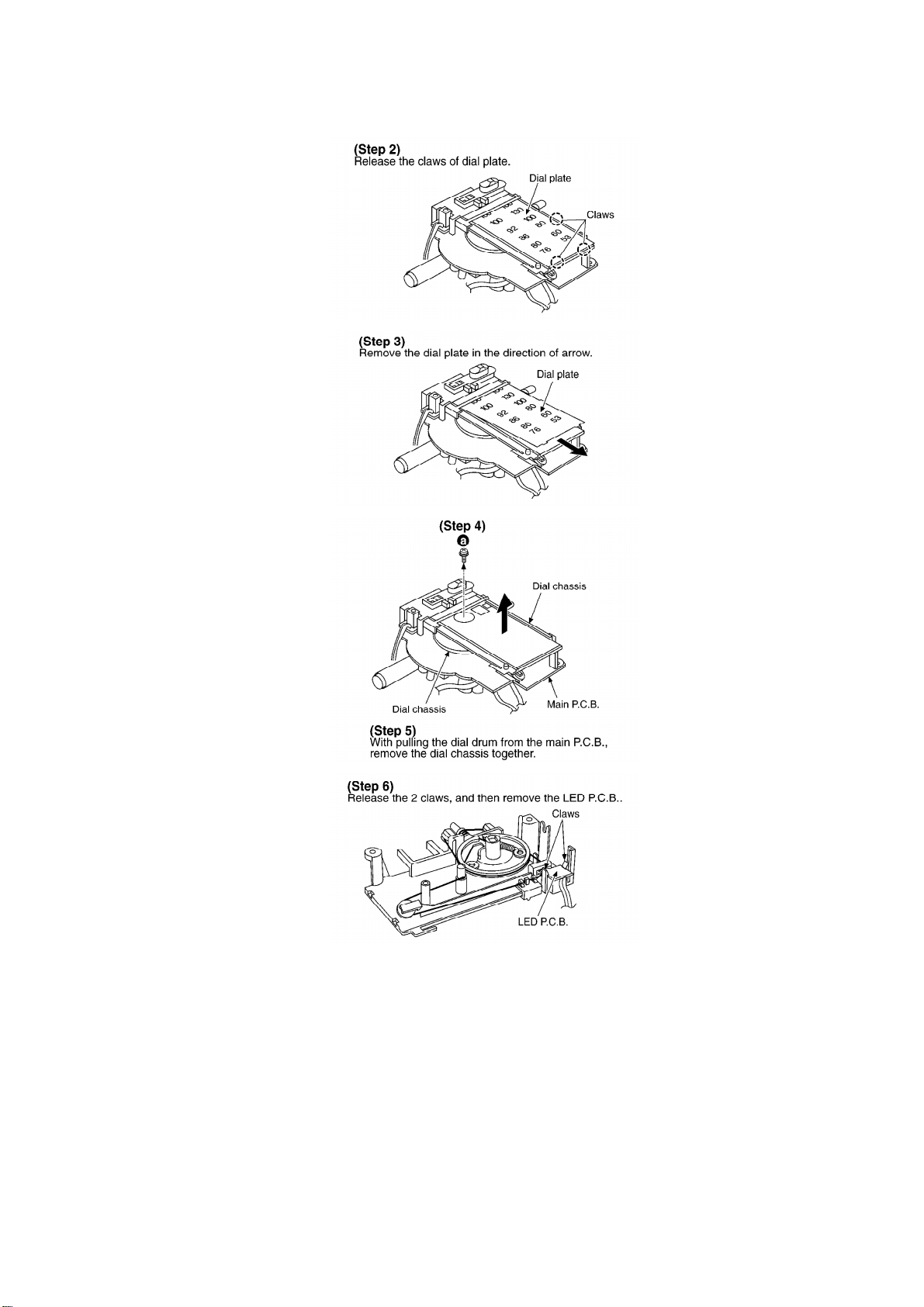

1.4. Replacement for the dial rope and pointer
-Follow the (Step 1) -(Step 4) of item 1.1.
5

6

7
