Panasonic PressIT TY-SB01WP User manual

Operating Instructions
Basic Guide
Wireless Presentation System Receiver Board
For business use
Model No. TY-SB01WP
Thank you for purchasing the Panasonic product.
• Please read these instructions before operating this product and retain
them for future reference.
•Be sure to read “Safety Precautions ” (page 2) before use.
DPQX1531ZA/X1DA0121TS0 -PB
Safety Precautions 2
Part Names 4
Transmitter Extension Method (Pairing) 8
Installtion of the receiver board 5
Basic Use 6
Setting 10
Notes on Using Wireless LAN 15
Request Regarding Security 17
Specifications 19
English
* PressIT is a nickname for “Wireless Presentation System”.
Precautions for use 3

2 English
Safety Precautions
WARNING:
When mounting or removing this product on or from
the flat panel display unit, be sure to turn the power
off, and remove the power plug from the socket.
Otherwise, electric shock may occur.
Never attempt to disassemble or modify this product.
Doing so may cause fire, electric shock or operation
errors.
If you sense smoke, unpleasant odour or unusual
noises, immediately disconnect the power plug from
the socket.
Using the product in an abnormal condition may cause
fire or electric shock.
For mounting or removing this product on or from
the flat panel display unit, ask a qualified technician
or sales dealer.
Installing the product improperly may cause a
malfunction or electric shock.
• If you terminate the use of the product, ask a
professional to remove it promptly.
Use the product 15 cm or more away from a location
where a cardiac pacemaker is embedded.
Radio waves may affect the operation of the pacemaker.
Do not use the product in an airplane.
The operational safety may be impaired.
Do not use the product near an automatic door, fire
alarm or other automatic control devices.
Radio waves from this product may affect automatic
control devices, which may cause an operational error,
resulting in an accident.
Do not use the product in hospital or a location with
medical equipment.
Radio waves from this product may affect medical
equipment, which may cause an operational error,
resulting in an accident.
Do not wet the product.
Doing so may cause a fire or electric shock.
CAUTION:
Do not place the product at a high-temperature
location, humid or dusty location, or location subject
to oil smoke or steam (such as a cooking table and
humidifier).
Doing so may cause a fire or electric shock.
Do not place the product in locations subject to
direct sunlight or extremely high temperature.
• The internal parts may be damaged, or fire may occur.

3English
Precautions for use
This product is a Wireless Presentation System
Receiver Board used by being attached to a
Panasonic display.
Do not touch this product directly by hand.
• Static electricity may occur, destroying the
components. Static electricity is also generated from
clothing or human body. Let the static electricity
escape by touching metallic objects such as a steel
cabinet beforehand.
The illustrations and figures in this manual are for
explanatory purposes and may differ from the actual
product.
Details of usage
For details of usage, read “Operating Instructions -
Functional Manual”.
Download the “Operating Instructions - Functional
Manual” from the following URL.
https://panasonic.net/cns/prodisplays/wps2/
For detailed usage of a display supporting this product,
read the operating instructions of the display.

4 English
Part Names
1Antenna
▼Connectionterminals/Controls
2FUNCTION button
Used to save a pairing file to the USB memory.
3LAN terminal (RJ45)
Connectstothenetworktochangethesettingsofthe
product.
4USB terminal (Type-A)
ConnectsthetransmitterorUSBmemorywhen
pairing devices.
Use this by connecting an HID device (mouse, touch
module).
5FUNCTION LED
Displays the pairing status.
6Power Indicator
Displays the power supply status, and connection
statuses of LAN and USB.
7Reset button
Restores the product to the factory default state.
Reset operation starts when the reset button is
pressed for 5 seconds or more.
1
▼Connectionterminals/Controls
2 3 4
5
6 7

5English
Installtion of the receiver board
The installation instruction below is based on the flat
panel display SQ1 series as an example.
For attaching or removing this product to or from the flat
panel display unit, it is recommended to ask a qualified
technician or sales dealer. A malfunction may occur due
tostaticelectricity,etc.Consultthesalesdealer.
Follow the steps below.
Note
• Be sure to turn off the display unit and connected
devices, remove the power plug from the socket, and
disconnect the cables from the display.
•
When attaching/removing the receiver board, do not allow
the metal to damage the back cover or display label.
1Remove the 2 screws, and then remove
the slot cover or receiver board from the
display unit.
To remove the receiver board, hold the handle of
the receiver board and pull it out slowly in the arrow
direction.
2Insert the receiver board to the main unit
slot, and tighten the 2 screws.
Fix the receiver board with the 2 screws removed in
step 1.
●Tightening torque guideline: 0.5 N·m or less
Note
• When replacing another receiver board with this
product, the customer shall keep the replaced receiver
board for future repair or servicing.

6 English
Basic Use
Receiver board
1Turn on the display.
2Switch the input of the display to [SLOT].
3Pair the receiver board and the transmitter.
(when connecting for the first time, see page 8)
4When the standby screen appears on the
display, preparation of the receiver board is
complete.
Standby screen
Transmitter
1Connect the USB terminal and HDMI input
terminal of the transmitter to the image
output device.
• For power supply to the transmitter, 5 V/0.9 A
power supply is necessary.
HDMI input
terminal
TY-WPBC1
USB terminal
TY-WPB1
ForTY-WPBC1,connecttheUSBterminal(Type-C)to
an image output device that supports the DisplayPort
ALT Mode.

7English
2

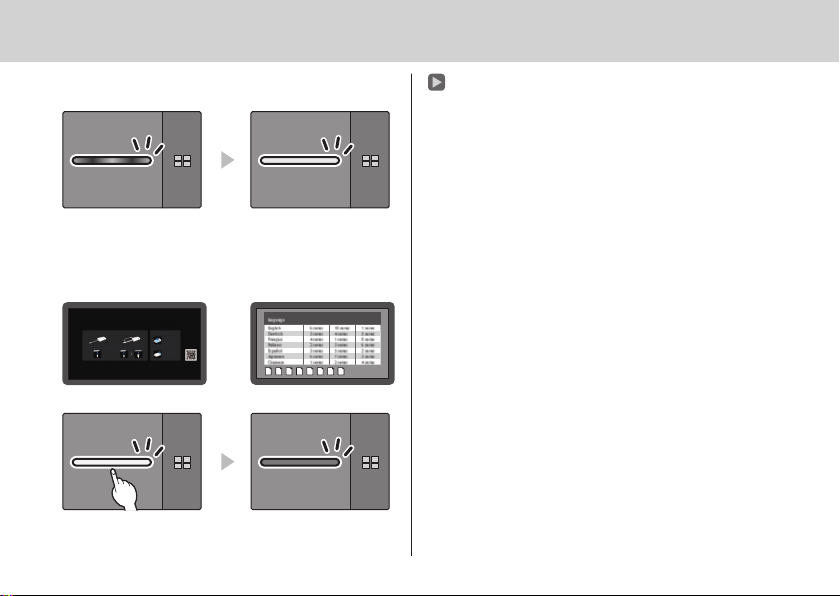

Main LED changes from red blinking
(connecting) to white illumination (standby).
Red blinking (connecting) White illumination
(standby)
3Press the main button of the transmitter.
The image is displayed.
Standby screen Full screen display
White illumination
(standby)
Green illumination
(display)
Pressing the main button again changes the main
LED to white and returns to standby state.
(The screen returns to the standby screen as well.)
• When using multiple transmitters, the image is
switched to the image of the transmitter of which
the main button is pressed.

8 English
Transmitter Extension Method (Pairing)
Pairing by connecting the receiver board
and transmitter

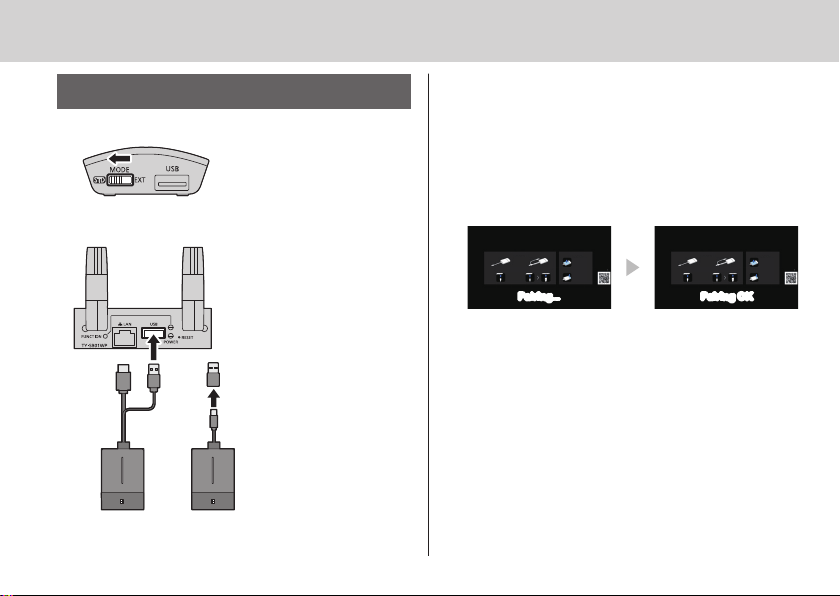

1Slide the mode switch to the STD side.
2
Connect the USB terminal of the transmitter
to the USB terminal of the receiver board.
TY-WPB1 TY-WPBC1
ToconnecttheTY-WPBC1,
use the conversion adaptor
for pairing supplied with
theTY-WP2BC1/TY-
WPBC1.
WaitforawhileuntiltheFUNCTIONLEDofthe
receiver board blinks in white. Then, pairing starts
automatically.
“Pairing…” (pairing in progress) is displayed on the
standby screen.
3Pairing is complete.
“Pairing OK”isdisplayedandtheFUNCTIONLEDof
the receiver board lights up in white.
Pairing... Pairing OK
4Remove the USB cable of the transmitter
from the receiver board.

9English
Pairing by saving a file to the USB memory
Supported device
●CommerciallyavailableUSBmemorydevicesare
supported. (Those with security functions are not
supported.)
●USB memory devices other than those formatted in
FAT16 or FAT32 cannot be used.
●Up to 32 GB of USB memory in size are supported.
●Only single partition configuration is supported.
1Connect the USB memory to the USB
terminal of the receiver board.
1
2
2Press the FUNCTION button.
TheFUNCTIONLEDlightsupinwhiteandthe
pairing file is saved to the USB memory.
3Remove the USB memory.
4Slide the mode switch to the EXT side.
5Supply power to the transmitter.
6
5
6
5
TY-WPB1
TY-WPBC1
5 V/0.9 A
Power supply
5 V/0.9 A
Power supply
6Connect the USB memory to the USB
terminal of the transmitter.
7Pairing is complete.
The main LED of the transmitter lights up in white.
8Remove the USB memory from the
transmitter.

10 English
Setting
[Setup] menu (display setting)
When this product is connected to the compatible
display and the [Setup] menu is set, the following
functions can be used.
This section explains each setting using the
display SQ1 series as an example. For settings
on other models, see the Panasonic information
site.
Panasonic display link function
Just connect the receiver board to a Panasonic display
supporting this product and turn them on to perform
the link operation. (It is necessary to set [Wireless
presentation link] to [On].)
Set link function details in the following setting menus.
■External device link settings
Sets external device link.
[External device link settings]- submenu screen
External device link settings
Device information Off
Wireless presentation link On
●[Device information]
Sets whether to display or hide the information of the
device connected to the HDMI terminal and SLOT.
[Off]: Connecteddeviceinformationisnot
displayed.
[On]: Connecteddeviceinformationisdisplayedas
shown below.
SLOT
16:9
PressIT
Note
• The obtained information of either signal or HDMI-
CECisdisplayed.
• Up to the first 16 characters obtained are displayed.

11English
●[Wireless presentation link]
Sets the link of the Display with this product.
[Off]: Does not link with this product.
[On]: Links with this product.
Note
• When this receiver board is connected to the SLOT,
the link function works.
• The following functions are fixed.
These settings are held even if this function is
switched from [On] to [Off]. The settings can be
changed on each setting menu.
• [Picture mode] is fixed to [Graphic].
• [HDMI-CECcontrol] is fixed to [Enable]. [Display
→Device] is fixed to [Power off / on]. [Device→
Display] is fixed to [Power off / on].
• Even if this function is set to [Off],theHDMI-CEC
function works.
■[Wireless presentation settings]
Note
• Approx. 5 seconds may be required to reflect the
menu settings.
[Wireless presentation settings] - sub menu screen
Wireless presentation settings
Background color setting Black
Date/Time setting Y/M/D
Language link Enable
●[Background color setting]
[Black]: The background color for the standby
screen and no-signal image is set to black.
[Blue]: The background color for the standby
screen and no-signal image is set to blue.
Note
• When the image is changed with the [My Screen]
function on the Web setting screen, this setting is
not reflected.

12 English
●[Date/Time setting]
Specifies the display style of date on the standby
screen.
[Y-M-D]: e.g. 2021-08-24
[Y/M/D]: e.g. 2021/08/24
[Y.M.D]: e.g. 2021.08.24
[D-M-Y]: e.g. 24-08-2021
[D/M/Y]: e.g. 24/08/2021
[D.M.Y]: e.g. 24.08.2021
[M-D-Y]: e.g. 08-24-2021
[M/D/Y]: e.g. 08/24/2021
[M.D.Y]: e.g. 08.24.2021
[M D,Y]: e.g. 08 24,2021
[Off]: Date is not displayed on the standby screen.
Note
• When this is set to [Off], the setting is applied at the
next startup of this system.
• There is the same menu on the Web setting screen
as this menu item. Since the setting on the display is
prioritized, when the system is started next time, the
setting value on the display is reflected.
●[Language link]
[Enable]: Sets the language for the standby screen,
no-signal image and Web setting screen to
the language set for [OSD language].
[Disable]: Sets the language for the standby screen,
no-signal image and Web setting screen
to the language set for [Language] on the
Web setting screen.
■HDMI-CEC settings
SetforHDMI-CECfunction.
[HDMI-CECsettings] - submenu screen
11
HDMI-CECsettings
HDMI-CECcontrol Enable
Disable
HDMI2 ----
HDMI-CECoperation
MENU code
HDMI1 ----
Display→Device
Disable
Device→Display
Link function
SLOT ----
Setting Continued

13English
●[HDMI-CEC control]
Enables/DisablestheHDMI-CECfunction.
[Disable]: DisablesHDMI-CECcontrol.
[Enable]: EnablesHDMI-CECcontrol.
Note
• Enables/Disables the Display to perform interlocking
controloftheHDMI-CECcompatibledevice.
●[SLOT]
[PressIT] is displayed.
●[MENU code]
No code is assigned to this system.
●[Display → Device]
Enables/Disables the Display to perform interlocking
controloftheHDMI-CECcompatibledevice.
[Disable]: Disables the Display to perform
interlockingcontroloftheHDMI-CEC
compatible device.
Even if the power status of the Display
changes, the power status of the device
will not be affected.
[Power off]:Turning the Display off (standby) turns off
(standby) all the devices connected to the
HDMI 1, HDMI 2 or SLOT terminal. The
power-on operation is not interlocked.
[Power off /
on]:
The device turns off/on (standby) in
conjunction with the power-off/on
(standby) operation of the Display.
●[Device → Display]
Enables/DisablestheHDMI-CECcompatibledeviceto
perform interlocking control of the Display.
[Disable]: Disables the device to perform
interlocking control of the Display.
Even if the power status of the device
changes, the power status of the Display
will not be affected.
[Power on]: Turning on the device turns on the
Display, and the input (HDMI1 / HDMI2 /
SLOT) is switched to that of the device.
[Power off /
on]:
The power status of the Display
interlocks with the power-off/on
operation of the device.

14 English
■SLOT settings
Set for SLOT.
[SLOT settings] - submenu screen
SLOT settings
SLOT power link Off
SLOT power on
SLOT forced termination
SLOT information
SLOT standby On
●[SLOT standby]
Sets the power supply status for the SLOT when the
unit is in standby mode.
[Off]: The power is not supplied to the SLOT when
the power is turned off by the remote control,
etc.
[On]: The power is supplied to the SLOT when the
power is turned off by the remote control, etc.
Note
• When [SLOT standby] is set to [On], the power
indicator in standby mode lights orange (red/green).
• When [HDMI-CECcontrol] is set to [Enable], this menu
will be greyed out and cannot be set. (see page 13)
Setting Continued

15English
Notes on Using Wireless LAN
Wireless LAN uses radio waves in the 5 GHz bands.
Be sure to read and fully understand the following items
before use.
Use this product indoors.
●Using the 5 GHz-band wireless device outdoors is
prohibited by the Radio Act.
If at all possible, avoid the use of cellular phones, TV
sets or radios near the product.
●Cellularphones,TVsets,radiosandsimilardevices
use different radio bands from the product, so
there is no effect on wireless communication or the
transmission and reception of these devices. However,
radio waves from the product may produce audio or
video noise.
Wireless communication radio waves cannot
penetrate steel reinforcements, metal, concrete, etc.
●Communicationispossiblethroughwallsandfloors
made from materials such as wood and glass (except
glass containing wire mesh), but not through walls
and floors made from steel reinforcements, metal,
concrete, etc.
The product may not work properly due to strong
radio wave from the broadcast station or the radio.
●If there is any facility or equipment, which outputs
strong radio wave, near the installation location, set up
the product at a location sufficiently far from the source
of the radio wave.
Using the product outside the country
●It is forbidden to take the product outside the country
or region where you purchased it, so use it only in
the said country or region. Also, note that depending
on countries or regions there are restrictions on the
channels and frequencies at which you can use the
wireless LAN.

16 English
Declaration of Conformity (DoC)
“Hereby,PanasonicCorporationdeclaresthatthis
product is in compliance with the essential requirements
and other relevant provisions of the Directive 2014/53/
EU.”
IfyouwanttogetacopyoftheoriginalDoCofthis
product, please visit the following website:
http://www.ptc.panasonic.de
Authorized Representative:
PanasonicTestingCentre
Panasonic Service Europe, a division of Panasonic
Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
Indoor use restrictions are to be followed for the following
countries if using 5 GHz frequency band.
Austria,Belgium,Bulgaria,Croatia,Cyprus,Czech
Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Liechtenstein, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey,
United Kingdom
WLAN: Maximum Power
23 dBm (5.180 GHz - 5.240 GHz)
Directive: 2014/53/EU
Notes on Using Wireless LAN Continued

17English
Request Regarding Security
When using this product, take safety measures
against the following incidents.
●Personal information being leaked via this product
●Unauthorized operation of this product by a malicious
third party
●Interfering or stopping of this product by a malicious
third party
Take sufficient security measures.
Precautions on security when
using wireless LAN products
●The advantage of a wireless LAN is that information
canbeexchangedbetweenaPCorothersuch
equipment and an access point using radio waves as
long as you are within range for radio transmissions.
On the other hand, because the radio waves can
travel through obstacles (such as walls) and are
available everywhere within a given range, problems
of the type listed below may occur if security-related
settings are not made.
• A malicious third-party may intentionally intercept
and monitor transmitted data including the content
of e-mail and personal information such as your
ID, password, and/or credit card numbers.
• A malicious third-party may access your personal
or corporate network without authorization and
engage in the following types of behaviour.
Retrieve personal and/or secret information
(information leak)
Spread false information by impersonating a
particular person (spoofing)
Overwrite intercepted communications and issue
false data (tampering)
Spread harmful software such as a computer
virus and crash your data and/or system (system
crash)
●Since most wireless LAN adaptors or access points
are equipped with security features to take care of
these problems, you can reduce the possibility of
these problems occurring when using this product
by making the appropriate security settings for the
wireless LAN device.
●Some wireless LAN devices may not be set for
security immediately after purchase. To decrease the
possibility of occurrence of security problems, before
using any wireless LAN devices, be absolutely sure
to make all security-related settings according to the
instructions given in the operation manuals supplied
with them.

18 English
Depending on the specifications of the wireless
LAN, a malicious third-party may be able to break
security settings by special means.
Please contact Panasonic if you need help taking
care of security settings or other such.
If you cannot perform security settings for your
wireless LAN by yourself, please contact the
PanasonicSupportCenter.
●Panasonic asks customers to thoroughly understand
the risk of using this product without making security
settings, and recommends that the customer
make security settings at their own discretion and
responsibility.
Request Regarding Security Continued

19English
Specifications
Model No. TY-SB01WP
Product name Wireless Presentation System Receiver
Board
Video output HDMI×1(HDCP1.4)
Output resolution 1920 x 1080/60p,
3840 x 2160/30p (max.)
Number of
simultaneous
connections
32
Wireless
communication
standard
IEEE802.11a/n/ac
Bluetooth(GFSK,π/4-DQPSK,8DPSK)
Data rate wireless 867 Mbps (max.)
Frequency band 5 GHz (5.150 GHz to 5.250 GHz)
Security WPA/WPA2
Reachable distance
Up to 30 m
(Locations with good visibility and radio
wave conditions)
FUNCTION LED
White blinking Pairing in progress
White illumination Pairing complete
LAN terminal
RJ45 × 1
10BASE-T/100BASE-TX/
1000BASE-T supported
USB terminal USB connector × 1, Type-A
Dimensions
(W × H × D)
82 mm × 25 mm × 122 mm /
3.22” × 0.99” × 4.78”
(excluding antennas)
Mass Approx. 125 g / 0.3 lbs

20 English
Software License
This product incorporates the following software:
(1) thesoftwaredevelopedindependentlybyorforPanasonicCorporation,
(2) thesoftwareownedbythirdpartyandlicensedtoPanasonicCorporation,
(3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0),
(4) the software licensed under the GNU LIBRARY General Public License, Version 2.0 (LGPL V2.0),
(5) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL V2.1), and/or
(6) open source software other than the software licensed under the GPL V2.0, LGPL V2.0 and/or LGPL V2.1.
The software categorized as (3) - (6) are distributed in the hope that it will be useful, but WITHOUT ANY
WARRANTY,withouteventheimpliedwarrantyofMERCHANTABILITYorFITNESSFORAPARTICULAR
PURPOSE. For details, see the license conditions displayed by selecting [Software licenses], following the specified
operation from the Web setting screen of this product.
At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at
the contact information provided below, for a charge no more than our cost of physically performing source code
distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL
V2.0, LGPL V2.1 or the other licenses with the obligation to do so, as well as the respective copyright notice thereof.
ContactInformation:
[email protected]
