CQ-C8352N / CQ-C7302N
WMA MP3 CD Player/Receiver with Full Dot Matrix Display
SPECIFICATIONS
Specifications*
General
Power Supply DC 12V (11V - 16V),
Test Voltage 14.4V
Negative Ground
Tone Controls (Bass/
Treble)
Bass: ±12dB at 60Hz / Treble: ±
12dB at 16kHz
Equalizer Center Frequency 60, 160, 400, 1k, 3k, 6k, 16k (Hz)
Variable Range of Equalizer -12dB to 12dB (2dB step)
Current Consumption Less than 2.2A / (CD mode; 0.5W × 4
-speaker)
Maximum Power Output 50W × 4(at 4 )
Speaker Impedance 4 - 8
Pre-amp Output Voltage
<CQ-C8352N> 5V
<CQ-C7302N> 2.5V(CD mode)
Subwoofer Output Voltage
<CQ-C8352N> 5V
<CQ-C7302N> 2.5V(CD mode)
Pre-amp Output Impedance
<CQ-C8352N> 60
<CQ-C7302N> 200
Subwoofer Output
Impedance
<CQ-C8352N> 60
<CQ-C7302N> 200
1

CD Player
Sampling Frequency 8 Times Oversampling
Pick-up Type Astigma 3-Beam
Light Source Semiconductor Laser
Wave Length 790 nm
Frequency Response 20Hz-20kHz (±1dB)
Signal to Noise Ratio 96dB
Total Harmonic Distortion 0.01% (1kHz)
Wow and Flutter Below Measurable Limits
Channel Separation 75dB
FM Stereo Radio
Frequency Range 87.5MHz - 108MHz
Usable Sensitivity 6dB/ V (S/N 30dB)
Stereo Separation 35dB (at 1kHz)
AM Radio(MW)
Frequency Range 531kHz - 1,602kHz
Usable Sensitivity 28dB/ V (S/N 20dB)
AM Radio(LW)
Frequency Range 153kHz - 279kHz
Usable Sensitivity 32dB/ V (S/N 20dB)
Dimensions (W×H×D)** 178×50×155mm
Weight** 1.6 kg
* Specifications and the design are subject to possible
modification without notice due to improvements.
** Dimensions and Weight shown are approximate.
** Above specifications comply with EIA standards.
2006 Matsushita Electric Industrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law.
1. ABOUT LEAD FREE SOLDER (PbF)
Distinction of PbF PCB:
PCBs (manufactured) using lead free solder will have a PbF stamp on the PCB.
Caution :
2

- Pb free solder has a higher melting point than standard solder; Typically
the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering
iron with temperature control and adjust it to 700 ± 20°F (370 ± 10°C). In
case of using high temperature soldering iron, please be careful not to
heat too long.
- Pb free solder will tend to splash when heated too high (about 1100°F/
600°C)
- This lead free solder will be used for the products after serial No.
1,000,001.
2. FEATURES
- MP3/WMA Playback from CD-R/RW
- Fully Motorized Front Panel
- Innovated APM (Auto Preset Memory) method
- Six Preset Modes (FLAT, ROCK, POP, VOCAL, JAZZ, CLUB)
- SQ7 (7 Bands Sound Quality)
- CD Changer Control
- DVD Changer Control
- Customize the Display (Customize Function)
- Delightful sound space thanks to system buildup

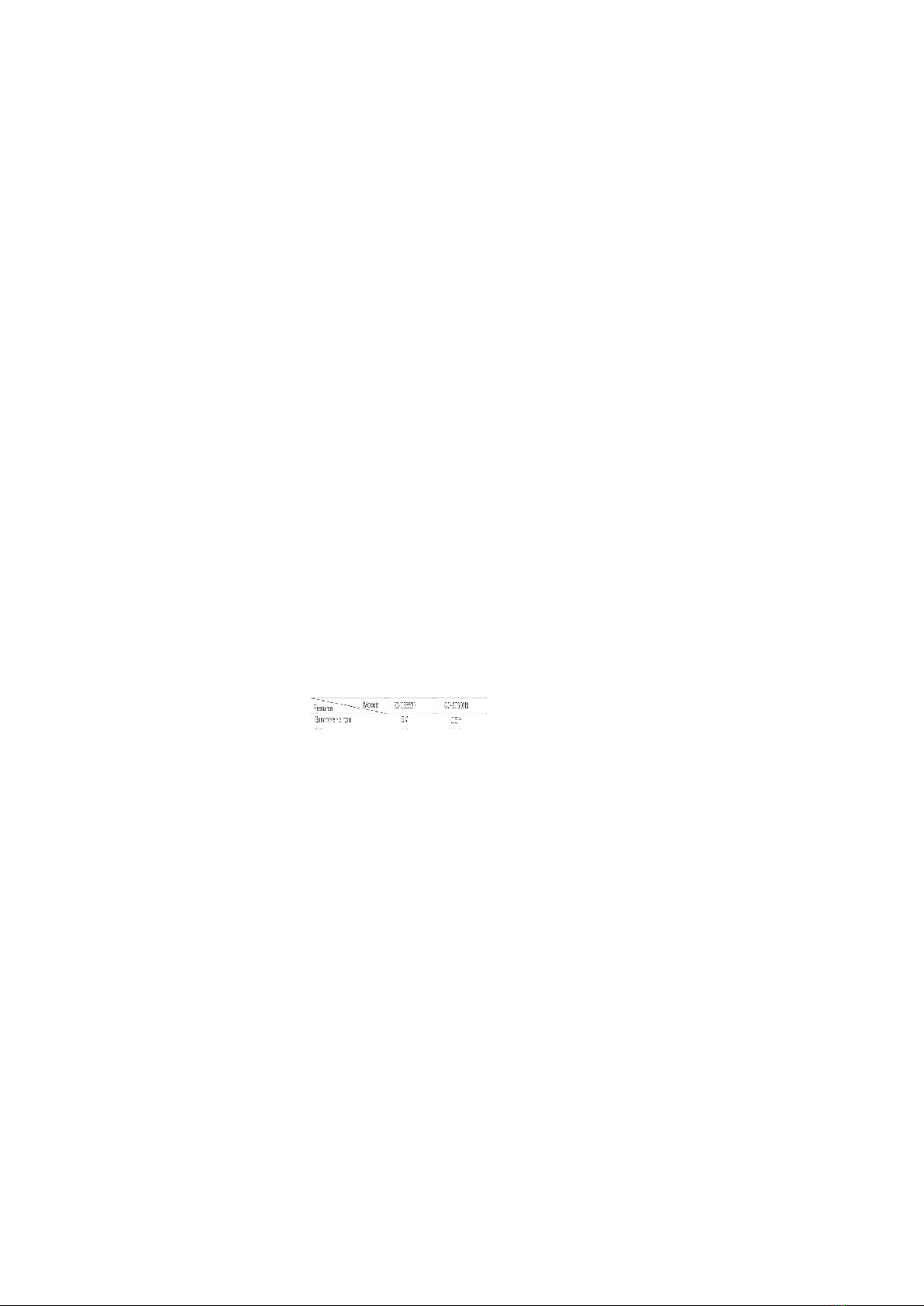

- The difference among 2 models’ are mentioned below.
3. REPLACEING THE FUSE
Use fuses of the same specified rating 15 amps. Using different substitutes or fuses with higher ratings,
or connecting the unit directly without a fuse, could cause fire or damage to the stereo unit.
4. MAINTENANCE
Your products is designed and manufactured to ensure a minimum of maintenance. Use a soft cloth for
routine exterior cleaning. Never use benzine, thinner or other solvent.
5. NOTES
[RADIO BLOCK]
Do not align the AM/FM package block. When the package block is necessary, it will be supplied already
aligned at the factory.
[CD DECK BLOCK]
This model has no servo alignment points because microcomputer controls the servo circuit

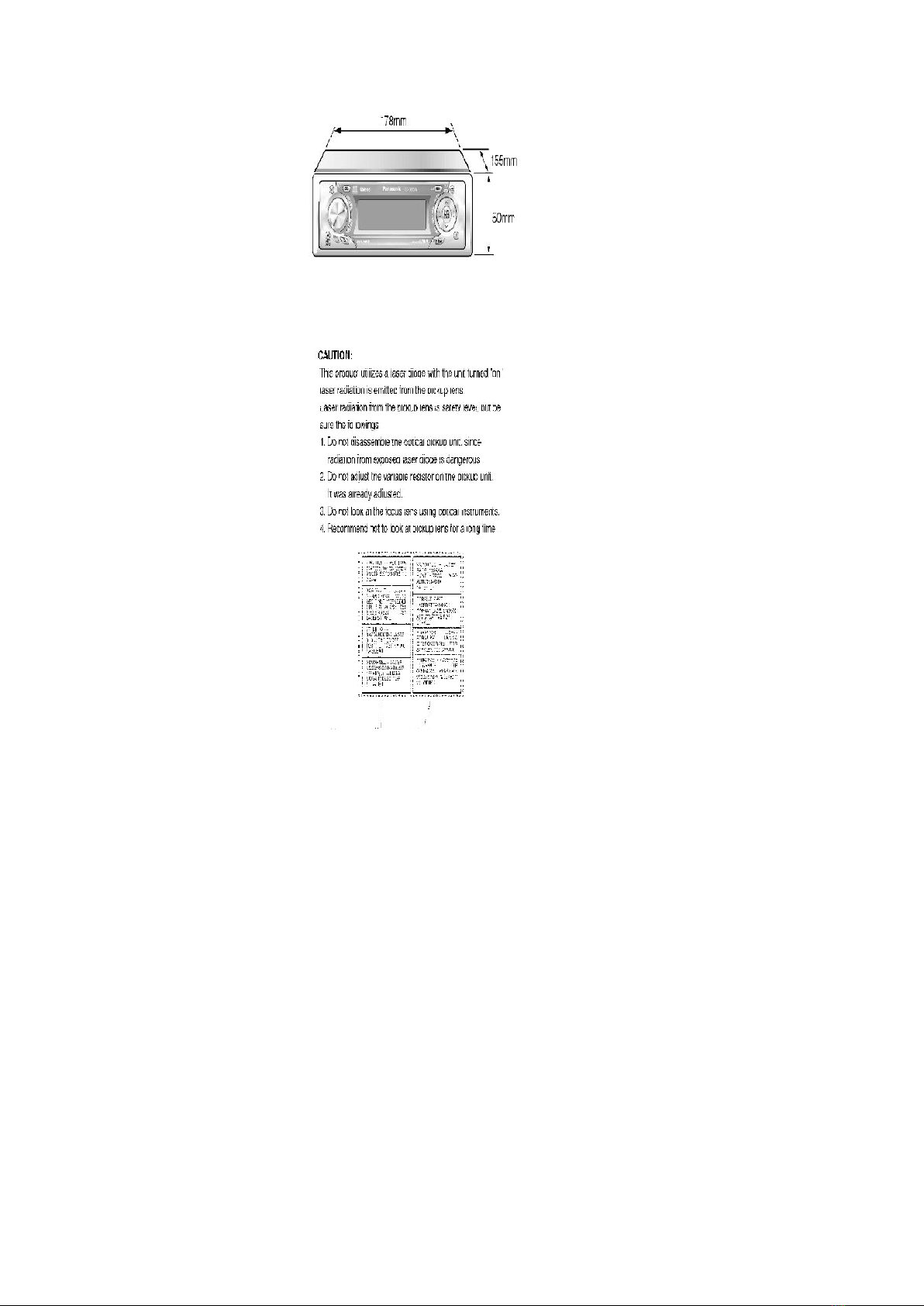

6. DIMENSIONS
3

7. LASER PRODUCTS

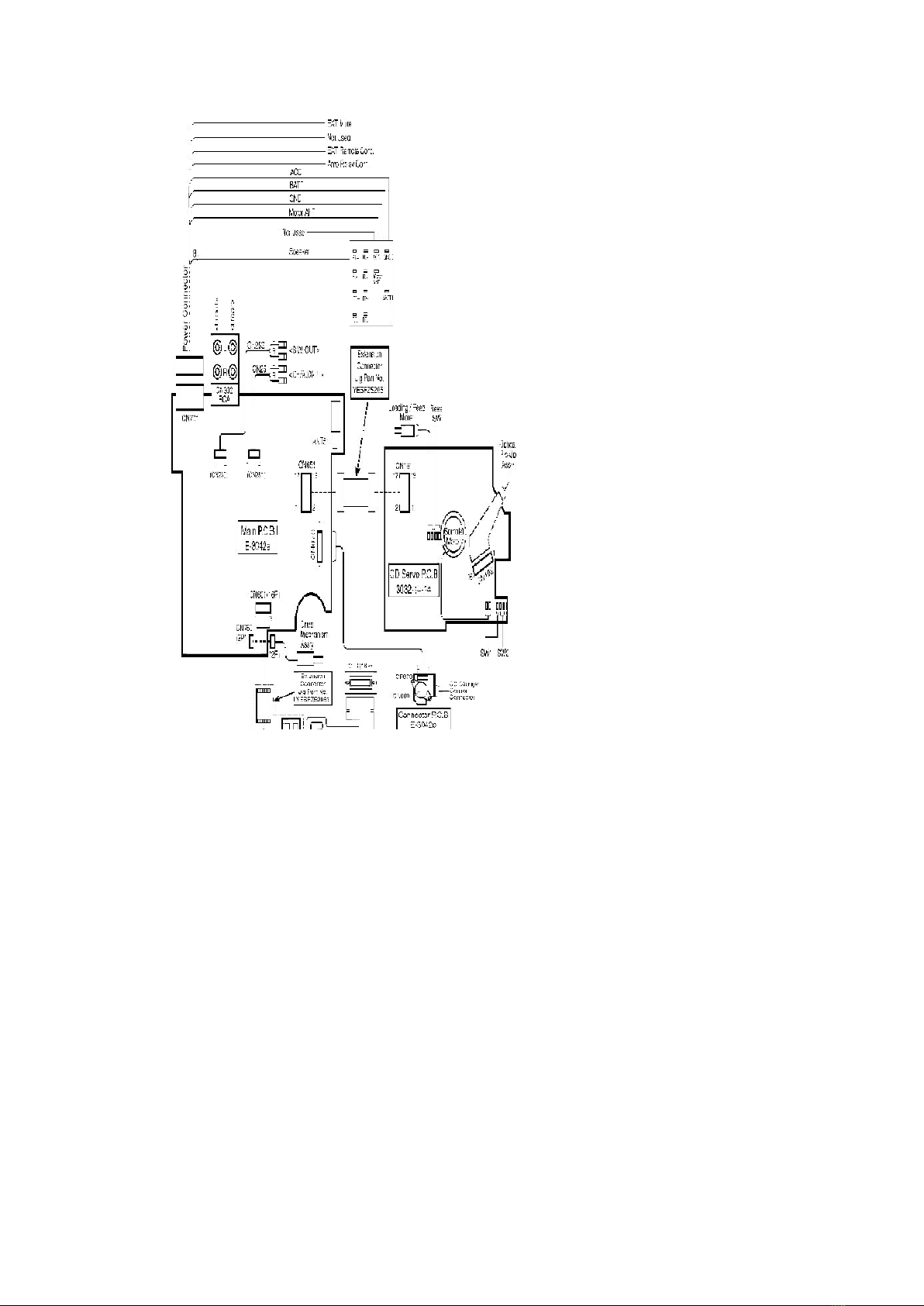

8. WIRING CONNECTION
8.1. CQ-C8352N
4

8.2. CQ-C7302N
5

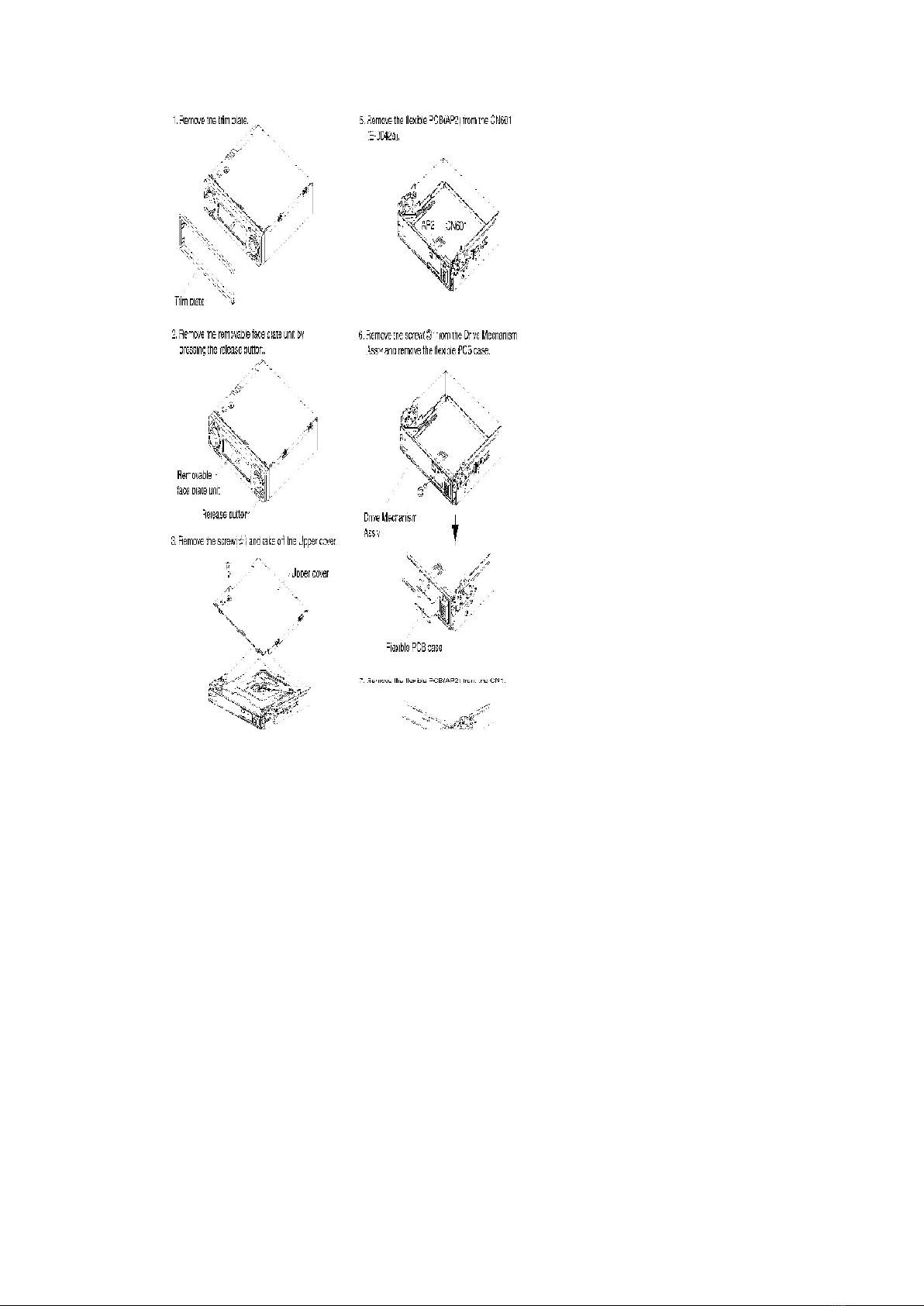

9. DISASSEMBLY INSTRUCTIONS
9.1. How to Remove the Flexible PCB(AP2)
6

9.2. How to Install the Main P.C.B. of the Electric Display
10. TERMINALS DESCRIPTION
10.1. Main Block
IC601 : C2CBKG000018
7

Pin
No.
Port Description (I/
O)
(V)
FM AM CD
1 PANEL
OPEN
PANEL OPEN
detection
I 0 5.2 5.2
2 PANEL
CLOSE
PANEL CLOSE
detection
I 0 0 5.2
3 NC No Connection - - - -
4 BATT BATT detection I 4.8 5 5
5 ACC ACC detection I 4.8 5 5
6 SDA Electronic VOL
data
I/O 4.9 4.9 4.9
7 SCK Electronic VOL
clock
O 4.9 4.9 4.9
8 NC No Connection - - - -
9 Vss Power supply GND I 0 0 0
10 ST FM ST detection I 5.1 5.2 5.2
11 PLL DI(MO) PLL data output O 0.6 0 0
12 PLL DO(MI) PLL data input I 5.2 5.2 5.2
13 PLL CLK PLL clock output O 4.9 4.9 4.9
14 PLL CE PLL chip enable
output
O 0 0 0
15 CD RST CD deck reset
output
O 4.9 4.9 4.9
16 SUB SI SUB u-com Data
trans
SO 0.6 0.6 0.8
17 NC No Connection - - - -
18 SUB SO SUB u-com data
recept
SI 4.4 4.4 4.4
19 CH DATA CD Data recept/
FLASH W SO
SI 1.6 1.6 1.6
20 CH CLK CD clock transmit/
FLASH W CLK
SCK 4.9 4.9 4.9
21 Vdd Power supply I 4.9 4.9 4.9
22 XM SI CD Data transmit/
FLASH W SI
S0 0 0 0
23 SD SI - - - - -
24 CD SCK Clock recept from
Changer
SCK 0 0.4 0
25 CONDENSOR Capacitor for
power supply
- 3.3 3.3 3.3
26 CD SO Data recept from
Changer
SI 0 0 0
27 CH STB Changer stororb
signal input
INT 0 0 0
28 CD IN DISC in detect I 4.9 4.9 0.4
29 DECK V
CONT
DECK power
supply control
output
O 4.9 4.9 4.9
30 CD FS Strobe signal for
CD communication
O 3.7 3.7 3.7
8

Pin
No.
Port Description (I/
O)
(V)
FM AM CD
31 NC No Connection - - - -
32 Avdd Power supply of D/
A converter
I 5.1 5.1 5.1
33 AVREF Reference voltage
for D/A converter
I 5.1 5.1 5.1
34 AVGND Reference GND for
D/A converter
I 0 0 0
35 AVSS Grand for A/D and
D/A converter
I 0 0 0
36 SD FM/AM signal
meter signal input
A/
D
0.2 0 0.3
37 INIT A Initializ A (CQ-
C7401U)
A/
D
0 0 0
38 INIT B Initializ B A/
D
0 0 0
39 A IN SPE.ANA A.IN A/
D
0 0 0
40 Vss GND I 0 0 0
41 CD MUTE CD deck mute
detection
I 0 0 5.1
42 NC No Connection - - - -
43 NC No Connection - - - -
44 NC No Connection - - - -
45 CD SW1 CD disc in
detection
I - - -
46 CD SW2 CD disc in
detection
I - - -
47 MOD0 Operating mode
input 0
I 5.1 5.1 5.1
48 MOD1 Operating mode
input 1
I 5.1 5.1 5.1
49 MOD2 Operating mode
input 2
I 0 0 0
50 H
STANDBY
External standby
input
I 5 5 5
51 NC No Connection - - - -
52 FP
MOTOR1
Front open/close
control 1
O 4.9 5 4.9
53 FP
MOTOR2
Front open/close
control 2
O 4.9 5 4.9
54 V CNT1 Panel driving
voltage control 1
O 0 0 5
55 V
CNT2(NC)
No Connection - - - -
56 SA CLK Control for Speana
acquisition
O 5 5 4.9
57 EXT MUTE TEL/NAVI MUTE
input
I 5.3 5.2 5.2
9

Pin
No.
Port Description (I/
O)
(V)
FM AM CD
58 AMP CONT External AMP
control
O 4.9 5 4.9
59 BZ-OUT Buzzer output PPG 0 0 0
60 ANT CONT Motor antenna
control
O 4.9 5 0
61 DIM1 Dimmer control
output 1
O 0 0 0
62 DIM2 Dimmer control
output 2
O 0 0 0
63 CDC REM
OUT
Remote control
code output to
Changer
O 5 5 5
64 CDC SENS CDC 1/2 detection I 5.1 5.1 5.1
65 CDC 1/2 CDC 1/2 change
output
O 0 0 0
66 NC No Connection - - - -
67 M W UP MAIN.WAKE.UP.REQ
input
I 5 4.9 5
68 NC No Connection - - - -
69 RDS CLK
70 NC No Connection - - - -
71 RDS DATA - - - -
72 MAIN
CONT
MAIN power
supply control
output
O 4.9 4.9 4.9
73 INV CONT INV power supply
control output
O 5 5 5
74 AF MUTE Tr-MUTE control O/I 5 5 5
75 RESET Reset input I 5 5 5
76 NC No Connection - - - -
77 NC No Connection - - - -
78 NC GND I 0 0 0
79 Vss GND I 0 0 0
80 X1 Crystal oscillator
input
I 2 2 2
81 X2 Crystal oscillator
output
O 2.5 2.5 2.5
82 Vdd Power supply I 5 5 5
83 P00 Pldaun port for
writing
I 0 0 0
84 P01 Pull-up port for
writing
I 5.1 5 5.1
85 VOFF DET PWR-IC OFFSET
detection
I 0 0 0
86 STBY PWR-IC STBY
control output
O 5 5 5
87 AMP MUTE PWR-IC MUTE
control output
O 0 0 0
10

control output
Pin
No.
Port Description (I/
O)
(V)
FM AM CD
88 ILL SENS External dimmer
control input
I 5 5 5
89 SUBM CNT 3.3V control for
SUB
microcomputer
O 5 5 5
90 NC No Connection - - - -
91 NC No Connection - - - -
92 NC No Connection - - - -
93 S W UP SUB.WAKE.UP.REQ O 4.9 5 4.9
94 DISPM
CNT
Power supply
control output of
display 5V
O/I 0 0 0
95 EJE
ILL(NC)
No Connection - - - -
96 NC No Connection - - - -
97 NC No Connection - - - -
98 S LED Security LED
control output
O 0 0 5
99 PANEL IN PANEL detect I 5.2 5.2 5.2
100 EP CS(NC) No Connection - - - -
10.2. Display Block
IC900 C2CBJH000105
Pin
No.
Port Part Name &
Description
I/O (V)
1 A18 FLASH A17 O 1.5
2 A19 FLASH A18 O 1.7
3 A20 FLASH A19 O 1.3
4 NC No Connection - -
5 LED.G - - -
6 LED.B - - -
7 A0 LCD driver data or
command distinction
O 1.3
8 A1 FLASH A0 O 0.3
9 VSS Ground potential - 0
10 A2 FLASH A1 O 0.4
11 A3 FLASH A2 O 0.4
12 A4 FLASH A3 O 0.4
13 A5 FLASH A4 O 1.3
14 A6 FLASH A5 O 0.4
15 A7 FLASH A6 O 0
16 A8 FLASH A7 O 1.3
17 A9 FLASH A8 O 0
18 A10 FLASH A9 O 0
19 A11 FLASH A10 O 1.5
11

Pin
No.
Port Part Name &
Description
I/O (V)
20 A12 FLASH A11 O 1.7
21 VCC Positive power
supply terminal
- 3.5
22 A13 FLASH A12 O 1.4
23 A14 FLASH A13 O 1.6
24 A15 FLASH A14 O 1.7
25 SUB SI/UP
SO
MAIN-u-com
communication data
input and external
flash rewritting
- 0.5
26 SUB SO/UP
SI
MAIN-u-com
communication data
output and external
flash rewritting
O 1.8
27 UP CLK External flash
rewritting switch
I 3.5
28 NC No Connection - -
29 FLASH
RESET
FLASH reset control
output
O 3.5
30 KS1 Key scan signal 1
output
I 0
31 NC No Connection - -
32 NC No Connection - -
33 AVCC Positive power
supply for A/D
converter
- 3.5
34 AVRH A/D converter
standard voltage input
- 3.5
35 AVSS/AVRL A/D converter ground
potential
- 0
36 TH DETECT Temperature
detection input
I 1.3
37 KS2 Key scan signal 2
output
I 0
38 KS3 Key scan signal 3
output
I 0
39 NC No Connection - -
40 VSS Ground potential - 0
41 KI5 Key return signal 5
input
I 0
42 KI4 Key return signal 4
input
I 0
43 KI3 Key return signal 3
input
I 0
44 KI2 Key return signal 2
input
I 0
45 NC FLASH writing
program starter
I 0
12

Pin
No.
Port Part Name &
Description
I/O (V)
46 NC FLASH writing
program starter
I 3.5
47 MD0 Mode setting terminal I 3.5
48 MD1 Mode setting terminal I 3.5
49 MD2 Mode setting terminal I 0
50 S W U REQ SUB-u-com wake up
request
INT 3.0
51 ROTARY.1 Rotary encoder signal
1(VOL UP)
I 2.5
52 ROTARY.2 Rotary encoder signal
2 (VOL DOWN)
I 2.5
53 KI1(SOURCE) Key return signal 1 INT
/I
0
54 REMO INT Remote control signal
interference
INT 3.7
55 NC No Connection - -
56 NC No Connection - -
57 NC No Connection - -
58 FLASH CE FLASH chip enable O 3.4
59 LCD CS LCD driver chip select O 3.4
60 LER R - - -
61 NC No Connection - -
62 REMO 1 Remote control signal I 3.7
63 NC No Connection - -
64 VLCD CONT VLCD 16V control O 3.4
65 M W U REQ MAIN-u-com wake up
request
O 0
66 LED ON P.LED control output O 3.4
67 NC No Connection - -
68 NC No Connection - -
69 FLASH OE/
LCD RD
FLASH output enable
and LCD driver lead
strobe
O 3.4
70 LCD WR LCD driver light
strobe signal
O 3.4
71 FLASH WE FLASH light enable
signal
O 3.4
72 NC No Connection - -
73 LCD RESET LCD driver reset
control
O 3.4
74 FLASH RY/BY FLASH ready/busy
input
I 3.4
75 /RST System reset signal
input
I 3.5
76 NC No Connection - -
77 X1A(NC) No Connection - -
78 X0A Not used I 0
79 VSS Ground - 0
13

Pin
No.
Port Part Name &
Description
I/O (V)
80 X0 MAIN system clock
input (12.5MHz)
I 1.3
81 X1 MAIN system clock
output (12.5MHz)
O 1.5
82 VCC Positive power supply - 3.5
83 D0 FLASH D0/LCD D0 I 0.9
84 D1 FLASH D1/LCD D1 I 0.9
85 D2 FLASH D2/LCD D2 I 1.1
86 D3 FLASH D3/LCD D3 I 0.9
87 D4 FLASH D4/LCD D4 I 1.0
88 D5 FLASH D5/LCD D5 I 1.1
89 D6 FLASH D6/LCD D6 I 1.1
90 D7 FLASH D7/LCD D7 I 0.8
91 D8 FLASH D8 I/O 0.9
92 D9 FLASH D9 I/O 0.9
93 D10 FLASH D10 I/O 0.9
94 D11 FLASH D11 I/O 0.8
95 D12 FLASH D12 I/O 0.8
96 D13 FLASH D13 I/O 0.7
97 D14 FLASH D14 I/O 0.7
98 D15 FLASH D15 I/O 0.7
99 A16 FLASH A15 O 3.0
100 A17 FLASH A16 O 1.7
10.3. CD Servo Block
IC401 : YESAM275
Pin
No.
Port Descriptions I/O (V)
1 CVSS1 GND - 0
2 A22 TP407 - 0
3 CVSS2 GND - 0
4 DVDD1 I/O system (3.3V) power
supply
- 3.1
5 A10 Address bus of FLASH
ROM
O 3.1
6 HD7(NC) No Connection - -
7 A11 Address bus of FLASH
ROM
O 0
8 A12 O 3.1
9 A13 O 3.1
10 A14 O 3.1
11 A15 O 0
12 /CVDD1 CORE CPU system (1.6V)
power supply
- 1.6
13 /
HAS(NC)
No Connection - -
14 DVSS1 GND - 0
14

Pin
No.
Port Descriptions I/O (V)
15 CVSS3 GND - 0
16 /CVDD2 I/O system (3.3V) power
supply
- 1.6
17 /
HCS(NC)
No Connection - -
18 HR/
W(NC)
No Connection - -
19 READY - - 3.1
20 /PS FLASH ROM selection
signal
O 3.1
21 /DS(NC) No Connection - -
22 /IS(NC) No Connection - -
23 R/W Lead/light signal to
FLASH ROM
O 3.1
24 /MSTRB Memory access signal O 3.1
25 /IOSTRB
/ (NC)
No Connection - -
26 /MSC - - 3.1
27 MUTE Mute signal output (H:
Mute on)
O 0
28 /HOLDA
/ (NC)
No Connection - -
29 /IAQ(NC) No Connection - -
30 /HOLD - - 3.1
31 BIO SUBO input I 0
32 MP/MC Operation mode setting
(external pull-up)
I 3.1
33 DVDD2 I/O system (3.3V) power
supply
- 3.1
34 CVSS4 GND - 0
35 BD R1 GND I 0
36 BFSR1 /
(NC)
No Connection - -
37 CVSS5 GND - 0
38 BCLKR1
/ (NC)
No Connection - -
39 HCNTL0
/ (NC)
No Connection - -
40 DVSS2 GND - 0
41 CLK C
M
AUDIO bit clock input I 1.6
42 SCK Clock input I 3.0
43 LRCK C
M
AUDIO L/R identifying
signal input
I 1.6
44 CDFS Serial frame sink signal
input
I 2.4
45 DATA
CM
AUDIO serial data input I 1.6
15

CM
Pin
No.
Port Descriptions I/O (V)
46 HCNTL1
/ (NC)
No Connection - -
47 SI Serial data input I 0
48 CLK M C AUDIO bit clock output O 1.6
49 SCK Clock input I 3.0
50 CVSS6 GND - 0
51 /
HINT(NC)
No Connection - -
52 CVDD3 CORE CPU system (1.6V)
power supply
- 1.6
53 LRCK M
C
AUDIO L/R identifying
signal output
O 1.5
54 CDFS Serial frame sink signal
input
I 2.4
55 HRDY(NC) No Connection - -
56 DVDD3 I/O system (3.3V) power
supply
- 3.1
57 DVSS3 GND - 0
58 REST
SW
Mechanics deck REST
SW input
I 3.1
59 DATA M
C
AUDIO serial data output O 1.6
60 SO Serial data output O 1.1
61 /
IACK(NC)
No Connection - -
62 HBL(NC) No Connection - -
63 /NMI - - 3.1
64 /INT0 - - 3.1
65 /INT1 - - 3.1
66 BLKCK Subcode block clock
pulse input
I 0
67 /INT3 - - 3.1
68 CV DD4 CORE CPU system (1.6V)
power supply
- 1.6
69 SW1 Mechanics deck SW1
input
I 0
70 CVSS7 GND - 0
71 MCLK Clock output (To Servo
DSP)
O 3.1
72 DVSS4 GND - 0
73 MLD Command load signal
output (To Servo DSP)
I 3.1
74 MDATA Command data output
(To Servo DSP)
O 3.1
75 DVDD4 I/O system (3.3V) power
supply
- 3.1
76 DVSS5 GND - 0
16

Pin
No.
Port Descriptions I/O (V)
77 CLK
MD1
Clock mode setting (L
fixation)
I 0
78 CLK
MD2
Clock mode setting (H
fixation)
I 3.1
79 CLK
MD3
Clock mode setting (L
fixation)
I 0
80 HPI60 /
(NC)
No Connection - -
81 SW2 Mechanics deck SW2
input
I 0.2
82 TOUT(NC) No Connection - -
83 EMU0 - - 3.1
84 EMU/
OFF
- - 3.1
85 TDO - - 0
86 TDI - - 3.1
87 /TRST - - 0
88 TCK - - 3.1
89 TMS - - 3.1
90 CVSS8 GND - 0
91 CVDD5 CORE CPU system (1.6V)
power supply
- 1.6
92 HPIENA GND I 0
93 DVSS6 GND - 0
94 CLKOUT No Connection - -
95 CLKENA Oscillation output Cainabl
signal
O 0
96 X1 Crystal Connection O 0.7
97 X2/
CLKIN
Crystal Connection I 1.0
98 RS Reset signal input I 3.1
99 D0 Data base of FLASH ROM I/O 0
100 D1 I/O 0
101 D2 I/O 0
102 D3 I/O 0
103 D4 I/O 0
104 D5 I/O 0
105 A16 Address bus of FLASH
ROM
O 3.1
106 DVSS7 GND - 0
107 A17 Address bus of FLASH
ROM
O 3.1
108 A18 Address bus of FLASH
ROM
O 0
109 A19 TP419 O 0
110 A20 TP416 O 0
111 CVSS9 GND - 0
17

Pin
No.
Port Descriptions I/O (V)
112 DVDD5 I/O system (3.3V) power
supply
- 3.1
113 D6 Data bus of FLASH ROM I/O 0
114 D7 I/O 0
115 D8 I/O 0
116 D9 I/O 0
117 D10 I/O 0
118 D11 Data bus of FLASH ROM I/O 0
119 D12 I/O 0
120 STAT Status signal input I 3.0
121 D13 Data path of FLASH ROM I/O 3.1
122 D14 I/O 0
123 D15 I/O 0
124 HD5(NC) No Connection - -
125 CVDD6 CORE CPU system (1.6V)
power supply
- 1.6
126 CVSS10 GND - 0
127 /
HDS1(NC)
No Connection - -
128 DVSS8 I/O system (3.3V) power
supply
- 0
129 /
HDS2(NC)
No Connection - -
130 DVDD6 I/O system (3.3V) power
supply
- 3.1
131 A0 Address bus of FLASH
ROM
O 3.1
132 A1 O 0
133 A2 O 0
134 A3 O 0
135 /RST Reset signal output(To
Servo DSP)
O 3.1
136 A4 Address bus of FLASH
ROM
O 0
137 A5 O 3.1
138 A6 O 3.1
139 A7 O 0
140 A8 O 3.1
141 A9 O 3.1
142 CVDD7 CORE CPU system (1.6V)
power supply
- 1.6
143 A12 TP406 - 0
144 DVSS9 GND - 0

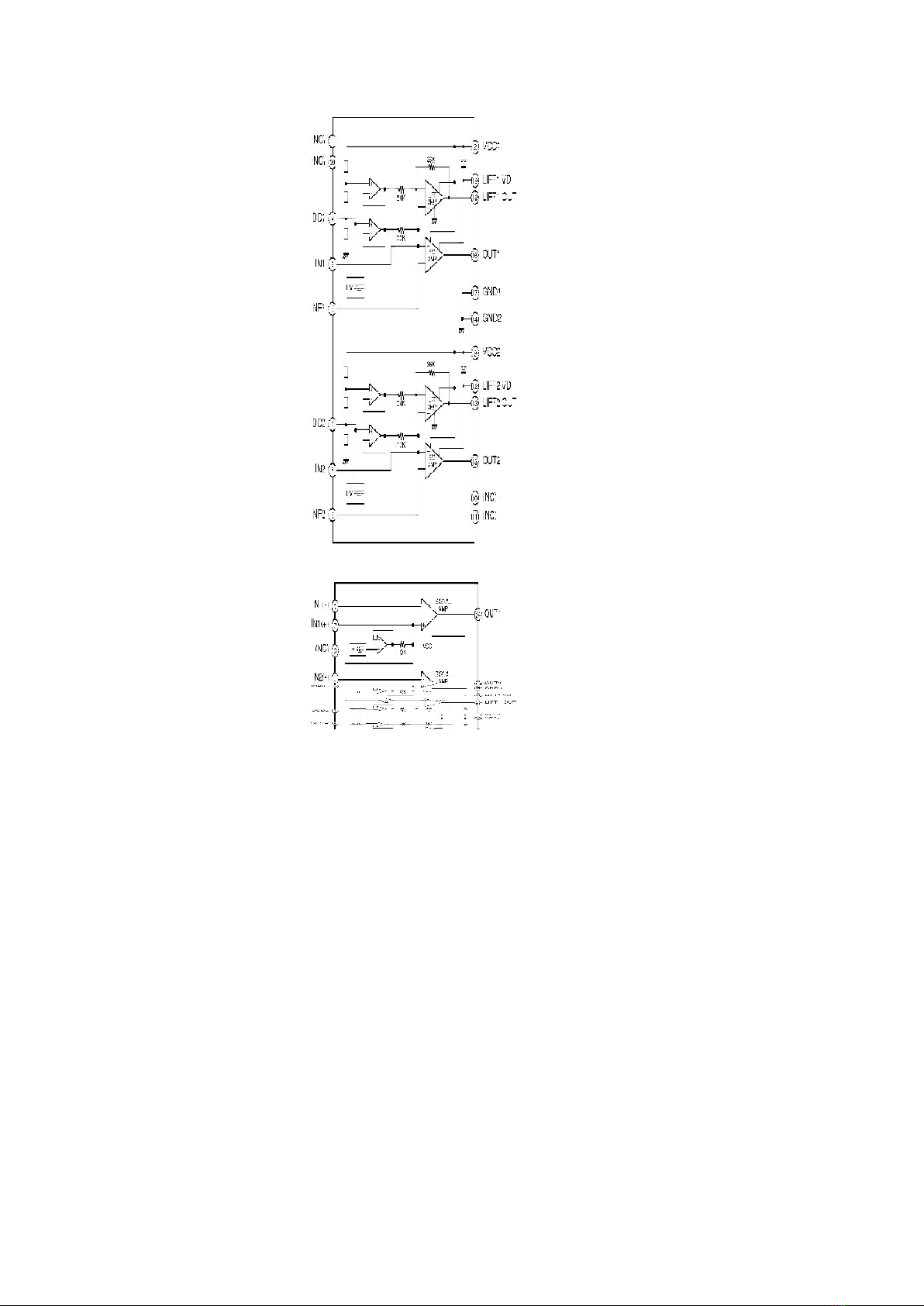

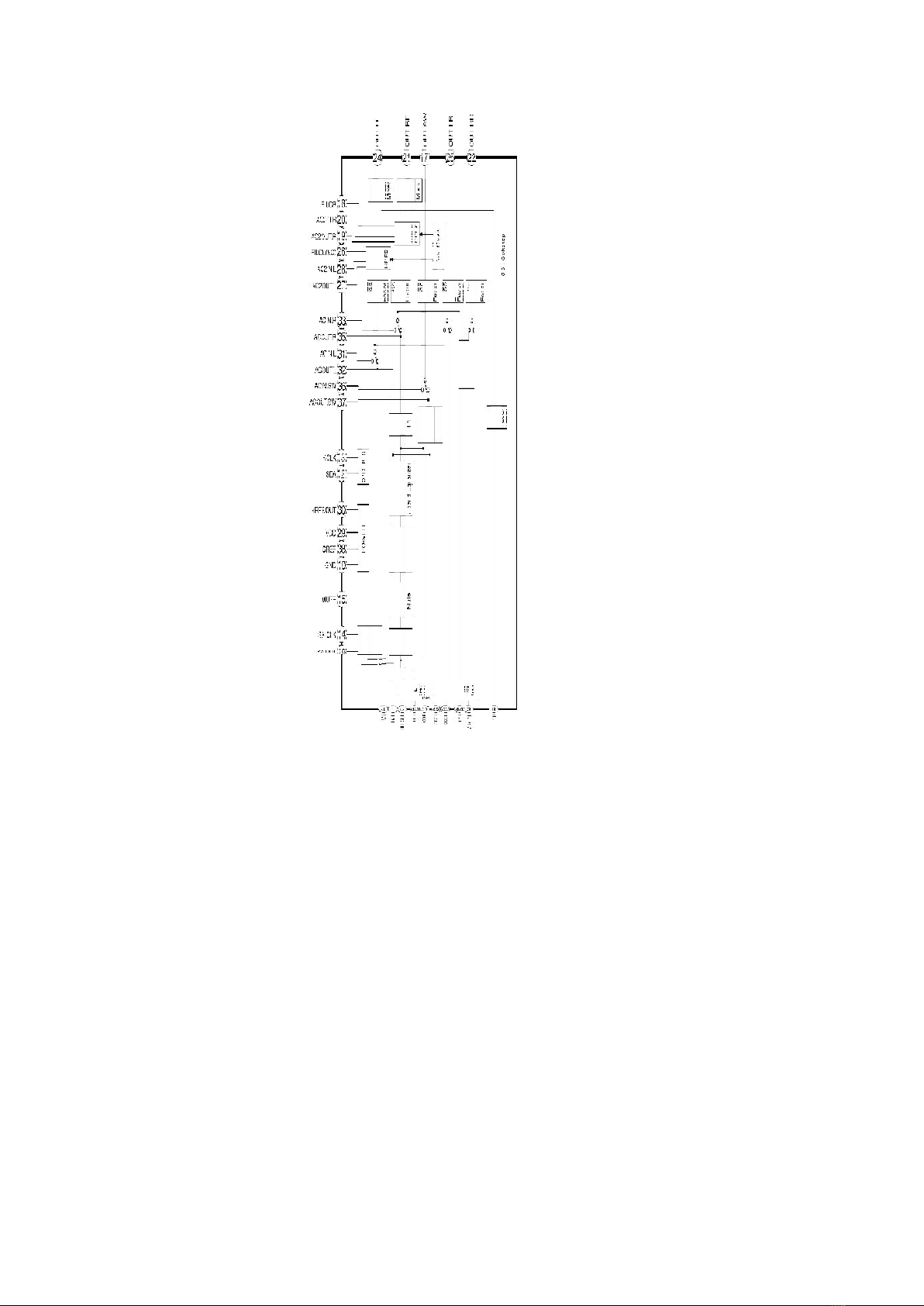

11. IC BLOCK DIAGRAM
11.1. Main Block
IC201 : C1BB00000796
18

IC670 : YEAMC14584BE
IC241 : C1BB00001047 (CQ-C8352N)
19

IC251 : C1BB00001046 (CQ-C8352N)
IC401 : C1BB00001045
20
