PANASONIC A406 REPEATER
QUICK SETUP GUIDE
Online instructional videos and manufacturer user guides are also available.
Visit www.primus.ca/hpbxguide for more information.

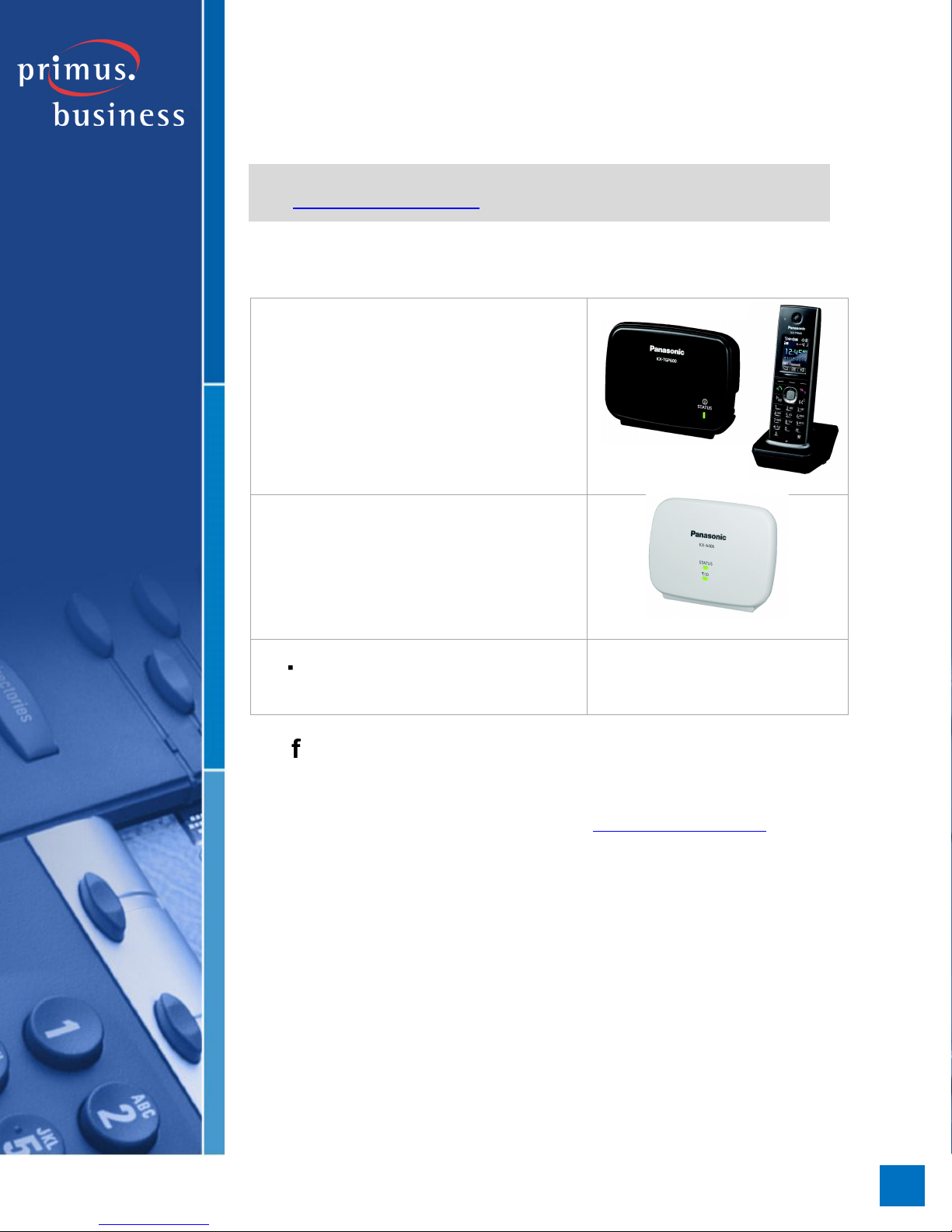

What You Need
Panasonic base unit and cordless
handset (model KX-TGP600) from
Primus Business Services
Panasonic DECT repeater (model
KX-A406) from Primus Business
Services
Hosted PBX service from Primus
Business Services
Before you Start
Your Panasonic base unit and cordless phone must be setup, turned on, and
functioning prior to installing the repeater. Please refer to the Panasonic TGP600
TPA60 TPA65 Quick Setup Guide, available at www.primus.ca/hpbxguide for more
information.
Registering the Repeater to the TGP600 Base
Unit

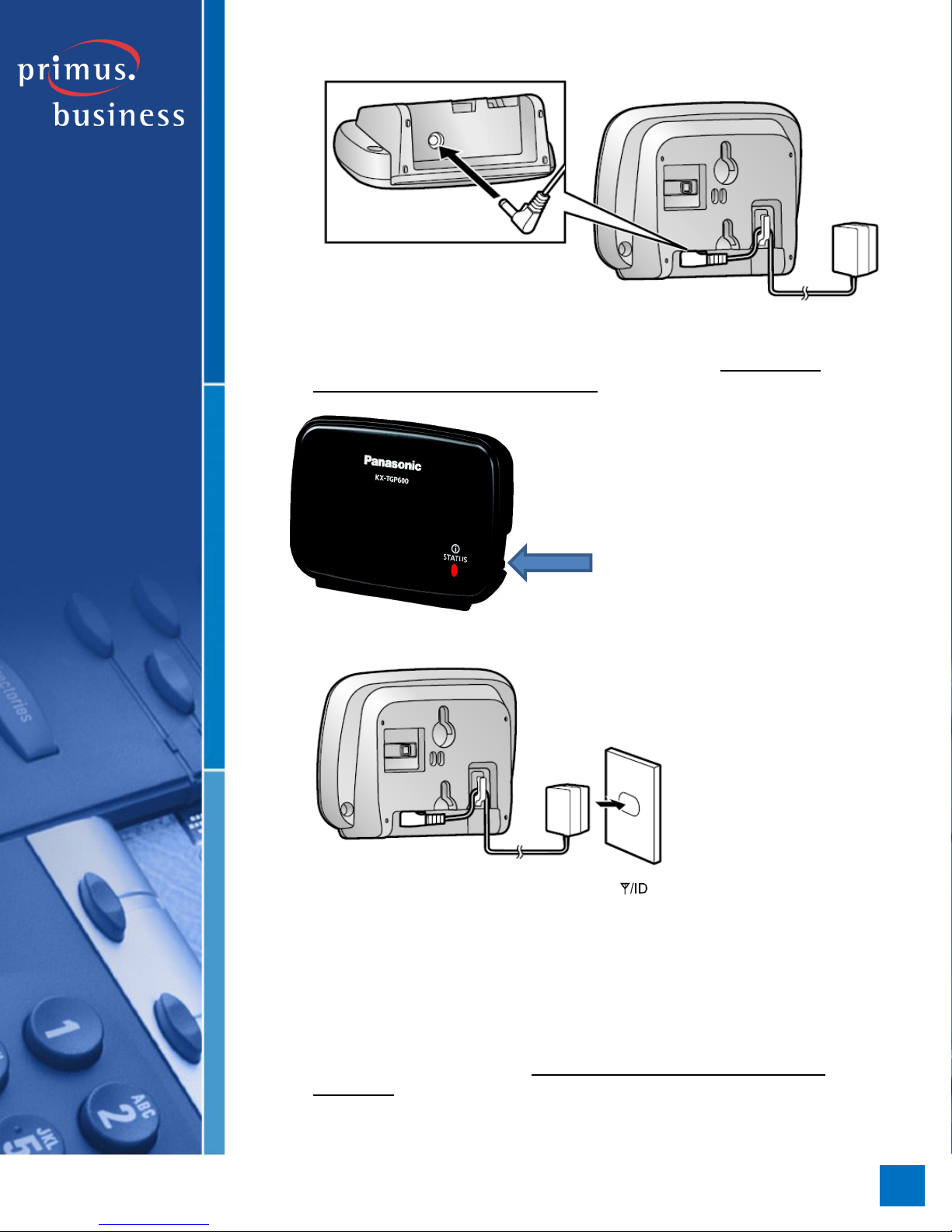

1. Plug the AC adapter into the repeater. Press the plug firmly to make sure it
is in place. There is a hook at the bottom of the unit to secure the cable in
place to prevent it from being accidentally pulled out. Do not plug in the AC
adapter into an electrical outlet yet.

2
PRIMUSBUSINESS.CA
PRIMUS BUSINESS SERVICES | HOSTED PBX | PANASONIC A406 REPEATER QUICK SETUP
GUIDE
2. On the base unit, press and hold the Handset locator button for 4 seconds
until the STATUS indicator flashes red. If all registered handsets start
ringing, press the same button to stop and repeat the step. The next step
must be completed within 90 seconds.
3. Plug the AC adaptor of the repeater to an electrical outlet.
4. On the repeater, the STATUS indicator and indicator will turn amber
for 2 seconds. When both indicator lights turn solid green, the repeater is
registered to the base unit and is ready to use.
5. On the base unit, exit registration mode by pressing the Handset locator
button.
NOTE:
Register repeaters one by one. Do not register multiple repeaters at the
same time.

3
PRIMUSBUSINESS.CA
PRIMUS BUSINESS SERVICES | HOSTED PBX | PANASONIC A406 REPEATER QUICK SETUP
GUIDE
If the indicator lights of the repeater do not turn green, make sure the
repeater is within range of the base unit and try again.
For wall mount instructions, see Panasonic DECT Repeater Installation
Manual for the KX-A406, available at http://primus.ca/business/hpbxguide.
For additional troubleshooting tips, please review the Hosted PBX Small
Office Basic Troubleshooting Guide, available at
http://primus.ca/business/hpbxguide.
If the configuration process was interrupted or if you need assistance, please
contact Primus HPBX Technical Support at 1-888-222-8577.

4
PRIMUSBUSINESS.CA
PRIMUS BUSINESS SERVICES | HOSTED PBX | PANASONIC A406 REPEATER QUICK SETUP
GUIDE
Registering the Repeater to Another Repeater

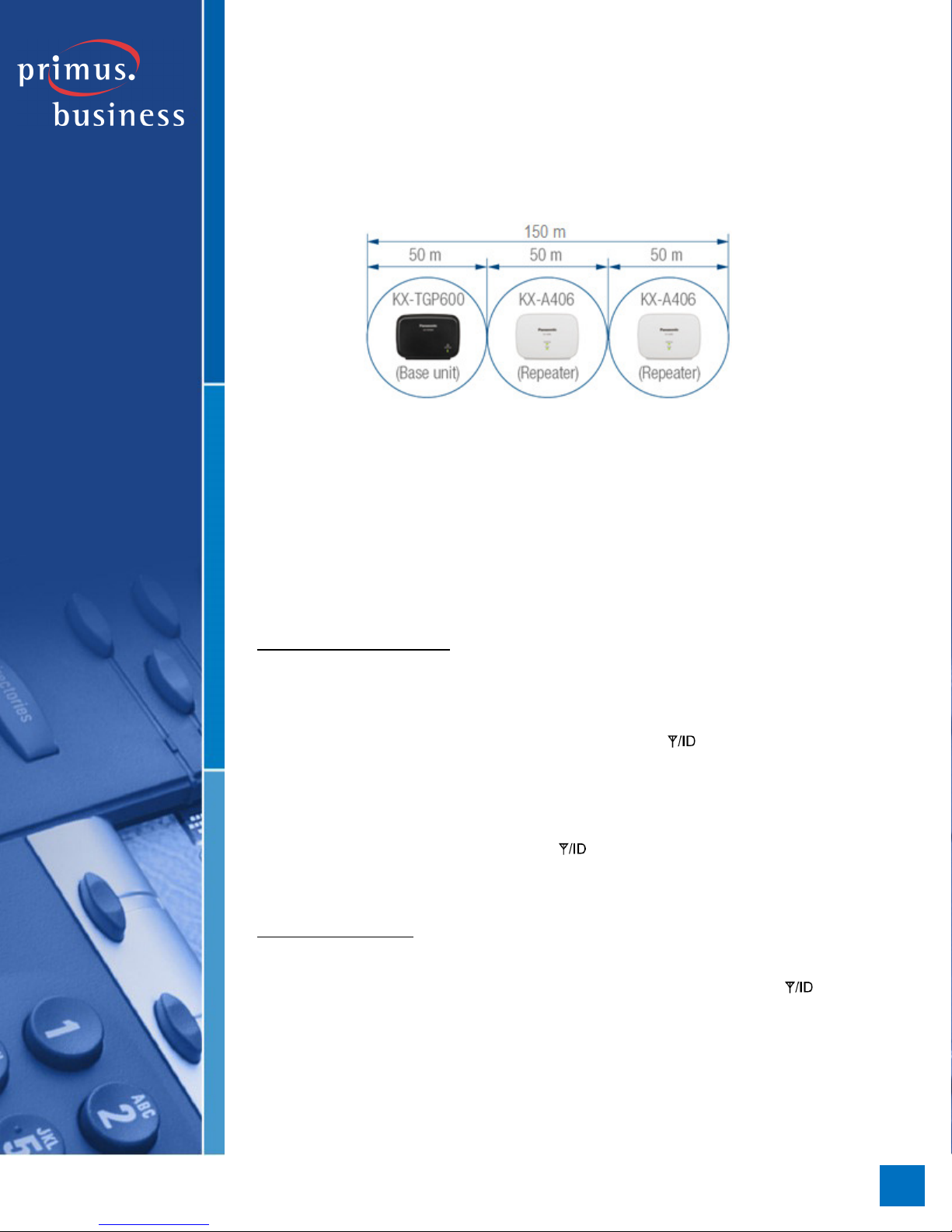

A repeater can be connected to another repeater in series to extend total coverage
to up to 150m. This can be done by registering the repeater to another repeater.
In the diagram above, the destination repeater is registered with the base unit, and
the origin repeater is connected in series to the destination repeater. This section
describes how to set up the origin repeater. Before you begin, you must
register the destination repeater to the TGP600 base unit. Please follow the
steps in the previous section on how to register a repeater to the base unit.
To register a repeater to another repeater, they must be set to the same ID.
On the destination repeater:
1. First check the ID of the repeater you are attempting to register to
(destination repeater). With the destination repeater turned on and
functioning normally, press the PROGRAM button located under the
destination repeater. Note the number of times the indicator flashes
green. This is the ID of the destination repeater – one flash indicates the ID
as 1, two flashes indicate the ID as 2, and so on.
2. Return the destination repeater back to normal operation by pressing the
PROGRAM button again. Both the and STATUS indicators should go
back to solid green.
On the origin repeater:
3. Turn on the repeater you want to register (origin repeater) by connecting the
AC adaptor. The STATUS indicator should be flashing red and the
indicator should be off.
4. On the origin repeater, press and hold the PROGRAM button for 5 seconds
until the STATUS indicator flashes green. Release the PROGRAM button.
(Destination
Repeater)
(Origin
Repeater)

5
PRIMUSBUSINESS.CA
PRIMUS BUSINESS SERVICES | HOSTED PBX | PANASONIC A406 REPEATER QUICK SETUP
GUIDE
The STATUS indicator will turn solid green, and the indicator will
flash red once to indicate that the ID is set to 1.
5. Set the ID of the origin repeater to be the same as the destination repeater.
If the ID of the destination repeater was not 1, press the PROGRAM button
on the origin repeater to select the ID that matches the destination repeater.
The ID will change by one each time the PROGRAM button is pressed.
(e.g., if you select ID 3 by pressing the button two times, the indicator
will flash 3 times)
6. Press and hold the PROGRAM button for 5 seconds to assign the ID to the
origin repeater. The indicator will turn solid red. Release the
PROGRAM button. The STATUS indicator and the indicator will turn
amber for 2 seconds and then the STATUS indicator will start flashing red,
indicating that the repeater is waiting to be found.

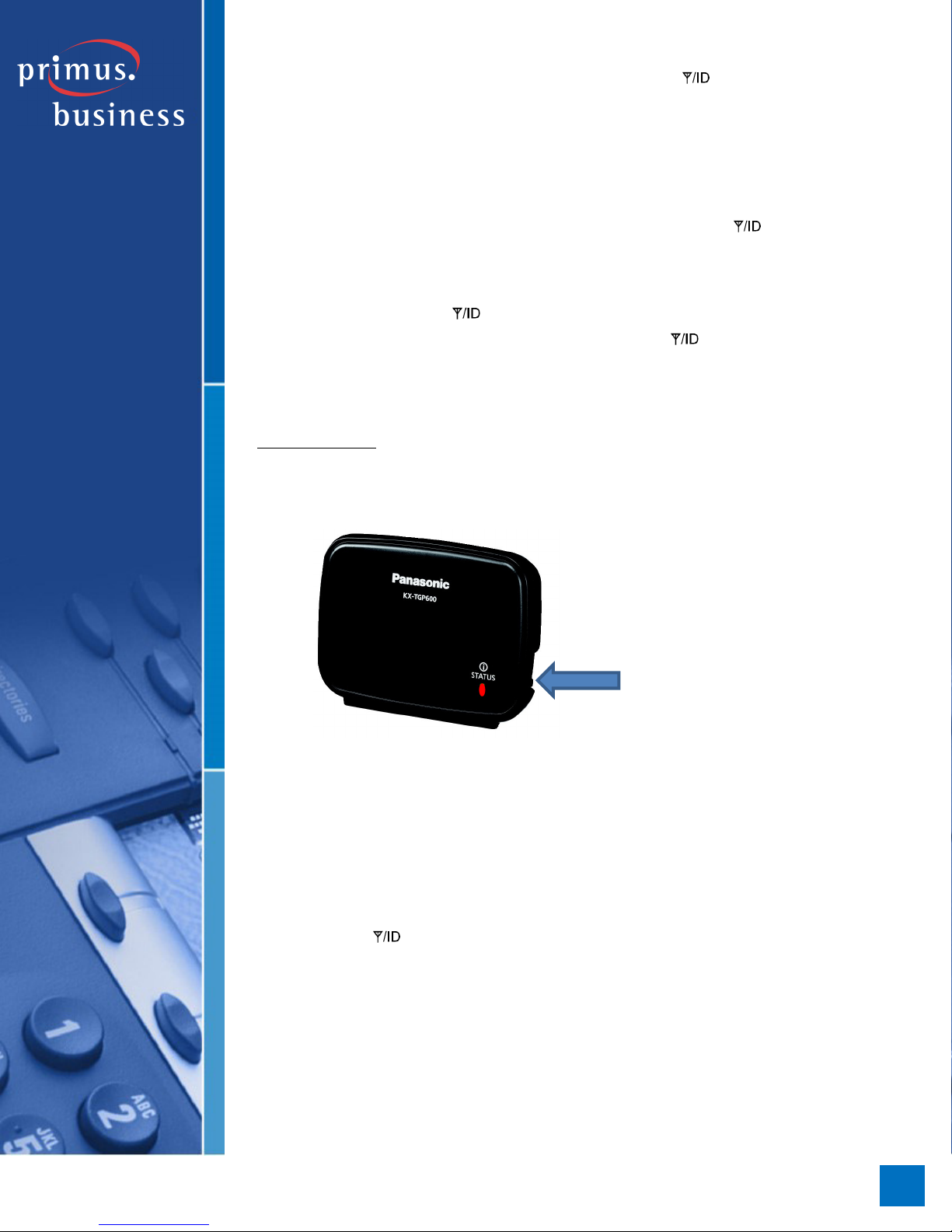

On the base unit:
7. On the base unit, press and hold the Handset locator button for 4 seconds
until the STATUS indicator flashes red.
8. Once the destination repeater finds the origin repeater, the STATUS
indicator on the origin repeater will turn solid green. Registration is
successful.
9. On the base unit, exit registration mode by pressing the Handset locator
button.
10. To verify whether the setup was successful, turn off the destination repeater
by unplugging the AC adapter. On the origin repeater, the STATUS indicator
and the indicator should both turn solid red, indicating that the
connection was lost. Turn the destination repeater back on by plugging in
the AC adapter. Both indicators on the destination repeater should turn
solid green, followed by the indicators on the origin repeater.

6
PRIMUSBUSINESS.CA
PRIMUS BUSINESS SERVICES | HOSTED PBX | PANASONIC A406 REPEATER QUICK SETUP
GUIDE
Optimizing Placement of the Repeater
The TGP600 base unit and A406 repeater has a maximum range of 50 meters.
However, for optimal synchronization between the base unit and the repeater, or
between two repeaters, the devices are recommended to be placed within a
maximum of 40m to 50m of each other. Range may vary depending on environment.
For maximum coverage and noise-free communications, place your repeater:
•at a convenient, high, and central location, such as on a wall, with no
obstructions between your phones and the repeater;
•away from electronic appliances such as TVs, radios, personal computers,
wireless devices or other phones;
•away from radio transmitters such as external antennas of mobile phone cell
stations (avoid putting the repeater on a bay window or near a window);
•away from objects that could interfere with reception such as wire fences,
thick walls, radiators, and metal shelving.
The repeater is for indoor use only.
To optimize the placement of your repeater:
1. Use the signal strength indicator on the TGP600/TPA60 cordless handset to
determine a viable location where you wish to extend the range of your base
unit. The signal strength should still be strong where the repeater will be
placed.
2. Once a suitable location for the repeater is found, turn on the repeater by
connecting the AC adaptor. If the indicator on the repeater turns red or
amber, this indicates that the signal strength is too weak for the repeater to
function. Re-position the repeater to a place where the indicator turns
green.
3. Check that that repeater is providing adequate coverage for your needs.
Using the signal strength indicator on the TGP600/TPA60 cordless handset,

7
PRIMUSBUSINESS.CA
PRIMUS BUSINESS SERVICES | HOSTED PBX | PANASONIC A406 REPEATER QUICK SETUP
GUIDE
walk to various areas where you may be using the phone, and confirm there
is adequate signal strength. If not, you may need to adjust the position of the
repeater, or install another repeater to further extend coverage area.

8
PRIMUSBUSINESS.CA
PRIMUS BUSINESS SERVICES | HOSTED PBX | PANASONIC A406 REPEATER QUICK SETUP
GUIDE
Optimizing Placement of the Repeater
(A vance )
The following instructions are for advanced users conducting a site survey to
determine the optimal placement of the repeater. These steps require the cordless
handset to operate in maintenance mode.
1. Press and hold the “power” key on the cordless handset until the
background of the display screen is light grey.
2. Release the “power” key and press and hold the “talk” key for about 10
seconds until the background of the display screen turns dark grey.
3. Release the “talk” key and press the following keys in sequence: Left soft
key, 8, 1. The display will show “Maintenance Mode”, with the firmware
version below it. Press “OK” to display the maintenance menu.
4. Then select “Base Monitor” and then “Current Base”.

9
PRIMUSBUSINESS.CA
PRIMUS BUSINESS SERVICES | HOSTED PBX | PANASONIC A406 REPEATER QUICK SETUP
GUIDE

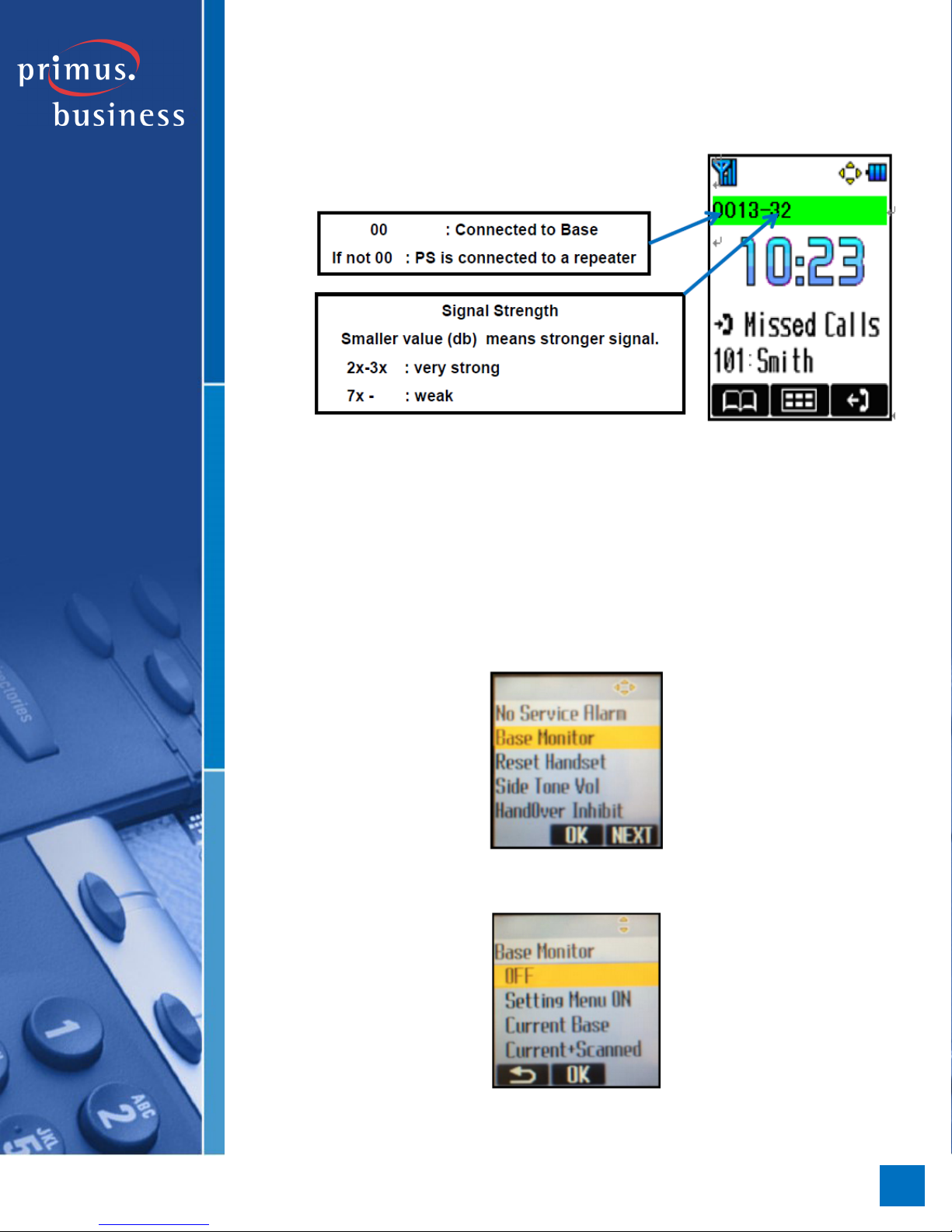

5. Turn off the handset by pressing the “power” key, and then turn it back on
by pressing the “power” key. The handset will now be in site survey mode,
and display signal strength (RSSI) and connection status. Description of the
values are as follows (PS refers to the handset):
6. Walk around to confirm the service area. If the readings are acceptable, the
display will remain green. If the display turns red and the signal is weak,
install the repeater in the area right before it starts turning red.
7. Once the site survey is complete, revert the handset back to normal
operation. First, turn off the handset.
8. Go into Maintenance Mode by following steps 1 to 3.
9. Select “Base Monitor” and press “OK”.
10. Select “OFF” and press “OK”.

10
PRIMUSBUSINESS.CA
PRIMUS BUSINESS SERVICES | HOSTED PBX | PANASONIC A406 REPEATER QUICK SETUP
GUIDE
11. Turn the handset off and then turn it back on. The handset will be in normal
operation mode.

11
PRIMUSBUSINESS.CA
PRIMUS BUSINESS SERVICES | HOSTED PBX | PANASONIC A406 REPEATER QUICK SETUP
GUIDE
Status Light Indicators
STATUS Indicator
Solid Green The repeater is within base unit range, or within range of
another repeater (if connected in series). The repeater is
ready for use
Flashing Green One handset is communicating with the base unit through
the repeater
Quick Flashing Green Two handsets are communicating with the base unit
through the repeater
Solid Red The repeater is out of range of the base unit or another
repeater (if connected in series)
Flashing Red The repeater is not registered to the base unit.
Off The repeater power is off.
Signal Strength/ID
Indicator
Solid Green Signal strength of the base unit is strong
Flashing Green The base unit is in repeater range.
The number of flashes indicates the current ID of the
repeater. When it flashes once, the ID is 1.
Solid Amber Signal strength of the base unit is weak
Solid Red The repeater is out of range of the base unit or another
repeater (if connected in series)
Flashing Red The base unit not within repeater range.
The number of flashes indicates the current ID of the
repeater. When it flashes once, the ID is 1.
Off The repeater is not in use.
