Panasonic KX-HNH200 User manual

Installation Guide
Home Network System
Repeater
Model No. KX-HNH200
KX-HNZ108
By installing this unit, you can extend the range of your Home Network
System to include areas where reception was previously not available.
The unit extends the range in all directions, allowing several floors to be
covered.
Important:
RThis unit is an accessory unit for use with a Panasonic Home Network
System.
RYou must register this unit with your hub before it can be used.
For U.S. users
For assistance, please contact us at 1-800-272-7033 or visit our Web
site:
http://shop.panasonic.com/support for customers in the U.S.A.
Please register your product: http://shop.panasonic.com/support
For Canada users
For assistance, please visit our support page on:
http://panasonic.ca/english/support
http://panasonic.ca/french/support
Printed in China
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 1 2016/04/26 13:54:34

Introduction
Accessory information ...............3
Important Information
Graphical symbols for use on
equipment and their
descriptions ...............................4
For your safety ...........................5
Important safety instructions ......6
For best performance ................7
Other information .......................8
Setup
Control .....................................10
Installation/Registering the range
repeater to the hub ..................12
Appendix
Wall mounting ..........................14
Troubleshooting .......................15
Specifications ..........................16
FCC and other information (for
U.S. users only) .......................17
Customer services (for U.S. users
only) .........................................19
Limited Warranty (ONLY FOR
U.S.A.) .....................................20
Other notices and information (for
Canada) ...................................22
Warranty (for Canada users
only) .........................................23
2
Table of Contents
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 2 2016/04/26 13:54:34

Accessory information
Supplied accessories
No. Accessory item/Part number Quantity
AAC adaptor/PQLV219Y 1
Other information
RDesign and specifications are subject to change without notice.
RThe illustrations in these instructions may vary slightly from the actual
product.
3
Introduction
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 3 2016/04/26 13:54:34

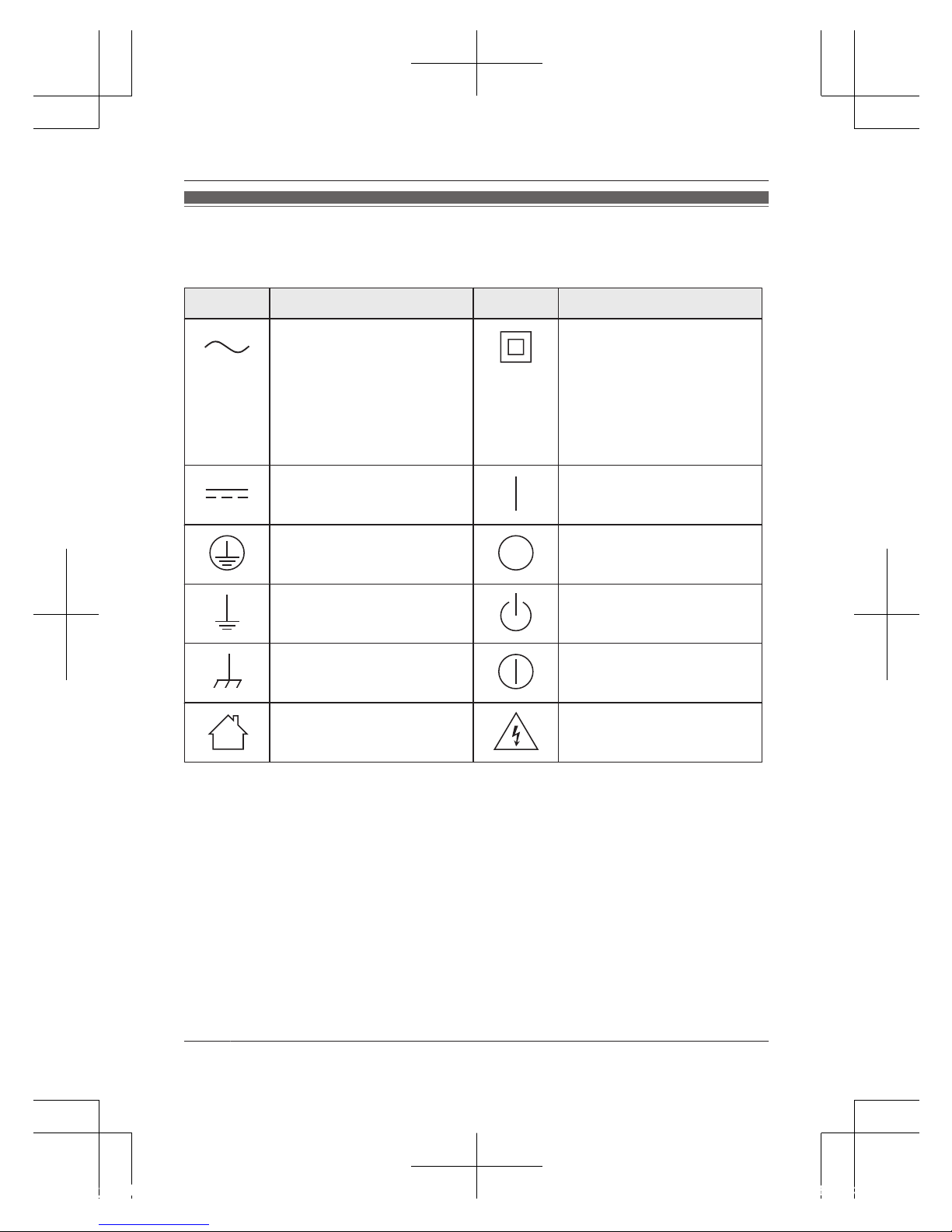

Graphical symbols for use on equipment
and their descriptions
Symbol Explanation Symbol Explanation
Alternating current
(A.C.)
Class P equipment
(equipment in which
protection against
electric shock relies on
Double Insulation or
Reinforced Insulation)
Direct current (D.C.) “ON” (power)
Protective earth “OFF” (power)
Protective bonding
earth
Stand-by (power)
Functional earth “ON”/“OFF” (power;
push-push)
For indoor use only Caution, risk of electric
shock
4
Important Information
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 4 2016/04/26 13:54:34

For your safety
To prevent severe injury and loss
of life/property, read this section
carefully before using the product
to ensure proper and safe
operation of your product.
WARNING
Power connection
RUse only the power source
marked on the product.
RDo not overload power outlets
and extension cords. This can
result in the risk of fire or
electric shock.
RCompletely insert the AC
adaptor/power plug into the
power outlet. Failure to do so
may cause electric shock and/
or excessive heat resulting in a
fire.
RRegularly remove any dust, etc.
from the AC adaptor/power plug
by pulling it from the power
outlet, then wiping with a dry
cloth. Accumulated dust may
cause an insulation defect from
moisture, etc. resulting in a fire.
RUnplug the product from power
outlets if it emits smoke, an
abnormal smell, or makes an
unusual noise. These
conditions can cause fire or
electric shock. Confirm that
smoke has stopped emitting
and contact us at http://
shop.panasonic.com/support
RUnplug from power outlets and
never touch the inside of the
product if its casing has been
broken open.
RNever touch the plug with wet
hands. Danger of electric shock
exists.
RDo not connect non-specified
devices.
Installation
RTo prevent the risk of fire or
electrical shock, do not expose
the product to rain or any type
of moisture.
RDo not place or use this product
near automatically controlled
devices such as automatic
doors and fire alarms. Radio
waves emitted from this product
may cause such devices to
malfunction resulting in an
accident.
RDo not allow the AC adaptor
cord to be excessively pulled,
bent or placed under heavy
objects.
Operating safeguards
RUnplug the product from power
outlets before cleaning. Do not
use liquid or aerosol cleaners.
5
Important Information
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 5 2016/04/26 13:54:34

RDo not disassemble the product.
Medical
RConsult the manufacturer of any
personal medical devices, such
as pacemakers or hearing aids,
to determine if they are
adequately shielded from
external RF (radio frequency)
energy. (The product operates
in the frequency range of 1.92
GHz to 1.93 GHz, and the RF
transmission power is 115 mW
(max.).)
RDo not use the product in health
care facilities if any regulations
posted in the area instruct you
not to do so. Hospitals or health
care facilities may be using
equipment that could be
sensitive to external RF energy.
CAUTION
Installation and location
RThe AC adaptor is used as the
main disconnect device. Ensure
that the AC outlet is installed
near the product and is easily
accessible.
Important safety
instructions
When using your product, basic
safety precautions should always
be followed to reduce the risk of
fire, electric shock, and injury to
persons, including the following:
1. Do not use this product near
water for example, near a
bathtub, washbowl, kitchen
sink, or laundry tub, in a wet
basement or near a swimming
pool.
2. Use only the power cord
indicated in this document.
6
Important Information
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 6 2016/04/26 13:54:34

For best
performance
Product location/avoiding noise
This product and other compatible
Panasonic devices use radio
waves to communicate with each
other.
RFor maximum coverage and
noise-free communications,
place this product:
– at a convenient, high, and
central location with no
obstructions between this
product and any connected
devices in an indoor
environment.
– away from electronic
appliances such as TVs,
radios, personal computers,
wireless devices, or other
phones.
– facing away from radio
frequency transmitters, such
as external antennas of
mobile phone cell stations.
(Avoid putting this product on
a bay window or near a
window.)
RCoverage and transmission
quality depends on the local
environmental conditions.
RIf the transmission quality is not
satisfactory, move this product
to another location.
Placement
RInstall the unit within hub range
in an indoor environment. We
recommend installing the unit in
a raised position (such as on a
wall).
RAvoid positioning the unit close
to objects that will interfere with
reception, such as thick walls,
radiators, metal shelving, etc.
RFor maximum distance
noise-free operation, place the
unit away from electrical
appliances such as TV, radio,
personal computer, or other
telephone equipment.
RKeep an appropriate distance
from the hub to maximize the
range of your phone system.
Find the appropriate location by
checking the indicator. If the
indicator lights red or amber,
re-position this unit in a place
7
Important Information
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 7 2016/04/26 13:54:34

where the indicator lights
green.

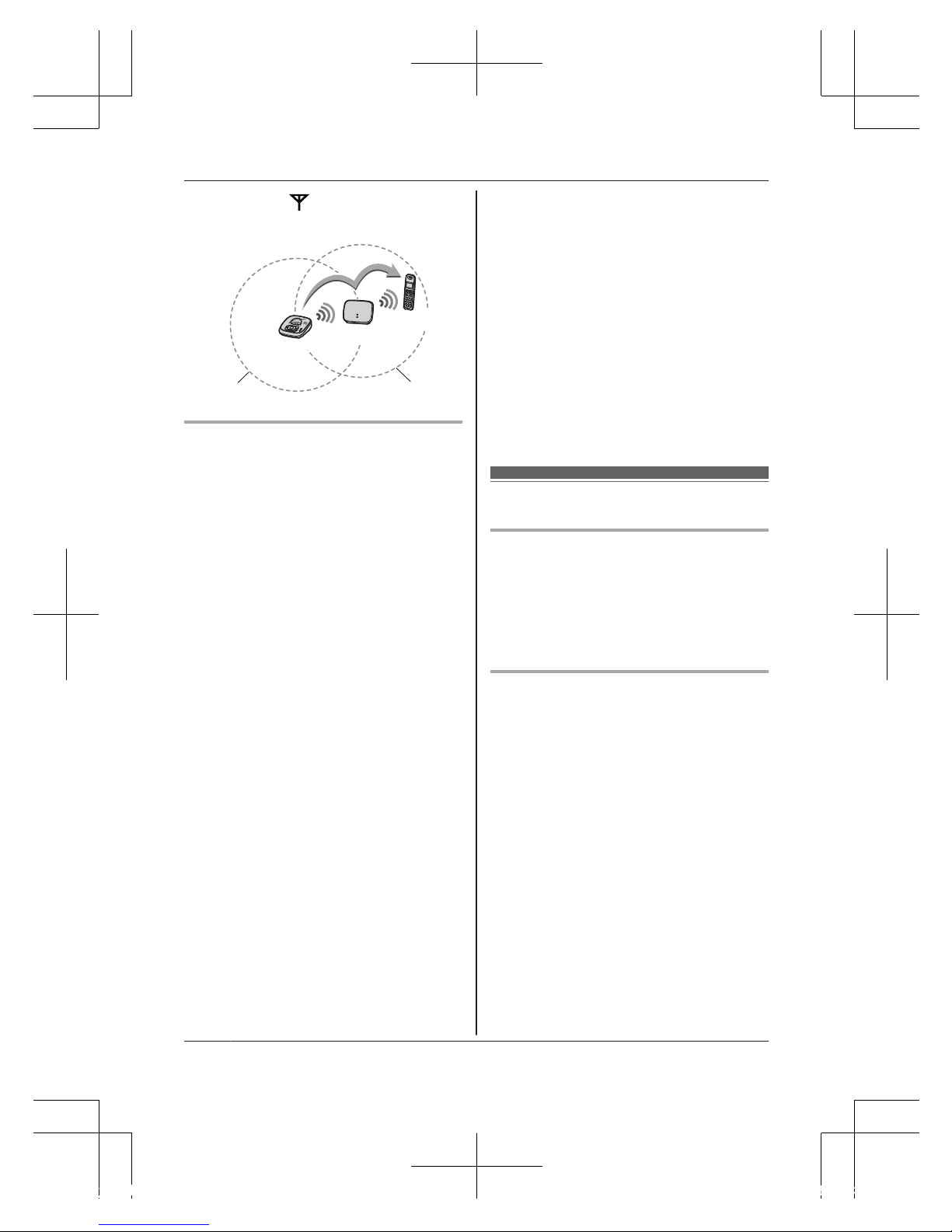

Hub
Handset
Repeater
Repeater range
Hub range
Environment
RKeep the product away from
electrical noise generating
devices, such as fluorescent
lamps and motors.
RThe product should be kept free
from excessive smoke, dust,
high temperature, and vibration.
RThe product should not be
exposed to direct sunlight.
RDo not place heavy objects on
top of the product.
RWhen you leave the product
unused for a long period of
time, unplug the product from
the power outlet.
RThe product should be kept
away from heat sources such
as heaters, kitchen stoves, etc.
It should not be placed in rooms
where the temperature is less
than 0 °C (32 °F) or greater
than 40 °C (104 °F). Damp
basements should also be
avoided.
RThe maximum communication
range may be shortened when
the product is used in the
following places: Near
obstacles such as hills, tunnels,
underground, near metal
objects such as wire fences, etc.
ROperating the product near
electrical appliances may cause
interference. Move away from
the electrical appliances.
Other information
Routine care
RWipe the outer surface of the
product with a soft moist cloth.
RDo not use benzine, thinner, or
any abrasive powder.
Notice for product disposal,
transfer, or return
RThis product can store your
private/confidential information.
To protect your privacy/
confidentiality, we recommend
that you erase information such
as phonebook or caller list
entries from the memory before
you dispose of, transfer, or
return the product.
8
Important Information
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 8 2016/04/26 13:54:34

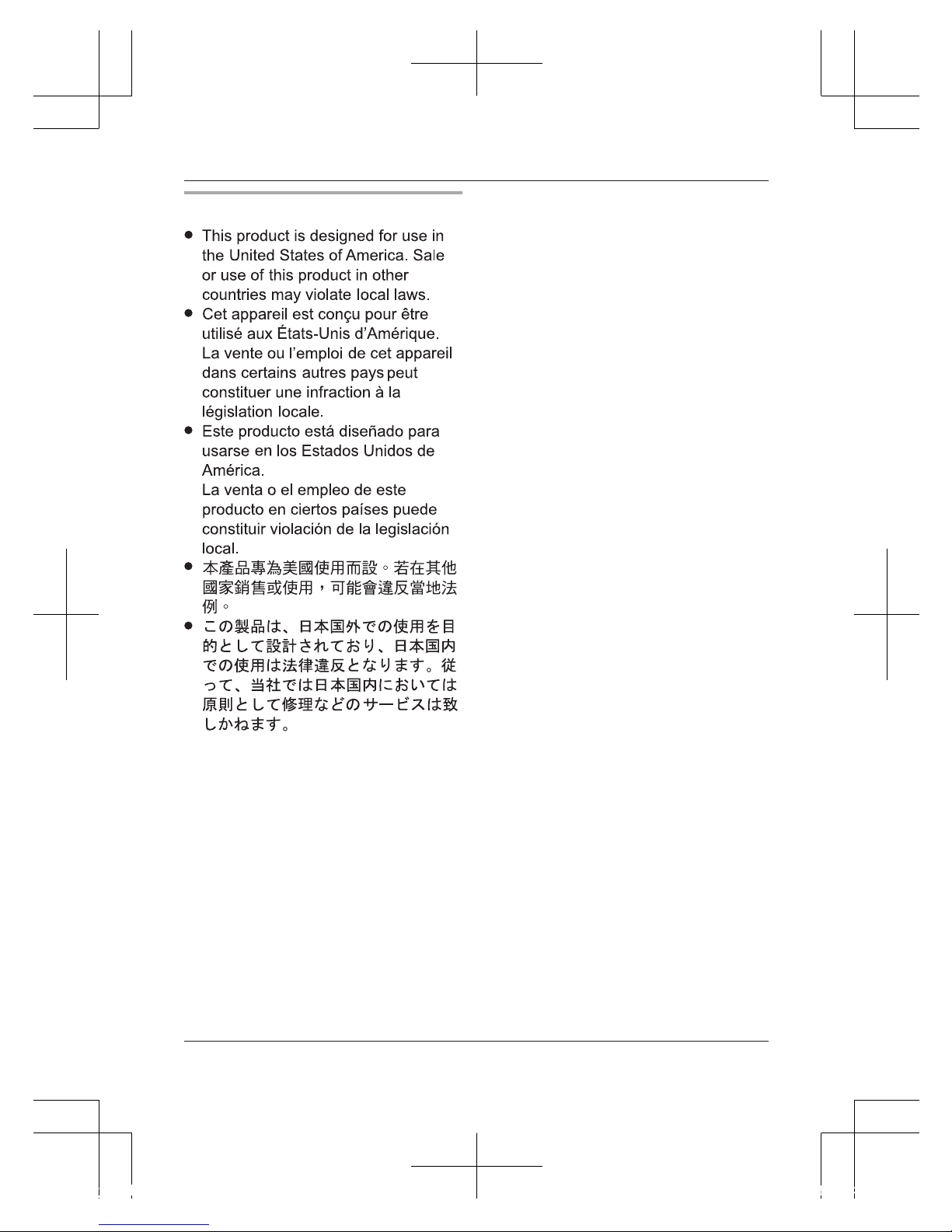

Notice
9
Important Information
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 9 2016/04/26 13:54:34

Control
B
A
C
STATUS indicator
indicator
ID indicator
M N
Understanding the STATUS indicator and indicator
Indicator Light status Meaning
STATUS
indicator
Green On RWithin hub range. The unit
is ready for use.
Flashing R1 handset is communicating
with the hub through this
unit.
Flashing
rapidly
R2 handsets are
communicating with the hub
through this unit.
Red On ROut of hub range
Flashing RThe unit is in registration
mode.
Off RThe power is off. (AC
adaptor is not connected
properly.)
10
Setup
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 10 2016/04/26 13:54:34

Indicator Light status Meaning
indicator
Green On RSignal strength of the hub is
strong.
Amber On RSignal strength of the hub is
weak.
Red On ROut of hub range.
Off RThe unit is not being used.
RThe power is off.
11
Setup
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 11 2016/04/26 13:54:34

Installation/Registering the range
repeater to the hub
Once the unit is connected to a power outlet in step 3, it automatically
goes into registration mode (if not already registered).
1Range repeater: Connect the AC adaptor.
RUse only the supplied Panasonic AC adaptor PQLV219.
Press plug firmly.
Hook
2Hub: Press and hold M OTHER DEVICEN for about 5 seconds.
RDepending on the hub, a registration tone sounds.
RIf all registered handsets start ringing, press the same button to
stop. Then repeat this step.
RThe next step must be completed within 90 seconds.
3Range repeater: Connect the AC adaptor to a power outlet.
(120 V AC, 60 Hz)
RWhen the unit is turned on, the STATUS indicator and indicator
light amber for about 2 seconds.
4Range repeater: Confirm that the STATUS indicator and
indicator light green. (The unit is ready for use.)
RIf the indicators do not light green, re-position the unit in a place
where the indicators light green.
5Hub: To exit registration mode, press M OTHER DEVICEN.
12
Setup
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 12 2016/04/26 13:54:34

Note:
RThe AC adaptor must remain connected at all times. (It is normal for
the adaptor to feel warm during use.)
RThe AC adaptor should be connected to a vertically oriented or
floor-mounted AC outlet. Do not connect the AC adaptor to a
ceiling-mounted AC outlet, as the weight of the adaptor may cause it
to become disconnected.
RThe unit can support a maximum of 2 handsets at a time.
RUp to 2 range repeaters can be registered to the hub.
13
Setup
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 13 2016/04/26 13:54:34

Wall mounting
Drive the screws (not supplied) into the wall. Mount the unit, then slide it
down.
Note:
RMake sure that the wall is strong enough to support the weight of the
unit.
14
Appendix
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 14 2016/04/26 13:54:34

Troubleshooting
Problem Cause/solution
The unit does not work. RWhen the indicators do not light,
the AC adaptor is not connected
properly. Check the connections.
RWhen the indicators do not light
green, move the unit closer to the
hub.
RRegistration may have been
canceled. Deregister the unit, then
re-register.
Deregister:
1Unplug the AC adaptor, then
press and hold MN.
2While pressing and holding
MN, re-connect the AC
adaptor.
3Keep pressing and holding
MN for about 10 seconds
until STATUS indicator flashes
amber. Then release MN.
Re-register: Unplug the AC
adaptor, then perform from step 2,
Installation/Registering the range
repeater to the hub,page 12.
While talking using the
handset, sound cuts in and
out.
RThe handsets is out of range.
Move the handset closer to this
unit.
15
Appendix
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 15 2016/04/26 13:54:35

The STATUS indicator
continues to light amber for a
while.
R M N was pressed. The unit is in
programming modes. To exit,
press M N again. Do not press
M N, except when deregistering
the unit.
Specifications
RStandard
DECT (Digital Enhanced Cordless Telecommunications)
RFrequency range
1.92 GHz – 1.93 GHz
RRF transmission power
115 mW (max.)
RPower source
120 V AC, 60 Hz
RPower consumption
Standby: Approx. 1.0 W, Maximum: Approx. 1.8 W
ROperating conditions
0 °C – 40 °C (32 °F – 104 °F), 20 % – 80 % relative air humidity (dry)
16
Appendix
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 16 2016/04/26 13:54:35

FCC and other
information (for
U.S. users only)
This device complies with Part 15
of the FCC Rules. Operation is
subject to the following two
conditions:
(1) This device may not cause
harmful interference, and (2) this
device must accept any
interference received, including
interference that may cause
undesired operation.
Privacy of communications may
not be ensured when using this
device.
CAUTION:
Any changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
this device.
NOTE:
This equipment has been tested
and found to comply with the limits
for a Class B digital device,
pursuant to Part 15 of the FCC
Rules. These limits are designed
to provide reasonable protection
against harmful interference in a
residential installation. This
equipment generates, uses, and
can radiate radio frequency
energy and, if not installed and
used in accordance with the
instructions, may cause harmful
interference to radio
communications. However, there
is no guarantee that interference
will not occur in a particular
installation. If this equipment does
cause harmful interference to
radio or television reception, which
can be determined by turning the
equipment off and on, the user is
encouraged to try to correct the
interference by one or more of the
following measures:
– Reorient or relocate the
receiving antenna.
– Increase the separation
between the equipment and
receiver.
– Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected.
– Consult the dealer or an
experienced radio/TV
technician for help.
Some devices operate at
frequencies that may cause
interference to nearby TVs and
VCRs. To minimize or prevent
such interference, this device
should not be placed near or on
17
Appendix
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 17 2016/04/26 13:54:35

top of a TV or VCR. If interference
is experienced, move this device
further away from the TV or VCR.
This will often reduce or eliminate
interference.
FCC RF Exposure Warning:
RThis product complies with FCC
radiation exposure limits set
forth for an uncontrolled
environment.
RTo comply with FCC RF
exposure requirements, the
device must be installed and
operated 20 cm (8 inches) or
more between the product and
all person’s body.
RThis product may not be
collocated or operated in
conjunction with any other
antenna or transmitter.
RFor body-worn operation, the
device must be used only with a
non-metallic accessory. Use of
other accessories may not
ensure compliance with FCC
RF exposure requirements.
Notice:
RFCC ID can be found on the
rear of the unit.
18
Appendix
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 18 2016/04/26 13:54:35

Customer services (for U.S. users only)
You may also contact us directly at: 1-800-272-7033,
Monday - Friday 9 am to 9 pm;
Saturday - Sunday 10 am to 7 pm, EST.
Accessories!
h!p://shop.panasonic.com/support
Customer Services Directory
Shop
for all your Panasonic gear
Go to
Get everything you need to get the most out of
your Panasonic products
Accessories & Parts for your Camera, Phone, A/V
products, TV, Computers & Networking, Personal
Care, Home Appliances, Headphones, Ba!eries,
Backup Chargers & more…
For Product Informa"on, Opera"ng Assistance,
Parts, Owner’s Manuals, Dealer and Service info
go to h!p://shop.panasonic.com/support
For the hearing or speech impaired TTY: 1- 877-833-8855
As of June 2015
19
Appendix
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 19 2016/04/26 13:54:35

Limited Warranty (ONLY FOR U.S.A.)
Limited Warranty Coverage (For USA Only)
Labor
One (1) Year
Parts
One (1) Year
To submit a new repair request and for quick repair status visit our Web Site at
http://shop.panasonic.com/support
Panasonic Products Limited Warranty
Online Repair Request
Mail-In Service--Online Repair Request
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length
of the period indicated on the chart below, which starts with the date of original purchase
(“warranty period”), at its option either (a) repair your product with new or refurbished parts,
(b) replace it with a new or a refurbished equivalent value product, or (c) refund your
purchase price. The decision to repair, replace or refund will be made by the warrantor.
During the “Labor” warranty period there will be no charge for labor. During the “Parts”
warranty period, there will be no charge for parts. This Limited Warranty excludes both
parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet).
This warranty only applies to products purchased and serviced in the United States.
This warranty is extended only to the original purchaser of a new product which was
not sold “as is”.
Home Network System Products
microSD card (Included model only) 90 days N/A
When shipping the unit, carefully pack, include all supplied accessories listed in the
Owner’s Manual, and send it prepaid, adequately insured and packed well in a carton box.
When shipping Lithium Ion batteries please visit our Web Site at
http://shop.panasonic.com/support as Panasonic is committed to providing the most up to
date information. Include a letter detailing the complaint, a return address and provide a
daytime phone number where you can be reached. A valid registered receipt is required
under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL
BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING
DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL
BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF
OF PURCHASE.
Product or Part Name
20
Appendix
HNH200_for_US_en-CA_(en_en)_0426_ver.003.pdf 20 2016/04/26 13:54:35
