Panasonic WV-CP630 User manual

Before attempting to connect or operate this product, please read these
instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
This illustration represents WV-CP630.
Lens: Option
Installation Guide
Color CCTV Camera
Model No. WV-CP630
WV-CP634

2
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
The lightning flash with arrowhead
symbol, within an equilateral trian-
gle, is intended to alert the user to
the presence of uninsulated "dan-
gerous voltage" within the prod-
uct's enclosure that may be of
sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and mainte-
nance (servicing) instructions in
the literature accompanying the
appliance.
WARNING:
• To prevent fire or electric shock hazard, do not
expose this apparatus to rain or moisture.
• The apparatus should not be exposed to dripping
or splashing and that no objects filled with liquids,
such as vases, should be placed on the appara-
tus.
• All work related to the installation of this product
should be made by qualified service personnel or
system installers.
• To prevent injury, this apparatus must be securely
attached to the floor/wall/ceiling in accordance
with the installation instructions.
• The mains plug or an appliance coupler shall
remain readily operable.
• The installation shall be carried out in accordance
with all applicable installation rules.
• This product has no power switch.
When turning off the power, turn off a Power
Supply or remove a power cable.
• The connections should comply with local electri-
cal code.
This Class A digital apparatus complies with
Canadian ICES-003.
The model number and serial number of this
product may be found on the surface of the unit.
You should note the model number and serial
number of this unit in the space provided and
retain this book as a permanent record of your
purchase to aid identification in the event of theft.
Model No.
Serial No.
NOTE: This equipment has been tested and found
to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is
likely to cause harmful interference in which case
the user will be required to correct the interference
at his own expense.
FCC Caution: To assure continued compliance,
(example - use only shielded interface cables
when connecting to computer or peripheral
devices). Any changes or modifications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate this equipment.
For Canada
For U.S.A
For U.S.A

3
Contents
Important safety instructions ........................................................................................................... 4
Limitation of liability ......................................................................................................................... 5
Disclaimer of warranty .................................................................................................................... 5
Preface ........................................................................................................................................... 6
Features ......................................................................................................................................... 6
About the user manuals .................................................................................................................. 7
Trademarks and registered trademarks ........................................................................................... 7
Precautions .................................................................................................................................... 8
Precautions for installation ............................................................................................................ 10
Major operating controls and their functions ................................................................................. 12
Installation and connection ........................................................................................................... 15
Optional dedicated lens .............................................................................................................. 15
Setup menu .................................................................................................................................. 23
List of setup menu ..................................................................................................................... 23
Basic operation ............................................................................................................................ 24
Screen transition diagram ........................................................................................................... 26
Troubleshooting ............................................................................................................................ 27
Specifications ............................................................................................................................... 28
Standard accessories ................................................................................................................... 29

4
Important safety instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7)
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other appara-
tus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus combi-
nation to avoid injury from tip-over.
S3125A
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.

5
Limitation of liability
THIS PUBLICATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF
THE THIRD PARTY'S RIGHT.
THIS PUBLICATION COULD INCLUDE TECHNICAL INACCURACIES OR TYPOGRAPHICAL
ERRORS. CHANGES ARE ADDED TO THE INFORMATION HEREIN, AT ANY TIME, FOR THE
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S).
IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY
PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT,
FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:
(1) ANY LOSS OR DAMAGE, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT,
SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE
PRODUCT;
(2) ANY INCONVENIENCE, LOSS, OR DAMAGE CAUSED BY INAPPROPRIATE USE OR
NEGLIGENT OPERATION OF THE USER;
(3) UNAUTHORIZED DISASSEMBLE, REPAIR OR MODIFICATION OF THE PRODUCT BY THE
USER;
(4) INCONVENIENCE OR ANY LOSS ARISING WHEN IMAGES ARE NOT DISPLAYED, DUE TO
ANY REASON OR CAUSE INCLUDING ANY FAILURE OR PROBLEM OF THE PRODUCT;
(5) ANY PROBLEM, CONSEQUENTIAL INCONVENIENCE, OR LOSS OR DAMAGE, ARISING
OUT OF THE SYSTEM COMBINED BY THE DEVICES OF THIRD PARTY;
(6) ANY CLAIM OR ACTION FOR DAMAGES, BROUGHT BY ANY PERSON OR ORGANIZATION
BEING PHOTOGENIC SUBJECT, DUE TO VIOLATION OF PRIVACY WITH THE RESULT OF
THAT SURVEILLANCE-CAMERA'S PICTURE, INCLUDING SAVED DATA, FOR SOME
REASON, BECOMES PUBLIC OR IS USED FOR ANY PURPOSE.
Disclaimer of warranty

6
Preface
This product is a 1/3-type CCD color CCTV camera. Connection of this product to a video monitor
allows users to use this product as a monitoring camera.
• WV-CP630: 120 V AC power supply, with color / black-and-white mode switch function
• WV-CP634: 24 V AC, 12 V DC power supply, with color / black-and-white mode switch function
Features
Introduction of newly developed high-resolution CCD
The introduction of the newly developed CCD with 976 horizontal pixels has led to a horizontal res-
olution of as high as 700 TV lines.
Super Dynamic 6
For photographic subjects which contain high contrast between the bright and dark areas, light
compensation on the pixel level will result in more natural-looking images.
Auto back focus function (ABF) equipped
Moving the CCD inside the camera to an optimal position with the operation button of this unit or
the setup menu allows users to automatically adjust the back focus.
The back focus is adjustable with the setup menu through the system controller (option) even after
installation of this unit.
The auto back focus function also allows users to correct out of focus when changing between
color and black-and-white images.
High sensitivity achieved because of noise reduction function
Sensitivity at the following minimum illuminations has been accomplished for color images because
of the introduction of low noise circuit design (F1.4) :
0.08 lx (color), 0.008 lx (black-and-white)
Day/Night conversion function equipped
No setup change is required at night because the image automatically changes from the color
mode to the black-and-white mode at low illuminance.
Bright images can be captured at night because of automatic switching of IR filters at low illuminance.
Motion detection function (VMD) equipped
The motion of an object is detectable. The acts of covering the camera with a cloth, a cap or other
acts and changing the camera direction during surveillance can be detected.
Note:
• The VMD function is not the dedicated function to prevent thefts, fires, etc. We are not respon-
sible for any accidents or damages caused by applying the function for the above purposes.

7
About the user manuals
The operating instructions of the camera consist of 2 sets: this book and operating instructions
(PDF).
This book explains how to install the camera.
Refer to the "Operating Instructions (PDF)"on the provided CD-ROM for descriptions of how to
perform the unit settings. Adobe® Reader® is required to read PDF. When the Adobe® Reader® is
not installed on the PC, download the latest Adobe® Reader® from the Adobe web site and install it.
Trademarks and registered trademarks
Adobe, Acrobat Reader and Reader are either registered trademarks or trademarks of Adobe
Systems Incorporated in the United States and/or othe countries.

8
Precautions
Refer installation work to the dealer.
Installation work requires technique and
experiences. Otherwise injury or damage to
this product may result.
Be sure to consult the dealer.
Do not insert any foreign objects.
This could permanetly damage this product.
Turn the power off immediately and contact
qualified service personnel for service.
Do not attempt to disassemble or modify
this product.
Failure to observe this may cause fire or
electric shock.
Consult the dealer for the repair or inspections.
Stop operation immediately when
something is wrong with this product.
When smoke goes up from this product or
the smell of smoke comes from this product,
continued use will result in fire, injury, or
damage to the product.
Turn the power off immediately and contact
qualified service personnel for service.
Select an installation area that can support
the total weight.
Selecting an inappropriate installation surface
may cause the product to fall down or topple
over, resulting in injury.
Ins tall atio n wo rk sha ll be sta r te d afte r
sufficient reinforcement.
Periodic inspections shall be conducted.
Rust on the metal parts or screws may cause
the product to fall down resulting in injury or
accidents.
Consult the dealer for the inspections.
This product shall be installed in a
vibration-free place.
Failure to observe this may cause screws and
bolts to be loosened and consequently to fall
resulting in injury.
Install this product in a location high
enough to avoid people and objects from
bumping the product.
Failure to observe this may cause a drop
resulting in injury or accidents.
Do not strike or give a strong shock to this
product.
Failure to observe this may cause injury or fire.
Turn the power off when do wiring of this
product.
Failure to observe this may cause electric
shock. A short circuit or wrong wiring may
cause fire.
Do not use this product in an atmosphere
of flammable gases.
Failure to observe this may cause injury by
explosion.
Avoid installing this product in locations
where it is subject to damage by salt or
corrosive gas.
Otherwise the mounting fixtures will deterio-
rate, causing the product to fall down and
leading to accidents.
Tighten screws and mounting fixtures to
the specified torque.
Failure to observe this may cause a drop
resulting in injury or accidents.

9
[Precautions for use]
This product is designed to be used indoors.
This product is not operable outdoors.
This product has no power switch.
When turning off the power, turn off a circuit
breaker.
To keep on using with stable performance
Parts of this product may deteriorate and it may
shorten the lifetime of this product when using
in locations subject to high temperatures and
high humidity. (Recommended operating
temperature: +35 °C {95 °F} or lower)
Do not expose this product to direct heat
sources such as a heater.
Handle this product with care.
Do not drop this product, nor apply shock or
vibration to this product.
Failure to observe this may cause trouble.
Noise on monitor
Thi s product is e quip ped with a su per
sensitive CCD. Therefore, noise may appear
on the monitor. This phenomenon is not
trouble.
Discoloration on the CCD color filter
When continuously shooting a bright light
source such as a spotlight, the color filter of
the CCD may have deteriorated and it may
cause discoloration. Even when changing the
fixed shooting direction after continuously
shooting a spotlight for a certain period, the
discoloration may remain.
Do not aim this product at strong light
sources.
A light source such as a spot light causes a
blooming (light bleeding) or a smear (vertical
lines).
Bright subjectSmear
Blooming
Cleaning this product body
Turn the power off when cleaning this product.
Do not use strong abrasive detergent when
cleaning this product. Otherwise, it may cause
discoloration.

10
Precautions for installation
Panasonic assumes no responsibility for
injuries or property damage resulting from
failures arising out of improper installation
or operation inconsistent with this
documentation.
This product is designed to be used
indoors.
This product is not operable outdoors.
Do not expose the product to direct sunlight
for hours and do not install the product near a
heater or an air conditioner. Otherwise, it may
c au s e de for m at i on , di s co l o ra ti o n and
malfunction. Keep the product away from
water and moisture.
Installing place
Contact your dealer for assistance if you are
unsure of an appropriate place in your particu-
lar environment.
• Make sure that the installation area is strong
enough to hold the product, such as a
concrete ceiling.
• Install the camera in the foundation area of
the architecture or where sufficient strength
is assured.
• If a ceiling board such as plaster board is
too weak to support the total weight, the
area shall be sufficiently reinforced.
Avoid installing this product in the
following locations.
• Location where it may get wet from rain or
water splash.
• Locations where a chemical agent is used
such as a swimming pool.
• Locations subject to steam and oil smoke
such as a kitchen.
• Locations near flammable gas or vapor.
• L oc ati on s wh ere ra di ati on o r x-ray
emissions are produced.
• Locations where corrosive gas is produced,
Locations where it may be damaged by
briny air such as seashores.
• Locations where the temperature is not
within –10 °C to +50 °C {14 °F to 122 °F}.
• Locations subject to vibrations (This
product is not designed for on-vehicle
use.)
• Locations subject to condensation as the
result of severe changes in temperature.
Avoid moist or dusty places to install this
system.
Otherwise, lifetime of the internal parts may be
shortened.
Avoid installing this product in a place with
a high level of noise.
Installation near an air conditioner, an air
cleaner, a vending machine, or the like causes
noise.
Avoid installing and connecting during a
lightning storm. Otherwise, an electric
shock or fire may be caused.
Be sure to remove this product if it is not in
use.
Do not damage the power plug or cable.
Keep the camera cable away from the
lighting cable.
Failure to observe this may cause noise.
Radio interference
When the camera is used near T V/radio
antenna, strong electric field or magnetic field
(near a motor or a transformer), images may
be d is to r te d an d no is e so un d may b e
produced. In such a case, run the camera
cable through specialized steel conduit tubes.

11
Locally procure the screws
Screws are not supplied with this product.
Prepare the screws according to the material,
structure, strength and other factors of the
mounting area and the total weight of objects
to be mounted.
Screw tightening
• The screws and bolts must be tightened
with an appropriate tightening torque
according to the material and strength of
the installation area.
• Do not use an impact driver. Failure to
observe this may cause overtightening
and consequently damage to the screws.
• When a screw is tightened, make the
screw at a right angle to the surface. After
tightening the screws or bolts, perform
visual check to ensure tightening is
enough and there is no backlash.
Power cord (only for WV-CP630)
Connect the power cord securely. Run the
power cord so that no load is applied to the
cord when panning or tilting the camera.
(Failure to observe this may disconnect the
power cord, and accordingly no image is
displayed.)

12
Major operating controls and their functions
(UP)
(LEFT) (RIGHT)
(DOWN)
(SET)
NEAR FAR BF/MENU
Side view (WV-CP630)
Side view (WV-CP634)
ALC lens connector
Tripod mount base
Operation buttons*
: Up button (UP) (Pressing and holding for 3 s, SD6 ON/OFF)
: Down button (DOWN) (Pressing and holding for 3 s, image upside-down)
: Left button (LEFT), FOCUS NEAR
: Right button (RIGHT), FOCUS FAR
: Setting button (SET), BF/MENU
ALC lens connector
Tripod mount base
* The following names are assigned to each button in this book:
Side cover
Inside the side cover
(Slide the cover leftward to the lock position.)

13
POWER
ALARM OUT
ALARM IN
GND
VIDEO OUT
120V ~ 60Hz
ALARM OUT
ALARM IN
POWER
VIDEO OUT
24V IN~
1-L
12V IN NC
2-N
GND
(UP)
(LEFT) (RIGHT)
(DOWN)
(SET)
NEAR FAR BF/MENU
GND

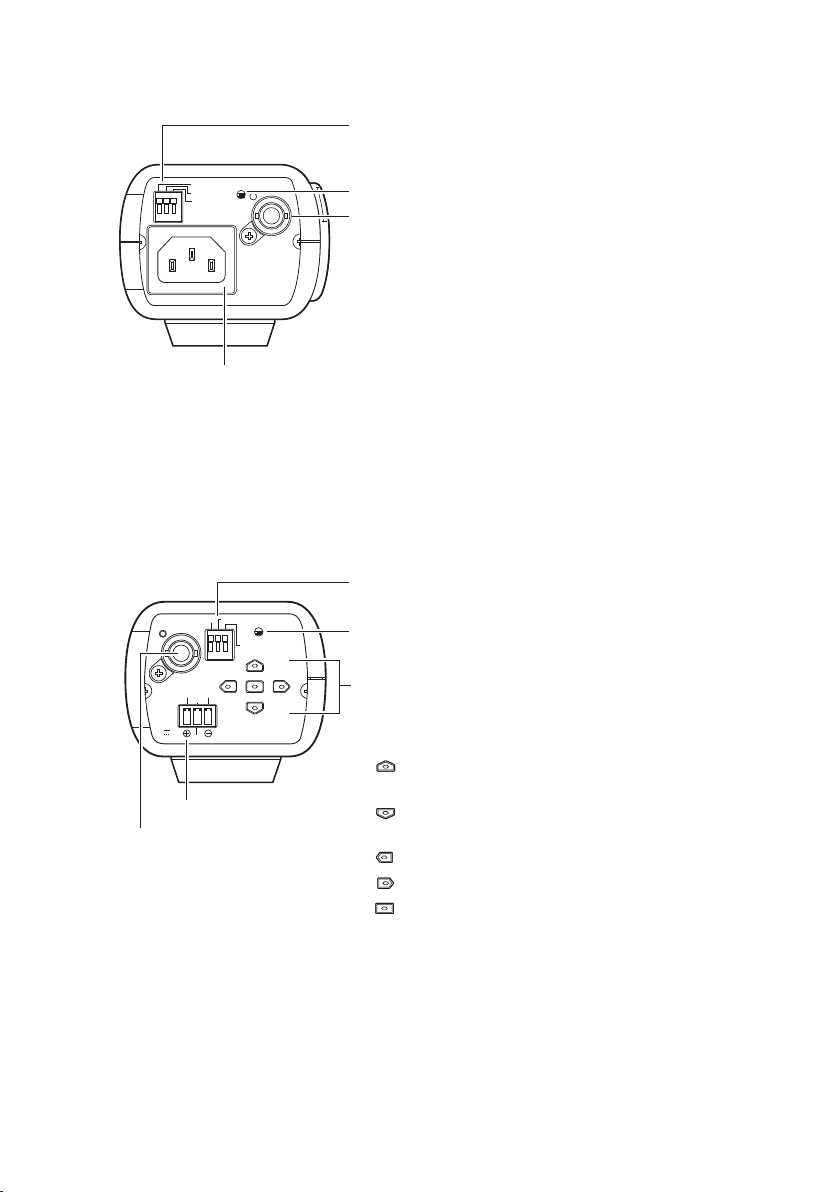

Rear view (WV-CP630)
Rear view (WV-CP634)
External terminal
Power indicator
Video output connector
Power connector
External terminal
Power indicator
Operation buttons*
Video output connector
AC/DC power terminal
* The following names are assigned to
each button in this book:
: Up button (UP)
(Pressing and holding for 3 s, SD6 ON/OFF)
: Down button (DOWN)
(Pressing and holding for 3 s, image upside-down)
: Left button (LEFT), FOCUS NEAR
: Right button (RIGHT), FOCUS FAR
: Setting button (SET), BF/MENU

14
Side cover (only for WV-CP630)
When the operation buttons are used, the side
cover is slide leftward to the lock position.
ALC lens connector
The ALC connector is connected to this ALC
lens connector.
Tripod mount base
This socket is used to mount the camera
mount bracket (option). The tripod socket can
be mounted on either top or bottom of the
camera head.
(Tripod socket hole: 1/4-20 UNC for tripod)
Operation buttons
This buttons are used to perform various set-
tings in the setup menu.
Video output connector
The Coaxial cable (locally procured) is connect-
ed to this video output connector.
Power indicator
This indicator lights up when the power is on.
External terminal (☞ page 19)
Power connector (only for WV-CP630)
The included power cord is connected to this
power connector.
AC/DC power terminal
(only for WV-CP634)
The power supply of 24 V AC or 12 V DC is
connected to this terminal.

15

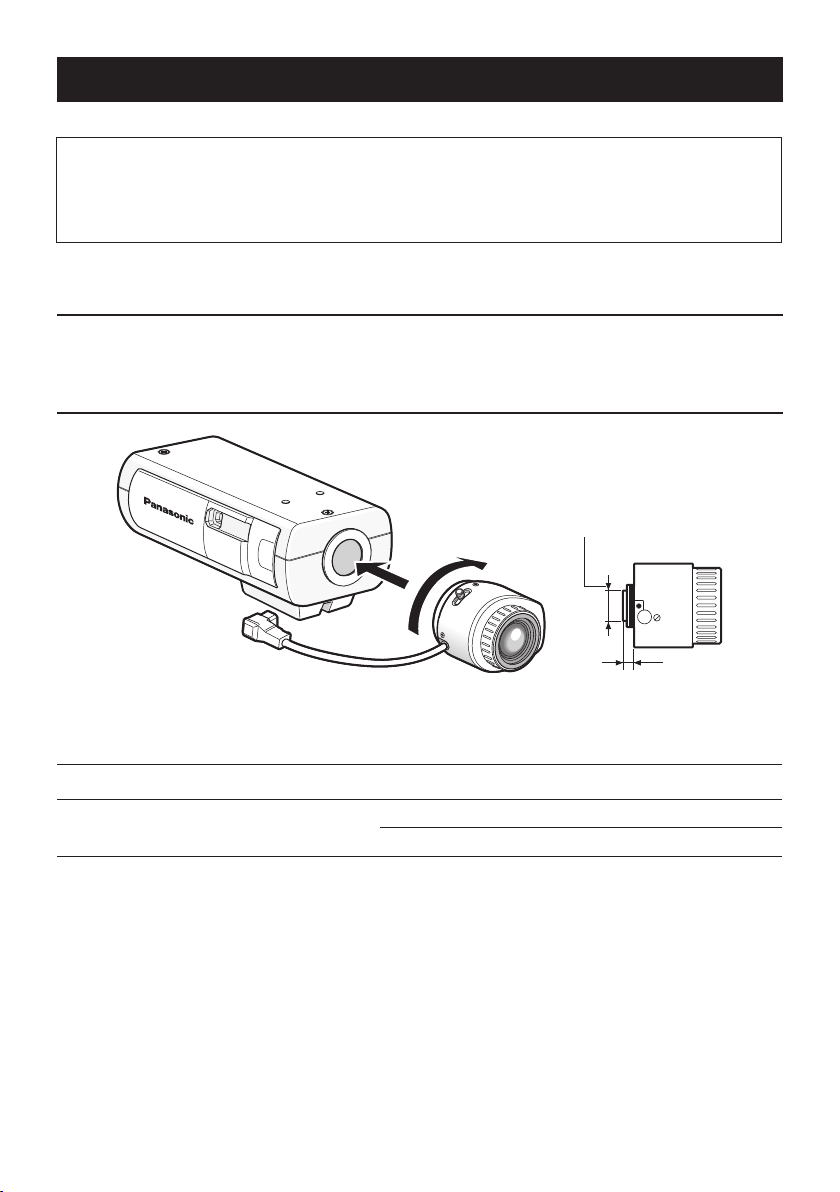

Installation and connection
1 Rotate the lens (option) clockwise slowly to mount the lens.
Important:
• For use of C-mount lens, use the C-mount adaptor (option).
• For prevention of damage to the camera body, use a lens with protrusion of 5.5 mm {7/32"} or
less from the flange surface.
Protrusion from mount:
ø20 mm {25/32”} or less
Protrusion from flange:
5.5 mm {7/32"} or less
Optional dedicated lens
Lens type Model No.
ALC lens for 1/3 type CCD cameras 2x vari-focal WV-LZA61/2S
8x vari-focal WV-LZ62/8S
Cautions:
• ONLY CONNECT WV-CP634 TO 24 V AC OR 12 V DC CLASS 2 POWER SUPPLY (UL 1310/
CSA 223) or LIMITED POWER SOURCE (IEC/EN/UL/CSA 60950-1).
• Be sure to connect the grounding lead to the GND terminal.

16

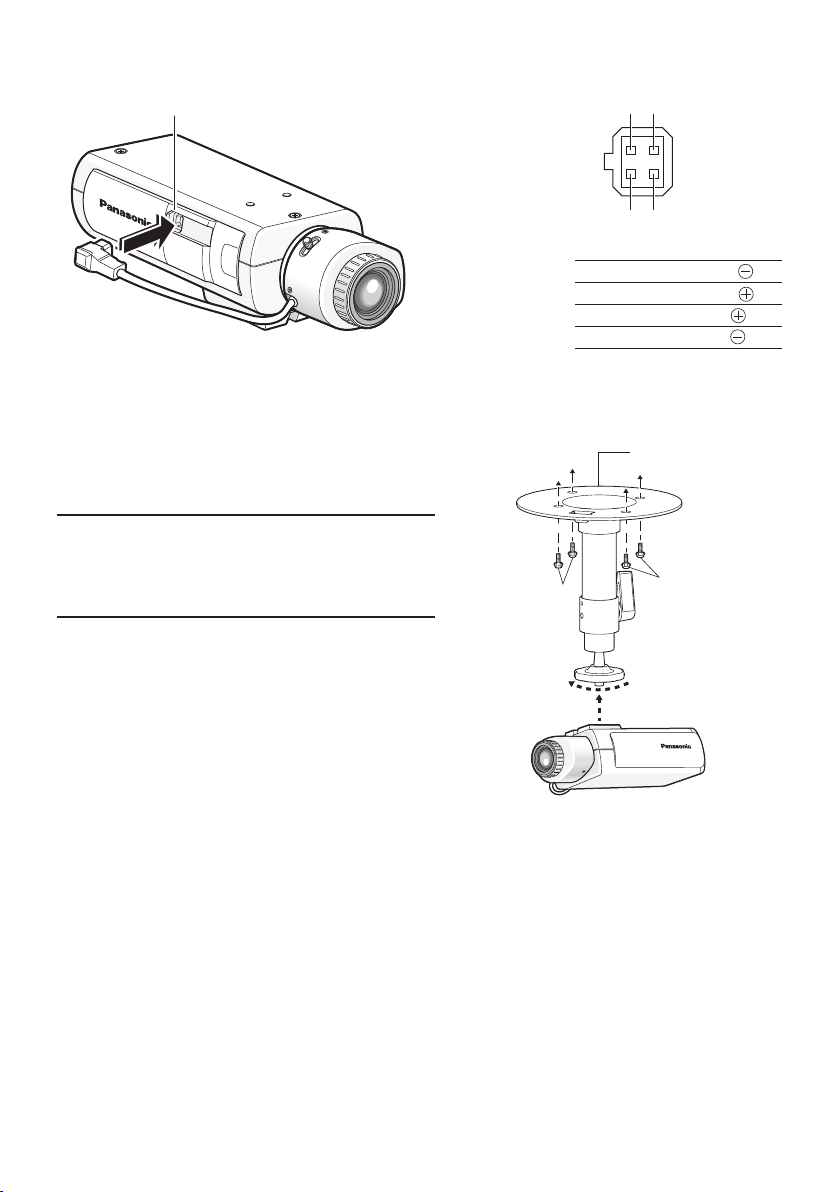

2 Connect the lens cable to the ALC lens connector of the camera.
ALC lens connector
1 3
2 4
Pin No.
1 Dump
2 Dump
3 Drive
4 Drive
3 Secure the camera mount bracket
(option) to an installation position,
and mount the camera on the camera
mount bracket.
Important:
• If the total weight of the camera and lens
exceeds 1 kg {2.2 lbs.}, use a housing to take
measures against camera drop.
• Prepare mounting screws according to the
material of the area where the camera mount
bracket (option) is to be installed. The installa-
tion method may be different depending on the
material of the area where the bracket is to be
installed.
• When installing on steel:
Fix with bolts and nuts (M6 or M8).
• When installing on concrete:
Fix with anchor bolts or AY plug bolts (M6
or M8).
Recommended tightening torque (M6):
5.0 N·m {3.69 lbf·ft}
Recommended tightening torque (M8):
6.2 N·m {4.57 lbf·ft}
<Installation sample on a ceiling>
Camera mount
bracket (option)
Screws (locally
procured)
Screws (locally
procured)

17
• The mounting conditions of the camera mount bracket are described as follows:
Installation
position
Recommended
screw
Screw quantity Minimum pull-out
strength (per 1 pc.)
On ceiling M6 or M8 4 pcs. 562 N {126 lbf}
On wall M8 4 pcs. 921 N {207.05 lbf}

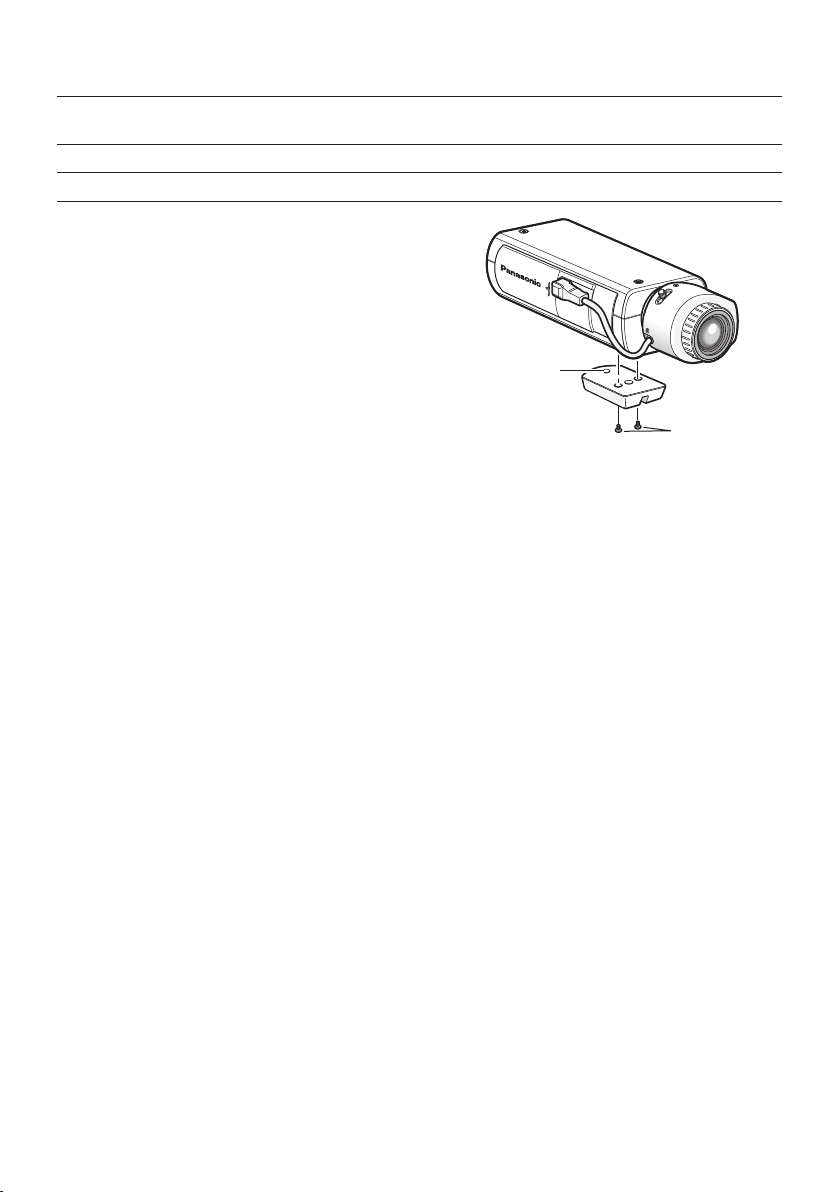

• When attaching an optional tripod mount
base on the bottom of the camera, use the
removed screws to attach the tripod mount
base. Use of longer or shorter screws may
cause drop or damage.
Recommended tightening torque:
0.39 N·m {0.29 lbf·ft} Tripod socket
hole: 1/4-20
UNC for tripod
Mounting
screws
Tripod mount
base

18
4 The video output cable is connected to this video output connector.
Important:
• Be sure to turn off the power of each device before connection.
• Be sure to secure the coaxial cable connectors.
Connect a coaxial cable to the video output connector.
POWER
ALARM OUT
ALARM IN
GND
VIDEO OUT
120V ~ 60Hz
Coaxial cables
To video input
WV-CP630
5 Use a cable tie (locally procured) to attach the coaxial cable to the camera
mount bracket.
Important:
• The cable tie shall be made of metallic or durable material to be strong enough because the tie
plays the role of camera drop prevention measures in case.
• When the camera mount bracket is mounted on a wall, be sure to observe the mounting height
described on the illustration above.
<Installation sample on a ceiling> <Installation sample on a wall>
Camera mount
bracket (option)
Camera mount
bracket (option)
More than
270 cm {8.9'}
Floor
The cable shall be
tied to the camera
mount bracket to
avoid slack. The cable shall be
tied to the camera
mount bracket to
avoid slack.

19
6 Connect external devices to the external I/O terminal.
When connecting an external device, remove 9 mm to 10 mm {11/32 to
13/32 inches} of the outer jacket of the cable and twist the cable core to
prevent the short circuit first.
Specification of cable (wire): 22 AWG - 28 AWG, Single core, twisted
Important:
• Check whether the stripped part of the wire is not exposed and is fully inserted.
• Do not connect 2 wires or more directly to a terminal. When it is necessary to connect 2 or
more wires, use a splitter.
• Connect an external device with verifying that the ratings are within the specifications above.
Alarm output
Output specification: Open collector out-
put (max. voltage: 16 V DC)
Off: Internally pulled up
2 V to 4 V DC
On: Output voltage 1 V DC or less (max.
drive current: 100 mA)
Functions: Alarm output (ALARM)
Color/BW switching output (BW)
Alarm input
Input specification: No-voltage make
contact input (3 to 5 V DC, internally
pulled up)
Off: Open or 3 to 5 V DC
On: Make contact with GND (required
drive current: 0.2 mA or more)
Functions: Alarm input (ALARM)
VMD enabling input (VMD PERMIT)
Color/BW switching input (BW)
Scene file switching input (SCENE 1)
POWER
ALARM OUT
ALARM IN
GND
VIDEO OUT
120V ~ 60Hz
ALARM OUT (Alarm output)
GND
ALARM IN (Alarm input)
The external terminal is the same
between WV-CP630 and WV-CP634.
WV-CP630
POWER
ALARM OUT
ALARM IN
GND
VIDEO OUT
120V ~ 60Hz
Stripped
9 mm - 10 mm
{11/32" to 13/32"}

20
WV-CP634
Important:
• The power supply of 24 V AC/12 V DC shall be
insulated against 120 V AC.
• The power supply is automatically selected
either 24 V AC or 12 V DC. No setting is
required with this camera.
q Loosen the screw of the power cord plug
(accessory).
w Connect the power supply (option) of 24 V AC
or 12 V DC to the power cord plug.
Strip the end of the wire by 3 mm to 7 mm
{1/8" to 1/4"}, and twist the stripped part of the
wire sufficiently to avoid short circuit.
• Specification of cable (wire)
AWG #16 - #28, Single core, twisted
* Check whether the stripped part of the wire
is not exposed and is securely connected.
<Ratings>
24 V AC 12 V DC
A 2-N (GND)
B GND NC
C 1-L
e Tighten the screw of the power cord plug.
r Connect the power cord plug to the AC/DC
power terminal on the rear side of the camera.
* Make sure that the power cord plug is inserted
fully into the AC/DC power supply terminal.
7 Turn on the power.
WV-CP630
The included power cord is connected to this power connector.
Connect between the power connector on the rear side of the camera and a plug socket with
the supplied power cord.
POWER
ALARM OUT
ALARM IN
GND
VIDEO OUT
120V ~ 60Hz
120 V AC 60 Hz
Power cord (accessory)
ALARM OUT
ALARM IN
POWER
VIDEO OUT
24V IN~
1-L
12V IN NC
2-N
GND
(UP)
(LEFT) (RIGHT)
(DOWN)
(SET)
NEAR FAR BF/MENU
GND
To 24 V AC/12 V DC
power supply
C B A
Power cord plug
(accessory)
Stripped
3 mm - 7 mm
{1/8" to 1/4"}
