Panasonic KX-HNS103 User manual

Installation Guide
Home Network System
Water Leak Sensor
Model No. KX-HNS103
Thank you for purchasing a Panasonic product.
This document explains how to install the water leak sensor properly.
For details about how to use the system, refer to the User’s Guide
(page 18).
Please read this document before using the unit and save it for future
reference. For assistance, please contact us at 1-800-272-7033 or visit
our Web site: www.panasonic.com/support for customers in the U.S.A.
or Puerto Rico.
Please register your product: www.panasonic.com/prodreg
In order to use this device:
RDownload the latest version of the [Home Network] app.
RUpdate your hub to the latest firmware version (version 5.00 or later).
For more information, refer to the User’s Guide (page 18).
Printed in China
HNS103(enen)0203ver.062.pdf1 2015/02/0320:01:36

Introduction
Accessory information ...............3
Important Information
About this system ......................4
For your safety ...........................4
Important safety instructions ......5
For best performance ................5
Other information .......................6
Setup
Part names and functions ..........8
LED indicator .............................8
Setup overview ..........................8

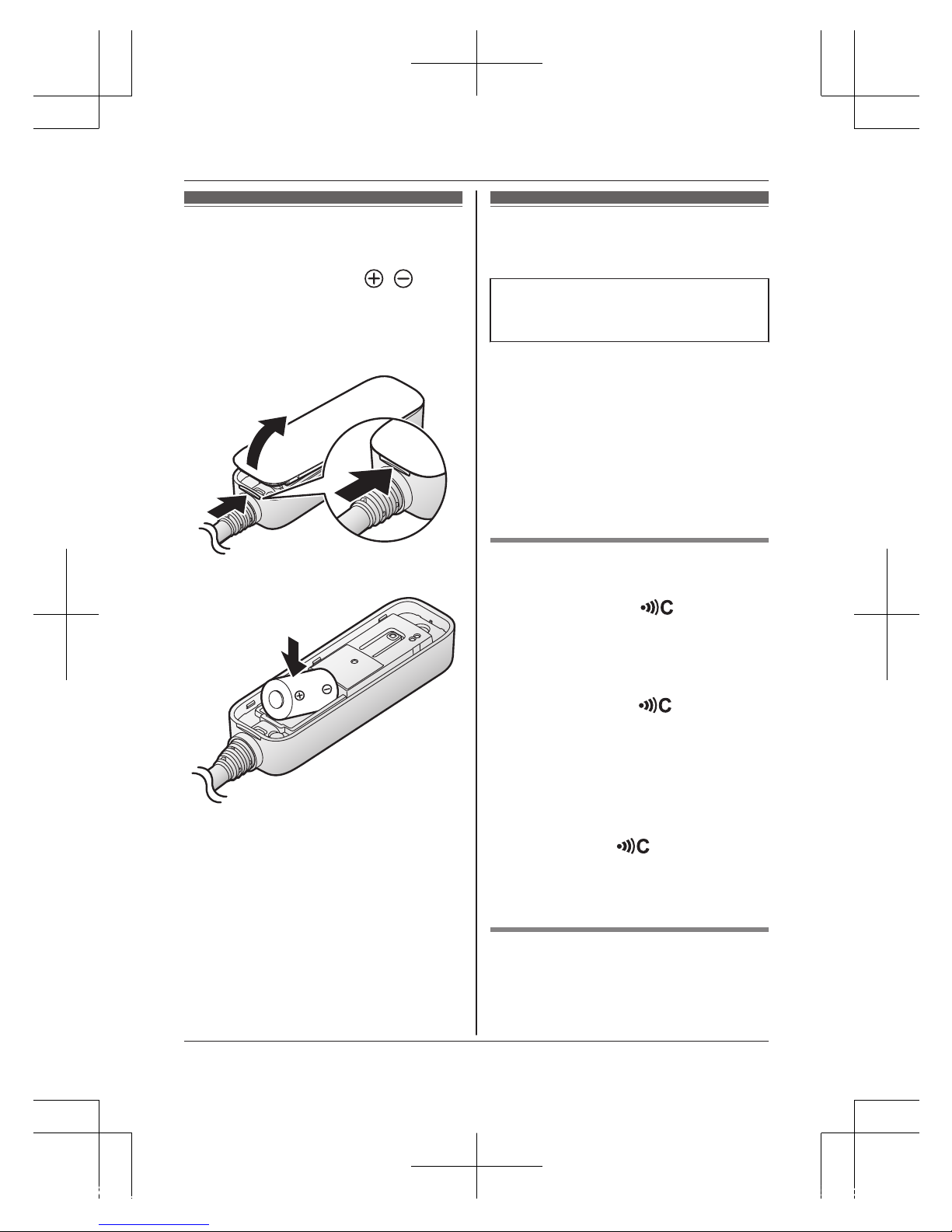

Inserting the battery ...................9
Registering the sensor ...............9

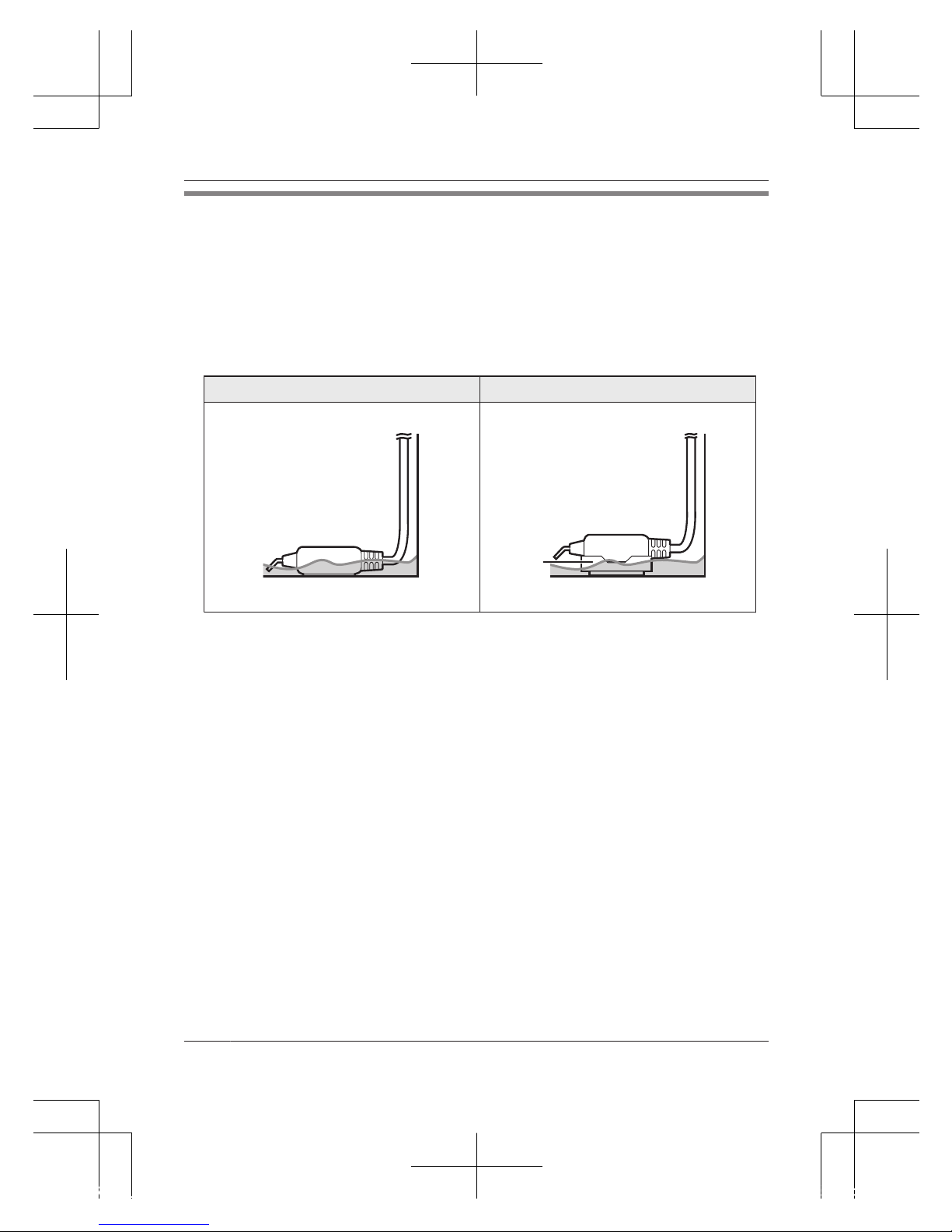

Confirming the usage area ......10

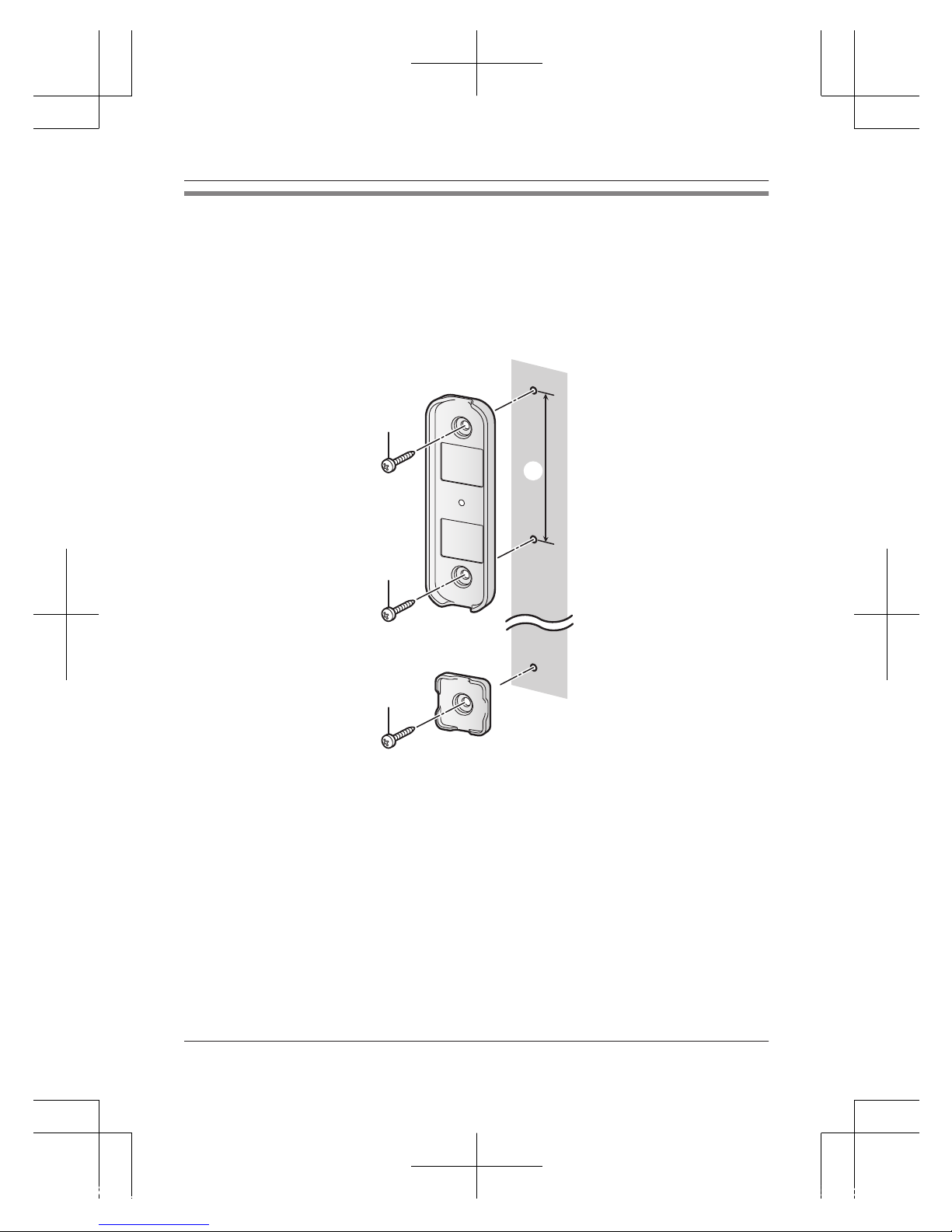

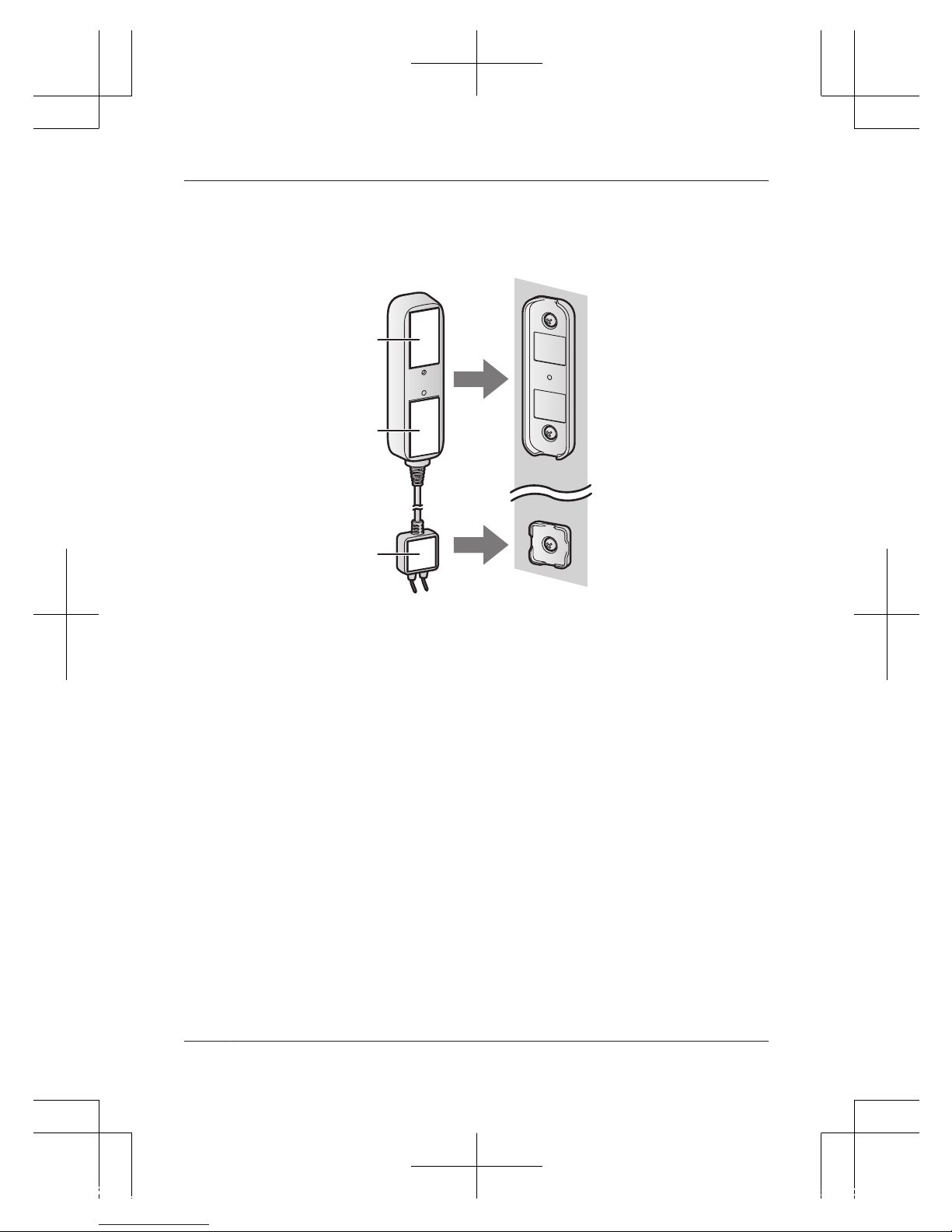

Installation ...............................11
Appendix
Testing the sensor ...................18
Features available when using the
[Home Network] app ................18
Accessing the User’s Guide ....18
Specifications ..........................19
FCC and other information ......20
Customer services ...................21
Warranty (For United States and
Puerto Rico) .............................22
2
Table of Contents
HNS103(enen)0203ver.062.pdf2 2015/02/0320:01:36

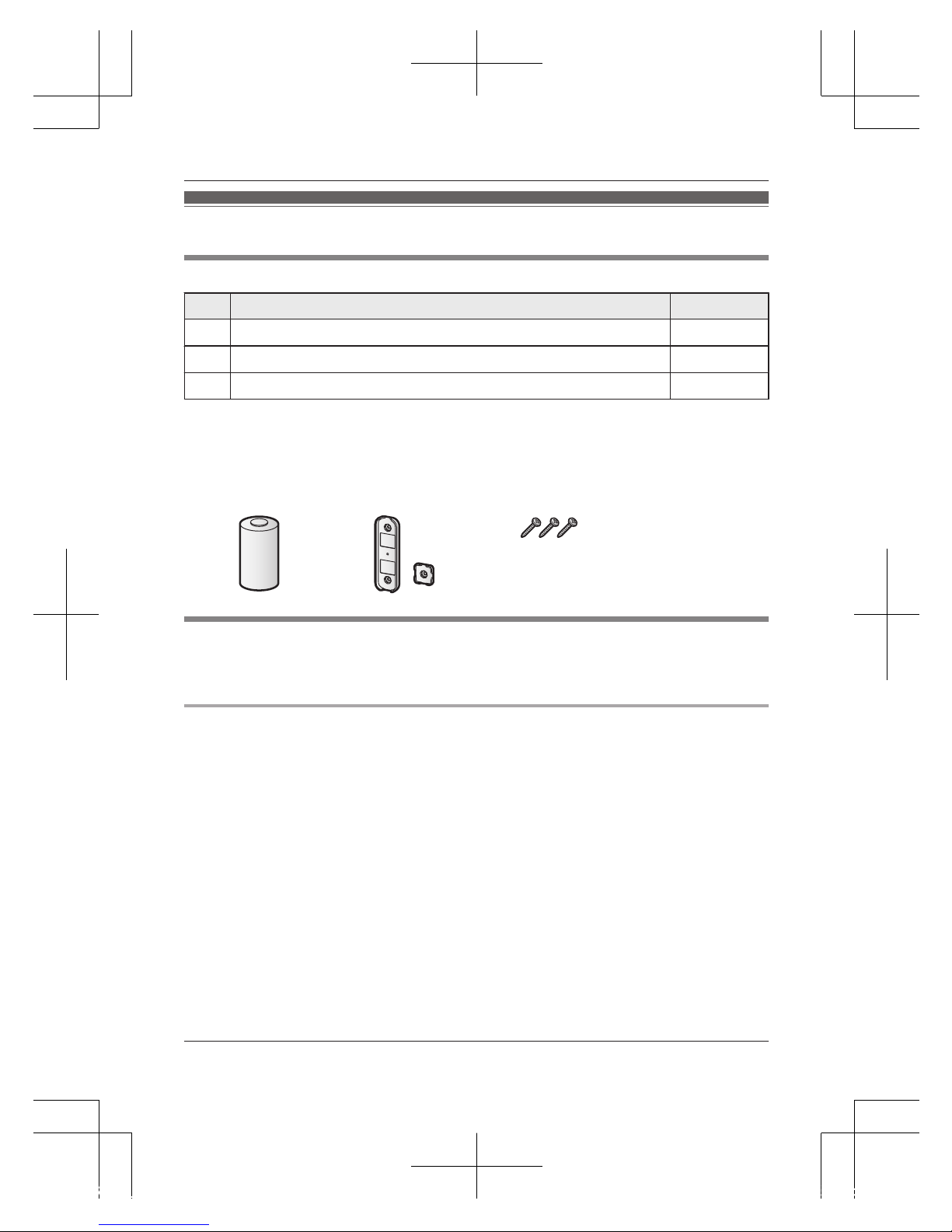

Accessory information
Supplied accessories
No. Accessory item/Part number Quantity
ABattery*1 1
BWall mounting adaptors*2 2
CWall mounting screws (25 mm (1 inch))*3/XTB4+25AVW 3
*1 When replacing the battery, see “Power source” of “Specifications”, page 19
for battery information.
*2 1 adaptor for the main unit: PNHR2107Z
1 adaptor for the probe unit: PNHR2108Z
*3 2 screws for the main unit and 1 screw for the probe unit
AB C
Other information
RDesign and specifications are subject to change without notice.
RThe illustrations in these instructions may vary slightly from the actual product.
Trademarks
RiPhone and iPad are registered trademarks of Apple Inc.
RAndroid is a trademark of Google Inc.
RMicrosoft, Windows, and Internet Explorer are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries.
RAll other trademarks identified herein are the property of their respective owners.
For assistance, please visit www.panasonic.com/support 3
Introduction
HNS103(enen)0203ver.062.pdf3 2015/02/0320:01:36

About this system
RThis system is an auxiliary system; it
is not designed to provide complete
protection from property loss.
Panasonic will not be held
responsible in the event that
property loss occurs while this
system is in operation.
RThe system’s wireless features are
subject to interference, therefore
functionality in all situations cannot
be guaranteed. Panasonic will not
be held responsible for injury or
damage to property that occurs in
the event of wireless communication
error or failure.
For your safety
To prevent severe injury and loss of life/
property, read this section carefully
before using the product to ensure
proper and safe operation of your
product.
WARNING
Power connection
RUse only the power source marked
on the product.
RDo not connect non-specified
devices.
Installation
RTo prevent the risk of fire or
electrical shock, do not expose the
product to rain.
RDo not place or use this product
near automatically controlled
devices such as automatic doors
and fire alarms. Radio waves
emitted from this product may cause
such devices to malfunction
resulting in an accident.
RDo not allow the cable to be
excessively pulled, bent or placed
under heavy objects. Keep the main
unit upright at all times.
RDo not allow the probe unit to make
contact with a battery or an electric
outlet. The product could become
damaged.
RKeep small parts (screws, etc.) out
of the reach of children. There is a
risk of swallowing. In the event they
are swallowed, seek medical advice
immediately.
Operating safeguards
RDo not disassemble the product.
Medical
RConsult the manufacturer of any
personal medical devices, such as
pacemakers or hearing aids, to
determine if they are adequately
shielded from external RF (radio
frequency) energy. DECT features
operate between 1.92 GHz and
1.93 GHz with a peak transmission
power of 115 mW.
RDo not use the product in health
care facilities if any regulations
posted in the area instruct you not to
do so. Hospitals or health care
facilities may be using equipment
that could be sensitive to external
RF energy.
CR Lithium battery
RDo not recharge, disassemble,
remodel, heat or throw it into fire.
4For assistance, please visit www.panasonic.com/support
Important Information
HNS103(enen)0203ver.062.pdf4 2015/02/0320:01:36

RDo not touch the terminals and
with metal objects.
RRisk of explosion if battery is
replaced by an incorrect type.
Dispose of used battery according to
local regulations.
RIf any electrolyte should come into
contact with your hands or clothes,
wash it off thoroughly with water.
RIf any electrolyte should come into
contact with your eyes, never rub
your eyes. Rinse your eyes
thoroughly with water, and then
consult a doctor.
CAUTION
CR Lithium battery
RUse only the battery noted on
page 3.
RInsert the battery correctly.
RDo not leave the battery in an
automobile exposed to direct
sunlight for a long period of time with
the doors and windows closed.
RRemove the battery if you do not
use the product for a long period of
time. Keep it in a cool, dark area.
RDo not replace a battery with wet
hands.
RKeep out of the reach of small
children. There is a risk of
swallowing. If the battery is
swallowed, seek medical attention
immediately.
RRemove the battery if it becomes
unusable. There is a risk of leakage,
overheating, and rupture. Do not
attempt to use a battery if it is
leaking.
RExercise care when handling the
batteries. Do not allow conductive
materials such as rings, bracelets, or
keys to touch the batteries,
otherwise a short circuit may cause
the batteries and/or the conductive
material to overheat and cause
burns.
Important safety
instructions
When using your product, basic safety
precautions should always be followed
to reduce the risk of fire, electric shock,
and injury to persons, including the
following:
1. Use only the batteries indicated in
this document. Do not dispose of
batteries in a fire. They may
explode. Check with local codes for
possible special disposal
instructions.
SAVE THESE INSTRUCTIONS
For best performance
Hub location/avoiding noise
The hub and other compatible
Panasonic devices use radio waves to
communicate with each other.
RFor maximum coverage and
noise-free communications, place
your hub:
– at a convenient, high, and central
location with no obstructions
between the product and hub in
an indoor environment.
– away from electronic appliances
such as TVs, radios, personal
computers, wireless devices, or
other phones.
– facing away from radio frequency
transmitters, such as external
For assistance, please visit www.panasonic.com/support 5
Important Information
HNS103(enen)0203ver.062.pdf5 2015/02/0320:01:36

antennas of mobile phone cell
stations. (Avoid putting the hub
on a bay window or near a
window.)
RIf the reception for a hub location is
not satisfactory, move the hub to
another location for better reception.
Environment
RKeep the product away from
electrical noise generating devices,
such as fluorescent lamps and
motors.
RThe product should be kept free
from excessive smoke, dust, high
temperature, and vibration.
RThe product should not be exposed
to direct sunlight.
RDo not place heavy objects on top of
the product.
RThe product should be kept away
from heat sources such as heaters,
kitchen stoves, etc. It should not be
placed in rooms where the
temperature is less than 0 °C (32 °F)
or greater than 40 °C (104 °F).
ROperating the product near electrical
appliances may cause interference.
Move away from the electrical
appliances.
RDo not allow the probe unit’s metal
probes to make contact with metal
objects. This may reduce the battery
life.
Other information
CAUTION: Risk of explosion if battery
is replaced by an incorrect type.
Dispose of used batteries according to
the instructions.
Routine care
RWipe the outer surface of the
product with a soft moist cloth.
RDo not use benzine, thinner, or any
abrasive powder.
RIf the probe unit’s metal probes
come into contact with a foreign
material (oil, detergent, etc.), the
probes may repel water and
therefore will not be able to properly
detect a water leak. Periodically
check the metal probes and wipe
away any water or foreign material
that has become adhered to the
probes.
RIf the probes come into contact with
water, wipe the probe unit dry. Do
not allow the probes to remain in
contact with water for an extended
period of time, as the probes may
begin to turn black. (This will not
affect the product’s ability to detect a
water leak.)
Information on Disposal in other
Countries outside the European
Union
These symbols are only valid in the
European Union. If you wish to discard
these items, please contact your local
authorities or dealer and ask for the
correct method of disposal.
6For assistance, please visit www.panasonic.com/support
Important Information
HNS103(enen)0203ver.062.pdf6 2015/02/0320:01:37

Note for the battery removal
procedure
Refer to “Inserting the battery” on
page 9.

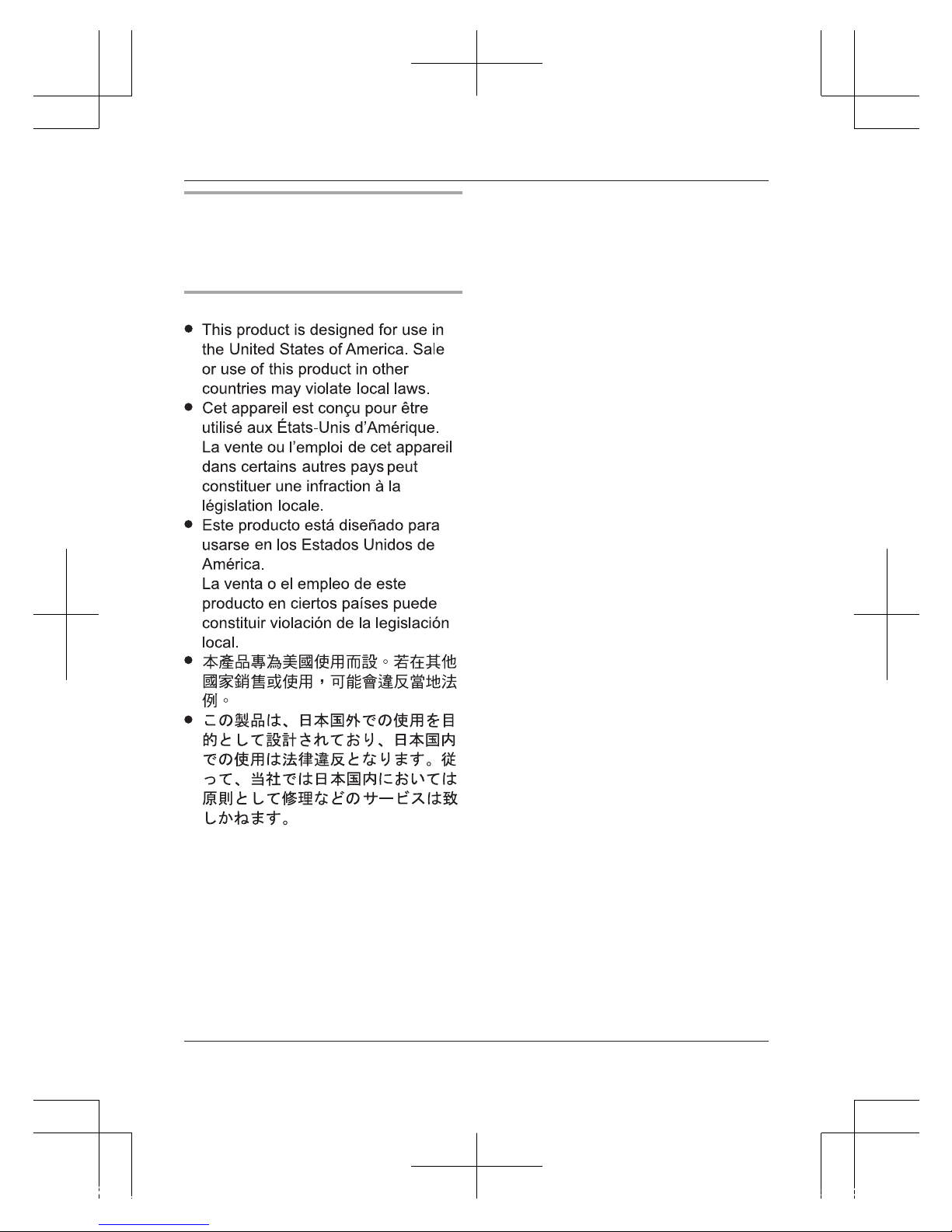

Notice
For assistance, please visit www.panasonic.com/support 7
Important Information
HNS103(enen)0203ver.062.pdf7 2015/02/0320:01:37

Part names and
functions
C
D
A
B
E
F
G
Main unit
Main unit cover
M N
Used to confirm the status of the
sensor or register the sensor to
the hub.
LED indicator
Cable
Probe unit
Probes
LED indicator
You can press MN and check the
LED indicator to confirm the sensor’s
status.
After confirming the sensor’s status, we
recommend turning the LED indicator
off by pressing M N again as soon
as possible, otherwise battery life may
be reduced.
Indicator Status
Green, lit No water detected
Red, lit Water detected
Red,
blinking
Sensor is out of range
of the hub
Green,
blinking
Registration mode
(You pressed and held
MN)
Off No battery power
Note:
RThe LED indicator does not indicate
sensor status if the sensor has not
been registered (page 9).
Setup overview
1Initial setup
Make sure you can access the
system using your mobile device.
For details, refer to the System
Setup Guide included with your
hub.
2Insert the battery
The sensor is battery powered.
3Registration
Required only if the sensor was
purchased separately (i.e., not as
part of a bundle).
4Confirm the usage area
Read the information in this
document to confirm that the
desired installation area is suitable
to proper operation.
5Installation
Install the sensor in the desired
location.
8For assistance, please visit www.panasonic.com/support
Setup
HNS103(enen)0203ver.062.pdf8 2015/02/0320:01:37

Inserting the battery
RUSE ONLY a CR2 Lithium battery.
RConfirm the polarities ( , ).
1Remove the main unit cover.
RLift from the indented area (A)
and open the main unit cover
(B).
1
2
2Insert the battery.
3Attach the main unit cover.
Registering the
sensor
This procedure is not required for
devices that were included as part of
a bundle.
Before you can use the sensor, it must
be registered to the hub.
If you purchased devices separately
(i.e., not as part of a bundle), you must
register each device to the hub.
You can register each device by using
the registration buttons or the [Home
Network] app.
Using registration buttons
1Hub:
Press and hold M OTHER
DEVICEN until the LED indicator
blinks in green.
2Sensor:
Remove the main unit cover and
press and hold MN until the
LED indicator blinks in green
(page 8).
RWhen registration is complete,
the hub sounds one long beep.
Note:
RTo cancel without registering the
sensor, press MN on the hub and
on the sensor again.
RIf registration fails, the hub sounds
several short beeps.
Using the app
When you register the sensor by using
the [Home Network] app, you can
assign a name to your devices and
For assistance, please visit www.panasonic.com/support 9
Setup
HNS103(enen)0203ver.062.pdf9 2015/02/0320:01:37

group them by location. For more
information, refer to the User’s Guide
(page 18).
Confirming the
usage area
Wireless communication
range
The wireless communication range of
each device in the system from the hub
is approximately 50 m (160 feet)
indoors and approximately 300 m
(1,000 feet) outdoors. Wireless
communication may be unreliable
when the following obstacles are
located between the hub and other
devices.
RMetal doors or screens
RWalls containing aluminum-sheet
insulation
RWalls made of concrete or
corrugated iron
RDouble-pane glass windows
RMultiple walls
RWhen using each device on
separate floors or in different
buildings
Note:
RYou can check the sensor’s
communication status by pressing
MN. If the LED indicator is lit in
green or red, the sensor is
communicating properly with the
hub. If the LED indicator blinks in
red, it is out of range of the hub.
10 For assistance, please visit www.panasonic.com/support
Setup
HNS103(enen)0203ver.062.pdf10 2015/02/0320:01:37

Installation
The main unit is installed on a wall, and the probe unit can be installed on a wall or
a floor.
When the metal probes on the probe unit come in to contact with water, a small
amount of electrical charge flows between the probes, which the main unit
recognizes as a water leak.
Probe unit installed on wall Probe unit installed on floor
Installation precautions
RThe sensor is not designed to be used in situations that require high reliability.
We do not recommend use of the sensor in these situations.
RPanasonic takes no responsibility for any injury or damage caused by the use of
this product.
RWhen installing, make sure the battery is inserted properly and the main unit
cover is completely closed.
RWhen installing on a wooden surface, use the included wall mounting adaptors.
Secure the wall mounting adaptors to the wall using screws (not double-sided
tape).
RMount the sensor on the stable location where the sensor can be adequately
supported when mounting.
RDo not mount the sensor on a soft material. It may fall down, break or cause
injury.
RDo not mount the sensor on the following places: gypsum board, ALC
(autoclaved lightweight cellular concrete), concrete block, plywood less than
25.4 mm (1 inch) thick, etc.
RThe sensor may not be able to properly detect a water leak if the water contains
contaminants such as oil, or if the water is frozen (i.e., ice or snow).
For assistance, please visit www.panasonic.com/support 11
Setup
HNS103(enen)0203ver.062.pdf11 2015/02/0320:01:37

RInstall the probe unit so that the metal probes are horizontal. A water leak can
only be detected if water touches both of the metal probes; if water touches only
one of the probes, a water leak will not be detected.
Correct installation Incorrect installation
Metal probes are horizontal to the
floor
Metal probes are not horizontal to
the floor
Installation location
Install the water leak sensor in a basement, kitchen, utility room, or anywhere you
want to detect a water leak. Common installation examples include near a washing
machine, hot water heater, or a location where a water leak has occurred in the
past.
Note:
RInstall the probe unit so that its metal probes are about 1 mm (1/32 inches)
above the floor. If the probes touch the floor, the sensor may make false
detections. If the probes are too far from the floor, water leaks can only be
detected after the leaked water has become deep enough to touch the probes.
RInstall the main unit 1 m (3 feet 3 inches) or higher above the floor. The main
unit is not waterproof; if it becomes wet, the sensor may become damaged and
water leaks will not be detected properly.
12 For assistance, please visit www.panasonic.com/support
Setup
HNS103(enen)0203ver.062.pdf12 2015/02/0320:01:37

Securing with the wall mounting adaptors
1Use screws to attach the wall mounting adaptors to the wall.
n Main unit
1
Screws
2
75 mm (2 15/16 inches)
n Probe unit
1
Screw
2
1
1
1
Note:
RTo install the probe unit on a floor, see page 16. In this case, you will not
use the probe unit’s wall mounting adaptor.
For assistance, please visit www.panasonic.com/support 13
Setup
HNS103(enen)0203ver.062.pdf13 2015/02/0320:01:37

2Remove the backing from the double-sided tape, insert the main unit and the
probe unit into the wall mounting adaptors, and then press firmly on each unit
to ensure solid adhesion to the installation surface.
3
Double-sided tape
3
3
3
14 For assistance, please visit www.panasonic.com/support
Setup
HNS103(enen)0203ver.062.pdf14 2015/02/0320:01:37

Securing with double-sided tape only
Note:
RMake sure any surfaces that will make contact with the double-sided tape are
clean and dry before applying the tape. When attaching the double-sided tape to
concrete or bricks, if the surface of the concrete or bricks is wet, make sure to
completely dry the surface before attaching the double-sided tape.
1Remove the backing from the double-sided tape, attach the main unit and the
probe unit to the installation surface, and then press firmly on each unit to
ensure solid adhesion to the installation surface.
1
Double-sided tape
1
1
1
Note:
RTo install the probe unit on a floor, see page 16.
For assistance, please visit www.panasonic.com/support 15
Setup
HNS103(enen)0203ver.062.pdf15 2015/02/0320:01:37

Installing the probe unit on a floor
When installing the probe unit on a floor, use the double-sided tape to attach the
probe unit directly to the floor.
Note:
RIf the probe unit is inserted into the wall mounting adaptor and attached to a
floor, the probes will be too far from the floor and therefore water leaks can only
be detected after the leaked water has become deep enough to touch the
probes.
Correct installation Incorrect installation
Shallow water touches probes Only deep water can touch probes
A
A Wall mounting adaptor
16 For assistance, please visit www.panasonic.com/support
Setup
HNS103(enen)0203ver.062.pdf16 2015/02/0320:01:37

Removing from the wall
n Removing from the wall mounting adaptors
1Insert a flat screwdriver into the notches on the wall mounting adaptors, and
carefully pry away the main unit and probe unit.
2Remove the screws that secure the wall mounting adaptors to the wall.
n Removing when secured with double-sided tape only
1Tie a piece of thread to two sticks, screwdrivers, etc.
2Pull the thread tight and use it to cut the double-sided tape, and then remove
any excess tape.
1
Excess tape
1
For assistance, please visit www.panasonic.com/support 17
Setup
HNS103(enen)0203ver.062.pdf17 2015/02/0320:01:37

Testing the sensor
You can check the sensor’s LED
indicator and test the performance of
the sensor.
1Remove the main unit cover.
2Press M N.
3Touch the probes of the probe unit
to water.
4Confirm that the LED indicator
lights in red.
5Press MN again.
Features available
when using the
[Home Network] app
Some of the sensor’s features that are
available when using the [Home
Network] app are listed below. For
more information, refer to the User’s
Guide (page 18).
–Alarm system
You can use the app to arm and
disarm the alarm system, confirm
the current status of the sensor, and
view a log of previous events.
–Sensor integration
You can configure the sensor to
trigger other system events, such as
camera recording, turning on an
electric device (such as a lamp), etc.
(Appropriate device required.)
–Telephone alert
You can configure the system to call
a preprogrammed phone number
when the sensor is triggered.
Accessing the User’s
Guide
The User’s Guide is a collection of
online documentation that helps you
get the most out of the [Home
Network] app.
1iPhone®/iPad®
Tap in the app’s home screen.
Android™ devices
Tap or press your mobile
device’s menu button in the app’s
home screen.
2Tap [User’s Guide].
Note:
RMicrosoft® Windows® Internet
Explorer® 8 and earlier versions are
not supported.
RAndroid 4.1 or later versions are
recommended.
RYou can also access the User’s
Guide at the web page listed below.
www.panasonic.net/pcc/support/tel/
homenetwork/manual/
18 For assistance, please visit www.panasonic.com/support
Appendix
HNS103(enen)0203ver.062.pdf18 2015/02/0320:01:37

Specifications
RStandards
DECT 6.0 (Digital Enhanced
Cordless Telecommunications 6.0)
RFrequency range
DECT: 1.92 GHz – 1.93 GHz
RRF transmission power
DECT: 115 mW (max.)
RPower source
Lithium battery CR2 (1 ´ 3.0 V,
850 mAh)
ROperating conditions
0 °C – 40 °C (32 °F – 104 °F)
RBattery life
Approx. 2 years (when the sensor is
triggered once a month, in an
environment of 25 °C (77 °F))
RDimensions
Main unit (height ´ width ´ depth)
(not including double-sided tape):
Approx. 106 mm ´ 31 mm ´ 22 mm
(4 5/32 inches ´ 1 7/32 inches ´
7/8 inches)
Probe unit (height ´ width ´
depth) (not including
double-sided tape):
Approx. 44 mm ´ 24 mm ´ 10 mm
(1 23/32 inches ´ 15/16 inches ´
3/8 inches)
Cable (length):
Approx. 1.2 m (3 feet 11 inches)
RMass (weight)
Approx. 80 g (0.18 lb), excluding the
battery
For assistance, please visit www.panasonic.com/support 19
Appendix
HNS103(enen)0203ver.062.pdf19 2015/02/0320:01:37

FCC and other
information
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
Privacy of communications may not be
ensured when using this device.
CAUTION:
Any changes or modifications not
expressly approved by the party
responsible for compliance could void
the user’s authority to operate this
device.
NOTE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
– Consult the dealer or an
experienced radio/TV technician for
help.
Some devices operate at frequencies
that may cause interference to nearby
TVs and VCRs. To minimize or prevent
such interference, the devices should
not be placed near or on top of a TV or
VCR. If interference is experienced,
move this device away from the TV or
VCR. This will often reduce or eliminate
interference.
FCC RF Exposure Warning:
RThis product complies with FCC
radiation exposure limits set forth for
an uncontrolled environment.
RTo comply with FCC RF exposure
requirements, the device must be
installed and operated 20 cm
(8 inches) or more between the
product and all person’s body.
RThis product may not be collocated
or operated in conjunction with any
other antenna or transmitter.
RFor body-worn operation, the device
must be used only with a
non-metallic accessory. Use of other
accessories may not ensure
compliance with FCC RF exposure
requirements.
Notice:
RFCC ID can be found inside the
main unit.
20 For assistance, please visit www.panasonic.com/support
Appendix
HNS103(enen)0203ver.062.pdf20 2015/02/0320:01:37
