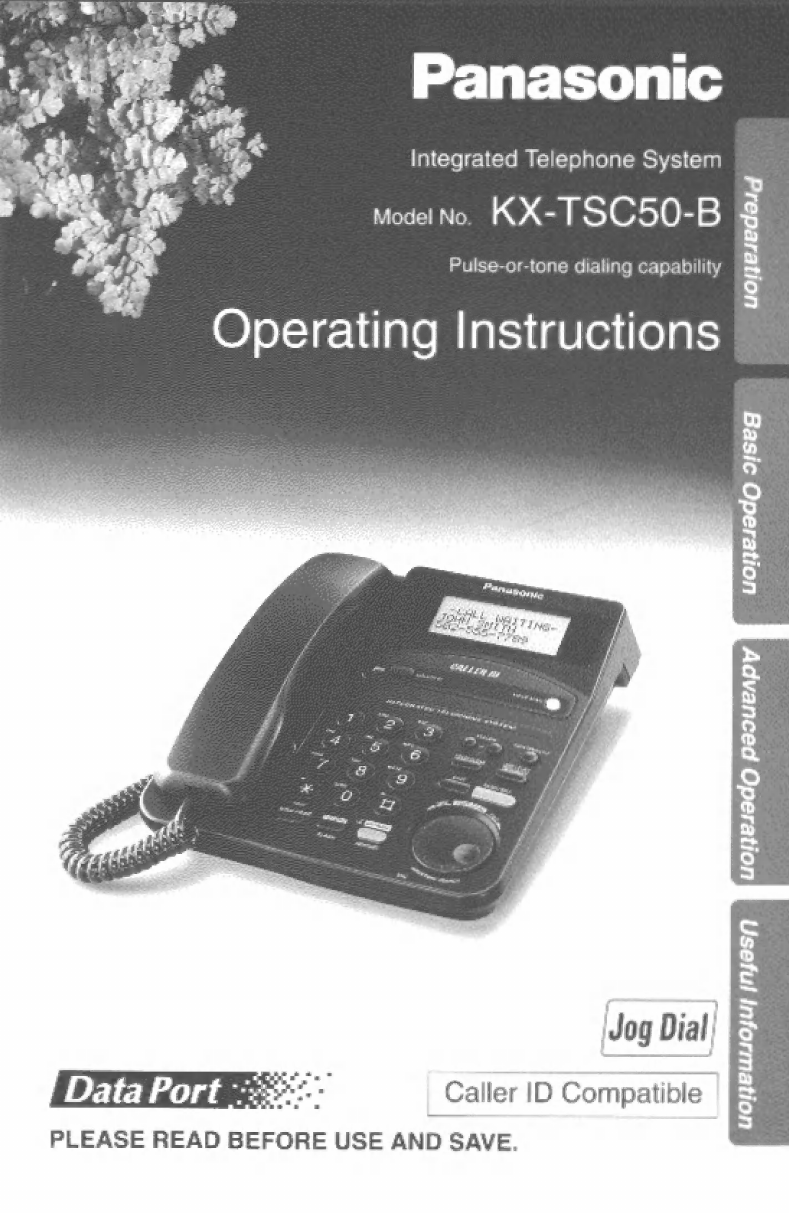

Model No. KX-TSC50-B È
3
Pulse-or-tone dialing capability
Operating Instructions
Jog Dial!
Data Port - 33a -Caller ID Compatible |
PLEASE READ BEFORE USE AND SAVE,

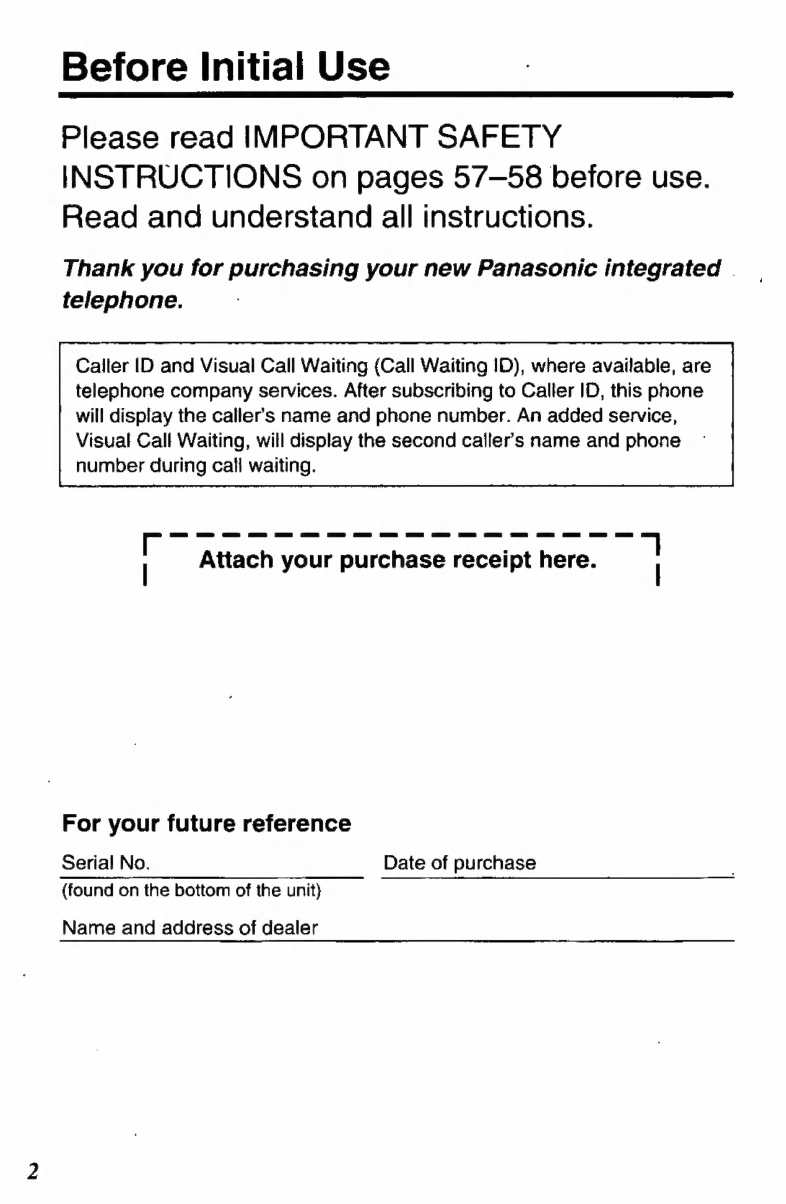

Before Initial Use
Please read IMPORTANT SAFETY
INSTRUCTIONS on pages 57-58 before use.
Read and understand all instructions.
Thank you for purchasing your new Panasonic integrated .
telephone.
Caller ID and Visual Call Waiting (Call Waiting ID), where available, are
telephone company services. After subscribing to Caller ID, this phone
will display the caller's name and phone number. An added service,
Visual Call Waiting, will display the second callers name and phone
number during call waiting.
For your future reference
Serial No. Date of purchase
(found on the bottom of the unit}
Name and address of dealer

Accessories (Included) To order, call 1-800-332-5368.
" DAC Adaptor ................ uu ONE D Wall Mounting Adaptor ........ one
(p. 10) (p. 13)
Order No. KX-A11-6 Order No. PQKL28Z0
DliHandset.. grana "one O Handset Cord .............. tuta one
(p. 10) © (p. 10)
Order No. PQJX2PMLO1Z Order No. PQJA212V
O Telephone Line Cord.......... one
(p. 11)

Contents
Location of Controls... 6
PIET LE p alcalino ae 8
PPCM Soa as spas avy osenaaaeten Wiocualcnecasnasaqnsenaevousscen apia ceshareteneuaniedievacke 10
Connecting the Handset/AC Adaptor ................ i 10
Connecting the Telephone Line Cord ............ eeececeeceseeeeseenteeeetensenes 11
Connecting a Communication Device .............. in 12
Wall Mounting assetati 13
Selecting the Dialing Mode ....................... ii 14
Selecting the Line Mode ..................... ie 15
Programmable Functions ................iii 16
Programming Summary of Preparations ................ i 16
Selecting the Ringer Volume ....... esssessessnssssssscssscccesceeetessoens 17
Date and Time AGjUSIMENt.............. iii 18
Storing. Your Arca COGS di. 20
Storing the Second Area Code ................... eecsceseeeecsssseeeeeeeeeesaeeeees 21
Malkind-Calis.aa danilo 22
Answering Calis a lele enna 25
Advanced Operation
CalleriD'Service eaa a T E ea es 26
Using the Caller List ........... CRE EAA AS TAEA 28
Viewing ING Caller List. rancori air ascii 28
. Calling Back from the Caller List .............. ii 30
Editing the Callers Phone Number ............. ii 31
Storing the Caller List Information in the Directory .................. 32
Clearing the Caller List Information .............. i 34
Voice Mail Service .............nt ee 36
Storing an Access Number in Your Voice Mail ................................. 37
Setting the Voice Mail TONE .................... eri 38
Listening to Voice Mail Message(S) ............ inn 39

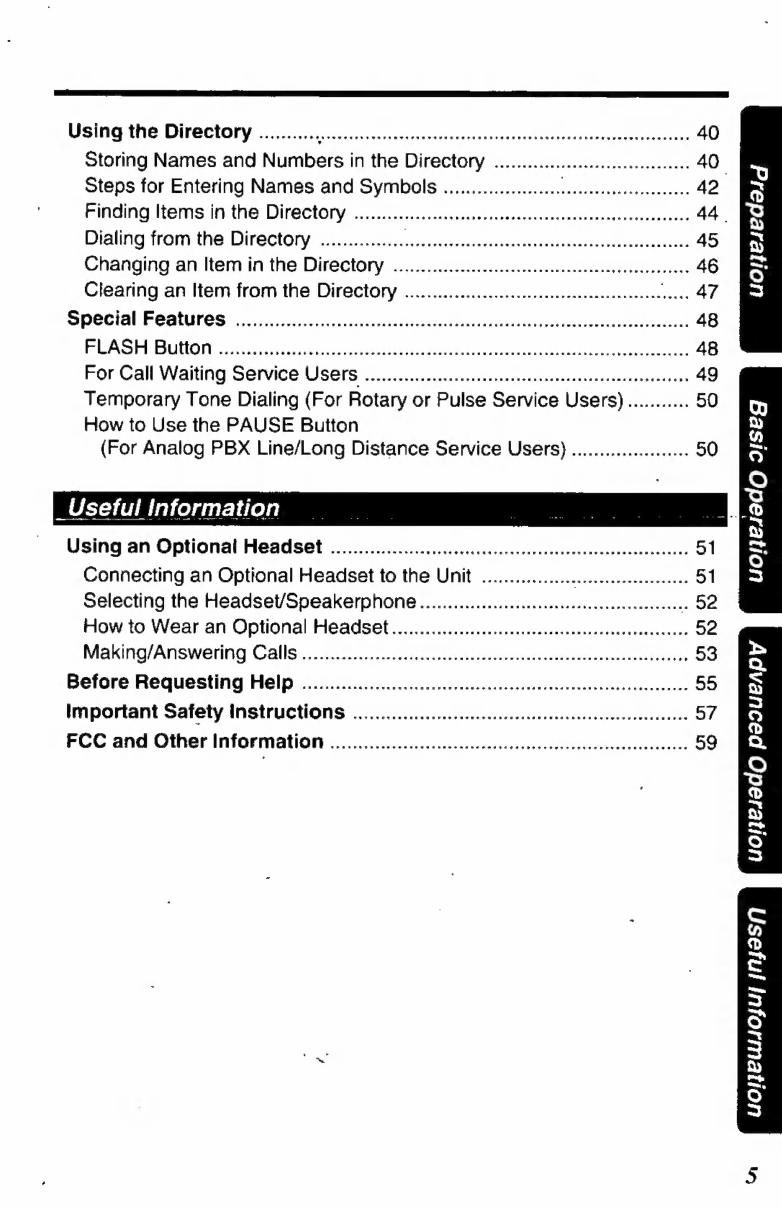

Using the Directory ........... CORR ta ution emus Nici naan E 40
Storing Names and Numbers in the Directory .............. 40. Y
Steps for Entering Names and Symbols ..................... cationi 42 Ey
Finding Items in the Directory .......... ii 44. Bs
Dialing from the Directory ............... RIE 45 By
Changing an Item in the Directory ............ ie 4 EN
Clearing an Item from the Directory .............. ii wee 47 BS
Special Features 0.00000... eee ceceno 48
PLAS HBG astanti 48
For Call Waiting Service USCIS soseccusssccctsssctasenspanintacassevesnusrtettusivieny 49
Temporary Tone Dialing (For Rotary or Pulse Service Users) ........... 50 fy
How to Use the PAUSE Button D
(For Analog PBX Line/Long Distance Service Users) ..................... 50 Ry
3
_Useful Information MA
Q)
Using an Optional Headset «0000.00.00... ee cccceceeeseseesecesseeseseeseneceseees 51 =
Connecting an Optional Headset to the Unit ....................... 51 IBS
Selecting the Headset/Speakerphone............. . 52
How to Wear an Optional HeadSset....................... e 52
Making/Answering Calls ............... iii 53 =
Before Requesting Help ....................... eee 55 IS
Important Safety Instructions .......................... ii 57 5
FCC and Other Information ..................... 59 ES
8
Q
Q)
=
O
3
9
D
S
I,
S
us 3
A)
ag
Q
3

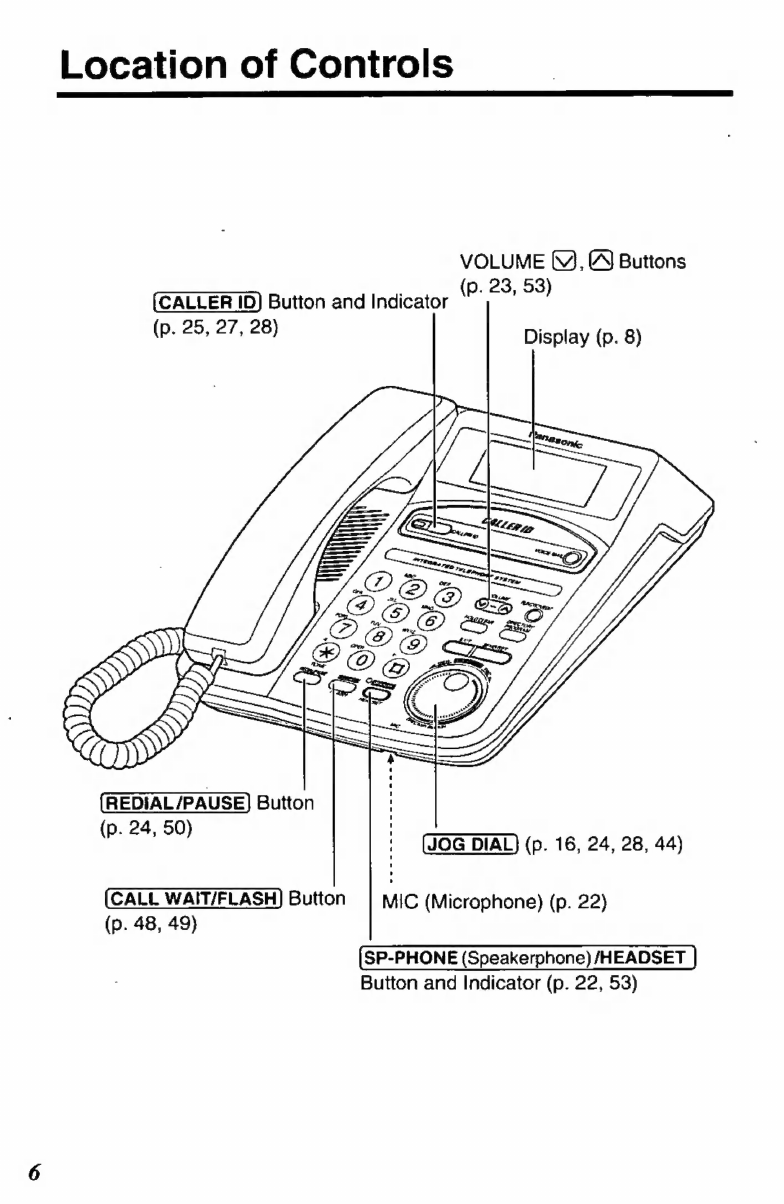

Location of Controls
VOLUME MV, AW) Buttons
(p. 23, 53)
Button and Indicator
Display (p. 8)
(p. 25, 27, 28)
yy) Da
SD LA E2
A KO ==
and
(REDIAL/PAUSE) Button
PERO) : (JOG DIAL) (p. 16, 24, 28, 44)
Button | MIC (Microphone) (p. 22)
(p. 48, 49)
SP-PHONE (Speakerphone) [HEADSET
Button and Indicator (p. 22, 53)

DIRECTORY PROGRAM
Button (p. 32, 41)
Button
(p. 20, 23, 24, 34, 47)
a
OD
S
sh)
=
©)
3
Button (p. 36)
Headset Jack (p. 51) ----»
|
(TONE)
Button
(p.
50)
-
Button
(p.
16,
31)
Button (p. 16, 23, 28, 44)
Button
(p. 16, 23)

Display
10:00AM
7 new
FINGER OFF
JUL. 9
calls
Ex. Handset volume level: 2 or
Speaker volume level: 4
Low ESEE
In the stand-by mode, the display shows
the current time and date, and the number
of new Caller ID calls.
(Ex. 7 new calls have been received.)
When the clock needs adjusting, the time
and date flash (p. 18).
“EA” is displayed when the ringer
volume is set to “Off” (p. 17).
The display shows the volume level.
You can select:
—4 levels {1-4} while using the handset
(p. 23) or optional headset (p. 53).
—8 levels (1-8) while using the
speakerphone (p. 23).
When a call is received, the display shows
the caller's name and number after the
first ring.
This is a name from the Caller List.
The display shows:
—the caller's name,
—the caller’s number,
— the time and date of the last call
(ex. Jun. 10, 3:10 PM),
—the number of times called (ex. 3 times),
and
— if it is a new call or not.

No items stored
Tom Jones
098-765-4321
Private
-Directory list-
End of new calls
End of old calls
This display will be shown when:
—the redial list is empty,
—the Caller List is empty,
—the directory list is empty, or
—there are no stored items in the dialing
button you pressed in the directory.
This is a name from the directory list.
The stored name and phone number are
| displayed.
“Private ring” has been selected for this
item (p. 40).
You have finished viewing the NEW
CALLS in the Caller List. To exit, press
(EXIT).
You have finished viewing the OLD
CALLS in the Caller List. To exit, press
(EXIT).
You are at the end of the Caller List.
To exit, press [EXIT].
3
go)
©
9)
=
O
3

Settings

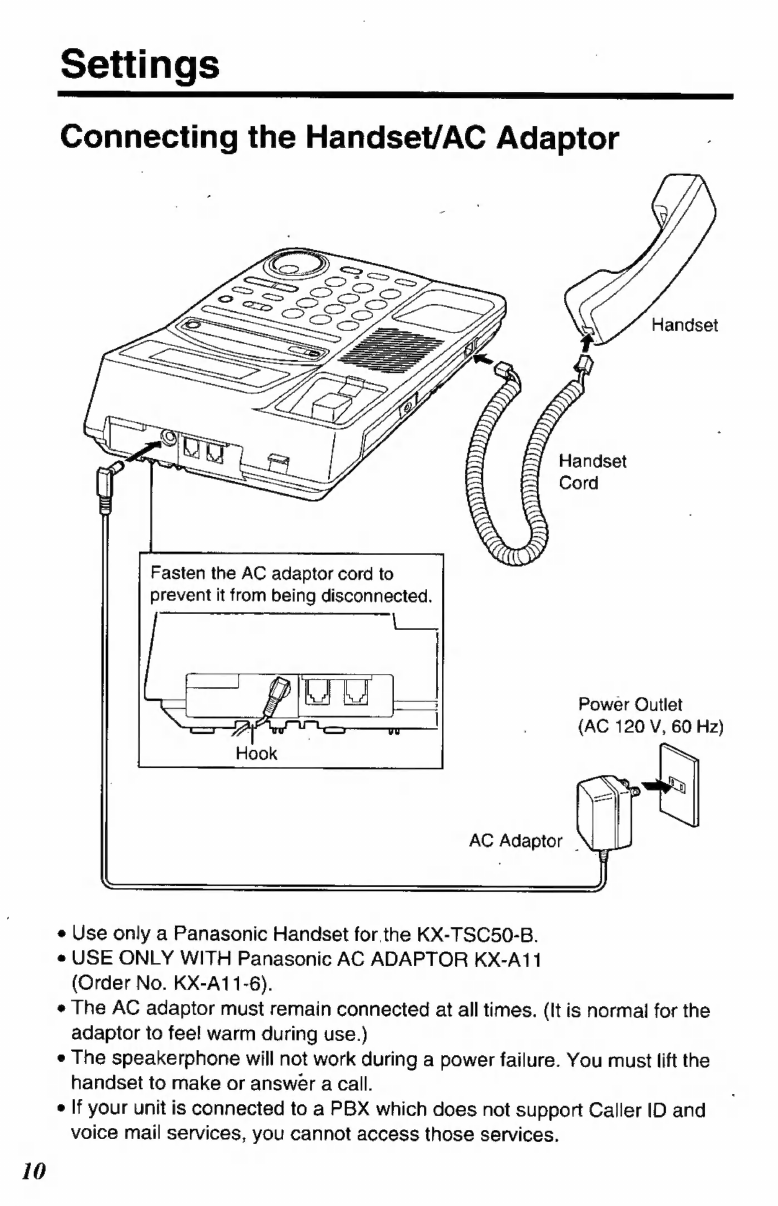

Connecting the Handset/AC Adaptor
Handset
Fasten the AC adaptor cord to
prevent it from being disconnected.
Power Outlet
(AC 120 V, 60 Hz)
€)
ta
e Use only a Panasonic Handset for the KX-TSC50-B.
e USE ONLY WITH Panasonic AC ADAPTOR KX-A11
(Order No. KX-A11-6).
e The AC adaptor must remain connected at all times. (It is normal for the
adaptor to feel warm during use.)
e The speakerphone will not work during a power failure. You must lift the
handset to make or answer a call.
e If your unit is connected to a PBX which does not support Caller ID and
voice mail services, you cannot access those services,
10

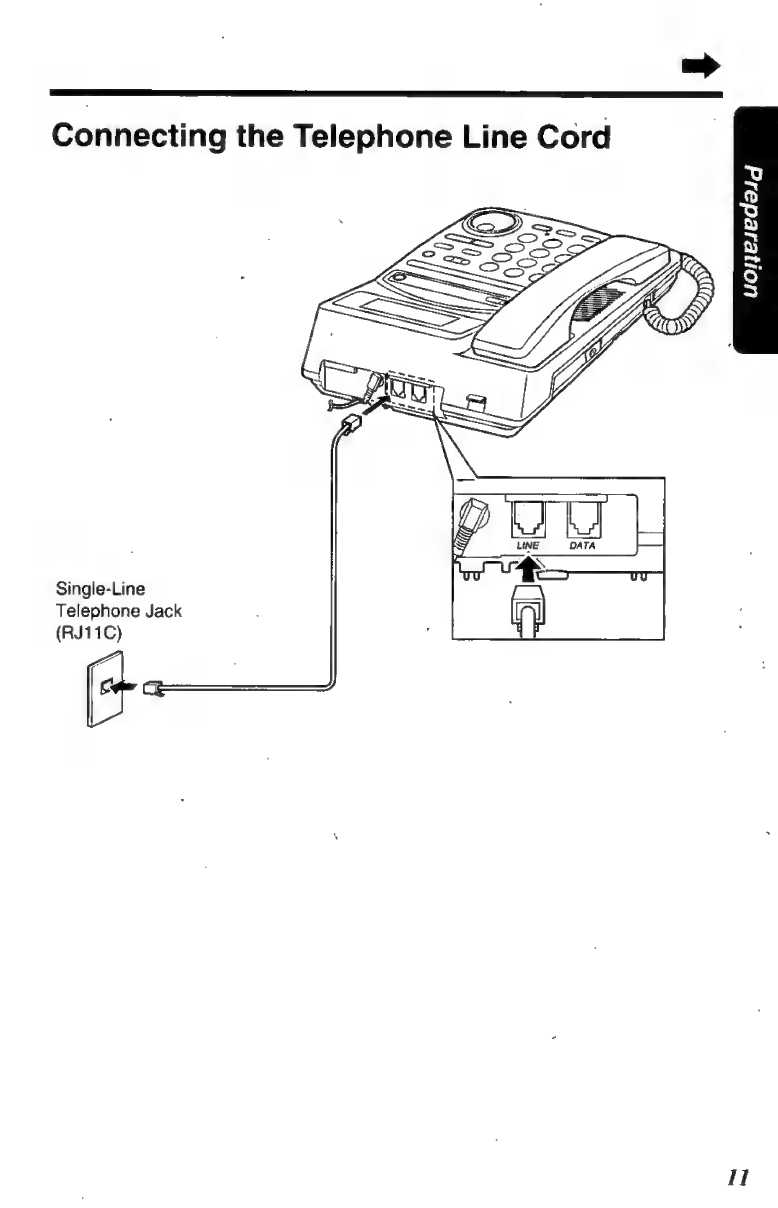

Connecting the Telephone Line Cord
Single-Line
Telephone Jack
(RJ11C)
DI
uonesedald
H

= Settings
Connecting a Communication Device
If you connect a communication device (computer, modem, fax, answering
machine, etc.) to the telephone line, you can connect it through this unit
using the DATA jack (-Data Port).
After connecting the handset, AC adaptor and telephone line cord, connect
the communication device telephone line cord to the DATA jack. -
eComputer
Modem
eFax
eAnswering machine
e Be sure that the communication device is not in use before making calls
with this unit, or the communication device may not operate properly.
12

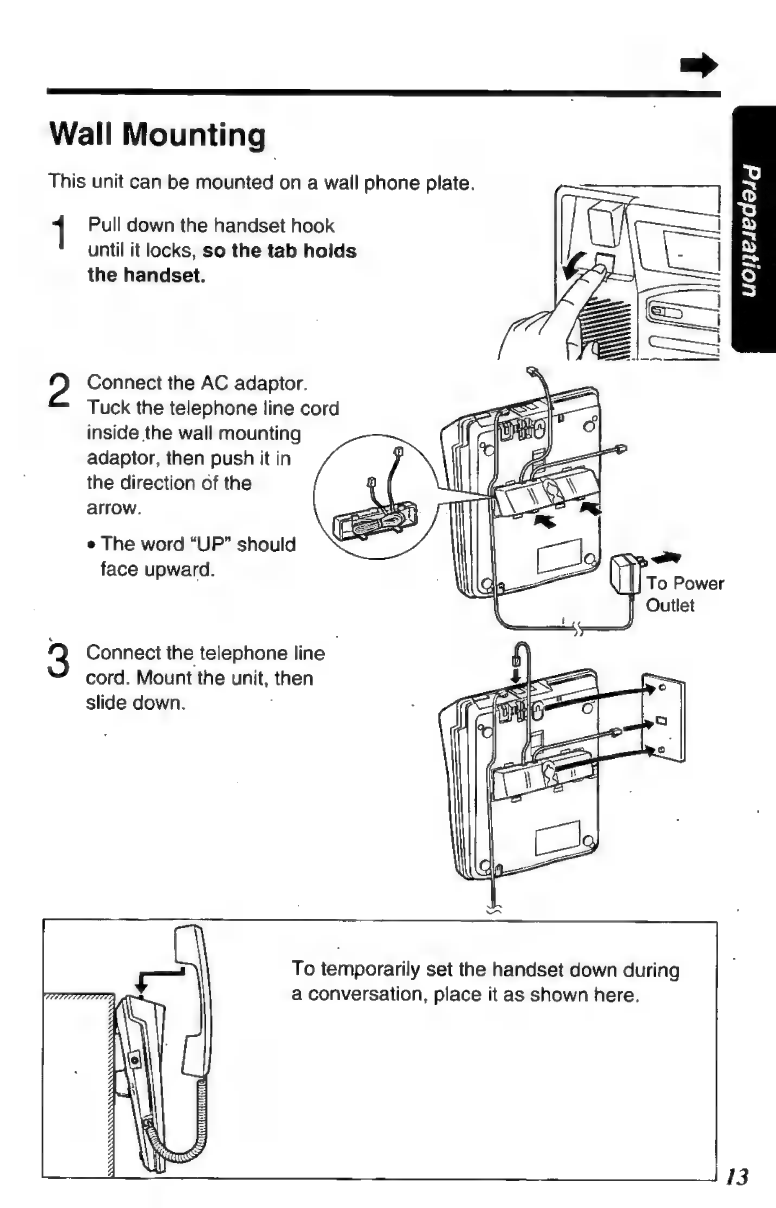

Wall Mounting
This unit can be mounted on a wall phone plate.
1 Pull down the handset hook
until it locks, so the tab holds
the handset.
3
D
S
N
=
©
S
2 Connect the AC adaptor.
Tuck the telephone line cord
inside the wall mounting
adaptor, then push it in
the direction of the
arrow.
e The word “UP” should
face upward. To Powe
Outlet
3 Connect the telephone line
cord. Mount the unit, then
slide down.
To temporarily set the handset down during
a conversation, place it as shown here.

14
m Settings
Selecting the Dialing Mode
You can select the dialing mode by programming. If you have touch tone
service, set to “Tone”. If rotary or pulse service is used, set to “Pulse”. Your
phone comes from the factory set to “Tone”.
Be sure that the handset is on the cradie, the AC adaptor is
connected and the SP-PHONE/HEADSET indicator light is off.
1
Press ([FUNCTION/EDIT].
e The display shows “Rotate JOG and
press SET”, then the function list.
Rotate (JOG DIAL) until “Dialing mode” is
selected.
e The arrow points to “Dialing mode”.
Press [SEND/SET]).
e The current mode is displayed.
Rotate (JOG DIAL] until the desired mode is
displayed.
Press (Save key).
e A long beep sounds and the mode is
saved. _
e The display will return to the function list.
To return to the stand-by mode, press
or wait for 60 seconds. l
>Date and time
Area code
2nd area code
-Function list-
2nd area code
SDialing mode
Voice mail #
-Function list-
Dialing mede «
: Tone
% A
SET=Save
Dialing mode P
:Pulse
Pp «
SET=Save
Dialing mode
:Pulse
e You can exit the programming mode any time by pressing (EXIT).

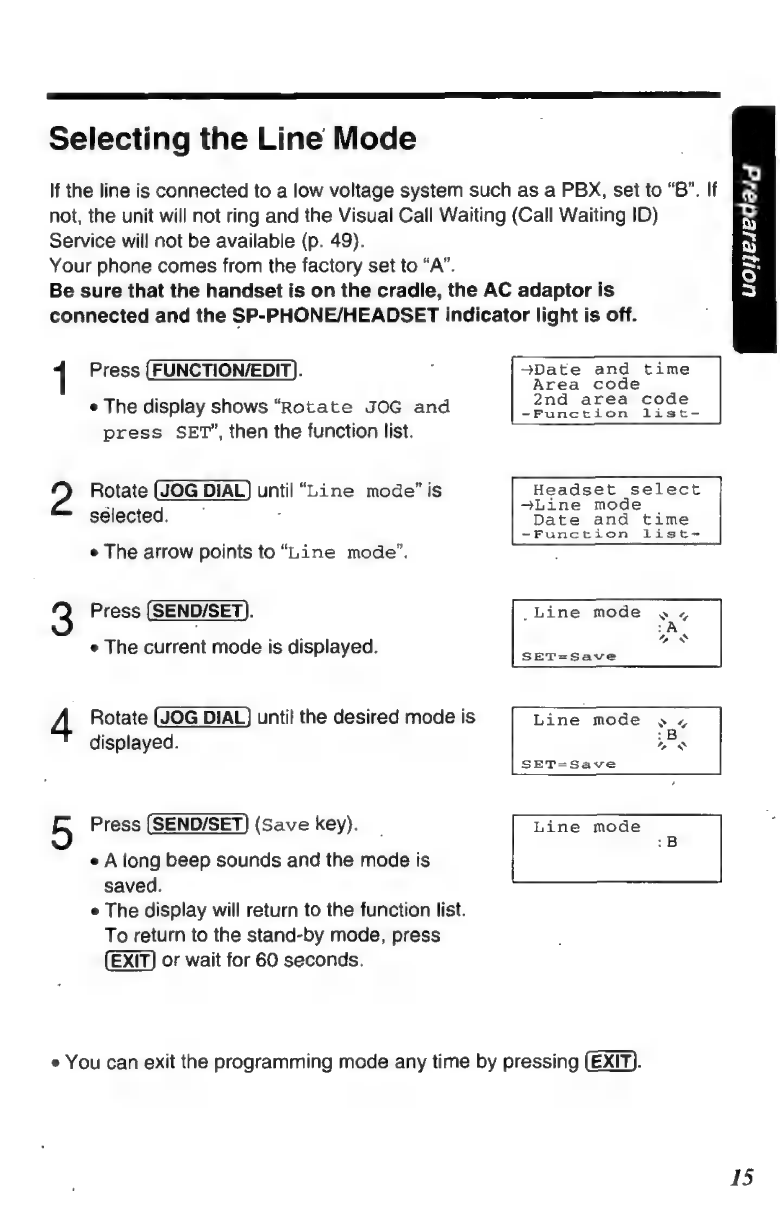

Selecting the Line Mode
lf the line is connected to a low voltage system such as a PBX, set to “B”. If
not, the unit will not ring and the Visual Call Waiting (Call Waiting ID)
Service will not be available (p. 49).
Your phone comes from the factory set to “A”.
Be sure that the handset is on the cradle, the AC adaptor is
connected and the SP-PHONE/HEADSET indicator light is off.
3
x
D
=
Q
3
1 Press [FUNCTION/EDIT). ; >Date and time
Area code
e The display shows “Rotate JOG and sg idr Coro.
press SET”, then the function list.
2 Rotate (JOG DIAL) until “Line mode” is Headset select
i >Line mode
selected. i Date and time
- Function list-
e The arrow points to “Line mode”.
3 Press [SEND/SET). _Line mode ys
7 :A
e The current mode is displayed.
SET=Save
4 Rotate [JOG DIAL) until the desired mode is Line mode & 5
displayed. La
SET=Save
5 Press (SEND/SET) (Save key). _ Line mode
e Along beep sounds and the mode is
saved.
e The display will return to the function list.
To return to the stand-by mode, press
or wait for 60 seconds.
È È
* You can exit the programming mode any time by pressing (EXIT).
15

16

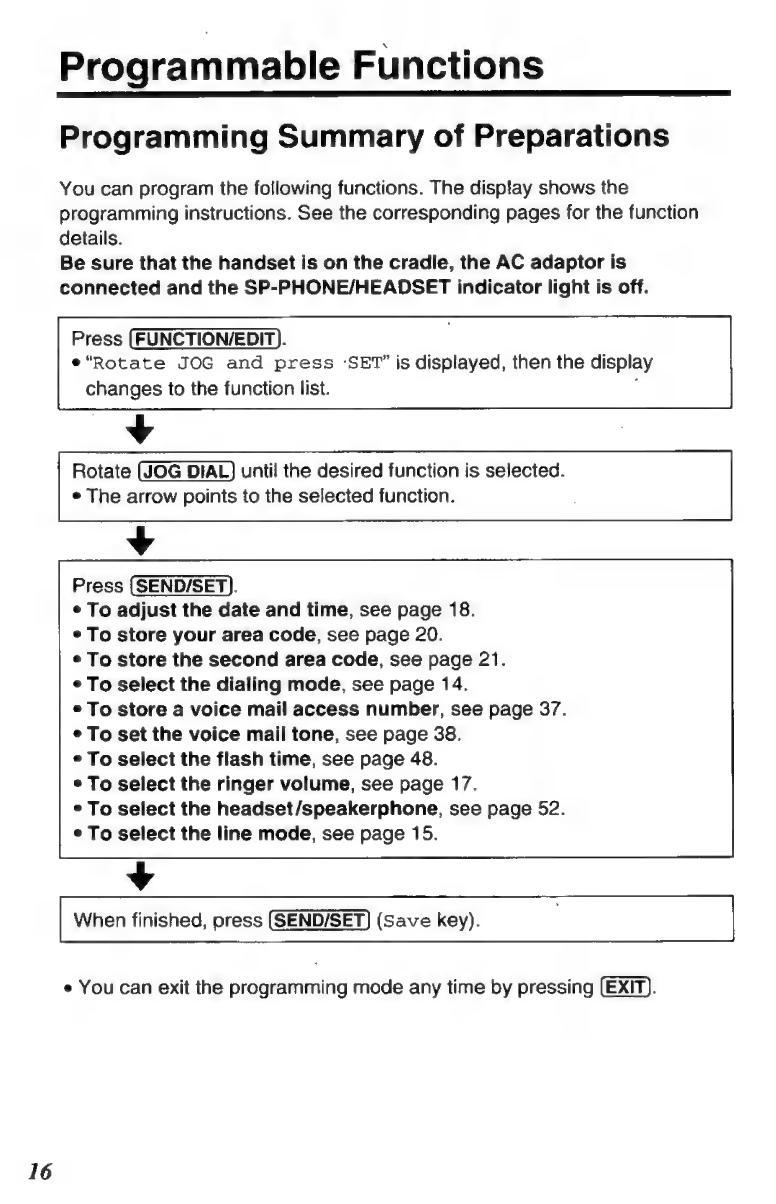

Programmable Functions
Programming Summary of Preparations
You can program the following functions. The display shows the
programming instructions. See the corresponding pages for the function
details.
Be sure that the handset is on the cradle, the AC adaptor is
connected and the SP-PHONE/HEADSET indicator light is off.
Press [FUNCTION/EDIT).
e“Rotate JOG and press ‘SET” is displayed, then the display
changes to the function list.
Rotate [JOG DIAL) until the desired function is selected.
e The arrow points to the selected function.
Press {SEND/SET).
e To adjust the date and time, see page 18.
e To store your area code, see page 20.
e To store the second area code, see page 21.
e To select the dialing mode, see page 14.
e To store a voice mail access number, see page 37.
e To set the voice mail tone, see page 38.
e To select the flash time, see page 48.
e To select the ringer volume, see page 17.
e To select the headset/speakerphone, see page 52.
e To select the line mode, see page 15.
+
When finished, press (Save key). |
e You can exit the programming mode any time by pressing (EXIT).

=

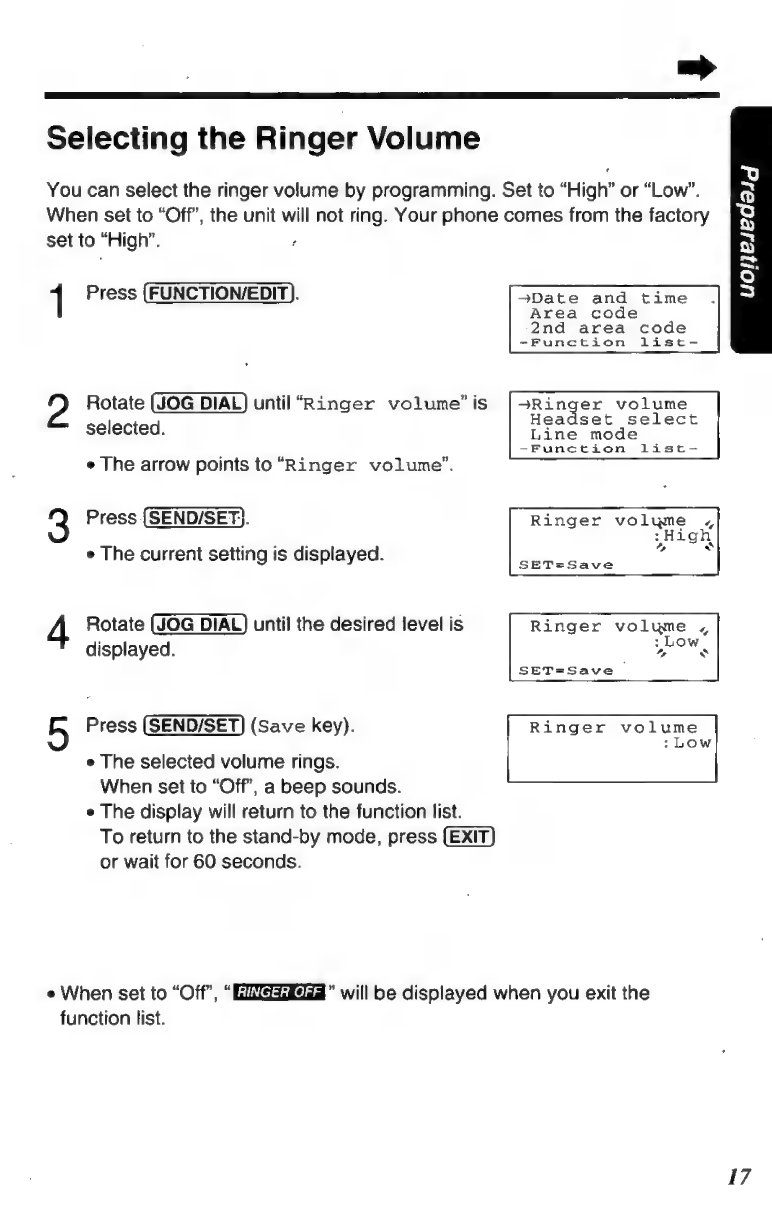

Selecting the Ringer Volume
You can select the ringer volume by programming. Set to “High” or “Low”.
When set to “Off”, the unit will not ring. Your phone comes from the factory
set to “High”. ”
| Press (FUNCTION/EDIT). >Date and time .
Area code
-2nd area code
-Function list-
2 Rotate (JOG DIAL) until “Ringer volume”is |>Ringer volume
1 t
selected.
Pine
sas”
ji
-Function list-
e The arrow points to “Ringer volume”.
¢
Sa di oh
3 Press {SEND/SET}. Ringer volume <
e The current setting is displayed. RTRT
4 Rotate (JOG DIAL) until the desired level is
displayed.
5 Press (SEND/SET] (Save key). Ringer volume
: Low
e The selected volume rings.
When set to “Off”, a beep sounds.
e The display will return to the function list.
To return to the stand-by mode, press [EXIT
or wait for 60 seconds.
e When set to “Off”, “ EmA" will be displayed when you exit the
function list.
uoiesedaid
17

18
m= Programmable Functions
Date and Time Adjustment
If you subscribe to a Caller ID service (p. 26), please read the information
on the next page.
| Press [FUNCTION/EDIT). >Date and time
Area code
2nd area code
-Function list-
2 Rotate (JOG DIAL) until “Date and time” >Date and time
A
Area
code
is
selected.
2nd
area
code
-Function list-
e The arrow points to “Date and time”.
3 Press (SEND/SET).
e The current setting is displayed.
4 @ Enter the current year by using a 4-digit
number, then the month and day using
2-digit numbers. (Ex. To set Jan. 5, 1999,
enter “1999 01 05”.)
@ Enter the current time (hour and minute)
by using a 4-digit number. (Ex. To set
9:30, enter “0930”.)
e If you enter a wrong number, rotate
to move the cursor to the
incorrect number. Then make the
correction.
5 Press (1) (AM/PM key) to select “AM” or
“PM”.

=>
working.
e The display will return to the function list.
To return to the stand-by mode, press
or wait for 60 seconds.
e If 3 beeps sound, the entered date/time is
not correct. Start from step 4.
uonesedald
6 Press (SEND/SET) (Save key). Date:1999.01.05
Time:09:30 PM
e A long beep sounds and the clock starts
s When you enter the hour in step 4, you cannot enter numbers greater
than 12. Do not use military time. (To set 13:00, enter “0100” and select
“PM” by pressing (1).)
e The accuracy of the clock is approximately +45 seconds a month at room
temperature.
If a power failure occurs or the AC adaptor is disconnected for more
than 30 minutes, the adjusted date/time will be erased.
For Caller ID service users (p. 26)
e The date and time will be adjusted by the incoming Calier ID
information after the first ring. In this case, the year will not be
adjusted. To adjust the year, follow steps 1 to 3 on page 18. Enter the
current year by using a 4-digit number, then press (SEND/SET).
e The Caller ID information will re-set the clock if the adjusted time
and/or date is incorrect.
e The Caller ID information will automatically set the clock ahead at the
beginning of summer and back at the beginning of winter.
19

20
mp Programmable Functions

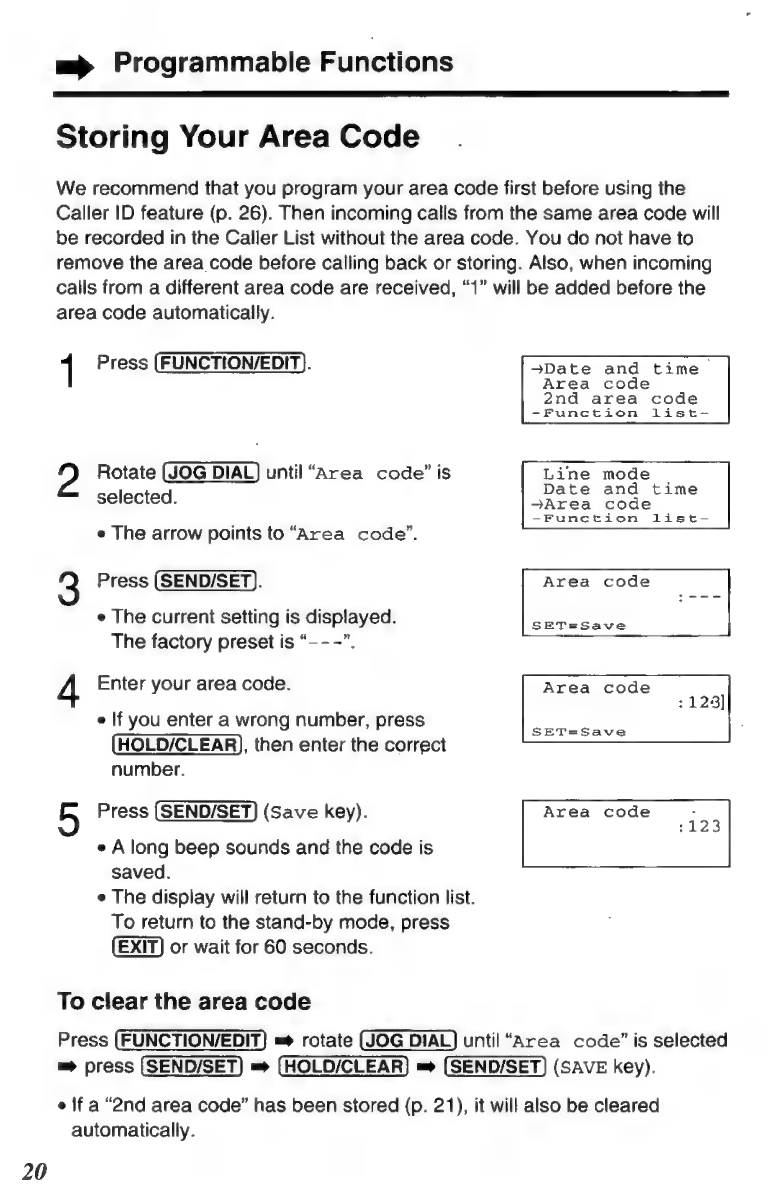

Storing Your Area Code
We recommend that you program your area code first before using the
Caller ID feature (p. 26). Then incoming calls from the same area code will
be recorded in the Caller List without the area code. You do not have to
remove the area code before calling back or storing. Also, when incoming
calls from a different area code are received, “1” will be added before the
area code automatically.
1 Press (FUNCTION/EDIT). >Date and time
Area code
2nd area code
-Function list-
2 Rotate (JOG DIAL] until “Area code” is Line mode
Date and time
selected.
Area
code
-Function list-
e The arrow points to “Area code”.
3 Press [SEND/SET). Area code
e The current setting is displayed.
The factory preset is “—--”.
SET=Save
4
Enter
your
area
code.
Area
code
2123]
e
If
you
enter
a
wrong
number,
press
HOLD/CLEAR)], then enter the correct
number.
5 Press [SEND/SET] (Save key). Area code oa
SET=Save
e Along beep sounds and the code is
saved.
e The display will return to the function list.
To return to the stand-by mode, press
or wait for 60 seconds.
To clear the area code
Press [FUNCTION/EDIT} = rotate (JOG DIAL] until “Area code” is selected
=æ press {SEND/SET) =» [HOLD/CLEAR] = [SEND/SET] (SAVE key).
e if a “2nd area code” has been stored (p. 21), it will also be cleared
automatically.
