Panasonic CA-LSR10U - Sirius Satellite Radio Receiver User manual

Panasonic
SIRIUS Satellite Radio And Traffic Tuner Interface
Radio satellite SIRIUS et Interface de n§glage des canaux de trafic
Radio de satelite SIRIUS y cable para el sintonizador de tnlfico
Model:
CA-LSR10U
Operating Instructions·
Manuel d'instructions
Manual de Instrucciones
• Please read these instructions (including "Limited warranty") carefully before using this product and keep this manual for
future reference.
• Priere de lire attentivement ces instructions (y compris la « Garantie limitee ») avant d'utiliser ce produit et conserver ce manuel
d'instructions pour s'y referer ulterieurement.
• Lea con atenci6n estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el
futuro.

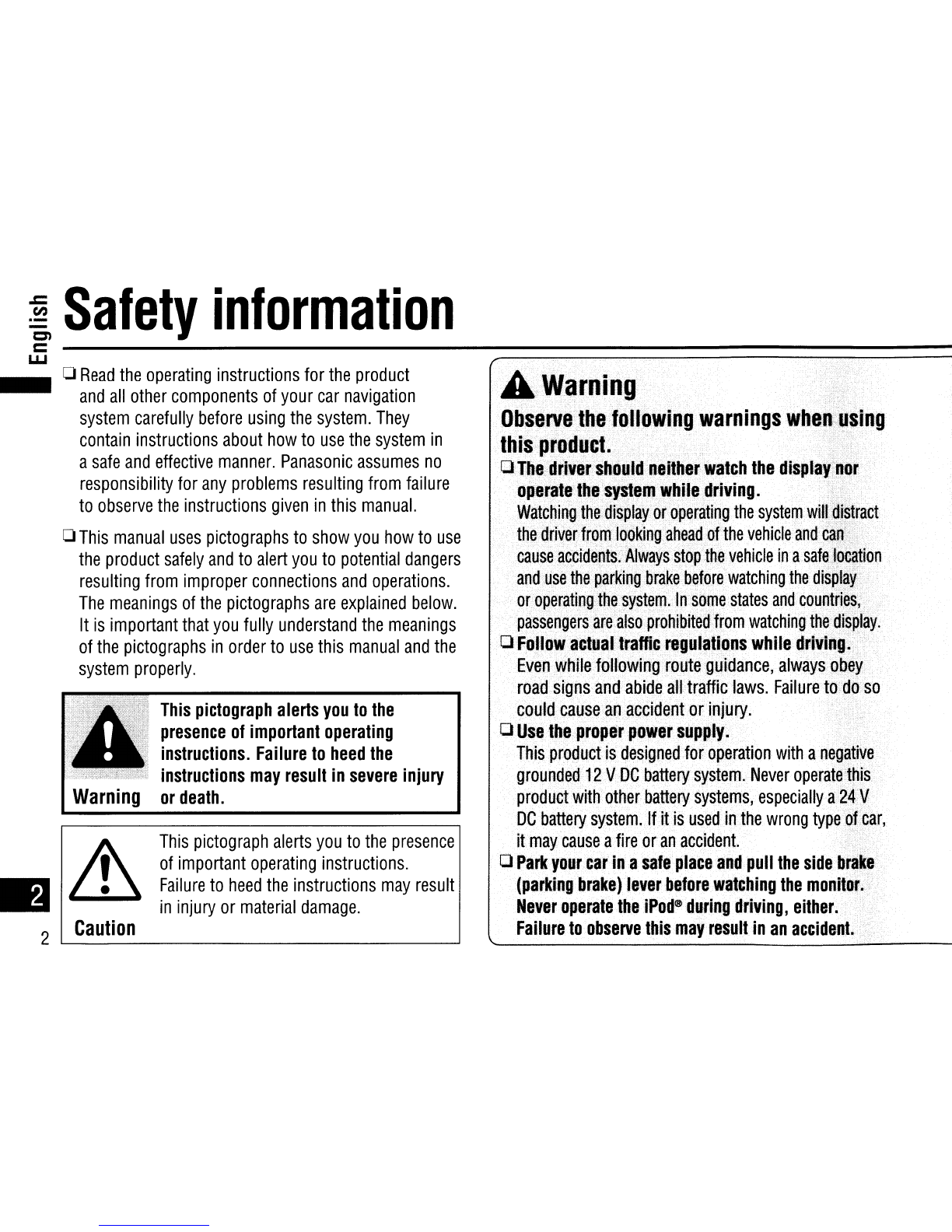

~ Safety information
c
wA
Warning
Observe the following warnings whe
Ihis d
alh vers
opera e
Watchi
the driver
cause i
and use th
or
p ers e also prohib'
a Follow aetua ffie regulations while drivi
Even while following route guidance, always 0
road signs and abide all traffic laws. Failure to do so
could cause an accident or injury.
a Use the proper power supply.
This product is designed for operation with an e
grounded 12 V DC battery system. Never operate t is
product with other battery systems, especially a 24 V
DC battery system. If it is used in the wrong ty ar,
it may cause a fire or an accident.
a Park your car in a safe place and pull the side
(parking brake) lever before watching the monitor.
Never operate the iPod® during driVing, either.
Failure to observe this may result in an accident.
This pictograph alerts you to the
presence of important operating
instructions. Failure to heed the
instructions may result in severe injury
or death.
This pictograph alerts you to the presence
of important operating instructions.
Failure to heed the instructions may result
in injury or material damage.
Caution
Warning
o Read the operating instructions for the product
and all other components of your car navigation
system carefully before using the system. They
contain instructions about how to use the system in
a safe and effective manner. Panasonic assumes no
responsibility for any problems resulting from failure
to observe the instructions given in this manual.
o This manual uses pictographs to show you how to use
the product safely and to alert you to potential dangers
resulting from improper connections and operations.
The meanings of the pictographs are explained below.
It is important that you fully understand the meanings
of the pictographs in order to use this manual and the
system properly.
2
-

·-
-
en
c
w
-
•
3

~ Safety information (continued)
c ------------------------------------
w
- ~Caution
Observe the following cautions when
installing.
o Refer wiring and installation to qualified service
personnel.
Installation of this product requires special skills and
experience. For maximum safety, have it installed by
your dealer. Panasonic is not liable for any problems
resulting from your own installation of the product.
o Take care not to damage the leads.
When wiring, take care not to damage the leads.
Prevent them from getting caught in the vehicle
chassis, screws, and moving parts such as seat
rails. Do not scratch, pull, bend or twist the leads.
Do not run them near heat sources or place heavy
objects on them. If leads must be run over sharp
metal edges, protect the leads by winding them with
vinyl tape or similar protection.
o Do not use the product where it is exposed to
water, moisture, or dust.
III
4
o Use accessories and the designated parts.
The use of parts other than those supplied or
designated may result in internal damage to the
product. Faulty installation may lead to an accident,
a malfunction or fire.

limited warranty
U.S.A.
PANASONIC CONSUMER ELECTRONICS COMPANY ,
DIVISION OF PANASONIC CORPORATION OF NORTH AMERICA
One Panasonic Way, Secaucus, New Jersey 07094
PANASONIC SALES COMPANY,
DIVISION OF PANASONIC PUERTO RICO, INC.
Ave. 65 de infanteria, Km. 9.5, San Gabriel Industrial Park
Carolina, Puerto Rico 00985
PANASONIC AUTO PRODUCTS
LIMITED WARRANTY
LIMITED WARRANTY COVERAGE
If your product does not work properly because of defects in materials
and workmanship.
Panasonic Consumer Electronics Company or Panasonic Sales Company
(collectively referred to as "the warrantor") will, for the length of the
period indicated in the chart below, which starts with the date of original
purchase ("warranty period"), at its option either (a) repair your product
with new or refurbished parts, or (b) replace it with a new or refurbished
product. The decision to repair or replace will be made by the warrantor.
Categories Parts Labor
Audio Components (except items listed below) One (1) Year
One (1) Year
MXE Series Audio Components (except items
Two (2) Years Two (2) Years
listed below)
Speakers One (1) Year
Not Applicable
Defective Car Audio Speakers under warranty
must be exchanged at the place of purchase.
Contact your Dealer for details.
Accessories (in exchange for defective items)
Ninety (90) Days Not Applicable
During the "Labor" warranty period, there will be no charge for labor.
During the "Parts" warranty period, there will be no charge for parts. You
must carry in or mail in your product prepaid during the warranty period.
If non-rechargeable batteries are included, they are not warranted. This
warranty only applies to products purchased and serviced in the United
States or Puerto Rico. This warranty is extended only to the original
purchaser of a new product which was not sold "as is". A purchase receipt
or other proof of the original purchase date is required for warranty service.
CARRY-IN OR MAIL-IN SERVICE
For Carry-In or Mail-In Service in the United States, call1-800-211-PANA
(7262) or visit
Panasonic Web Site: http://www.panasonic.com
For assistance in Puerto Rico, call Panasonic Sales Company (787)-750-
4300 or fax [phone].
LIMITED WARRANTY LIMITS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials and
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The warranty ALSO DOES NOT COVER damages which occurred during
shipment, failures which are caused by products not supplied by the warrantor,
failures which result from accident, misuse, abuse, neglect, bug infestation,
mishandling, misapplication, alteration, faulty installation, set-up adjustment,
maladjustment of consumer control, improper maintenance, improper antenna,
inadequate signal reception or pickup, power line surge, improper voltage
supply, lightning, modification, commercial use (such as use in hotels, offices,
restaurants, or other business uses) or rental use of the product, or service by
anyone other than the technician from Factory Servicenter or other authorized
service centers, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
"LIMITED WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH
OF THIS WARRANTY. (As examples, this excludes damages for lost
time, cost of having someone remove or re-install an installed unit if
applicable, travel to and from the servicer, and loss of media, data or
other memory contents. The items listed are not exclusive, but are
.-
-
=
c
w
-
5

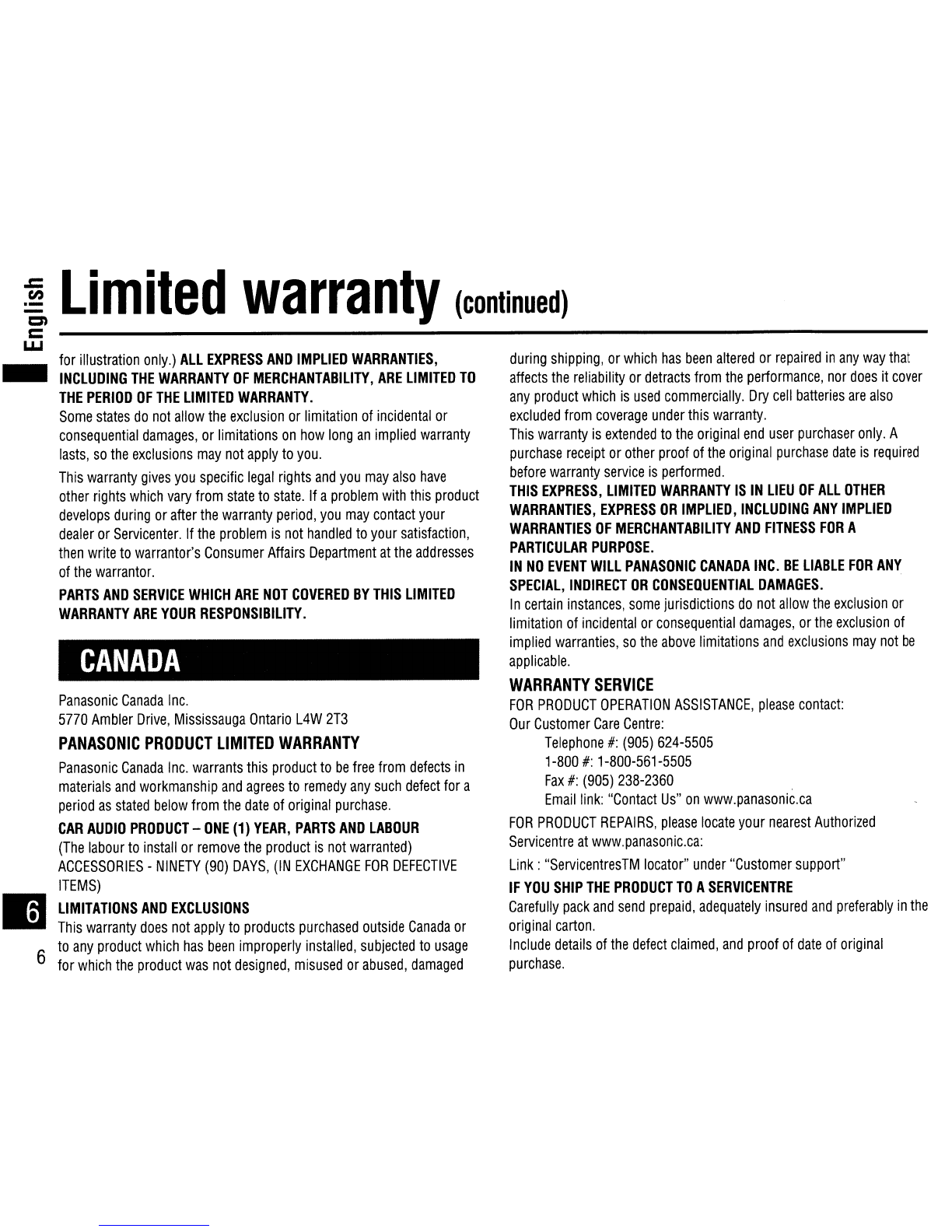

~ limited warranty (continued)
c
w
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga Ontario L4W 2T3
PANASONIC PRODUCT LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in
materials and workmanship and agrees to remedy any such defect for a
period as stated below from the date of original purchase.
CAR AUDIO PRODUCT - ONE (1) YEAR, PARTS AND LABOUR
(The labour to install or remove the product is not warranted)
ACCESSORIES - NINETY (90) DAYS, (IN EXCHANGE FOR DEFECTIVE
ITEMS)
~ LIMITATIONS AND EXCLUSIONS
~ This warranty does not apply to products purchased outside Canada or
6 to any product which has been improperly installed, subjected to usage
for which the product was not designed, misused or abused, damaged
-
for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES,
INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO
THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty
lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have
other rights which vary from state to state. If a problem with this product
develops during or after the warranty period, you may contact your
dealer or Servicenter. If the problem is not handled to your satisfaction,
then write to warrantor's Consumer Affairs Department at the addresses
of the warrantor.
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY ARE YOUR RESPONSIBILITY.
CANADA
during shipping, or which has been altered or repaired in any way that
affects the reliability or detracts from the performance, nor does it cover
any product which is used commercially. Dry cell batteries are also
excluded from coverage under this warranty.
This warranty is extended to the original end user purchaser only. A
purchase receipt or other proof of the original purchase date is required
before warranty service is performed.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY
SPECIAL, INDIRECT OR CONSEOUENTIAL DAMAGES.
In certain instances, some jurisdictions do not allow the exclusion or
limitation of incidental or consequential damages, or the exclusion of
implied warranties, so the above limitations and exclusions may not be
applicable.
WARRANTY SERVICE
FOR PRODUCT OPERATION ASSISTANCE, please contact:
Our Customer Care Centre:
Telephone #: [phone]
1-800 #: 1-800-561-5505
Fax #: [phone] .
Email link: "Contact Us" on www.panasonic.ca
FOR PRODUCT REPAIRS, please locate your nearest Authorized
Servicentre at www.panasonic.ca:
Link: "ServicentresTM locator" under "Customer support"
IF YOU SHIP THE PRODUCT TO A SERVICENTRE
Carefully pack and send prepaid, adequately insured and preferably in the
original carton.
Include details of the defect claimed, and proof of date of original
purchase.

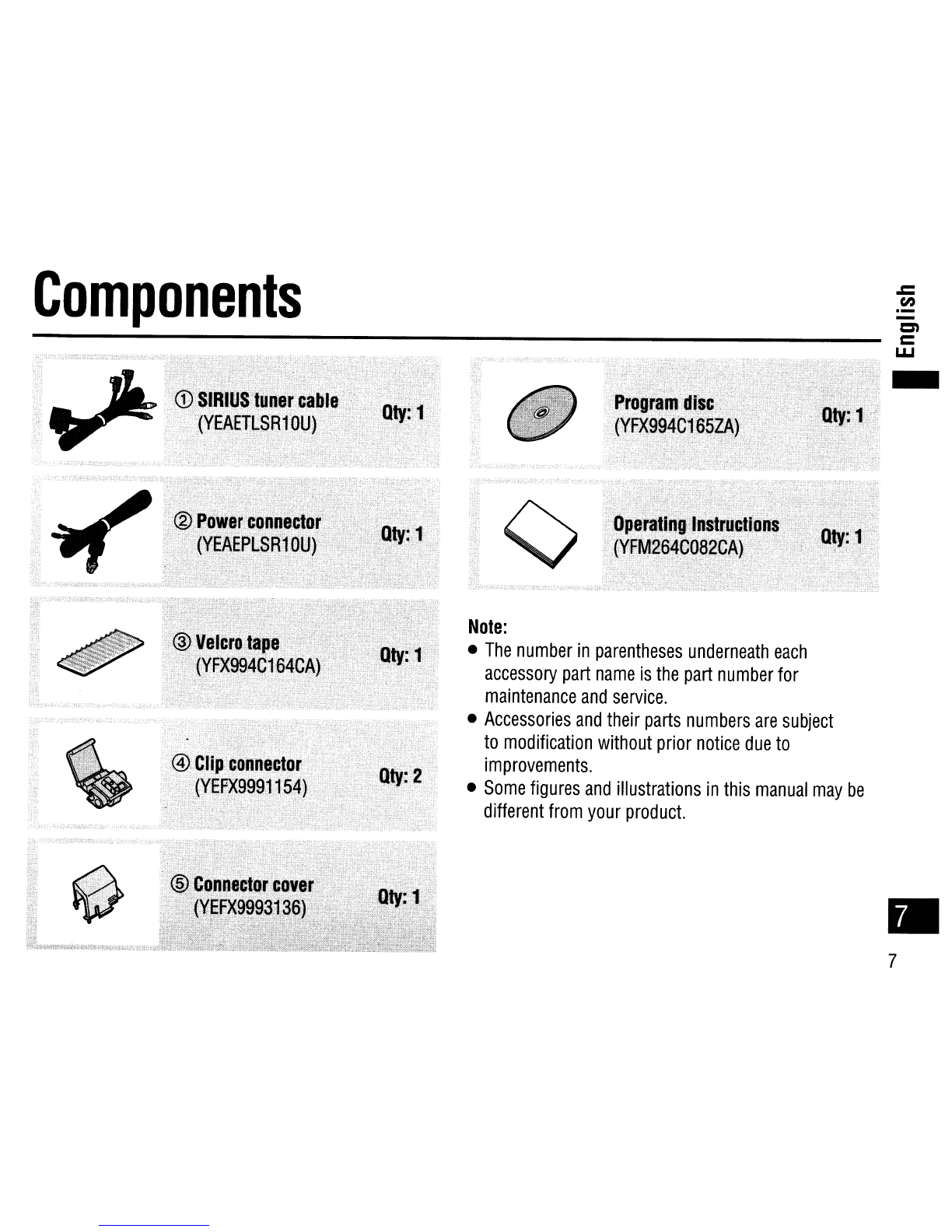

Components
Note:
• The number in parentheses underneath each
accessory part name is the part number for
maintenance and service.
• Accessories and their parts numbers are subject
to modification without prior notice due to
improvements.
• Some figures and illustrations in this manual may be
different from your product.
.-
-
=
c
w
-
•
7

Note:
• No part of this disc may be reproduced or duplicated
without prior consent.

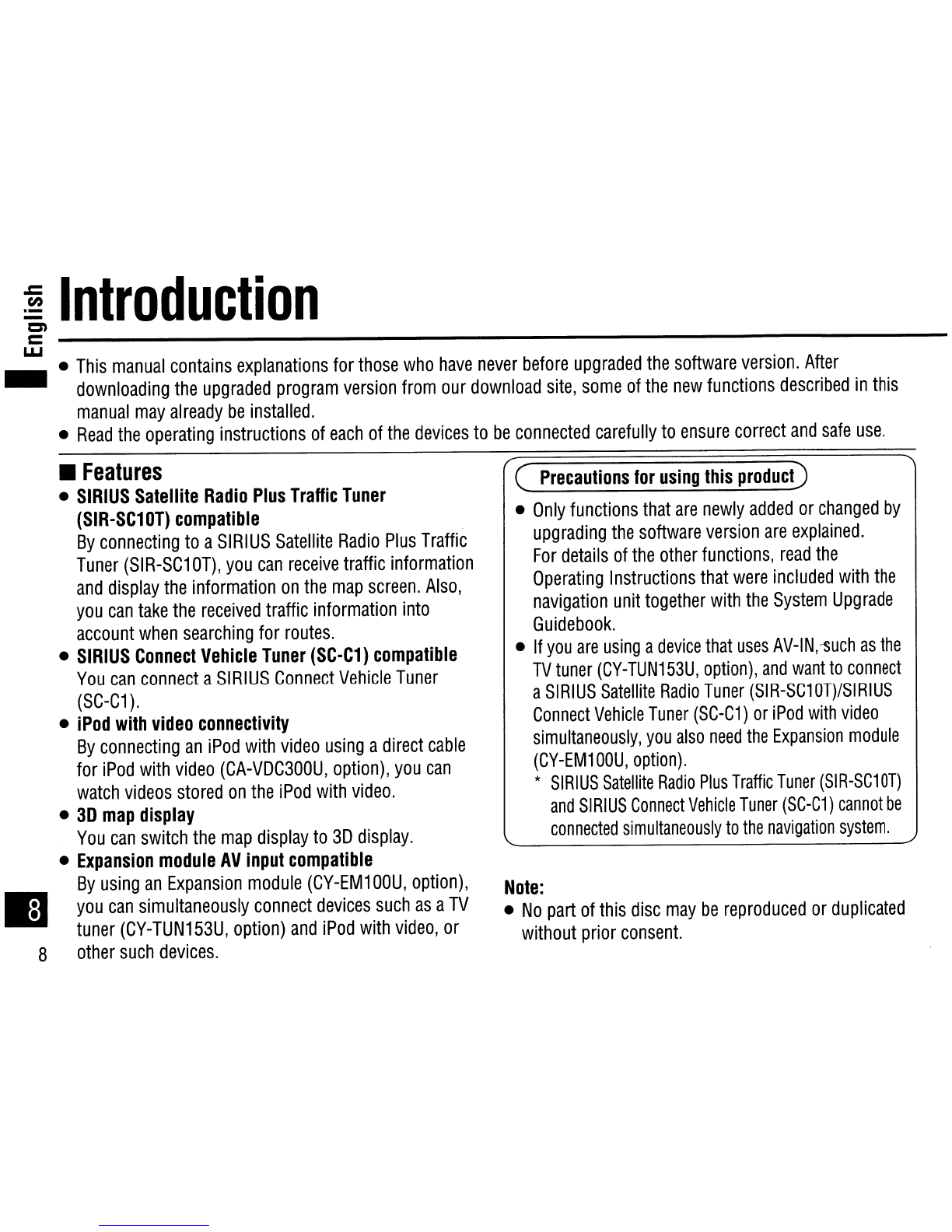

( Precautions for using this product)
• Only functions that are newly added or changed by
upgrading the software version are explained.
For details of the other functions, read the
Operating Instructions that were included with the
navigation unit together with the System Upgrade
Guidebook.
• If you are using a device that uses AV-IN,--such as the
TV tuner (CY-TUN153U, option), and want to connect
a SIRIUS Satellite Radio Tuner (SIR-SC1 OT)/SIRIUS
Connect Vehicle Tuner (SC-C1) or iPod with video
simultaneously, you also need the Expansion module
(CY-EM100U, option).
* SIRIUS Satellite Radio Plus Traffic Tuner (SIR-SC10T)
and SIRIUS Connect Vehicle Tuner (SC-C1) cannot be
connected simultaneously to the navigation system.
~ Introduction
en
~ -------------------------------------
_ • This man~al contains explanations for th?se who have never befo~e upgraded the software version. After
downloadmg the upgraded program version from our download site, some of the new functions described in this
manual may already be installed.
• Read the operating instructions of each of the devices to be connected carefully to ensure correct and safe use.
• Features
• SIRIUS Satellite Radio Plus Traffic Tuner
(SIR-SC10T) compatible
By connecting to a SIRIUS Satellite Radio Plus Traffic
Tuner (SIR-SC1 OT), you can receive traffic information
and display the information on the map screen. Also,
you can take the received traffic information into
account when searching for routes.
• SIRIUS Connect Vehicle Tuner (SC-C1) compatible
You can connect a SIRIUS Connect Vehicle Tuner
(SC-C1 ).
• iPod with video connectivity
By connecting an iPod with video using a direct cable
for iPod with video (CA-VDC300U, option), you can
watch videos stored on the iPod with video.
• 3D map display
You can switch the map display to 3D display.
• Expansion module AV input compatible
By using an Expansion module (CY-EM1 OOU, option),
III you can simultaneously connect devices such as a TV
tuner (CY-TUN153U, option) and iPod with video, or
8 other such devices.

Contents
_En----:..o_lis_h _
__ F_r_an--:;,~_a_is _
Espanol
Safety information 2
Limited warranty 5
Components 7
Introduction 8
Contents 9
Preparation 10
SIRIUS Traffic 12
3D screen 22
Operation of the right screen 23
Change navigation settings 24
iPod with video control 26
Mounting 30
Wiring 30
Troubleshooting 36
iC Using the Disc)
.~.· ... Jf .. :t~~;pi$c .•. ;i~· •• d •• irty: .. ~.r •. s~.ratch:ed, .•.•• or •• iif •. the:. piCk.~.P ..•••.••..••
• •.••••••.•••••••• yl~p······~.·J: .. {jirtY,··t~~i:gl$9 •• nl~~ .• i9~c0n1e ..•• u.nr~~~abl~lanD· '.
;··I'.'/.·yp· ···'··~·n9tD~abl~\Q·:.~~~ate·th.~ •. so~~~~e~.:;I~Ithis
. ·.P~·P .. f••.....: •. occurstJqQ~s:u!t.yourdeal~r;.··;,· ,..'
;··.,.'·W,~.e.riGln~eF'tjng:."and'jre:mov!nJJ:Jq~:tI·iscffom ·the,
',.ca$ei,donotscratch 'Of' leave fjngerprin'ts 'on the
;,stirfaceofthedisc;' . .
·."oo'ho!;§lie!<Ypaper. on the discflap,el, or sctat~h4tle
.... ~disc:surfaCe.··· ",', ..
.• .:,ra':avoirJth~'.disri,'6ecd,mJng . dirty~;'$Cfatched,.'·or '.
.,,' ... ,~.'". .·'e9:~heq:not'Jn·:use:forJo9g,.pefio.ds,.·qf"time,
;ii'i'II~;ifar:~F:~,~~~
e$&a····
9

~ Preparation
c
w
-
Upgrading the Navigation Software
No/Non/No
00 you w<lnt
the PI oql ,1m updiltE'?
Oesilez VOliS Ii! mise
it
jow du pI oql dllllne ?
(.DE''>E'il lil adlldlizilci6n
del plogr i1mil?
~
Select [Yes/Oui/Sf].
• The program starts to load.
...-
• Do not turn off the engine while the program is
loading. (Do not switch ACC OFF.)
If program loading is interrupted, it will start
again from the beginning the next time the
engine is turned on (or the next time ACC is
turned ON).
Printed side
Select [Disc].
• The monitor opens.
• If there is a disc inside, it is ejected automatically.
Insert the program disc.
Once the version is updated, it cannot be restored to the
former version.
Start the engine.
(Or turn the key to ACC.)
Select [I agree] on the WARNING
screen.
Press 1ia.
• The OpenfTiltlEject screen is displayed.
10 • The monitor closes automatically.
•

.c
en
.-
-
en
c
w
-
When the program has finished loading,
Select [Disc/Disque/Disco].
• The monitor opens and the disc is ejected.
Remove the disc.
Select [Close/Fermer/Cerrar].
• The monitor closes.
Turn off the engine and turn on the
engine again or switch ACC on.
• The newly added functions are now ready for
use.
Note:
• If the version of the navigation unit is already updated,
a message is displayed to notify you that an update
will not be performed. Eject the disc and turn the
power off and on prior to use.
•
11

~ SIRIUS Traffic
en
c -------------------------------------
w
Displaying the SIRIUS TRAFFIC menu
Screen Off
I .. ~J i :.format ,O~
I'~
Destination ~
• The Setup menu is displayed.
Select [SIRIUS Traffic].
• The SIRIUS TRAFFIC menu is displayed.
Preparation:
• Connect the optional SIRIUS Satellite Radio Plus
Traffic Tuner (SIR-SC1 aT). (- page 31)
[Sirius Traffic] is displayed on the Setup menu by
connecting the SIRIUS Satellite Radio Plus Traffic Tuner.
Select [Setup] from the Navigation menu.
What is SIRIUS Traffic?
Route search using traffic information
SIRIUS Traffic provides traffic data to vehicles over our
nationwide satellite radio network. This includes updated traffic
information on accidents, scheduled road closings, traffic
flow and other traffic-related incidents. Since the service is
integrated with a vehicle's navigation system, SIRIUS Traffic
can help drivers pick the fastest route based on real-time traffic
conditions.
For information on the areas in which you can use the Flow and
Event functions of SIRIUS Traffic, and the applicable roads,
confirm the latest status on the SIRIUS web page.
Search for a route that avoids traffic information (such
as traffic jam). Traffic Jam
Note:
• A route search using traffic information considers the
following information, except for forecast information.
• Closed road (Except for entry closed and exit closed)
• Traffic
• Traffic Flow/Heavy
12
16
-

.-
-
ACTIVATION You have not obtained Obtain a contract for
REQUIRED a contract for SIRIUS SIRIUS Traffic.
Traffic.
• [Traffic On Route] is displayed during route guidance.
• [Urgent Information] is displayed when urgent
information is received.
en
c
w
-
Wait a while. You can
use SIRIUS Traffic
after updating ends.
Connect the SIRIUS
antenna.
SIRIUS antenna
unconnected.
Cannot receive SIRIUS Verify the wiring.
Satellite Radio.
The data is being
updated.
UPDATING
ANTENNA
ERROR
NO SIRIUS
Note:
• When you are unable to use the SIRIUS Traffic,
confirm the system status.
SIRIUS 10
(for traffic)
II SIRIUS TRAFFIC menu
System status
• Displays the connection status of the SIRIUS Satellite
Radio Plus Traffic Tuner.
Signal meter
• Displays the SIRIUS Satellite Radio Plus receive status
(4 levels: from 0 to 3).
Getting started
You need to register to be able to use the SIRIUS
Satellite Radio Plus Traffic Tuner. Call after confirming
your SIRIUS 10 (for traffic).
• Phone number: 1-800-869-5364
Note:
• The SIRIUS 10 (for traffic) displayed on the SIRIUS
Traffic differs from SIRIUS 10 (- System Upgrade
Guidebook) displayed on the SIRIUS Satellite Radio. III
When contracting, use each of the IDs to obtain a
contract for SIRIUS Traffic and SIRIUS Satellite Radio
respectively. 13

~ SIRIUS Traffic (continued)
c
w
-
Traffic information on the map
C ....... Tr_af_fi_C _i"_fo_rm_a_ti_o_" __ ..."".)
* Mph and km/h switches according to the distance
setting (- Operating Instructions).
Q= Traffic flowing freely
20 mph, 25 mph,
30 mph, 40 mph,
45 mph Yellow
30 km/h, 40 km/h,
50 km/h, 60 km/h,
70 km/h
...,...... mph: 5 mph, 10 mph
(Red) km/h: 10 km/h, 20 km/h
Ci
(Red number)
mph:
~3O'1 iR[ II V
.~.
(Black number) (Orange) km/h:
Within the extent of influence of each of the traffic
information items, an icon is displayed at the closest point
from the vehicle position, and an extent line is displayed
from the icon to the end point of traffic information.
Note:
• Up to 300 traffic information items closest to your
vehicle are displayed .
•
It can be set to display/not display. (- page 20)
_Flow
Traffic indicator
• The color of the characters changes according to the
receive status.
• Black Character: Received
• Grey Character: Not received
• The background color of the traffic indicator changes
according to the traffic information.
• White: There is traffic information.
• Grey: There is no traffic information.
• Yellow: There is traffic information within
approximately 30 miles (50 km) along
the route in the heading direction.
• Pale Blue: There is other traffic information within
approximately 30 miles (50 km) along
the route in the heading direction.
14
III

_Event
o iip"'(Yellow) Closed Road Yellow
.c
en
.-
-
C)
c
w
-
G;;,'" (Yellow) Entry Closed
(b i,Y' (Yellow) Exit Closed
tA. 'if' (Yellow) Traffic (Heavy Traffic, etc.)
!t.
&W" (Yellow) Accidents
&. tiP (Yellow) Danger (Broken down vehicle, etc.)
"'-
]A ...."..,..(Pale Blue) Road Conditions (Lane closed, etc.)
e:> """""'(Pale Blue) Delays (Long delays, etc.)
&tW' (Yellow) Road works
~ ...."..,..(Pale Blue) Weather (Heavy rain, etc.)
(f] """""'(Pale Blue) Parking (Parking information, etc.)
II] ...."..,..(Pale Blue) Others (Major event, etc.)
Note:
• The color of the icons changes depending on the type of information.
• Red: Present information
• Red & Red frame: Emergency information
• Pale Blue: Forecast information
Yellow
Yellow
Yellow
Yellow
Yellow
Pale Blue
Pale Blue
Yellow
Pale Blue
•
15

~ SIRIUS Traffic (continued)
en
c -----------------------------------
w
Display
detailed traffic
information *
._II.iIJJ
"1"*'· . ',«~,w "
If there is distance
information within the
affected area, the icon and
distance are displayed .
* This is not displayed in the Flow screen.
Select [Info.].
The name of the
location where the
event occurred.
• The traffic information screen is displayed.
...
Road number or street name
Traffic event type
• The traffic event type is displayed on the top of
. the screen.
Traffic information display
You can check the traffic information displayed on the
map.
Note:
• The unit of the average speed of the flow displayed
in the traffic event type varies depending on the
languages. It does not follow the distance setting.
(- Operating Instructions)
• English: mph
• French: km/h
• Spanish: km/h
II Display from the map screen
Put the cursor on the traffic icon.
16
-
II

.-
-
17
Display
detailed
traffic
information *
Display the
location of
the event
The name of the location where the event occurred .•
* This is not displayed in the Flow screen.
Select [Urgent Information] from the
SIRIUS TRAFFIC menu.
• The Urgent Information screen is displayed.
"Y'
Road number or street name
Traffic event type
en
c
w
_ Urgent i'nformation _
When urgent information is received, you are informed
that urgent information was received on the screen.
The distance from your vehicle to the
traffic information.
The name of the location where the event
occurred.
When there are multiple traffic information items,
you can use II, II to view other items.
* This is not displayed in the Flow screen.
_ Traffic on route
Displays traffic information content on route.
Select [Traffic On Route] from the
SIRIUS TRAFFIC menu .
• The Traffic On Route screen is displayed .
...-
Road number or street name
Traffic event type Display
detailed
traffic
information*
Display the
location of
the event

~ SIRIUS Traffic (continued)
en
c -----------------------------------
w
The name of the location where the event occurred.
* This is not displayed in the Flow screen.
Select a road number.
• The All Traffic Events screen is displayed.
-..
Road number or street name
Traffic event type Display
detailed traffic
information *
Display the
location of
the event
Traffic information display
(continued)
II All traffic events
Display all received traffic information content for each
road .
• A
list of roads that have no road numbers (roads with
street names only or area information) is displayed
when [Other info] is selected.
Select [All Traffic Events] from the
SIRIUS TRAFFIC menu.
-
18

Auto avoid traffic
When traffic information (such as traffic jam) is received
during route guidance, a route that avoids the traffic
information is searched, and if there is an alternate
route, you are informed on the screen.
'" Select [Auto Avoid Traffic] from the
SIRIUS TRAFFIC menu.
Illuminates
when On.
• If there is an alternate route, you are informed
on the screen.
• Select [Auto Avoid Traffic] again to cancel auto
avoid traffic.
III If there is an alternate route
Confirm the information on the
screen, then select [Yes].
• The route is updated to the alternate route .
•
In the following cases, the route is not updated
to the alternate route.
• [No] is selected.
• Route deviance .
•
The distance to the turning point of the old
and alternate route becomes less than 1 mile
(1.5 km).
.-
-
=
c
w
-
•
19

~ SIRIUS Traffic (continued)
en
c ------------------------------------
w
-
Voice guidance
Show traffic information
• The selected icons are canceled when the same
icons are selected again.
• [All On]: Display all icons.
• [All Off]: Hide all icons.
You can choose the traffic icons displayed on the map.
Select [Show Traffic Info.] from the
SIRIUS TRAFFIC menu.
• The Show Traffic Info. screen is displayed.
Select icons to display, then select [OK].
Illuminates
when On .
•
Select [Voice Guidance] again to cancel voice
guidance.
The voice guidance can be provided for the traffic
information on the route during route guidance.
Select [Voice Guidance] from the
SIRIUS TRAFFIC menu.
20
Note:
• Icons set to be hidden are not used for the following functions.
• Traffic information on the map (icon & indicator)
• Display traffic information
• Voice guidance using traffic information
• Route search using traffic information (Closed road is
always used regardless of the setting.)
• Urgent information is used when received regardless of the setting.
