Panasonic TY-42TM5H User manual

ORDERNO. ITD0207023C2
Tuner Terminal Board
TY-42TM5H / TY-37TM5H
2002 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
1. Prevention of Electro Static Discharge (ESD) to
Electrostatically Sensitive (ES) Devices
Some semiconductor(solidstate) devices canbe damagedeasilybystatic electricity. Such
components commonlyare calledElectrostaticallySensitive (ES) Devices. Examples of typical
ES devices are integratedcircuits and some field-effect transistors and semiconductor"chip"
components. The following techniques shouldbe usedtohelpreduce the incidence of
component damage causedbyelectrostatic discharge (ESD).
1. Immediatelybefore handling anysemiconductor component or
semiconductor-equipped assembly, drainoff anyESDon your
bodybytouching aknownearth ground. Alternatively, obtainand
wear acommerciallyavailabledischarging ESDwrist strap, which
shouldbe removed for potential shock reasons prior to applying
power to the unitunder test.
1

2. After removing an electrical assemblyequipped with ES devices,
place the assemblyon aconductive surface such as alminum foil,
to prevent electrostaticcharge buildup or exposure of the
assembly.
3. Use onlyagrounded-tipsoldering iron to solder or unsolder ES
devices.
4. Use onlyan anti-staticsolder removal device. Some solder
removal devices not classified as "anti-static(ESDprotected)"
can generate electrical charge sufficient to damage ES devices.
5. Donot use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Donot remove areplacement ES device from its protective
package until immediatelybefore you are readyto install it. (Most
replacement ES devices are packaged with leads electrically
shorted together byconductive foam, alminum foil or comparable
conductive material).
7. Immediatelybefore removing the protective material from the
leads of areplacement ES device, touch the protective material to
the chassisor circuitassemblyinto which the device will be
installed.
Caution
Besure no power isapplied to the chassisor circuit, and observe
all other safetyprecautions.
8. Minimize bodilymotions when handling unpackaged replacement
ES devices. (Otherwise hamless motion such as the brushing
together of your clothes fabricor the lifting of your foot from a
carpeted floor can generate staticelectricity(ESD)sufficient to
damage an ES device).
2. About lead free solder (PbF)
Note: Leadis listedas (Pb) inthe periodic table of elements.
Inthe information below, Pbwill refertoLeadsolder, and PbF will refertoLeadFree Solder.
2

The LeadFree Solderusedinourmanufacturing process and discussedbelowis (Sn+Ag+Cu).
That is Tin(Sn), Silver(Ag) and (Cu) although othertypes are available.
This model uses PbFree solderinit’s manufacture due toenvironmental conservation issues.
Forservice and repairwork, we’dsuggest the use of Pbfree solderas well, although Pbsolder
maybe used.
PCBs manufacturedusing leadfree solderwill have the PbF withina leaf Symbol
stampedon the back of PCB.
Caution
-Pb free solder has ahigher melting point than standard solder.
Typicallythe melting point is50 ~ 70 ~F(30~40~C)higher. Please
use ahigh temperature soldering iron and set itto 700 ± 20 ~F
(370 ± 10 ~C).
-Pb free solder will tend to splash when heated too high (about 1100
~For600~C).
Ifyou must use Pb solder, please completelyremove all of the Pb
free solder on the pins or solder area before applying Pb solder. If
thisisnot practical, be sure to heat the Pb free solder until it
melts, before applying Pb solder.
-After applying PbF solder to doublelayered boards, please check
the component side for excess solder which mayflow onto the
opposite side. (see figure below)

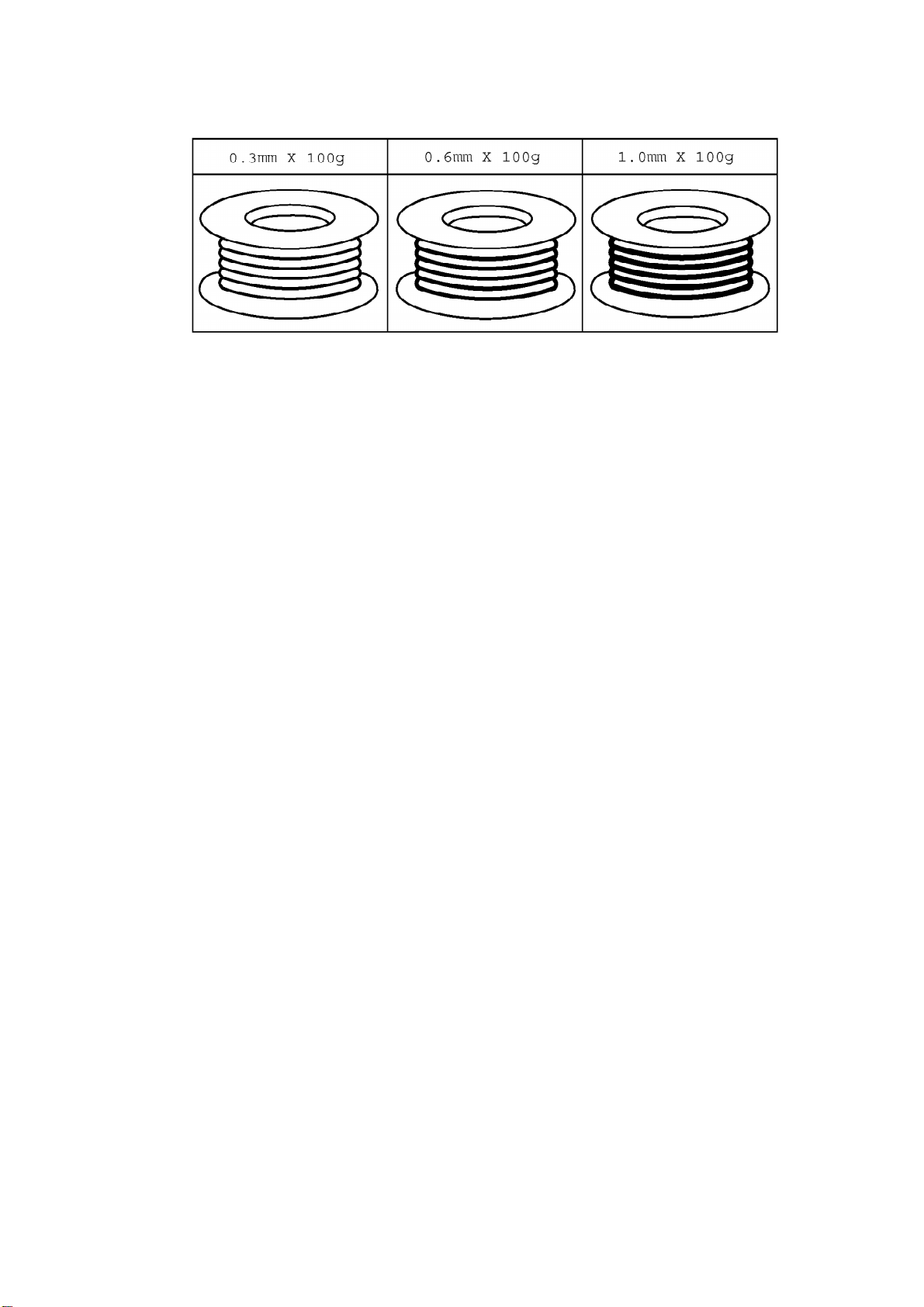

SuggestedPbfree solder
There are several kinds of Pbfree solderavailable forpurchase. This product uses Sn+Ag+Cu
(tin, silver, copper) solder. However, Sn+Cu(tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder
canalsobe used.
3

3. Conductor Views
3.1. H-Board (TY-37/42TM5H)
4. Block and Schematic Diagrams
4.1. SchematicDiagram Notes

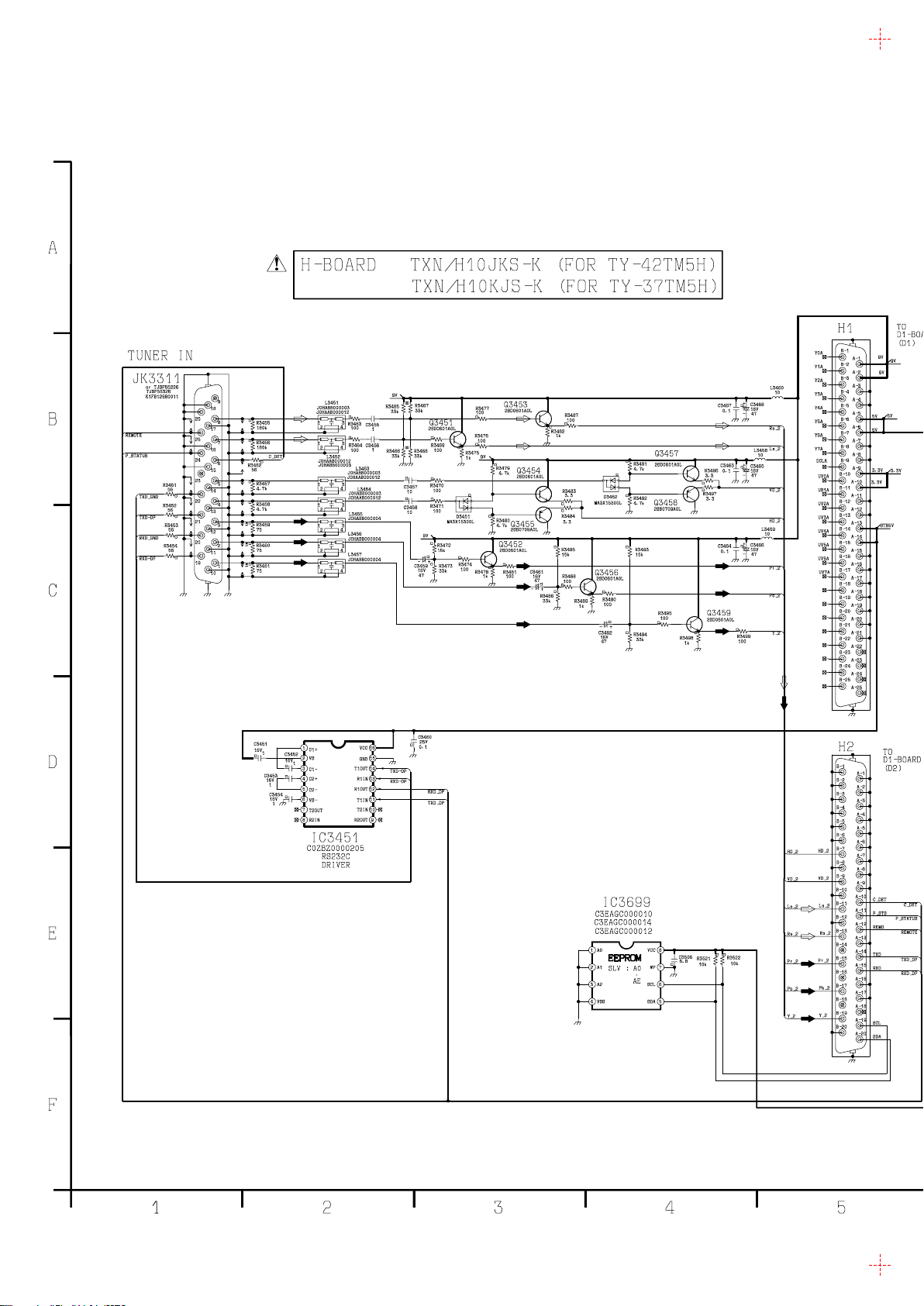

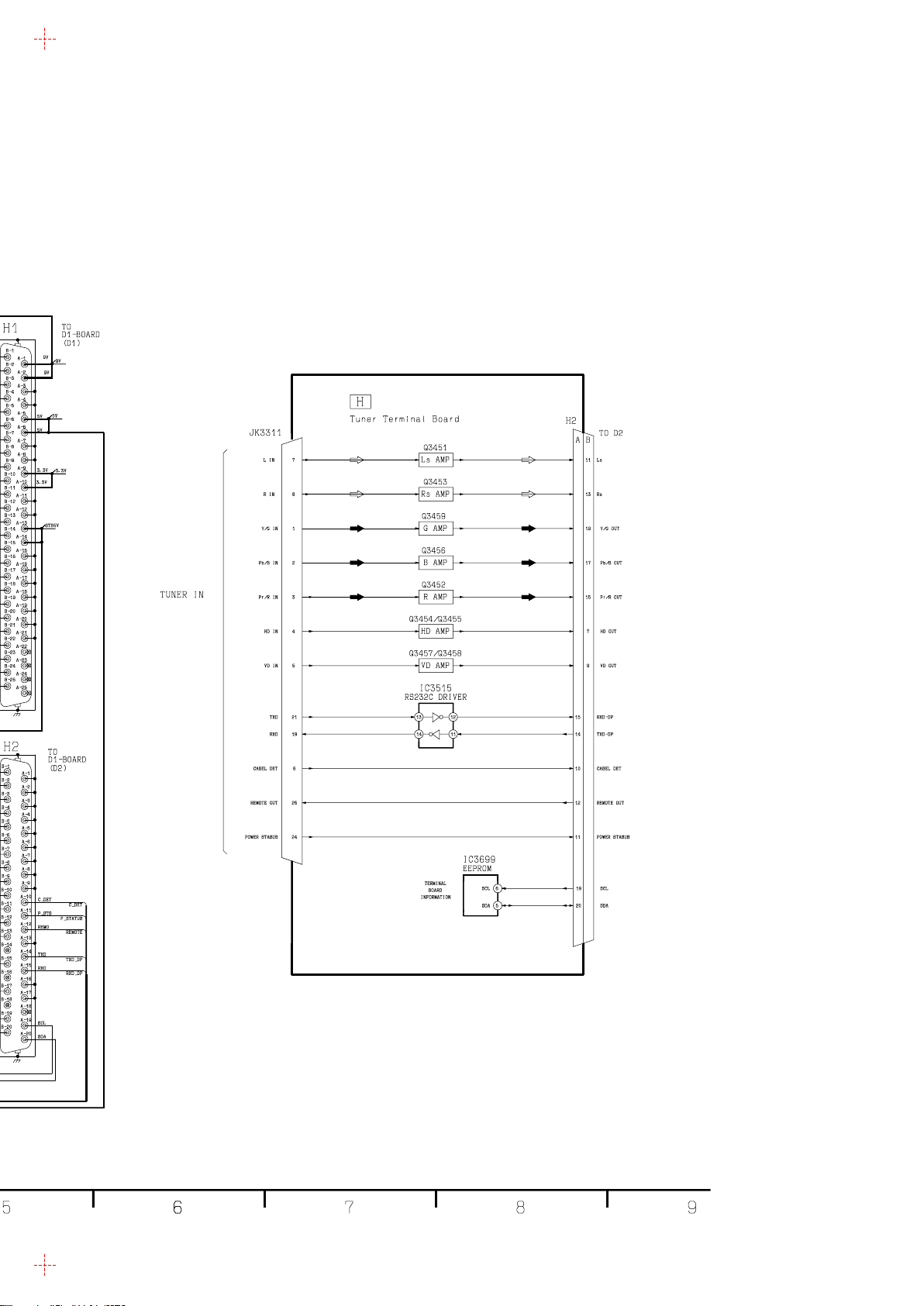

4.2. H-Board (TY-37/42TM5H)Block and SchematicDiagrams
5. Replacement Parts List
5.1. Replacement Parts List Notes
4

5.2. Replacement Parts List
5
