Panasonic MC-V5269-00 User manual

Order Number MAC0412004C1
Vacuum Cleaner
MC-V5269-00
Specifications are subject to change without notice for further improvement.
© 2005 PANASONIC HOME APPLIANCES
COMPANY, DIVISION OF PANSONIC COR-
PORATION OF NORTH AMERICA. All rights
reserved. Unauthorized copying and distribu-
tion is a violation of law.

2
1 WIRING DIAGRAM AND DRAWING
1.1. Wiring Diagram

3
1.2. PICTORIAL DIAGRAM
NOTE:
For general servicing, it is necessary to eliminate pinching of any wire during reassembly. After servicing any electrical compo-
nent or electrical enclosure, the unit should be reassembled and checked for dielectric breakdown or current leakage.

4
2 EXPLODED VIEW AND PARTS LIST
2.1. Body

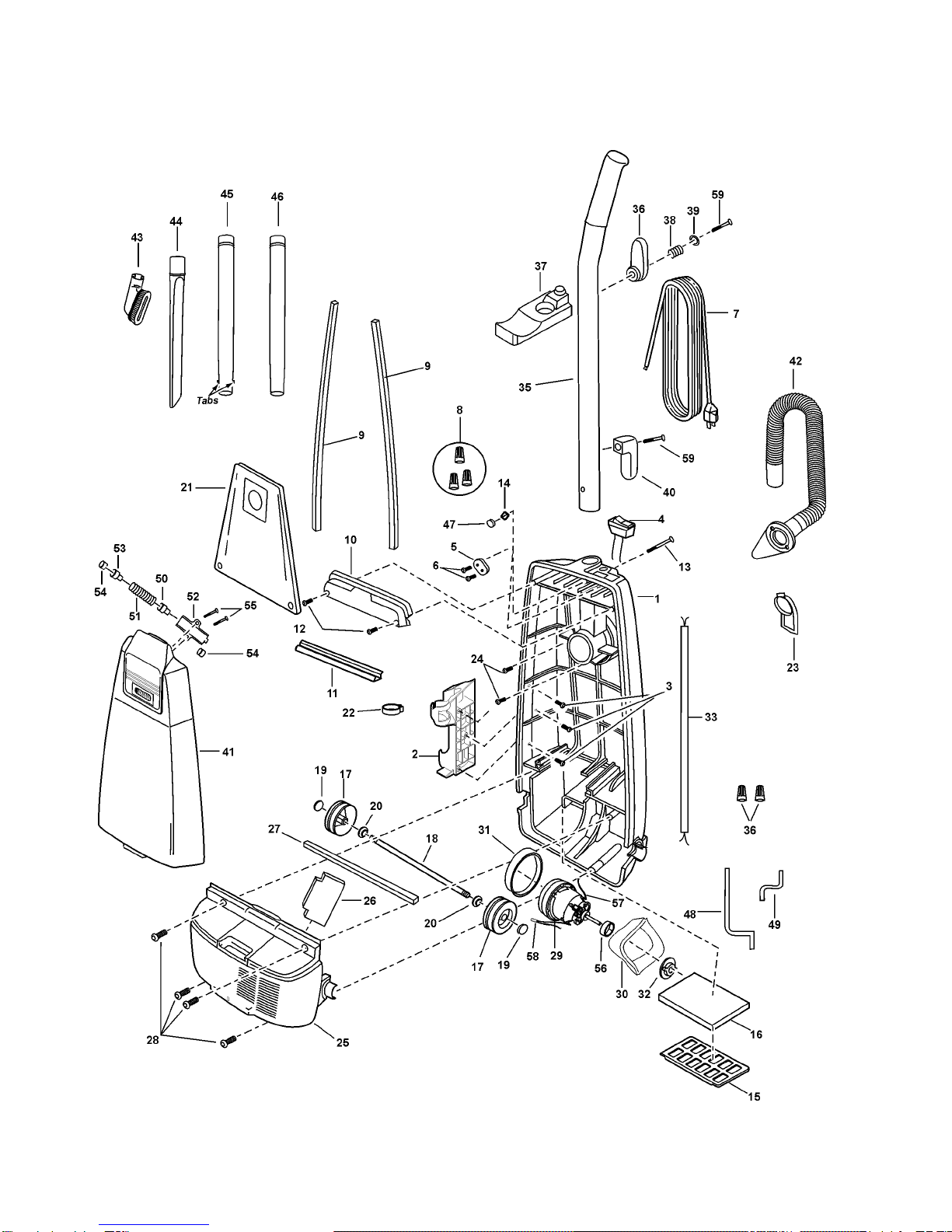

2.1.1. Exploded View

5
2.1.2. Parts List (Body)
Ref. No. Part No. Part Name & Description Quantity Remarks
1 AC78KBFTZV07 Dust Compartment 1 Includes 48 and 49 Packing
2 AC70PJPZV07 Wand Holder 1
3 AXTN4+16BFY Screw (Wand Holder) 3 Shipped 10 per package
4 AMC98E-V010U On-Off Switch 1
5 AMC62E-J20 Cord Stopper 1
6 AXTN4+16BFY Screw (Cord Stopper) 2 Shipped 10 per package
7 AC97EBZXZV06 Power Cord 1
8 AMC-1CTCE23 Wire Connector 3
9 AC66KV01V06 Packing (Dust Container) 2
10 AC03EV07V06 Switch Cover 1
11 AC73KV0ZV06 Packing (Switch Cover) 1
12 AXTN4+16BFY Screw (Switch Cover) 2 Shipped 10 per package
13 AMC73B-V00 Handle Screw 1
14 AMP21B-170 Nut (Handle Screw) 1
15 AMC32K-V00 Filter Supporter 1
16 AC37KAAEZ00 Secondary Filter (HEPA) 1
17 AC99CBSAZV06 Wheel 2
18 AC16CUSZ00 Shaft (Wheel) 1
19 AC74SUSZ00 Stopper (Wheel) 2
20 AXWG6E115FY Washer 2
21 AC16KCRRZ000 Dust Bag (Type U6) 1
22 AC53RJPZV07 Hose Hook 1
23 AC02HYUZV06 Cover (Suction Inlet) 1
24 AXTN4+16BFY Screw (Suction Inlet) 2 Shipped 10 per package
25 AC09FBFTZB0Z Motor Case 1
26 AMC02L-V00 Packing (Rear Cover) 1
27 AC19FARSZV06 Packing (Motor Case) 1
28 AXTN4+20BFY Screw (Motor Case) 4 Shipped 10 per package
29 AC92FBFTZ00 Fan Motor Unit 1
30 AC99GAMMZ00 Noise Suppressor 1
31 AMC02F-E00 Motor Support (Front) 1
32 AC03FAFYZ00 Motor Support Rubber (Rear) 1
33 AMC37G-V200U Wire Cord 1
34 AMC-1CTCE23 Wire Connector 2
35 AMC64B-V2Z00 Handle 1
36 AC53EV0ZV07 Upper Cord Storage Hook 1
37 AC23PJP1V07 Hose Holder 1
38 AMC76N-F70 Spring (Cord Hook) 1
39 AMC58B-F70 Washer (Cord Storage Hook) 1
40 AC54EV0ZV07 Lower Cord Storage Hook 1
41 AC60KCRJZBUZ Dust Cover 1
42 AC84PJPZV06 Hose 1
43 AC88RYUZV06 Dusting Brush 1
44 AC60RZFZVU6 Crevice Tool 1
45 AC40PJPZV06 Wand (With Tabs) 1
46 AC40PZG1V06 Wand (Extension) 1
47 AC61LAGMZ00 Packing (Insulator) 1
48 AC39AARSZV00 Packing (Right) 1
49 AC40AARSZV00 Packing (Left) 1
50 AMC03M-68ZR0 Lead (Indicator) 1
51 AC04MRFZ00 Spring (Indicator) 1
52 AC15MVZ00 Body (Indicator) 1
53 AMC17M-V20 Cap (Indicator) 1
54 AMC09M-L30 Packing (Indicator) 2
55 AXTN4+10BFY Screw (Indicator) 2 Shipped 10 per package
56 AC53MAKEZ00 Ring Spacer 1
57 AC38GARTZ00 Lead Wire (Motor) 1
58 AC98WAUDZ00 Thermal Protector Unit 1
59 AXTN4+30BFY Screw 2

6
2.2. Nozzle Housing
2.2.1. Exploded View

7
2.2.2. Parts List (Nozzle Housing)
Ref. No Part No. Part Name & Description Quantity Remarks
1 AC01ACRSZBUZ Nozzle Housing 1
2 AC10ACRSZV07 Furniture Guard 1
3 AC21HCRSZ000 Window 1
4 AMC25S-V00 Plastic Shaft 1
5 AC34PAJDZV06 Nozzle Hose 1
6 AC42AAFYZV06 Pedal 1
7 AC04RAFWZ00 Nozzle Packing 1
8 AC92BAMAZ000 Handle Release Assembly 1 Includes items 9, 10 and 11
9 AC81HAGZZ00 Spring 1
10 AC43AAFY200 Bracket Assembly 1
11 AC57AAFWZ00 Spring (Foot Gear Pedal) 1
12 AXTN4+16BFY Screw 4 Shipped 10 per package
13 AC84HBZTZ000 Reflector 1
14 AC47A2VZV07 Pedal 1
15 AC58AAFVZ00 Spring (Pedal) 1
16 AMC51A-2V0 Shaft (Pedal) 1
17 AC11S2VZW00 Belt Cover Assembly 1
18 AC93HURZ00 Bulb Socket 1
19 AC28GADFZ00 Bulb 1
20 AC28SJPZ00 Belt 1
21 AC02ACRSZW0H Body (Upper) 1
22 AC12ACRSZW0H Cap (Body) 1
23 AMC68A-V30 Screws 2 Shipped 10 per package
24 AC93QAGZZV06 Wheel 2
25 AC16CNXZ00 Shaft (Wheel) 2
26 AC91ACRSZ000 Lower Plate Assembly 1 Includes items 29, 30 and 31
27 AMC68N-V30K Latch (Lower Plate) 2
28 AC70NYUZ00 Spring (Stop Latch) 2
29 AC74ACRSZ000 Packing (Lower Plate) 1
30 AC74ACRRZ000 Packing (Lower Plate) 1
31 AMC39A-2V0 Packing (Lower Plate) 3
32 AC92SBVNZ000 Agitator Assembly 1
33 AC11ACRSZ000 Felt (Upper) 1
34 AXTN4+10BFY Screw 1 Shipped 10 per package
35 AMC82A-2VO Agitator Holder Assembly 1

8
2.3. Agitator Assembly
2.3.1. Exploded View
2.3.2. Parts List (Agitator Assembly)
Ref. No. Part No. Part Name & Description Quantity Remarks
1 AC92SBVNZ000 Agitator Assembly 1 Includes items 2 thru 11
2 AC85RBFT0000 Brush (6 Pcs.) 1
3 AC29SBVNZ000 Agitator Pulley 1
4 AC41SBVNZ000 Agitator Holder 1
5 AC44KBVNZ000 Filter 2
6 AC96DBVNZ000 End Cap (Right) 1
7 AC97DBVNZ000 End Cap (Left) 1
8 AC57RBVNZ000 Agitator Shaft 1
9 AC23FBVNZ000 Ring Clip 1
10 AC56RBYYZ000 Brush Holder 1
11 AC34SBYYZ000 Spacer (Brushes) 3

9
3 REPLACEMENT INSTRUCTIONS
3.1. Lower Plate Replacement
3.1.1. Removal
1. Before servicing any parts, disconnect vacuum from elec-
trical outlet.
2. Place paper under nozzle whenever lower plate is
removed to protect floor.
3. Place handle in upright position and turn vacuum over to
expose lower plate.
4. Release lower plate by pressing two (2) latches inward.
5. Remove lower plate and remove any residue that may
exist in belt area.
3.1.2. Installation
1. Close the rear belt cover.
2. Hook the front of the lower plate into the slots on the front
of the nozzle housing. Press the lower plate down into
place.
3. Fasten the lower plate by pushing the two (2) latches out-
ward.
NOTE: For general servicing, it is necessary to eliminate
pinching of any wire during reassembly. After servicing
any electrical component or electrical enclosure, the unit
should be reassembled and checked for dielectric break-
down or current leakage.
3.2. Belt Replacement
3.2.1. Removal
1. Remove lower plate.
2. Lift rear belt cover.
3. Remove agitator by carefully lifting out.
4. Remove worn or broken belt.
5. Clean agitator.
3.2.2. Installation
1. Loop new belt (Panasonic Type UB8 only) around motor
shaft and agitator pulley; see illustration for correct belt
routing.
2. Reinstall agitator back into nozzle housing grooves.
3. Close rear belt cover.
4. After reinstalling the agitator, turn it by hand to make sure
that belt is not twisted or pinched and that all rotating
parts turn freely.
5. Reinstall lower plate.

10
3.3. Agitator Assembly
Replacement
3.3.1. Removal
1. The brushes are replaceable separately. When the
brushes need replacing, the agitator assembly will have
to be removed.
2. Remove the lower plate as outlined in the LOWER
PLATE REPLACEMENT section.
3. Remove the agitator assembly as outlined in the BELT
REPLACEMENT section.
.
3.3.2. Installation
1. Place the belt around the motor shaft.
2. Start the new agitator assembly back into the nozzle
housing by placing the side opposite the belt partially into
the slot. The small tabs should be aligned with the nozzle
and the other against the lower plate. This will hold the
agitator in place and leave both hands free to place
enough tension on the belt to allow that side of the agita-
tor to return to the nozzle housing slot.
3. Place the belt around the agitator pulley on the agitator
assembly.
4. Use both hands to pull the belt tight, slide the agitator
assembly firmly into the slots on each end of the nozzle
housing.
5. Rotate the agitator assembly by hand to insure nothing
rubs and to check for correct assembly.
6. Replace the lower plate as outlined in the LOWER PLATE
REMOVAL/INSTALLATION section.
3.4. Carpet/Bare Floor and Handle
Release Assembly
3.4.1. Removal
1. Place the carpet/bare floor pedal in the carpet position.
Insert a screwdriver under the back of the pedal cover
and pry up to remove it from the pedal assembly. Take
care not to scratch the nozzle housing.
NOTE: Every time the pedal cover is removed for any
reason, it should be replaced with a new one. See Nozzle
Exploded View and Parts List for correct replacement
part number.
2. Turn the vacuum over and remove the lower plate, belt
and agitator as outlined in their respective removal sec-
tions.
3. Remove the nozzle housing.
4. Remove the three (3) screws that secure the carpet/bare
floor & handle release assembly to the nozzle housing.
5. Remove the pedal/frame assembly by sliding it out
through the bottom of the nozzle housing.
6. Once the carpet/bare floor & handle release assembly is
out it can be disassembled for parts replacement as
shown in the Exploded View diagram.
NOTE: For general servicing, it is necessary to eliminate pinch-
ing of any wire during reassembly. After servicing any electrical
component or electrical enclosure, the unit should be reassem-
bled and checked for dielectric breakdown or current leakage.
3.4.2. Installation
1. Slide the carpet/bare floor & handle release assembly
back into the slot in the nozzle housing.
2. Replace the three screws that hold the frame and pedal
shaft onto the nozzle housing.
3. Install the new pedal cover by pushing it onto the pedal
assembly until the tab snaps into place.
4. Replace the nozzle housing.
5. Install the belt, agitator assembly, and the lower plate

11
according to the respective instructions.

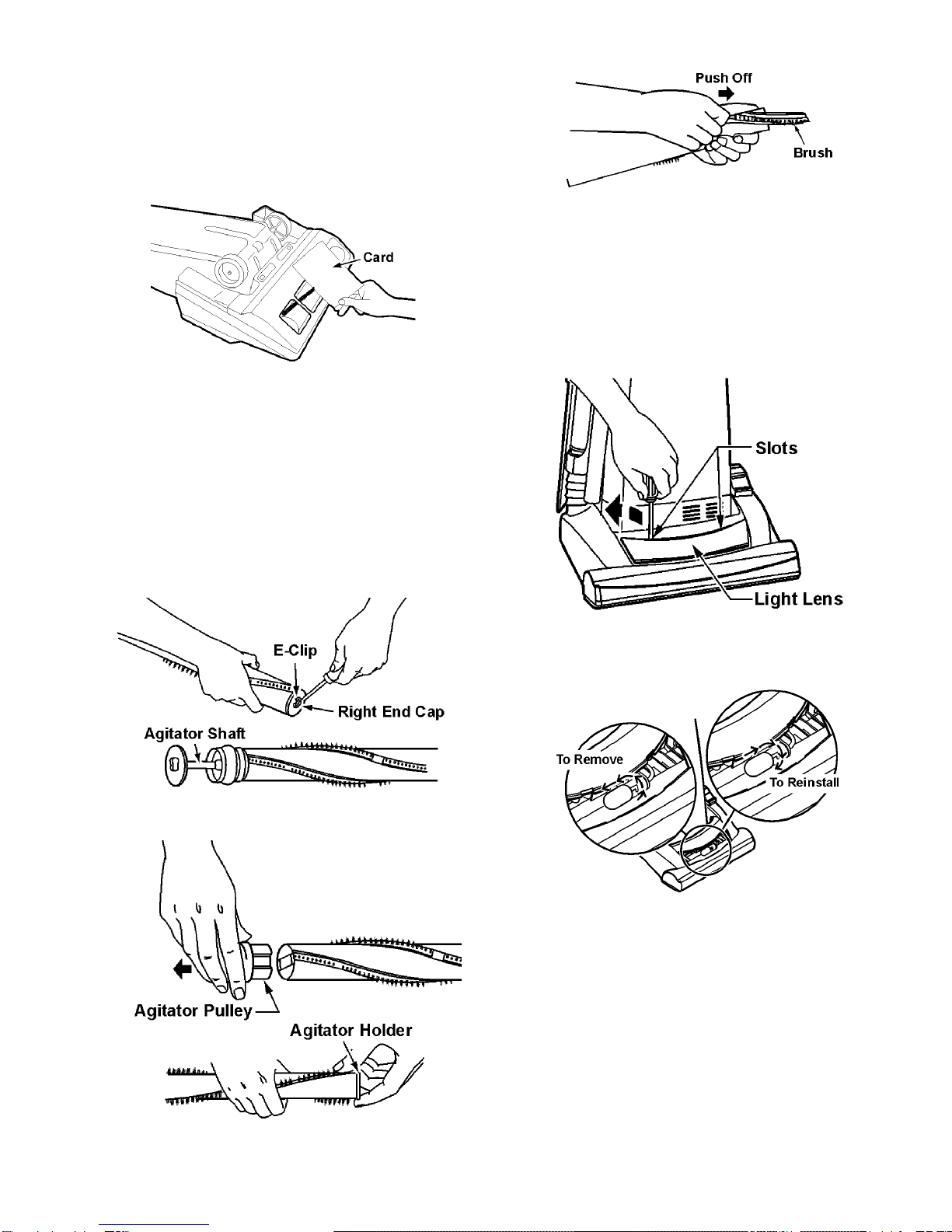

3.5. BRUSH REPLACEMENT
1. The agitator brushes should be replaced when the
brushes are worn. Brushes should be checked by holding
a card across the lower plate. If the bristles on the agitator
assembly do not touch the card you should replace all the
brushes for best cleaning results.
3.5.1. Removal
1. Remove the lower plate as outlined in the LOWER
PLATE REPLACEMENT section.
2. Remove the agitator assembly as outlined in the agitator
assembly section.
3. The agitator assembly may now be disassembled and the
brushes replaced.
4. Carefully remove the E-clip from the agitator shaft, do not
misplace. Remove the right brush support. Pull the agita-
tor shaft out of the opposite end of the.
5. Pull or pry out the agitator pulley and agitator holder.
6. Push each brush out of the agitator.
7. Install new brushes by reversing procedure.
8. Reinstall agitator holder and agitator pulley completely.
9. Reinstall the agitator shaft, end cap and E-clip.
10. Position belt over agitator pulley on the agitator.
11. Reinstall agitator and lower plate.
3.6. Headlight Bulb Replacement
1. Pry up light lens at slots.
2. Remove old bulb from the socket by pushing in while
turning counter-clockwise.

12
3.7. Power Cord / On-Off Switch
Replacement
3.7.1. Removal
1. Remove the dust cover and switch cover to expose the
electrical connections of the power cord, on-off switch
and wire cord.
2. Pull the power cord into the dust compartment in order to
remove the strain relief (for power cord replacement) by
prying or cutting, remove the wire connections, and wire
tie, if present.
3. Remove the on-off switch (for on-off switch replacement)
by depressing the retaining tabs while pushing up and out
of the dust compartment at the same time.
4. Pull the power cord out of the dust compartment (for
power cord replacement).
3.7.2. Installation
1. Insert the new power cord (power cord replacement only)
into the dust compartment as far as necessary in order to
place a new cord retainer in proper location on power
cord. The proper location is approximately one and one
eighth inches/thirty millimeters (1 1/8”/30 MM.) of new
power cord outer jacket extending past the cord retainer
and washer. The washer goes between the cord retainer
and the dust compartment. Attach wires with wire connec-
tors according to the wiring diagram in the front of this
manual. ONLY USE A NEW CORD RETAINER, DO NOT
REUSE A CORD RETAINER.
2. For switch replacement only, insert the new ON/OFF
switch with the numbers 1,2,3, facing toward you, into the
dust compartment until secured by theretaining tabs. Use
a wire tie in the location illustrated taking care not to over-
tighten it. Tuck the wire connectors back into the dust
compartment as illustrated in the close-up view.
3. Ensure that the insulator packing is installed correctly.
4. Replace the switch cover, the two (2) switch cover
screws, and the dust cover. Care should be taken not to
pinch wires and make sure that the switch cover goes on
easily and stays flat. If there is resistance to the switch
cover lying flat and in place, stop, remove the cover and
make sure that no wires are being pinched. DO NOT USE
A POWER SCREWDRIVER TO SECURE THE COVER.
NOTE: For general servicing, it is necessary to eliminate pinch-
ing of any wire during reassembly. After servicing any electrical
component or electrical enclosure, the unit should be reassem-
bled and checked for dielectric breakdown or current leakage.

13
3.8. Thermal Overload
Replacement
3.8.1. Removal
1. Remove motor, as shown in motor replacement section.
2. Remove wire nut from the lead wire that contains the ther-
mal protector. Remove old thermal protector and replace
with new thermal protector. Reconnect wire nut to thermal
overload. Replace lead wire containing protector wires
back into the groove.
3.8.2. Installation
1. Place the motor back into the dust compartment, follow-
ing the instructions given in the motor replacement sec-
tion.
3.9. Motor Replacement
3.9.1. Removal
1. Remove the dust cover by grasping the top near the on-
off switch and pulling sharply out toward you.
2. Remove the lower plate, agitator assembly, belt, the plas-
tic shaft, and the nozzle housing as instructed in the
respective removal sections.
3. Turn the vacuum over to the front side.
4. Remove the four (4) screws from the motor case and then
remove the motor case.
5. Disconnect the motor leads and remove the motor.
Remove the motor support rubber (rear), noise suppres-
sor, and the motor support rubber (front). Place these
items on the new motor.
3.9.2. Installation
1. Place the motor back into the dust compartment with
brushes aligned parallel to the front edge of the dust com-
partment.
2. Rewire per the Pictorial Diagram.
3. Replace the motor case and the four (4) screws.
4. Turn the vacuum back over and replace the plastic shaft,
light bulb assembly, nozzle housing, belt, agitator assem-
bly, and lower plate according to the respective installa-
tion instructions.
