Panasonic NA-FS95G3 User manual

ORDER NO. TAM1408002CE
NA-FS95G3/NA-FS85G3
‧Product Color : White
‧Destination : Australia
© 2014 Panasonic Taiwan Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law.
Page
CONTENTS
1.Specifications……………………………………………………………...1
2.Technical Descriptions……………………………………………………2
3.How to Install……………………………………………………………...3
4.Operation Instruction……………………………………………………..7
5.Test Mode………………………………………………………………….9
6.Troubleshooting Guide………………………………………………….11
7.Disassembly Instructions……………………………………………….13

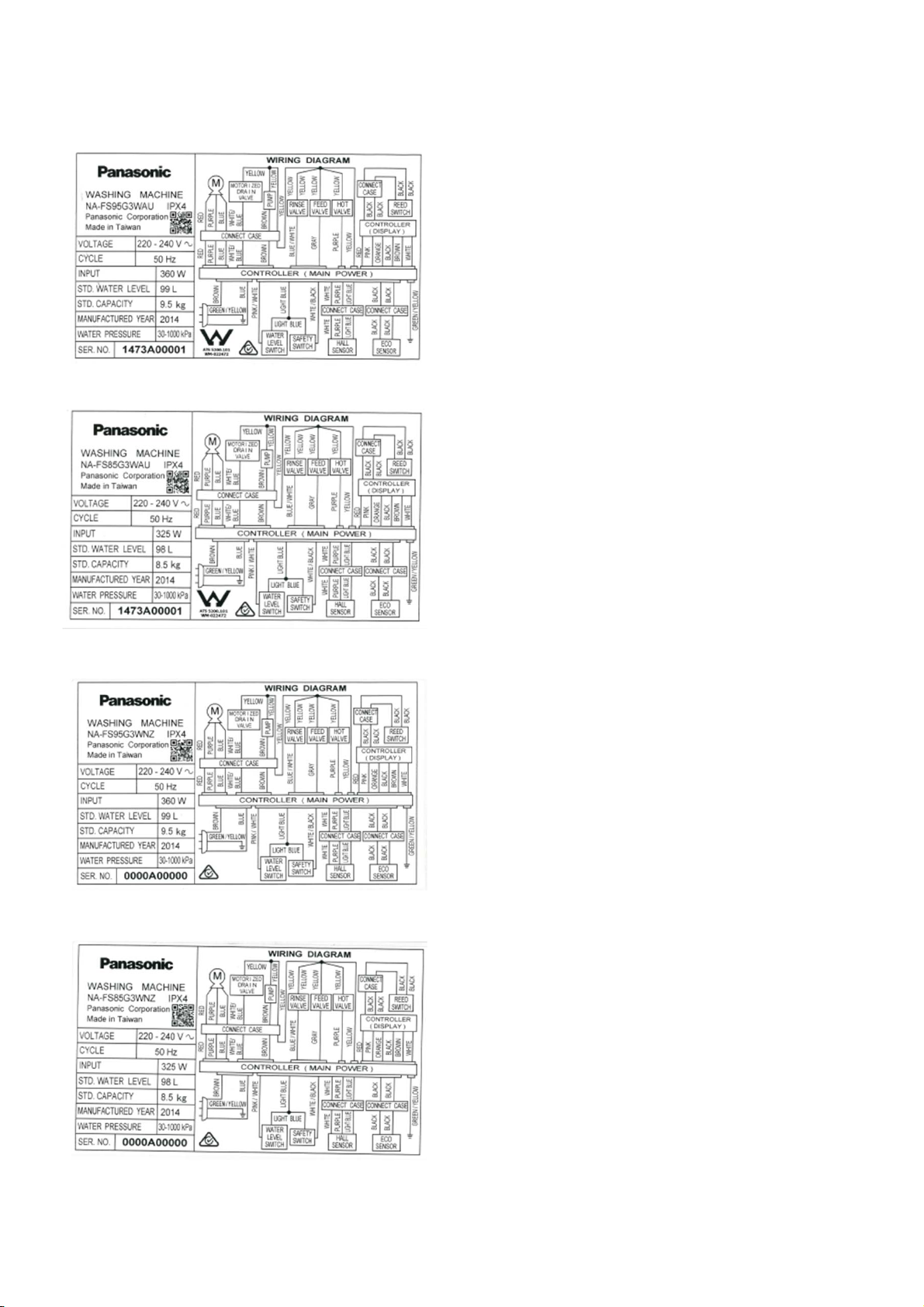

8.Wiring Diagram…………………………………………………………..18
9.Parts Location & Replacement Parts List……………………………..19
10.Washing capacity & Serial Number Identification……………………30
New Zealand

‐1‐
1. Specifications
Models
Items NA-FS95G3 NA-FS85G3
Power source AC 220 V- 240 V, 50 Hz AC 220 V- 240 V, 50 Hz
Power consumption 360 W 325 W
(Motor) Output 220 W 220 W
Laundry amount 9.5 kg 8.5 kg
Spin (Clothes load) 650 r/min 650 r/min
Pulsator (Clothes load) 110 r/min 110 r/min
Dimension(mm) Width:640 / Depth:690 /
Height:1070 Width:640 / Depth:690 / Height:1070
Water level(L) 99 / 92 / 86 / 80 / 72 / 65 / 58
/ 52 / 46 / 42 / 38 98 / 92 / 86 / 80 / 74 / 68 / 62 / 56 / 50 / 45 / 38
Standardized water consumption 205 L 200 L
Operating Water pressure 30 kPa to 1000 kPa 30 kPa to 1000 kPa
Machine weight 52 kg 52 kg
Safety switch Lid and unbalance switch Lid and unbalance switch
Buzzer Cycle-end buzzer,
Abnormal alarm Cycle-end buzzer, Abnormal alarm
Bleach inlet Providing Providing
Cassette lint filter Providing Providing
Softener Dispenser Providing Providing
Auto power off Providing Providing
Accessories Water Supply Hose
(One each for cold and hot water) Water Supply Hose (One each for cold and hot water)

‐2‐

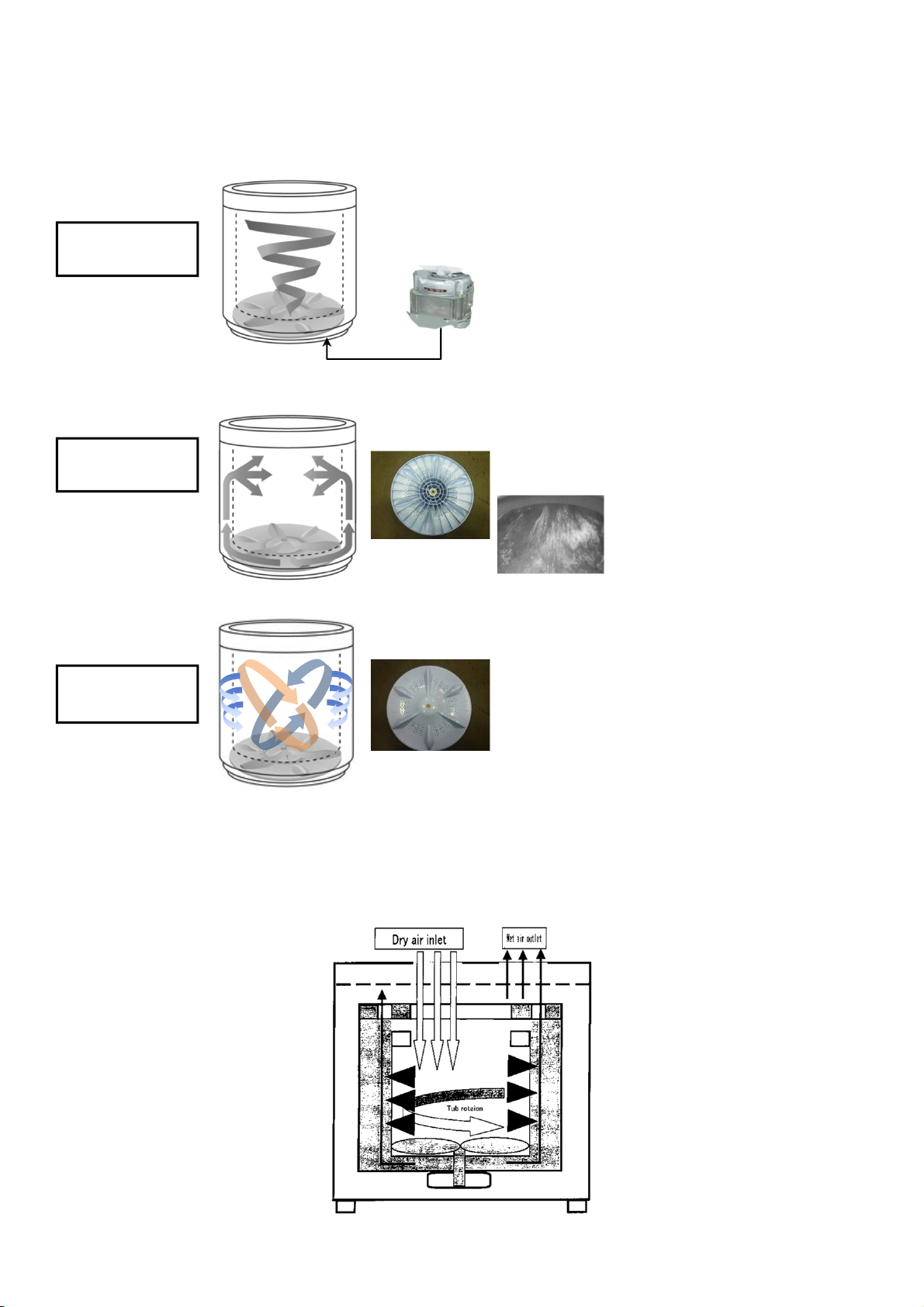

2. Technical Explanation
2.1 The water flow of pulsator
Rotating fins on the bottom suck in water
which is pumped to the upper nozzle and
released as a high-pressure splash.
Bottom
Strong splashes are sprayed
over a wide area
A powerful motor rotates the Big Beat (BB)
Flapper to create a vortex.
(1)Stream of a big horizontal rotation is made
from the big outer blades of Pulsator.
(2) The stream of a small horizontal rotation is
made fromthe small blades of Pulsator.
(3)Special designed Pulsator and control by
software to produce Dancing Water flow.
Top
Beat Screw
Beat Flash
Beat Tide
2.2 Air Dry Course
When the tub is rotating, it can suck dry air inlet and keep the tub dry.
Purpose to prevent mold growing on the surface of the tub and the outer tub.

‐3‐

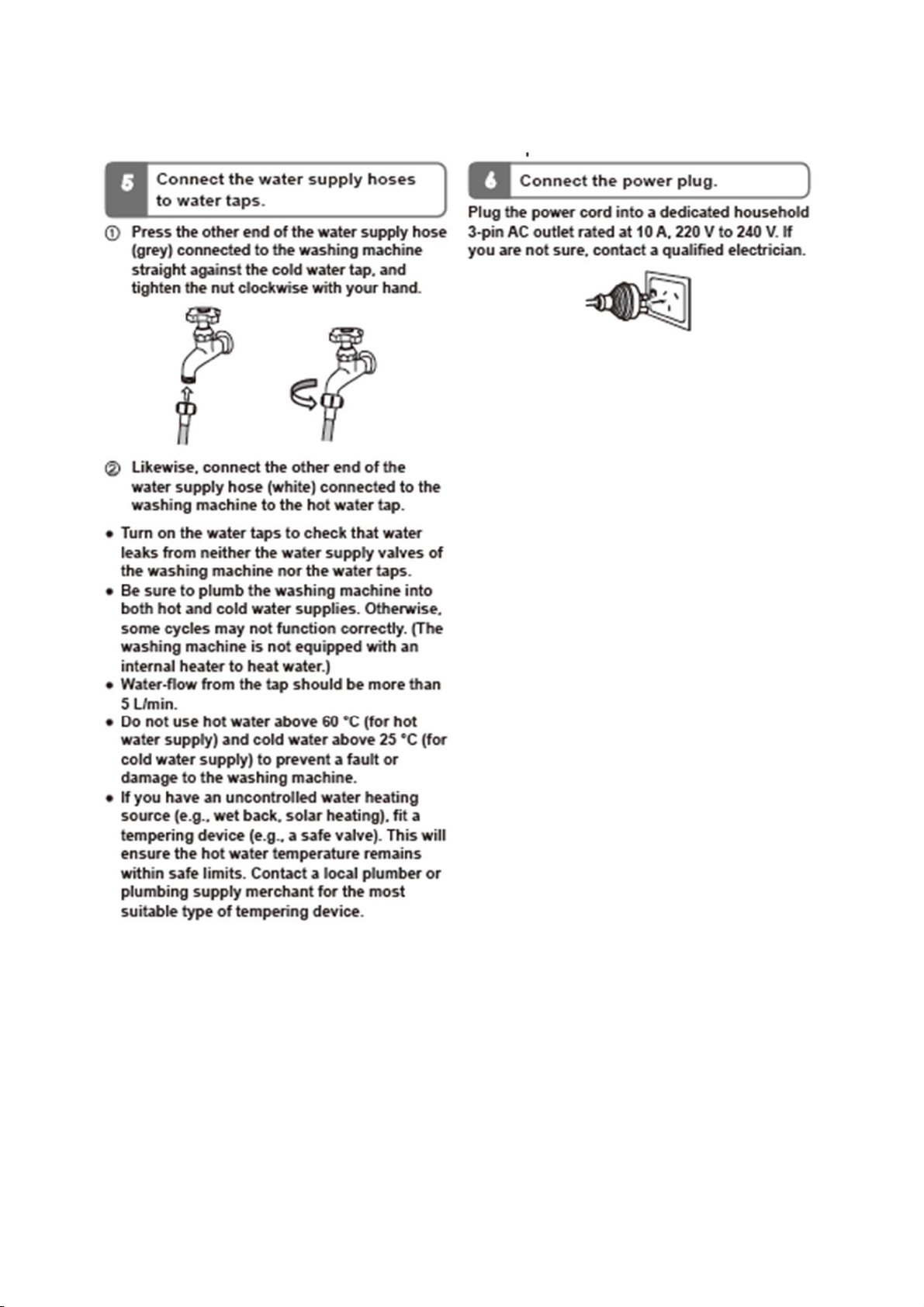

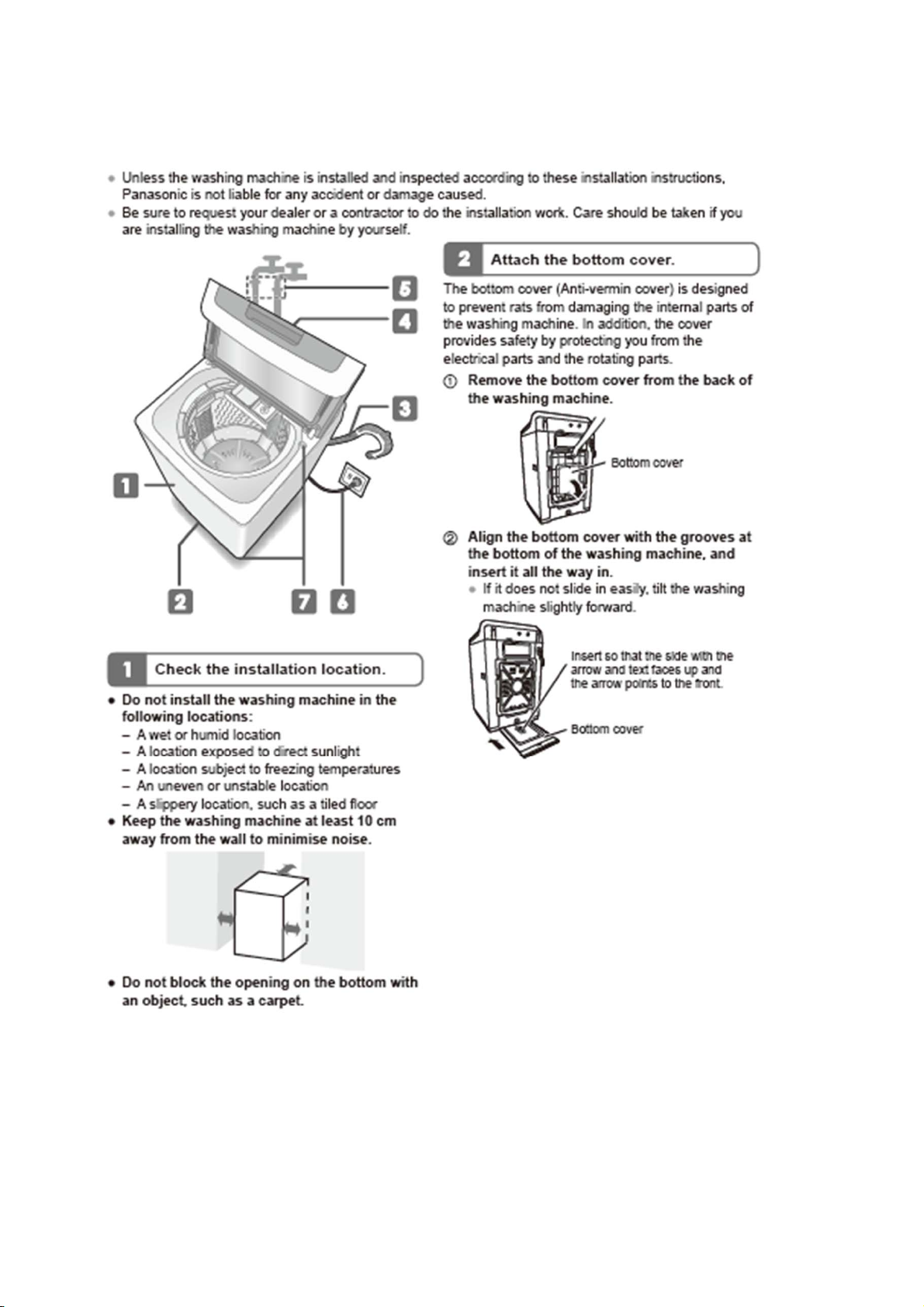

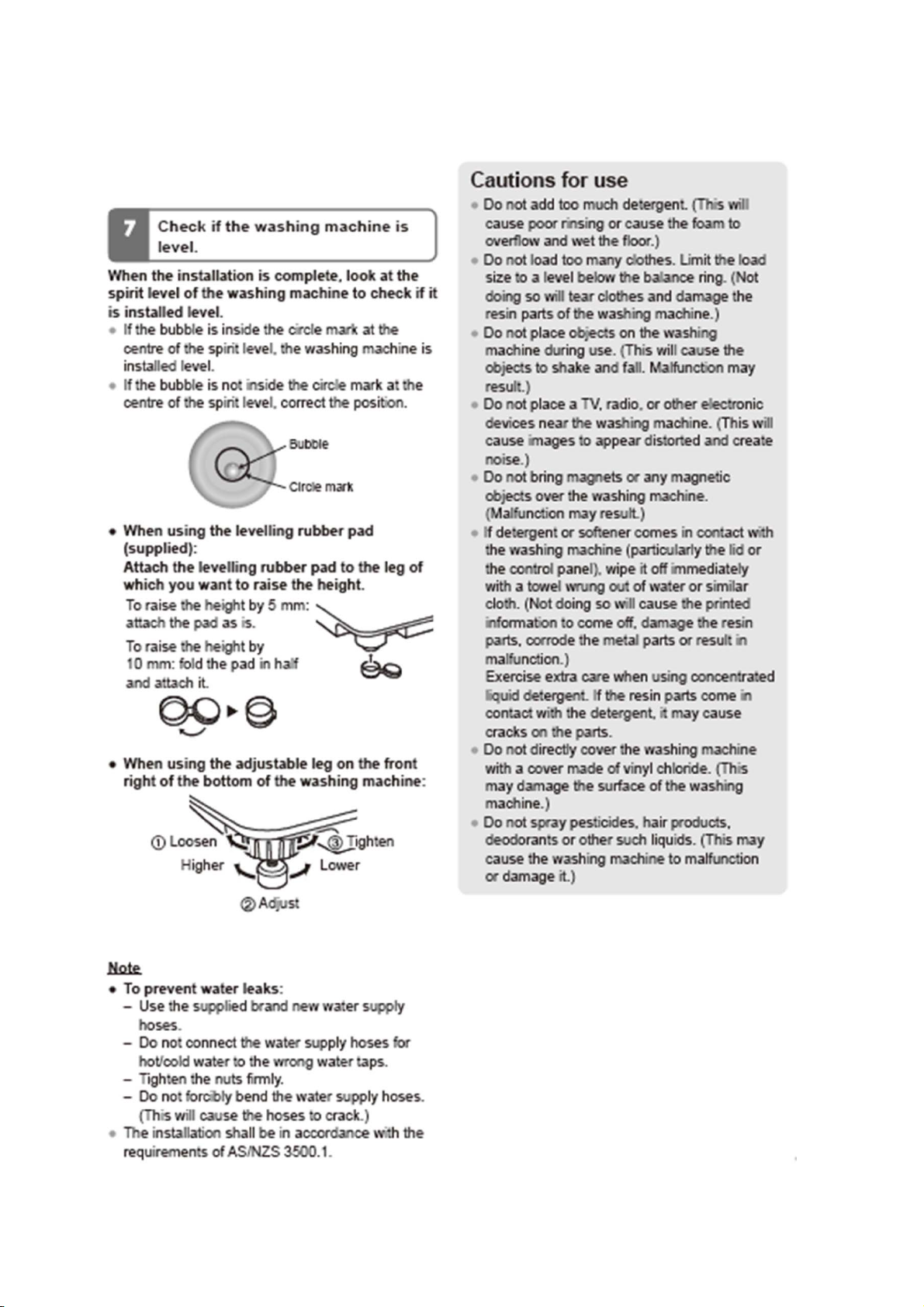

3. How To Install
3.1

‐4‐
3. How To Install
3.2

‐5‐
3. How To Install
3.3

‐6‐
3. How To Install
3.4

‐7‐

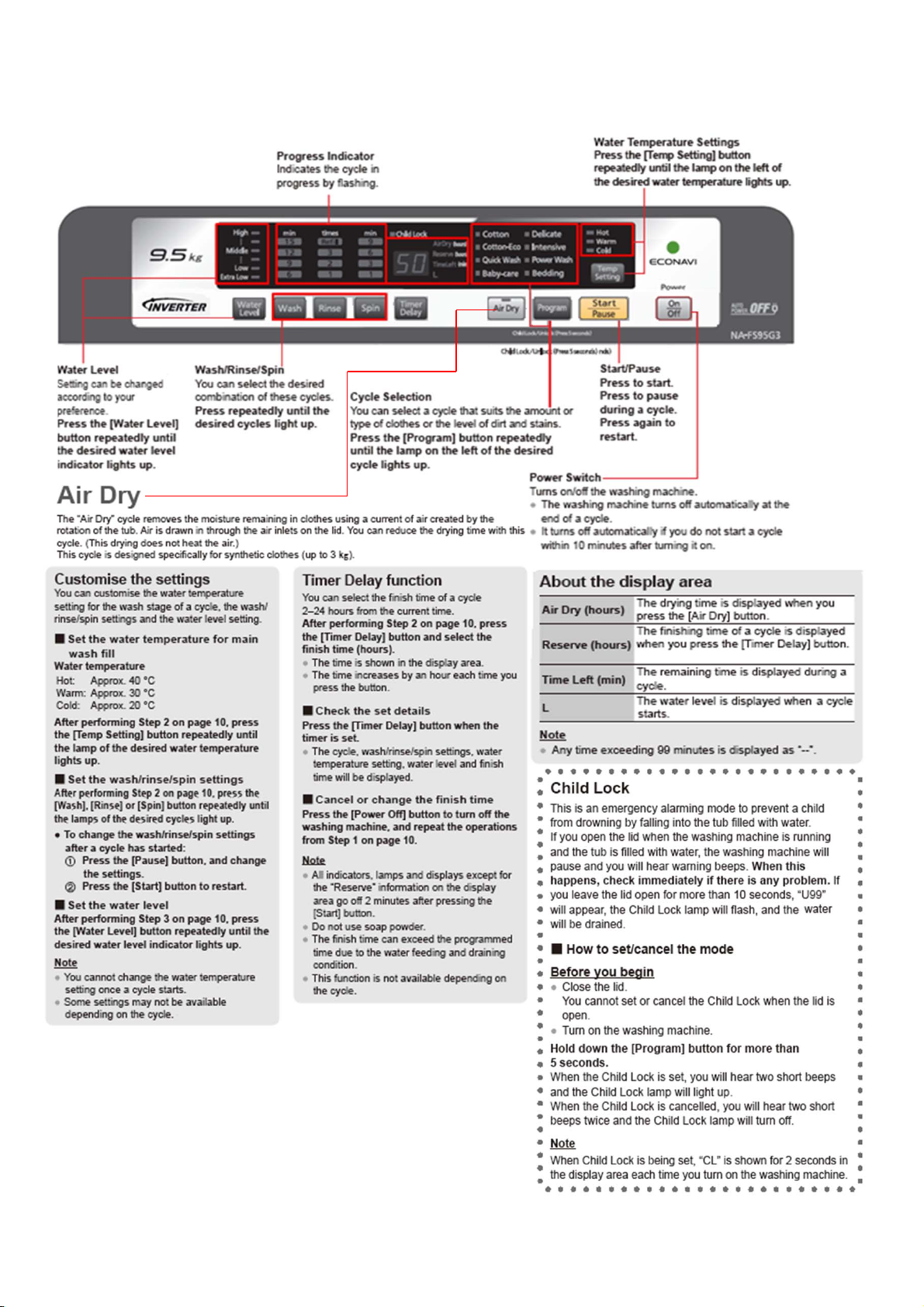

4. Operation Instruction
4.1 Indicators and buttons

‐8‐
4. Operation Instruction
4.2 Wash Cycle
●Thesedefaultwaterlevelscanbechangedtodesiredlevels.
●Therequiredtimesincludethefilltimeandthedraintimeandmaybecomelongerdependingonthe
pressureofthewatersupply,drainconditions,amountofclothes,andotherconditions.
*Thepulsator rotatesduringthefirst3minutestofullydissolvedetergent.Afterthisoperation,the
pulsator rotatesandstopsperiodicallytosoaktheload.

‐9‐

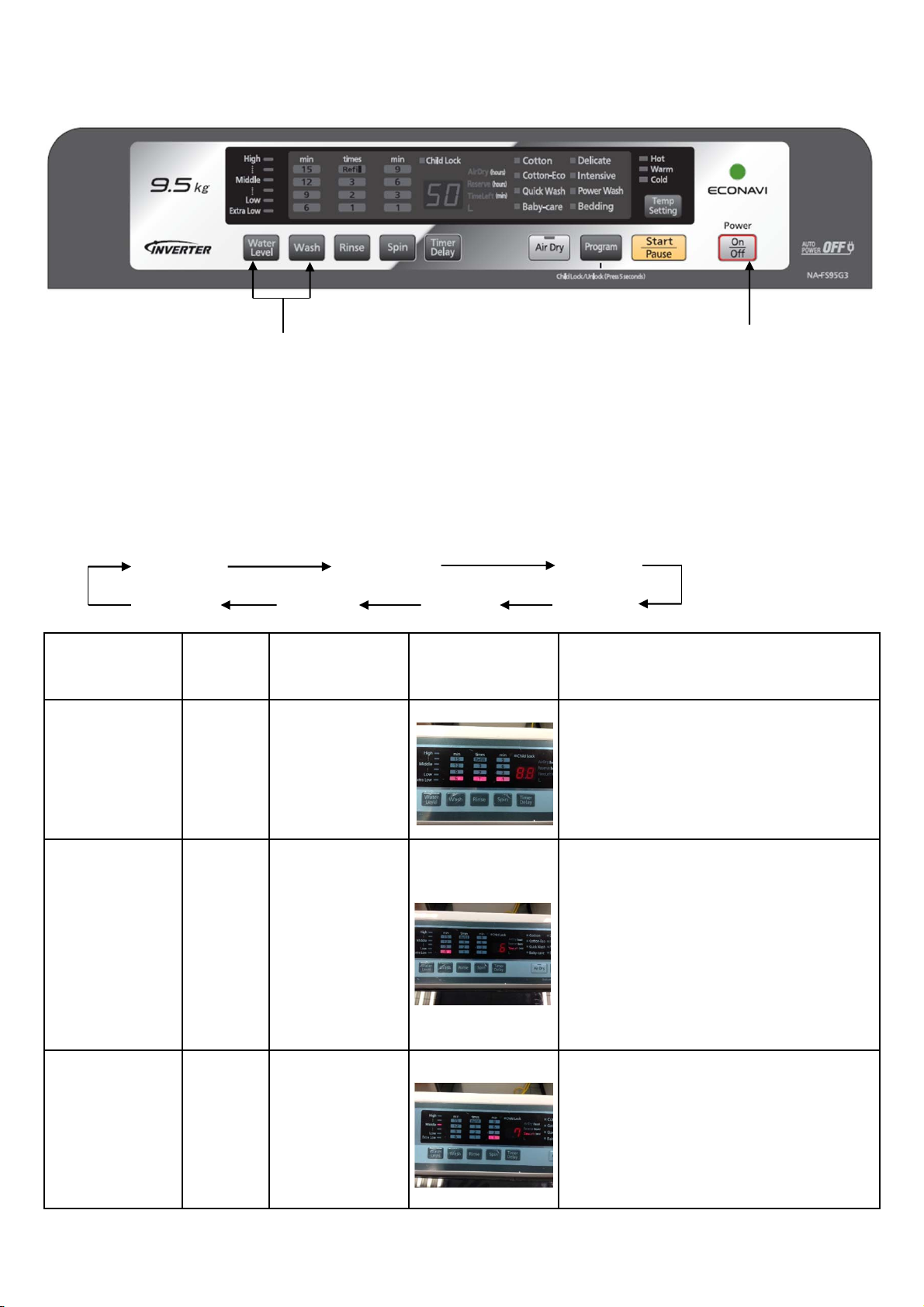

5. Test Mode
Check H Check G Check M Check E
Check A Check B Check C
(2) (1)
1. Set the power switch to "off".
2. Press and hold both the "Water lever" and "Wash" buttons with one hand.
3. Press the power switch to "on".
4. Release your fingers from the buttons and power switch which you pressed in steps (2) and (3) .
(Check A can be carried out in this state with your fingers released)
5. Within three seconds press the "Water lever " button to set the desirer check procedure.
(Carry out checks B, C, E, M, G and H)
Numberoftimes
the"Waterlevel"
buttonispressed
Check
Procedure CheckContents LampIllumination Condition OperationCondition
0A
•Cycleendbuzzer
•Timerindicator
•Autopoweroff
•Whentheendbuzzersoundsthree times,the
lampswillsimultaneously flashonandoffin
theremainingtimedisplay,andthepowerwill
automaticallybe switchedoffimmediately
afteroperationisfinished.
1B
•Washing
operation
•Evenifthereisnowaterinthetub,the
washingoperationwill continuefor10
minutes.
•Pressthe"Rinse"buttononceFV‐1operates,
andpresstwicetooperateFV‐2,press3time
hotwatervalve(FV‐3)operates.
•IfthePCBfaultoccurred,anerrorindication
"H05"willdisplay.
2C
•Spinoperation
•Lid/SFswitch
•Thespinningoperationwill continuefor6
minutes.
•Checkthelid&SFswitchoperation, while
openinglid
1) "74L"lightsup…Lidswitchworking
2) "86L"lightsup…SFswitchworking

Numberoftimes
the"Waterlevel"
buttonispressed
Check
Procedure CheckContents LampIllumination Condition OperationCondition

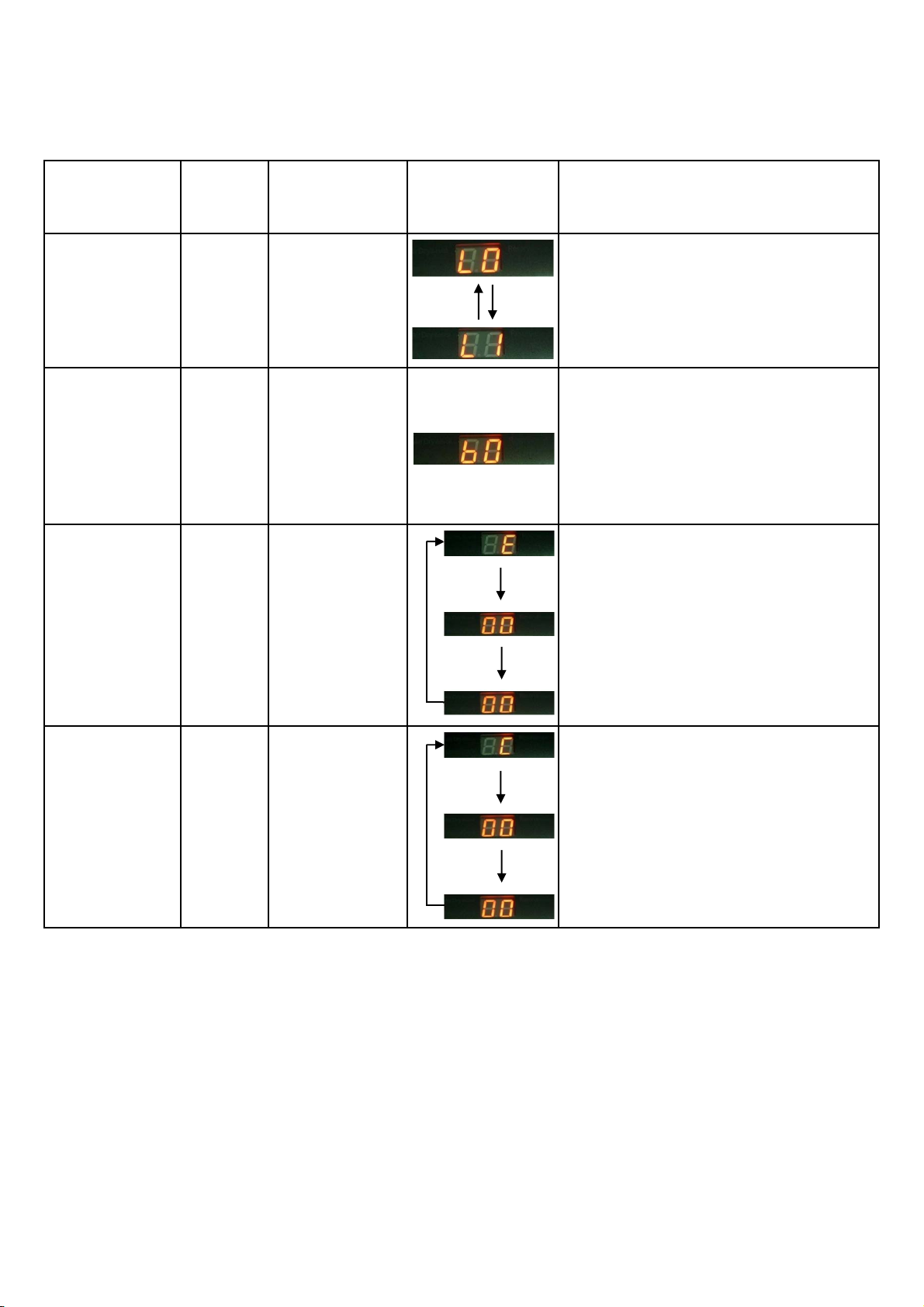

3E
•Adjustthewater
amountagainst
laundryamount
detection
•Pressthe"WASH"buttontoadjustL0 (initial
mode)toL1(1‐rankhigherwaterlevel).
•Press"START/PAUSE"buttontoconfirm.
4M
•Settoinitialmode
fortensionofthe
Belt
•IncasetochangePCBorremovetheV‐belt,
settheV‐belttensiontoinitialmodeforusing
belowprocedure.
•Theinitialdisplaywillbeindicated"b0“ after
that,press"START/PAUSE"button once, it
shallbelistenedclicksoundsixtimesto set
properly.
5G
•Indicatethe error
message ofthe
lasttime.
•"Digitlights"shallbeindicated"E"initially,
Press"WASH"buttontoshowthelasterror,
andpressthewashbuttonagaintoreturn to
initialmode.
•Ifanyerrormessageoccurredinthe past,"H"
or"U"andsomenumbershall beindicated
alternately.
Ifnoerrormessageoccurred,thelight
indicates"00".
6H
•Indicatethe
operation times.
•"Digitlights"shallbeindicated"C"initially,
Press"WASH"buttontochange "Indication of
digit"ofoperationtimes.
Pressonce:Digit"Thousand &Hundred“
Presstwice:Digit"Ten &One"
5. Test Mode
‐10‐

‐11‐
6. Trouble Shooting Guide
6.1 "U--" Error indication
＊If there is an operation error, or if there is a problem with the washing machine, such as
faulty draining, spinning etc.; operation will stop, the warning buzzer will sound, and an error
indication will be displayed.
Indication Content CheckPoint MethodtoClear
U11 MalfunctionofDrain
Checkifabnormalitieslistedbeloware seenin
the externalwaterhose.
*Issomethingwrongwiththedrainhose?
*Isitcloggingwithlint?
*Isthehosecrushed?
*Isthetipsoakedinwater?
*Istheextensionhoselongerthan2meter?
Restartbyopeningandcloseofthelid.
U12 TheLidisopen
*Isthelidisopen?
*Checktheconditionofcontactpointofthelid
switch.
Closethelid
U13 Unbalancedload
*Isthewashingmachineinanunsteady
position,orisonaninclinedfloorsurface?
*Istheadjustableknobloose?
*Isthelaundryunevenlydistributedinthetub?
Openthelidand redistributetheload.
U14 Malfunctionofwater
supply
*Itisalarmedincreaseitistakesover50min.to
reachselectedwaterlevel.
*Checkifyouhaveforgottentoconnectthe
waterhose andtoturnonthefaucet.
*Thewatersupplycutoff?
*Checkifthewatersupplyandthewatersupply
hosearefrozen.
*Checkiftheconnectionofthewatersupply
hoseonfeedvalveiscloggedwithdirt.
*CheckiftheFeedValveisabnormal,by
measuringthe resistancevalue.
Normalresistancevalue:1.22kΩ±8%
Openingandclosingthelidtoreturnto
initialstageofwatersupply.
U99 ChildLockoperated
*Checkremainingwaterinthetub.
*Ifnoremainingwaterinthetub,
‐‐>Childlockfunctionhasoperated.
1. Removethepowercord plugandclose
thelid.
2. After5secondre‐pluginandpress
"POWER"switch to"ON"position.

‐12‐
6. Trouble Shooting Guide
6.2 “H--" Error indication
Indication Content CheckPoint MethodtoClear
H01 ThePSswitchis
abnormal.
*Checktheconditionoftheconnectors.
*ReplacethePSswitch.
*ReplacePCBboard(Powerside)
Press"Power"buttontoturnoff.
H05 Thememorycircuitof
theI.Cisabnormal. *ReplacePCBboard(Powerside) Press"Power"buttontoturnoff.
H09
OpencircuitofP.C.
Board's
communicationline.
*CheckifleadwireconditionofP.C.boards
betweenpoweranddisplayside,andreplace
oneofP.C.Board's.
Pulloutthepowerplug.
H11 Thedrainbumpis
abnormal.
*Checktheconditionofconnectorsofdrain
pump.
*Replacethedrainpump.
*CheckoutputvoltageofthePowerSupply
PCB, andreplacethePCB.
Press"Power"buttontoturnoff.
H21 Malfunctionofover
flow.
*CheckoutputvoltageofthePCB(Powerside)
*Checktheconditionofdrainpump, checkif
theconnectorisloosen.
Press"Power"buttontoturnoff.
H48 Temperaturesensor
isabnormal.
*Checkthecondition oftemperaturesensor,
checkiftheconnectorisloosen. Press"Power"buttontoturnoff.
H51 Abnormalofover
load.
*Checkifoverloadoflaundry.
*Checktheconditionofconnectorsfor motor
androtationspeeddetector.
*Checkthemovementofthemotor.
*CheckifoutputvoltageofPowerPCB.
Press"Power"buttontoturnoff.
H52 Abnormalofhigh
voltage.
*Incasetheinput voltagetothePCBhasbeen
detectedoverAC324V,checkinputvoltage. Autopoweroffafter5seconds.
H53 Abnormaloflow
voltage.
*Incasetheinput voltagetothePCBhasbeen
detectedoverAC156V,checkinputvoltage. Autopoweroffafter5seconds.
H55
Malfunctionofover
currentofinverter
circuit.
*Incaseif overcurrent(above10A)flowtothe
invertercircuit,replacethePowerPCB.
*Checkifshortcircuitofthemotor’scoil,
replacethemotor
Press"Power"buttontoturnoff.
H57 Malfunctionof
motor’scurrent. *Checkifmovementofmotor. Press"Power"buttontoturnoff.

‐13‐
7. Disassembly Instructions
7.1 Warning
Beforeattemptingtoservicesoradjustanypartofthemachine,disconnecttheelectrical
powersupplyfromtheoutlet.
ElectroniccomponentsoftheprintcircuitboardisMOSFETTYPE.Whenreplaceand
troubleshootingtheprintcircuitboard,makesurebodyisgroundedbeforebeginningthe
repairwork.But,incasecannotground,touchtotheplugandearthwire,andremovethe
potentialdifferencebetweenthesetandbodyoftheworkercompletely.
7.1 Caution

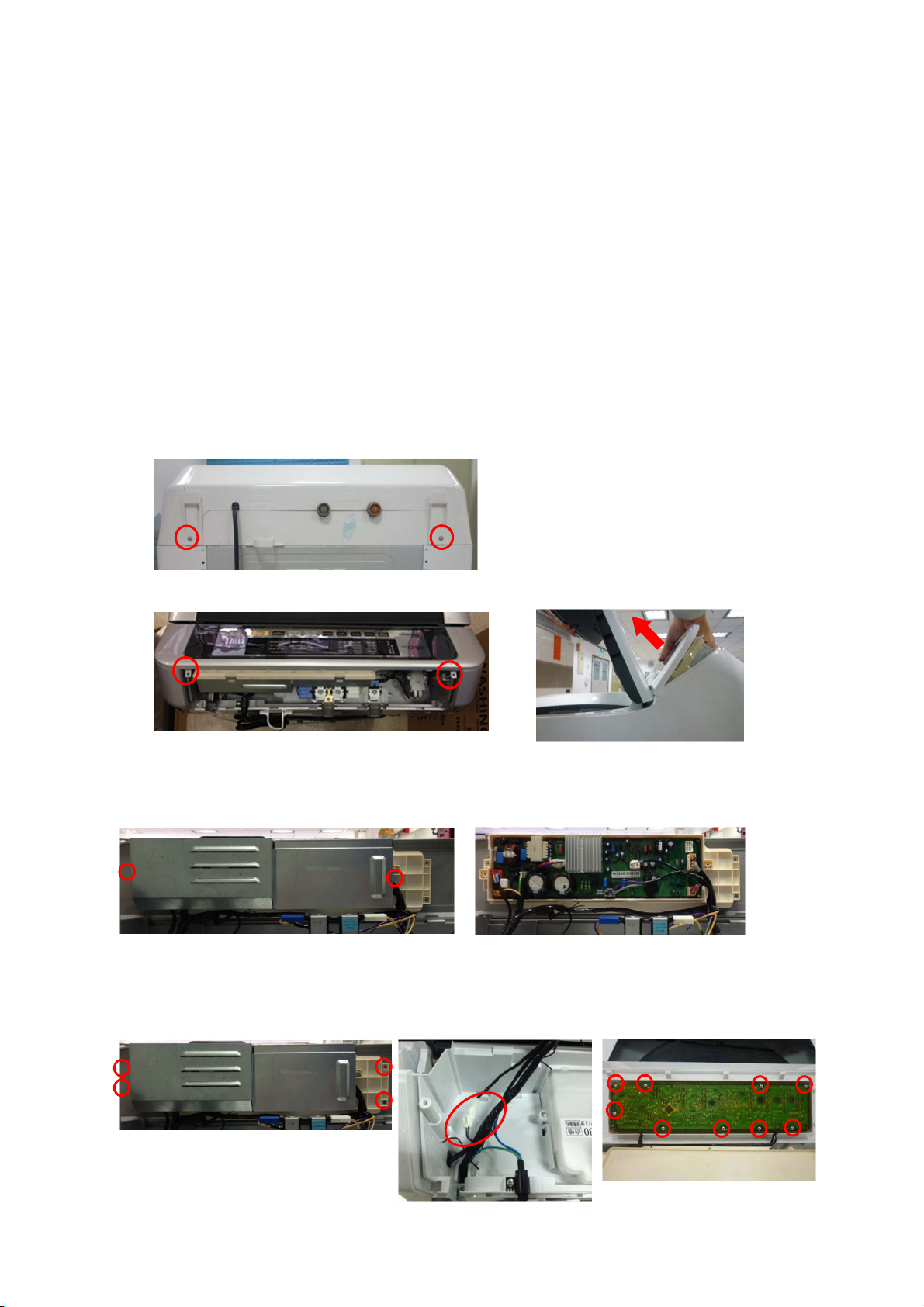

7.3 The DISPLAY PCB, POWER PCB replacement
1.Removethe2screwsmountingthePANELA,thenremovethePANELA.
2.Remove2screwsmountingcontrolpanel,openlid,thenpulloutthepanel.
•POWERPCBreplacement
a. Remove2screwsmountingFIREPROVECOVER.
b. Removeallconnectors,removePOWERPCBwithPCBcase.
•DISPLAYPCBreplacement
a. Remove4screwsmountingPCBcase,removethecase,andyouwillfinddisplayPCB.
b. Removetheconnectorand9screwsmountingthedisplayPCBoard,removePCB.

‐14‐
7. Disassembly Instructions

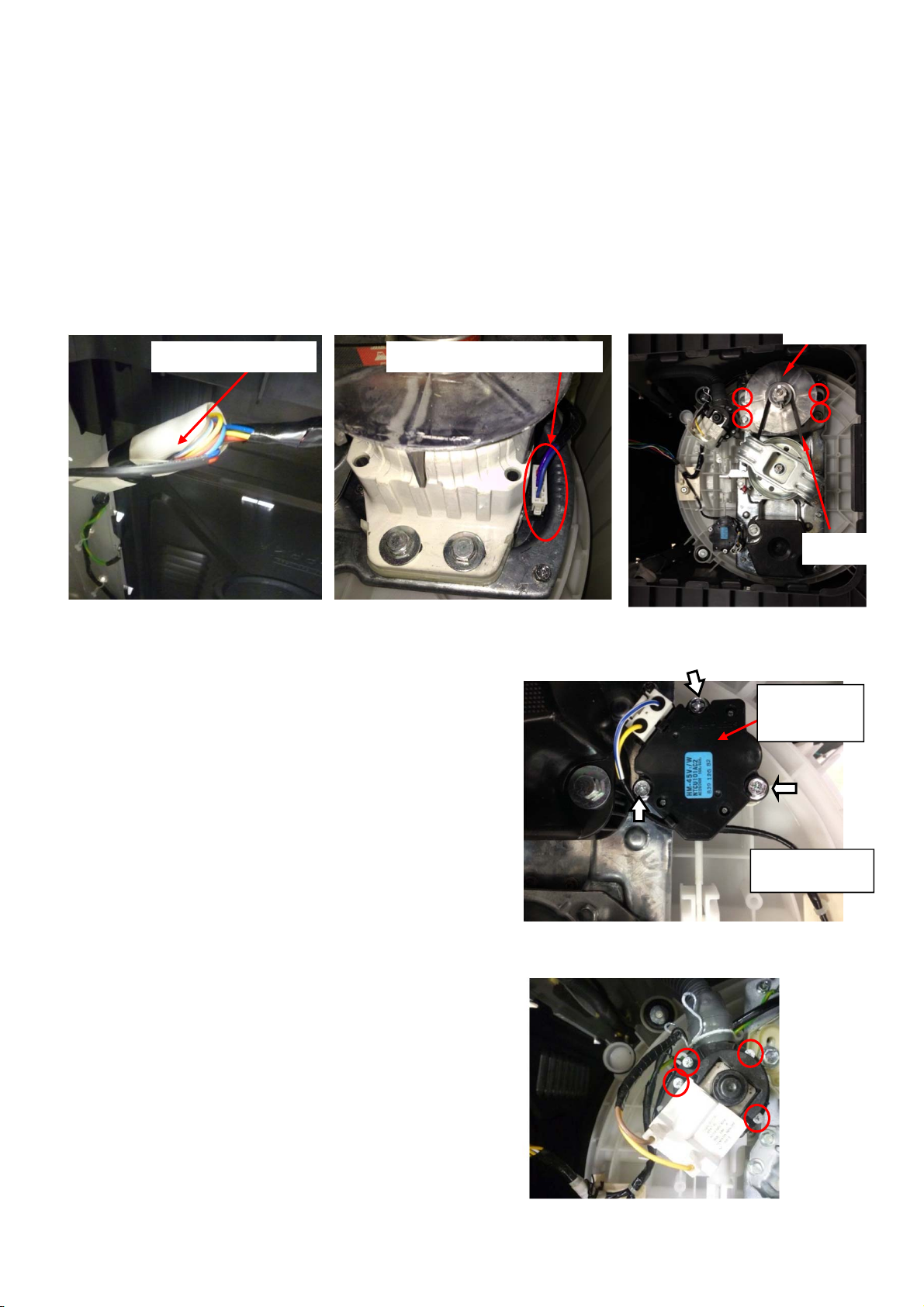

7.4 The PS SWITCH, SF SWITCH replacement
2.Remove2screwsmountingcontrolpanel,openlid,thenpulloutthepanel.
•PSSWITCHreplacement.
a. Removeleadwireconnector.
b. RemoveSUBHOSEA,thenremovePSSWITCH.
•SFSWITCHreplacement.
a. Removeleadwireconnector.
b. Remove2screwsmountingtheSFSWITCH.
1.Removethe2screwsmountingthePANELA,thenremovethePANELA.
PSSwitch
SubHoseA
LeadWireConnector
SFSwitch

‐15‐
7. Disassembly Instructions
7.5 The FEED VALVE replacement
Repeatstep1&2inpreviouspage,toremovePANELAandcontrolpanelassembly.
•FEEDVALVE(cold)replacement
a. RemoveLEADWIRECONNECTOR.
b. Remove2screwsmountingtheFEEDVALVE.
c. RemoveFEEDVALVE.
•FEEDVALVE(hot)replacement
a. TakeDETERGENTCASEBout.
b. RemoveLEADWIRECONNECTOR.
c. Remove3screwsmountingthe
DETERGENTCASEAU.
d. PullDETERGENTCASEAUup.
e. Remove2screwsmountingtheFEED
VALVE.
f. RemoveFEEDVALVE.
Connector
Screw

‐16‐
7. Disassembly Instructions

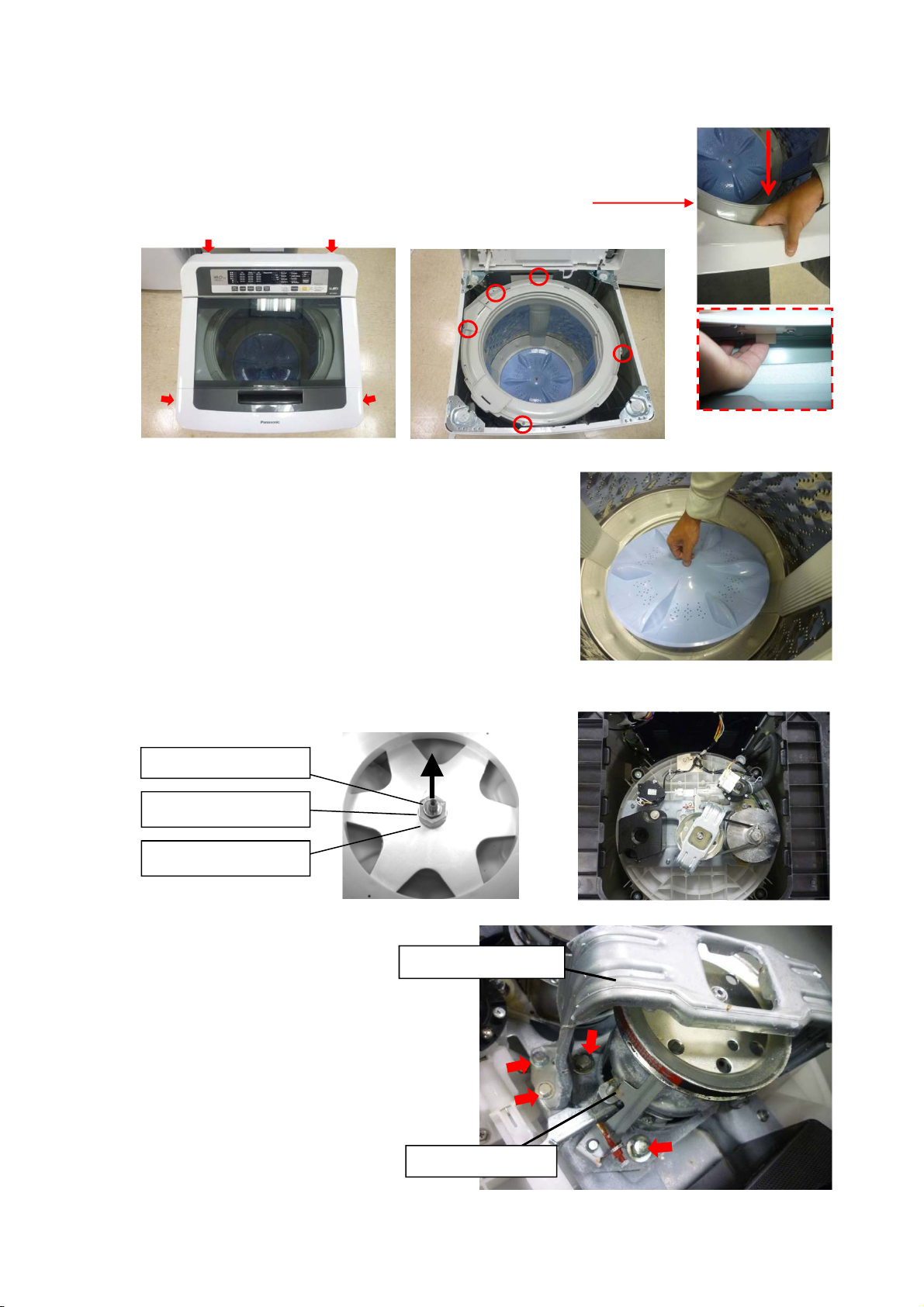

7.6 The MECHANISM U replacement
1.Remove4screwsmountingtheBODYB,thenraisetheBODYB.
(BeforeraisingBODYB,thereisahookneedtobeunlock)
2.Remove5screwsmountingtheOUTERTUBCOVER.
3.LoosenthespecialscrewmountingthePULSATOR.
•DonotremovethespecialscrewfromPULSATOR
completely,thenholdthescrewheadtopullthe
PULSATORupwardtoremove.
4.RemovetheSHAFTBUSHING、DSHAFTFLANGE
NUTandDFLANGEWASHERB,thenpulltheTUB
AUupwardtoremove.
5.CloseBODYBandturnthemachineupsidedown.
6.Remove4screws(M8)
mountingtheSPINNERPLATE
B.
7.Remove4screws(M13)
mountingtheMECHANISMU.
8.RemoveVBELT,thenremove
MECHANISMU.
SHAFTBUSHING
DSHAFTFLANGENUT
DFLANGEWASHERB
SPINNER PLATE B
MECHANISM U
View

‐17‐
7. Disassembly Instructions
7.7 The MOTOR replacement
7.8 The DRAIN VALVE (Gear Motor) replacement
7.9 The PUMP replacement
1. Laydownthewashingmachineonitfrontside.
2. RemoveleadwireconnectorsandrotationsensorconnectorfromtheMOTOR.
3. Loosenfourbolts(M13)mountingthemotor,andremoveV‐belt.
4. RemovefourboltmountingtheMOTOR,andremovethemotor.
Note:Afterreplacethemotor,adjusttensionoftheV‐beltproperly.
Andthen,setmicro‐processortoinitialmodeofV‐belttensionbyoperating
Test‐Nowater/Checkprocedure‐E.
1. Laydownthewashingmachineonitfrontside.
2. RemoveconnectorfromtheDRAINVALVE.
3. Removethreescrewsmountingthe DRAIN
VALVE.
4. RemovesliderportionoftheDRAINVALVE from
theCOCKRODA.
5. RemoveDRAINVALVE.
1. Laydownthewashingmachineonitfront
2. RemoveconnectorfromthePUMP.
3. Remove4screwsmountingfromthePUMP.
4. RemovePUMP.
Connector of motor MOTOR
V-Belt
Connector of rotation sensor
Cock rod A
Drain valve
(Gear Motor)

‐18‐
8. Wiring Diagram
NA-FS95G3WAU:
NA-FS95G3WNZ:
NA-FS85G3WAU:
NA-FS85G3WNZ:

‐19‐
9. Parts Location & Replacement Parts List
Ref
No. PartName PartNo. Q'ty Remarks
1BINDTAPPINGSCREW XTB3+10BFJ 10 AXW24S+AXW145
2BINDTAPPINGSCREW X‐T0405 4 AXW145+AXW102
3BINDTAPPINGSCREW XTB4+12CFJ 2 AXW1661+AXW102
4BINDTAPPINGSCREW XTB4+12CFJ 1 AXW24C+AXW102
5BINDTAPPINGSCREW XTB4+14CFJ 2 AXW2921+AXW20T
6BINDTAPPINGSCREW XTB4+12CFJ 2 AXW20T+AXW102
7SPECIALTAPPINGSCREW X‐T0405 2 AXW102+AXW001A
8SPECIALTAPPINGSCREW X‐T0405 2 AXW102+AXW001A+AXW130
9TRUSSTAPPINGSCREW XTT4+14AFJ 1 AXW337+AXW301
10 TRUSSTAPPINGSCREW XTT4+14AFJ 8 AXW301+AXW001A
11 TRUSSTAPPINGSCREW XTT4+12BFJ 4 AXW156+AXW001A
12 SPECIALTAPPINGSCREW XTWAXW511 4 AXW1202+AXW1201
13 SPECIALTAPPINGSCREW XTWAXW6506J 8 AXW1202+AXW1201
14 SPECIALTAPPINGSCREW XTWAXW6502J 6 AXW3482+AXW1201
15 SPECIALBOLT AXWX‐V0816AJ 4 AXW20A+AXW1202
16 HEXAGONSPECIALBOLT XVG7A22GXJ 1 AXW410+AXPWM1854SL/PSN
17 HEXAGONNUT XNG7BSFJ 1 AXW410+AXPWM1854SL/PSN
18 SPECIALBOLT AXWX‐V0816AJ 4 AXPWM1854SL/PSN+AXW1202
19 SPECIALBOLT AXWX‐V0845AJ 2 AXW1231+AXW1202
20 SPECIALBOLT AXWX‐V0624J 4 AXW3232+AXW1202
21 TRUSSTAPPINGSCREW X‐T0407 4 AXW202+AXW201
22 TRUSSTAPPINGSCREW X‐T0407 4 AXW12U+AXW201
23 SPECIALTAPPINGSCREW XTWAXW520 8 AXW35A+AXW201
24 SPECIALTAPPINGSCREW XTWAXW507 12 AXW1504+AXW201
25 SPRINGWASHER XWA6BVW 1 AXW5D+AXW20A
26 SPECIALSCREW XVGAXW677E 1 AXW5D+AXW20A
27 TRUSSTAPPINGSCREW XTT4+18ABN 8 AXW3224+AXW1201
9.1 Small standardized metal parts
