Panasonic NA-F10MB1 User manual

*Picture is only for illustration
Before operating this unit, please completely read these instructions especially the
Safety
Warnings and Important Instructions .
NA-F10MB1

1
CONTENTS
SAFETY INSTRUCTIONS
Safety instructions ........................................... ..................
INSTALLATION
Product description ......................................... ..................
Installation area ................................................................
Unpacking the washing machine ......................................
Installation of drain hose ..................................................
Levelling the washing machine ............................. .............
Selection of tap ..................................................... .............
Connection of inlet hose, tap and washing machine...........
Preparation before washing.................................... ............
Washing .............................................................................
After washing......................................................................
Washing matters needing attention ..................................
The usage of detergent and washing powder....................
Control panel......................................................................
Option.................................................................................

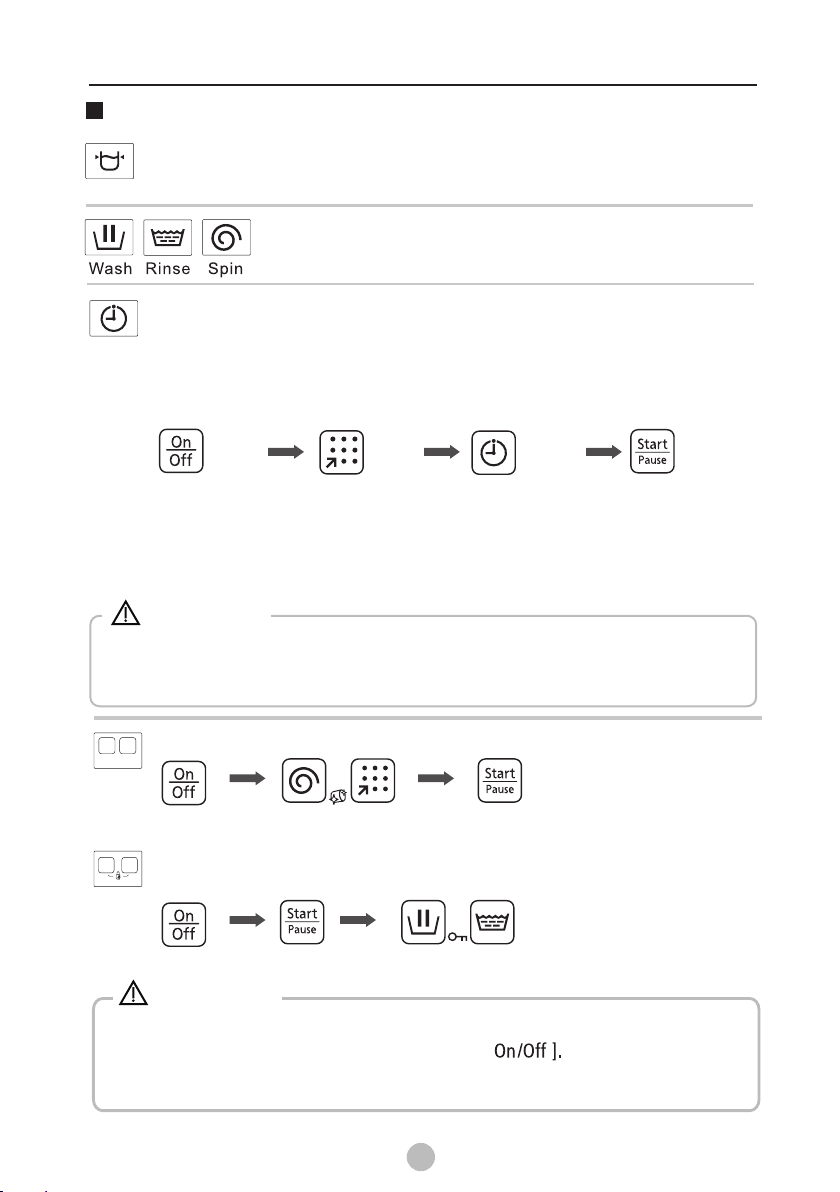

Personalized setting of washing program...........................

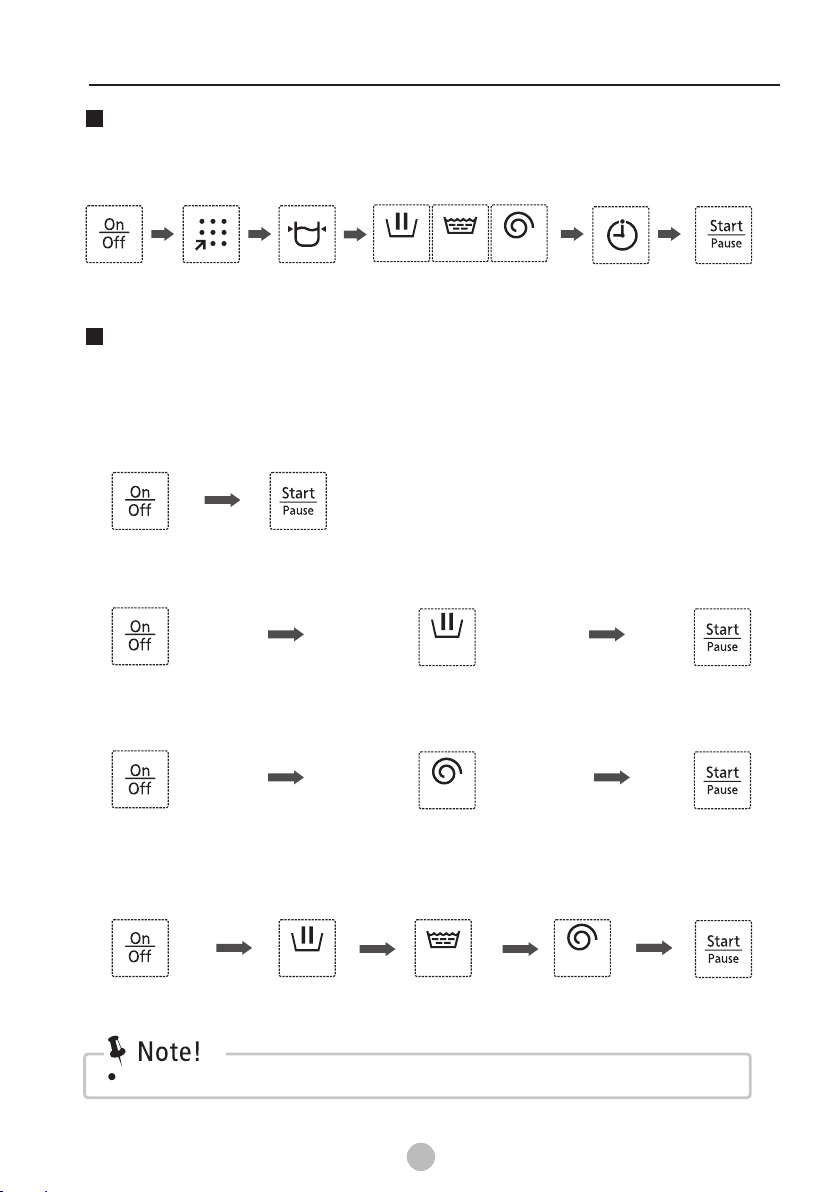

Operations of washing process...........................................
Washing program table ..................................... .................
Maintenance
Cleaning and care ..............................................................
Cleaning the cabinet...........................................................
Troubleshooting............................................... .................
Technical information ......................................... ...............
2
8
9
9
9
10
11
11
12
12
12
13
13
14
15
16
16
17
18
18
19
20
OPERATIONS
Base cover installation ...........................................
10

SAFETY INSTRUCTIONS
For your safety, the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
2
SAFETY INSTRUCTIONS
• This appliance is not intended for use by persons(including
children) with reduced physical, sensory or mental capabilities
or lack of experience and knowledge unless they have
been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
•
•
•
• The openings must not be obstructed by a carpet.
• This appliance is intended to be used in household and similar
applications such as:
− staff kitchen areas in shops, offices and other working environments;
− farm houses;
− by clients in hotels, motels and other residential type environments;
− bed and breakfast type environments;
− areas for communal use in blocks of flats or in launderettes.
Children should be supervised to ensure that they do not
play with the appliance.
The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
If the power cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.

SAFETY INSTRUCTIONS
3
Warning!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
Explanation of the symbols:
Caution!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.

4
SAFETY INSTRUCTIONS
The electric shock!
Warning!
•
•
• Hands shall not be inserted into running the tub .
• If the tub does not stop within 15 seconds after
opening the cover , please stop using the machine and
have it repaired.
• Before any maintenance the device, unplug the appliance
from the mains.
• Always unplug the machine and turn off the water supply
after use. The max. inlet water pressure is 0.8M pascals.
min. inlet water pressure is 0.03M pascals.The
• Make sure that the water and electrical devices must be
connected by a qualified technician in accordance with the
manufacturer's instructions and local safety regulations.
Do not put washing machine at humid place.
This appliance is for indoor use only.
• Please do not pull out or insert the plug with wet hands to
avoid electric shock.
• This machine is household product and should not be used
commercially.

• The appliance can be used by children aged
and above and persons with reduced physical,sensory or
mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
from 8 years
• Animals and children may climb into the machine. Check
the machine before every operation.
• Young children should be supervised that they do not play
with the appliance.
• Machine may be very hot during the operation. Keep kids
and pets far away from the machine during the operation
• Plug must be accessible after installation.
very wet rooms as well as in the rooms with explosive or
caustic gas.
•
• The washing machine with single inlet valve only can be
connected to the cold water supply.
Remove all packages before using the appliance. Otherwise,
serious damage may result.
Risk of explosion!
•
•
Do not wash or dry articles that have been cleaned in,
in, soaked in, or dabbed with combustible or washed
substances( such as wax, oil, paint, gasoline, explosive
dry-cleaning solvents, kerosene, etc.) This may degreasers,
fire or explosion.result in
Before hand, thoroughly rinse items of washing by hand.
5
SAFETY INSTRUCTIONS
Risk to children!

• This washing machine is for indoor use only.
• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
• Washing machine shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive
or caustic gases.
• Remove all packages before using the appliance.
Otherwise, serious damage may result.
• The washing machine with single inlet valve only can be
connected to the cold water supply.
• Plug must be accessible after installation.
Risk of damaging appliance!
6
SAFETY INSTRUCTIONS
Caution
Installing the product!
• Your product is only for home use and is only designed
for the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
1.The accumulated water shall be drained out of the
machine.
2.Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can
not be used as the handle during the conveyance.
3.This appliance is heavy. Transport with care.
• Please ensure that the water inlet pipe is connected and
the tap is opened before washing clothes

Operating the appliance!
• Before washing the clothes at first time, the product
shall be operated in one round of the whole procedures
without the clothes inside.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc.Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for drum.
• Make sure that all pockets are emptied. Sharp and rigid
items such as coin, brooch, nail, screw or stone etc. may
cause serious damages to this machine.
• Please check whether the water inside the drum has
been drained before opening its door.Please do not open
the door if there is any water visible.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two
minutes to open the door.
7
SAFETY INSTRUCTIONS
• Please do not close the door with excessive forces.
• It is forbidden to wash carpets.
• Care should be taken while opening or closing top glass lid
as there is chance of getting finger pinched.

INSTALLATION

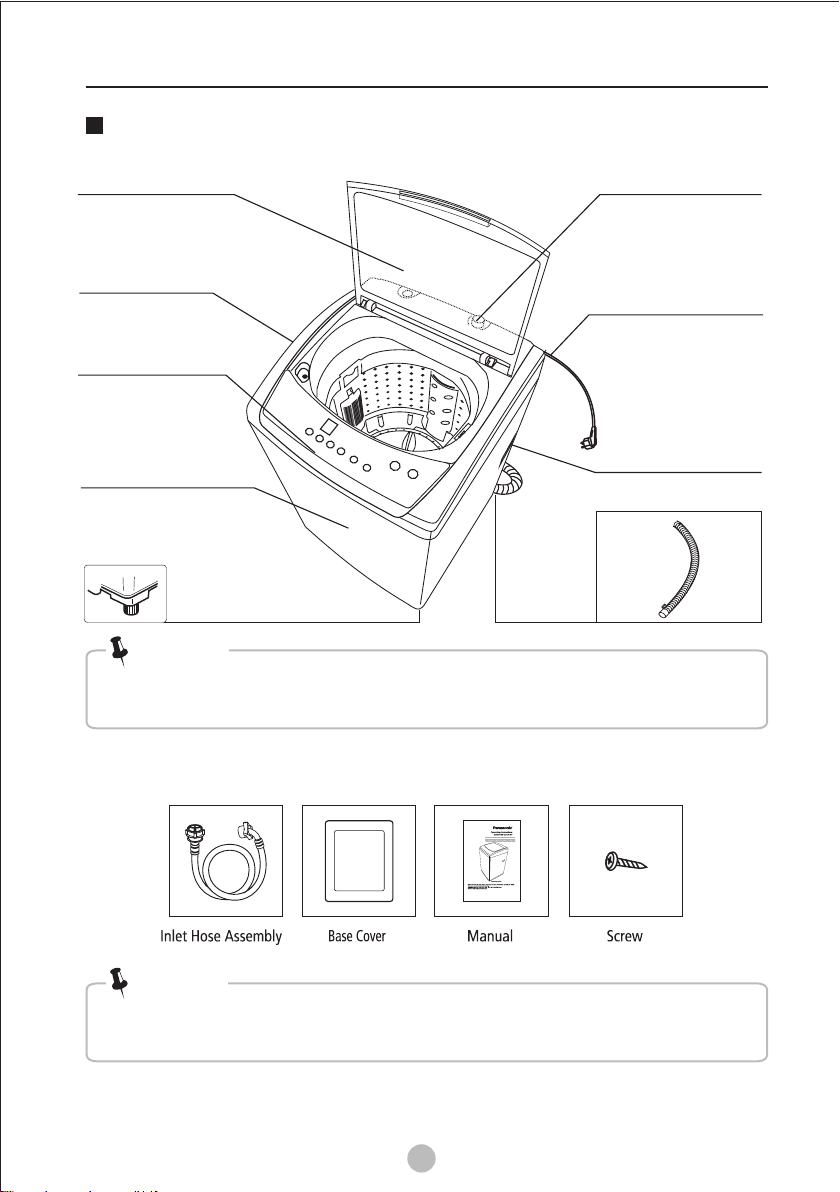

Product Description
• The product line chart is for reference only, please refer to real product as
standard.
Note!
Accessories
• Note: if the drain hose is already installed on the machine, then there is no
spring clamp and drain hose in the accessories.
Note!
8
Frame
Top lid
Drain hose
Handle
Power case and plug
Control panel
Cabinet
Adjustable foot knob
Water inlet valve

9

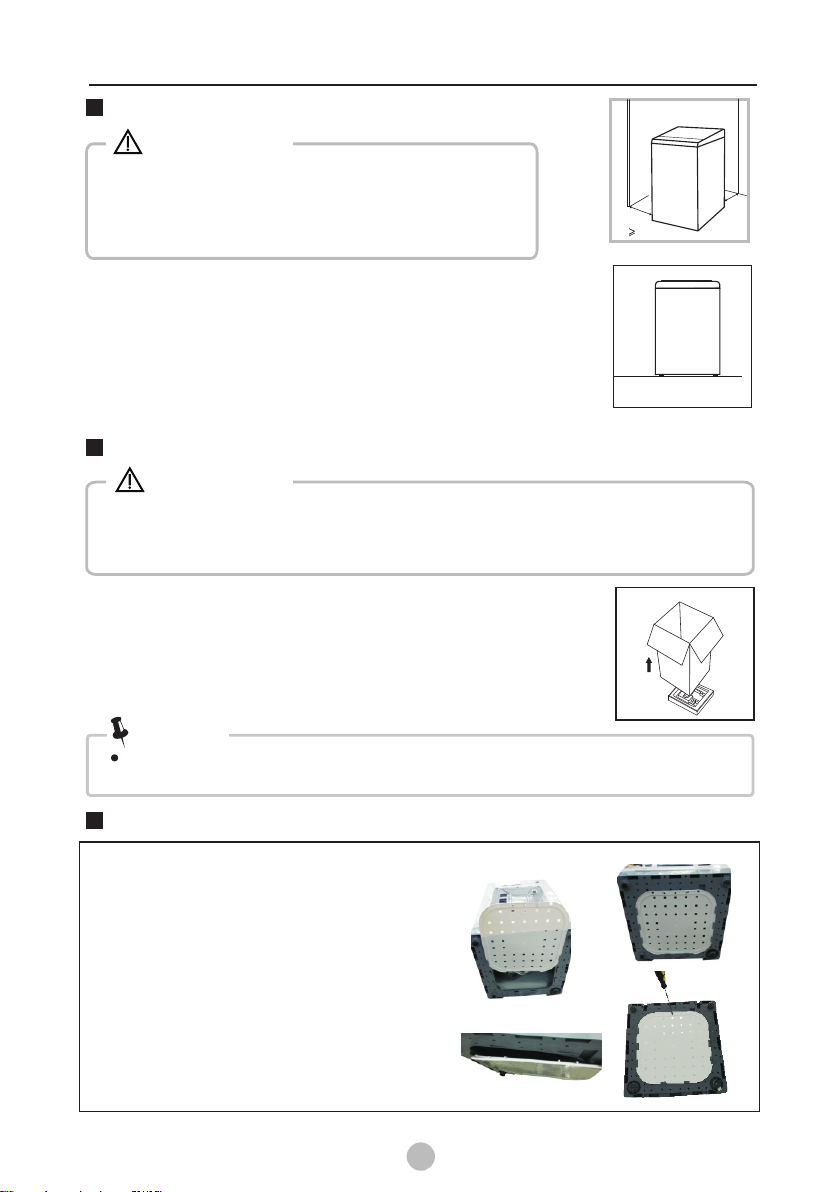

Installation area
Before installing the machine, the location characterized
as follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Keep far away from fuel sources such as coal or gas
Unpacking the washing machine
1. Remove the carton box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the secure tape from power cord and drain hose.
4. Take out inlet hose and other accessories from inner tub.
• Stability is important to prevent the product
from moving!
• Make sure that the product does not stand on
the power cord.
Warning!
• Packing material(e.g. poly bag, films, styrofoam) can be dangerous for
children. Ensure keep children away from them.
• There is a risk of suffocation!
Warning!
INSTALLATION
w
w
W 20 mm
the unit. It will cause damage to the machine.
Do not operate the washing machine with the base packing still intact with
Note!
Base Cover Installation
Step 1. Insert base cover into base slot
as
below picture;
Step 2. Push base cover into proper
position;
Step 3. Press base in below direction
to snap four buckles into base;
Step 4. Use screw to fix base cover.
Installation of base cover:
Step 1
Step 2
Step 3
Step 4

There are three ways to place the end of drain hose:
•
• Position drain hose properly ,otherwise damage might result in water leakage.
Do not twist or extend the drain hose.
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
Warning!Warning!
floor drain
Under 3 m
Under 15 cm
1.Check if the legs are closely attached
the cabinet. If not, please turn them to
their original positions by tightening the
nuts.
2.Check alignment of the product with a
spirit level and if required, correct.
3.Loosen the lock nut and turn the feet
until it is in close contacts with the floor.
to
4.After being locked properly, press four
corners again to make sure that they are
adjusted properly.
• The lock nuts on all four feet must be screwed tightly against the housing.
Levelling the washing machine
Warning!
Lock nut foot
Raise Lower
lockloosen
right
wrong
INSTALLATION
10
Installation of drain hose
1.Completely sleeve the drain hose over the sewer.
2.Fix and tighten it with a hoop.( As shown in the figure )
(If drain extension
is used)
Put end of
drain hose
into floor
drain

Wall
1:Connection between ordinary tap and inlet hose.
2:Connection between screw tap and inlet hose.
• To prevent water leakage, follow the instructions in this chapter
Do not twist, crush, alter or cut the water inlet hose.
!
•
Warning!
Selection of tap
Please select
tap.
appropriate
Connection of inlet hose, tap and washing machine
clamp nut
tap
1.Loosen clamp nut to
show 5mm thread
2.Loosen four bolts 3.Set connecting base
on tap and tighten
bolts evenly
4.Tighten clamp nut
inlet valve
inlet hose
slide bushing
5.Press slide bushing,
insert inlet hose into
connecting base
6.Connection finished 7.After connection and installation,
check if there is water leakage
Connect the inlet hose to the tap with connector(as upper sketch).
Screw tap Special washing
machine tap
Ordinary faucet
INSTALLATION
11

Caution!
Before washing, please make sure machine is installed properly.
• Run the machine once without laundry in order to clean the tub in Tub Clean
program before using it for the first time.
•
Open tap
Plug in Add detergent and
close top lid
After Washing
1 2 3 4
Start Washing
Power On Start up
1 2
• , If default is selected, step 2 3 can be skipped.
Note!
Load clothes
Buzzer will beep after washing finished and the power supply will be cut off automatically
Then unload the laundry.
.
3 4
Select Programme Select Level
Preparation before washing
OPERATIONS
12

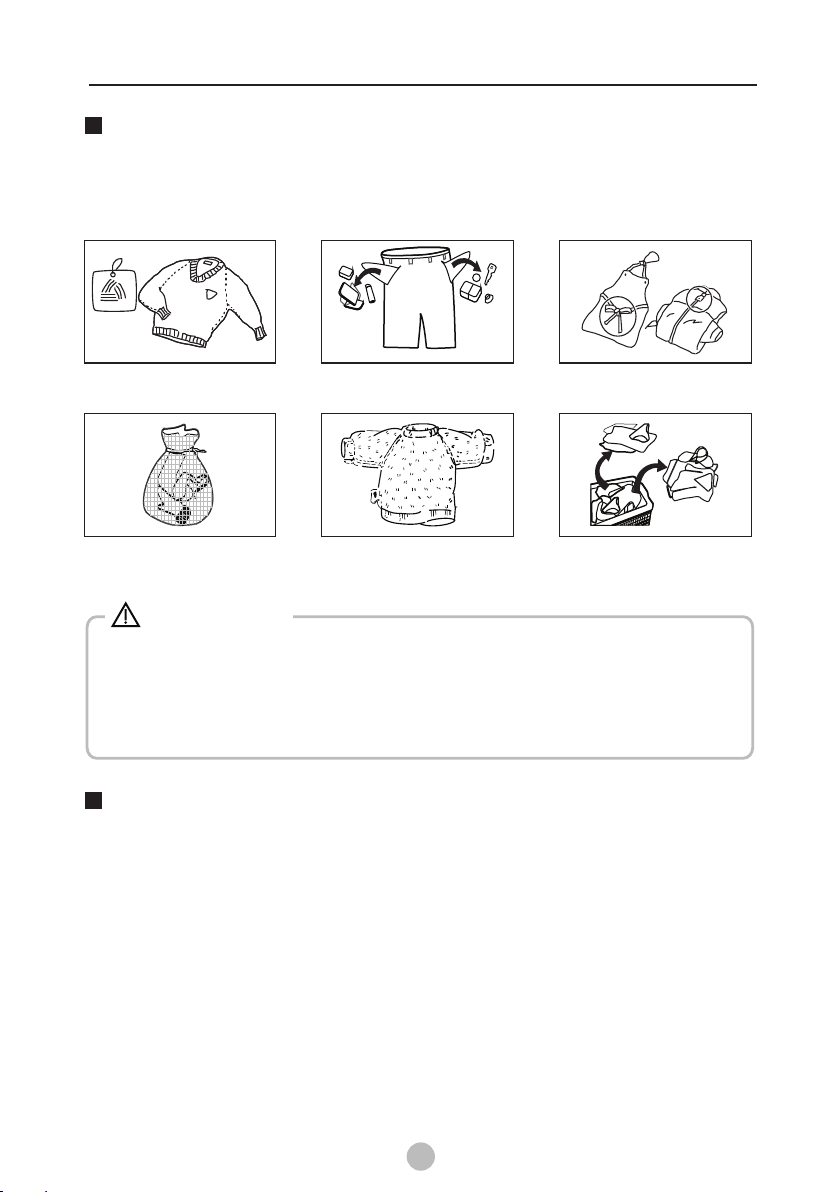

Before Washing

Knot the long strips,zip or
button
• When washing a single clothes, it may easily cause great eccentricity and give
alarm due to great unbalance. Therefore it is suggested to add one or two
more clothes to be washed together so that draining can be done smoothly.
• Don’t wash the clothes touched with kerosene, gasoline, alcohol and
other flammable materials.
• The working condition of the washer should be(0-40)℃
• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Take out the items out of
the pockets
Put small clothes into the
pillow slip
Check the label
Washing matters needing attention
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
Warning!
• As for the agglomerated or ropy detergent or additive, before they are
poured the detergent box, it is suggested to use some water for
dilution to prevent inlet of detergent box from being blocked and
overflowing while filling water.
•
into
the
Please choose suitable type of detergent for cold washing temperature
to get the best washing performance with less water and
energy consumption.
The uasage of detergent and washing powder
OPERATIONS
13

43
Control Panel
OPERATIONS
14
Note!
The chart is for reference only, Please refer to real product as standard.•
Product is switched on or off.
Start/Pause
Press the button to start or pause the
washing cycle.
Program
Available according to the laundry type.
Refer page no. 17 for program table.
Option
Press the button to customize related
process of program. The selected result
will show by the light.
(Repeated press the button until
required result is on)
1
1
4
1
2
3
Display
The display shows the settings, estimated time remaining, options, and status messages
for your washer. The display will remain on through the cycle.
5
12
5

15
OPERATIONS
Preset
Set the Preset function:
1. Select a program
2.Press the Preset button to choose the time(the presetting time is 0-24 H.)
3.Press [Start/Pause]to commence the preset operation
Choose the Program Start
Power Setting time
Cancel the Preset function:
Press the [Preset]button until the Presetlight is off.I t should be pressed before
starting the program. If the program already started, should press the [On/Off]
button to reset the program.
Water Level
Option
Caution!
• In case of power cut during the machine operation, special memory function
will work and machine will resume from the same program after power supply
is back.
Child Lock
To avoid mis operation by children.
Start dlihCsserP Lock
Power
• Press the two buttons for at least 3 sec. to release the child lock.
• The “Child Lock” will lock all buttons except [
• When the power supply is resumed after electricity cut, the child lock will be
deactivated .
Caution!
select water level according to clothing categories, degree of soiling and washing
habits of customers
Function
washing time, rinsing times, spinning time and other settings can
be selected.
Tub clean
Tub clean
Tub clean
Start
Power

10
16
OPERATIONS
Wash Spin+Rinse+
One Touch Smart Wash
Spin
Start
Start
Start
Function
Power Start
Water Level
Program
Preset
Personalized setting of washing program
User can select washing program according to laundry type, and set washing
time、rinsing time、spin time、water volume and appointment time
User can use default program to start wash cycle or customize set washing time,
rinsing time and spin time according to personal demand. Detailed operations as
follows:
Other process setting logic same as above.
Operations of washing process
Wash
Start
Wash
Wash
Wash
Rinse
Rinse
Spin
Spin
Spin
set washing time
set washing time
set spin time
set spin time
set rinse times
Power on
Power on
Power on
Power on
Repeated press Wash key until
required result light is on.
Repeated press Spin key until
required result light is on.
Repeated press Wash & Rinse & Spin
keys until required result lights are on.

10
17
OPERATIONS
Washing Program Table
Program
Standard fabric washing program, suitable to wash ramie cotton fabric.
Wash for once, rinsing for twice, the spin time is a little long.
Speedy Suitable to wash light stained clothes and clothes in summer.
Delicates Mid/High/Low water level selection, the tempo is soft, slow washing
and spinning speed, to make the lightest wear and deformation.
Suitable to wash heavy stained/wearable clothes.
Fuzzy
weight:
Intensive Use this program to wash more the dirty clothes.
Normal
Baby-care Washing a few clothings , low water level ,high water level shall not
choice.
Blanket Washing ability is strong ,washing more the dirty clothes.
Tub Hygiene Use this cycle to keep the drum dry.
Program are available according to the laundry type.
The washing machine will select the water level automatically
according to the load weight.
1. When there's water in the tub, this function will not work;
2. Before pressing [Start/Pause] button, if user select the
water level, there will be no fuzzy weight function;
3. After pressing [Start/Pause] button, the washing machine will run
the fuzzy weight function. User can also select the water level to
set the water level as needed.


MAINTENANCE
• Before your maintenance starts, please unplug the machine and close the tap.
Cleaning the cabinet
Proper maintenance on the washing machine can extend its
working life. The surface can be cleaned with diluted
non-abrasive neutral detergents when necessary. If there is
any water overflow, use the wet cloth to wipe it off immediately.
No sharp items are allowed.
Formic acid and its diluted solvents or equivalent are forbidden, such as
solvents or chemical products,etc.
•
alcohol,
Note!
Cleaning and care
Cleaning the inlet filter
• Inlet filter must be cleaned if there is less water.
Washing the filter in washing machine:
1.Screw off the inlet pipe from the backside
of the machine.
2.Pull out the filter with long nose pliers
and reinstall it back after being washed.
3.Use to clean the filter.
4.Reconnect the inlet pipe.
the brush
Note!
1.There is a built-in lint filter in your washer. It
can help to collect lint during washing cycle.
2.It is suggested to clean the lint filter every
10 cycles.
3.Take it out and clean the filter with water.
Then place it back into the washer.
Lint filter clean
magic filter
normal filter
Warning!
