Installation Guide
AT-VTP-800
1
Velocity 8” Touch Panel
AT-VTP-800
1 x AT-VTP-800
1 x Metal mounting plate
4 x Mounting screws
1 x Wall installation template
1 x 2-gang mud ring
1 x Installation Guide
Package Contents
Operating Notes
• The Velocity 8” Touch Panel (AT-VTP-800) must be on the same network as the Velocity
Gateway (AT-VGW-HW) or it will be unable to sync for control.
• The AT-VTP-800 is PoE capable, to power the unit, simply plug it into a 802.3at compatible
network switch. If the network switch is not PoE capable, a PoE injector (purchased separately)
can be used.
IMPORTANT: Velocity Gateway (AT-VGW-HW) must be set up before the AT-VTP-800 is
fully functional.
The Atlona AT-VTP-800-BL and AT-VTP-800-WH are 8” touch panels in black and white,
respectively, for the Atlona Velocity™ Control System. They feature contemporary, rened styling
for modern presentation environments with 1280x800 native resolution, and a capacitive glass
surface that supports multi-touch and gesture interactions. These touch panels conveniently
install into a wall or furniture via a US two-gang opening. Also available is the optional AT-VTP-
TMK tabletop mounting kit for placement on a meeting table or lectern. The VTP-800-BL and
VTP-800-WH feature Power over Ethernet (PoE), enabling a single network connection for data
and power. Setting up the touch panels is eortless as the AV control GUI is automatically
uploaded from the Velocity Control Gateway processor during system conguration.

Installation Guide
AT-VTP-800
2
The AT-VTP-800 has two mounting options. In-wall or an optional stand (available through atlona.
com).
Mounting Instructions
In-wall
1 Use the included wall mount template to create a hole in the wall the correct 2-Gang size for
the unit.
2 Install the back box (not included) or mud ring (included) into the wall.
3 Screw the included metal mounting plate into the mud ring using the 4 included screws.
4 Remove the two screws from the bottom of the touch panel.
5 Run the Ethernet cable through the mud ring and metal mounting plate.
6 Connect the Ethernet and/or power cable into the back of the touch panel.
7 Line up the touch panel with the mounting plate and thread the metal hooks into the four
holes on the back of the panel.
8 Gently press the touch panel down to ensure it is fully seated on the mounting plate.
9 Replace the two bottom screws to secure the touch panel to the metal mounting plate.

Installation Guide
AT-VTP-800
3
Stand
1 Place the stand on the table/desk
a If the rubber no slip guard is not secure enough, use four wall screws and thread them
though the four holes on the bottom of the unit and into the desk/table.
2 Thread the Ethernet cable through the bottom rounded hole on the back of the stand and
back out the rectangular hole on the front of the stand.
3 Plug the Ethernet cable into the back of the touch panel.
4 Place the touch panel on the stand, pushing the excess cable back through the stand at the
same time as resting the back panel of the touch panel in the rectangular front hole of the
stand.
5 Secure the touch panel to the stand using the four stand screws (included in the stand box).
a Thread the screws through the 4 pre-drilled holes in the front of the stand into the four
screw holes on the back of the touch panel.
NOTE: Tight the screws by hand. To avoid damage to the touch panel, do not
overtighten.

Installation Guide
AT-VTP-800
4
Installation and Set Up
1 Connect the Ethernet cable into the back of the unit.
a If the Ethernet cable is connected to a non PoE switch, use a PoE injector using 802.3at
(purchased separately).
2 Secure the unit in either the wall or optional stand, as explained in the mounting instructions.
3 The Velocity logo will display during the booting process and will go directly into setup.
Press CONTINUE to start the setup process.
NOTE: Installation of the Velocity Touch Panel can only be done after Velocity has
been set up. View the installation guides for VGW-HW/VGW-SW and Velocity Manual
for instructions.
Initial Setup
CONTINUE
You will be guided through the setup process
in the next few screens.
Velocity Device Setup
Wired
Address
Device
Alias
Panel Settings
Velocity
URL
Enable
HTTPS
0.0.0.0
Velocity Touch Panel
10.0.0.123
SCAN FOR GATEWAYS
SAVE AND CONTINUE
PANEL SETTINGS
Scanning for Gateways
CANCEL
Scanning for Gateways
CANCEL
USE
10.0.0.234
4 The unit will load a new screen. Change the Device Alias (if needed) to help dierentiate
when there are multiple touch panels at a site. A new screen will open.
5 Press the SCAN FOR GATEWAYS button.
6 The touch panel will scan for new gateways. Once the correct gateway is found, press USE.
7 On a network computer, use a browser to log into Velocity.

Installation Guide
AT-VTP-800
5
8 Navigate to the room the VTP will be located in.
9 Select the + button to add the unit.
10 Type the SKU into the search eld and select the correct panel from the drop down.
11 Select the Edit button on the tile to open the unit settings.
12 Select the ADD button. A tile for the unit will appear in the room.
13 Enter the IP of the VTP into the IP Address eld and select the save icon in the top right
corner of the screen. The screen will close, the panel will sync to the gateway, and the room
control will display on the panel.

Installation Guide
AT-VTP-800
6
NOTE: The room must be completely set up to receive the control interface.
14 Depending on the room options there may be multiple buttons on the home page. Select the
any icon to open the room’s control page.
15 Select sources and displays by tapping on them or dragging and dropping the source on
the display.
Scheduling
The panel can be set to scheduling, to do this, continue from step 13 to the next few steps.
1 Select the Sync to drop down menu and
choose Scheduler.
2 Select the Save button. Once selected, the
Scheduler will appear on the panel.

Installation Guide
AT-VTP-800
7
Verify your PIN
554361
ABC DEF
GHI JKL MNO
PQRS TUV WXYZ
1 2 3
4 5 6
7 8
0
9
CANCEL VERIFY
URL
GATEWAY SETTINGS
TOUCH SCREEN SETTINGS
System Volume
Screen Brightness
0.0.0.0
REFRESH PAGE
CLEAN SCREEN CLOSE
ABOUT VELOCITY ADVANCED SETUP
2 Select Advanced Setup.
3 Type in the PIN. Default PIN is 554361.
ABC DEF
GHI JKL MNO
PQRS TUV WXYZ
1 2 3
4 5 6
7 8
0
9
CANCEL SAVE PIN
Set Configuration PIN
(Note: Once a pin is set, it will be required to edit settings going forward)
(Enter a blank pin to remove)
ADVANCED SETTINGS
Set Static IP
IP Address
Subnet Mask
Default Gateway
DNS Server 75.75.75.75
10.0.0.1
255.255.255.0
10.0.0.123
URL
Gateway Settings
Device Settings
Touch Screen LAN Configuration
0.0.0.0
Alternate URL 0.0.0.0
Alias Velocity Touch Panel 800
SAVE
FACTORYRESET
CLEAR CACHE
SCAN NETWORK
CANCEL
SET PIN
ADVANCED SETTINGS
Set Static IP
IP Address
Subnet Mask
Default Gateway
DNS Server 75.75.75.75
10.0.0.1
255.255.255.0
10.0.0.123
URL
Gateway Settings
Device Settings
Touch Screen LAN Configuration
0.0.0.0
Alternate URL 0.0.0.0
Alias Velocity Touch Panel 800
SAVE
FACTORYRESET
CLEAR CACHE
SCAN NETWORK
CANCEL
SET PIN
Cache has been successfully cleared. Press
OK to restart.
OK
ADVANCED SETTINGS
Set Static IP
IP Address
Subnet Mask
Default Gateway
DNS Server 75.75.75.75
10.0.0.1
255.255.255.0
10.0.0.123
URL
Gateway Settings
Device Settings
Touch Screen LAN Configuration
0.0.0.0
Alternate URL 0.0.0.0
Alias Velocity Touch Panel 800
SAVE
FACTORYRESET
CLEAR CACHE
SCAN NETWORK
CANCEL
SET PIN
Changing advanced settings requires application restart.
OK

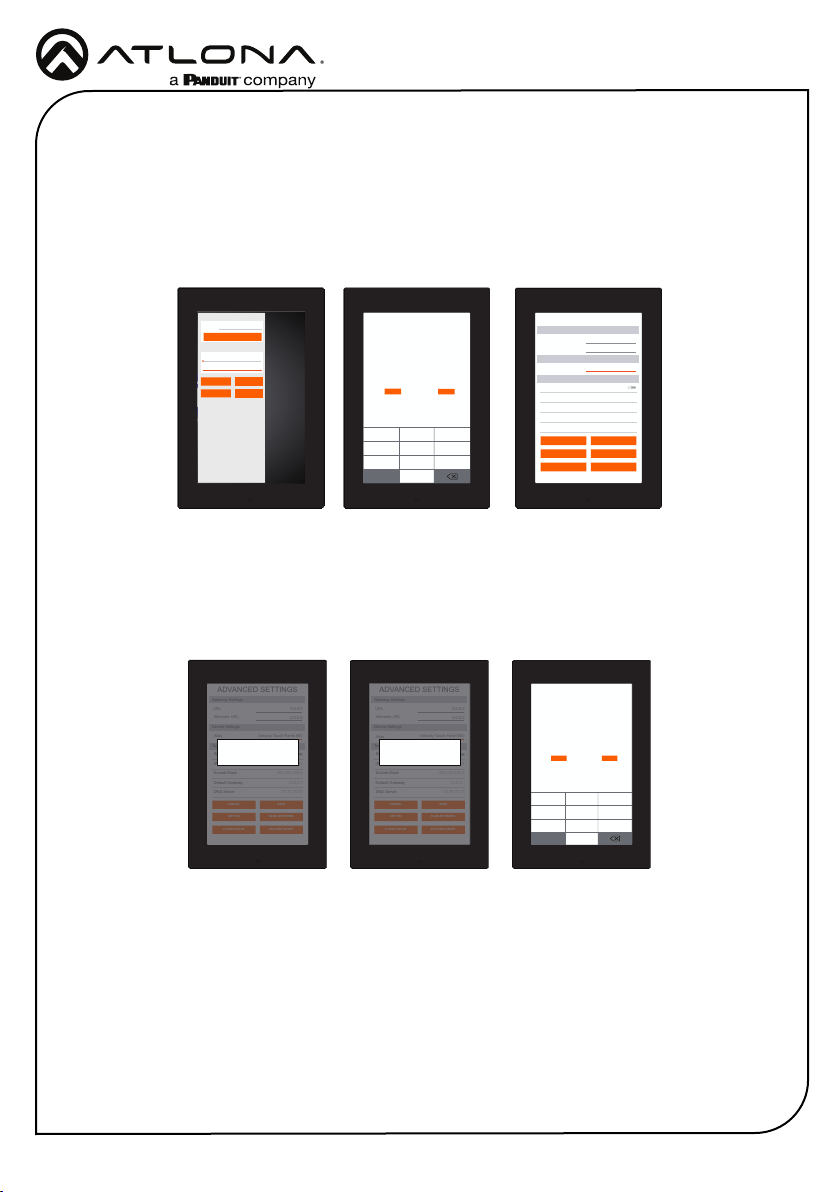

Within the advanced settings, all the touch pad settings can be changed or reset.
Gateway Settings -
a If the gateway IP is known, it can be typed into the URL eld.
b If the gateway IP is unknown, press the Scan Network button to search for and add
the gateway.
Device Settings - The touch pad can be renamed for easier syncing with Velocity. Type the
name into the Alias eld.
Touch Screen LAN Conguration - The current IP settings will display in these elds. To
switch to a static IP, select the Set Static IP slider, ll in the IP information, and press Save.
Set PIN - The default PIN of 554361 can be changed to a new pin by pressing the Set PIN
button. Type the new PIN in and press Save PIN.
Clear Cache - Press the Clear Cache button to release the current cache of the VTP. Press
the OK button to verify.
Factory Reset - Press the Factory Reset button to clear all the settings and start the touch
pad set up again. Press the OK button to verify.
Advanced Settings
Once the touch pad has been set up, the settings can be changed or reset only through the
advanced settings.
1 To access the settings, swipe from the left side of the touch pad to the right.

Installation Guide
AT-VTP-800
8
Firmware Updating
URL
GATEWAY SETTINGS
TOUCH SCREEN SETTINGS
System Volume
Screen Brightness
0.0.0.0
REFRESH PAGE
CLEAN SCREEN CLOSE
ABOUT VELOCITY ADVANCED SETUP
The touch panel can be updated from within its settings menu. To update, the panel must be
connected to a network with internet access.
1 Swipe from the left side of the touch pad to the right to open the gateway settings menu.
2 Select the ABOUT VELOCITY button. A new screen will take over.
3 Select the CHECK FOR UPDATES button. A pop up will appear if there is an update.
4 Press the YES on the touch screen for the unit to download and install the rmware.
About Velocity
Device IP Address 10.X.X.XXX
Version Info
Current Version X.X.X
CHECK FOR UPDATES
BACK
About Velocity
Device IP Address 10.X.X.XXX
Version Info
Current Version X.X.X
CHECK FOR UPDATES
BACK
Do you want to install the latest OS image on
this device?
NO YES
About Velocity
Device IP Address 10.X.X.XXX
Version Info
Current Version X.X.X
CHECK FOR UPDATES
BACK
Downloading image file from server to update
OS image.
About Velocity
Device IP Address 10.X.X.XXX
Version Info
Current Version X.X.X
CHECK FOR UPDATES
BACK
Installing system update... Loading...
When the installation starts, it will switch to an Android update screen. Once completed it will
restart the touch panel. The splash screen will appear, before the loading screen takes over. The
update is complete when it returns to the control screen. This process can take up to 5 minutes
to complete.

Installation Guide
AT-VTP-800
9
Manual Firmware Updating
The AT-VTP uses a .tar.gz rmware that can be downloaded from the rmware section of https://
atlona.com/product/vtp-800/. Once downloaded follow these instructions to update the rmware.
1 Locate the ≡in the top left corner of the home page and left click to open the menu.
2 Select Settings from the menu. New options will appear.
3 Select Gateway.
4. Click on the eld to browse the local computer for the rmware le, or drag
and drop the rmware into the VTP Image Update eld.
Firmware upgrading will start automatically.
When the rmware upgrade is successfully completed, a pop up window will appear. It will close
a few seconds later.
NOTE: Update les will be tar.gz le
extensions. These are compressed
les and should not be extracted
before upload.
NOTE: When downloading the rmware le on a MAC, ensure that the le is not being
auto-extracted. The option to turn o auto-extraction will be found within the browser
settings.
