Pansat T-100 User manual

ⓒ2009 by Panarex Electronics
T-1000
HIGH-DEFINITION DIGITAL
TERRESTRIAL & CABLE RECEIVER
Panarex Electronics
Sun Valley, California, U.S.A.

ⓒ2009 by Panarex Electronics 1
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
RISK OF ELECTRONIC SHORK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRONIC SHORK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PART INSIDE.
REFER SERVICE TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of un-insulated “dangerous
voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk electric shock.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operation and servicing instruction
in the literature accompanying the appliance.
WARNING
TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTION
CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE
MANUFACTURER COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
NOTE TO CATV SYSTEM INSTALLER
THIS REMINDER IS APROVED TO CALL THE CATV SYSTEM INSTALLER’S
ATTENTION TO ARTICLE 820-40 OF THE NEC THAT PROVIDES GUIDELINES FOR
PROPER GROUNDING AND, IN PARTICULAR, SPECIFIES THAT THE CABLE
GROUND SHALL BE CONNECTED TO THE GROUNDING SYSTEM OF THE BUILDING,
AS CLOSED TO THE POINT OF CABLE ENTRY AS PRACTICAL.
CAUTION
The AC power cord provided with this product is polarized (one blade wider than the
other).
To prevent electrical shock, match wide blade of plug to wide slot, fully insert the AC plug
into a standard 120V~, 60Hz polarized outlet.

ⓒ2009 by Panarex Electronics
2
NOTE
Never connect the plug to an electrical source other than one providing 120V~, 60Hz
power. Use only the attached power cord. If the polarized AC cord does not fit into a non-
polarized outlet, do not cut or file the blade. You are responsible for having the obsolete
outlet replaced with a polarized outlet.
If you feel a static discharge when touching the unit, and the unit does not function, simply
unplug the unit from the outlet. When you plug the unit back in, it should work normally.
Do not install power cords near any heating element or cooking appliances.
Important Safeguards
IMPORTANT SAFEGUARDS
PLEASE REAL ALL THESE INSTRUCTIONS REGARDING YOUR RECEIVER
EQUIPMENT AND RETAIN FOR FUTURE REFERENCE. FOLLOW ALL WARNINGS
AND INSTRUCTIONS MARKED ON THE TV RECEIVER.
1 Read all of these instructions.
2 Save these instructions for later use.
3 Unplug this Receiver equipment from the wall outlet before cleaning. Do not use
liquid cleansers or aerosol cleanser. Use a damp cloth for cleaning.
4 Do not use attachments not recommended by the Receiver equipment manufacturer
as they may result in the risk of fire, electric shock or other personal injury.
5 Do not use this Receiver equipment near water, for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool,
or the like.
6 Do not place this Receiver equipment on an unstable cart, stand, or table. The
Receiver equipment may fall. Causing serious injury to a child or adult, and serious
damage to the equipment. Use only with a cart or stand recommended by
manufacturer, or sold with the Receiver equipment. Wall or shelf mounting should
follow the manufacturer’s instructions, and should use a mounting kit approved by the
manufacturer.
6A An appliance and cart combination should be moved
with care. Quick stop, excessive force, and uneven
surface may cause the appliance and cart combination
to overturn.
7 Slot and openings in the cabinet and the back or bottom
are provided for ventilation and to ensure reliable
operation of the Receiver equipment; and to protect if
from overheating, these opening, must not be blocked
by placing the Receiver equipment on a bed, sofa, rug,
or other similar surface. (This equipment should never be placed near or over a
radiator or heat register) This Receiver equipment should not be placed in a built-in
installation, such as a bookcase, unless proper ventilation is provided.
8 This Receiver equipment should be operated only from the type of power source
indicated on the marking label. If your are not sure og the type of power supplied to
your home, consult your Receiver dealer or local power company.
9 This Receiver equipment is equipped with a polarized alternation current line plug (a

ⓒ2009 by Panarex Electronics 3
plug having one blade wider than the other). This plug will fit into a power outlet only
one way. This is a safety feature. If you are unable to insert the plug fully into the
outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician
to replace your obsolete outlet. Do not defeat the safety purpose of the polarized
plug.
10 Do not allow anything to rest on the power cord. Do not locate this Receiver
equipment where the cord will be abused by persons walking on it.
11 Follow all warnings and instructions marked on the Receiver equipment.
12 For added protection for this Receiver equipment during the lightning storm, or when
it is left unattended and unused for long period of time, unplug it from the wall outlet
and disconnect the antenna or cable system. This will prevent damage to the
equipment due to lightning and power-line surges. Important Safeguards.
13 An outside antenna system should not be located in the vicinity of overhead power
lines or other electric light or power circuit, or where it can fail into such power lines
or circuit. When installing an outside antenna system, extreme care should be taken
to keep from touching such power lines or circuit, as contact with them might be fatal.
14 Do not overload wall outlets and extension cords, as this can result in fire or electric
shock.
15 Never push objects of any kind into this Receiver equipment through openings, as
they may touch dangerous voltage points or short-out parts that could result in fire or
electric shock. Never spill liquid of any kind on the Receiver equipment.
16 Do not attempt to service this Receiver equipment yourself, as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
17 Unplug this Receiver equipment form the wall outlet and refer servicing to qualified
service personnel under the following conditions :
(a) When the power-supply cord or plug is damaged or frayed.
(b) If liquid has been spilled, or objects have fallen into the Receiver equipment.
(c) If the Receiver equipment has been exposed rain or water.
(d) If the Receiver equipment does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating
instructions as an improper adjustment of other controls may result in damage
and will often require extensive work by qualified technician to restore the TV
receiver to its normal operation.
(e) If the Receiver equipment has been dropped or the cabinet has been damaged.
(f) When the Receiver equipment exhibits a distinct change in performance – this
indicate a need for service.
18 When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer that have the same characteristics
as the original part. Unauthorized substitutions may result in fire, electric shock or
other hazards.
19 Upon completion of any service or repair to this Receiver equipment, ask the service
technician to perform safety checks to determine that the Receiver is in a safe
operating condition.

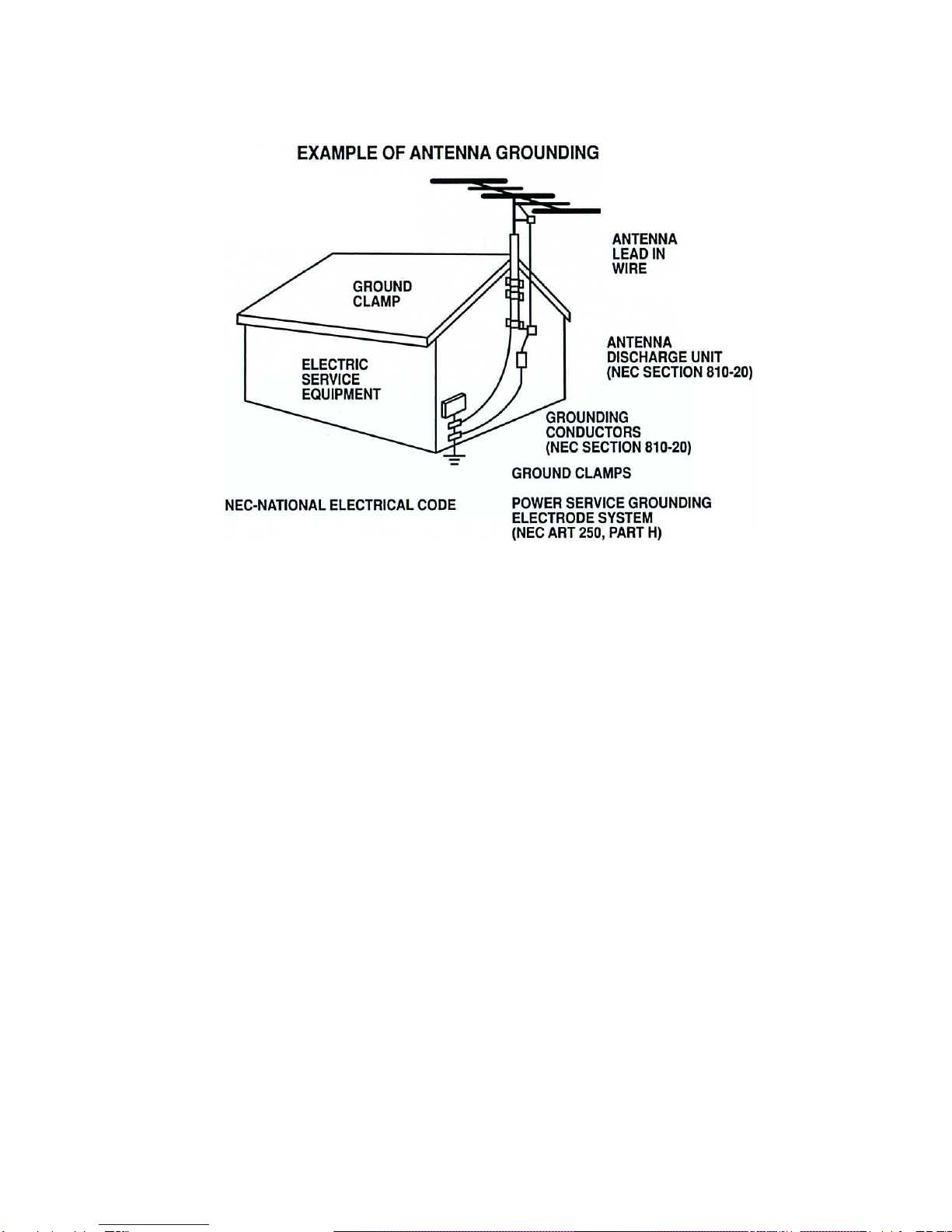

20 If an outside antenna or cable system is connected to the Receiver, be sure the
antenna or cable system is grounded so as to provided some protection against
voltage surges and built-up static charges. Section 810 of the National Electrical
Code, ANSI/NFPA NO.70-1984, provides information with respect to proper
grounding of the mast and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, connection to grounding electrodes, and requirements for the
grounding electrode.

ⓒ2009 by Panarex Electronics
4

ⓒ2009 by Panarex Electronics 5
FCC RF
INTERFERENCE STATEMENT
NOTE :
This equipment has been tested and found to comply with the limit for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference will
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures.
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and the receiver.
-Connect the equipment into an outlet circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio, TV technician for help.
-Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly approved
by the guarantee or manufacturer could void the users authority to operate such
equipment.

ⓒ2009 by Panarex Electronics
6
PREFACE
I. OVERVIEW
1. WHAT IS THIS PRODUCT FOR?
2. WHAT FEATURE DOES THIS PRODUCT OFFER?
3. FOR YOUR SAFETY
4. PLEASE CHECK THE FOLLOWING ACCRSSORIES ARE ENCLOSED
5. HOW TO USE THE REMOTE CONTROL KEY

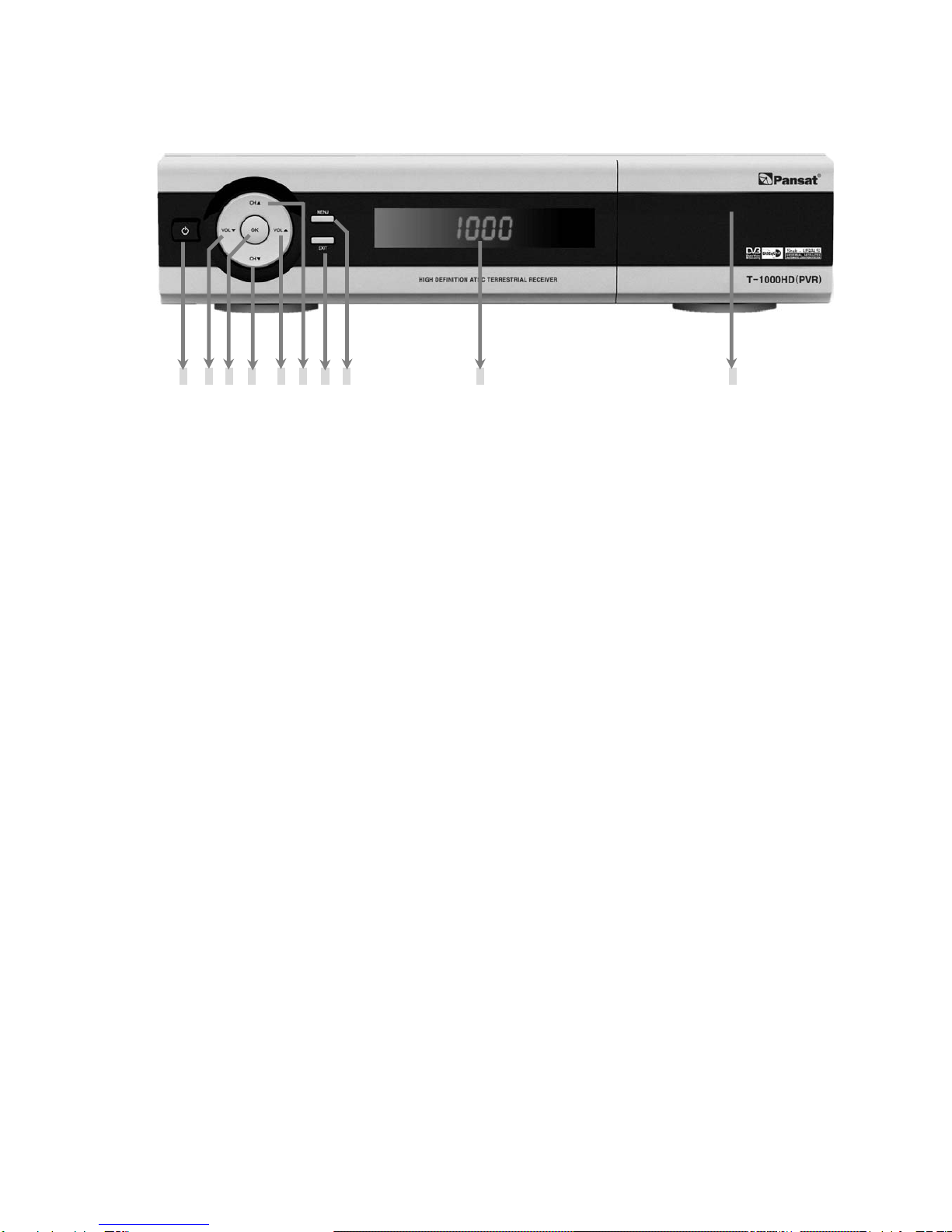

6. FRONT PANEL

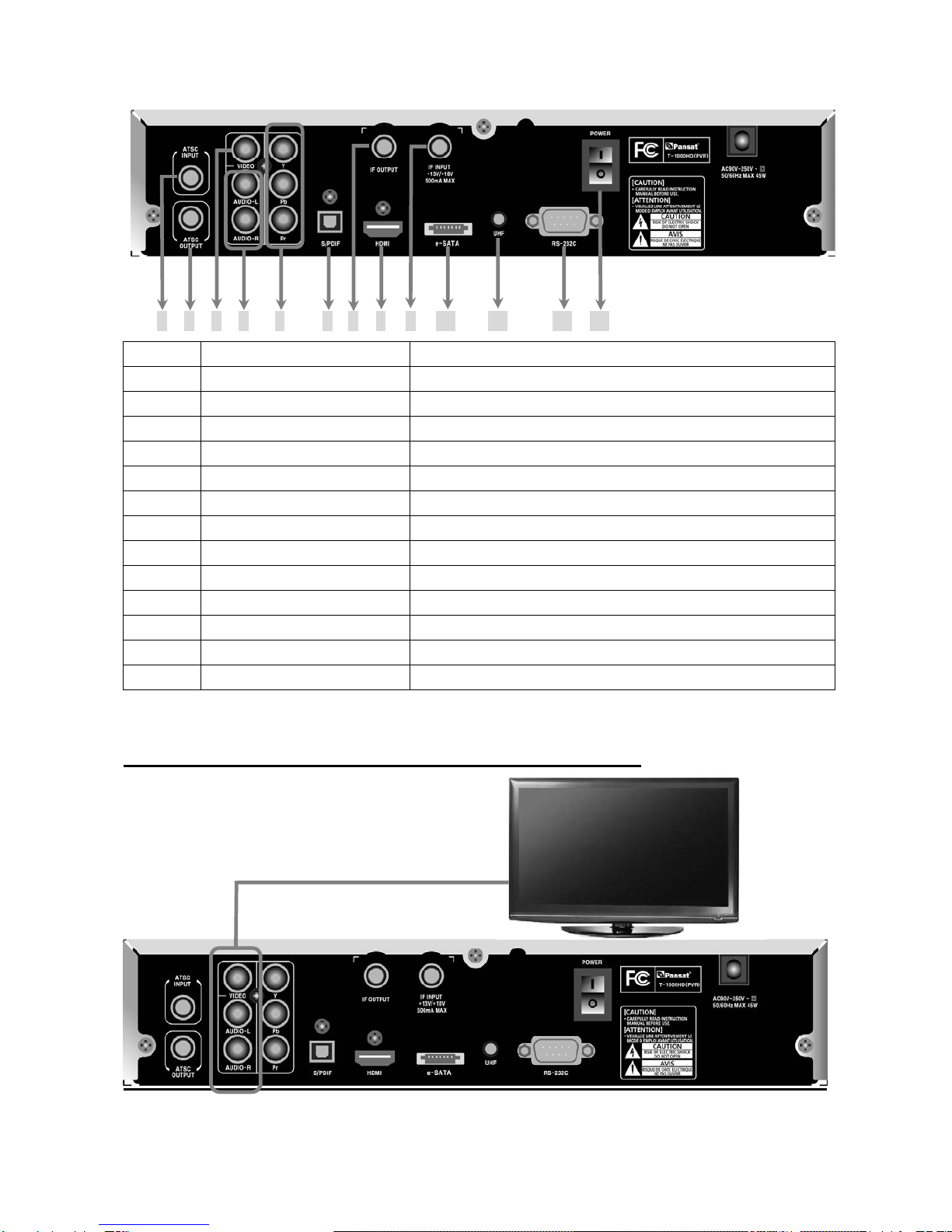

7. REAR PANEL
8. CONNECTION DIAGRAM
II. OPERATING

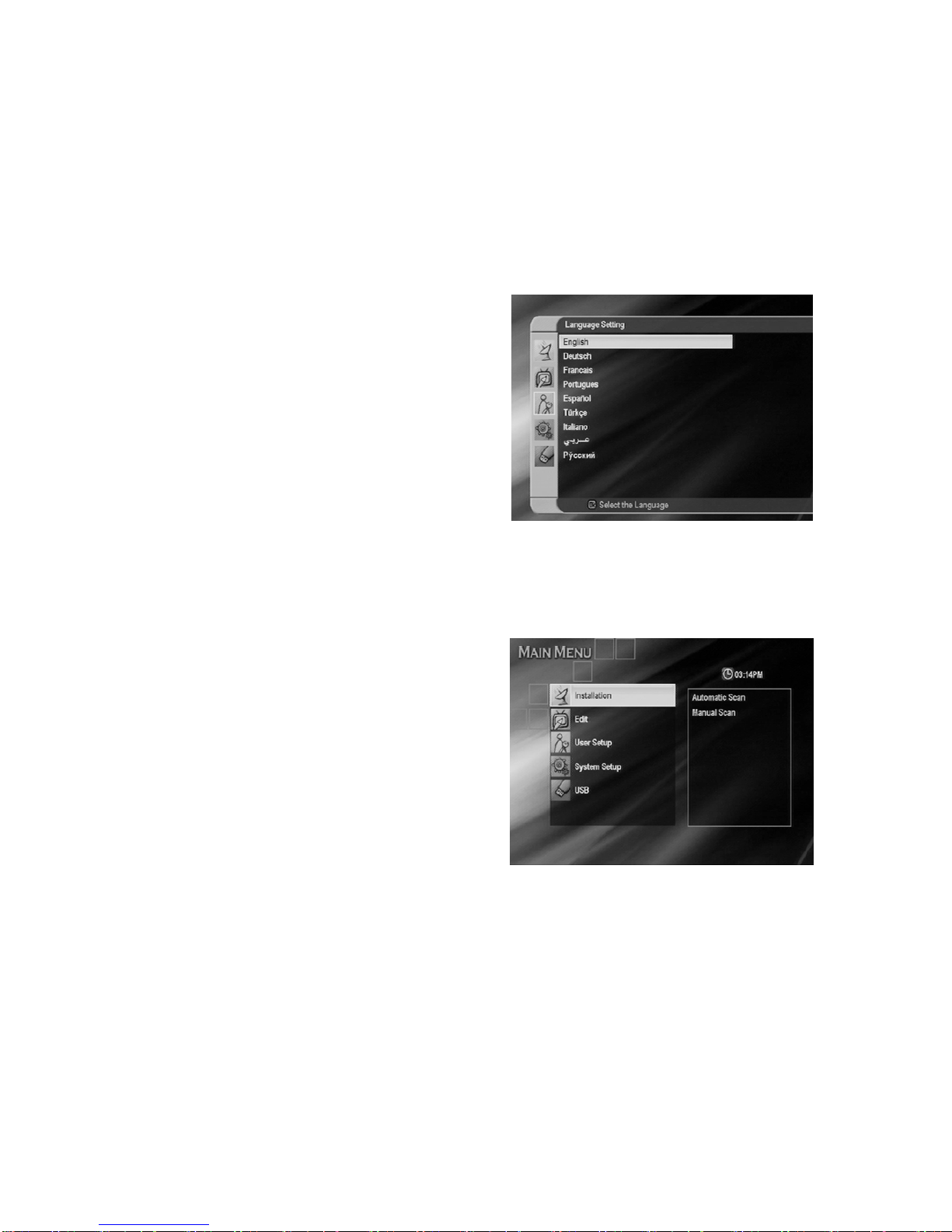

1. START UP
2. INSTALLATION

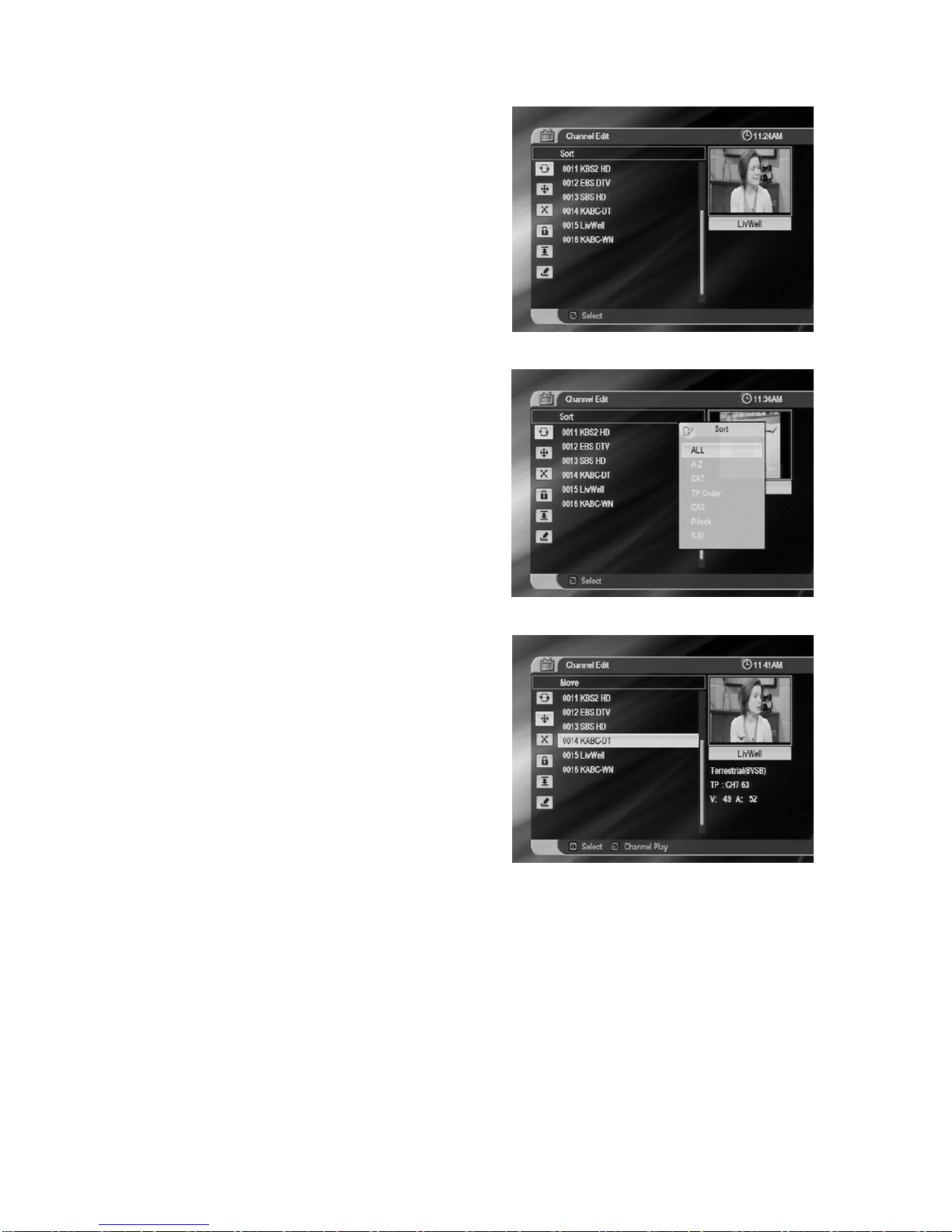

3. EDIT CHANNEL

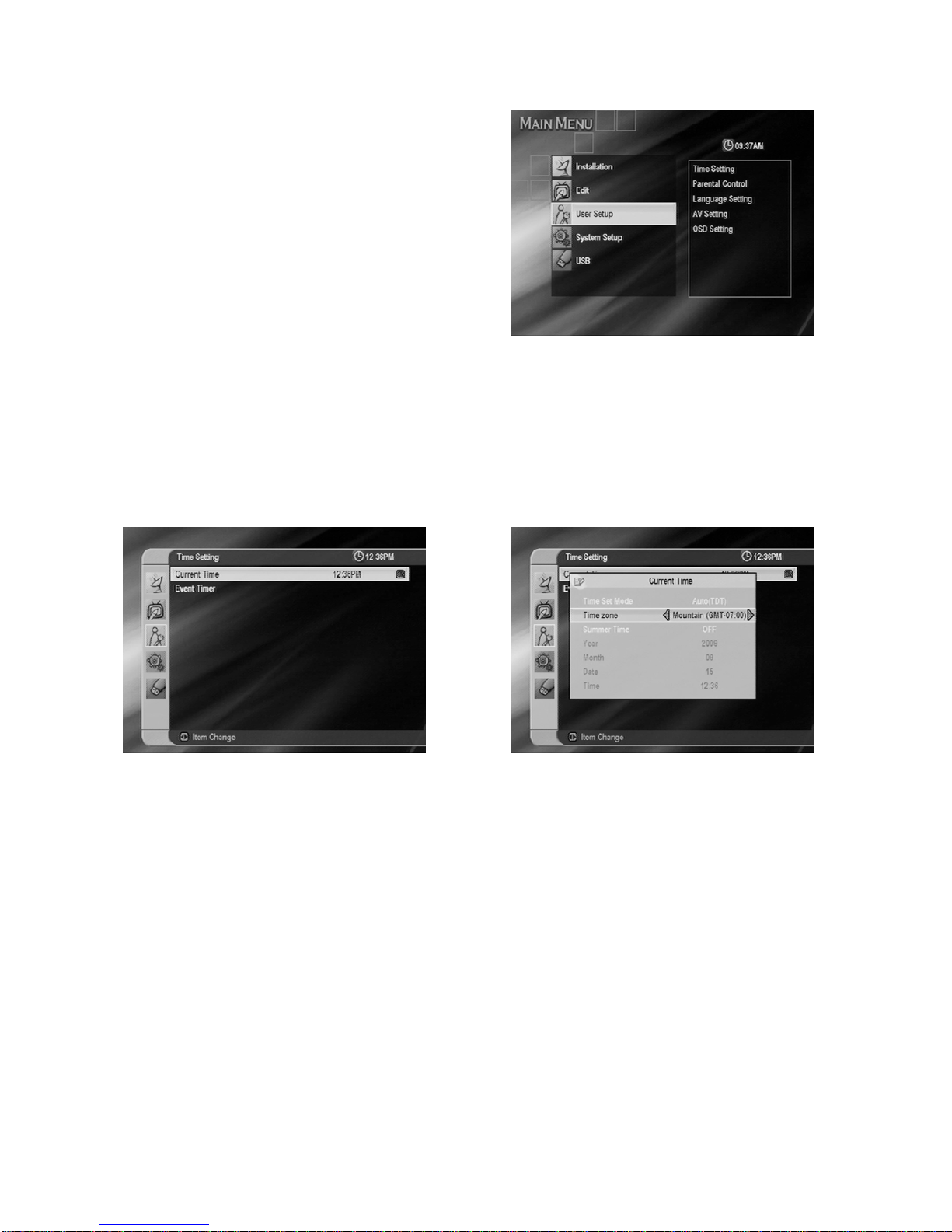

4. USER SETUP
5. SYSTEM TOOLS
6. GAME
7. USB
8. CHANNEL LIST
9. PROGRAM GUIDE
10. AUDIO CHANGE
11. MULTI PICTURES
12. RECALL THE FAVORITE CHANNEL
III. Optional Items
1. UHF REMOTE CONTROL KIT
2. UNIVERSAL III REMOTE CONTROL
3. S2 KIT
IV. SPECIFICATION
V. TROUBLE SHOOTING

ⓒ2009 by Panarex Electronics 7
I. OVERVIEW
1. WHAT IS THIS PRODUCT FOR?
This product is designed for using Digital Terrestrial & Cable and allows you to enjoy a lot
of broadcasting whenever you want to watch it anytime. By simply pressing the button of
the remote control unit, the vivid picture and life –like sound of digital broadcasting that
your TV portrays through this product, allows you to watch whatever channel you wish of
the digital broadcasting.
Through this manual you will notice that the operation is easy to use.
This manual will help you get the most from this product and guide you through Installation,
channel selection and many other functions.
In case you experience any difficulties to use this product, please consult the relevant
section of this manual.
From now on, enjoy digital broadcasting with digital terrestrial & cable receiver!!!
2. WHAT FEATURE DOES THIS PRODUCT OFFER?
2.1 General Features
▪ATSC High Definition (Single MP@HL,MPEG-1,MPEG-2)
▪USB 2.0 Host 2 Interface - Firmware Update
▪Support EPG (Electronic Program Guide)
▪High Definition Video Output : HDMI and Component(Y, Pb, Pr)
▪Audio decoding : MPEG-1, MPEG-2, MUSICAM, Dolby AC-3
▪54 ~ 866(VHF low, VHF high, UHF band) MHz input Frequency (IF Loop throughout)
▪Variable Input Symbol Rate (1~90Msps)
▪Multi Language OSD
▪User selectable video output resolution (480p, 720p, 1080i)
▪Fast Channel Change & Scan
▪1,000 Channels TV & Radio Program
▪Timer setting supports automatic Turn-ON & Recording
▪Digital S/PDIF (Digital Audio or Dolby AC3 Stream out)
▪External SATA HDD PVR (Format function, Recording, Playback)
▪Software Upgrade via USB Memory Stick or RS232C (Receiver to Receiver, PC to
Receiver)
▪PIG (Picture In Graphic), Multi-Picture, Zoom function
▪5 Favorite List & 100 programs per each
▪Powerful Channel Editing Function (Favorite, Move, Find, Sort, Delete, Skip, Lock, Edit)
▪Support Diseq Smart Antena(EIA/CEA-909 standard interface)
▪IR RCU (Remote Control Unit)
▪UHF- Ready (U-50 Kit Optional)
▪DVB-S2 Ready (S2 Tuner Kit optional)
3. FOR YOUR SAFETY
▪Do not open the cover. It may cause malfunction or electric shock.
▪When you do not use the product for a long time, please pull the power cord out from
the outlet.
Also do not use a damaged power cord that may cause fire or electric shock.
▪Do not use install the product in a humid area.
▪Do not cover the product or place anything heavy on the product, Keep clear space
around the product for sufficient ventilation.
▪Avoid using spray or liquid materials around the product. Don’t make other materials

ⓒ2009 by Panarex Electronics
8
come into the inside the product.
▪Do not connect to modify cables when the product is plugged in.
▪Socket-outlet shall be installed near the equipment and shall be easily accessible.
▪Apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases
shall be placed on the apparatus.
4. PLEASE CHECK THE FOLLOWING ACCRSSORIES ARE
ENCLOSED
▪User manual 1 set
▪Remote Control Unit 1 Set
▪Batteries (AAA Type) 2EA
▪A/V Cable
Note !
If any of the accessories listed above are missing, Please contact the sales outlet
where this product was initially purchased.

ⓒ2009 by Panarex Electronics 9
5. HOW TO USE THE REMOTE CONTROL KEY
Key Function
Turns the equipment on/off
Sounds Off/On
TV/RAD Toggles between TV and Radio operation
SIG Shows signal / quality level
TIME Shows current Time
PAUSE Holds the picture or release the pause
AUDIO Selects audio mode
(mono / Stereo, left only and right only).
FAV Enter favorite program or Exit from Favorite
Program
INFO Shows channel information, such as channel
number, channel name, Frequency, Polarity,
Symbol Rate, Video PID, Audio PID and PCR PID
EPG Shows program information
LAST Returns to previous program
MENU Enters main menu screen. Or exits menu screen
Execute page down function in the menu
Execute page up function in the menu
EXIT Moves to upper menu
Channel up/down
Moves the cursor upward/downward in the menu
screen
OK Shows Channel list. Confirms selection
Volume down/up
Change the value of a selected line
Changes channel directly.
Controls the numerical operation.
Input the alphabet in the name edit screen
HDD Enter Hard Disk (Record) menu
SAT Enter programmed satellite list

ⓒ2009 by Panarex Electronics
10
6. FRONT PANEL
1 23 4 2 4 5 6 7 8
1 POWER
To put power in and out of standby mode
2 VOLUME
To make volume up and down.
Moves the cursor upward/downward in the menu screen
3 OK
To confirms selection, To show Channel List
4 CHANNEL
To move up and down in the menus, To change channels
5 EXIT
To move to upper menu
6 MENU
To enter main menu screen
7 DISPLAY
To show channel number, error messages, remote control commands
and time in standby mode
8 USB
USB port (When you open the front door, you an see USB port).

ⓒ2009 by Panarex Electronics 11
7. REAR PANEL
1 2 3 4 5 6 7 9 8 10 11 12 13
NO NAME FUNCTION
1 ATSC INPUT ATSC / Cable signal input
2 ATSC OUTPUT Loop-through signal output
3 VIDEO Composite Video Output
4 AUDIO-L/R Left/Right Audio Output
5 YPbPr Component video output
6 S/PDIF For digital audio output
7 IF INPUT IF INPUT from LNB to receiver (Satellite option)
8 IF OUTPUT IF Loop-through output (Satellite option)
9 HDMI HDMI Audio/video output
10 e-SATA External SATA HDD interface
11 UHF UHF Remote Control kit (UHF RCU option)
12 RS 232 Connect Serial Port
13 AC SWITCH AC Power ON/OFF (Reset Function)
8. CONNECTION DIAGRAM
Connecting to TV using CVBS(Composite Video) port
Connect Receiver’s CVBS output and Audio L/R output to TV

ⓒ2009 by Panarex Electronics
12
Connecting to digital TV using YPbPr port OR HDMI port.
Connect Receiver’s YPbPr output and Audio L/R output to a YPbPr in and Audio L/R in of
TV or connect Receiver’s HDMI port to HDMI port of TV.
Please refer TV’s user manual for detailed YPbPr and/or HDMI connection method.
Connecting TV to A/V receiver (Dolby digital amplifier)
Connect Receiver’s optical audio output port to A/V receiver.

ⓒ2009 by Panarex Electronics 13
II. OPERATING
1. Start Up
Please follow the brief procedure below and watch the satellite programs.
1) Select the User Setup and confirm Language
2) Select the Installation for terrestrial or cable
3) Execute scanning to find program
4) Exit from installation after all programs are searched.
1.1 Language
When the receiver is turned on for the first time,
main menu is appeared as below photo.
You can find desired menu by using◀▶▲▼
key and select desired menu by press [OK] key.
Select the user setup and press [OK] or ▶to
enter Language menu as below photo and can
select the desired language by using ◀▶or
[OK] key to confirm it.
* This Receiver supports 10 languages.
English, French, German, Italian, Spanish, Portuguese, Russian, Turkish, Polish and
Arabic
2. Installation
Press the [OK] or ▶key to enter Installation
menu as below photo and use common
password “0000”. Parental control and
channel edit are not accessible until channel
scanned and saved.

ⓒ2009 by Panarex Electronics
14
2.1 Automatic Scan
Select a specific media by using keys◀▶
between Terrestrial or Cable.
Select frequency range by using keys◀▶ .
Press [OK] to start scan procedure in the ‘Start
Scan’
2.2 Manual Scan
Select a specific media by using keys◀▶
between Terrestrial or Cable.
Select frequency range by using keys◀▶ .
Press [OK] to start scan procedure in the ‘Start
Scan’
3. Channel Edit
Press the [OK] or ▶key to enter Edit Channel
menu and press▲▼ key to select menu items
and press ◀key or [Exit] key to go back to
main menu.

ⓒ2009 by Panarex Electronic 15
3.1 Channel Edit window
You can move highlight by press▲▼ key and
press [OK] key to implement between Sort,
Move, Delete, P-Lock, Skip, Rename.
You can press [Menu] or [Exit] keys to go back
to “Edit Channel” menu.
3.2 Edit – Sort
Press [OK] key can open the “Sort” window.
There are seven kinds of sorting ways. You can
press ▲▼ key to move highlight and press
[OK] key to confirm your selection.
3.3 Edit – Move
Press [OK] key to enter the “Move” window.
Press ◀▶key to toggle a mark. There will
show a “moving mark” of the selected channel.
You can move the selected channel to the
position that you want to place by press▲▼
key And press ◀▶key to confirm your
decision.

ⓒ2009 by Panarex Electronics
16
3.4 Edit – Delete
Press [OK] key, then press ▲▼ key to select delete method and press [OK] key.
Press ◀▶key to make a mark.
Press [OK] to delete and press [OK] key again to confirm delete in the “Press OK to save
or EXIT ”information window.
3.5 Edit – P-Lock
Press [OK] key can enter lock mode and press
▲▼ key to move the highlight and press [◀▶]
key to toggle parental lock or un-lock.
3.6 Edit – Skip
Press [OK] key can enter skip mode and press
▲▼ key to move the highlight and press [◀▶]
key to toggle skip mark.

ⓒ2009 by Panarex Electronics 17
3.7 Edit – Rename
Press [OK] key can enter rename mode and press ▲▼ key to move the highlight and
press ◀▶key to enter keyboard type window. After edit name move to place of [OK]
and press [OK] key.
3.8 Favorite Edit
You can change destination favorite 1 ~ 5 by using [FAV] key.
Press ▲▼ to highlight channel to save specific FAV and press [OK] to toggle register
channel.
Press [RED] key to switch right hand window where you can delete favorite channel in
the specific favorite group.

ⓒ2009 by Panarex Electronics
18
4. User Setup
In this USER SETUP mode, you can select the
sub-mode by pressing [OK] and ▲▼ key.
The changed set-up is activated and stored by
pressing [EXIT] key.
4.1 Time Setting
4.1.1 Current Time
After selecting Time mode, you can adjust the time as follows.
- Current Year : Set up by pressing numeric keys.
- Current Month / Day : Set up by pressing numeric keys.
- Current Time : Set up by pressing numeric keys.

ⓒ2009 by Panarex Electronics 19
4.1.2 Timer List
After selecting timer, you can see timer list and adjust the time as follows.
- Time zone
- summer time
- Timer mode : Once, Daily
- Wakeup time : Set up by pressing numeric keys
- Sleep Time : Set up by pressing numeric keys
4.2 Parental Control
After selecting parental control and entering the correct password, the screen appears.
The default password at the factory is “0-0-0-0”. You may change the PIN code, which is
your password in other word, and lock the receiver to prevent children from watching
programs.
4.2.1 Installation Password
You can set the function of parental control by
pressing ◀▶keys as “ON” or “OFF”.
4.2.2 Rating
You can set an age limit (All, 12, 15, 18)
