LARGE WHEEL NURSERY
PUSH CART
MODEL H3034
INSTRUCTION SHEET
COPYRIGHT © JUNE, 2004 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#CA6393 PRINTED IN CHINA

PARTS INVENTORY
The Model H3034 was carefully packed when
it left our warehouse. If you discover this cart
is damaged after you have signed for delivery,
please immediately call Customer Service at
[phone] for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the condi-
tion of your shipment, you should inventory the
contents.

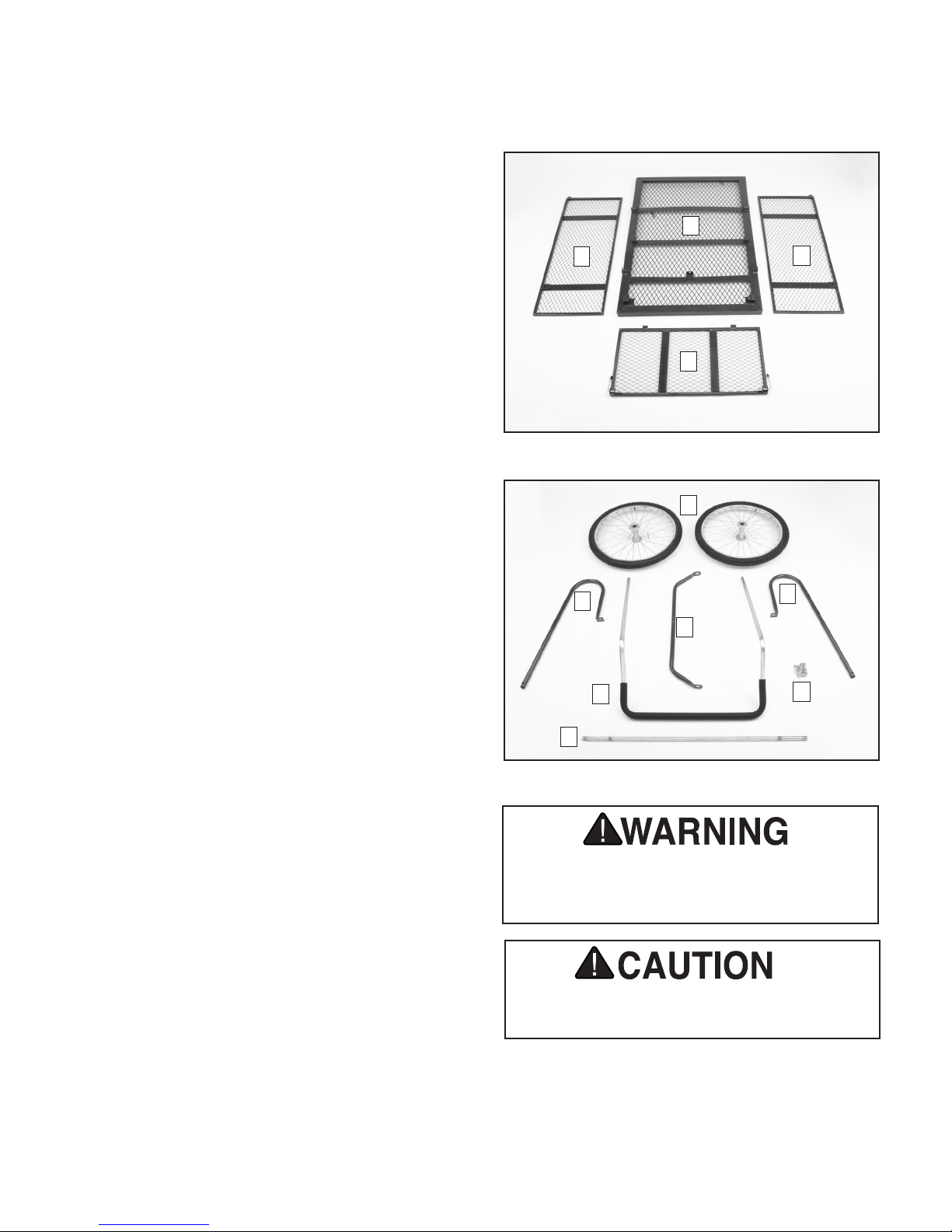

Figure 1 - Frame Components.
A. Base ........................................................... 1
B. Right Fence ................................................ 1
C. Left Fence .................................................. 1
D. Tailgate ....................................................... 1
Figure 2 - More Components
A. Wheels ....................................................... 2
B. Legs ............................................................ 2
C. Support Bar ................................................ 1
D. Handle ........................................................ 1
E. Axle ............................................................ 1
F. Bolt Bag ...................................................... 1
—Flat Washers 20mm ............................... 2
—Cotter Pins 4mm x 42mm ....................... 2
—Hex Bolts M8-1.25 x 15 .......................... 2
—Hex Bolts M8-1.25 x 40 .......................... 9
—Hex Bolts M8-1.25 x 30 .......................... 4
—Hex Bolts M8-1.25 x 45 .......................... 2
—Lock Nuts M8-1.25 ............................... 17
—Flat Washers 8mm ............................... 17
—Slotted Screws M6-1 x 70 ...................... 2
—Lock Nuts M6 .......................................... 2
Figure 1. Frame components.
BC
D
Adult supervision is always required while
this wagon is being used by children.
Children may climb into plastic bags and
suffocate. Keep all plastic bags included in
packaging out of the reach of children.
Figure 2. More components.
A
A
BB
C
D
E
F

When assembling the Model H3034, tighten all
nuts and bolts finger tight, then, when the cart is
assembled, tighten all nuts and bolts firmly.
FENCES, HANDLES, AND LEGS
1. Bolt the fence sides to the inside of the base
using the M8-1.25 x 30 hex bolts, flat wash-
ers, lock washers, and hex nuts.
2. Install the tailgate with the hinges facing out,
using the M6-1 x 70 slotted screws and lock
nuts as shown in Figure 3.
ASSEMBLY INSTRUCTIONS
Figure 3. Tailgate hinges.
3. Bolt the legs to the base (Figure 4) using M8-
1.25 x 40 hex bolts, flat washers, and lock
nuts. Bolt them to the sides using M8-1.25 x
45 hex bolts, flat washers and lock nuts.
Figure 4. Leg and handle installation.
4. Slide the handle through the handle housing
rings and fasten with M8-1.25 x 40 hex bolts,
and lock nuts for the ends, and M8-1.25 x
16 hex bolts for the threaded housing rings
(Figure 4).
5. Place the support bar in the bracket on the
base and bolt the ends to the legs with M8-
1.25 x 40 hex bolts, flat washers and lock
nuts (Figure 4).
6. Secure the support bar in the bracket with a
M8-1.25 x 40 hex bolt, flat washer and lock
nut (Figure 4).
AXLE AND WHEELS
1. With the cart upside down, place the axle
through the axle housing on the bottom of the
base.
2. Place a wheel and a 20mm flat washer on
each axle end.
3. Insert and spread a cotter pin through each
axle.
If you need additional help with this procedure,
call our service department at: [phone].

1 PH3034001 FENCE
2 PH3034002 TAILGATE
3 PH3034003 HANDLE
4 PH3034004 TAILGATE LATCH
5 PH3034005 SUPPORT BAR
6 PH3034006 BASE
7 PH3034007 LEG
9 PH3034009 WHEEL 26 X 2.125
10 PH3034010 AXLE
11 PW13M FLAT WASHER 20MM
12 PH3034012 COTTER PIN 4MM X 42MM
13 PB03M HEX BOLT M8-1.25 X 16
14 PB15M HEX BOLT M8-1.25 X 40
15 PB26M HEX BOLT M8-1.25 X 30
16 PB118M HEX BOLT M8-1.25 X 45
17 PLN04M LOCK NUT M8-1.25
18 PW01M FLAT WASHER 8MM
19 PS90M PHLP HD SCR M6-1 X 70
20 PLN03M LOCK NUT M6-1
REF PART# DESCRIPTION REF PART# DESCRIPTION
H3034 Parts Breakdown and List
1
2
3
4
5
6
7
9
10
15, 17, 18
14, 17, 18 13
14,17,18
14 16, 17, 18
11, 12
19, 20
