NURSERY PUSH CART
MODEL H3035
INSTRUCTION SHEET
COPYRIGHT © JUNE, 2004 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#PC6395 PRINTED IN CHINA

PARTS INVENTORY
The Model H3035 was carefully packed when
it left our warehouse. If you discover this cart
is damaged after you have signed for delivery,
please immediately call Customer Service at
[phone] for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the condi-
tion of your shipment, you should inventory the
contents.
Inventory (Figure 1)
A. Axle Bracket .............................................. 1
B. Bottom Tray ................................................ 1
C. Top Tray ...................................................... 1
D. Posts ........................................................... 4
E. Axle Brace (R) ............................................ 1
F. Axle Brace (L) ............................................ 1
G. Swivel Casters ............................................ 2
H. Wheels ....................................................... 2
I. Handle ........................................................ 1
J. Bolt Bag (not shown) .................................. 1
—Hex Bolts M8-1.25 x 25 .......................... 4
—Hex Nut M8-1.25 ................................... 14
—Hex Bolts M8-1.25 x 20 .......................... 6
—Flat Washers 8mm ............................... 14
—Lock Washers 8mm .............................. 14
—Hex Bolts M8-1.25 x 40 .......................... 4
—Hex Bolts M10-1.5 x 40 ........................... 8
—Hex Bolts M10-1.5 x 25 ........................... 2
—Flat Washers 10mm .............................. 10
—Hex Nuts M10-1.5 ................................... 8
—Lock Washers 10mm ............................ 10
—Acorn Nuts M12-1.75 ............................... 2
—Flat Washers 12mm....................................2

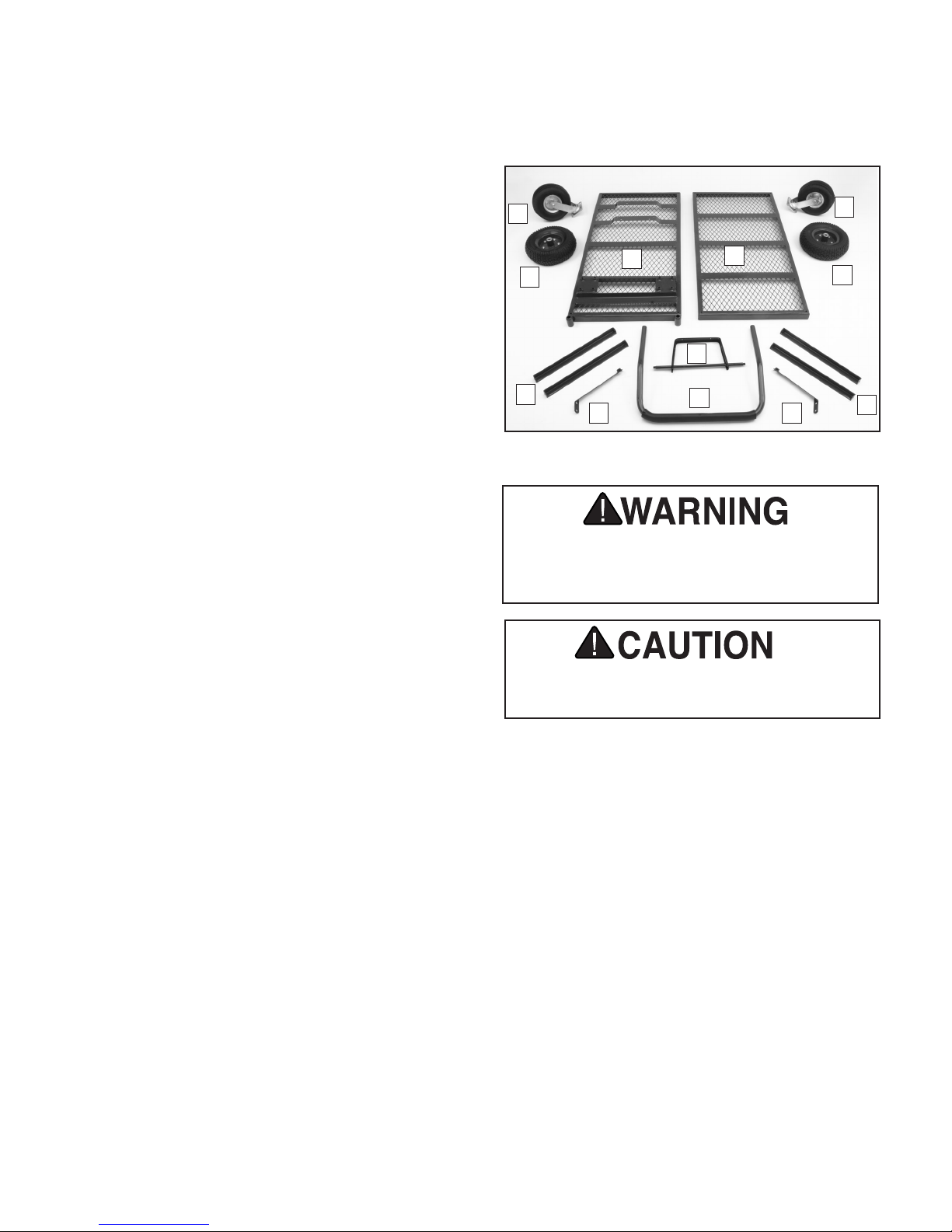

Figure 1. Main contents.
Adult supervision is always required while
this wagon is being used by children.
Children may climb into plastic bags and
suffocate. Keep all plastic bags included in
packaging out of the reach of children.
A
B
E
C
G
D
H
I
D
F
H
G

1. Attach the swivel casters to the plates on
the bottom tray with the M8-1.25 x 25 bolts,
washers, lock washers and nuts. NOTE:
Only tighten the bolts finger tight until assem-
bly is complete.
2. Attach the axle bracket to the rear cross
member with the M8-1.25 x 20 bolts, wash-
ers, lock washers and nuts.
3. Slide the right and left axle braces over the
axle and attach to the adjacent cross-mem-
ber with the M8-1.25 x 20 bolts, washers,
lock washers, and nuts.
4. Slide the wheels on the axle so the valves
are facing out. Slide on one 12mm washer
and thread an M12-1.75 on the axle to
secure the wheel.
ASSEMBLY INSTRUCTIONS
5. Turn cart on side and attach the four posts
with M8-1.25 x 40 bolts, washers, lock wash-
ers and nuts through the bottom of the tray.
6. Set the cart upright and attach the top tray
with M8-1.25 x 25 bolts, washers, lock wash-
ers an nuts.
7. Slide the handle into the guides on the lower
tray and attach the M8-1.25 x 25 bolt, washer
and lock washer into the handle through the
bottom.
8. Once all parts are assembled and aligned,
tighten all of the bolts.
If you need additional help with this procedure,
call our service department at: [phone].

H3035 Parts Breakdown and List
REF PART # DESCRIPTION
1 PH3035001 AXLE BRACKET
2 PH3035002 BOTTOM TRAY
3 PH3035003 TOP TRAY
4 PH3035004 POST
5 PH3035005 AXLE BRACE (R)
6 PH3035006 AXLE BRACE (L)
7 PH3035007 HANDLE
8 PH3035008 FIXED WHEEL 13.0 X 5
9 PH3035009 SWIVEL CASTER 4.1 X 3.5
10 PB07M HEX BOLT M8-1.25 X 25
11 PW01M FLAT WASHER 8MM
REF PART # DESCRIPTION
12 PLW04M LOCK WASHER 8MM
13 PN03M HEX NUT M8-1.25
14 PB09M HEX BOLT M8 X 1.25 X 20
15 PB126M HEX BOLT M8 X 1.25 X 38
16 PB31M HEX BOLT M10 X 1.5 X 40
17 PW04M FLAT WASHER 10MM
18 PLW06M LOCK WASHER 10MM
19 PN02M HEX NUT M10-1.5
20 PB32M HEX BOLT M10-1.5 X 25
21 PN26M ACORN NUT M12-1.75
22 PW06M FLAT WASHER 12MM






























