1
7112-A2-GN10-40 February 2000
Model 7112 T1 SNMP DSU/CSU
Startup Instructions
Document Number 7112-A2-GN10-40
February 2000
Product Documentation on the World Wide Web
We provide complete product documentation online. This lets you search the
documentation for specific topics and print only what you need, reducing the
waste of surplus printing. It also helps us maintain competitive prices for our
products.
Complete documentation for this product is available at www.paradyne.com.
Select Library →Technical Manuals →Subrate Digital Access Devices.
Select the following document:
7112-A2-GB20
Model 7112 T1 DSU/CSU, with Internal Ethernet LAN Adapter, User’s Guide
To request a paper copy of a Paradyne document:
HWithin the U.S.A., call 1-800-PARADYNE (1-800-727-2396)
HOutside the U.S.A., call 1-727-530-8623
Package Checklist
Verify that your package contains the following in addition to the startup
instructions:
-A Model 7112 T1 DSU/CSU
-Wall-mount ac adapter
-One RJ48C unkeyed modular cable for T1 network
-One 8-position unkeyed modular cable for Ethernet LAN access

2 7112-A2-GN10-40
February 2000
Cables You May Need to Order
If connecting . . . Order a . . .
A VT100-compatible terminal
to the Terminal port Standard straight-through EIA-232 cable with DB25 plug connectors on both ends.
A PC to the Terminal port Standard straight-through EIA-232 cable with a DB25
plug connector on one end and a DB9 socket
connector on the other end.
An External Modem to the
Terminal port Standard crossover EIA-232 cable with DB25 plug connectors on both ends.
A DTE with a V.35 connector
to the DTE port Standard straight-through V.35 cable with an MS34 plug connector on one end and an MS34 socket
connector on the other end.
A DCE with a V.35 connector
to the DTE port Standard V.35 crossover cable with MS34 plug connectors on both ends.
Contact your sales or service representative to order these cables. For cable
details, refer to Cables and Pin Assignments, Appendix E, in the User’s Guide.
Before Installation
Before installation, read the Important Safety Instructions on page 11.
Make sure you have:
-A dedicated, grounded ac outlet within 6 feet of the unit that is protected by a
circuit breaker.
-A clean, well-lit, and ventilated site that is free from environmental extremes.
-Sufficient clearance for cable connections.
-An operable network connection.
-A VT100-compatible ASCII terminal or PC.
-If desired, an operable Ethernet LAN connection for access to your Network
Management System (NMS).
-If desired, an external modem and serial crossover cable.

3
7112-A2-GN10-40 February 2000
Installing the DSU/CSU
00-15310-02
RJ48C
Jack
NETWORK
TERMINAL
POWER
D
T
E
DTE
10BaseT
Connection
Terminal
Connection
Power
Connection
Network
Connection
DTE
Connection
10BaseT
NMS
NOTE:
The 10BaseT and network connectors are not keyed. Follow the installation
procedures carefully to avoid connection errors.
"Procedure
To install the DSU/CSU:
1. Plug the 8-pin connector on the RJ48C network cable into the NETWORK
connector on the DSU/CSU.
2. Plug the other end of the RJ48C network cable into the RJ48C modular jack.
3. Plug one end of the 34-pin V.35 cable into the DTE port of the DSU/CSU.
4. Plug the other end of the V.35 cable into the DTE.
5. Insert one unkeyed 8-pin connector on the Ethernet cable into the 10BaseT
port.
6. Insert the other end of the cable into the Ethernet interface of the LAN where
your NMS resides.
7. Plug the 25-pin end of an EIA-232 cable into the TERMINAL port of the
DSU/CSU.

4 7112-A2-GN10-40
February 2000
8. Plug the other end of the EIA-232 cable into either a VT100-compatible
terminal or PC.
9. Plug the end of the ac adapter into the POWER jack on the DSU/CSU.
10. Plug the ac adapter in an ac outlet.
11. Press Enter on the keyboard to display the Main Menu.
Using an External Modem
"Procedure
To connect an external modem instead of an asynchronous terminal or PC:

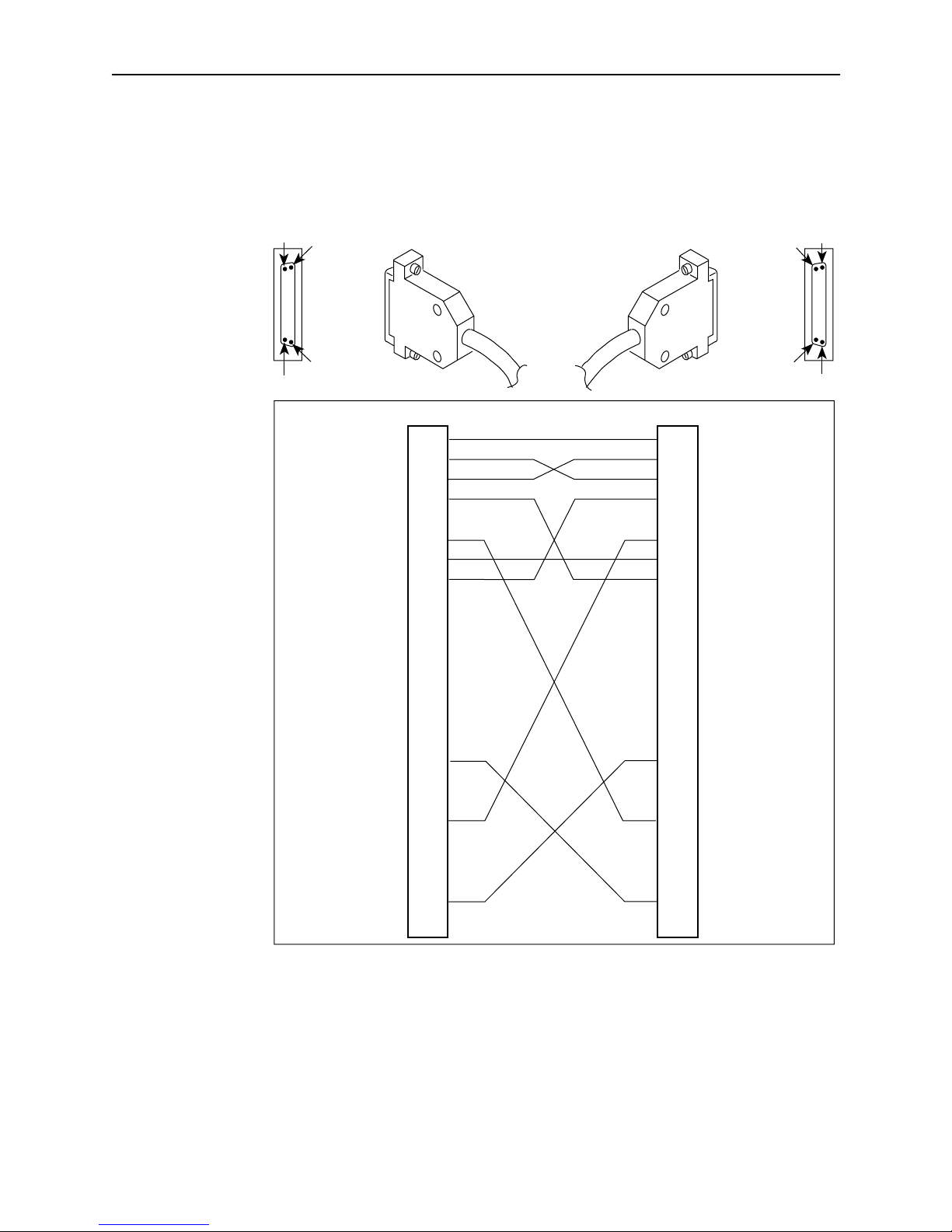

1. Use a standard serial crossover cable as shown in Figure 1 on the next page.
2. Enable auto-answer on your modem, and configure it to use standard
RS-232 detection and control for LSD, DSR, and DTR. Use the following
command string:
AT &C1 &D2 &S1 S0=1
Table 1. AT Command String
Command Description
&C1 Configures your modem to raise LSD after establishing a connection.
&D2 Configures your modem to drop connection when the DSU drops DTR.
&S1 Configures your modem to raise DSR when it begins to establish a
connection.
S0=1 Configures your modem to automatically answer incoming calls.

5
7112-A2-GN10-40 February 2000
NOTE:
The Pin 17 to Pin 24 crossovers shown in Figure 1 are not required and have
no effect with the Model 7112.
Pin 1
Pin 14
Pin 13
Pin 25
Pin 1
Pin 14
Pin 13
Pin 25
P2
Plug
Chassis Ground
TXD
RXD
RTS
CTS
DSR
Signal Ground
CD (RLSD)
TXC
RXC
DTR
XTXC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Pin
98-15811
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
P1
Chassis Ground
TXD
RXD
RTS
CTS
DSR
Signal Ground
CD (RLSD)
TXC
RXC
DTR
XTXC
Pin P2
P1
Plug
Figure 1. Serial Crossover Cable for External Modem

6 7112-A2-GN10-40
February 2000
Hardware Verification
-Verify that the OK LED is on.
-Verify that the FAIL is off.
97-15687
NetworkSystem Port
FT1/T1
CTS (106) OK FAIL TEST SIG OOF ALARM EER TXD (103) RXD (104) RTS (105) DTR (108)
7112 SNMP DSU/CSU
MONITOR
In Out
-Verify that the User Interface Idle screen is displayed on the ASCII terminal or
PC.
Press the Enter key. Verify that the Main Menu appears.
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
main Access Level: 1 PARADYNE
Device Name: Model: 7112
MAIN MENU
Status
Test
Configuration
Control
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Ctrl-a to access these functions Exit
NOTES:
Your VT100 terminal or emulation software must be set to communicate at a
rate of 9.6 kbps, using characters of 8 bits, one stop bit, and no parity.
Verifying the connection to a LAN, router, or external modem requires setup
and configuration; see Chapter 3, Configuring the DSU/CSU, in the User’s
Guide.

7
7112-A2-GN10-40 February 2000
Setting Up the ATI
The User’s Guide contains details regarding the ASCII Terminal Interface (ATI).
When setting up the ATI:
-Refer to Chapter 1, About the T1 DSU/CSU, to determine the management
configuration(s) to manage the DSU with one of the user interfaces.
-Set up the device name. Refer to Chapter 3, Configuring the DSU/CSU.
-Establish security and Login IDs. Refer to Chapter 4, Security.
-Decide on an IP addressing scheme. Refer to Chapter 5, IP Addressing.
-Determine if you want SNMP traps generated. Refer to Chapter 8, Messages
and Troubleshooting.
-Change configuration option settings. Refer to Appendix A, Configuration
Option Tables, and Appendix B, Worksheets.
-Provide management connectivity with MIBII and enterprise-specific MIBs.
Refer to Appendix C, MIB Descriptions, and Appendix D, Standards
Compliance for SNMP Traps.
Configuration Options and Defaults
Tables 2 through 8 list the DSU/CSU’s configuration options and the default
values that have been preconfigured at the factory.
Table 2. System Options
Configuration Option Settings (default in Bold)
Self Test Enable, Disable
Test Timeout Enable, Disable
Test Duration (min) 1–120 [10]

8 7112-A2-GN10-40
February 2000
Table 3. Network Interface Options
Configuration Option Settings (default in Bold)
Primary Clock Source Network, Internal, Port
Line Framing Format ESF, D4
Line Coding Format B8ZS, AMI
Bit Stuffing 62411, Part68, Disable
Line Build Out (LBO) 0.0, –7.5, –15, –22.5
FDL Management Link Enable, Disable
FDL IP Address 000.000.000.000 –255.255.255.255, clear
FDL Subnet Mask 000.000.000.000 – 255.255.255.255
Network Initiated Line Loopback (LLB) Enable, Disable
Network Initiated Payload Loopback
(PLB) Enable, Disable
ANSI Performance Report Messages Disable, Enable
Circuit Identifier < Blank >
Table 4. Cross Connect Assignments
Configuration Option Settings (default in Bold)
Assign By Block, ACAMI, Channel
Synchronous Data Port Assignments P(B)
The default is all DS0s assigned to the
data
p
ort
...
d
ata port. P(B)
Table 5. Data Port Options
Configuration Option Settings (default in Bold)
Port Base Rate Nx64, Nx56
Invert Transmit Clock Enable, Disable
Transmit Clock Source Internal, External
Invert Transmit and Received Data Enable, Disable
Send All Ones on Data Port Not Ready Disable, DTR, RTS, Both
Action on Network Yellow Alarm None, Halt
Network Init. Data Channel Loopback Disable, V.54, FT1, Both
Port (DTE) Initiated Loopbacks Disable, DTLB, DCLB, Both

9
7112-A2-GN10-40 February 2000
Table 6. Ethernet Port Options
Configuration Option Settings (default in Bold)
Port Use 802.3, Version 2, Disable
IP Address [000.000.000.000] –255.255.255.255
IP Subnet Mask [000.000.000.000] –255.255.255.255
Default Gateway Address [000.000.000.000] –255.255.255.255
Table 7. Terminal Port Options
Configuration Option Settings (default in Bold)
Data Rate (Kbps) 2.4, 4.8, 9.6, 14.4, 19.2, 28.8, 38.4
Character Length 7, 8
Parity None, Even, Odd
Stop Bits 1, 2
Monitor DTR Enable, Disable
Login Required Enable, Disable
Port Access Level Level 1, Level 2, Level 3
Inactivity Timeout Enable, Disable
Disconnect Time (minutes) range 1 –60, 5
Table 8. Telnet Session Options
Configuration Option Settings (default in Bold)
Telnet Session Enable, Disable
Login Required Enable, Disable
Session Access Level Level 1, Level 2, Level 3
Inactivity Timeout Enable, Disable
Disconnect Time (minutes) range 1 –60, 5

10 7112-A2-GN10-40
February 2000
Table 9. SNMP Options
Configuration Option Settings (default in Bold)
General SNMP Management
SNMP Management Enable, Disable
Community Name 1 ASCII Text, Public
Name 1 Access Read, Read/Write
Community Name 2 ASCII Text
Name 2 Access Read, Read/Write
SNMP NMS Security
NMS IP Validation Enable, Disable
Number of Managers 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
NMS nIP Address 000.000.000.000 –255.255.255.255
Access Level Read, Read/Write
SNMP Traps
SNMP Traps Enable, Disable
Number of Trap Managers 1, 2, 3, 4, 5, 6
Trap Manager nIP Address 000.000.000.000 –255.255.255.255
Trap Manager nDestination None, Mgmt, FDL
General Traps Disable, Warm, AuthFail, Both
Enterprise Specific Traps Enable, Disable
Link Traps Disable, Up, Down, Both
Link Trap Interfaces Network, Port, Both

11
7112-A2-GN10-40 February 2000
!Important Safety Instructions
1. Read and follow all warning notices and instructions marked on the product
or included in the manual.
2. Slots and openings in the cabinet are provided for ventilation. To ensure
reliable operation of the product and to protect it from overheating, these
slots and openings must not be blocked or covered.
3. Do not allow anything to rest on the power cord and do not locate the product
where persons will walk on the power cord.
4. Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous high voltage points or other risks. Refer
all servicing to qualified service personnel.
5. General purpose cables may be provided with this product. Special cables,
which may be required by the regulatory inspection authority for the
installation site, are the responsibility of the customer.
6. When installed in the final configuration, the product must comply with the
applicable Safety Standards and regulatory requirements of the country in
which it is installed. If necessary, consult with the appropriate regulatory
agencies and inspection authorities to ensure compliance.
7. A rare phenomenon can create a voltage potential between the earth
grounds of two or more buildings. If products installed in separate buildings
are interconnected, the voltage potential may cause a hazardous condition.
Consult a qualified electrical consultant to determine whether or not this
phenomenon exists and, if necessary, implement corrective action prior to
interconnecting the products.
8. Input power to the ac voltage configuration of this product must be provided
by a UL-listed or CSA-certified power source with a Class 2 or Limited Power
Source (LPS) output.
9. In addition, if the equipment is to be used with telecommunications circuits,
take the following precautions:
—Never install telephone wiring during a lightning storm.
—Never install telephone jacks in wet locations unless the jack is
specifically designed for wet locations.
—Never touch uninsulated telephone wires or terminals unless the
telephone line has been disconnected at the network interface.
—Use caution when installing or modifying telephone lines.
—Avoid using a telephone (other than a cordless type) during an electrical
storm. There may be a remote risk of electric shock from lightning.
—Do not use the telephone to report a gas leak in the vicinity of the leak.

12 7112-A2-GN10-40
February 2000
Notices
!WARNING:
This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
The authority to operate this equipment is conditioned by the
requirements that no modifications will be made to the equipment
unless the changes or modifications are expressly approved by
Paradyne Corporation.
!WARNING:
To Users of Digital Apparatus in Canada:
This Class A digital apparatus meets all requirements of the Canadian
interference-causing equipment regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du
règlement sur le matérial brouilleur du Canada.

13
7112-A2-GN10-40 February 2000
Government Requirements
Certain governments require that instructions pertaining to connection to the
telephone network be included in the installation and operation manual. Specific
instructions are listed in the following sections.
Notice to Users of the Telephone Network in the United States
1. This equipment complies with Part 68 of the FCC rules. On the bottom of the
equipment is a label that contains, among other information, the FCC
registration number for this equipment. If requested, please provide this
information to your telephone company.
2. The T1 network connection should be made using a Universal Service Order
Code (USOC) type RJ48C jack. The Service Order Code 6.0F should be
specified to the telephone company when ordering the T1 line. In addition,
the proper Facility Interface Code must be specified to the telephone
company. The DSU/CSU can be configured to support any of the following
framing format and line signaling techniques. The DSU/CSU configuration
must correspond to the T1 line’s parameters.
3. An FCC-compliant telephone cord and modular plug is provided with this
equipment. This equipment is designed to be connected to the telephone
network or premises wiring using a compatible jack which is Part 68
compliant. See the installation instructions for details.
DSU/CSU Facility Interface Codes
Code Description
04DU9-BN 1.544 Mbps superframe format (SF) without line power
04DU9-DU 1.544 Mbps SF and B8ZS without line power
04DU9-1KN 1.544 Mbps ANSI ESF without line power
04DU-1SN 1.544 Mbps ANSI ESF and B8ZS without line power
4. If your DSU/CSU causes harm to the telephone network, the telephone
company may discontinue your service temporarily. If possible, they will notify
you in advance. But if advance notice is not practical, you will be notified as
soon as possible. You will be advised of your right to file a complaint with the
FCC.
5. Your telephone company may make changes in facilities, equipment,
operations, or procedures that could affect the proper operation of your
equipment. If so, you will be given advance notice so as to give you an
opportunity to maintain uninterrupted service.
6. No repairs may be performed by the user. Should you experience difficulty
with this equipment, refer to Warranty, Sales, Service, and Training
Information on page 14.

14 7112-A2-GN10-40
February 2000
Canada
Notice to Users of the Canadian Telephone Network
The Industry Canada label identifies certified equipment. This certification means
that the equipment meets telecommunications network protective, operational,
and safety requirements as prescribed in the appropriate Terminal Equipment
Technical Requirements document(s). The Department does not guarantee the
equipment will operate to the user’s satisfaction.
Before installing this equipment, users should ensure that it is permissible to be
connected to the facilities of the local telecommunications company. The
equipment must also be installed using an acceptable method of connection. The
customer should be aware that compliance with the above conditions may not
prevent degradation of service in some situations.
Repairs to certified equipment should be coordinated by a representative
designated by the supplier. Any repairs or alterations made by the user to this
equipment, or equipment malfunctions, may give the telecommunications
company cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground
connections of the power utility, telephone lines, and internal metallic water pipe
system, if present, are connected together. This precaution may be particularly
important in rural areas.
CAUTION:
Users should not attempt to make such connections themselves, but
should contact the appropriate electric inspection authority, or
electrician, as appropriate.
Warranty, Sales, Service, and Training Information
Contact your local sales representative, service representative, or distributor
directly for any help needed. For additional information concerning warranty,
sales, service, repair, installation, documentation, training, distributor locations, or
Paradyne worldwide office locations, use one of the following methods:
HInternet: Visit the Paradyne World Wide Web site at www.paradyne.com.
(Be sure to register your warranty at www.paradyne.com/warranty.)
HTelephone: Call our automated system to receive current information by fax
or to speak with a company representative.
—Within the U.S.A., call 1-800-870-2221
—Outside the U.S.A., call 1-727-530-2340
Document Feedback
We welcome your comments and suggestions about this document. Please mail
them to Technical Publications, Paradyne Corporation, 8545 126th Ave. N.,
Largo, FL 33773, or send e-mail to [email protected]. Include the
number and title of this document in your correspondence. Please include your
name and phone number if you are willing to provide additional clarification.
*7112-A2-GN10-40*
*7112–A2–GN10–40*
Copyright E2000 Paradyne Corporation. Printed in U.S.A.
