Paradyne Jetstream CPX-1000 User manual

Jetstream®CPX-1000
Voice Services Platform
TL1 Reference
Release 2.5
Document No. 1000-A2-GH30-00

AFebruary 2003
1000-A2-GH30-00
Copyright © 2003 Paradyne Corporation.
All rights reserved.
Printed in U.S.A.
Notice
This publication is protected by federal copyright law. No part of this publication may be copied or distributed,
transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language in any form or
by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express
written permission of Paradyne Corporation, 8545 126th Ave. N., Largo, FL 33773.
Paradyne Corporation makes no representation or warranties with respect to the contents hereof and specifically
disclaims any implied warranties of merchantability or fitness for a particular purpose. Further, Paradyne Corporation
reserves the right to revise this publication and to make changes from time to time in the contents hereof without
obligation of Paradyne Corporation to notify any person of such revision or changes.
Changes and enhancements to the product and to the information herein will be documented and issued as a new
release to this manual.
Warranty, Sales, Service, and Training Information
Contact your local sales representative, service representative, or distributor directly for any help needed. For additional
information concerning warranty, sales, service, repair, installation, documentation, training, distributor locations, or
Paradyne worldwide office locations, use one of the following methods:
 Internet: Visit the Paradyne World Wide Web site at www.paradyne.com. (Be sure to register your warranty at
www.paradyne.com/warranty.)
 Telephone: Call our automated system to receive current information by fax or to speak with a company
representative.
— Within the U.S.A., call 1-800-870-2221
— Outside the U.S.A., call 1-727-530-2340
Document Feedback
We welcome your comments and suggestions about this document. Please mail them to Technical Publications,
Paradyne Corporation, 8545 126th Ave. N., Largo, FL 33773, or send e-mail to [e-mail]. Include the
number and title of this document in your correspondence. Please include your name and phone number if you are
willing to provide additional clarification.
Trademarks
Jetstream is a registered trademark of Paradyne Corporation. All other products and services mentioned herein are the
trademarks, service marks, registered trademarks, or registered service marks of their respective owners.

February 2003 i
Table of Contents
Preface
Audience vii
Organization vii
Related Documents viii
Chapter 1 Introduction
TL1 Agent.................................................................................1-1
Connections .............................................................................1-2
Configurable Options.............................................................1-2
User Administration...............................................................1-3
Command Scoping Rules.......................................................1-3
Grouping of Parameter Arguments .....................................1-4
Conventions and Notations...................................................1-4
Chapter 2 Parameter Types
Access Parameters...................................................................2-1
AID......................................................................................2-1
ATAG ..................................................................................2-2
CTAG ..................................................................................2-2
TID.......................................................................................2-2

Table of Contents 1000-A2-GH30-00
ii February 2003
Other Parameters ....................................................................2-3
AIDType .............................................................................2-3
AlarmCutoff Mode ...........................................................2-4
AlarmIndication Signal ....................................................2-4
ATAGSeq ............................................................................2-5
Attenuation ........................................................................2-5
BoolYN ...............................................................................2-5
BoolYNull...........................................................................2-5
Cable ...................................................................................2-6
CableType...........................................................................2-6
ChannelGoTo .....................................................................2-6
ClearLog .............................................................................2-7
CommandMode ................................................................2-7
CompressionType .............................................................2-7
ConditionEffect .................................................................2-8
ConditionType...................................................................2-8
ControlState ..................................................................... 2-11
ControlType ..................................................................... 2-11
DgnRoutineTerm.............................................................2-12
Direction ...........................................................................2-12
DSMode............................................................................2-13
DSnFacility.......................................................................2-13
Duration ...........................................................................2-13
EchoType ..........................................................................2-14
EnvConditionType..........................................................2-14
EquipmentType ...............................................................2-15
FacilityType......................................................................2-15
Function_Restore.............................................................2-16
IadPortType......................................................................2-16
Idle.....................................................................................2-17
InhibitMode .....................................................................2-17
Interval..............................................................................2-17
LineCode ..........................................................................2-18
Location ............................................................................2-18
LogName..........................................................................2-18

February 2003 iii
1000-A2-GH30-00 Table of Contents
Loopback ..........................................................................2-19
LoopbackType .................................................................2-19
LossBudget.......................................................................2-20
MessageType....................................................................2-21
ModeofSwitch..................................................................2-21
MonitoredLevel ...............................................................2-22
MonitoredType ................................................................2-22
MonitoredValue...............................................................2-22
NotificationCode.............................................................2-23
OCFacility ........................................................................2-23
ON_OFF ...........................................................................2-23
Operation Category ........................................................2-23
PrimaryState ....................................................................2-24
Redundancy.....................................................................2-25
ReportInterval .................................................................2-25
SecondaryState ................................................................2-25
ServiceEffect.....................................................................2-26
SignalingType ..................................................................2-26
State...................................................................................2-26
STSFacility........................................................................2-27
STSMap.............................................................................2-28
ThresholdLevel................................................................2-28
TimePeriod.......................................................................2-29
Timing...............................................................................2-29
TimingReference..............................................................2-30
TransportType..................................................................2-30
TroubleIsolated................................................................2-30
Type...................................................................................2-31
Unassigned.......................................................................2-32
UserPrivilege ...................................................................2-32

Table of Contents 1000-A2-GH30-00
iv February 2003
Chapter 3 TL1 Commands and Messages
DSFacility .................................................................................3-3
REPT ALM <DSnFacility>...............................................3-3
RTRV-<DSnFacility>.........................................................3-5
Environment ............................................................................3-7
REPT ALM ENV................................................................3-7
RTRV-ALM-ENV...............................................................3-9
Equipment.............................................................................. 3-11
REPT ALM EQPT ............................................................ 3-11
REPT EVT EQPT..............................................................3-13
RTRV-EQPT......................................................................3-16
RTRV-IAD.........................................................................3-17
RTRV-IADPORT ..............................................................3-20
RTRV-IADPRF .................................................................3-21
RTRV-IG............................................................................3-23
RTRV-PROTGRP .............................................................3-25
Fault ........................................................................................3-27
REPT ALM IAD...............................................................3-27
REPT ALM IADPORT ....................................................3-29
REPT ALM IG..................................................................3-30
REPT ALM PROTGROUP .............................................3-32
REPT EVT IAD ................................................................3-34
REPT EVT IADPORT......................................................3-36
REPT EVT IG ...................................................................3-37
REPT EVT PROTGROUP...............................................3-39
RTRV-ALM-<AIDType> ................................................3-40
IAD Provisioning ..................................................................3-42
ENT-IAD...........................................................................3-42
ED-IAD .............................................................................3-45
DLT-IAD ...........................................................................3-47
ED-IADPORT ..................................................................3-48

February 2003 v
1000-A2-GH30-00 Table of Contents
Log...........................................................................................3-50
INIT-LOG .........................................................................3-50
REPT DBCHG..................................................................3-52
RTRV-ATTR-LOG............................................................3-53
RTRV-LOG .......................................................................3-54
RTRV-LOG-TL1LOG.......................................................3-56
SET-ATTR-LOG ...............................................................3-57
OCFacility ..............................................................................3-58
REPT ALM <OCFacility> ..............................................3-58
RTRV-OC3 ........................................................................3-60
Protection ...............................................................................3-63
Security ...................................................................................3-63
DLT-USER-SECU ............................................................3-64
ED-PID..............................................................................3-65
ED-SECU ..........................................................................3-66
ED-USER-SECU ..............................................................3-67
ENT-USER-SECU ............................................................3-69
RTRV-USER-SECU..........................................................3-70
STSFacility..............................................................................3-72
System.....................................................................................3-74
ACT-USER........................................................................3-74
ALW-MSG-<AIDType>..................................................3-75
CANC-USER....................................................................3-76
ED-DAT ............................................................................3-77
INH-MSG-<AIDType>...................................................3-78
RTRV-HDR ......................................................................3-79
SET-SID.............................................................................3-80
Chapter 4 Error Codes

Table of Contents 1000-A2-GH30-00
vi February 2003
Chapter 5 Environmental Alarm Types
Index

February 2003 vii
Preface
This TL1 Reference lists all commands and messages supported by
the TL1 Agent. This document also provides input and response
(output) formats and examples with those commands and
messages.
Audience The TL1 Reference is written for network operations center crafts
personnel who manage and monitor alarms and events of the
CPX-1000 equipment. These readers should know the command
language interface and be familiar with TL1.
Organization The TL1 Reference is organized as follows:
 Chapter 1, Introduction, describes the Transaction Language
1 (TL1), a standard-based messages supported by the TL1
Agent.
 Chapter 2, Parameter Types, describes all message
parameter types defined for the TL1 messages.
 Chapter 3, TL1 Commands and Messages, describes the
TL1 commands and messages and provides input and
output formats and examples.
 Chapter 4, Error Codes, lists both the default and general
error codes.
 Chapter 5, Environmental Alarm Types, lists and describes
valid values for the <almtype> parameter.

Preface 1000-A2-GH30-00
viii February 2003
Related
Documents
Complete documentation for this product is available online at
www.paradyne.com. Select Support
→ Technic al Manuals →
Jetstream Media Gateway Systems.

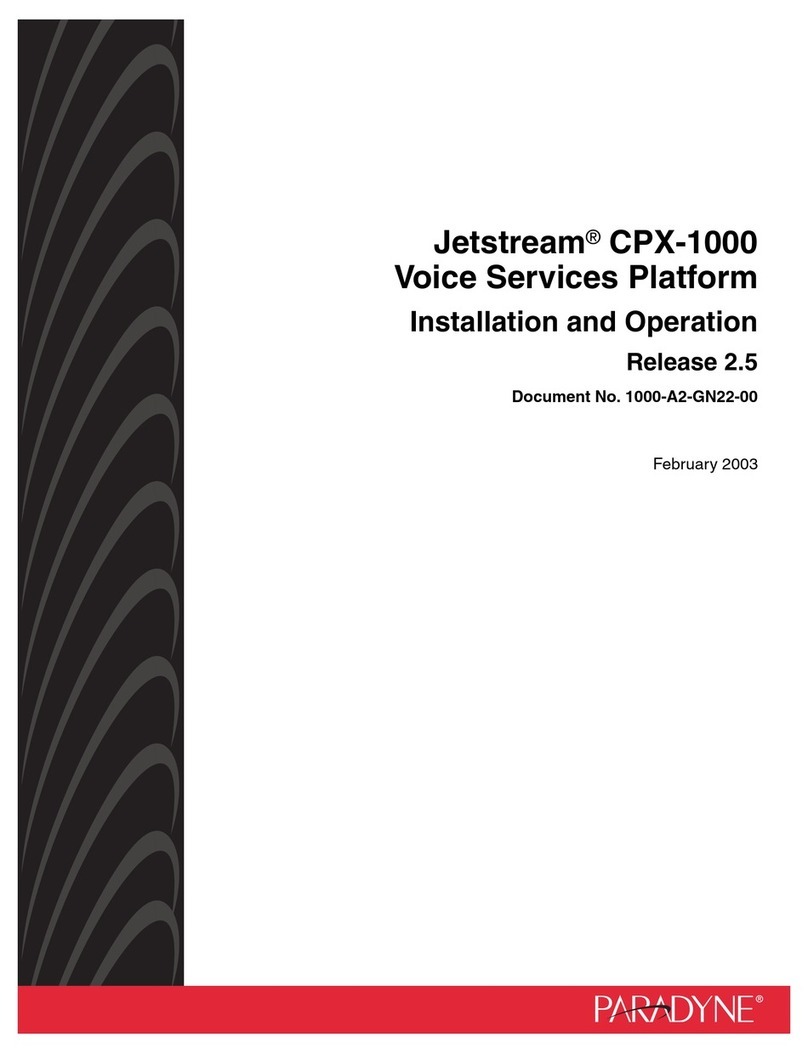

 CPX-1000 Voice Services Platform Installation and Operation
Describes the features, installation, testing, troubleshooting,
and repair of the CPX-1000 Voice Services Platform
equipment.
 JetCraft User’s Guide
Describes the installation and use of JetCraft in CPX-1000
provisioning.
 JetVision Installation
Describes the installation of JetVision software.
 JetVision User’s Guide
Describes the top level management of multiple CPX-1000
equipment.
To order a paper copy of a Paradyne document or to speak to a
sales representative, please call 1-727-530-2000.

February 2003 1-1
C HAPTER1
Introduction
This chapter describes the Transaction Language 1 (TL1)
commands supported by the Jetstream TL1 Agent. TL1 is a set of
ASCII-based instructions (or “messages”) that an Operations
Support System (OSS) uses to manage a network element (NE) and
its resources. This chapter includes these topics:
 Number of connections allowed (page 1-2)
 Configurable options (page 1-2)
 User administration (page 1-3)
 Command scoping rules (page 1-3)
 Grouping of parameter arguments (page 1-4)
 Convention and notation (page 1-4)
Jetstream TL1 is based on the following Bellcore documents:
 GR-833-CORE, Network Maintenance: Network Element and
Transport Surveillance Messages
 GR-199-CORE, Operations Applications Messages, Memory
Administration Messages
 TR-NWT-000835 Operations Application Messages, Network
Element and Network System Security Administration Messages
 GR-1093-CORE, Generic State Requirements for Network
Elements
TL1 Agent The TL1 Agent is an application that allows TL1 messages to be
sent to the CPX-1000 Voice Services Platform. The messages
supported allow for alarm management and retrieval of the
current CPX-1000 configuration.

1. Introduction 1000-A2-GH30-00
1-2 February 2003
Connections The TL1 Agent supports several simultaneous sessions to access
information about the CPX-1000. You can access the TL1 Agent via
TELNET or one of the serial ports on the MP card of the CPX-1000.
Configurable
Options
Table 1–1 lists the configurable options to which you can customize
your setup and their default settings. Configure these options in
the Windows registry, and configure the TL1 Agent using the
following registry key:
\\HKEY_LOCAL_MACHINE\System\CurrentControlSet
\Services\Jetstream TL1 Agent\parameters
Default Port Simultaneous Session
TELNET 3082 7
Serial port COM1 1
Table 1–1. TL1 Agent Configurable Options
Configurable Options Default Settings Description
LogRootDir C:\temp\TL1Logs The directory containing the TL1 logs.
ErrorLogFileName TL1Error The name of the TL1 error log file.
TL1LogFileName TL1Log The name of the TL1 log file.
ErrorLogMaxEntries 256 The maximum number of entries in the
error log file, up to 9999 entries.
TL1LogMaxEntries 256 The maximum number of entries in the
TL1 log file, up to 9999 entries.
TidValue CPX-1000 The Target Identifier.
Port 3082 The port number of socket connection.
Serial Port 1 The port number of serial communication.

February 2003 1-3
1000-A2-GH30-00 1. Introduction
User
Administration
To control access, the TL1 Agent supports four different user
levels; each level has different privilege. Table 1–2 lists these
privilege levels.
Command
Scoping Rules
Commands may affect one or more entities. In general, you can
specify a TL1 interface where retrieval may be broad but changes
are narrow in scope.
 Retrieves (Request): To allow as much bulk and flexible
retrieval of information from the CPX-1000, the fields of
requests permit the following values and/or operators.
— Fields with default values are optional and allow the
wildcard value “ALL.” Where their syntaxes allow, these
fields are listable and rangeable.
— An “ALL” absence indicates that the fields do not allow a
default and that the keyword “ALL” is not permitted.
 Other Commands (Changes): To ensure that changes are
specific to the entities that they are intended for, the scope of
provisioning commands in general is as narrow as possible.
Table 1–2. User Levels and Privileges
User Levels Privileges
ROALM Read Only Alarms
RWALM Read/Write Alarms
ROADM Read Only Administration
RWADM Read/Write Administration

1. Introduction 1000-A2-GH30-00
1-4 February 2003
Grouping of
Parameter
Arguments
Some parameters in a message can be grouped by using the
ampersand (&) character so a single occurrence of a message may
be applied to more than one entity. The grouping can be done to
generate a list of AIDs or a range (incremented in integer steps) of
AIDs. For example:
CPX-1&CPX-2&CPX-3
where the command applies to the three CPX shelves CPX-1,
CPX-2, and CPX-3 as if three individual commands had been sent
to the NE.
Conventions
and Notations
Uppercase characters in format expression appear as they are in
the message. Table 1–3 lists syntactical characters.
Note
Parameter grouping is not allowed unless explicitly
stated in the message.
Note
Semicolons (;), commas (,), colons (:), and dashes (–) are
transmitted exactly as shown.

February 2003 1-5
1000-A2-GH30-00 1. Introduction
Table 1–3. Syntactical Characters
Character Description
; A semicolon indicates the end of a message.
, A comma separates parameters within a parameter
block.
: A colon separates parameter blocks.
– A dash is used to separate the first and second
modifier.
“ “ A pair of quotes is used to delimit an expression
that can be parsed.
[ ] One or more parameters (including delimiters)
enclosed within brackets indicates the parameters
are optional. An optional parameter means that if a
user inputs an empty field for an optional
parameter, then a default value will be substituted
automatically in the transmitted input field.
< > The brackets are used to enclose one or more
information items, e.g., <date>, <time>, etc. The
brackets are not transmitted.
* A single asterisk or double asterisks are used to
specify multiple or a range of values.
& A single ampersand is used to list several entities.
&& Double ampersands are used to indicate a range of
entities.

1. Introduction 1000-A2-GH30-00
1-6 February 2003

February 2003 2-1
C HAPTER2
Parameter Types
This chapter describes all message parameter types defined for the
TL1 messages used in the CPX-1000, including
 Access parameter types (page 2-1)
 Other parameter types (page 2-3)
Access
Parameters
Access parameters include
 AID
 ATAG
 CTAG
 TID
AID The Access Identification code (AID) directs an input command to
its intended physical or data entity inside the CPX-1000.
Equipment module and facilities are typical examples of entities
addressed by the access code. The following table lists all AIDS
used in TL1 messages by the CPX-1000.

2. Parameter Types 1000-A2-GH30-00
2-2 February 2003
ATAG Automatic tag (ATAG) is a numeric transaction identifier similar to
CTAG. Its value is automatically generated by a TL1 Agent and is
used exclusively as a sequence number for autonomous messages.
When the TL1 Agent first initializes or resets, ATAG starts at 1; and
when ATAG reaches 999999, the number automatically restarts at
1. Operations Support Systems (OSSs) use ATAG to spot any lost
messages.
CTAG A correlation tag (CTAG) is used to correlate input and output
messages. The value of CTAG consists of up to six ASCII,
alphanumeric characters. If no CTAG is provided, 0 is used.
TID The target identifier (TID) identifies the target CPX-1000 to which a
command is directed. A message sent to an CPX-1000 may be
addressed at that CPX-1000 or routed by it to its target CPX-1000.
If an CPX-1000 is the only target possible for a message sent on a
connection, then TID may be left out of that message. Otherwise, a
TID must be specified.
TIDs are not case-sensitive. It consists between 6 and 20
alphanumeric characters, and no spaces are allowed.
AID Pattern
COM
Control
DS
Environment
COM
CONT-{1-16}
CPX-{1-16}-{1-8}
ENV-{1-16}
Equipment
IAD
IADPRF
IADPort
IG
LOGID
OC
ProtGroup
CPX-{1-16}
IAD-{1-2000}
IADPRF-{1-1000}
IAD-{1-2000}-{1-24}
GR303-{1-4}
TL1LOG
CPX-{1-16}-1
ATM-{1-4}
TDM-{1-6}

February 2003 2-3
1000-A2-GH30-00 2. Parameter Types
Other
Parameters
This section describes other parameters used in the CPX-1000.
AIDType This parameter indicates the type of Access Identifier (AID) for
most non-environment messages. It defines the scope of AIDs for
equipment (EQPT), the CPX-1000 as a whole (COM), and facility
AIDs. The different facility AIDs have their own enums (i.e.,
AIDTypeOC, AIDTypeTn). For RTRV, the keyword ALL may be
used in messages instead of a specific value for this enum.
Note
Do not use AIDType as the first modifier for ED, ENT, or
RTRV messages (i.e., ED-AIDType, ENT-AIDType,
RTRV-AIDType). Instead, use the specific enums (e.g.,
ED-AIDTypeEC, etc.) or “fixed string” message names
(e.g., ED-EQPT, etc.).
Options Description
COM Designates CPX-1000 as a whole.
EQPT Equipment
IAD Integrated Access Device
IADPORT Integrated Access Device port
IG Interface Group
OC3 Optical carrier 3
PROTGRP Protection Group
STS1 Synchronous transport signal 1
T1 DS1
T3 DS3

2. Parameter Types 1000-A2-GH30-00
2-4 February 2003
AlarmCutoff
Mode
This parameter indicates the mode of alarm cutoff (ACO)
operation that is provided by the CPX-1000.
AlarmIndication
Signal
This parameter indicates the type of Alarm Indication Signal (AIS)
to be sent on the outgoing cross-connected signal when AIS is on
the incoming signal.
Note
This parameter is reserved for a future release.
Options Description
DELD ACO is delayed to allow announcement
IMED ACO is introduced automatically and
immediately at the CPX-1000
MAN ACO is introduced by OS command or
manual operation
Note
This parameter is reserved for a future release.
Options Description
FONES Translate to framed all ones.
N No. For AISPASS, translate to the AIS type of
the connected DS3.
NAS North American Standard (default for AIST).
ONES Translate to unframed all ones.
Y Yes. For AISPASS, no translation, i.e., let the
incoming AIS pass through.
