Hotwire5216 RTU Customer Premises
Installation Instructions
Document Number 5216-A2-GN10-30
August 2000
Contents
What Does the Hotwire 5216 RTU Do? 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the DSL Access Wiring 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Hotwire 5216 RTU 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Status LEDs 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cables & Connectors 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Important Safety Instructions 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What Does the Hotwire 5216 RTU Do?
The Hotwire5216 RTU (Remote Termination Unit) is a component in the Hotwire
RADSL Access System and interoperates with the Hotwire 8540 DSL Card in the
DSLAM (Digital Subscriber Line Access Multiplexer) system. This system provides
high-speed Internet or corporate LAN access over traditional twisted-pair copper
telephone wiring.
Copper pairs run from the central office (CO) to the customer premises (CP) to create
the local loop. The local loop terminates on the customer premises at the demarcation
point in a punchdown block or network interface device (NID).
Optional POTS Splitter
An optional POTS (plain old telephone service) splitter can be installed to block out the
DSL signal and allow the POTS frequencies to pass through. At the customer
premises, the 5216 RTU and a telephone can function simultaneously over the same
pair of copper wires when either:
A Hotwire 5030 or 5038 POTS Splitter is installed near the demarcation point for all
telephones on the same POTS line as DSL,
or
A Hotwire 5038 Distributed POTS Filter is installed on each telephone on the same
POTS line as DSL.

2
NOTES:
In this document:
— End-user system is used to represent any host with an Ethernet connection.
— Service provider is used to represent any Internet Service Provider (ISP) or
remote LAN access provider.

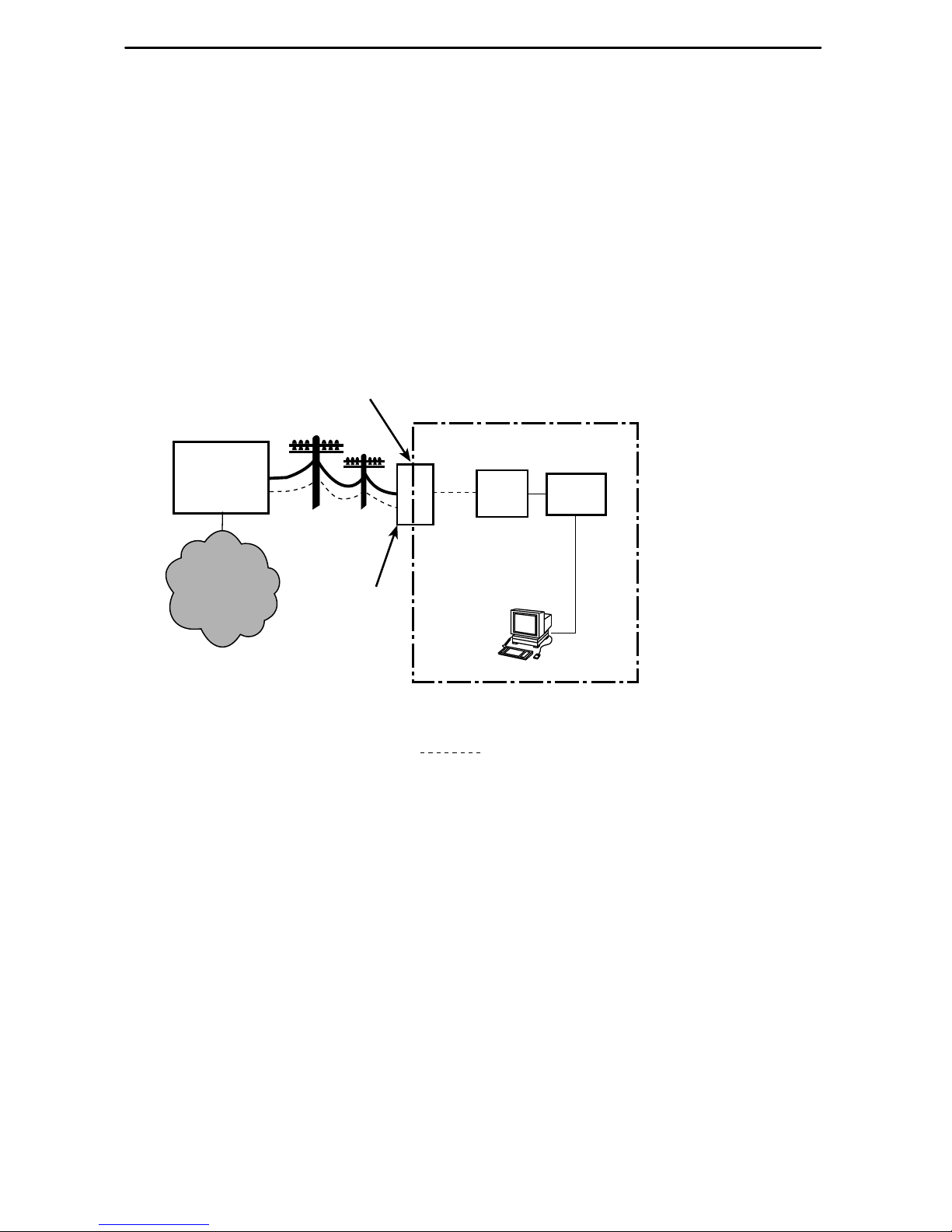

DSL Access without a POTS Splitter
When the Hotwire 5216 RTU is installed without a POTS splitter, the DSL line is used
for data only and does not provide telephone services.
00-15609-02
Punchdown
Block or NID
DSL
Jack RTU
Customer Premises (CP)
DSL
Ethernet
Crossover
Cable
Central
Office
(CO)
Demarcation
Point
Local Loop
End-user
System
DSL – Digital Subscriber Line RTU – Remote Termination Unit
NID – Network Interface Device New Wiring Connections
Service
Provider
DSL Access with a Hotwire 5030 or 5038 POTS Splitter
When a Hotwire POTS splitter is used at both ends of the local loop, wiring is
connected:
From the demarcation point to the CP POTS splitter, and
From the demarcation point to the DSL jack.
The Hotwire 5030 POTS splitter is designed for outdoor or indoor installation. The
Hotwire 5038 Distributed POTS Splitter is designed for indoor use only.

3
00-15608-02
Punchdown
Block or NID
DSL
Jack RTU
New Wiring Connections Existing Wiring (POTS)
Customer Premises (CP)
POTS/DSL
Ethernet
Crossover
Cable
Central
Office
(CO)
Demarcation
Point
Local Loop
CP
POTS
Splitter
POTS
End-user
System
DSL – Digital Subscriber Line POTS – Plain Old Telephone Service
NID – Network Interface Device RTU – Remote Termination Unit
Service
Provider
DSL Access with a Hotwire 5038 Distributed POTS Splitter
When a Hotwire 5038 Distributed POTS Splitter is used, one 5038 Distributed POTS
Splitter is installed as a phone filter for each telephone on the same POTS line as DSL.
98-15815-01
RTU
Customer Premises (CP)
Central
Office
(CO)
Local Loop
POTS
Splitter To End-user
Systems
DSL – Digital Subscriber Line POTS – Plain Old Telephone Service
NID – Network Interface Device RTU – Remote Termination Unit
POTS
Splitter
POTS
Splitter
Network
Service
Provider
(NSP)
Demarcation
Point
Punchdown
Block or NID
POTS/DSL
Optional

4
Product-Related Documents
To install a POTS splitter, refer to the appropriate POTS splitter document:
Document Number Document Title
5030-A2-GN10 Hotwire 5030 POTS Splitter Customer Premises
Installation Instructions
5038-A2-GN10 Hotwire 5038 Distributed POTS Splitter Customer
Premises Installation Instructions
Contact your sales or service representative to order additional product documentation.
Paradyne documents are available on the World Wide Web at www.paradyne.com.
Select
Library → Technical Manuals → Hotwire DSL & MVL Systems.
Package Checklist
Verify that your package contains the following:
Model 5216 Remote Termination Unit (RTU)
DSL interface cable with RJ11 modular plugs
Power cord with power transformer
Wiring and Cables You Need
The following wiring and standard connectors are used with this product:
Standard RJ11 wall jack for the DSL cabling.
DSL cabling: New or existing unshielded twisted-pair wiring (CAT3 or better). The
CAT3 wiring must meet EIA/TIA-568 specifications with 24 AWG (.5 mm) or
26 AWG (.4 mm).
Ethernet cabling: Standard Ethernet crossover cable with an 8-pin, non-keyed
modular plug for a PC or workstation. Refer to
Installing the Hotwire 5216 RTU on
page 8 for Ethernet cable details.
Refer to Cables & Connectors on page 12 for standard pin numbers.

5
Installing the DSL Access Wiring
The local loop terminates at the punchdown block or NID. Wiring must be connected
from the customer premises side of the punchdown block or the NID to an RJ11 jack.
Typically, the punchdown block is installed in commercial locations and the NID is
installed in residential locations.
Procedure
1. Access the punchdown block or NID.
2. Disconnect the DSL access pair from the local loop.
!WARNING:
Do not continue unless the DSL access line from the local loop has been
disconnected at the NID or punchdown block. Refer to Important Safety
Instructions
on page 16.

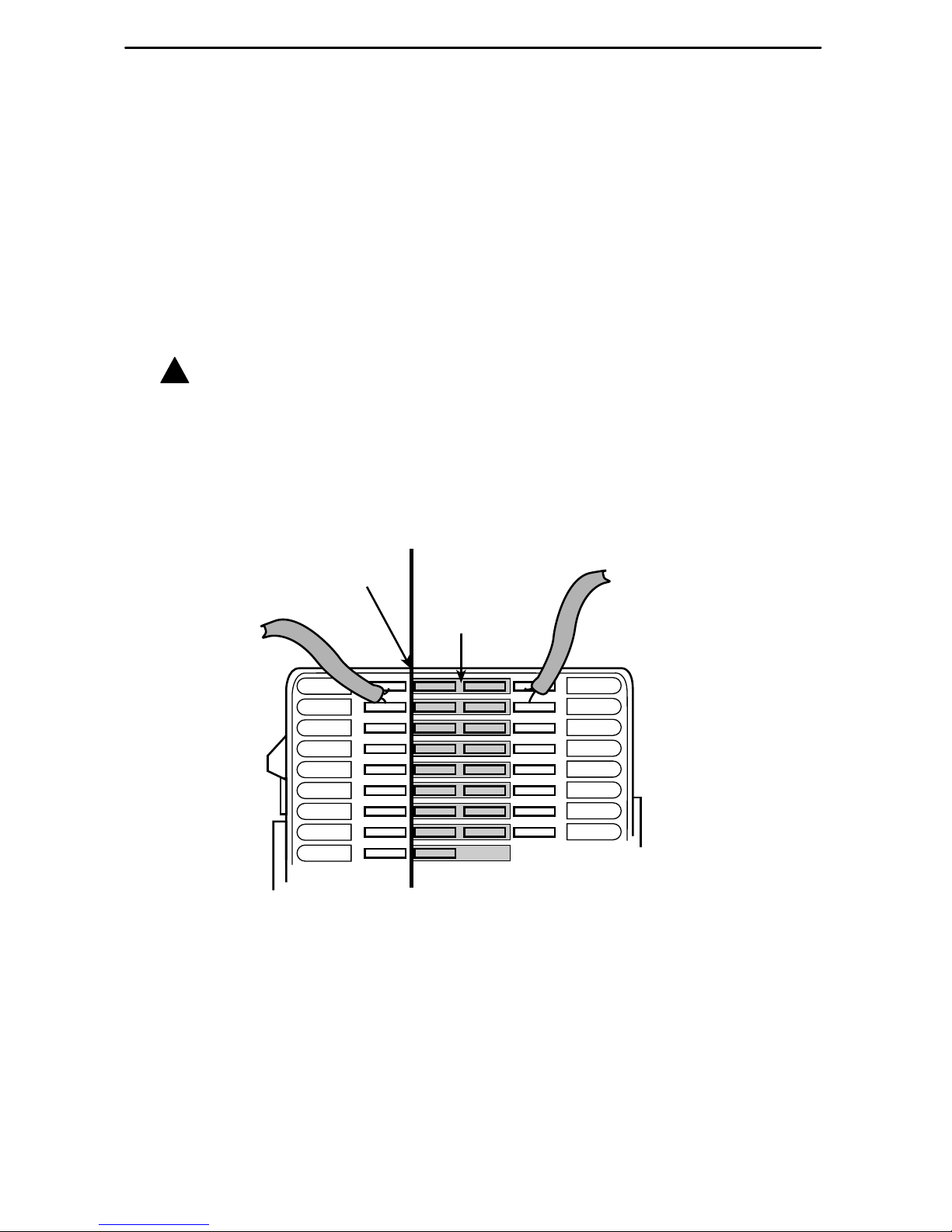

A punchdown block is used without a POTS splitter in the following example.
ABCD
DSL
Access
from Local
Loop
Wiring to
DSL Jack
Bridge Clip
Punchdown Block
97-15348
Demarcation Point
Customer Premises

6
3. Locate the DSL pair of T1/R1 connectors on the customer premises side of the
NID or punchdown block. Attach the wiring that will be connected to the DSL jack.

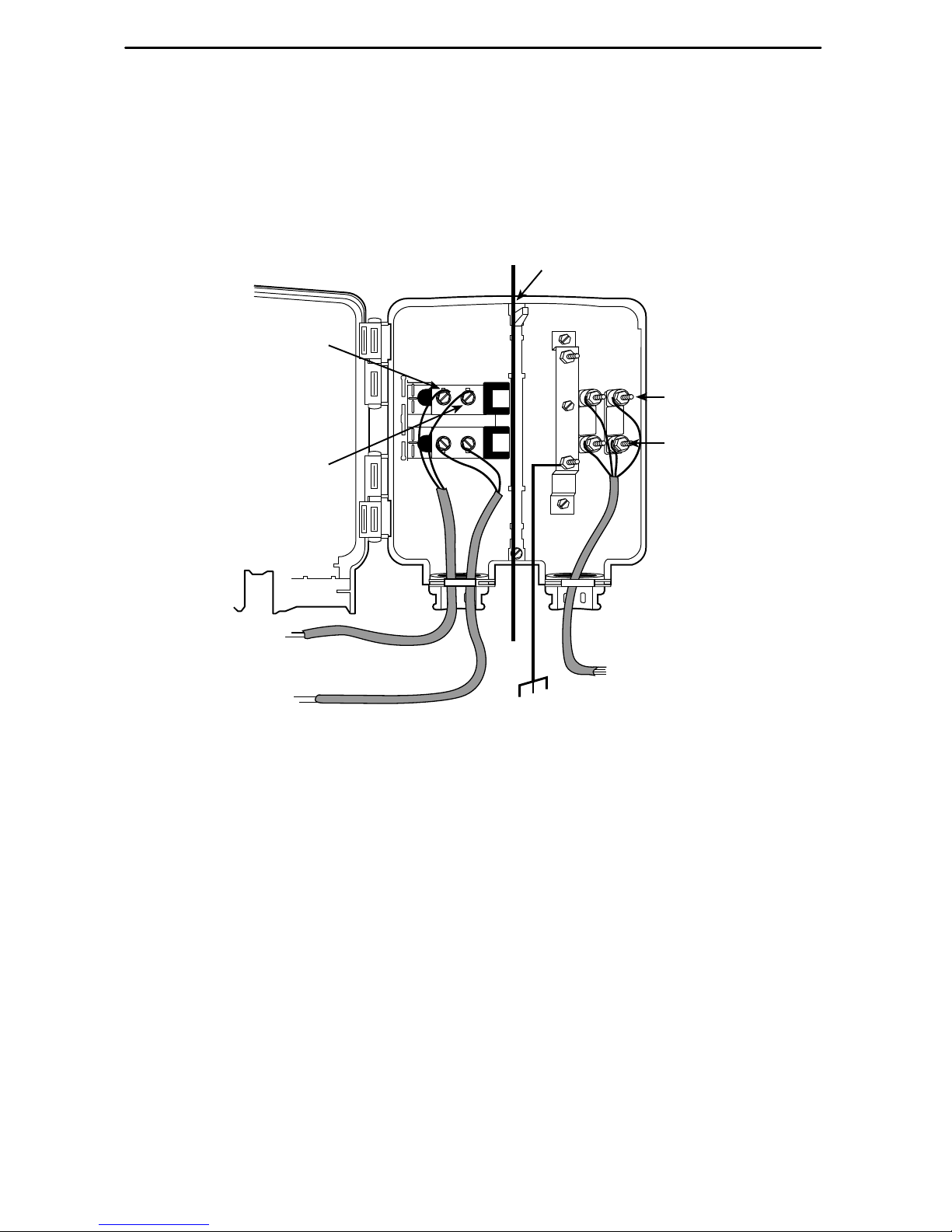

In the following example, a NID is used without a POTS splitter. It includes an
existing POTS line and a second pair installed for DSL access.
DSL/POTS
Access from
Local Loop
Wiring to
DSL Jack
Telephone Network Interface Device (NID)
Ground
Tip
T1
(Green)
Ring
R1
(Red)
97-15438-01
Existing POTS
Wiring to
Telephone
Demarcation Point
Customer Premises
DSL Pair
POTS Pair

97-15300a
RJ11 Wall Jack
or
7

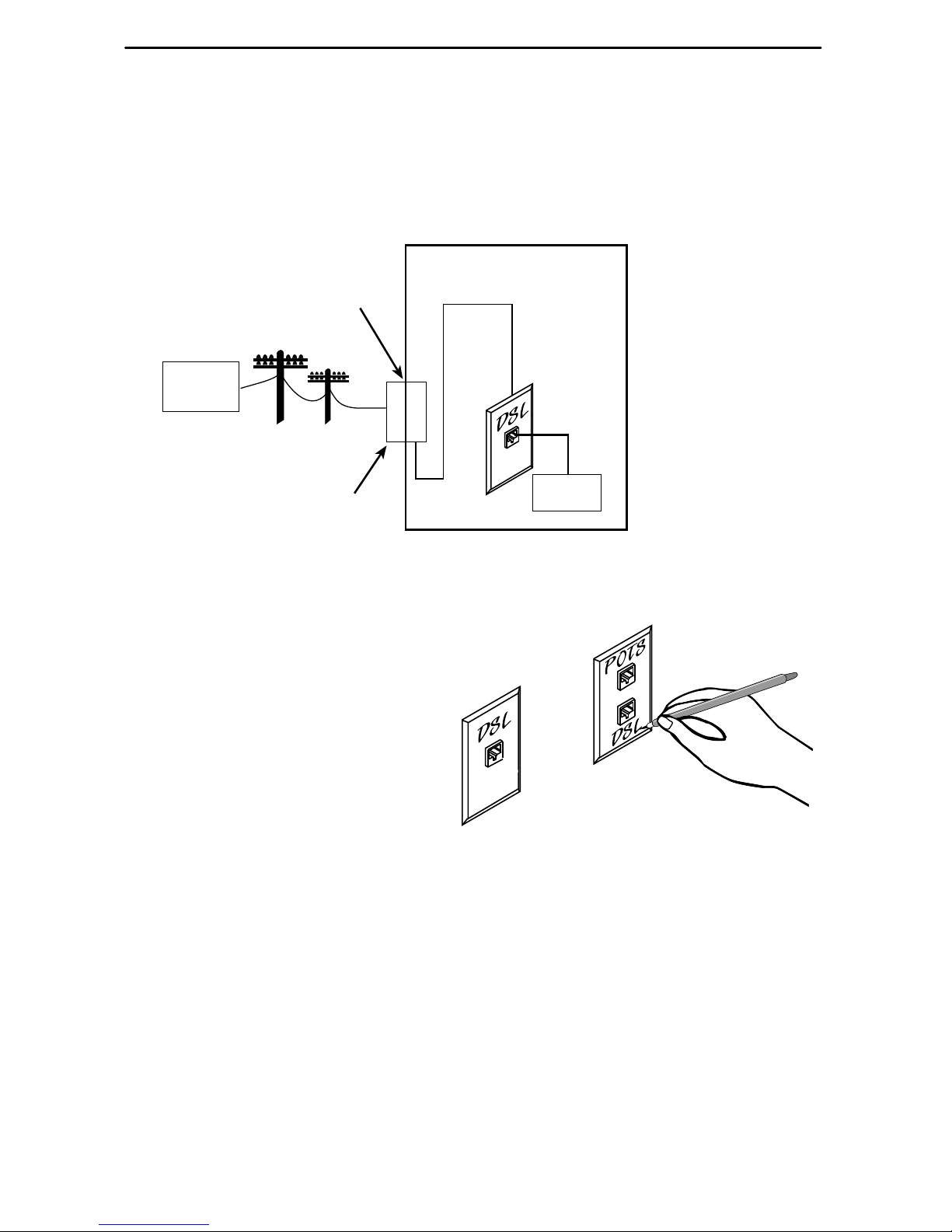

Connecting to the DSL Access Wiring
The Hotwire 5216 RTU connects to the local loop via wiring from the demarcation point
to an RJ11 wall jack. The DSL twisted-pair wiring from the local loop terminates at a
new or existing wall jack. It may be necessary to install a standard single RJ11 jack or
replace a single jack with a double RJ11 jack.
97-15343-02
DSL
RJ11
Jack
Central
Office
Punchdown
Block or NID
Customer Premises
POTS/DSL
Local Loop
Demarcation Point DSL
Twisted-pair
Wiring
RTU
Procedure
1. Wiring can be run from the
punchdown block or NID to a
new or existing wall jack. Match
the pair colors on both ends.
2. Label the DSL jack.
3. Reconnect the DSL access pair
at the punchdown block or NID.
Refer to
Installing the DSL Access
Wiring
on page 5. Tighten both
terminal screws with a flat-blade
screwdriver.
The RJ11 6-pin jack uses the center two pins. For pin assignments, refer to
Cables &
Connectors
on page 12.

8
Installing the Hotwire 5216 RTU
Place the Hotwire 5216 RTU on a flat surface with clearance for the rear connectors.
Procedure
1. Use the supplied RJ11 6-pin interface cable for the DSL connection. Insert one end
of the cable into the jack labeled DSL. Insert the other end into the wall jack
labeled DSL.
97-15300-01
DSL
Jack
POWER ETHERNET
DSL
Hotwire RTU
If the Hotwire 5216 RTU is installed on the same line as POTS, a Hotwire 5038
Distributed POTS Splitter can be used as a phone filter. One 5038 Distributed
POTS splitter is installed as a phone filter for each telephone on the POTS/DSL
line, as shown below. To install the Hotwire 5038 Distributed POTS splitter, refer to
the
Hotwire 5038 Distributed POTS Splitter Customer Premises Installation
Instructions.
98-15813
Distributed
POTS Splitter
Line from
RJ11 Wall Jack
PHONE
LINE DSL
PHONE
LINE DSL
PHONE
LINE DSL
Line from
RJ11 Wall Jack
Distributed
POTS Splitter
Distributed
POTS Splitter
Customer
Premises (CP)
Hotwire
RTU

9
2. Use an 8-pin Ethernet crossover cable for the Ethernet connection. Insert one end
of the cable into the jack labeled ETHERNET. Connect the other end to the
Ethernet Network Interface Card (NIC) installed in the PC.
00-15303b-01
PC with Ethernet
Network Interface
Card
Ethernet
Line
POWER ETHERNET DSL
Hotwire RTU
Ethernet
Crossover
Cable
For RTU cable pin assignments, refer to Cables & Connectors on page 12.
3. Insert the supplied power cord’s round end into the jack labeled POWER. Plug the
transformer into an AC outlet.
98-15837
POWER ETHERNET DSL
Hotwire RTU
Power
Jack
Transformer
or
The RTU hardware installation is now complete. When the power cord is installed, the
RTU goes through a power-on self-test.

10

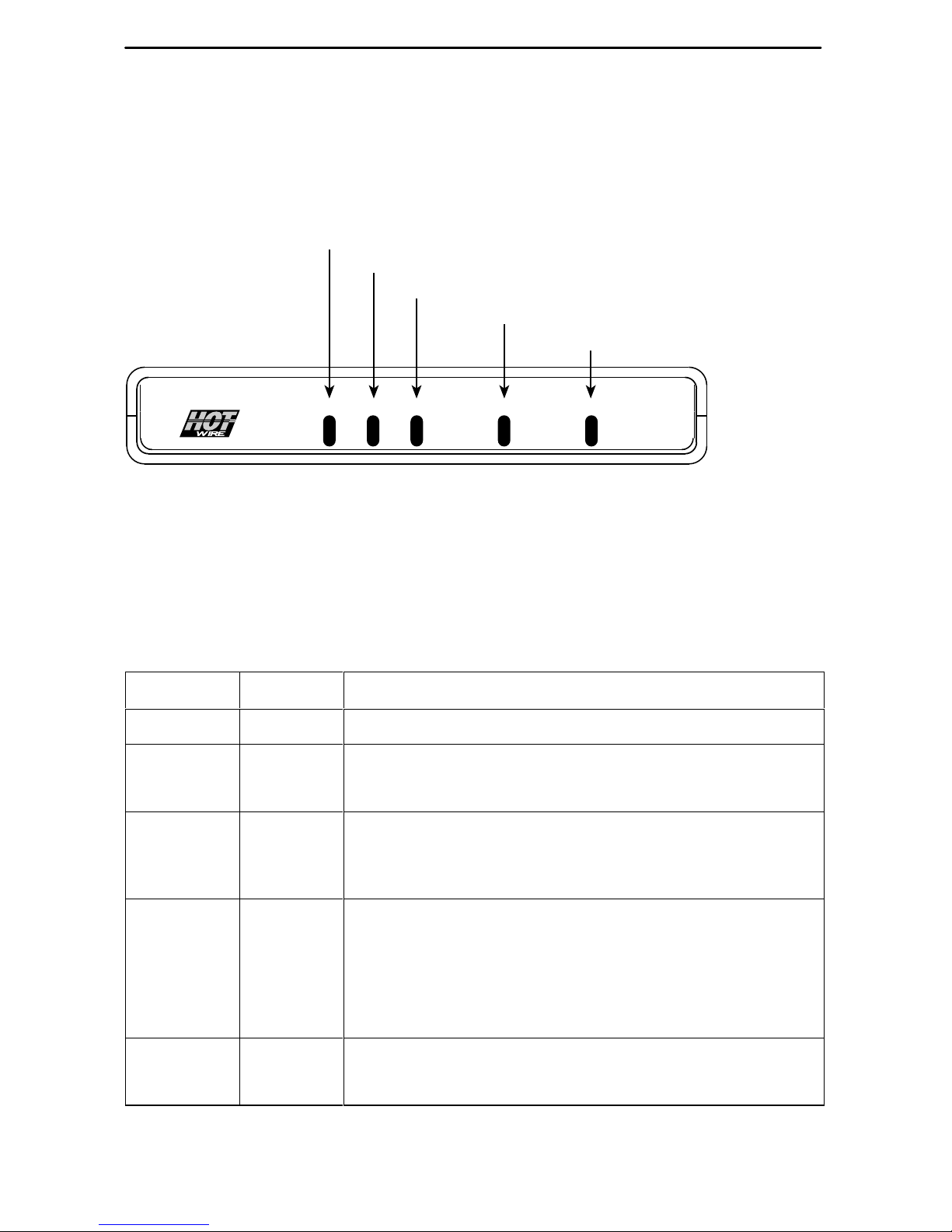

Power-On
When power is applied, the RTU performs self-diagnostics and the PWR LED is on.
The self-diagnostics includes a power-on self-test. During the power-on self-test, all of
the LEDs turn on for one second.
TST DSL ETHERNET ALMPWR
TM
97-15607
Power – green
Alarm – red
Test – yellow
Digital Subscriber Line – green
Ethernet Link – green
5216
Refer to Troubleshooting on page 11 for LED indications requiring action.
Status LEDs
All of the LEDs turn on and off during the power-on self-test. After a successful
self-test, the LEDs should appear as indicated in BOLD in the Condition column below.
LED Condition Status
PWR ON The RTU has power.
ALM OFF
ON
No active alarms.
An alarm condition exists.
TST OFF
ON
No active tests.
The TST LED is on during the power-on self-test and
during a test initiated by the service provider.
DSL Blinking
ON
OFF
RTU is establishing the active DSL link. The LED blinks
on and off about five times per second.
The DSL link is now active and ready to transmit and
receive data.
The DSL link has not been established.
ETHERNET ON
OFF
The Ethernet connection is active.
No Ethernet device is detected.
