COMSPHERE 3600 Series Data Service Units
Models 3610 and 3611
Dial Backup Module
Quick Reference
Document Number 3610-A2-GL13-00
November 1998
Product Documentation on the World Wide Web
We provide complete product documentation at www.paradyne.com. This lets you
search the documentation for specific topics and print only what you need, reducing the
waste of surplus printing. It also helps us maintain competitive prices for our products.
Select
Service & Support → Technical Manuals → Subrate Digital Access Devices .
Then select the following documents:
3610-A2-GB46
COMSPHERE 3600 Series Data Service Units,
Models 3610 and 3611, User’s Guide
3610-A2-GB49
COMSPHERE 3600 Series Data Service Units,
Models 3610 and 3611, Dial Backup Module Options Supplement
To request a paper copy of a Paradyne document:
Within the U.S.A., call 1-800-PARADYNE (1-800-727-2396)
Outside the U.S.A., call 1-727-530-8623
Read First
Follow these steps for a successful installation of your DBM.
1. If required, install new firmware. The
3600 Series DBM Option Installation
Instructions
, Document No. 3610-A2-GZ52, explains how to determine whether it is
required.
2. Verify the switch settings on the DSU.
3. Install the DBM according to the
Installation Instructions.
4. If you installed new firmware, use the Confg menu from the front panel to load the
factory default settings. The DSU will not function properly unless the factory
default settings are reloaded.
5. Enter and save directories, phone numbers, and SPIDs you will use. Make and
save any other configuration changes required for your network.
6. Power up the DSU and test the DBM.

2
Powering Up the DBM
When you apply power to the DSU, the DSU performs a power-up routine and:
Determines what hardware options are installed, including a DBM.
Automatically runs a Device Test (Devic) on the DSU and each installed hardware
option.

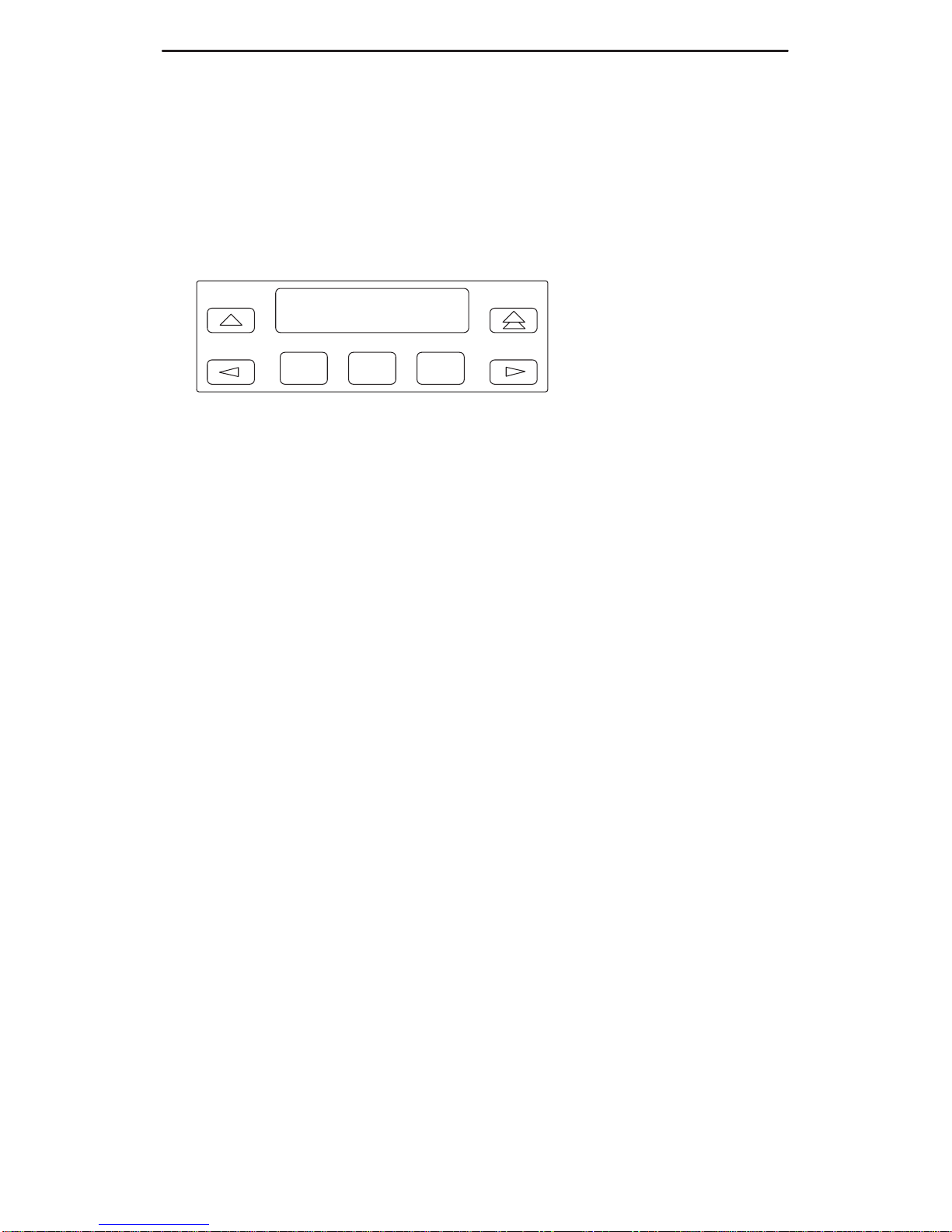

Displays the following messages on the Diagnostic Control Panel (DCP):
F1
DSU DBM
Pass Pass
F2 F3
The power-up routine can be:
Initiated using the Reset selection in the Control branch.
Disabled with the PowerOnTst General configuration option.
The front panel’s:
Red Alarm LED is lit if the DBM is a digital DBM and not connected to the network.
LCD displays health and status information with DBM F:No Signal to indicate a
facility alarm.
Continue if you receive successful messages. If a Fail message appears or a hardware
option does not appear:
Refer to your User’s Guide for power-up messages and basic procedures for
changing configuration options and troubleshooting.
Refer to your DBM Supplement for DBM troubleshooting and messages.
NOTE:
For a 4-wire Switched 56 DBM, if power is applied and a Device Test run while a
network loopback is in progress, the test is aborted and the LCD displays Abrt.
Rerun the Device Test.

3
Network Verification Testing
Perform verification testing after any installation. Refer to the Network Verification
Testing section of the User’s Guide for more information.
After confirming the network connection for a DSU equipped with a DBM:
Procedure
1. Use the →Dial command to establish a dialed call to the remote unit in order to:
— Enter remote phone numbers in dial backup directory for both ends.
— Verify the DBM can establish a call.
The DBM will be in Standby mode.
2. Verify that Auto Answer (AutoAnswer) is enabled and that the other end answers.
3. Use the →Dial command to switch the data to the DBM circuit by entering Dial
Backup mode. Ensure that both DSUs have been configured correctly.
4. Perform a Digital Test (DT) on both the DBM and the circuit from the Test branch.
After testing the network:
1. Drop the backup (DrBU).
2. To automatically initiate a call if there is a DDS network failure, enable Auto Backup
(AutoBckup) and the Backup Directory numbers.
3. Enable V.13 Signaling (V.13 Signl) for switched-carrier operation emulation. This
applies to a multipoint circuit.
Top-Level Menu

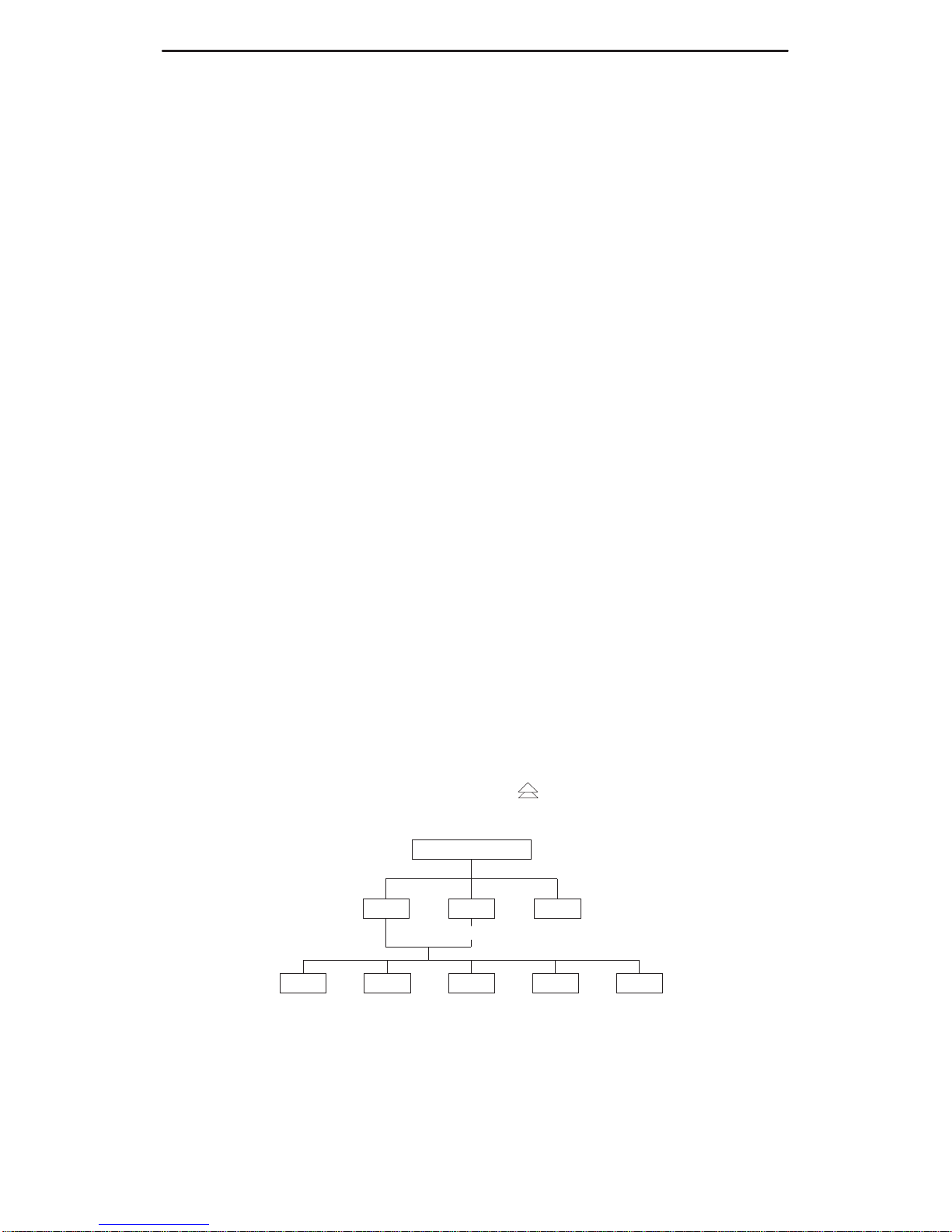

Access to all functions from the standalone or shared DCP begins at the top-level
menu, the head of the menu hierarchy. Press the key from anywhere in the menu
to return to the top-level menu.
495-12970b
TOP-LEVEL MENU
Local Remot
Bckup Test Ctrl
Msgs
Address
Confg
Stat

4
Status Branch
The Status (Stat) branch includes reports on the:
Health and status of the DSU, DBM, TDM, and MCMP
DTE interface
496-12970-02
TOP-LEVEL MENU
Local Remot
Bckup Test Ctrl
Msgs
Address
Confg
Stat
H/S DTE CircQ ID TPwr
Port
Select
Devic Expan Subn
Backup Branch

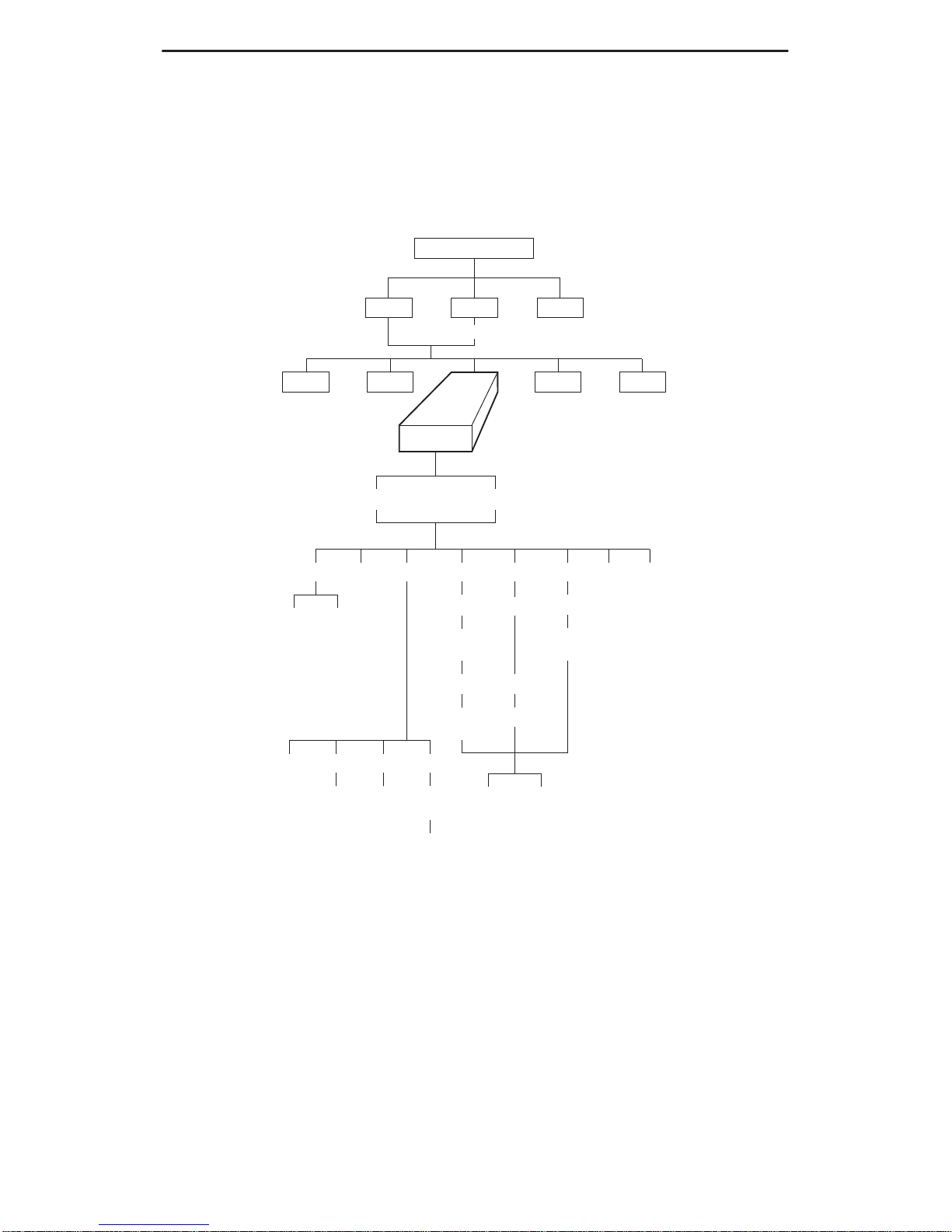

The Backup (Bckup) branch controls operation of the dial backup feature for DBMs.
The Bckup selection is used to control DBM dialing from the front panel. References to
a DBM also apply to a DBM-D, DBM-I, DBM-S, or DBM-V where the Primary Core
configuration option is set to Yes and the DSU is disabled.
496-12971-06
TOP-LEVEL MENU
Local Remot
Test Ctrl
Stat
Msgs
Address
Confg
Bckup
Abort Bkup Dial DrBU Disc →Dial →DDS AggSw →NetI

5

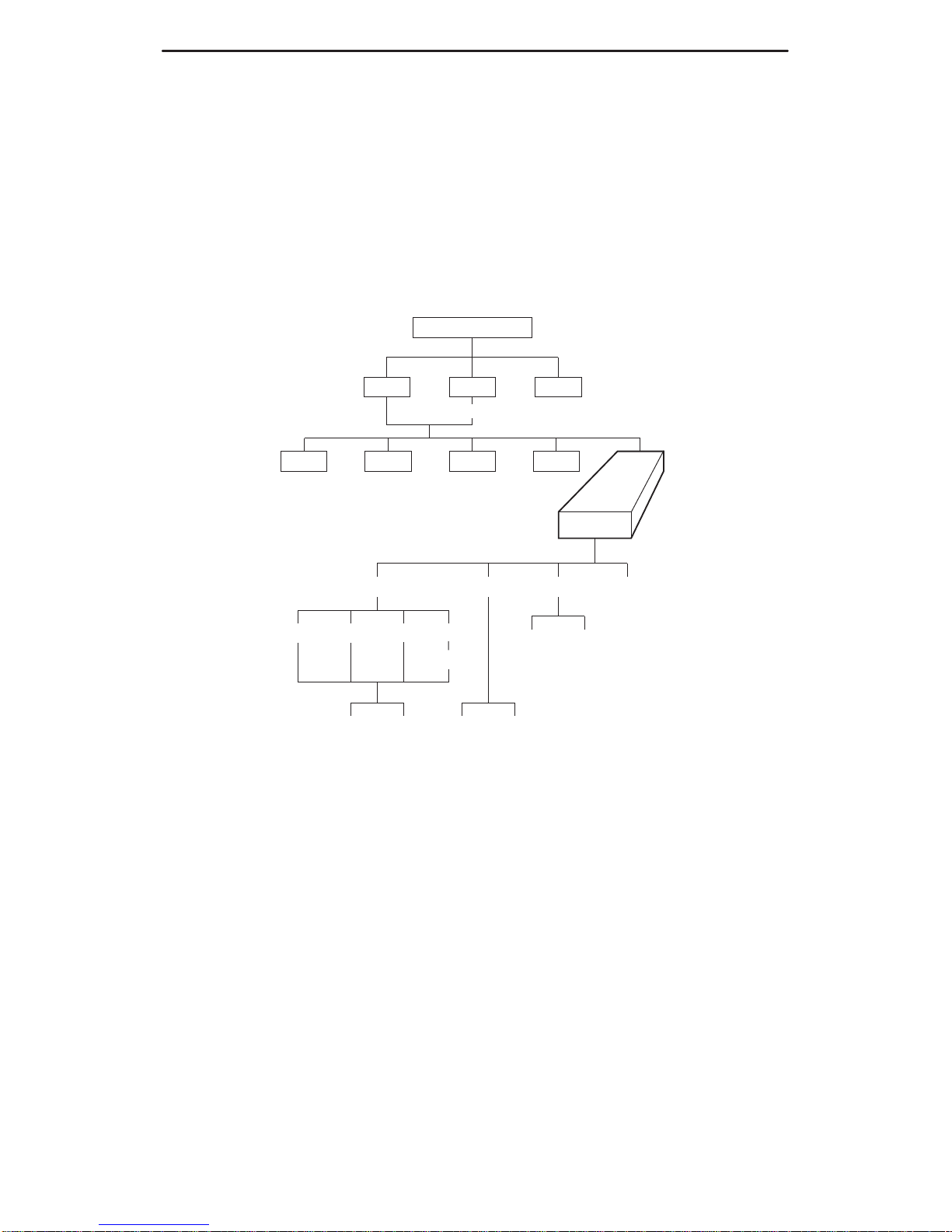

Test Branch
The Test branch provides extensive testing capabilities for the DSU, DDS circuit, DBM,
and backup circuit. When the tributary receives a test request from the control, any
locally initiated test in progress on that core is aborted. The Abort selection allows you
to abort a test that is running. The DSU is not allowed to run any other test until the test
in progress is aborted or completed.
496-12972-03
TOP-LEVEL MENU
Local Remot
Bckup Ctrl
Stat
Msgs
Address
Confg
Test
DSU DBM
Abort Devic Lpbk Lamp
LL DTE DL RL
Start Start Start
Port
Select Port
Select Port Select
Port
Select
Address
Address Address
Run
Tim # Blocks
Displ Clr
EEDT BERT
Port
Select
Subn Selective
DTone
Configuration Branch
The Configuration (Confg) branch allows you to configure or customize the DSU and
the DBM options. Change configurations options from either:
A front panel
A 6700 or 6800 Series NMS
An asynchronous terminal (3610 standalone only)

6
496-12973a-02
TOP-LEVEL MENU
Local Remot
Bckup Test Ctrl
Stat
Confg
Msgs
Opts PList Dir Phone
Addr
ChgMd
Displ Chang
Add
Acq
Activ Delet
Chang Clr
Save
DPII
ADp
Remt
Address
Activ Usr1 Usr2 Usr3
Activ Usr1
Usr2
Usr3
FacC
FacT
FacB
Load
SAVE DSU DBM Gen Bkup MUX PrtSp LPDA
Remt Usr1 Usr2 Usr3
Address
Activ Usr1 Usr2 Usr3
DSU DBM Chan
Skip
Clr
Diag
Activ
Address
DSU DBM Gen
Term
Enab Pswrd CIDDisab
Pswrd
SPID
Menu
FB1
Chang Clr
SaveEnabDisab
MPTC
MPTT
Chang Clr
Chang Clr

7
Configuration Option Tables
In the tables that follow, FacT (Factory Tributary) defaults are shown in boldface. If
different from the FacT defaults, FacC (Factory Control) defaults are shown in
italics .
Key to symbols:
AConfiguration options that do not appear when Full mode is disabled using
Menu from the Configuration branch.
HISDN and Switched 56 Digital DBMs
LISDN DBM only
LL V.32 Analog DBM only
FWhen the Async→Sync configuration option is enabled using the MUX Port
n
branch, the following DBM PrtSp settings do not appear: 32, 18.0, 8.4, 4.0,
and 2.0 kbps.
FF F ISDN and 2-wire Switched 56 DBMs only
}Not available for Switched 56 DBMs; defaults to 56 kbps.
}} Ports 3–6 are not available for 2-port Flex MUX models.
zNot available for a DBM-
X or a DSU with Primary core set to Yes; the DSU is
Disabled
zz 4-wire Switched 56 DBM only
:: Appears when non-Flex MCMP/TDM is installed or 6-port MCMP/TDM Flex is
installed with firmware version less than 6.33
DSU Configuration Options
DSU
Configuration Options Value
Rate(Kbps) Auto, 64CC, 64L, 56, 38.4, 19.2, 9.6, 4.8, 2.4
TxClkSource Int, RXC, Ext, DDS, Prt1, Prt2, Prt3, Prt4, Prt5, Prt6
Msg Clamp AEnab, Disab
TxElasStor Enab, Disab
RxElasStor AEnab, Disab
19.2 PowrLvl DD A+6, 0, –10
64KScramblng AOn, Off
64KLatchLpbk AOn, Off
NetIntf AAggSw, Forc, Disab
Net ITiming AInt, NetI, Prt1, Prt2, Prt3, Prt4, Prt5, Prt6
V.54 Lpbk AEnab, Disab
Diagnostic DSU
Configuration Options Value
Diag Type NonD, Disr, Mixed, None
2nd Ch(bps) A100, 400, 800, 1200, 1600
Disr Type 2500, 2600, 3600s, 3600e, Br56

8
Diagnostic General
Configuration Options Value
Position Cntrl , Trib, G2Trb
LinkConfg Pt-Pt, M-Pt
Resp Period A1, 2, 10
TribTimOut A0:10 (5 sec to 10 min)
Diag Conn CC, DC
Link Delay A0s, 1s, 2s, 5s, 10s, 20s, 50s
Network Delay A0s, 1s, 2s, 5s, 10s, 20s, 50s
Packet Delay A0s, 1s,2s, 5s
Extend Chan AYes, No
Upstream Port }} A Prt1, Prt2, Prt3, Prt4, Prt5, Prt6
M-Pt SymPrt AEnab, Disab
Fast Sel AEnab, Disab
General
Configuration Options Value
DTE Port :: EIA232, V.35
RTS Cntrl FrcOn , DTE
CTS Cntrl Std, =RTS
Antistream AEnab, Disab
LSD Lead AStd, Delay, FrcOn
CTS Lead AStd, Delay, FrcOn
SystemStat AEnab, Disab
DSR on Tst AEnab, Disab
Circ Assur AEnab, Disab
Tst Pattern AAT&T, Std
RespondRDL AEnab, Disab
LL by DTE AEnab, Disab
RL by DTE AEnab, Disab
Bilat Lpbk AEnab, Disab
Ext Leads AExtLd, Rate, RPowr
CCN by EL AEnab, Disab
SW Vers A3.24, 4.43, 6.66, Normal
RLSD in MCMP HAYes, No
Async→Sync Enab, Disab
AsyncBit/Char 6, 7, 8, 9, 10
Stop Bits 1, 2
Overspeed 1.0, 2.3

9
DBM Configuration Options
DBM
Configuration Options Value
Rate(Kbps) }64, 56, 28.8, 26.4, 24.0, 21.6, 19.2, 16.8, 14.4, 12.0, 9.6, 7.2, 4.8, 2.4
PrtSp(Kbps) }64, 56, 48, 38.4, 32, 28.8, 26.4, 24.0, 21.6, 19.2, 18.8, 18.0, 16.8, 14.4,
12.0, 9.6, 9.2, 8.4, 7.2, 4.8, 4.4, 4.0, 2.4, 2.0, 1.2, Disab
TxClkSourceLL}} Int , RXC, DSU, Prt1, Prt2, Prt3, Prt4, Prt5, Prt6
CarrLossDisc LL AYes, No
Auto Retrain LL AYes, No
Single Rate LL Yes, No (No without mux, Yes with mux)
Fallback LNone, All, One (All without TDM, One with TDM)
AutoAnswer AEnab, Disab
TxElasStor Enab, Disab
RxElasStor AEnab, Disab
Call Setup None, Pswrd, Clbk, Alarm
RxPwd (10 characters)
TxPwd (10 characters)
V.13 Signl Enab, Disab
Dial Test AEnab, Disab
Primary Core AYes, No
DtrCallCon Orig z, Ansr, Disab
EchoCancel HAEnab, Disab
Remote DBM DDD A2-wire, 4-wire
Wait Answer zz A90 ms, 300 ms, 500 ms, 1s, 2s, 3s, 4s, 5s
Bkup Timer Disab, 15s, 30s, 1m, 2m, 3m
SwitchTyp LNI-1, NI-2, AT&T, DMS100
FBR1(Kbps) L56
FBPS1 56, 48, 38.4, 32, 28.8, 26.4, 24.0, 21.6, 19.2, 18.8, 18.0, 16.8, 14.4, 12.0,
9.6, 9.2, 8.4, 7.2, 4.8, 4.4, 4.0, 2.4, 2.0, 1.2, Disab
Diagnostic DBM
ConfigurationOptions Value
Diag Type NonD, Disr, Mixed, None
2nd Ch(bps) A100, 400, 800, 1200, 1600
RemoteDiag AV.54, Enhan, 2500
FBDiagTyp1 LNonD, Disr, Mixed, None
FB 2nd Ch1 LA100, 400, 800, 1200, 1600

10
Backup
Configuration Options Value
Auto Bckup zEnab, Disab
Backup Dir 1–10
FAOnCMI zAEnab, Disab
AutoRestor Enab, Disab
NtwkTimOut z1:00, 0:20 (1 sec to 30 min)
RestorTimOut z5 min (1 min to 60 min)
TriesTimeOut zA15 min (1 min to 60 min)
MultiCall zAEnab, Disab
DBM PrtSp
Configuration Options Value
Prt n (SS.S) }} D*64, 56, 48, 38.4, 32, 28.8, 24.0, 19.2, 18.8, 18.0, 16.8, 14.4, 12.0, 9.6, 9.2,
8.4 , 7.2, 4.8, 4.4, 4.0, 2.4, 2.0, 1.2, Disab
Underspeed }} Disab, Prt1, Prt2, Prt3, Prt4, Prt5, Prt6
DBM Fallback1 PrtSp
Configuration Options Value
Prt n (SS.S) LD}} 56, 48, 38.4, 32, 28.8, 24.0, 19.2, 18.8, 18.0, 16.8, 14.4, 12.0, 9.6, 9.2,
8.4 , 7.2, 4.8, 4.4, 4.0, 2.4, 2.0, 1.2, Disab
Underspeed }} Disab, Prt1, Prt2, Prt3, Prt4, Prt5, Prt6
DBM Rate and Port Speed Default Settings
The DBM data rate and DBM Port 1 speed factory defaults vary based on:
HType of DBM installed
HMUX setting (TDM or MCMP in effect)
If the DBM is . . . Then the DBM Rate
Default is . . . And the DBM Port 1 Speed Default is . . .
V.32 with or without MUX 9.6 kbps 9.6 kbps
Switched 56 kbps without MUX 56 kbps 56 kbps
Switched 56 kbps with MUX enabled 56 kbps 9.6 kbps
ISDN without MUX 64 kbps 64 kbps
ISDN with TDM mode 64 kbps 9.6 kbps
ISDN with MCMP mode 56 kbps 9.6 kbps

11
Control Branch
The Control (Ctrl) branch allows you to:
Enable or disable the DSU’s and/or DBM’s transmitter. DBM alarms can be halted
by disabling the DBM.
Select LEDs to be displayed.
Display/change the status of general purpose external DTE leads.
Initiate a full device reset and power-up routine using Reset.
496-12974-02
TOP-LEVEL MENU
Local Remot
Bckup Test
Stat
Msgs
Address
Confg
Ctrl
TxCtl LEDs ExtL
DSU DBM Ports
Load Save
Displ Chang
Enab Disab
Devic
Port Select
Reset

12
Software and Firmware Version Control
Verify that the control and tributary DSUs have the same firmware version or that the
control has the highest firmware version. If the control DSU software version is less
than 7.24 but greater than 1.10, changes are required to the DSU tributary firmware
version in the General configuration options.
If Control DSU is: If Tributary DSU is: Set Tributary Su
pp
orted Su
pp
orted
Release FW
Version Release FW Version
Set
Trib
u
tary
DSU’s SW
Version to:
S
u
pported
by 6700
Release
S
u
pported
by 6800
Release
2 3.xx 3 4.xx 3.20 3.0/1.0 3.0
2 3.xx 3.1 5.xx 3.21 3.0/1.0 3.1
2 3.xx 3.2 or 3.3 6.xx 3.22 4.0.0/1.2 4.1
2 3.xx 3.4 7.xx 3.23 4.0.5/1.2.1 4.2.7
2 3.xx 3.5 8.xx 3.24 4.0.7/1.3 4.2.9
3 4.xx 3.1 5.xx 4.40 3.0/1.0 3.1
3 4.xx 3.2 or 3.3 6.xx 4.41 4.0.0/1.2 4.2.6
3 4.xx 3.4 7.xx 4.42 4.0.5/1.2.1 4.2.7
3 4.xx 3.5 8.xx 4.43 4.0.7/1.3 4.2.9
3.1 5.xx 3.1 5.xx Normal 3.0/1.0 3.1
3.1 5.xx 3.2 or 3.3 6.xx Normal 4.0.0/1.2 4.2.6
3.1 5.xx 3.4 7.xx 6.65 4.0.5/1.2.1 4.2.7
3.1 5.xx 3.5 8.xx 6.66 4.0.7/1.3 4.2.9
3.2 6.2x 3.2 6.2x Normal 3.0.10/1.1 4.1.6
3.2 6.2x 3.3 6.33–6.99 Normal 4.0.0/1.2 4.2.6
3.2 6.2x 3.4 7.xx 6.65 4.0.5/1.2.1 4.2.7
3.2 6.2x 3.5 8.xx 6.66 4.0.7/1.3 4.2.9
3.3 6.33–6.99 3.3 6.33–6.99 Normal 4.0.0/1.2 4.2.6
3.3 6.33–6.99 3.4 7.xx 6.65 4.0.5/1.2.1 4.2.7
3.3 6.33–6.99 3.5 8.xx 6.66 4.0.7/1.3 4.2.9
3.4 7.xx 3.4 7.xx Normal 4.0.5/1.2.1 4.2.7
3.4 7.xx 3.5 8.xx Normal 4.0.7/1.3 4.2.9
3.5 8.xx 3.5 8.xx Normal 4.0.7/1.3 4.2.9
