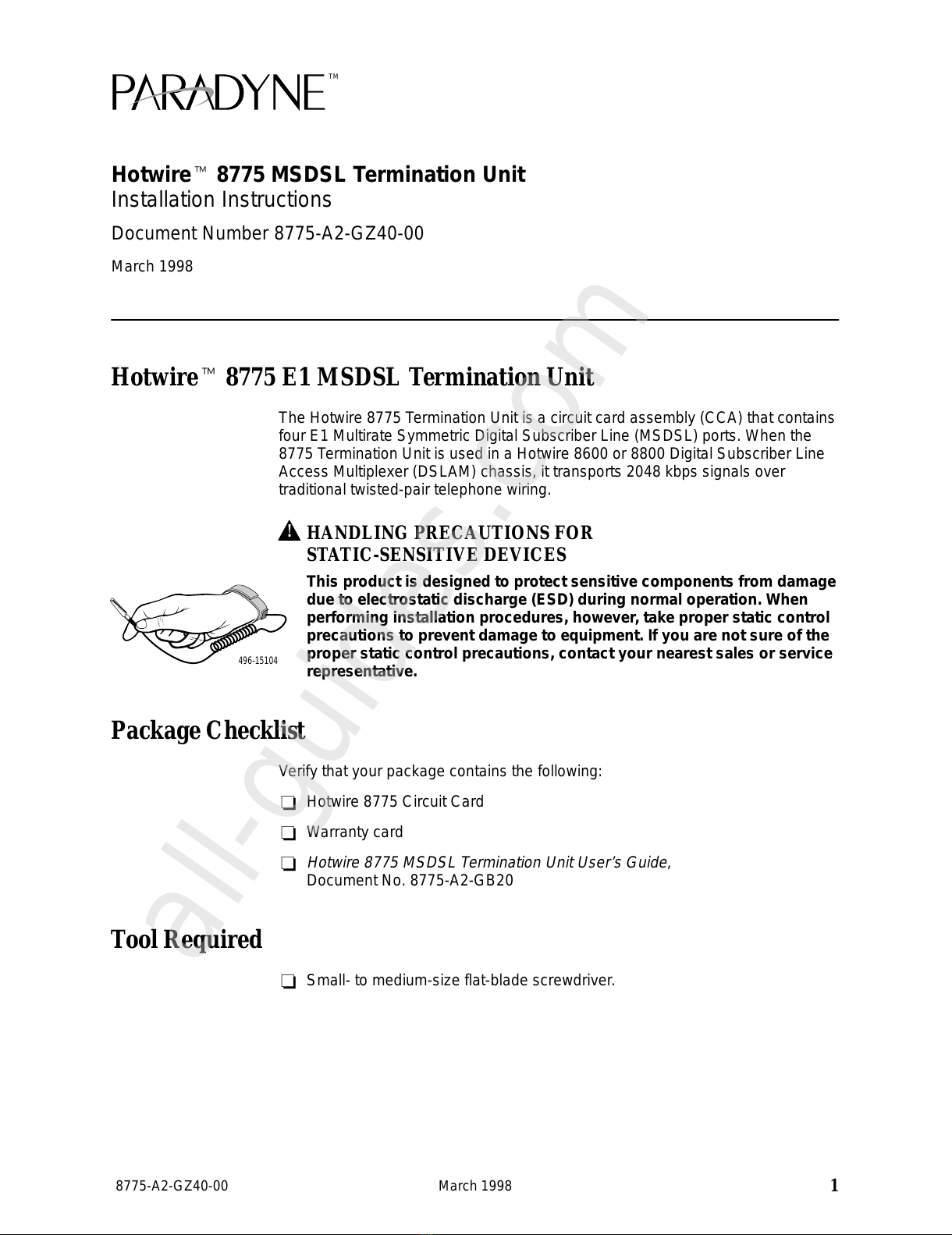

Hotwire8775 MSDSL Termination Unit
Installation Instructions
Document Number 8775-A2-GZ40-00
March 1998
Hotwire8775 E1 MSDSL Termination Unit
The Hotwire 8775 Termination Unit is a circuit card assembly (CCA) that contains
four E1 Multirate Symmetric Digital Subscriber Line (MSDSL) ports. When the
8775 Termination Unit is used in a Hotwire 8600 or 8800 Digital Subscriber Line
Access Multiplexer (DSLAM) chassis, it transports 2048 kbps signals over
traditional twisted-pair telephone wiring.
!HANDLING PRECAUTIONS FOR
STATIC-SENSITIVE DEVICES
This product is designed to protect sensitive components from damage
due to electrostatic discharge (ESD) during normal operation. When
performing installation procedures, however, take proper static control
precautions to prevent damage to equipment. If you are not sure of the
proper static control precautions, contact your nearest sales or service
representative.
Package Checklist
Verify that your package contains the following:
Hotwire 8775 Circuit Card
Warranty card
 Hotwire 8775 MSDSL Termination Unit User’s Guide ,
Document No. 8775-A2-GB20
Tool Required
Small- to medium-size flat-blade screwdriver.
496-15104
All manuals and user guides at all-guides.com
all-guides.com

2 8775-A2-GZ40-00
March 1998
Technical Specifications
Specifications Criteria*
Size Length 10 inches (25.4 cm)
Height 12.3 inches (31.1 cm)
Width 0.8 inch (2.0 cm)
Weight Approximately 1.3 lbs. (0.6 kg)
Approvals
Safety Certifications Refer to the equipment’s label for approvals on product.
Power The 8775 Termination Unit contains a DC-to-DC
converter that requires –48V power input. The –48V
power is distributed through the Hotwire DSLAM
backplane.
Maximum Power Dissipation = 19 watts
Cables and Cable Guide Part Number Description
8700-F1-500 Cable Guide for 8800 DSLAM
8700-F1-501 V.35: 100-Pin Plug to
Four MS34 Receptacles
8700-F1-502 X.21: 100-Pin Plug to
Four DB15 Receptacles
8700-F1-503 RS449: 100-Pin Plug to
Four DB37 Receptacles
8700-F1-504 EIA-530A: 100-Pin Plug to
Four DB25 Receptacles
Physical Environment
Operating temperature
Storage temperature
Relative humidity
Shock and vibration
32°to 122°F (0°to 50°C)
–4°F (–20°C) to 158°F (70°C)
5% to 85% (noncondensing)
Withstands normal shipping and handling.
* Technical specifications are subject to change without notice.
Planning the 8775 Termination Unit Installation
Review the following list to help plan for the installation.
Obtain the applicable cables; refer to
Cables You Need .
Make sure the Hotwire DSLAM chassis is installed and power is supplied to
the chassis.
After the 8775 Termination Unit is installed, there are configuration
procedures that must be performed before you can begin to use the 8775
Termination Unit. Refer to the
Hotwire 8775 MSDSL Termination Unit User’s
Guide
, for more detailed configuration procedures.
All manuals and user guides at all-guides.com

3
8775-A2-GZ40-00 March 1998
Cables You Need
The following customer-provided cables are used with this product.
For the network connection:
Plug-ended Telco 50-pin cable for connection from the Hotwire 8600 DSLAM
LINE port or one of the Hotwire 8800 DSLAM LINES ports to the Main
Distribution Frame (MDF) or other demarcation point.
For the DTE connection, one of the following:
100-pin plug to four DB15 (X.21)
100-pin plug to four DB25 (EIA-530A)
100-pin plug to four DB37 (RS-449)
100-pin plug to four MS34 (V.35)
See
Technical Specifications on page 2 for part numbers of the DTE cables. For
more information refer to Appendix D,
Cables and Pin Assignments , in the User’s
Guide.
Installing DSL Cards
Use a small- to medium-size flat-blade screwdriver to install the 8775 Termination
Unit.
When using a . . . Install the 8775 Termination Unit in . . .
Hotwire 8600 DSLAM base
chassis Slot 2 or 3 (Slot 1 of the Hotwire 8600 DSLAM base chassis must contain a Management Communications
Controller (MCC) card.)
Hotwire 8600 DSLAM
expansion chassis Slot 1, 2, or 3
Hotwire 8800 DSLAM
chassis Any one of the first 18 slots (i.e., Slot 1 through 18)
An 8775 Termination Unit can be installed, removed, and replaced from a Hotwire
DSLAM chassis without disrupting service to the other cards in the chassis.
NOTE:
When installing the 8775 Termination Unit, you need to remove the filler plate
before proceeding.
Do not discard unused filler plates. Each slot in the chassis must contain a
circuit card or a filler plate. Store all unused filler plates in a safe place. You
may need to use the filler plates to cover open slots in the chassis at a later
time.
All manuals and user guides at all-guides.com

4 8775-A2-GZ40-00
March 1998

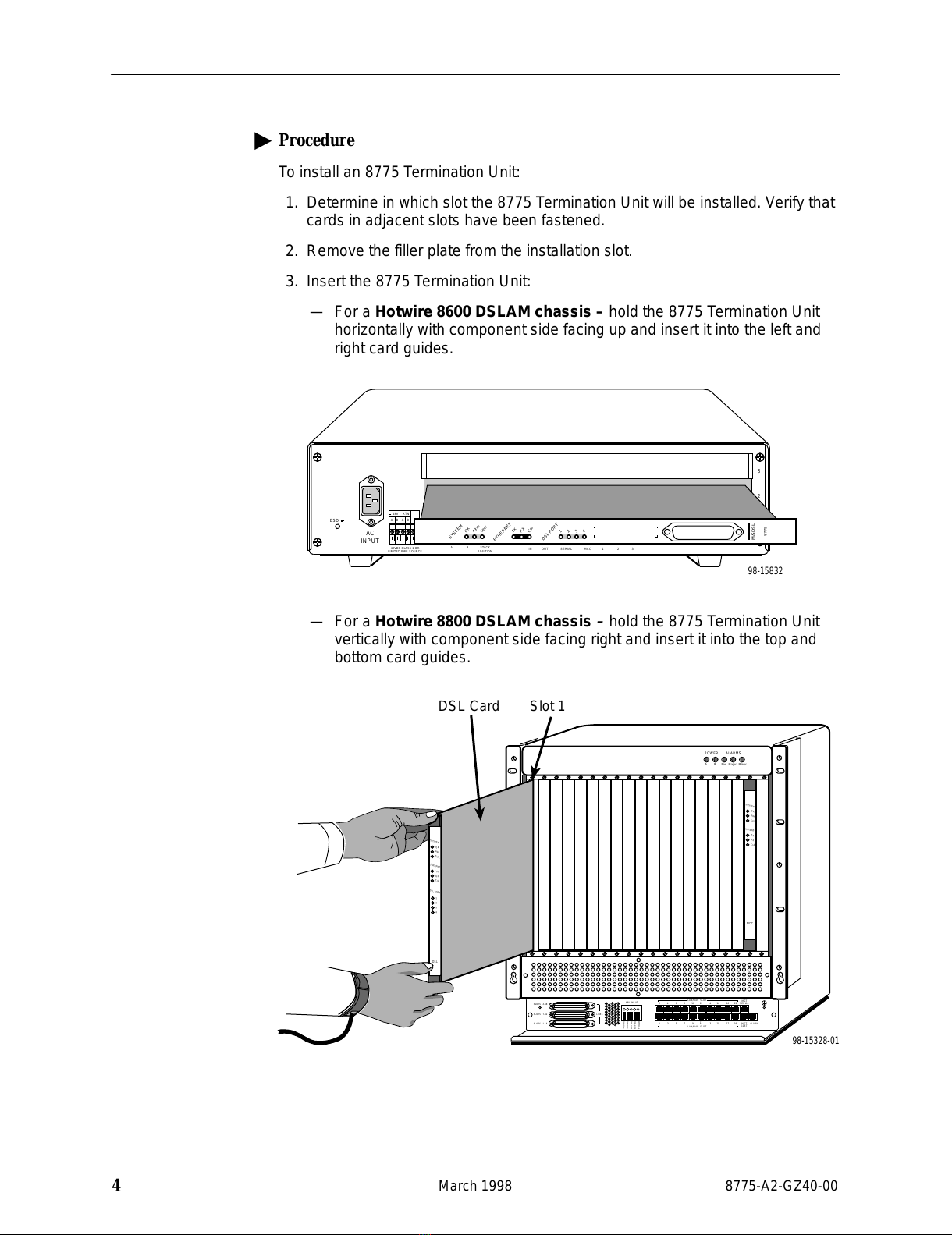

Procedure
To install an 8775 Termination Unit:
1. Determine in which slot the 8775 Termination Unit will be installed. Verify that
cards in adjacent slots have been fastened.
2. Remove the filler plate from the installation slot.
3. Insert the 8775 Termination Unit:
— For a Hotwire 8600 DSLAM chassis – hold the 8775 Termination Unit
horizontally with component side facing up and insert it into the left and
right card guides.
A
INPUT
AC
48VDC CLASS 2 OR
LIMITED PWR SOURCE
RTN48V
AAB B
LAN/WAN SLOT
2
46
B
.
.
.
3
.
1
2
POSITION
STACK ALM A
IN
B
DC FUSES 5DC PWR
FAN
OUT SERIAL MCC 1
MANAGEMENT
3
LINE 1
2
3
98-15832
SYSTEM
OKAlrm Test TXRXCol
ETHERNET
M/SDSL
8775
SYSTEM
OKAlrm Test TXRXCol 1234
ETHERNET
DSL PORT
ESD
— For a Hotwire 8800 DSLAM chassis – hold the 8775 Termination Unit
vertically with component side facing right and insert it into the top and
bottom card guides.
ALARMS
Major MinorFanBA
POWER
MCC
SYSTEM
OK
Alm
Test
ETHERNET
TX
RX
Coll
98-15328-0
1
MGT
SERIAL
MGT
10BT ALARM
SLOTS 1 - 6
SLOTS 7-12
SLOTS 13-18
LINES
AB
-48V (A)
-48V INPUT
-48V (B) RET (A) RET (B) FR GND
246810 12 14 16 18
19
13579
11 13 15 17
LAN/WAN SLOT 20
LAN/WAN SLOT
Slot 1
DSL
SYSTEM
OK
Alm
Test
ETHERNET
TX
RX
Coll
DSL PORT
1
2
3
4
DSL Card
All manuals and user guides at all-guides.com

5
8775-A2-GZ40-00 March 1998

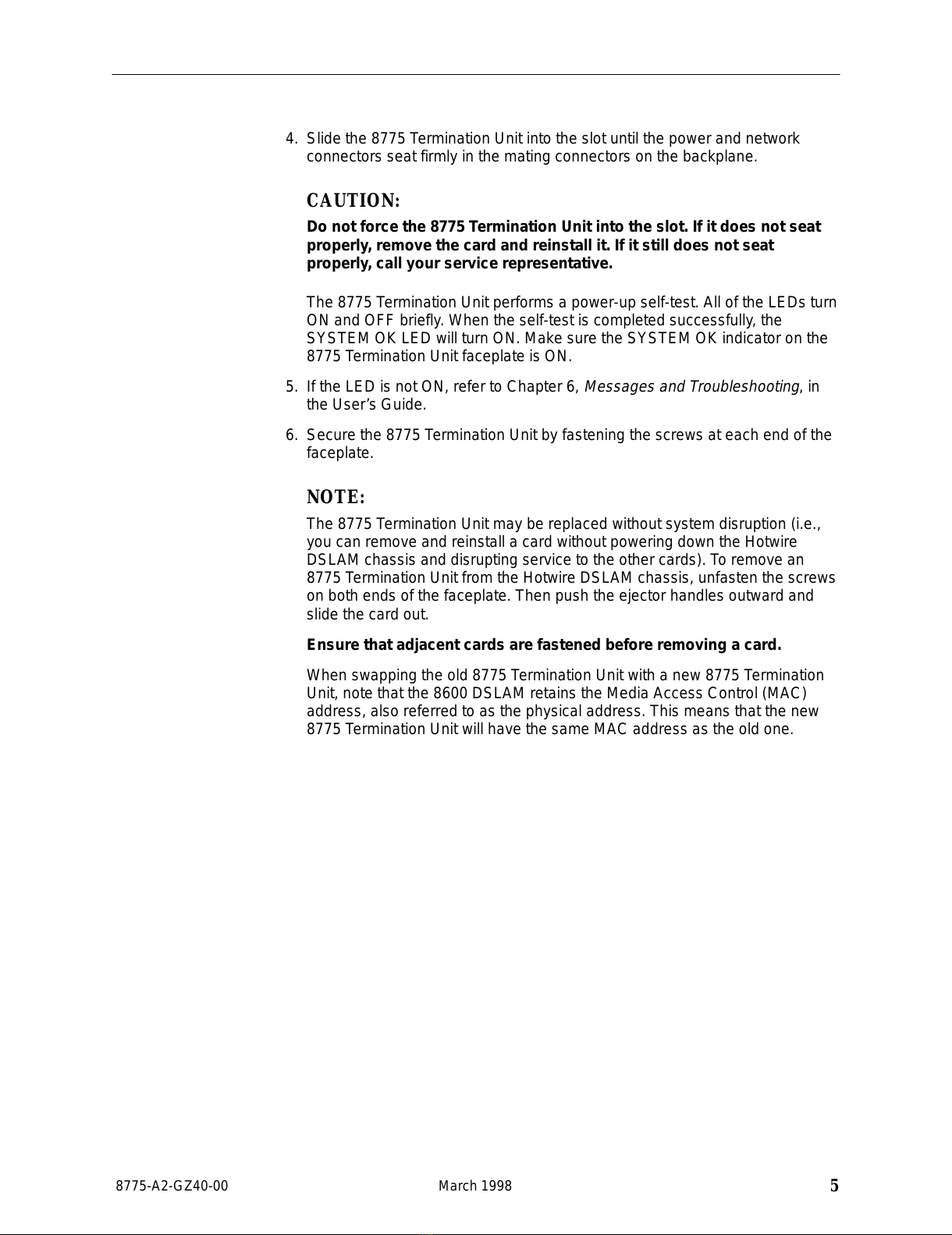

4. Slide the 8775 Termination Unit into the slot until the power and network
connectors seat firmly in the mating connectors on the backplane.
CAUTION:
Do not force the 8775 Termination Unit into the slot. If it does not seat
properly, remove the card and reinstall it. If it still does not seat
properly, call your service representative.
The 8775 Termination Unit performs a power-up self-test. All of the LEDs turn
ON and OFF briefly. When the self-test is completed successfully, the
SYSTEM OK LED will turn ON. Make sure the SYSTEM OK indicator on the
8775 Termination Unit faceplate is ON.
5. If the LED is not ON, refer to Chapter 6,
Messages and Troubleshooting , in
the User’s Guide.
6. Secure the 8775 Termination Unit by fastening the screws at each end of the
faceplate.
NOTE:
The 8775 Termination Unit may be replaced without system disruption (i.e.,
you can remove and reinstall a card without powering down the Hotwire
DSLAM chassis and disrupting service to the other cards). To remove an
8775 Termination Unit from the Hotwire DSLAM chassis, unfasten the screws
on both ends of the faceplate. Then push the ejector handles outward and
slide the card out.
Ensure that adjacent cards are fastened before removing a card.
When swapping the old 8775 Termination Unit with a new 8775 Termination
Unit, note that the 8600 DSLAM retains the Media Access Control (MAC)
address, also referred to as the physical address. This means that the new
8775 Termination Unit will have the same MAC address as the old one.
All manuals and user guides at all-guides.com

6 8775-A2-GZ40-00
March 1998
Cable Management
The optional Cable Guide (see Technical Specifications on page 2 for its part
number) connects to the front of the Hotwire 8800 DSLAM and provides strain
relief and control of the DTE cables. Install the Cable Guide before installing the
cables.
97-15777
ALARMS
Major MinorFanBA
POWER
MGT
SERIAL
MGT
10BT ALARM
SLOTS 1 - 6
SLOTS 7-12
SLOTS13-18
LINES
-48V (A)
-48V INPUT
-48V (B)
RET (A)
RET (B)
FR GND
246810 12 14 16 18
19
1357911 13 15 17
LAN/WAN SLOT
20
LAN/WAN SLOT
SLOTS13-18
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703ALRM
DSLPORT
LINK-UP
4
SYSTEM
OKAlrm
Test
123
G.703ALRM
4
Front Rail
Existing
Screw
Bottom Hole for
Mounting in 19"
Rack or Cabinet
Front Rail
Top Hole for
Mounting in 23"
Rack or Cabinet
Screw
Washer
and Nut
All manuals and user guides at all-guides.com
all-guides.com

7
8775-A2-GZ40-00 March 1998
Connecting to the DTE Equipment
Connection to the four ports of the 8775 Termination Unit is through the 100-pin
EIA-530 interface connector on its faceplate. Use one of the DTE cables listed
under
Cables You Need on page 3.
Procedure
To connect the Hotwire 8775 Termination Unit to your DTE equipment:
1. Connect the 100-position connector of the cable to the connector on the
faceplate of the 8775 Termination Unit. Align one end of the cable connector
with the card connector, then push on the cable connector until it seats.
The end of the cable connector has a release button. To remove the
connector, press the release button and pull the connector away from the
card.
97-15726
-48V RTN F
G
ABAB
48VD
ETHERNET
MCC
8000
SYSTEM
OKAlrm
Test
TXRXCol
4
SYSTEM
OKAlrm
Test
123
123
G.703 ALRM
DSL PORT
LINK-UP
4
4
SYSTEM
OKAlrm
Test
123
123
G.703 ALRM
DSL PORT
LINK-UP
4
2. Feed the cable through the Cable Guide if it is in use. When all cables are
installed, anchor them with cable ties to the rack, DSLAM, or Cable Guide.
3. Connect the four terminating connectors to your DTE equipment.
All manuals and user guides at all-guides.com

8 8775-A2-GZ40-00
March 1998

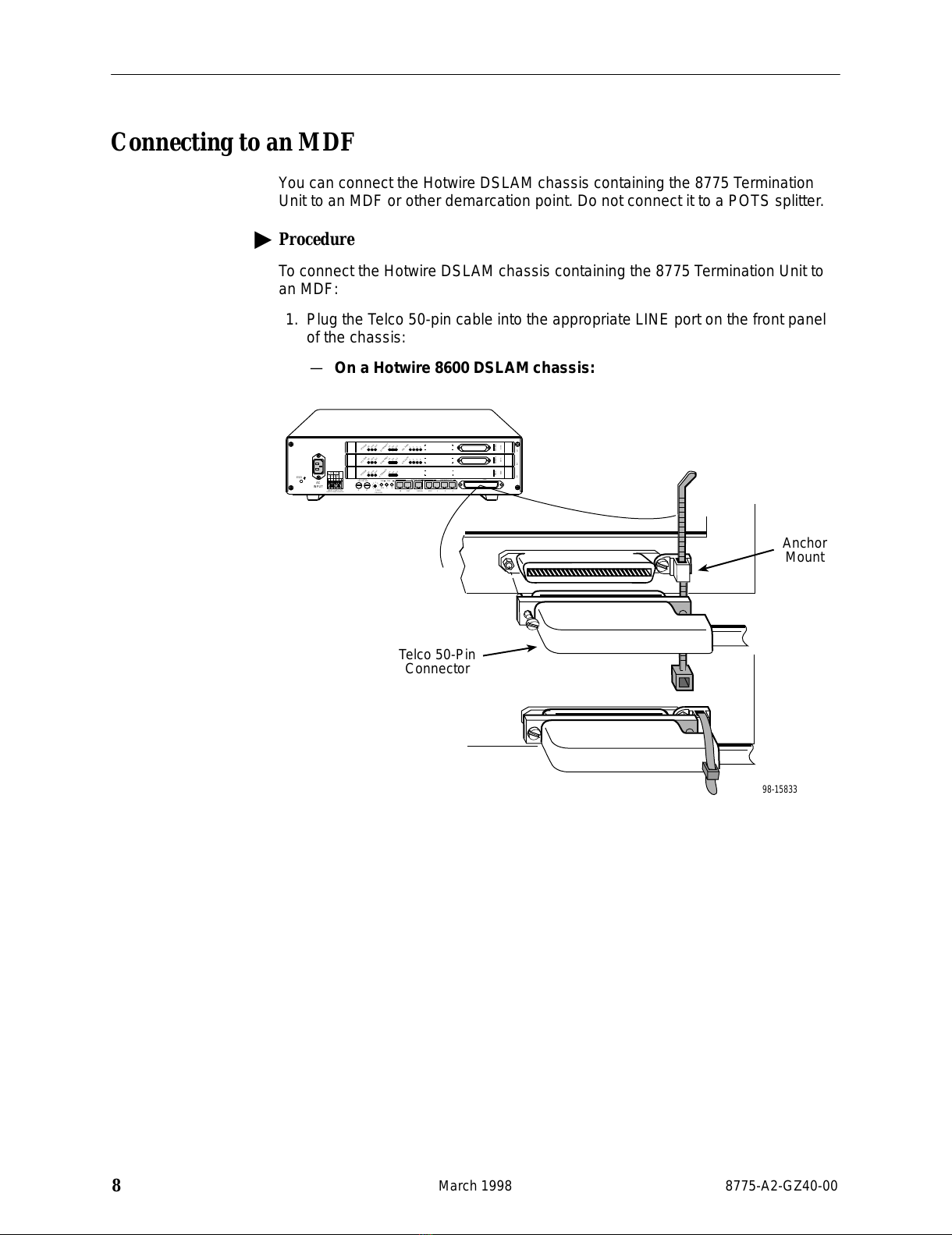

Connecting to an MDF
You can connect the Hotwire DSLAM chassis containing the 8775 Termination
Unit to an MDF or other demarcation point. Do not connect it to a POTS splitter.
Procedure
To connect the Hotwire DSLAM chassis containing the 8775 Termination Unit to
an MDF:
1. Plug the Telco 50-pin cable into the appropriate LINE port on the front panel
of the chassis:
—On a Hotwire 8600 DSLAM chassis:
98-15833
A
INPUT
AC
48VDC CLASS 2 OR
LIMITED PWR SOURCE
RTN48V
AAB B
LAN/WANSLOT
2
46
B
.
.
.
3
.
1
2
POSITION
STACKALM A
IN
B
DC FUSES
T4A, MIN. 48V 5PWR
FAN
OUT SERIAL MCC 1
MANAGEMENT
3
LINE
1
2
3
SYSTEM
OKAlrm Test TXRXCol
ETHERNET
MCC
8000
SYSTEM
OKAlrm Test TXRXCol 1234
ETHERNET
DSL PORT
M/SDSL
8775
SYSTEM
OKAlrm Test TXRXCol 1234
ETHERNET
DSL PORT
M/SDSL
8775
Anchor
Mount
Telco 50-Pin
Connector
ESD
All manuals and user guides at all-guides.com

9
8775-A2-GZ40-00 March 1998
—On a Hotwire 8800 DSLAM chassis:
SLOTS 13-18
SLOTS 7-12
SLOTS 1-6
97-15325
Anchor Mount
Telco 50-Pin
Connector
LINES
SLOTS 1-6
LINES
Shorter
Telco
Captive Screw
2. Replace the longer Telco cable captive screw with a shorter connector
captive screw, which is provided with the Hotwire DSLAM chassis.
3. Insert a cable tie (provided with Hotwire DSLAM chassis) through the tie
mount to hold the Telco 50-pin connector in place. If more than one Telco
cable is being connected, span the two or three connectors.
4. Make sure the other end is connected to the appropriate MDF or demarcation
point.
Refer to Appendix D,
Cables and Pin Assignments , in the User’s Guide for
pinouts.
NOTE:
If you are connecting the Telco 25-pair, 50-pin cable to an MDF, a converter
may be necessary for terminating the other end of the cable on a punchdown
block before cross-connecting to an MDF.
All manuals and user guides at all-guides.com

10 8775-A2-GZ40-00
March 1998
8775 Termination Unit LEDs
The following table describes the meaning and states of the LEDs on the 8775
Termination Unit faceplate.
Type LED LED is . . . Indicating . . .
SYSTEM OK Green
Off
Normal operation; card functioning normally.
No power to card, or card failure.
Alrm Amber
Off
Device failure, or Power-On Self Test (POST)
failure.
No alarms.
Test Amber
Amber,
flashing
Off
Loopback test or 511 test pattern in progress.
POST in progress.
No tests.
SYNC
PORT 1, 2, 3, 4 Green
Amber
Amber,
flashing
Off
Interchange circuits for the port are in the
correct state to transmit and receive data.
The port is configured to monitor DTR and/or
RTS and no monitored lead is asserted.
Data Channel Loopback (DCLB) or Data
Terminal Loopback (DTLB) is active on the
port.
The port is disabled.
DSL PORT
LINK-UP 1, 2, 3, 4 Green
Off
Amber
Amber,
flashing
DSL link is up.
DSL link is down.
DSL training in progress.
OOF condition.

*8775–A2–GZ40–00*
4
M/SDSL
8775
SYSTEM
OKAlrm
Test
123
123
G.703 ALRM
DSL PORT
LINK-UP
4
98-1583
4
All manuals and user guides at all-guides.com
