Parallax ATS 5070 User manual

MOUNTING LOCATION
Qualified service personnel should install the ATS 5070 series
meeting all applicable codes and standards.
The ATS 5070 series may be mounted in any position, leaving room for
routing shoreline, generator and load conductors. To minimize voltage
drop in the wiring the transfer switch should be located as close to the
generator and shoreline cord entrance as practical.
DO NOT mount the ATS 5070 series in the generator compartment.
The ATS 5070 series is not ignition protected, and therefore should not
be mounted in the same compartment as batteries or flammable materials
such as gasoline. It may be mounted in the cabin or living area or a
basement compartment, but is not suitable for outside locations.
SPECIFICATIONS
**Electrical rating: 120/240 volts AC 60 HZ @ 50amperes.
Maximum generator: 12KW
Enclosure: UL Type 1 16 GA Steel
Listed for US and Canadian applications.
**Note: L1 and L2 rated 35 amperes per leg with 70 ampere neutral when L1 and
L2 are in phase. (Optional jumpers must be installed).
Model Dimensions Weight
ATS 5070 8”L x 8”W x 4.75” D 7.5 lbs.
ATS 5070 FI 10.25”L x 8.25”W x 5.25” D 10.5 lbs.
ATS 5070 MB 11.25”L x 8.25”W x 5.25”D 9.5 lbs.
Not ignition protected.
Specifications subject to change without prior notice.
WARRANTY STATEMENT
Parallax warrants each ATS 5070 model to be free from defects in materials and
workmanship under normal use and service and limits the remedies to repair or
replacement. This warranty extends for two years from the date of purchase and
only valid to the original owner and within the continental limits of the United
States and Canada. If a problem should occur within the first 24 months of
purchase, please contact a dealer that handles warranty service on your
Recreational Vehicle.
You may download the entire Parallax Warranty Policy at:
http://www.parallaxpower.com/warranty_policy
No user serviceable parts inside. This warranty does not cover damage due to
improper installation, abuse or accidents.
425 Sycamore St. Anderson, IN 46016
Phone: [phone] Fax: [phone]
For a special offer concerning
Extended Warranty Coverage,
Visit our website at www.parallaxpower.com

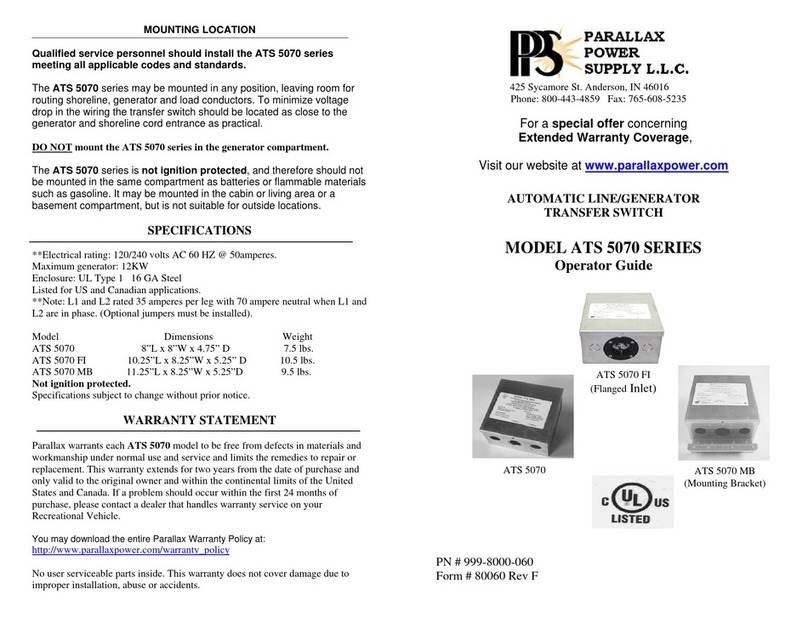

AUTOMATIC LINE/GENERATOR
TRANSFER SWITCH
MODEL ATS 5070 SERIES
Operator Guide
ATS 5070 FI
(Flanged Inlet)
PN # 999-8000-060
Form # 80060 Rev F
ATS 5070 ATS 5070 MB
(Mounting Bracket)

INTRODUCTION
Thank you for purchasing a Parallax Power Supply, Model ATS5070
series automatic Line/ Generator RV transfer switch. We are confident
that the ATS 5070 series model you have purchased will give you
outstanding performance for many years. If you have any questions or
comments about this product, please contact Parallax’s customer service
representative at the address or phone and fax numbers listed below.
Parallax Power Supply, L.L.C.
425 Sycamore St.
Anderson, IN 46016
Phone: [phone]
Fax. : [phone]
GENERAL INFORMATION
The ATS 5070 series is designed to automatically switch the on board 120 or
240-volt appliances to generator power when the generator is activated.
No longer do you need to go outside, remove the shoreline cord from the pole and
plug it into the generator receptacle. You simply start the generator and the
ATS5070 will switch the loads for you.
OPERATION
After the ATS 5070 is installed using one of the typical installations shown in this
manual, it will be ready for years of trouble free service. Operation is automatic
and is maintenance free.
FROM SHORELINE:
To operate appliances from shoreline power, simply plug in the shoreline cord to
the power pole at the campground or dock. The ATS 5070 automatically
connects all AC Appliances to shoreline power.
FROM GENERATOR:
To operate appliances from on board generator simply start the generator.
After about a 20 second delay to allow the generator to stabilize the ATS 5070
will engage, transferring all 120 or 240-volt appliances connected to the ATS
5070 load terminals to the generator.
AUXILIARY CONTACT OPERATION
The ATS 5070 series RV line generator switch when connected as in the typical
installation II shown below may control other equipment in your vehicle. The
auxiliary contacts are rated for 50 A@ 120/240 VAC operation and will switch
other loads as the ATS 5070 switches from shore power to generator. These
contacts are supplied as non-energized dry contacts.
MODEL 5070 LINE / GENERATOR SWITCH
Typical Installations
Rated - 50A 120/240 Volts 60Hz, Neutral rated 70A with optional jumpers installed.
Auxiliary dry contacts rated 50 A -240 Volts.
INSTALLATION I
LOAD
L2
** Note: Circuit1 and Circuit 2 in phase.
INSTALLATION II
L1
120 / 240
50 A - SHORE NEUT. LOAD
LINE POWER L2
L1 L2 C DRY AUX.
NC CONTACTS.
RATED 50A
NO 240 V
NEUTRAL
ATS 5070
With optional jumpers
installed.
120 / 240
50 A - SHORE
LINE POWER
L1
NEUT.
120 V - 2 CIRCUIT
GENERATOR
** Circuit 1
120 V - 35 A Max. ** Circuit 2
120 V - 35 A Max.
Neutral rated
70 A Max.
ATS 5070
120 / 240
50 A - Max.
GENERATOR

INTRODUCTION
Thank you for purchasing a Parallax Power Supply, Model ATS5070
series automatic Line/ Generator RV transfer switch. We are confident
that the ATS 5070 series model you have purchased will give you
outstanding performance for many years. If you have any questions or
comments about this product, please contact Parallax’s customer service
representative at the address or phone and fax numbers listed below.
Parallax Power Supply, L.L.C.
425 Sycamore St.
Anderson, IN 46016
Phone: [phone]
Fax. : [phone]
GENERAL INFORMATION
The ATS 5070 series is designed to automatically switch the on board 120 or
240-volt appliances to generator power when the generator is activated.
No longer do you need to go outside, remove the shoreline cord from the pole and
plug it into the generator receptacle. You simply start the generator and the
ATS5070 will switch the loads for you.
OPERATION
After the ATS 5070 is installed using one of the typical installations shown in this
manual, it will be ready for years of trouble free service. Operation is automatic
and is maintenance free.
FROM SHORELINE:
To operate appliances from shoreline power, simply plug in the shoreline cord to
the power pole at the campground or dock. The ATS 5070 automatically
connects all AC Appliances to shoreline power.
FROM GENERATOR:
To operate appliances from on board generator simply start the generator.
After about a 20 second delay to allow the generator to stabilize the ATS 5070
will engage, transferring all 120 or 240-volt appliances connected to the ATS
5070 load terminals to the generator.
AUXILIARY CONTACT OPERATION
The ATS 5070 series RV line generator switch when connected as in the typical
installation II shown below may control other equipment in your vehicle. The
auxiliary contacts are rated for 50 A@ 120/240 VAC operation and will switch
other loads as the ATS 5070 switches from shore power to generator. These
contacts are supplied as non-energized dry contacts.
MODEL 5070 LINE / GENERATOR SWITCH
Typical Installations
Rated - 50A 120/240 Volts 60Hz, Neutral rated 70A with optional jumpers installed.
Auxiliary dry contacts rated 50 A -240 Volts.
INSTALLATION I
LOAD
L2
** Note: Circuit1 and Circuit 2 in phase.
INSTALLATION II
L1
120 / 240
50 A - SHORE NEUT. LOAD
LINE POWER L2
L1 L2 C DRY AUX.
NC CONTACTS.
RATED 50A
NO 240 V
NEUTRAL
ATS 5070
With optional jumpers
installed.
120 / 240
50 A - SHORE
LINE POWER
L1
NEUT.
120 V - 2 CIRCUIT
GENERATOR
** Circuit 1
120 V - 35 A Max. ** Circuit 2
120 V - 35 A Max.
Neutral rated
70 A Max.
ATS 5070
120 / 240
50 A - Max.
GENERATOR

MOUNTING LOCATION
Qualified service personnel should install the ATS 5070 series
meeting all applicable codes and standards.
The ATS 5070 series may be mounted in any position, leaving room for
routing shoreline, generator and load conductors. To minimize voltage
drop in the wiring the transfer switch should be located as close to the
generator and shoreline cord entrance as practical.
DO NOT mount the ATS 5070 series in the generator compartment.
The ATS 5070 series is not ignition protected, and therefore should not
be mounted in the same compartment as batteries or flammable materials
such as gasoline. It may be mounted in the cabin or living area or a
basement compartment, but is not suitable for outside locations.
SPECIFICATIONS
**Electrical rating: 120/240 volts AC 60 HZ @ 50amperes.
Maximum generator: 12KW
Enclosure: UL Type 1 16 GA Steel
Listed for US and Canadian applications.
**Note: L1 and L2 rated 35 amperes per leg with 70 ampere neutral when L1 and
L2 are in phase. (Optional jumpers must be installed).
Model Dimensions Weight
ATS 5070 8”L x 8”W x 4.75” D 7.5 lbs.
ATS 5070 FI 10.25”L x 8.25”W x 5.25” D 10.5 lbs.
ATS 5070 MB 11.25”L x 8.25”W x 5.25”D 9.5 lbs.
Not ignition protected.
Specifications subject to change without prior notice.
WARRANTY STATEMENT
Parallax warrants each ATS 5070 model to be free from defects in materials and
workmanship under normal use and service and limits the remedies to repair or
replacement. This warranty extends for two years from the date of purchase and
only valid to the original owner and within the continental limits of the United
States and Canada. If a problem should occur within the first 24 months of
purchase, please contact a dealer that handles warranty service on your
Recreational Vehicle.
You may download the entire Parallax Warranty Policy at:
http://www.parallaxpower.com/warranty_policy
No user serviceable parts inside. This warranty does not cover damage due to
improper installation, abuse or accidents.
425 Sycamore St. Anderson, IN 46016
Phone: [phone] Fax: [phone]
For a special offer concerning
Extended Warranty Coverage,
Visit our website at www.parallaxpower.com
AUTOMATIC LINE/GENERATOR
TRANSFER SWITCH
MODEL ATS 5070 SERIES
Operator Guide
ATS 5070 FI
(Flanged Inlet)
PN # 999-8000-060
Form # 80060 Rev F
ATS 5070 ATS 5070 MB
(Mounting Bracket)
