PARAMOUNT BROWNS CMI22EAF User manual

Part Number CMI22EAF
Drum mouth 380mm
Mixed Wet 60 Litre
Unmixed Dry 85 Litre
Gross Drum Volume 110 Litre
Voltage 230-240V (50HZ)
Motor 550 Wa
Wheels 330mm Puncture Proof
Weight 76kg
BROWNS’
CONCRETE MIXER
2.2CU/FT 65 LITRE
INDUSTRIAL
INSTRUCTION MANUAL
www.paramountbrowns.com.au

Cleaning
• After each mix, it is advisable to clear any build up of cement from the mixing arms inside the drum.
If left to dry, the cement can be extremely dicult to remove without damage to the drum.
• After the last mix it is advisable to wash and clean all cement build up from both inside and outside
the drum, before the cement fully sets. Avoid hitting the drum with any objects and pay particular
attention to build up of cement around the lip of the drum.
• After cleaning the drum, the cement mixer should be stored in the downwards position to ensure all
water is drained from the drum.
General Inspection
• Regularly check that all the xing screws are tight. They may vibrate loose over time.
• Ensure tyres are inated equally.
• Inspect the cordset and plug for any signs of damage and have any repairs performed before use by
an authorized Service Centre.
• Ensure to inspect any extension cables for damage before use with this appliance.
CAUTION
Never start the mixer loaded, always load mixer rotating.
Always wear Personal Protection Equipment when operating.
Recommend that you only use extension cords appropriate for outdoor use.
Power supply should be protected by an approved RCD protection device.

4) The spacing between the gears should be
approx 1-1.5mm. This can be adjusted using the
spacing washers provided. The spacing should
be enough that the gear engages optimally, but
doesn’t eect the smooth engagement of the
gears.
1) Align the 3 mixer chassis components consist-
ing of a horizontal lifting bar, axle assembly and
vertical drum/drive support. Bolt the 3 compo-
nents securely together using the appropriate
hex nuts bolts at and locking washers.
2) Slide the 2 wheels and at washers onto each
wheel axle (ensure the valve for tyre ination
face outwards). Slide a split pin into each hole
at the end of the axle and bend to secure each
wheel.
3) Main drive/drum support unit. This should
now be tted into the drum.
ASSEMBLY INSTRUCTIONS
Caution: Due to the size and weights of some of the
components used in this machine.
We recommend that 2 people only attempt assembly.

7) Lift (2 people) the now assembled drive and
drum into the bushing located at the top of the
chassis.
5)When this is complete, align the holes of the
drive and drum and t securely with the high
tensile nut and bolt.
6) Lightly oil the male bush. On the drum and
drive. Same with the female bush on the chassis.
8) Fit the pulley cover to the drive end of the
mixer and x to the securing brackets with the
screws and nuts provided. Fit the large washer
over the drive shaft together with the securing
circlip.
9) Fit key into keyway and slide main drive pulley
onto shaft.

12) Place motor (#17) onto Motor stand (#12)
x with four hex bolts (#18), at washers (#13)
between bolts and motor, then at washer (#13)
and spring washer (#14) on bottom of motor
stand, tighten it with nuts (#15). Do not tighten
nuts until the pulley and motor pulley (are parallel).
15) Attach motor cover with four hex bolts (#20),
at washer (#21) between bolts and motor cover
then the other side with at washer (#21), spring
washers (#22) and hex nuts, tighten.
Finally, lock all necessary bolts and nuts, the
mixer is ready for operation now.
14) Attach outer pulley cover (#24) with seven
cross head bolts (#36),at washers (#33), spring
washers (#34) and nuts (#35), tighten them.
13) Attach the drive belt(s) to both the main
drive and motor pulleys. Align by adjusting both
the fan (on the shaft) or the motor (on the stand)
to ensure they are as parallel as possible. Failure
to do this will result in uneven drive belt wear
and premature bearing failure.
11) Put motor stand (#12) to vertical support,
align the four holes on the lock plate (#54) ,
then ax it with hex bolts(#11), at washer (#4),
spring washer (#5) and hex bolt (#6). Do not
tighten nuts until the motor (#17) is xed and
the tension of the belt is properly adjusted.
10) Align the two holes on handles (#39) with
holes on drum support, and ax with hex bolts
(#7), at washers (#4) and spring washer (#5),
then tighten it with nut(#6). Same installation as
other handle.

NO. Name DESCRIPTION QUANTITY
1 Floor support assembly 1
2 Vertical support assmebly 1
3 wheel axle 1
4 flat washer _1 0 16
5 spring washer _1 0 16
6 hex nut M10 16
7 hex bolt M10*25 12
8wheel 3.25-8 2
9 wheel stop washer _1 6 2
10 split pin _3*30 2
11 hex bolt M10*35 4
12 motor stand 1
13 flat washer _ 8 16
14 spring washer _ 8 14
15 hex nut M8 8
16 handle cover 4
17 motor 1
18 hex bolt M8*20 8
19 motor cover 1
20 hex bolt M6*20 4
21 flat washer _ 6 8
22 spring washer _ 6 4
23 hex nut M6 4
24 pulley outer cover 1
25 motor pulley 1
26 pulley inside cover 1
27 hex bolt M8*20 1
28 belt pulley 1
29 hex bolt M8*20 2
30 split pin _5*35 1
31 stop washer 1
32 belt A 1150 1
33 flat washer _ 5 7
34 spring washer _ 5 7
35 hex nut M5 7
36 cross head bolt M5*12 7
37 oil cup 3
38 bearing 6005-2RS 2
39 handle 2
40 drum support assembly 1
41 umbelliform gear shaft 1
42 adjust washer 1
43 gear ring 1
44 spring iron pin _8*40 1
45 drum assembly 1
46 hex bolt M8*20 6
47 leather gasket 6
48 flat washer _ 8 6
49 drum shaft 1
50 bearing 6205-2RS 2
51 stop washer 1
52 split pin _6*35 1
53 dust proof cap 1
54 lock plate 1
55 handle cover 1
PART LIST for MIX-TM-2.2

O
I
2
3
456
7
5
6
4
5
6
456
8
1 7
1 3
1 4
1 51 2
1 6
1 8
1 9
2 0
2 3
1 1
1 0
9
2 2
2 1
2 42 5
1 81 8 2 7
2 8
2 93 03 1
7 3 2 3 53 43 33 6
3 7 3 8 3 7
3 9
4 0
4 1
4 2
4 3
4 4
4 5
4 6
4 7
4 8
1 4
3 8
3 7
5 0
4 9
5 0
5 3
5 2
5 1
5 4
5 5 7
1
4
2 6
Table of contents
Popular Mixer manuals by other brands

Gastroback
Gastroback Design Mixer Advanced Electronic Instructions for use

Robot Coupe
Robot Coupe MP 350 manual

QSC

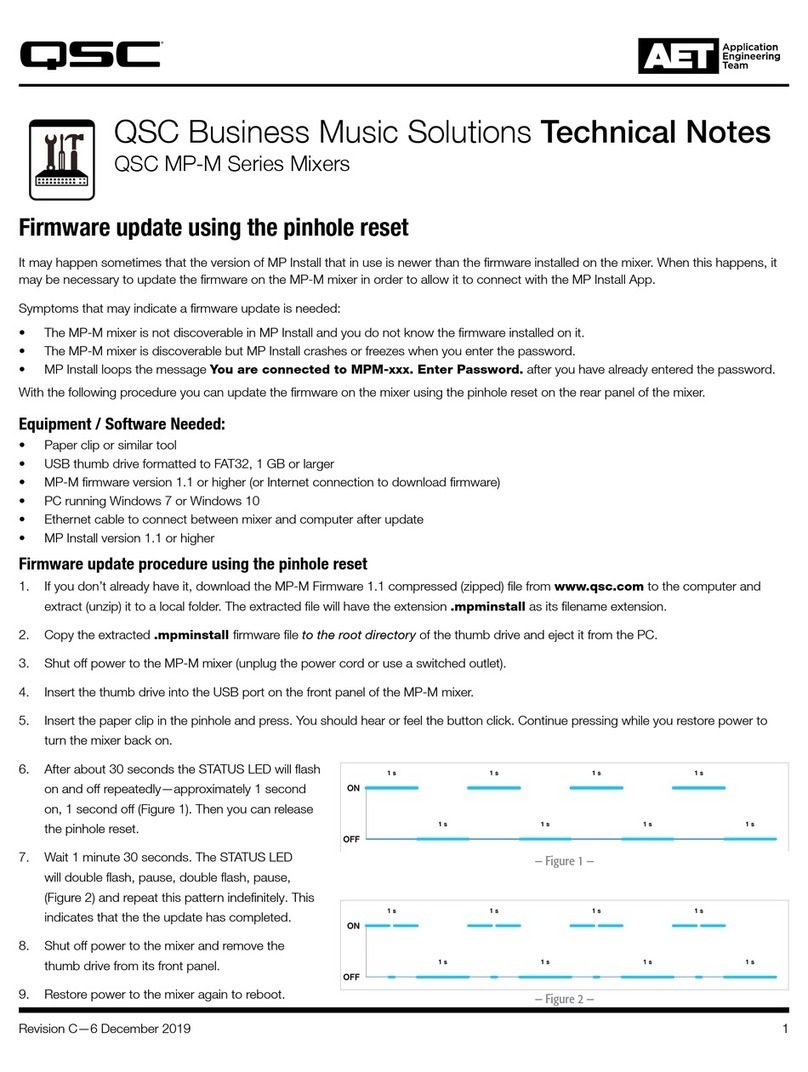

QSC MP-M Series Technical notes

VOX electronics
VOX electronics KR - 5401 IM operating instructions

Princess

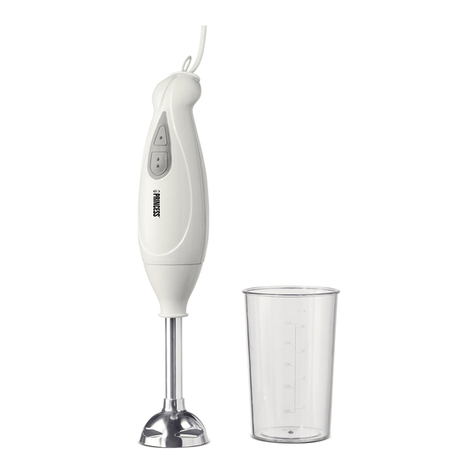

Princess NICE PRICE 221202 Instructions for use
