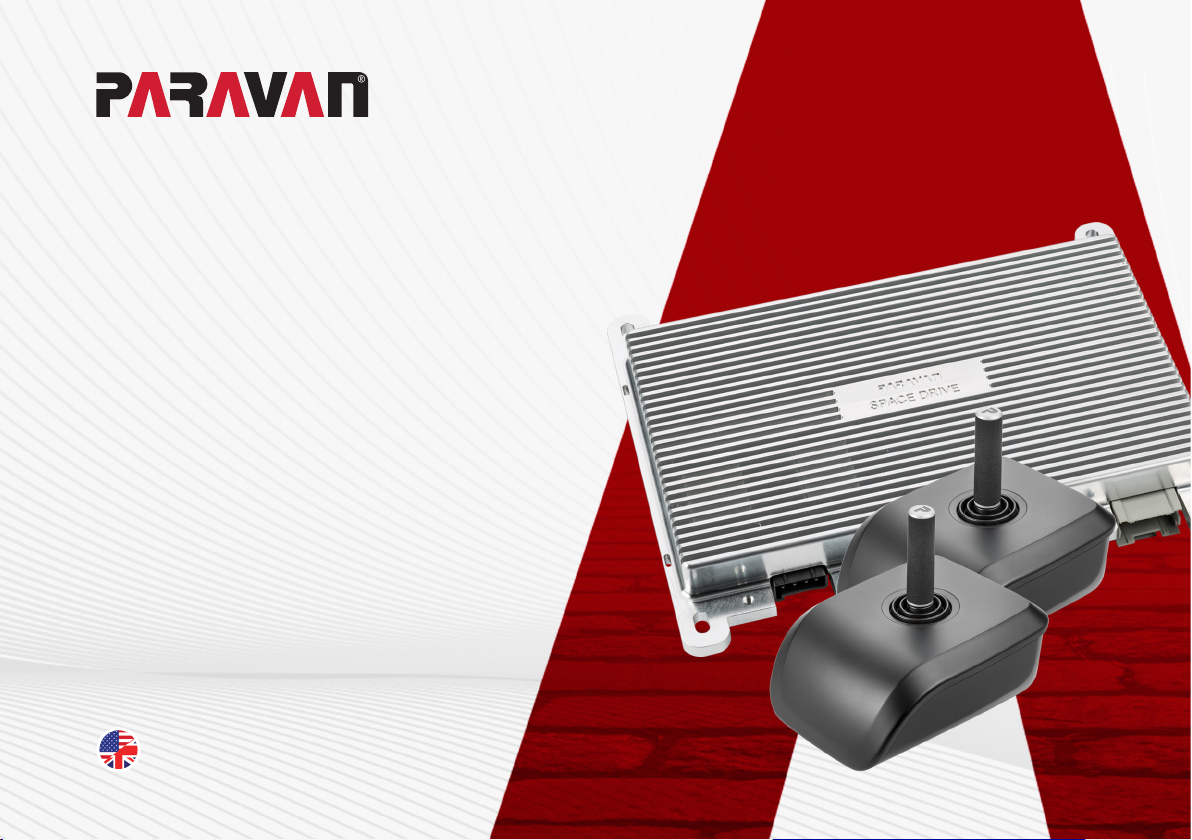

Paravan SPACE DRIVE SYSTEM User manual

Maintenance manual
PRIMARY FUNCTIONS
PARAVAN SPACE DRIVE SYSTEM
EN/US V3.0

Valid for the following models: Space Drive II System
Publisher and copyright: PARAVAN GmbH
Date of issue: 01.07.2022
Document number: SD_WA_V3_EN_US

3
Dear Customer
Thank you for choosing our PARAVAN SPACE DRIVE II driving system. This maintenance manual inclu-
des all the important information and instructions for maintaining your PARAVAN SPACE DRIVE II driving
system. Please keep this maintenance manual in your vehicle for later documentation. Please contact us
at any time when you have any questions concerning the maintenance of your PARAVAN SPACE DRIVE II
driving system.
Drive safely!
Your PARAVAN team

Table of contents
4
Table of contents
General
1. General information regarding the maintenance plan...........................................6
1.1 General information regarding maintenance work................................................................ 7
1.1.1 Technical maintenance status................................................................................................ 7
Technology
2. Proof of maintenance 1 .......................................................................................8
2.1 Maintenance after 12 months or 300 hours .......................................................................... 8
2.1.1 Maintenance work ................................................................................................................... 9
3. Proof of maintenance 2 .......................................................................................10
3.1 Maintenance after 24 months or 600 hours .......................................................................... 10
3.1.1 Maintenance work ................................................................................................................... 11
4. Proof of maintenance 3 .......................................................................................12
4.1 Maintenance after 3 years or 900 hours ................................................................................ 12
4.1.1 Maintenance work ................................................................................................................... 13
5. Proof of maintenance 4 .......................................................................................14
5.1 Maintenance after 4 years or 1200 hours .............................................................................. 14
5.1.1 Maintenance work ................................................................................................................... 15
6. Proof of maintenance 5 .......................................................................................16
6.1 Maintenance after 5 years or 1500 hours .............................................................................. 16
6.1.1 Maintenance work ................................................................................................................... 17
7. Proof of maintenance 6 .......................................................................................18
7.1 Maintenance after 6 years or 1800 hours .............................................................................. 18
7.1.1 Maintenance work ................................................................................................................... 19

Table of contents 5
8. Proof of maintenance 7 .......................................................................................20
8.1 Maintenance after 4 years or 2100 hours .............................................................................. 20
8.1.1 Maintenance work ................................................................................................................... 21
9. Proof of maintenance 8 .......................................................................................22
9.1 Maintenance after 8 years or 2400 hours .............................................................................. 22
9.1.1 Maintenance work ................................................................................................................... 23
10. Proof of maintenance 9 .......................................................................................24
10.1 Maintenance after 9 years or 2700 hours .............................................................................. 24
10.1.1 Maintenance work ................................................................................................................... 25
11. Proof of maintenance 10 .....................................................................................26
11.1 Maintenance after 10 years or 3000 hours............................................................................ 26
11.1.1 Maintenance work ................................................................................................................... 27

General Information Prepare Operate Help Technology
General information regarding the maintenance plan
6
1. General information regarding the maintenance plan
You must arrange regular inspection of your PARAVAN driving system and your vehicle by an authorized
workshop or service technician to ensure fault-free operation of your SPACE DRIVE II driving system.
L Strictly adhere to the maintenance intervals prescribed to be able to make full use of services in
warranty or goodwill cases.
The service technicians must enter the current status of the vehicle and system parameters on the following
pages of the maintenance certicate at each visit:
>Software version SPACE DRIVE II
>Operating hours SPACE DRIVE II
>Kilometers / Miles driven by vehicle
These entries are proof that the maintenance intervals have been adhered to.
PARAVAN GmbH recommends:
L Exchange the complete PARAVAN SPACE DRIVE II driving system after 10 years or 3000 hours (de-
pending on what occurs rst).

General
InformationPrepareOperateHelpTechnology
General information regarding the maintenance plan 7
1.1 General information regarding maintenance work
In some cases, appropriate maintenance and repair requires access to the original manufacturer information
of the vehicle manufacturer and the workshop documentation.
L Only persons trained or instructed by PARAVAN GmbH or service technicians may perform mainte-
nance and repair work on a vehicle with a PARAVAN SPACE DRIVE II driving system.
The results of the maintenance work must be documented in the table and applicable elds must be che-
cked. Any remedial work required is documented in the "Comments" column. Service staff must conrm
appropriate performance of the maintenance work by providing a date, signature and workshop stamp.
1.1.1 Technical maintenance status
L All maintenance work in the maintenance instructions corresponds to the state as at the editorial
deadline in June 2014.
L The maintenance instructions for the PARAVAN SPACE DRIVE II driving system were compiled in
German and may be translated into other languages. The German version is legally binding in the
event of any discrepancies.

General Information Prepare Operate Help Technology
Proof of maintenance 1
8
2. Proof of maintenance 1
2.1 Maintenance after 12 months or 300 hours
L The maintenance interval is 300 hours or 12 months, whichever occurs earlier.
Work may only be performed by trained SPACE DRIVE technicians!
1. Maintenance (service) (1st year of operation / 300 operating hours)
Software version SPACE DRIVE II: ___________________
Operating hours SPACE DRIVE II: ___________________ h
Kilometers driven by vehicle: ___________________ km

GeneralInformationPrepareOperateHelpTechnology
Proof of maintenance 1 9
2.1.1 Maintenance work
OK Not OK Remarks
Read and store error memory
Check software status and update as required
Visual control of all cables and plug connections
Visual control of all mechanical components
Visual control of all input devices incl. cables
Functional test and test drive by trained technicians
Test drive by customer jointly with a trained technician
Adaptation of the customer parameters as required
Functional test of all secondary functions
Date: ________________________________
Workshop stamp Signature: ________________________________

General Information Prepare Operate Help Technology
Proof of maintenance 2
10
3. Proof of maintenance 2
3.1 Maintenance after 24 months or 600 hours
L The maintenance interval is 300 hours or 12 months, whichever occurs earlier.
Work may only be performed by trained SPACE DRIVE technicians!
2. Maintenance (service) (2nd year of operation / 600 operating hours)
Software version SPACE DRIVE II: ___________________
Operating hours SPACE DRIVE II: ___________________ h
Kilometers driven by vehicle: ___________________ km

GeneralInformationPrepareOperateHelpTechnology
Proof of maintenance 2 11
3.1.1 Maintenance work
OK Not OK Remarks
Read and store error memory
Check software status and update as required
Visual control of all cables and plug connections
Visual control of all mechanical components
Visual control of all input devices incl. cables
Functional test and test drive by trained technicians
Test drive by customer jointly with a trained technician
Adaptation of the customer parameters as required
Functional test of all secondary functions
Date: ________________________________
Workshop stamp Signature: ________________________________

General Information Prepare Operate Help Technology
Proof of maintenance 3
12
4. Proof of maintenance 3
4.1 Maintenance after 3 years or 900 hours
L The maintenance interval is 300 hours or 12 months, whichever occurs earlier.
Work may only be performed by trained SPACE DRIVE technicians!
3. Maintenance (service) (3rd year of operation / 900 operating hours)
Software version SPACE DRIVE II: ___________________
Operating hours SPACE DRIVE II: ___________________ h
Kilometers driven by vehicle: ___________________ km

GeneralInformationPrepareOperateHelpTechnology
Proof of maintenance 3 13
4.1.1 Maintenance work
OK Not OK Remarks
Read and store error memory
Check software status and update as required
Visual control of all cables and plug connections
Visual control of all mechanical components
Visual control of all input devices incl. cables
Functional test and test drive by trained technicians
Test drive by customer jointly with a trained technician
Adaptation of the customer parameters as required
Functional test of all secondary functions
Date: ________________________________
Workshop stamp Signature: ________________________________

General Information Prepare Operate Help Technology
Proof of maintenance 4
14
5. Proof of maintenance 4
5.1 Maintenance after 4 years or 1200 hours
L The maintenance interval is 300 hours or 12 months, whichever occurs earlier.
Work may only be performed by trained SPACE DRIVE technicians!
4. Maintenance (service) (4th year of operation / 1200 operating hours)
Software version SPACE DRIVE II: ___________________
Operating hours SPACE DRIVE II: ___________________ h
Kilometers driven by vehicle: ___________________ km

GeneralInformationPrepareOperateHelpTechnology
Proof of maintenance 4 15
5.1.1 Maintenance work
OK Not OK Remarks
Read and store error memory
Check software status and update as required
Visual control of all cables and plug connections
Visual control of all mechanical components
Visual control of all input devices incl. cables
Functional test and test drive by trained technicians
Test drive by customer jointly with a trained technician
Adaptation of the customer parameters as required
Functional test of all secondary functions
Date: ________________________________
Workshop stamp Signature: ________________________________

General Information Prepare Operate Help Technology
Proof of maintenance 5
16
6. Proof of maintenance 5
6.1 Maintenance after 5 years or 1500 hours
L The maintenance interval is 300 hours or 12 months, whichever occurs earlier.
Work may only be performed by trained SPACE DRIVE technicians!
5. Maintenance (service) (5th year of operation / 1500 operating hours)
Software version SPACE DRIVE II: ___________________
Operating hours SPACE DRIVE II: ___________________ h
Kilometers driven by vehicle: ___________________ km

GeneralInformationPrepareOperateHelpTechnology
Proof of maintenance 5 17
6.1.1 Maintenance work
OK Not OK Remarks
Read and store error memory
Check software status and update as required
Visual control of all cables and plug connections
Visual control of all mechanical components
Visual control of all input devices incl. cables
Functional test and test drive by trained technicians
Test drive by customer jointly with a trained technician
Adaptation of the customer parameters as required
Functional test of all secondary functions
Date: ________________________________
Workshop stamp Signature: ________________________________

General Information Prepare Operate Help Technology
Proof of maintenance 6
18
7. Proof of maintenance 6
7.1 Maintenance after 6 years or 1800 hours
L The maintenance interval is 300 hours or 12 months, whichever occurs earlier.
Work may only be performed by trained SPACE DRIVE technicians!
6. Maintenance (service) (6th year of operation / 1800 operating hours)
Software version SPACE DRIVE II: ___________________
Operating hours SPACE DRIVE II: ___________________ h
Kilometers driven by vehicle: ___________________ km

GeneralInformationPrepareOperateHelpTechnology
Proof of maintenance 6 19
7.1.1 Maintenance work
OK Not OK Remarks
Read and store error memory
Check software status and update as required
Visual control of all cables and plug connections
Visual control of all mechanical components
Visual control of all input devices incl. cables
Backup battery exchange
Functional test and test drive by trained technicians
Test drive by customer jointly with a trained technician
Adaptation of the customer parameters as required
Functional test of all secondary functions
Date: ________________________________
Workshop stamp Signature: ________________________________

General Information Prepare Operate Help Technology
Proof of maintenance 7
20
8. Proof of maintenance 7
8.1 Maintenance after 4 years or 2100 hours
L The maintenance interval is 300 hours or 12 months, whichever occurs earlier.
Work may only be performed by trained SPACE DRIVE technicians!
7. Maintenance (service) (7th year of operation / 2100 operating hours)
Software version SPACE DRIVE II: ___________________
Operating hours SPACE DRIVE II: ___________________ h
Kilometers driven by vehicle: ___________________ km
