Parker TS8000 Series User manual

Getting
Started
HA471056U001
TS8000

© Copyright Parker SSD Drives 2008
All rights strictly reserved. No part of this document may be stored in a retrieval
system, or transmitted in any form or by any means to persons not employed by a
Parker SSD Drives company without written permission from Parker SSD Drives.
Although every effort has been taken to ensure the accuracy of this document it
may be necessary, without notice, to make amendments or correct omissions.
Parker SSD Drives cannot accept responsibility for damage, injury, or expenses
resulting there from.
Companies, names and data used as examples herein are fictitious unless
otherwise stated. All trademarks and copyrights are acknowledged as the
property of their respective owners.

Table Of Contents TS8000 Getting Started
Version 1.00.00 Page i
Table of Contents
Product Overview ......................................................................................... 3
General Description....................................................................................3
Safety Information.......................................................................................4
Contents Of Package.................................................................................4
Specifications ............................................................................................... 5
Power Requirements................................................................................... 5
Battery.........................................................................................................5
LCD Module Display.................................................................................... 5
Keypad .......................................................................................................5
Touchscreen ...............................................................................................5
Memory....................................................................................................... 5
Communications.........................................................................................6
Environmental Conditions...........................................................................6
Certifications And Compliances................................................................. 6
Construction................................................................................................ 7
Mounting Requirements..............................................................................7
Weight.........................................................................................................7
Dimensions..................................................................................................7
Installation And Power................................................................................... 8
Mounting Instructions.................................................................................. 8
Connecting To Ground............................................................................... 8
Power Supply Requirements........................................................................ 8
Communications......................................................................................... 10
Configuring a TS8000................................................................................. 10
Cables And Drivers.................................................................................... 10
The CompactFlash Card........................................................................... 10
Ethernet Communications ........................................................................ 10
RS-232 Communications ........................................................................... 11
RS-422/485 Communications .................................................................... 12
Software / Unit Operations........................................................................... 13
DSI8000 Software....................................................................................... 13
Keypad Buttons......................................................................................... 13
Front Panel LEDs........................................................................................ 13
Display....................................................................................................... 13
Touchscreen ............................................................................................. 14
Troubleshooting The TS8000....................................................................... 14
Battery And Time Keeping ........................................................................ 14
Options And Accessories ............................................................................ 16
CompactFlash Socket............................................................................... 16

Table of Contents TS8000 Getting Started
Page ii http://www.SSDdrives.com
Optional Communications Cards..............................................................16
Appendix A – TS8003 Specifications ............................................................ 17
TS8003 Dimensions.....................................................................................17
TS8003 Mounting Specifications.................................................................17
TS8003 Port Pin-Outs...................................................................................18
Appendix B – TS8006 Specifications............................................................. 19
TS8006 Dimensions.....................................................................................19
TS8006 Mounting Specifications.................................................................19
TS8006 Port Pin-Outs...................................................................................20
Appendix C – TS8008 Specifications ............................................................ 21
TS8008 Dimensions.....................................................................................21
TS8008 Mounting Specifications.................................................................21
TS8008 Port Pin-Outs...................................................................................22
Appendix D – TS8010 Specifications............................................................. 23
TS8010 Dimensions.....................................................................................23
TS8010 Mounting Specifications.................................................................23
TS8010 Port Pin-Outs...................................................................................24
Appendix E – TS8015 Specifications ……………………………………………….....25
TS8015 Dimensions................................................................................................25
TS8015 Mounting Specifications.........................................................................25
TS8015 Port Pin-Outs..............................................................................................26

Product Overview TS8000 Getting Started
Page 3 http://www.SSDdrives.com
Product Overview
•Configured with DSI8000 software.
•3 onboard RS-232/422/485 comms ports.
•Onboard 10/100 Base-T Ethernet for device comms,
web hosting, and unit networking.
•USB Port to download configuration files or transfer
data from the unit.
•4 Mb (TS8003), 8 Mb (TS8006, TS8008, TS8010), or 32 Mb
(TS8015) onboard flash memory (expandable with
optional CompactFlash card).
•3.2 inch LCD display (TS8003) 128x64x2 color.
•5.7 inch TFT display (TS8006) 320x240x256 color.
•7.7 inch DSTN display (TS8008) 640x480x256 color.
•10.4 inch TFT display (TS8010) 640x480x256 color.
•15 inch TFT display (TS8015) 1024x768x32K color.
•32 (TS8003), 5 (TS8006), 7(TS8008), 8 (TS8010), or 10
(TS8015) button keypads for on screen menus.
•24vdc power supply (+/- 20%).
•Resistive Analog Touchscreen (TS8006, TS8008, TS8010,
TS8015).
General Description
The TS8000 Operator Interfaces combine unique capabilities normally expected
from high-end units with a very affordable price. They are built around a high
performance core with integrated functionality. This core allows the TS8000 series
to leverage many of the features typically found in many PC based SCADA
systems.
The TS8000 series are able to communicate with many different types of
hardware using high-speed RS-232/422/485 and 10/100 Base-T Ethernet
communications ports. In addition, the TS8000’s feature a USB port for fast
download of configuration files and access to trending and data logging. A
CompactFlash socket is provided so that CF cards can be used to collect your
trends and data logs as well as to increase the memory available for
configuration files.
In addition to accessing and controlling of external resources, the TS8000 series
allows a user to easily view and enter information. Users can enter data through
the touchscreen or front panel keypad.

Product Overview TS8000 Getting Started
Page 4 http://www.SSDdrives.com
Safety Information
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other process
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.
Contents Of Package
The TS8000 unit will come shipped with the following additional equipment:
•TS8000 Operator Interface terminal (TS8003/00/00, TS8006/00/00,
TS8008/00/00, TS8010/00/00, or TS8015/00/00).
•2 meter USB programming cable (CM471053).
•5 meter serial communications cable (CM471054).
•DSI8000 software CD with Value Added Apps (RI471055).
•Getting Started bulletin (HA471056U000).
•Panel cutout template.
•Panel mounting hardware packet.
•Panel mounting gasket.
•Power supply terminal block.

Specifications TS8000 Getting Started
Page 5 http://www.SSDdrives.com
Specifications
The following specifications pertain to the TS8000 series HMI. SSD Drives retains the
right to modify specifications at any time, without prior notice.
Power Requirements
+24vdc (+/- 20%) @ 9.5W max (TS8003), 14W max (TS8006), 24W max (TS8008), 33W
max (TS8010), 67W max (TS8015) - must use Class 2 or SELV rated power supply.
Power connection is available via removable 3-position terminal block.
Note: The TS8000’s “common” is not connected to the unit’s chassis. Refer to
“Connecting To Ground” in the “Installation And Power” section of this document.
Battery
Lithium CR2025 “button” cell. Typical lifetime of 10 years.
LCD Module Display
Model TS8003 TS8006 TS8008 TS8010 TS8015
Size 3.2 inch 5.7 inch 7.7 inch 10.4 inch 15.0 inch
Type FSTN TFT DSTN TFT TFT
Colors 2 w. Backlight 256 QVGA 256 VGA 256 VGA 32,000 XGA
Pixels 128 x 64 320 x 240 640 x 480 640 x 480 1024 x 768
Brightness --- 500 cd/m2120 cd/m2350 cd/m2600 cd/m2
Backlight * --- 50,000 Hour typ. 40,000 Hour typ. 50,000 Hour typ. 50,000 Hour typ.
* Lifetime at room temperature.
Keypad
TS8003: 8 user legendable keys, 5 navigation keys, 12 numeric keys, 4 dedicated
keys, and 3 soft keys. TS8006: 5 keys for on-screen menus. TS8008: 7 keys for on-
screen menus. TS8010: 8 keys for on-screen menus. TS8015: 10 keys for on-screen
menus.
Touchscreen
Resistive Analog Type (TS8006, TS8008, TS8010, TS8015).
Memory
User: 4Mb (TS8003), 8Mb (TS8006, TS8008, TS8010), or 32Mb (TS8015) onboard non-
volatile flash memory.
Memory Card: CompactFlash Type II slot for Type I and Type II CF cards.

Specifications TS8000 Getting Started
Page 6 http://www.SSDdrives.com
Communications
USB Port: Adheres to USB 1.1 specification. Device only using Type B connection.
Serial Ports: Format and baud rates are individually programmable up to 115.2kb.
•PGM Port: RS-232 port via RJ-12.
•COMMS Ports: RS-232 port via RJ-12. RS-422/485 port via RJ-45.
•DH485 TxEn: Transmit Enable; open collector, Voh = 15vdc, Vol = 0.5vdc @
25mA max).
Ethernet Port: 10/100 Base-T. RJ-45 jack is wired as a NIC.
Environmental Conditions
Operating Temperature Range: 0 to 50 deg C.
Storage Temperature Range: -20 to 70 deg C. (TS8003, TS8006, TS8015) or 80 deg
C. (TS8008, TS8010)
Operating and Storage Humidity: 80% maximum relative humidity (non-
condensing) from 0 to 50 deg C.
Altitude: Up to 2000 meters.
Certifications And Compliances
Safety: IEC 1010-1, EN 61010-1: Safety requirements for electrical equipment for
measurement, control, and laboratory use, Part 1.
IP66 enclosure rating (face only), IEC 529.
Type 4X enclosure rating (face only), UL50.
Electromagnetic Compatibility: Emissions and immunity to EN 61326: Electrical
equipment for measurement, control, and laboratory use, Part 1.
Immunity to industrial locations:
Electrostatic discharge EN 61000-4-2 Criterion A
4 kV contact xchrg, 8 kV air xchrg
Electromagnetic RF fields EN 61000-4-3 Criterion B
10V/m
Fast transients (burst) EN 61000-4-4 Criterion B
2kVpower,2kvsignal
Surge EN 61000-4-5 Criterion A
1kVL-L,2kVL&N-Epower

Specifications TS8000 Getting Started
Page 7 http://www.SSDdrives.com
RF conducted interference EN 61000-4-6 Criterion B
3V/rms
Emissions:
Emissions EN 55011 Class A
Notes: Criterion A (normal operation within specified limits), Criterion B (temporary
loss of performance from which the unit self recovers).
Construction
Steel rear metal enclosure with NEMA 4X/IP66 aluminum front plate when
correctly fitted with the provided gasket. Installation Category II, Pollution Degree
2.
Mounting Requirements
Maximum panel thickness is 0.25 inch (6.3 mm). For NEMA 4X / IP66 sealing, a
steel panel with a minimum thickness of 0.125 inch (3.17 mm) is recommended.
Maximum Mounting Stud Torque: 17 inch-pounds (1.92 N-m).
Weight
TS8003: 1.96 lbs (0.89 kg). TS8006: 3.00 lbs (1.36 kg). TS8008: 3.84 lbs (1.74 kg).
TS8010: 5.53 lbs (2.51 kg). TS8015: 11.41 lbs (5.17 kg)
Dimensions
Refer to “Appendix A, B, C, D, and E - Dimensions” for individual unit dimensions.

Installation And Power TS8000 Getting Started
Page 8http://www.SSDdrives.com
Installation And Power
The following specifications pertain to the TS8000 series HMI. SSD Drives retains the
right to modify specifications at any time, without prior notice.
Mounting Instructions
This operator interface is designed for through-panel mounting. A panel cutout
diagram and a template are provided. Care should be taken to remove any
loose material from the mounting cut-out to prevent it from falling into the
operator interface during installation. A gasket is provided to enable sealing to
NEMA 4X/IP66 specifications. Install the provided nuts and tighten evenly for
uniform gasket compression. For more Detailed documentation, refer to
“Appendix A, B, C, D, and E – Mounting Templates”.
Connecting To Ground
This protective conductor terminal is bonded to conductive parts of the
equipment for safety purposes and must be connected to an external protective
grounding system.
Each TS8000 has a chassis ground terminal on the back of the unit.
The unit should be connected to ground. The chassis ground is not
connected to the signal common of the unit. Maintaining isolation
between the ground and the signal common is not required to
operate the unit, however, other equipment connected to this unit may require
isolation between the ground and the signal common. To maintain isolation
between signal common and ground, care must be taken when connections are
made to the unit. For example, a power supply with isolation between its signal
common and ground must be used. Also, plugging in a USB cable may connect
signal common to ground.
Power Supply Requirements
The TS8000 series requires a 24vdc power supply, rated at 9.5W (TS8003), 14W
(TS8006), 24W (TS8008), 33W (TS8010) or 67W (TS8015). The units may draw
considerably less than the rated power depending upon the options being used.
As additional features are used, the unit will draw increasing amounts of power.
Items that could cause increases are: additional communications, optional
communications cards, use of the CompactFlash card, and other features
programmed through DSI8000.
In any case, it is very important that the power supply is mounted correctly if the
unit is to operate reliably. Please take care to observe the following points:
•The power supply must be mounted close to the unit, with usually not
more than 6 feet (1.8 m) of cable between the supply and the operator
interface. Ideally, the shortest length possible should be used.

Installation And Power TS8000 Getting Started
Page 9http://www.SSDdrives.com
•The wire used to connect the operator interface’s power supply should be
at least 22 gauge wire. If a longer cable run is used, a heavier gauge wire
should be used. The routing of the cable should be kept away from large
contactors, inverters, and other devices which may generate significant
electrical noise.
•A power supply with a Class 2 or SELV rating should be used. A Class 2 or
SELV power supply provides isolation to accessible circuits from hazardous
voltage levels generated by a mains power supply due to single faults.
SELV is an acronym for “safety extra-low voltage.” SELV circuits exhibit
voltage that are safe to touch both under normal operating conditions
and after a single fault, such as a breakdown of a layer of basic insulation
or after the failure of a single component has occurred.

Communications TS8000 Getting Started
Page 10http://www.SSDdrives.com
Communications
The following specifications pertain to the TS8000 series HMI. SSD Drives retains the
right to modify specifications at any time, without prior notice.
Configuring a TS8000
The TS8000 series are configured using DSI8000 software. DSI is included in the
software CD that comes packaged with each unit, or is also available from SSD
Drives. Updates to DSI8000 are posted on the SSD Drives website as they are
made available. By configuring the TS8000 using the latest version of DSI8000, you
are assured that the unit has the most up-to-date feature set. DSI software can
configure the TS8000 through the RS-232 PGM port, USB port, Ethernet Port, or the
CompactFlash socket.
Cables And Drivers
The USB port is connected using a standard USB cable with a Type B connector.
The driver needed to allow your PC to access the USB port will be installed along
with the DSI8000 software. If this driver has not been installed, it can be
downloaded from the website.
The RS-232 PGM port uses a specialized cable to connect to the serial port of your
PC. If you choose to make this cable, refer to “Appendix A, B, C, D, and E - Port
Pin-Outs” section of this document for wiring information.
The CompactFlash Card
The CompactFlash card can also be used to program a TS8000 by placing a
configuration file and firmware on the CompactFlash card. The card is then
inserted into the target TS8000 and the unit is then powered on. Refer to the
“DSI8000 User Manual” (HA471055U001) for more information on this operation.
In order to transfer data from the CompactFlash card via the USB port, a driver
must be installed on your computer. This driver is installed with DSI8000 and is
located in the folder: C:\Program Files\SSD Drives\DSI8000\Device\. This may
have already been accomplished if the TS8000 was configured using the USB
port.
Ethernet Communications
Ethernet communications can be established at either 10 Base-T or 100 Base-T
speeds. The TS8000 unit’s RJ-45 jack is wired as a true NIC (network interface
card). For example, when wiring to a hub or switch, use a straight-thru cable.
When wiring to another NIC, however, a cross-over cable must be used.
The Ethernet connector contains two LED’s. A yellow LED in the upper right
corner, and a bi-color (green / amber) LED in the upper left corner. The LED’s
represent the following status conditions:

Communications TS8000 Getting Started
Page 11http://www.SSDdrives.com
LED Color Description
Yellow (solid) Link established
Yellow (flashing) Data transfer active
Green 10 Base-T communications
Amber 100 Base-T communications
Refer to the “DSI8000 User Manual” (HA471055U001) for additional information on
Ethernet communications.
RS-232 Communications
The TS8000 unit has two RS-232 ports: the PGM port, and the COMMS port.
Although only one of these ports can be used for programming, both ports can
be used for remote device communication. The RS-232 PGM port can be used
for either master or slave protocols with any TS8000 configuration.
Examples of RS-232 communications could involve another SSD Drives product, a
PLC, or a PC computer. By using a cable with RJ-12 ends on it, and a roll
between Tx and Rx wires, RS-232 communications with another TS8000 series
touchscreen can be established.
For RS-232 cable wiring between a TS8000 and a PC, refer to the following table:
RS-232 TS8000 To PC Connections
TS8010: RJ-12 Name PC: DB-9 Name
4 COM 1 DCD
5 Tx 2 Rx
2 Rx 3 Tx
n/c 4 DTR
3 COM 5 GND
n/c 6 DSR
1 CTS 7 RTS
6 RTS 8 CTS
n/c 9 RI

Communications TS8000 Getting Started
Page 12http://www.SSDdrives.com
RS-422/485 Communications
The TS8000 has one or more RS-422/485 port, depending on the model. This port
can be configured to either RS-422 or RS-485, depending upon the user’s needs.

Software / Unit Operations TS8000 Getting Started
Page 13http://www.SSDdrives.com
Software / Unit Operations
The following specifications pertain to the TS8000 series HMI. SSD Drives retains the
right to modify specifications at any time, without prior notice.
DSI8000 Software
DSI8000 software is included with each purchase of a TS8000 unit, or it is also
available from SSD Drives. The latest updates to the software are always available
from the SSD Drives website.
Keypad Buttons
The TS8003 keypad consist of five unique key types: eight legendable keys, 5
navigational keys, a 12 key numeric keypad, three soft keys for on screen menu
selections, and four keys labeled ALARMS, MUTE, EXIT, and MENU. The TS8006
keypad consist of five user-assignable keys for on-screen menus. The TS8008
keypad consist of seven user-assignable keys for on-screen menus. The TS8010
keypad consist of eight user-assignable keys for on-screen menus.The TS8015
keypad consist of ten user-assignable keys for on-screen menus.
Front Panel LEDs
There are three front panel LEDs. Shown below is the default status of each of the
LEDs:
LED Indication
Red LED - Power
Flashing Unit is in the boot loader, no valid configuration is
Steady Unit is powered and running an application.
Yellow LED – CF Card
Off No CompactFlash card is present.
Steady A valid CompactFlash card is present.
Flashing Rapidly Unit is checking the CompactFlash card.
Flickering Unit is writing to the CompactFlash card.
Flashing Slowly An incorrectly formatted CompactFlash card is present.
Green LED - Alarm
Flashing A tag is in an alarm state.
Steady Valid configuration loaded and no alarms are present
Display
The TS8006, TS8008, TS8010 and TS8015 use a liquid crystal display (LCD) for
displaying text and graphics. The display utilizes a cold cathode fluorescent tube

Software / Unit Operations TS8000 Getting Started
Page 14http://www.SSDdrives.com
(CCFL) for lighting the display. The CCFL tubes can be dimmed for low light
conditions.
These CCFL tubes have a limited lifetime. Backlight lifetime is based upon the
amount of time the display is turned on at full intensity. Turning the backlight off
when the display is not in use can extend the lifetime of your backlight. This can
be accomplished through the DSI8000 software when configuring your unit.
Touchscreen
The TS8006, TS8008, TS8010 and TS8015 utilize a resistive analog touchscreen for
user input. The unit will only produce an audible tone (beep) when a touch on
an active touchscreen cell in sensed. The touchscreen is fully functional as soon
as the operator interface is initialized, and can be operated with gloved hands.
Troubleshooting the TS8000
If for any reason you have trouble operating, connecting, or simply have
questions concerning your new TS8000, contact SSD Drives technical support.
Battery and Time Keeping
A battery is used to keep time when the unit is without power. Typical accuracy
of the TS8000 time keeping is less than one minute per month drift. The state of the
battery does not in any way affect the unit’s program memory. All configurations
are stored in non-volatile flash memory.
Caution – Risk Of Electric Shock: The inverter board, attached to
the mounting plate, supplies the high voltage necessary to operate
the backlight. Touching the inverter board may result in injury.
Please exercise caution while working inside of the unit.
Caution: The circuit board contains static sensitive components.
Before handling the operator interface without the rear cover
attached, discharge static charges from your body by touching a
grounded bare metal object. Ideally, handle the operator
interface at a static controlled, clean workstation. Do not touch
the surface areas of the circuit board. Dirt, oil, or other contaminants may
adversely affect circuit operation.

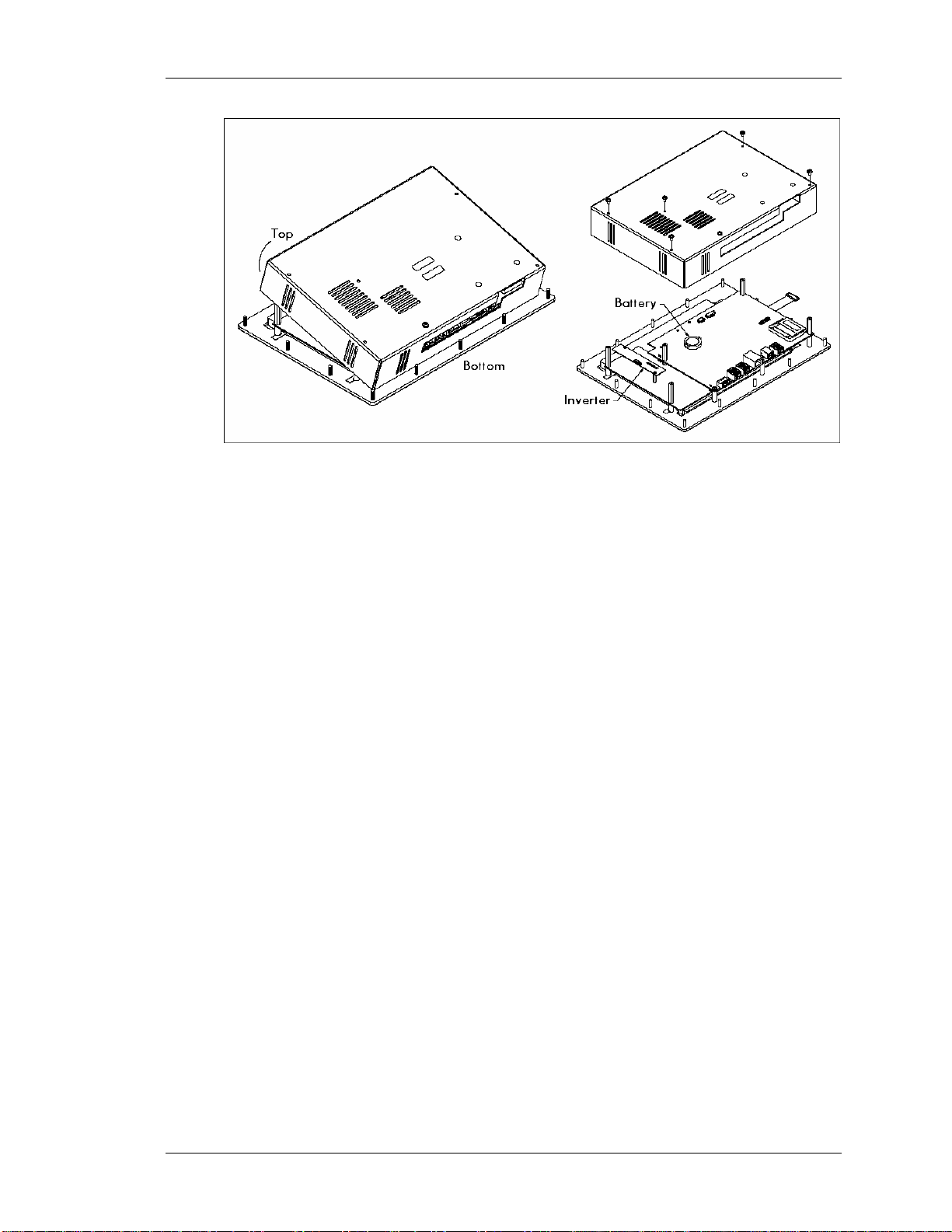

To change the battery of a TS8000, remove all power and other cabling from the
unit. Next, take off the unit’s rear cover by removing the five screws designated
by the arrows on the rear of the unit. Then, by lifting the top side, hinge the rear
cover, thus providing clearance for the connectors on the bottom side of the PCB
as shown in the illustration below. Remove the old battery from the holder and
replace with a new one. The battery used is a CR2025 lithium button cell.
Assemble in the reverse order.
The following example depicts the battery replacement procedure for a TS8010.

Software / Unit Operations TS8000 Getting Started
Page 15http://www.SSDdrives.com

Options And Accessories TS8000 Getting Started
Page 16http://www.SSDdrives.com
Options And Accessories
The following specifications pertain to the TS8000 series HMI. SSD Drives retains the
right to modify specifications at any time, without prior notice.
CompactFlash Socket
The TS8000 is equipped with a Type II CompactFlash socket. This socket will
accept either Type I or Type II cards. Make sure to use cards with a minimum of
4Mb capacity. Cards can be obtained at most computer and office supply
retailers.
CompactFlash cards can be used for: configuration transfers, storage of larger
configurations, data logging, and trend storage.
Note: Do not remove or insert the CompactFlash card while power is applied to the unit.
Refer to the “Front Panel LEDs” section of this document for more information.
Information stored on a CompactFlash card can be read by a card reader
attached to a PC. This information is stored in a Windows compatible FAT-16 file
format.
Optional Communications Cards
A communication card socket is provided for future communications cards. Visit
the SSD Drives website for information and availability of these cards.

Appendix A – TS8003 Specifications TS8000 Getting Started
Page 17 http://www.SSDdrives.com
Appendix A – TS8003 Specifications
The following specifications pertain to the TS8003 series HMI. SSD Drives retains the
right to modify specifications at any time, without prior notice.
TS8003 Dimensions
TS8003 Mounting Specifications
