PARRY NPSF3 User manual

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 1 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
INSTRUCTIONS
ELECTRIC FRYERS
MODELS:
NPSF3, NPSF6, NPSF9
NPDF3, NPDF6, NPDF9
NPSPF3, NPSPF6, NPSPF9
NPDPF3, NPDPF6, NPDPF9
SAFETY INSTRUCTIONS
TECHNICAL DATA
INSTALLATION INSTRUCTIONS
OPERATION INSTRUCTIONS
MAINTENANCE INSTRUCTIONS
EXPLODED VIEW / PARTS LIST
FAULT DIAGNOSTICS
WIRING DIAGRAM
WARRANTY INFORMATION
DISPOSAL INFORMATION
Customer Information
MODEL NUMBER:
______________________
SERIAL NUMBER:
______________________
PURCHASE DATE:
______________________
DISTRIBUTOR:
______________________

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 2 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
SAFETY INSTRUCTIONS
IMPORTANT, PLEASE READ INSTRUCTIONS FULLY BEFORE USE
These appliance have been designed to fry food using cooking oil and therefore during its
use parts of the appliance will become very hot. All personnel must be given sufficient
supervision and training in the safe use of this appliance.
ALL APPLIANCES OTHER THAN THOSE FITTED WITH A SEALED MOULDED PLUG
MUST BE FITTED BY A QUALIFIED ELECTRICIAN, IN ACCORDANCE WITH
CURRENT REGULATIONS.
The unit should be installed in compliance with the INSTALLATION INSTRUCTIONS and
the NATIONAL REGULATIONS in force at the time. Particular attention should be paid to
the Health and Safety at Work Act.
To prevent shocks, all appliances whether gas or electric, must be earthed.
To avoid scratching the highly polished exterior surface of this equipment whilst in transit,
the protective film on the exterior surfaces has NOT been removed.
It is IMPORTANT that this protective film is peeled off before the equipment is used.
ENSURE THE APPLIANCE IS ISOLATED FROM THE POWER SUPPLY BEFORE
INSTALLING, CLEANING OR MAINTAINING THE APPLIANCE
These products have been designed, constructed and marketed in compliance with
safety requirements of :
EEC Directive “Low voltage” 73/23;
EEC Directive 93/68.
This product is suitable for contact with foodstuffs, and complies with EEC Directive
89/109.
The product(s) stated above are designed and built to comply with the following standards:
BS EN 60335-1

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 3 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
TECHNICAL DATA
NPSF3,6,9
NPSF3
NPSF6
NPSF9
Nominal Voltage
240v 50Hz ~ AC
240v 50Hz ~ AC
(415v 50Hz ~ 3 Ph+N)
Nominal Current (Amps)
12.5a
25a
(8.33a per Ph)
37.5a
(12.5a per Ph)
Nominal Wattage (Watts)
3000w
6000w
9000w
Oil Capacity
11 Litres
External Dimensions (W x
D x H mm)
300 x 600 x 300 (To top of fryer head 460)
Weight: (kg)
17kg
17kg
17kg
NPDF3,6,9
NPDF3
Per Head
NPDF6
Per Head
NPDF9
Per Head
Nominal Voltage
240v 50Hz ~ AC
240v 50Hz ~ AC
415v 50Hz ~ 3 Ph+N
Nominal Current (Amps)
12.5a
25a
(8.33a per Ph)
37.5a
(12.5a per Ph)
Nominal Wattage (Watts)
3000w
6000w
9000w
Oil Capacity
11 Litres (Per tank)
External Dimensions (W x
D x H mm)
600 x 600 x 300 (To top of fryer head 460)
Weight: (kg)
28kg
28kg
28kg
NPSPF3,6,9
NPSPF3
NPSPF6
NPSPF9
Nominal Voltage
240v 50Hz ~ AC
240v 50Hz ~ AC
415v 50Hz ~ 3 Ph+N
Nominal Current (Amps)
12.5a
25a
(8.33a per Ph)
37.5a
(12.5a per Ph)
Nominal Wattage (Watts)
3000w
6000w
9000w
Oil Capacity
11 Litres
External Dimensions (W x
D x H mm)
300 x 600 x 900 (To top of fryer head 1160)
Weight: (kg)
22kg
22kg
22kg

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 4 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
NPDPF3,6,9
NPDPF3
Per Head
NPDPF6
Per Head
NPDPF9
Per Head
Nominal Voltage
240v 50Hz ~ AC
Per Head
240v 50Hz ~ AC
415v 50Hz ~ 3 Ph+N
Nominal Current (Amps)
12.5a
25a
(8.33a per Ph)
37.5a
(12.5a per Ph)
Nominal Wattage (Watts)
3000w
6000w
9000w
Oil Capacity
11 litres (Per tank)
External Dimensions (W x
D x H mm)
600 x 600 x 900 (To top of fryer head 1160)
Weight: (kg)
34kg
34kg
34kg
INSTALLATION INSTRUCTIONS
ELECTRICAL INSTALLATION
ALL APPLIANCES OTHER THAN THOSE FITTED WITH A SEALED MOULDED PLUG
MUST BE FITTED BY A QUALIFIED ELECTRICIAN, IN ACCORDANCE WITH
CURRENT REGULATIONS.
WARNING
To avoid scratching the highly polished exterior surface of this equipment whilst in
transit, the protective film on the exterior surfaces has NOT been removed.
It is IMPORTANT that this protective film is peeled off before the equipment is used.
1. All electrical appliances/parts must be earthed.
2. No user-serviceable parts.
3. Isolate power supply before carrying out any installation work.

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 5 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
INSTALLATION
1. Choose a suitable site for your machine taking into consideration its, use, and any
heat that may be generated whilst in service.
2. Remove all protect film and packing material, and inspect for any damage which
may effect the machine’s electrical safety.
3. Please find enclosed 4 x shelf adhesive rubber feet (Table top fryers only) . There
are 4 dimples on the base of the unit where each foot must be placed.
4. All appliances with an electrical loading above 3 kilowatts must be connected to a
suitable supply by qualified electrician, who should ensure that
a) Precaution is taken during installation regarding leakage current,
b) The means of isolation has a contact separation of at least 3mm on all poles,
and
c) It is installed in accordance with Health and Safety at Work Act, BS Codes of
Practice, IEE Wiring Regulations and Building and Local Authority Standards.
OPERATION
1. Ensure all packaging has been removed and the tank has been cleaned thoroughly before
filling with oil. Check the drain tap is in the fully closed position and the batter plate provided
is fitted on top of the element.
2. Fill the tank with a good quality cooking oil, animal fat may be used but must be melted first
before pouring into the tank, fill to the level mark indicated on the front of the heating
element. Do not mix oil and fat
3. With the thermostat in the off position turn on the mains supply to the unit, the red lamp will
indicate that the power is on.
4. Turn the thermostat to the desired setting; the green lamp will illuminate showing that there
is power to the element, this will extinguish when the desired temperature is reached. This
procedure will be repeated automatically as the thermostat maintains a constant
temperature.
5. All models are fitted with a mechanical timer. This is used as a guide only, please note that it
will not cut off the power to the element.
6. Do not overfill the cooking basket.

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 6 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
GUIDE TO FOOD COOKING TEMPERATURES ALL MACHINES
This is only intended as a guide and best results will be obtained with experience.
CHICKEN AND CHIPS (BLANCHING) - 140ْC - 160ْC
FISH FILLETS, CHOP CUTLETS - 160ْC
FRITTERS, SCAMPI - 180ْC
CHIPS - MAX
DRAINING AND CHANGING OIL ON PEDISTAL FRYERS
The life expectancy of the oil or fat will be lengthened if they are passed through a filter on a regular
basis, and the fryer is turned down or off during periods when it is not in use.
NPSPF3, NPSPF6, NPSPF9, NPDPF3, NPDPF6 & NPDPF9
To drain the oil in the above models
1. Allow oil to cool
2. Ensure the power has been isolated
3. Open the door of the cabinet and place the bucket &strainer provided underneath the drain
spout.
4. Open the drain valve and allow the oil to fill the bucket, do not overfill so that the bucket
becomes unmanageable.
DRAINING AND CHANGING OIL ON BENCH TOP FRYERS
NPSF3, NPSF6, NPSF9, NPDF3, NPDF6 & NPDF9
On all other models the drain tap is situated on the front of the machine & the following procedure
should be adhered to
1. Allow oil to cool
2. Ensure the power has been isolated
3. Remove the finger tight bung from the drain and fix the spout provided to the drain
4. Place a clean suitable receptacle underneath the spout
5. Lift up the safety catch & slide the arm of the drain tap across to allow the oil to flow.

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 7 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
MAINTENANCE INSTRUCTIONS
ENSURE THE APPLIANCE IS ISOLATED FROM THE POWER SUPPLY BEFORE
INSTALLING, CLEANING OR MAINTAINING THE APPLIANCE
Ensure that the appliance has cooled sufficiently.
Cleaning should be carried every day. Clean the external surfaces of the appliance with a
damp cloth. Avoid using abrasive materials.
Appliance should be annually P.A.T (Portable Appliance Testing) tested for continued
electrical safety.
CLEANING
CAUTION
Never clean the appliance with water jets.
Once the oil has been drained remove the control head from the bowl and wash the bowl and the
drain with hot soapy water, rinse and dry thoroughly.
Close the drain tap & replace the drain bung.
Clean around the element and batter plate, then replace back into the bowl.
The oil can then be poured back into the bowl.
Top up with clean oil as necessary.
All equipment should be kept absolutely clean; under no circumstances must food particles be
allowed to congeal on baskets or elements as this will cause foaming due to the particles
continuously cooking.
Periodically you will need to replace the cooking medium, do this when discolouration, odour,
surging or stray tastes indicate this; again, experience is your best guide, but remember that more
frequent changes will be required when different foods are cooked in the same medium.

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 8 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
Old oil has a reduced flash point and is more prone to surge boiling.
Attention is also drawn to the effect of over-wet food and too large a charge on surge boiling.
Treat your fryer with the utmost respect with regard to safety, as hot cooking oil is a very hazardous
substance.
Never use the lid while the fryer is switched on or is cooling off. It is only a dust cover for when the
fryer is not in use.
N.B.Incorrect oil level, old oil or allowing the machine to be switched on without any oil, will
cause the override switch to trip.
MAINTENANCE AND SERVICE MUST ONLY BE UNDERTAKEN BY A QUALIFIED
ELECTRICIAN / ENGINEER
IF THE SUPPLY CORD BECOMES DAMAGED, IT MUST BE REPLACED BY THE
MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED PERSONS IN
ORDER TO AVOID A HAZARD

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 9 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
EXPLODED VIEW (Body Assembly)
NPSF3,6,9 & NPDF3,6,9
NPSF3 SHOWN BELOW

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 10 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
PARTS LIST (Body Assembly)
NPSF3,6,9 & NPDF3,6,9
No.
Description
Part Code
NPSF3,6,9
NPDF3,6,9
1
*Fascia
NPSF3FASCIA
NPDF3FASCIA
2
Handle Sleave
HANDLESLEEVE
3
Ball Valve
VALVEB12N
3a
15mm Olive
OLIVE0015
3b
15mm Brass Nut Compression Nut
NUTCOMP15
4
Drain Tube
TUBEFRYERN
5
*LH Side Panel
NPSFLH3SIDEPANEL
6
Tank Assembly
SEAMWELD1N
SEAMWELD2N
7
Bowl Insert
BOWLINSSS
7a
Bowl Insert Washer
WAS14022
7b
Bowl Insert Nut
NUT4BOWLSSS
7c
15mm Olive
PLUGBSP12
7d
Female Brass Nut
“ “
8
*Batter Plate
*NEWPAPAGON3KWFRYERBA
9
Basket C/W HANDLBASK
BASKETPRO
10
*Lid
*PARAGONFRYERLID
11
Lid Handle
TEEKNOB
12
Star Knob
STARKNOB
13
Strain Relief Bush (Only on 3kW)
BUSR06003
14
Mains Cable (Only on 3kW)
MLEAD25
15
*Back Hook
NPSFBACKHOOK
NPDFBACKHOOK
16
*Back Panel
NPSF3BACK
NPDF3BACK
17
*RH Side Panel
NPSF3RHSIDEPANEL
18
*Front Support
NPSF3FRONTBRACE
NPDF3FRONTBRACE
19
*Base
NPSF3BASE
NPDF3BASE
20
*Drain Tube Guide
NPSF3DRAINTUBESUPPORT
NPDF3DRAINTUBESUPPORT
21
*Tap Bracket
TAPBRACKET
Rubber Stick on Foot
RUBBRFOOT

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 11 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
EXPLODED VIEW (Body Assembly)
NPSPF3,6,9 & NPDPF3,6,9
NPSPF3 SHOWN BELOW

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 12 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
PARTS LIST (Body Assembly)
NPSPF3,6,9 & NPDPF3,6,9
No.
Description
Part Code
NPSF3,6,9
NPDF3,6,9
1
*Bottom Panel
*NPSPFLWRP
*NPDPFLWRP
2
LH Hinge Plate
LCPPDGFHINGE
3
Hinge Pin
PNST00127
4
*Door Assembly
*NPSPFDOORASSY
*NPDPFDOORASSY
5
Magnet
NPMAGNET
6
*LH Side Panel
*NPSPFLHSIDP
7
*Top Panel
*NPSFFAS
*NPDPFFAS
8
Ball Valve
VALVEB12N
VALVEB12N
9
Tank
SEAMWELD1N
SEAMWELD2N
10
*Front Support
*NPSF3FRONTBRACE
*NPDF3FRONTBRACE
11
*Batter Plate
*NEWPAPAGON3KWFRYERBA
12
Basket C/W HANDLBASK
BASKETPRO
13
Lid Handle
TEEKNOB
14
*Lid
*PARAGONFRYERLID
15
Star Knob
STARKNOB
16
*Back Hook
*NPSFBACKHOOK
*NPDFBACKHOOK
17
Bowl Insert
BOWLINSSL
17a
Bowl Insert Washer
WAS14022
17b
Bowl Insert Nut
NUT4BOWLSSS
18
Back Panel
*NPSPFBAK
*NPDPFBAK
19
*RH Side Panel
*NPSPFRHSIDP
20
Drain Tube
TUBETRAN4
21
Strainer
BKST14916
22
Aluminium Bucket
BKAL0001
23
*Base
*NPSPFBASE
*NPDPFBASE
24
Leg
LEG50-100PLT
LEG50-100HEX

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 13 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
EXPLODED VIEW (Head Assembly)
NPSF3, NPDF3 NPSPF3, NPSDF3
NPSF3 SHOWN BELOW

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 14 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
PARTS LIST (Head Assembly)
NPSF3, NPDF3 NPSPF3, NPSDF3
No.
Description
Part Code
NPSF3 / NPDF3 / NPSPF3 / NPDPF3
1
Element
ELFF03000
2
*Element Shroud
*PARAGON3KWFRYERHEADE
3
Green Neon
LNGN2211P
4
Timer Knob
TIMERKNOB
5
*Head Body c/w End Caps
NPSF3HEADWRAP
6
Red Neon
LNRE2211P
7
Safety Cut Out Thermostat
TMST10549
8
*Safety Cut Out Thermostat Bracket
NPSFSAFCUTTHBKT
9
20 Minute Timer
TMRMECH20
10
*Reset Cover
NPSFOTRC
11
Reset Cover Gasket
GASKCOVER
12
*Head Back
NPSF3FRYHBAK
13
Fryer Head Gasket
GASKPR69F
14
Thermostat
TMST13032
15
Terminal Block
TB3POLETB
16
Element Gasket
AS3510PLT
17
Thermostat Knob
KNOBPHEN
Element Clip
CLIP15960

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 15 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk

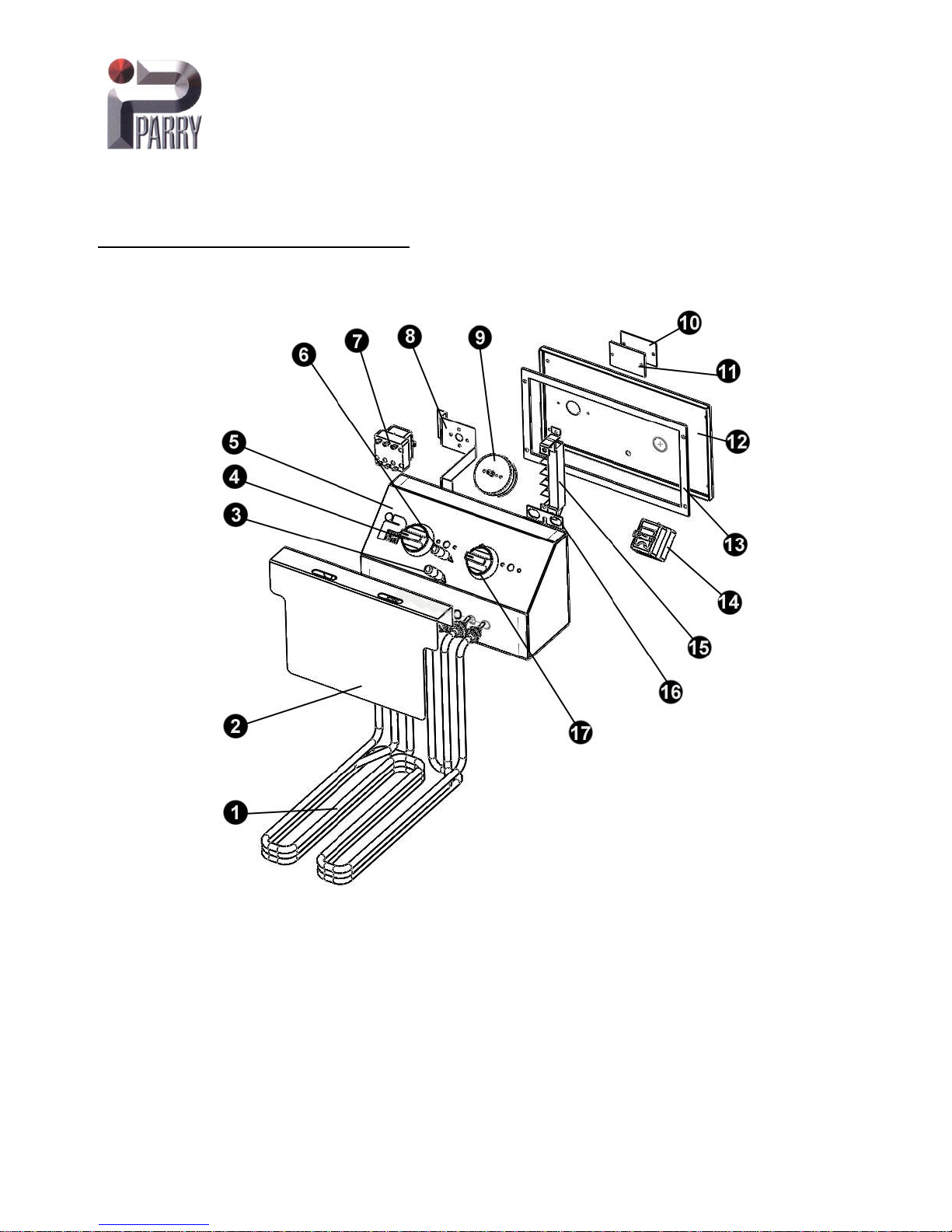

EXPLODED VIEW (Head Assembly)
NPSF6,9, NPDF6,9, NPSPF6,9, NPSDF6,9
NPSF6,9 SHOWN BELOW

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 16 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
PARTS LIST (Head Assembly)
NPSF6,9 & NPDF6,9
No.
Description
Part Code
NPSF6 / NPSFP6
NPDF6 / NPDPF6
NPSF9 / NPSFP9
NPDF9 / NPDPF9
1
Element
ELDF06003
ELDF09003
2
*Element Shroud
*NPSF6-9SHROUD
3
Green Neon
LNGN2211P
4
Timer Knob
TIMERKNOB
5
*Head Body c/w End Caps
*NPSF6-9HEADWRAP
6
Red Neon
LNRE2211P
7
Safety Cut Out Thermostat
TMST32542
8
*Safety Cut Out Thermostat Bracket
*NPSFSAFCUTTHBKT
9
20 Minute Timer
TMRMECH20
10
*Reset Cover
*NPSFOTRC
11
Reset Cover Gasket
GASKCOVER
12
Head Back
*NPSF6-9HEADBACK
13
Fryer Head Gasket
GASKPR69F
14
Thermostat
TMST34034
15
Terminal Block
TB6POLETB
16
Element Gasket
*AS3510PLT
17
Thermostat Knob
KNOBPHEN
CLIP15960

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 17 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
WIRING DIAGRAM
NPSF3 / NPSPF3 / NPDF3 / NPDPF3
WIRING DIAGRAM
NPSF6,9 / NPSPF6,9 / NPDF6.9 / NPDPF6,9

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 18 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
WARRANTY INFORMATION
WARRANTY POLICY
The manufacturers warranty is only valid in the UK mainland & Northern Ireland,
Western Isles, Inner Hebrides and Islands are parts only warranty.
All service calls will be carried out between the hours of 8.00am –5.00pm Monday
to Friday only.
We accept no responsibility for delays in replacing or repairing the equipment due to
circumstances beyond our control.
Your warranty can be immediately invalid if the installation of the equipment has not
been installed in accordance with the manufacturers’instruction. (See installation
details). Also the miss-use, alteration or unauthorised repairs of the equipment will
invalidate the warranty.
During the warranty period it is at Parrys Group Ltd discretion to repair or replace the
equipment.
Warranty only applies if the equipment has been used in a professional manor
following the manufacturers’instructions and maintenance guide lines.
The warranty covers defects in the material and components failure only we are not
liable for trading loss, loss of perishable items, water damage, loss due to injury or
fire damage.
WARRANTY REQUEST
Please ensure you have referred to the manufacturers’ instruction before placing a
warranty call with your distributor.
Please ensure you obtain the model number before calling.
Please ensure you have read the section not covered under warranty to avoid any
unnecessary warranty charges.
If the problem with the machine can not be resolved please contact the company
that supplied you the machine.
(SERVICE CALLS CANNOT BE PLACED DIRECT WITH PARRY GROUP LTD)

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 19 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
NOT COVERED UNDER WARRANTY
Installed incorrectly
Fault due to poor maintenance.
Resetting of equipment or circuit breakers.
Abuse of the equipment
Blockages eg, drains,
Lime scale related issues
Access arranged for service call and engineer refused access or customer not there.
No faults with the machine.
Setting up of equipment.
Faulty electrics –eg, customers plug socket, plug, wiring, junction box fault, wrong
fuse.
Any damages caused by the customer.
All of the above are not covered under our warranty policy. Any costs incurred because of
the above will be forwarded to the parties responsible for placing the call.
Failure to pay any warranty charges will result in the customers warranty been put on hold
until the bill has been settled.
Any issues regarding the raised charges should be put in writing to our warranty
department for further investigation.

INSTRUCTION REF: IN224
ISSUE No. 2
DATE 26/08/14
Page 20 of 21
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Group Limited, Town End Road, Draycott, Derby, England DE72 3PT
www.parry.co.uk
DISPOSAL INFORMATION
This appliance is marked according to the European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product.
A symbol on the product, or on the documents accompanying the product, indicates that
this appliance may not be treated as household waste. Instead it shall be handed over to
the applicable collection point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental regulations for waste
disposal.
For more detailed information about treatment, recovery and recycling of this product,
please contact your local city office, your household waste disposal service or the shop
where you purchased the product.
This manual suits for next models
11
Table of contents
Other PARRY Fryer manuals
Popular Fryer manuals by other brands

HAEGER
HAEGER Aero Fryer User instructions

Oster
Oster ODF 510 User manual with recipes

Broaster
Broaster 1800 Service manual

Kalorik
Kalorik MAXX PLUS FT 47822 SS MAXX PLUS FT 47824 SS MAXX PLUS FT 50876... instruction manual

GRIFEMA
GRIFEMA GC2001 instruction manual

Pitco
Pitco E12 Installation, operating & service instructions
