/ Product Overview /
Purpose of Use
This product is a portable measuring device that can collect infrared
radiation energy from the human body (forehead, below ear, etc.)
through sensors to measure body temperature and manage the
information. This non-contact device is used for measurement by
placing the built-in sensor in the top part of the product within 3
cm of the site to be measured. An additional function to measure
temperature of general objects is also included.
*APP
Body temperature information can be checked through synching
mobile app after installing GC Healthcare Corporation’s “heat map”
app in Play Store for Android and in App Store for iOS.
It provides a guide based on body temperature, and you can check
the temperature status across the country with the heat map.

/ Product Composition - Shape and Structure /
1-1. Temperature sensing unit
1. Body (1EA) 1-5. Battery cover
1-2. Strap hole
1-4. ON / SCAN button
1 click for measurement/move
2 clicks for selection
1-3. OLED display
2 . User manual
3 . CR2032 coin battery (1EA)
1
Front Back
CR2032
1-1 1-3
1-4
1-5
1-2
3
2

/ How to Replace Battery /

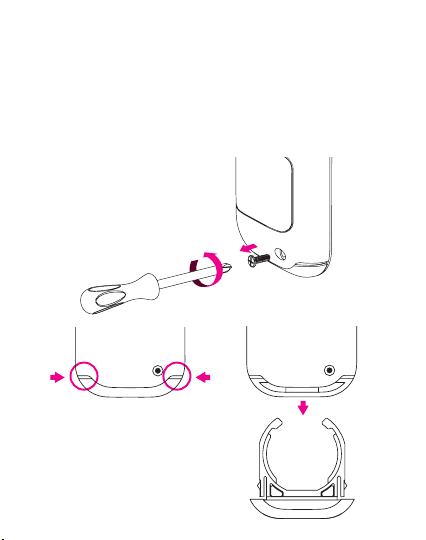

- Loosen the screw at the bottom of the main body with a screwdriver,
press both gaps with your fingertips, then pull down to remove the
battery cover.
- Place the battery 󽗉tting in the direction of insertion, close the cover
and screw with screwdriver.
STEP 2
STEP 1
STEP 3

*How to Insert Battery
- Insert the CR2032 battery diagonally so that the battery cover
gets stuck in a bump and press it to close.
- Battery should be inserted so that the surface without the
speci󽗉cation mark is facing up.
- Insert in a way that poles are facing upwards.
/ How to Use PTD-400 /
- Press the button on the main body
once brie󽗊y. (“HELLO” is displayed and
power gets turned on.)
- Once the body temperature
measurement standby screen
is displayed as ( ), body
temperature measurement can be
started.
- If the device is not operated for 20
seconds, the power is automatically
turned o󽗈. (Pressing the button on the
main body for more than 2 seconds will
also turn the power o󽗈 automatically.)
1. Power On / Standby / Power O󽗈
Click the
button
once
Power On Standby

3. Measuring Body Temperature / Checking Previous
Measurement Records
- Select a temperature measurement on the setting screen.
- On the standby screen, place the thermometer in the center of the
forehead above the eyebrow and press the button on the main body once.
- With vibration, numbers “3, 2, 1” will be displayed and then measurement
will be started.
- Click the button 3 times on the standby screen to enter the setting screen
- After entering the setting screen, temperature ( ) and object ( )can
be chosen by clicking twice on the measurement target icon.
2. Setting Target to be Measured (People/Object)
Click the
button 3
times
Click the
button
twice
object
temperature
Click the
button
once

- Click the button twice on the standby screen to enter the previous
measurement records.
- On the previous measurement records screen, click the button once to
start the temperature measurement.
Click the
button
twice
Click the
button
twice
*Check body temperature measurement position
before starting measurement.
3cm
- Measure at the center or end of the forehead while keeping the
thermometer with a distance of about 3 cm to avoid contact with the skin
- If the temple or forehead above the eyebrows is covered with hair or
cannot be measured, measure the center of the forehead or the back of the
ear.
- Body temperature may vary depending on the site: left and right temple,
or left and right forehead area. It is recommended that you always measure
on the higher side according to the measurement method in the manual.

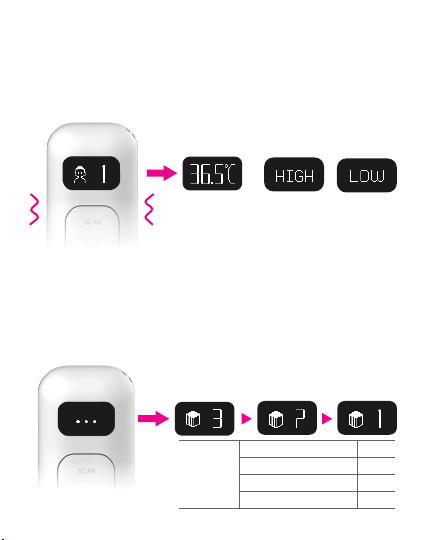

- When the temperature measurement is complete, the device will be
vibrated, and the measured temperature will be displayed on the screen
*If the measured temperature is greater than 42 degrees, it will be
displayed as HIGH if less than 32 degrees, it will be displayed as LOW.
4. Display of Body Temperature
42℃ ↑ 32℃ ↓
- Select an object temperature measurement on the setting screen.
- Click once on the standby screen while maintaining the distance from the
measurement target.
- With vibration, numbers “3, 2, 1” will be displayed and then measurement
will be started.
* Object
temperature
measurement
range
0°C to less than 22°C ±3°C
22°C~ 42°C ±2°C
43°C to less than 100°C ±3°C
100°C~ 180°C ± 5°C
Click the
button
once
5. Measuring Object Temperature

1) Click the button 3 times on the standby screen to enter the setting screen.
2) Click the button once on the setting screen to enter the temperature
unit setting screen.

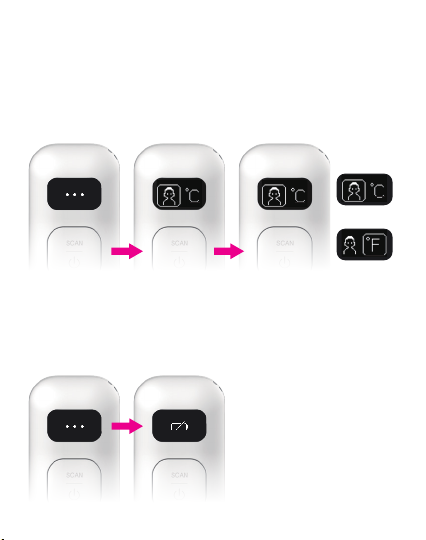

3) Click the temperature icon °C (or °F) twice to change the temperature
unit.
6. Changing Temperature Unit
Fahrenheit
Celsius
The standby screen will be changed to battery warning screen when there
is no residual amount and temperature data will still be displayed. (It will
remain the same until battery is completely exhausted.)
7. Battery Replacement Alarm
Standby In case of
battery
shortage
*Please remove the battery if
the device is not in use for a
long time.
Click the
button 3
times
Click the
button
twice
Click the
button
once

Error message Abnormality Solution
It will display this
message when the
room temperature is
outside the operational
temperature range of
15°C to 40°C.
- Leave the thermometer
for at least 30minutes in
the ambient temperature
environment available before
measurement.
- If the same message is
displayed afterwards, contact
the customer service center.
/ In the Event of Abnormalities /
/ Product Storage and Care /
1. As the sensor part is very sensitive, always keep it clean and not
damaged for accurate measurements.
2. Avoid 󽗉re and direct sunlight and store in a place free of dust or
pollutants.
3. Store it in a place out of water.
4. Store it in a place where vibration or shock does not occur.
5. We recommend keeping the product at room temperature,
and if it is stored outside of room temperature, keep it at room
temperature for 30 minutes before use.
6. In case of sensor and case contamination, carefully wipe with a
cotton swab or alcohol cotton coated with ethylalcohol 70%
diluted solution. (Recommended to use about 20 minutes after
cleaning the sensor)

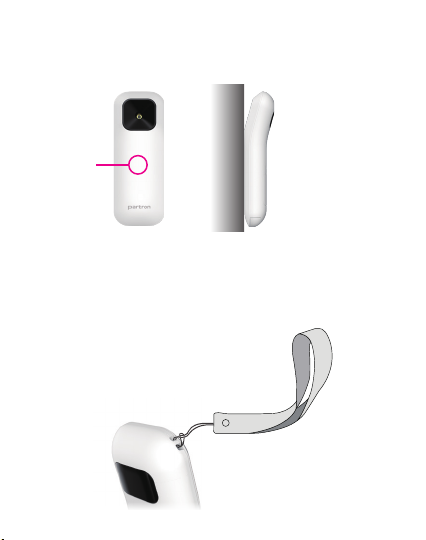

* This product has a magnet built into the front of the main body, so
it can be stored on a wall made of steel.
steel walls Store it by attaching it
to the magnetic object
* It can be carried and stored using the strap hole at the top of the
main body. (The strap is not included in the product package.)

Check the precautions when measuring body
temperature!
1. The person being measured must remain stable indoors for at least 30
minutes.
2. Prior to measurement, the sensor must be checked for foreign substances
before use. (If there is a foreign substance, the measurement may be
incorrect, or an alarm will be displayed to recommend re-measurement.)
3. It is recommended to measure with 3 cm distance away from the skin
and be careful not to move the thermometer until it is vibrated after
measurement. (If moved, the measurement may be incorrect, or an alarm will
be displayed to recommend re-measurement.)
4.
Incorrect temperature measurement sites or posture may result in inaccurate
readings.
5. The person being measured should not drink beverages or eat food or
engage in physical activities while measuring body temperature.
6. When measuring body temperature, remove foreign substances (dust,
sweat, hair, etc.) from the measurement site before taking measurements.
7. For infants and children, if they struggle and refuse to take measurements,
it is impossible to accurately measure the body temperature as the distance
between the skin and the sensor does not remain constant. So please calm
them down before measuring it.
8.
It is recommended to measure your body temperature 30 minutes after
exercise, bathing, and getting back home.
9. It is recommended to measure at the same site as body temperature may
vary slightly from one area to another.
10. Measure it on the forehead between the eyebrows. The temperature
distribution may vary depending on the location of the forehead.
11) Repeat the measurement more than 3 times in the following situations:
- Infants within 90 days of birth

- Infants under 3 years of age whose body temperature is shown outside the
average temperature range.
- If the product is used for the 󽗉rst time or has no experience of using a similar
product.
Precautions for Use
Thank you for purchasing PTD-400 (Infrared Body Thermometer).
As this thermometer is a household “medical device,” it is recommended
to fully understand the functions of the product for safe use and stable
performance and to familiarize yourself with the user manual for use and
follow-up management. If the product is damaged due to careless use,
customer service may not be provided.
The temperature measurement using this product cannot be substituted
for consultation or treatment with a specialist or pediatrician, and if there
is any abnormality in the measured temperature value, be sure to consult a
specialist or pediatrician.
1. This product is a general home medical device that requires no special
skills or training but requires knowledge of the level to understand letters
and illustrations and to understand instructions (11 years of age or older).
2. If it is used close to a high-energy high-frequency generating device,
avoid using it together as it may a󽗈ect the measured value due to mutual
interference.
3. Avoid using this device in close proximity to other devices, as the
electromagnetic e󽗈ects of this product may cause other devices to
malfunction, and the electromagnetic e󽗈ects of other devices may cause
this device to malfunction.
4. This product must be used only for speci󽗉ed purposes and should not be
used for other purposes.

"Warning: Use of this equipment adjacent to or stacked with other
equipment should be avoided because it could result in improper
operation. If such use is necessary, this equipment and the other
equipment should be observed to verify that they are operating
normally.”
"Warning: Use of accessories, transducers and cables other than those
speci󽗉ed or provided by the manufacturer of this equipment could result
in increased electromagnetic emissions or decreased electromagnetic
immunity of this equipment and result in improper operation.”
“WARNING: Portable RF communications equipment (including
peripherals such as antenna cables and external antennas) should be
used no closer than 30 cm (12 inches) to any part of the [ME EQUIPMENT
or ME SYSTEM], including cables speci󽗉ed by the manufacturer.
Otherwise, degradation of the performance of this equipment could
result.”
“WARNING: The user and/or patient that any serious incident that has
occurred in relation to the device should be reported to the manufacturer
and the competent authority of the Member State in which the user
and/or patient is established."
5. This product is made of precise parts. Do not drop this product or give
shock.
6. Do not put the product in your mouth to measure your body temperature.
7. Do not attempt to repair and disassemble the product at your discretion.
8. Be careful not to swallow the coin battery, screw and battery cover.
9. Use only Li, CR2032 coin battery.
10. After replacing the battery, close the cover completely and turn it on.

FCC Compliance Information
FCC ID : 2AD5K-PTD400
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions : (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note : This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications, However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o󽗈 and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit di󽗈erent from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution : Any changes or modi󽗉cations in construction of this device
which are not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.

/ Product Disposal /
This product is a product that does not produce any residues harmful to the
human body. In principle, it is required to separate and discharge the product
in accordance with the general disposal procedure of electronic products.
/ Transportation and Storage Conditions /
- Temperature : -40℃ ~ 70℃
- Humidity : 10% RH ~ 95% RH
- Atmospheric pressure : 76.0 kPa ~ 106.0 kPa
/ Operating Condition /
- Temperature : 15℃ ~ 40℃
- Humidity : 10% RH ~ 85% RH
- Atmospheric pressure : 76.0 kPa ~ 106.0 kPa
Refer to instruction
manual
Atmospheric
pressure limitation
0000 FCC ID :
2AD5K-PTD400
Manufacturer Date of
manufacture
Medical deviceLot numberAuthorized
representative in the
European Community
WEEERecyclingType BF Applied
part
Caution
Keep away from
sunlight
Humidity
limitation
Temperature
limit
Keep dry

/ Product speci󽗉cation /
Speci󽗉cation WE - TEMP
Product Name Infrared body thermometer
Item Name PTD-400
Purpose of Use This is a medical device that measures body
temperature
Temperature
Measurement
Range
Body Measurement 32℃ ~ 42℃
89.6 ℉ ~ 107.6 ℉
Object Measurement 0℃ ~ 180℃
0 ℉ ~ 356 ℉
Battery
CR 2032 (1EA)
Supports more than 3,000 measurements:
The number of measurements may vary
depending on the effect of the ambient
environment (temperature/humidity) and the
battery in use.
Measurement Time Less than 5 seconds
Measurement
Method
Measure infrared released from skin by
Thermopile sensor
Display PMOLED (0.5inch)
Device
Classi󽗉cation /
Waterproof Rating
Continuous operation, IP22

Resolution 0.1(Body temperature), 1(Object temperature)
Accuracy
Body measurement Object measurement
• 32°C to less than 36°C : ± 0.3℃
• 36℃ ~ 39℃ : ± 0.2℃
• Over 39℃ ~ 42℃ : ± 0.3℃
• 0°C to less than 22°C : ±3°C
• 22°C~ 42°C
• 43°C to less than 100°C : ±3°C
• 100°C~ 180°C : ± 5°C
Automatic
Power Cut-o󽗈 Automatic power cut-off after 20 seconds
Dimension
( WxLxH ) 28.06 x 73.66 x 13.04 mm
Weigt 16.9g (Including battery)
Operational
Environment 15℃ ~ 40℃ (59℉ ~104℉)
Rating DC 3V (Li, CR2032)
Product life 5 years
Voltage Rating
Type of protection
against electric shock Internal power type
Degree of protection
against electric shock BF type
Bluetooth BLE 5.0
Data for
Transmission Body temperature
Manufacture
Date / Lot
Number
Displayed in the label on product package

/ warranty /
Product Name
PTD-400
WE - TEMP
Displayed in the label on product package
within one year from the date of purchase
Model
Manufacture Date /
Lot Number
Place of Purchase
Date of Purchase
Free warranty period
This product was made through strict quality control and inspection process of
our company.
- The compensation criteria for product repair and exchange shall follow the
"Compensation Rules for Consumer Damages" announced by the Ministry of
Finance and Economy.
- In the event of a failure in normal use, our service center shall repair it for free
during the warranty period.
- If there is a problem with the product during the warranty period, please
notify us of the model name, manufacturing number, purchase date, and
failure details.
- The manufacturer or distributor shall not be responsible for any damage or
loss if a product defect occurs due to improper use or negligence in product
management.
For product inquiries and customer service, please contact Partron Customer
Service O󽗋ce.
/ customer service /
