pathway eGlass User manual

!
What's In the Box?
This is a user manual for the eGlass Station Podium ONLY. For the full eGlass
Lightboard user manual, instructional videos, software downloads, and further
training and support, visit the eGlass Academy by scanning this QR Code with
your phone, or by visiting https://www.eglass.io/support
Note:
User Manual

!
1
2
3
4
5
6
7
8
9
10
13
11
12
15
16
18
What’s in the Box
14
17
Or
Podium Surface
10mm M5 Hex Bolt (4x)
Power Cord
Pillar
15mm M5 Hex Bolt (4x)
eGlass Power Cable
Wheel Base
M5 Thumbscrews (12x)
Pen Holder
Foot Pedal
35” eGlass Brackets
M5 Hex Driver
Wheels (4x)
50” eGlass Brackets
3mm Allen Key
M5 Hex Screw (10x)
Power Adapter
Wheel Wrench
3
12
11
8
1
15
14
13
2
6
16
4
9
10
17
7
18
5
Or

!

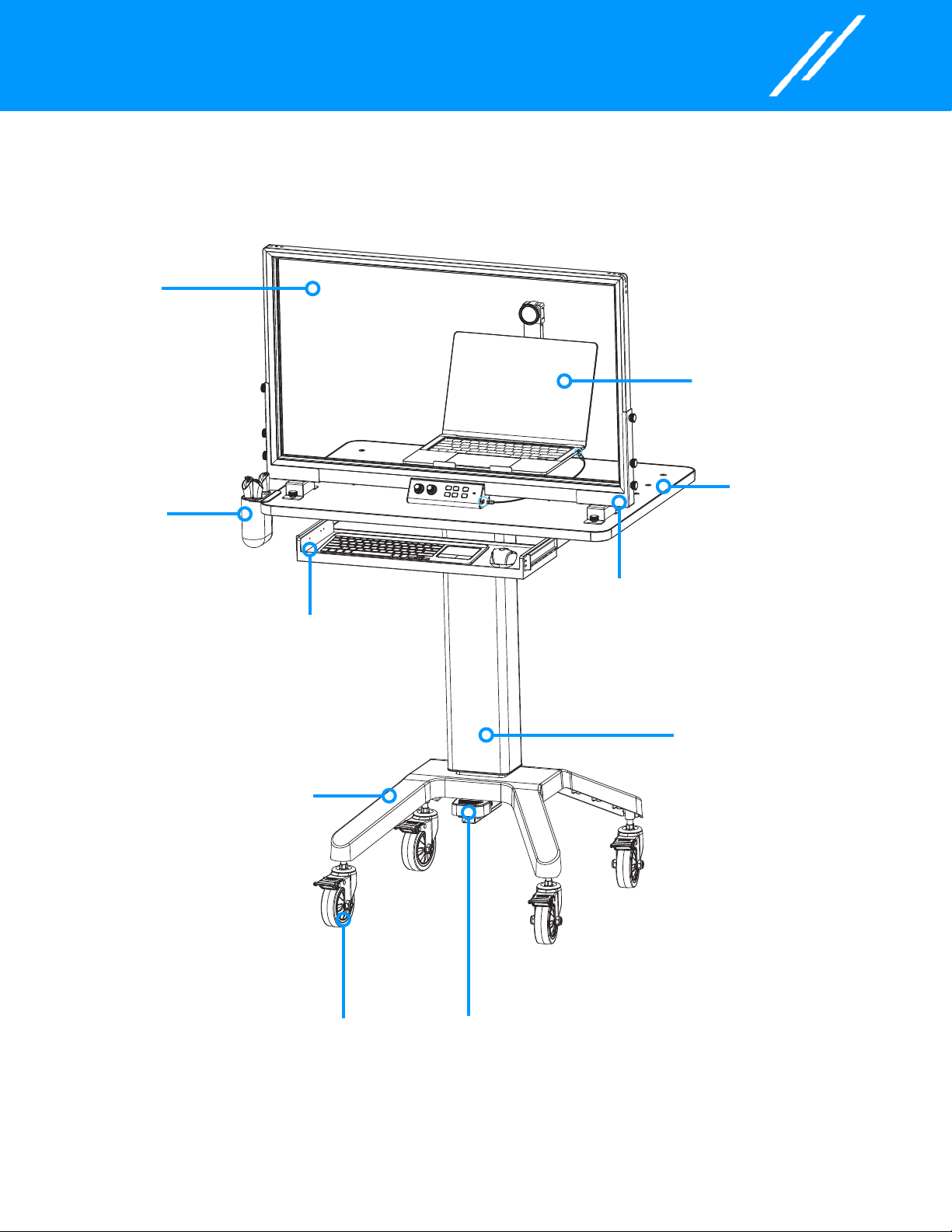

Diagram
Accommodates
Laptop Stand
Accommodates
35” or
50” eGlass
Lightboards
Podium Surface
with Multiple
Mounting
Positions
Brackets for
35” and 50”
eGlass Included
Pen
Holder
Pullout Mouse &
Keyboard Tray
Sit/Stand Height
Adjustable Podium
Podium Wheel Base
Lockable 360º
Heavy Duty Casters
Height Adjustment
Foot Pedal

!

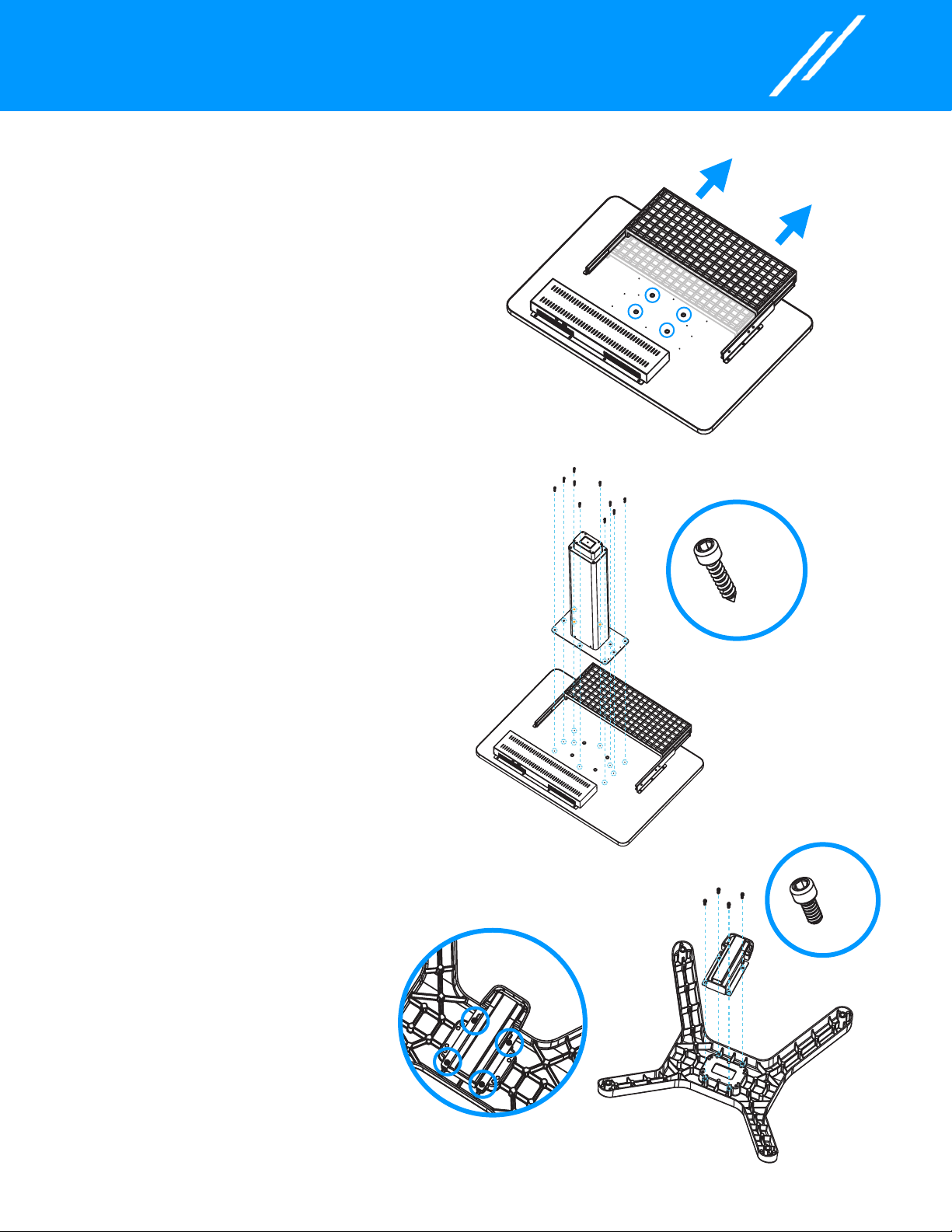

Step 1:
Place the Podium Surface
upside-down on a flat
surface, and pull out the
mouse and keyboard tray
to expose the mounting
holes.
Step 2:
Align the Pillar with the
recessed holes in the
Podium Surface, and use
the M5 Hex Driver and
10x M5 Hex Screws
(pointed tip) to fasten
them together.
10x
Assembling Podium
Step 2:
Use the M5 Hex Driver
to secure the Foot
Pedal to the
underside of the
Wheel Base with the
shorter 10mm M5 Hex
Bolts (4x)
4x

!
Step 3:
Use the Wheel
Wrench to tighten
the 4x Wheels to the
Wheel Base
Step 4:
Use the M5 Hex Driver and
the 4x longer 15mm M5 Hex
Bolts to fasten the Wheel
Base to the Pillar.
Important: Make sure you
install the wheel base so that
its height-adjustment Foot
Pedal is on the same side as
the pullout mouse and
keyboard tray.
4x
Step 5:
Flip the assembled podium
right-side up.
Assembling Podium

!

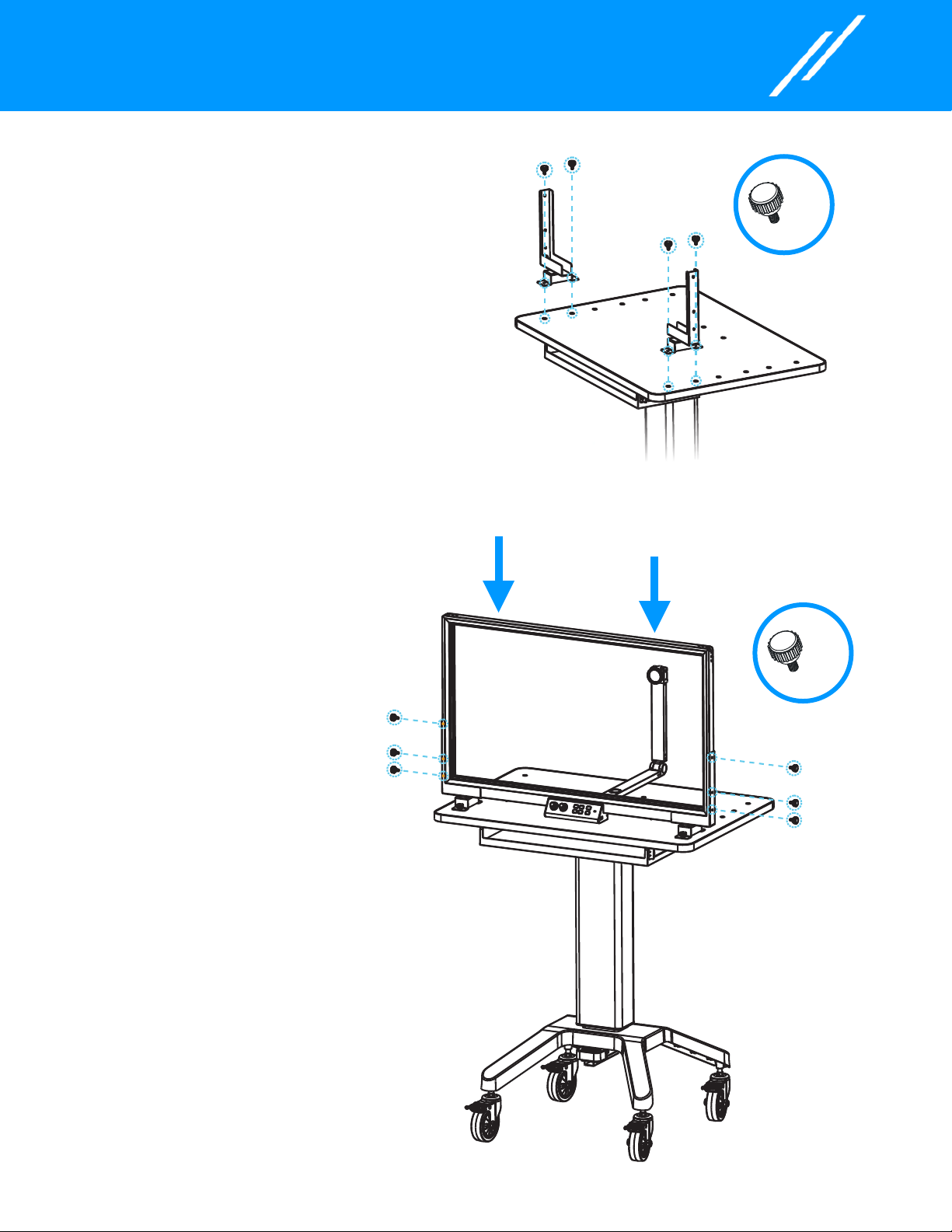

Step 1:
First, select the
Mounting Brackets
based on the size of
the eGlass being
mounted.
50” Mounting
Brackets
35” Mounting
Brackets
Step 2:
Position the Mounting
Brackets in the
desired location on
the Podium Surface.
A Note About Mounting Positions:
There are five positions the mounting brackets can be secured in to position the
glass surface closure or further away from the user. Please consider where you
would like to station your laptop before selecting a position.
We recommend positioning the eGlass in the forward position (closest to the user
and closest to the keyboard tray) in order to make room for the laptop behind
the glass. This position also minimizes the distance that the camera arm
protrudes from the podium surface.
Mounting eGlass
Forward Position
Laptop Behind Glass
(Recommended)
Rear Position
Laptop In Front Of Glass

!
Step 3:
Use 4x M5 Thumbscrews
to secure the Mounting
Brackets in the desired
location on the Podium
Surface.
Step 4:
Carefully lower the
eGlass frame into the
Mounting Brackets,
and use 6x M5
Thumbscrews to
secure the eGlass
frame.
Mounting eGlass
4x
6x

!
eGlass Station has a built-in battery to
power the eGlass Lightboard. Connect
one end of the eGlass Power Cable to
the power input on the left side of the
eGlass lightboard, and the other end into
the 24V 5A power-outlet located on the
left underside of the Podium Surface.
Powering On
To power on (and off) the eGlass Station battery, activate the
Power Switch located on the left underside of the Podium Surface.
Connecting and Powering-On

!
Charging
The eGlass Station battery must be charged routinely.
To charge the station, first connect the Power Cord to the Power
Adapter, and then connect the Power Adapter to the 19V 9.47A
power-in located on the left underside of the Podium Surface.
Finally, connect the 3-prong Type A Power Cord into a 110V wall
outlet to charge the station. Charging takes about 6 hours.
Battery life may vary depending on the brightness
setting of the eGlass lights, and if a laptop or other
accessories are being charged (see next page):
35” eGlass: ~3 - 7 hours
50” eGlass: ~2 - 6 hours
Charging time: 6 hours
Battery Indicator:
View the current battery level by
pressing the battery indicator button:
3 lights: 75% - 100% remaining
2 lights: 50% - 75% remaining
1 light: 25% - 50% remaining
1 light (flashing): less than 25% remaining

!
Powering Laptop and Accessories
USB-A
USB-C
When the podium is powered-on, it’s battery can also power or
charge compatible USB devices (like a USB-C laptop) by
connecting the devices to either the 100W USB-C port or 30W
USB-A port located on the backside of the Podium Surface.
Please note that the podium’s battery life will decrease as more
devices are connected and drawing power from the battery.

!
Mounting Laptop Stand
eGlass Station also has space for the adjustable Laptop Stand that
is included with every eGlass lightboard.
We highly recommend using the laptop stand to hold your laptop
behind the glass, and above the camera arm, so that your laptop
screen sits just below the camera lens. This ensures that you always
have a good view of your laptop screen when teaching, and when
you do look at your laptop screen, you’re still looking towards the
eGlass camera (which simulates eye-contact). However, you will
need to connect a Wireless Keyboard and Mouse (not included) to
be able to control your laptop while it is behind the glass.
If your laptop stand needs to overhang beyond the eGlass Station
Podium Surface, there are two holes tapped for M5 Thumbscrews
that will secure the stand down so that it can support the
unbalanced weight of a laptop without falling over.
Note: If your laptop stand does not have slots for the M5 Thumbscrews to
fit through, please contact [email protected]

!
eGlass Station is height-adjustable, accommodating both sitting
or standing use. To adjust the height, press down on the Height-
Adjustment Foot Pedal and pull or push the podium up or down
to the desired height, then release the foot pedal.
Adjusting Height
Lowest Position:
39 Inches
Highest Position:
55 Inches

!
Mounting Pen Holder
A Pen Holder is also included, and can be mounted on any edge
of the podium surface by removing the adhesive backing and
pressing the adhesive side of the pen holder on any edge of the
Podium Surface, except for the edge in front of the Pullout
Keyboard and Mouse Tray.
We recommend storing your dry erase pens upside-down so
that the tips are always saturated with ink.

!
Specifications
eGLASS SPECIFICATIONS
Model
35” eGlass Station
50” eGlass Station
What’s in the Box
35” eGlass Lightboard with accessories, height-adjustable podium
with battery, eGlass mounting brackets, assembly hardware and
tools, power adapter, power cable, eGlass power supply, pen holder.
50” eGlass Lightboard with accessories, height-adjustable podium with
battery, eGlass mounting brackets, assembly hardware and tools, power
adapter, power cable, eGlass power supply, pen holder.
Glass Specifications
High strength 6mm scratch resistant tempered glass
Control Interface
eGlass Station Battery Power On/Off, eGlass Lightboard on/off, Bottom Instructor Light On/Off, Instructor lights (+/-), Glass Lights (+/-),
Record Video, Pause Recording, Stop Recording, Capture Snapshot, Camera Exposure (+/-)
Instructor Lights Brightness
Min: 6,000 lumens, Max: 12,000 lumens
Min: 9,000 lumens, Max: 15,000 lumens
Illumination
Adjustable External LED’s for Instructor Illumination, Adjustable Internal Glass LED’s for Ink Illumination
Microphone
Built-In 94 dB-SPL@1k Hz Built-In Microphone, with Noise Reduction
BATTERY
Capacity
18,000mAh 14.8V 3.6A
Battery Life
3~7 Hours (based on light intensity and accessory power draw)
2~6 Hours (based on light intensity and accessory power draw)
Charging Time
6 Hours
Power Adapter
Input: 100-240v AC 50-60Hz 2A, Output: 24v/5A
I/O
eGlass Station I/O
Power Adapter Input (19V 9.47A), eGlass Power Output (24V 5A), 100 W Type-C Power Output, 30W Type-A Output
eGlass Lightboard I/O
USB 3.0 Type A, DC in 24V; 3.5A (Max)
USB 3.0 Type A, DC in 24V; 3.5A (Max)
SOFTWARE
eGlassFusion PC/Mac
Live Video Streaming, Image Capture, Video Recording, Media Insertion with Background Removal, & Other Tools
HoverCam for Chrome*
Live Video Streaming, Image Capture, Video Recording
Website Download
www.eglass.io/support
Compatible OS
Microsoft Windows 10, Mac OS Catalina and above, Chromebook OS 80+*
System Requirements
CPU 1.6 GHz , 2.0 GHz Recommended, RAM 1 GB Minimum, 2 GB or More Recommended
CAMERA
Camera Sensor
8 MP BSI CMOS 1/3.2"
Live Video Resolution
1920x1080@30fps** • 1280x720@30fps
Recording Resolution
1920x1080@30fps** • 1280x720@30fps
Polarizing Filter
Optional Filter and Adapter Included (To Eliminate Reflection of Laptop Screen)
Image Resolution
3280 x 2464
Video Recording Format
Windows: MP4, WMV • Mac: MP4 • Chrome: WEBM
Image Format
Windows: JPEG, PNG, BMP, TIF, GIF, PDF • Mac: PNG • Chrome: JPG
Zoom
4X Digital Zoom
Field of View
F/NO = 2.6, FOV = 88.16°
PHYSICAL SPECIFICATIONS
Writing Surface Size
30.50” l x 17.50” h (diagonal)
43.59” l x 24.52” h (diagonal)
Camera Arm Length and Height
19.33" l x 12.09" h
27.11" l x 15.77" h
Podium Dimensions (LxW)
31.5” l x 21.65” w
Podium Height
38.39” Lowest - 54.53” Highest (Measured From Floor To Podium Surface)
Operating Temperature
-20°C - 65°C
Certifications
CE, FCC, ROHS
WARRANTY
5 Year Parts and Labor (USA only)

!
Safety Warnings
Power Cords, Power Adapters, Extension Cables, Outlets
WARNING:
Use only the power cords and power adapters supplied by the product manufacturer. The power cords shall be safety
approved. Never wrap a power cord around a power adapter or other object. Doing so can stress the cord in ways
that can cause the cord to fray, crack, or crimp. This can present a safety hazard. Always route power cords so that
they will not be walked on, tripped over, or pinched by objects.
Protect power cords and power adapters from liquids. For instance, do not leave your power cord or power adapter
near sinks, tubs, toilets, or on floors that are cleaned with liquid cleansers. Liquids can cause a short circuit,
particularly if the power cord or power adapter has been stressed by misuse. Liquids also can cause gradual
corrosion of power cord terminals and/or the connector terminals on a power adapter, which can eventually result in
overheating.
Ensure that all power cord connectors are securely and completely plugged into receptacles. Do not use any power
adapter that shows corrosion at the ac input pins or shows signs of overheating (such as deformed plastic) at the AC
input pins or anywhere on the power adapter. Do not use any power cords where the electrical contacts on either end
show signs of corrosion or overheating or where the power cord appears to have been damaged in any way.
To prevent possible overheating, do not cover power adapters with clothing or other objects when the power adapter
is plugged into an electrical outlet.
Ensure that extension cords, surge protectors, uninterruptible power supplies, and power strips that you use are rated
to handle the electrical requirements of the product. Never overload these devices. If power strips are used, the load
should not exceed the power strip input rating. Consult an electrician for more information if you have questions
about power loads, power requirements, and input ratings. If a receptacle (power outlet) that you intend to use with
your device appears to be damaged or corroded, do not use the outlet until it is replaced by a qualified electrician.
Do not bend or modify the plug. If the plug is damaged, contact the manufacturer to obtain a replacement.
Do not share an electrical outlet with other home or commercial appliances that draw large amounts of electricity;
otherwise, unstable voltage might damage your device, data, or attached devices.
Some products are equipped with a three-pronged plug. This plug fits only into a grounded electrical outlet. This is a
safety feature. Do not defeat this safety feature by trying to insert it into a non-grounded outlet. If you cannot insert
the plug into the outlet, contact an electrician for an approved outlet adapter or to replace the outlet with one that
enables this safety feature. Never overload an electrical outlet. The overall system load should not exceed 80 percent
of the branch circuit rating. Consult an electrician for more information if you have questions about power loads and
branch circuit ratings.
Be sure that the power outlet you are using is properly wired, easily accessible, and located close to the equipment.
Do not fully extend power cords in a way that will stress the cords. Be sure that the power outlet provides the correct
voltage and current for the product you are installing.
Battery Warning
WARNING:
Do not attempt to remove or replace the built-in rechargeable battery. Replacement of the battery must be done by a
eGlass-authorized repair technician, or by direction from eGlass Technical Support.
Only recharge the battery strictly according to instructions included in the product documentation. Batteries supplied
by eGlass for use with your product have been tested for compatibility and
Battery abuse or mishandling can cause overheat, liquid leakage, or an explosion. To avoid possible injury, do the
following: Do not open, dissemble, or service any battery. Do not crush or puncture the battery. Do not short-circuit
the battery, or expose it to water or other liquids. Keep the battery away from children. Stop using the battery if it is
damaged, or if you notice any discharge or the buildup of foreign materials on the battery leads. Store the
rechargeable batteries or products containing the rechargeable batteries at room temperature, charged to
approximately 30 to 50% of capacity. We recommend that the batteries be charged about once per week to prevent
over-discharge. Do not put the battery in trash that is disposed of in landfills. When disposing of the battery, comply
with local ordinances or regulations.

!
Safety Warnings
Heat and Product Ventilation
WARNING:
The podium battery, lights, ac power adapters, and many accessories can generate heat when turned on and when
batteries are charging. Always follow these basic precautions:
When your podium is turned on or the battery is charging, some parts may become hot. Avoid keeping any part of
your body in contact with a hot section for any extended length of time. Extended contact with your body, even
through clothing, could cause discomfort or even a skin burn. Periodically take breaks from using the podium by lifting
your hands from the device; and be careful not to use the device for any extended length of time.
Do not operate your podium or charge the battery near flammable materials or in explosive environments.
Ventilation slots, fans and/or heat sinks are provided with the product for safety, comfort, and reliable operation.
These features might inadvertently become blocked by placing the product on a bed, sofa, carpet, or other flexible
surface. Never block, cover, or disable these features.
When the ac power adapter is connected to an electrical outlet and your device, it generates heat. Do not place the
adapter in contact with any part of your body while using it. Never use the ac power adapter to warm your body.
Extended contact with your body, even through clothing, may cause a skin burn.
For your safety, always follow these basic precautions with your device: Regularly inspect the outside of the device for
dust accumulation.
• Remove dust from vents and any perforations. More frequent cleanings might be required for devices in dusty
or high-traffic areas.
• Do not restrict or block any ventilation openings.
• Do not place your device in contact with furniture or other textiles, as this might increase the risk of
overheating.
• Airflow temperatures into the device should not exceed 35°C (95°F).
Electrical Current Safety Information
WARNING:
Electric current from power, telephone, and communication cables is hazardous.
To avoid a shock hazard:
• Do not use your product during a lightning storm.
• Do not connect or disconnect any cables or perform installation, maintenance, or reconfiguration of this
product during an electrical storm.
• Connect all power cords to a properly wired and grounded electrical outlet.
• Connect to properly wired outlets any equipment that will be attached to this product.
• Whenever possible, use one hand only to connect or disconnect signal cables.
• Never turn on any equipment when there is evidence of fire, water, or structural damage.
• Do not use your device until all internal parts enclosures are fastened into place. Never use the device when
internal parts and circuits are exposed.
Chocking Hazard and Plastic Bag Notice
DANGER: Product contains small parts. Keep away from children under three years.
DANGER: Plastic bags can be dangerous. Keep plastic bags away from babies and children to avoid danger of
suffocation.
Glass Parts Notice
CAUTION: Some parts of your product are made of glass. This glass could break if the product is dropped on a hard
surface or receives a substantial impact. If glass breaks, be carful not to cut yourself. Stop using your product until the
glass is replaced by trained service personnel.

!
Notices
eGlass may not offer the products, services, or features discussed in this document in all countries. Consult your local
eGlass representative for information on the products and services currently available in your area. Any reference to a
eGlass product, program, or service is not intended to state or imply that only that eGlass product, program, or service
may be used. Any functionally equivalent product, program, or service that does not infringe any eGlass intellectual
property right may be used instead. However, it is the user's responsibility to evaluate and verify the operation of any
other product, program, or service.
eGlass may have patents or pending patent programs covering subject matter described in this document. The
furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing,
to:
Pathway Innovations & Technologies, D.B.A. eGlass
6780 Paradise Rd.
Las Vegas, NV 89119
Attention: Pathway Innovations, Inc. Legal
eGlass PROVIDES THIS PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in
certain transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors. Changes are periodically made to the
information herein; these changes will be incorporated in new editions of the publication. eGlass may make
improvements and/or changes in the product(s) and/or the application(s) described in this publication at any time
without notice.
The products described in this document are not intended for use in implantation or other life support applications
where malfunction may result in injury or death to persons. The information contained in this document does not
affect or change eGlass product specifications or warranties. Nothing in this document shall operate as an express or
implied license or indemnity under the intellectual property rights of eGlass or third parties. All information contained
in this document was obtained in specific environments and is presented as an illustration. The result obtained in
other operating environments may vary.
eGlass may use or distribute any of the information you supply in any way it believes appropriate without incurring
any obligation to you.
Any references in this publication to non-eGlass websites are provided for convenience only and do not in any manner
serve as an endorsement of those websites. The materials at those websites are not part of the materials for this
eGlass product, and use of those websites is at your own risk.
Any performance data contained herein was determined in a controlled environment. Therefore, the result obtained in
other operating environments may vary significantly. Some measurements may have been made on development-level
systems and there is no guarantee that these measurements will be the same on generally available systems.
Furthermore, some measurements may have been estimated through extrapolation. Actual results may vary. Users of
this document should verify the applicable data for their specific environment.
© Copyright Pathway Innovations, Inc. D.B.A. eGlass 2023
This document is copyrighted by Pathway Innovations, Inc. and Pathway may update this document at any time
without notice. To obtain the most up-to-date documentation for your eGlass products, go to: www.eGlass.io/support

!
For a five (5) year period from product purchase date by the end user,
Pathway Innovations, Inc. will repair or supply a new replacement, at
no cost, for eGlass parts and included accessories determined by
company to be damaged and defective, including accidental damage.
Within the warranty period, the Manufacturer will cover all parts and
labor costs.
Exclusions:
• Standard wear and tear, without resulting loss in functionality.
• Purposeful damage
• Damage caused by misuse
• Lost or stolen parts / accessories
• eGlass Station battery
◦The eGlass Station Battery is covered for factory defects a
period of two (2) years from product purchase date by the
end user. The two-year warranty does not cover standard
battery depreciation.
If you have a damaged or defective unit and you’d like to file a
warranty claim, please submit a support ticket at:
https://eglass.io/support-ticket
Warranty

For the eGlass Lightboard User Guide, as well as detailed
software instructions, downloads and videos, visit the eGlass
Academy by scanning the QR Code with your phone, or by
visiting https://www.eglass.io/support
If you are having issues with your eGlass or eGlass Station,
please submit a support ticket at:
https://eglass.io/support-ticket
You can also reach support directly at:
[phone]
or email at:
[email protected]
The eGlass support is available from Monday through Friday
from 8 AM to 5 PM Pacific time.
Support
Support

!
© Copyright 2023 eGlass®. All rights reserved. eGlass® is a registered
trademark of Pathway Innovations, Inc. This content is subject to change
without notice. Depicted product appearance, features and specifications
may vary in the final product(s). eGlass® shall not be liable for technical or
editorial errors or omissions contained herein. eGlass® disclaims all
responsibility and liability for the distribution of and/or reliance on this user
manual.
The following granted or pending patents have been filed by Pathway
Innovations, Inc. (D.B.A. eGlass) with the United Sates Patent and Trademark
Office (USPTO): US8508751, US10586307, US10402940, US16/784654,
US29/756006, US17/079345, US29/768320
THE MAKERS OF eGLASS & HOVERCAM
www.eglass.io
PATHWAY INNOVATIONS, INC.
