Patriot PT-40-208-1 User manual

Electric Fryer
Installation & Operation Manual
PT-40-208-1, PT-40-208-3, PT-40-240-1, PT-40-240-3

Read these instructions before using and keep them available at all times!
1. General information ................................................................................................
1.1 Information about the instruction manual ............................................................
1.2 Key to symbols....................................................................................................
2.Safety ........................................................................................................................
2.1 General information.............................................................................................
2.2 Safety instructions for use of the device..............................................................
2.3 Intended use .......................................................................................................
3. Transport, packaging and storage.........................................................................
3.1 Delivery check.....................................................................................................
3.2 Packaging ...........................................................................................................
3.3 Storage................................................................................................................
3.4 Scope of delivery.................................................................................................
4. Technical data .........................................................................................................
4.1 Technical specification ........................................................................................
4.2 Parts diagram ................................................................................................
5. Installation and operation.......................................................................................
5.1 Safety instructions...............................................................................................
5.2 Installation and connection..................................................................................
5.3 Operation ............................................................................................................
6. Cleaning and maintenance.....................................................................................
6.1 Safety advice.......................................................................................................
6.2 Cleaning..............................................................................................................
6.3 Safety instructions for maintenance ....................................................................
7. Possible Malfunctions ............................................................................................
8. Waste disposal ........................................................................................................

1. General information
1.1 Information about the manual
This manual contains information about the installation, operation and maintenance of the
fryer and should be consulted as an important source of information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the fryer. In addition to the information given here, you should
comply with any local health and safety guidelines and generally applicable safety
regulations.
The manual should be kept near the fryer and easily accessible for anyone carrying out the
installation, servicing, maintenance or cleaning.
1.2 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any advice
relating to the fryer. The instructions should be followed very carefully to avoid any risk of
accident, personal injury or material damage.
WARNING!
This symbol highlights hazards, which could lead to injury.
Please follow the instructions very carefully and proceed with
particular attention in these cases.
WARNING! Electrical hazard!
This symbol draws attention to potential electrical hazards. If you
do not follow the safety instructions, you may risk injury or death.
CAUTION!
This symbol highlights instructions, which should be followed to
avoid any risk of damage, malfunctioning and/or breakdown of the
device.
NOTE! This symbol highlights tips and information, which
have to be followed for an efficient and trouble-free operation of the device.
WARNING! Hot surface!
This symbol is a warning that the device surface is hot when in use.
Ignoring this warning may result in burns!

This section provides an overview of all important safety aspects.
In addition every section provides precise safety advice for the prevention of
dangers which are highlighted by the use of the above mentioned symbols.
Furthermore, attention should be paid to all pictograms, markers and labels
on the device, which must be kept in a permanent state of legibility. By following all the
important safety advice you gain an optimal protection against all hazards as well as the
assurance of a safe and trouble-free operation.
2.1 General information
This fryer is designed in accordance with the presently applicable technological
standards. However, the fryer can pose a danger if handled improperly and
inappropriately.
Knowing the contents of the instruction manual as well as avoiding mistakes and thus
operating this device safely and in a fault-free manner is very essential to protect
yourselves from the hazards.
To prevent hazards and to ensure optimum efficiency, no modifications or alterations to
the fryer that are not explicitly approved by the manufacturer should be done.
2.2 Safety instructions for use of the device
When the fryer is used commercially, the user is obligated to ensure that the said
industrial safety measures concur with the state of the rules and regulations applicable at
the time in question for the entire period of use of the fryer and to comply with the new
specifications.
The industrial safety laws applicable at the place of installation of the fryer and the
regional territorial provisions must be complied with. Besides the industrial safety
instructions in the instruction manual, the general safety and accident prevention
regulations as well as environment protection regulations applicable for area of application
of the device must be followed and complied with.
CAUTION!
oPlease keep these instructions and give them to future owners of the fryer.
oAll people using the fryer should follow the instructions and tips contained in these
instructions.
oOnly use the fryer indoors.
2.3 Intended use
Safe operation is only guaranteed when using the device for its intended purpose.
Any technical modifications, as well as assembly and maintenance are to be made by
a qualified licensed service person only. The fryer is designed for the frying of
appropriate foods only. You may not use the fryer for heating other liquids.

NOTICE
This equipment must be installed in accordance with the appropriate
national and local codes of the country and/or region in which the
appliance is installed.
Improper installation, adjustment, maintenance or service,and
unauthorized alterations or modifications can cause property damage,
injury, or death. Read the installation, operating and service instructions
thoroughly before installing or servicing this equipment
WARNING
NEVER set a complete block of solid shortening on top of heating elements. To
do so will damage the elements and increase the potential for flash-point
shortening temperatures and might cause fire.
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery immediately upon arrival. In the case of visible damage do not
accept the delivery or accept the delivery with the damages noted by the freight carrier.
Note the extent of damage on the carrier’s bill of delivery. Concealed damages should be
reported immediately after notice, as claims for damages can only be asserted within the
effective period of time for concealed damage.
3.2 Packaging
Please do not throw away the packaging of your fryer as it might be useful for storage
purposes, when moving, or in case of damages, when the fryer must be sent back to a
repair center. The outer and inner packing material should be removed completely from
the fryer before installation.

3.3 Storage
Keep the package closed until installation and under consideration of the outside indicated
positioning-and storage markings. Packages should be stored under consideration of the
following:
3.4 Scope of delivery
The scope of delivery includes the following parts and assembly units:
Baskets (2)
Fryer Screen (1)
Casters (4), Drain extension (1)
Please inspect the device upon delivery. If any part is missing please contact our
customer service department immediately.
4. Technical data
4.1 Technical specification
Model
Power
Voltage
Phase
Wire
PT-40-240-1
14kW
240V
1
3
PT-40-240-3
14kW
240V
3
4
PT-40-208-1
12kW
208V
1
3
PT-40-208-3
12kW
208V
3
4

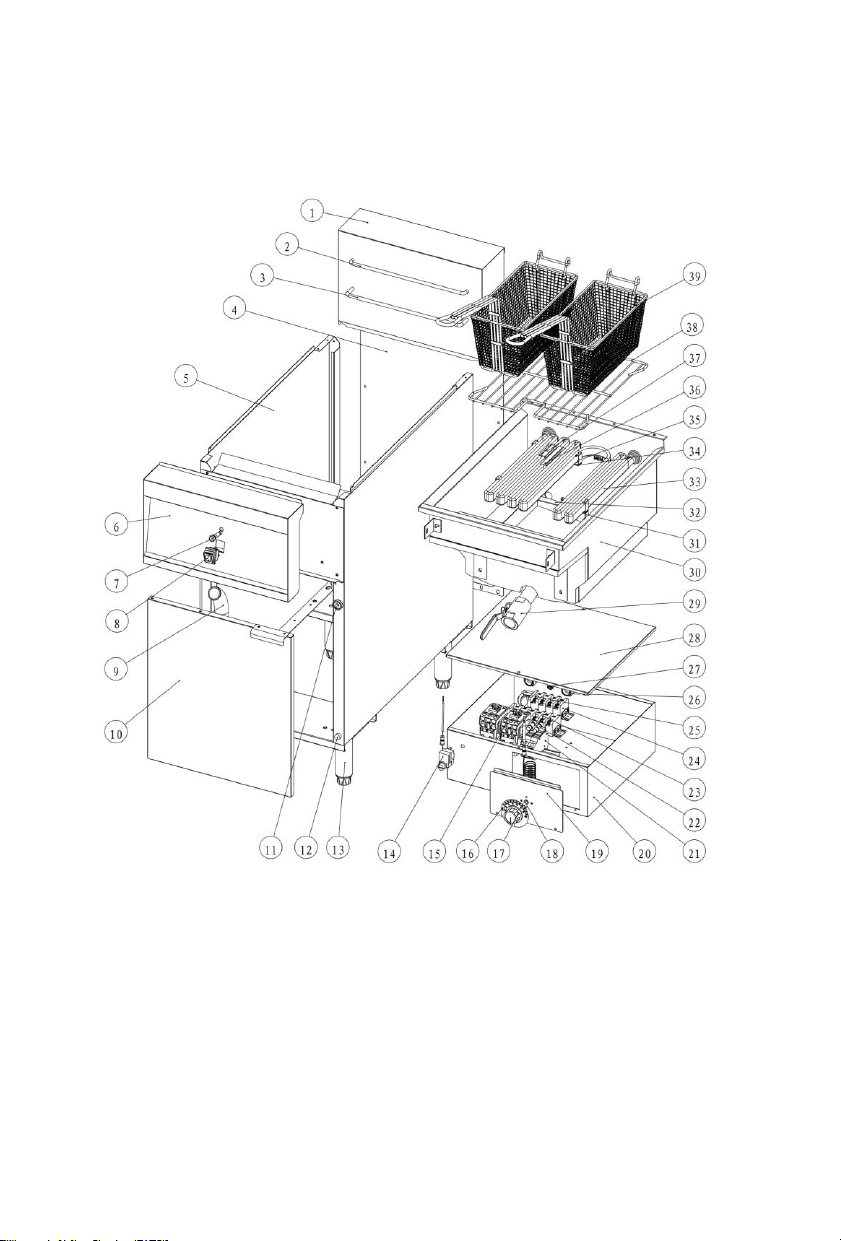

4.2 Parts diagram

S/N
Description
Spec
Part Code
Unit
QTY
1
Rear coaming assy
SS430 1.0mm
1
2
Basket hanger
SS430 1.5mm
1
3
Top basket hanging rod
Nickel coating
70201107219L
1
4
Bottom basket hanging rod
Nickel coating
70201107228L
1
5
Frame assy
1
6
Front decoration plate
SS430 1.0mm
1
7
Working indicator
ADP-24 230V YELLOW
70101301628L
1
8
Power switch
SR-13
70100800682
1
9
Oil drain extension pipe
1" Aluminized pipe
70202018273
1
10
Door assy
1
11
Door magnet
70201900019
1
12
Door column
φ14.3*12
70200202737
1
13
Adjustable leg
SS 6"
70200900019
4
14
Temperature limiter
230℃
70100300964
1
15
Electromagnetic contactor
40A
70100901264L
1
16
Dial plate
1
17
Control knob
70101100273
1
18
Thermostat
190℃
70100301519
1
19
Thermostat mounting plate
1
20
Electrical box
1

21
Fuse holder
70101301719L
1
22
Fuse
10A
70101301728L
2
23
six-terminal block
60A
70100702864L
1
24
four-terminal block
100A
70100702873L
1
25
Power cord bracket
￠PG36
70100700773
1
26
Connector
S-FZS26-26
70202015882
4
27
Power cord sheath
SB-16
70100701855
1
28
Electrical box cover plate
1
29
Drain valve
1"
70200500746
1
30
Oil tank assy
SS439 1.5mm
1
31
Heater supporting plate
2
32
Heater connecting plate B
245*16*2mm
1
33a
Heating element
240V/14KW
70100410473L
1
33b
Heating element
208V/12KW
70100410737L
1
34
Heater connecting plate A
128*16*2mm
1
35
Heater fixation plate
4
36
Hi-limit sensor fixation plate
1
37
Temp. sensor fixation plate
1
38
Basket mesh
311*342mm iron nickel
coating
70201107200L
1
39
Basket
Q235 Nickel coating,
green handle
70201105228
2

5. Installation and operation
WARNING! Risk of electric shock!

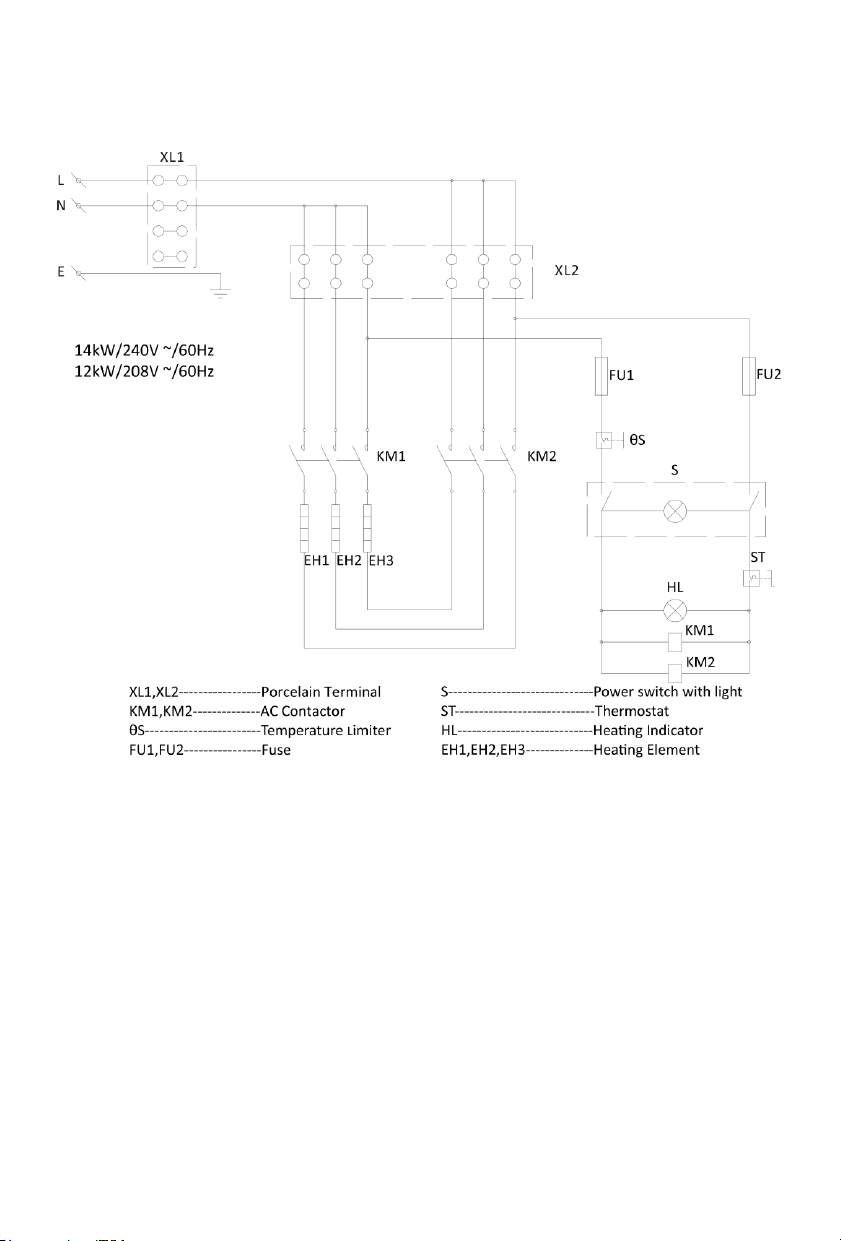

All wiring connections for this appliance must be made in accordance with the
wiring diagram(s) furnished with the appliance. Refer to the wiring diagram(s)
affixed to the inside of the appliance door when installing or servicing this
equipment.
Never allow the power cable to come into contact with heat sources or sharp edges. The
power cable should not hang over the side of the working surface. Ensure that no one can
step on or trip over the cable.
The power cable must not be folded, bent or tangled, and must always remain fully
unrolled.
Never place the fryer or other objects on the power cable.
Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep the
cable away from operating range and do submerge in water.
Do not use the fryer if it's not functioning properly, has been damaged or dropped. Do not
use any accessory or spare parts that have not been recommended by the manufacturer.
These voids the warranty and can be dangerous for the operator or lead to damages to the
fryer.
Do not move or tilt the device when in operation.
During operation of the unit make sure are your hands are dry before pressing the ON/
OFF switch.
Do not leave the unit unattended during operation, malfunctions which could result in
overheating of the oil (fat) which could ignite.
Always remove extra ice from frozen goods first. Even the smallest water drops may cause
oil splashes or lead to explosions during frying.
NOTE! Loading to much food at one time could cause excessive foaming of
oil during frying.
Do not leave any food in the basket hanging over the container with the hot oil. The fryer
may not be moved or repositioned as long as the oil is hot. The oil must cool down first.
Risk of injury! Hot oil splashes may cause burns at hands and face!

5.2 Installation and connection
CAUTION! The fryer MUST be installed by a qualified personal only.
Discard the complete packing material after unpacking the device.
Place the device on top of a solid, even, safe and stable surface.
Do not at any time position the fryer on aflammable surface (cloth, carpet, etc.).
You must not position the fryer near open fireplaces,heaters or other heat sources.
Avoid installation spots with close contact to water.
Remove the basket, handle and other accessories from the device.
Do not allow grease to accumulate or harden on the frame or body of the fryer.
Clean the fryer inside and out with a solution of detergent and hot water daily.
Dry the unit thoroughly!
WARNING! Hazard via electrical current!
The device can cause injuries due to improper installation! Before installation the
local power grid specification should be compared with that of the device (see type
label).
Connect the device only when in compliance!
Risk of fire!
For 3 phase appliances
Use a UL listed grounding type plug rated for 240 volts, 60 amperes, 3 phase, 4 wire. Plug
to be selected and installed only by qualified service personnel.
The conductors of the power supply cord are marked "L1″, ″L2″, or ″L3″for the
ungrounded (hot) supply conductors, ″N″for a grounded (neutral) supply conductor,
and ″E″for an equipment grounding lead.
When connect UL listed grounding type plug to power cord, ensure the conductors of
power cord match the conductors of plug.

For 1 phase appliances,
Connect all wires according to the corresponding circuit diagram.

5.3 Operation
CAUTION! The operation of the fryer may only be carried out by personnel that
have been instructed in operation of the fryer and the special hazards of frying.
There is an orange heating indicator light on the front panel. The heating indicator
will cycle on and off to keep the set temperature. The on/off switch controls the power
supply.
Ensure that the device is switched off (Temperature control toggle is in position “0“).
The fry pot needs to be clean, dry and empty before filling it with oil.
The oil drainage valve must be closed.
Carefully fill the fry pot with oil up to the required level (between the MIN and MAX
marking on the back of the fry pot).
CAUTION! Do not use the fryer without having frying oil in the fry pot. Make
sure the oil level is always between MIN and MAX marking on the fry pot.
WARNING!
Danger of fire! When the oil level goes below the minimum marked MIN, there is an
increased risk of oil catching fire. Danger of burns! When the oil level is above the
maximum marked MAX, hot oil may spill out.
CAUTION!
Use liquid fat for frying only. Solid frying fat (block or brick grease) should
not be used!
WARNING!
Danger of burns! Do not use stale oil for frying, as a lower combustion
temperature may cause the oil to foam and ignite easily. It also emits more smoke
and odor.
Change frying oil regularly. Stale oil, after cooling, should be carefully poured into a
container and disposed of in accordance with environmental regulations. Connect the drain
extension to the drain valve. Put an empty container underneath the drain extension pipe.

To drain oil from the fry pot, grasp the drain valve handle on the drainage valve and rotate
the handle.
Switch the device on by means of the ON/OFF switch. The green power control
illuminates.
Set the temperature control clockwise to the desired temperature 120°F (49°C) and 374°F
(190°C).
The orange heating control flashes during the heating process and extinguishes after the
adjusted temperature has been reached. The fryer is equipped with a thermostat for
temperature regulation. Once the temperature of the oil decreases the device initiates the
heating process and the orange heating indicator illuminates.
WARNING! Danger of burn! During frying the oil in the fry pot is very hot.
Rotate the thermostat back to starting position and turn off the main on/off
switch as soon as the deep-frying process is finished and the fryer is not being
used.
For best results you should wait until the desired temperature has been reached before
placing food in the fryer.
Slowly dip the basket into the oil. After frying is finished, carefully lift the basket, hang it
on the basket hanger and leave the basket to drip.

In the event you turned on the fryer without having frying oil in the fry pot or without having
inserted the minimum amount of oil, the device automatically shuts down or if the
temperature reaches 446°F (230 °C) in order to protect itself from overheating.
Whenever this occurs, switch off the device, shut off the main power supply and let the
device cool down.
After the fryer has been switched off by the heat protection switch, it can only be restarted
by pressing the RESET button in the bottom cabinet. Press the RESET button for this
purpose,cool the unit to below 338°F (170 °C) then unscrew the plastic
shield by turning the RESET button counter clockwise, press the red plastic pin and again
turn the plastic shield clockwise.
Now you may turn on the power supply and engage the fryer to proceed as normal.
6. Cleaning and maintenance
6.1 Safety advice
Before beginning any repair or cleaning make sure the fryer has been disconnected from
power supply and has cooled down.
Do not use any acidic cleaning agents.
To protect yourself from electric shock, never immerse the power cord in water or other
liquids.
CAUTION!
The fryer is should not be cleaned by direct pressure washing via water jets. You
must not use any kind of pressure water jet for cleaning the fryer!
6.2 Cleaning
The fryer should be cleaned regularly.
Clean the fry pot at least once each week by filling it to just below the upper oil
level mark with water. Add one cup of detergent and boil the water. Allow the
solution to simmer for 10-15 minutes, then drain and rinse the fry pot with clean
water twice. Add ¼ cup of white vinegar to the last rinse to neutralize any
alkalinity remaining from the detergent. Wipe the fry pot surfaces with a dry towel
before refilling with cooking oil. If the fryer is not to be used immediately after
cleaning, it is suggested that the inside of the fry pot be wiped down with a light
coat of cooking oil to prevent rust. CAUTION!
The switching unit (control panel) must not be washed or immersed in water.
Moisture must not get inside the unit. Prior to using, dry all elements of the unit
thoroughly!

The control panel, surface of the fryer and power cord should only be wiped off with a soft
cloth and a mild cleaning agent. You must not let water enter the switching unit. This may
lead to dangerous creeping current and malfunctions of the fryer.
Do not use any aggressive cleaning agents or abrasive materials as these could damage
the fryer. Clean the fryer with a mild cleaning liquid. Heavily stained parts should be left for
soaking.
All parts must be dried thoroughly. Reassemble the parts of fryer before frying.
Store the fryer in a dry place when not using for longer periods. Keep it away from acid
steams and gases.
6.3 Safety instructions for maintenance
Inspect the power cable regularly for damage. Never use the fryer if the cable is damaged.
If the power cable is damaged, have an authorized service center or qualified electrician
replace it.
In case of damage or malfunction, please contact our customer service department.
Only a qualified technician and using original spare parts and accessories should carry out
repairs and maintenance of the fryer. Do not attempt to repair the fryer yourself.
7. Possible Malfunctions
Problem
Cause
Removal
Unit is connected to a
power source, green
control light does not
come on, unit does not
heat up.
• Blown fuse
• Switching unit is improperly
installed
• Overheating protection has
turned off
• Damaged temperature
control (overheating security)
• Remove plug and insert
properly
• Check fuses, connect
unit to another socket
• Check the location of the
switching unit
• Press RESET on the
switching unit
The orange heating
• Interrupted contact with
• Contact sales agent
control light comes on,
the heating element
the temperature does
• Damaged heating element
• Contact sales agent
not increase.
On/off power switch
light
• Set temperature has been
• Check functioning at
comes on but the
reached
different temperature
orange heating control
• Damaged temperature
• Contact sales agent
light does not come on
control
in spite of desired
temperature being
reached.
Heating element ceases
functioning after some
time
• Overheating control has
activated
• Press RESET on the
switching unit

The above mentioned possible malfunctions are examples to give you orientation.
Should these or similar troubles occur, please switch off the fryer and stop use
immediately. Contact a qualified technician or the manufacturer for inspection and
repair.
8. Waste disposal
Discarding of fryer
At the end of its service life the discarded fryer has to be disposed in accordance with
the national regulations. It is advisable to contact a company which is specialized in
waste disposal, or contact the local disposal service in your community.
WARNING!
To protect yourself and others and to make the fryer unfit for use before disposal,
disconnect the fryer from the main supply and remove the cable from the fryer.

Patriot warrants its equipment against defects in materials and workmanship, subject to the following conditions:
Patriot electric equipment is warranted for one (1) year, effective from the date of purchase by the original owner. A copy of the original
receipt or other proof of purchase is required to obtain warranty coverage. This warranty applies to the original owner only, and is not
assignable.
The stainless steel fry tank has a five (5) year limited tank warranty. If during the first year, the tank is found to have a leak and is
verified by an authorized service company, the entire fryer will be replaced. During years two through five, a new tank will be given.
Should any product fail to function in its intended manner under normal use within the limits defined in this warranty, at Patriot’s
discretion, such product will be repaired, replaced with a refurbished unit, or replaced with a new unit by Patriot, after defective unit has
been inspected and defect has been confirmed. Patriot does not assume any liability for extended delays in replacing any item beyond
its control. This warranty does not apply to rubber and non-metallic synthetic parts that may need to be replaced due to normal usage,
wear or lack of preventative maintenance.
This warranty covers products shipped into the 48 contiguous United States, Hawaii, and metropolitan areas of Alaska and Canada.
Warranty coverage on products used outside the 48 contiguous United States, Hawaii and metropolitan areas of Alaska and Canada
may vary.
The following conditions are not covered by warranty:
• Equipment failure relating to improper installation, improper utility connection or supply and problems due to improper ventilation.
• Equipment that has not properly been maintained, damage from improper cleaning, and water damage to controls.
• Equipment that has not been used in an appropriate manner, or has been subject to misuse, neglect, abuse, accident, alteration,
negligence, damage during transit, delivery or installation, fire, flood, riot, or act of God.
• Equipment that has the model number or serial number removed or altered.
• Equipment on which the security seal has been broken.
If the equipment has been changed, altered, modified, or repaired without express written permission from Patriot, then the
manufacturer shall not be liable for any damages to any person or to any property, which may result from the use of this equipment
thereafter.
This equipment is intended for commercial use only and this warranty is void if equipment is used in other than a commercial application.
For warranty issues and technical support call Patriot Cooking at 888-585-9440. Please have your model number, serial number and
proof of purchase ready. For non-warranty related issues call 800-458-5593.
“THE FOREGOING WARRANTY IS IN LIEU OF ANY AND ALL WARRANTIES EXPRESSED OR IMPLIED INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSES AND CONSTITUTES THE ENTIRE
LIABILITY OF PATRIOT. IN NO EVENT DOES THE LIMITED WARRANTY EXTEND BEYOND THE TERMS STATED HEREIN.”
WARRANTY
TM
