Patterson TC-18 User manual

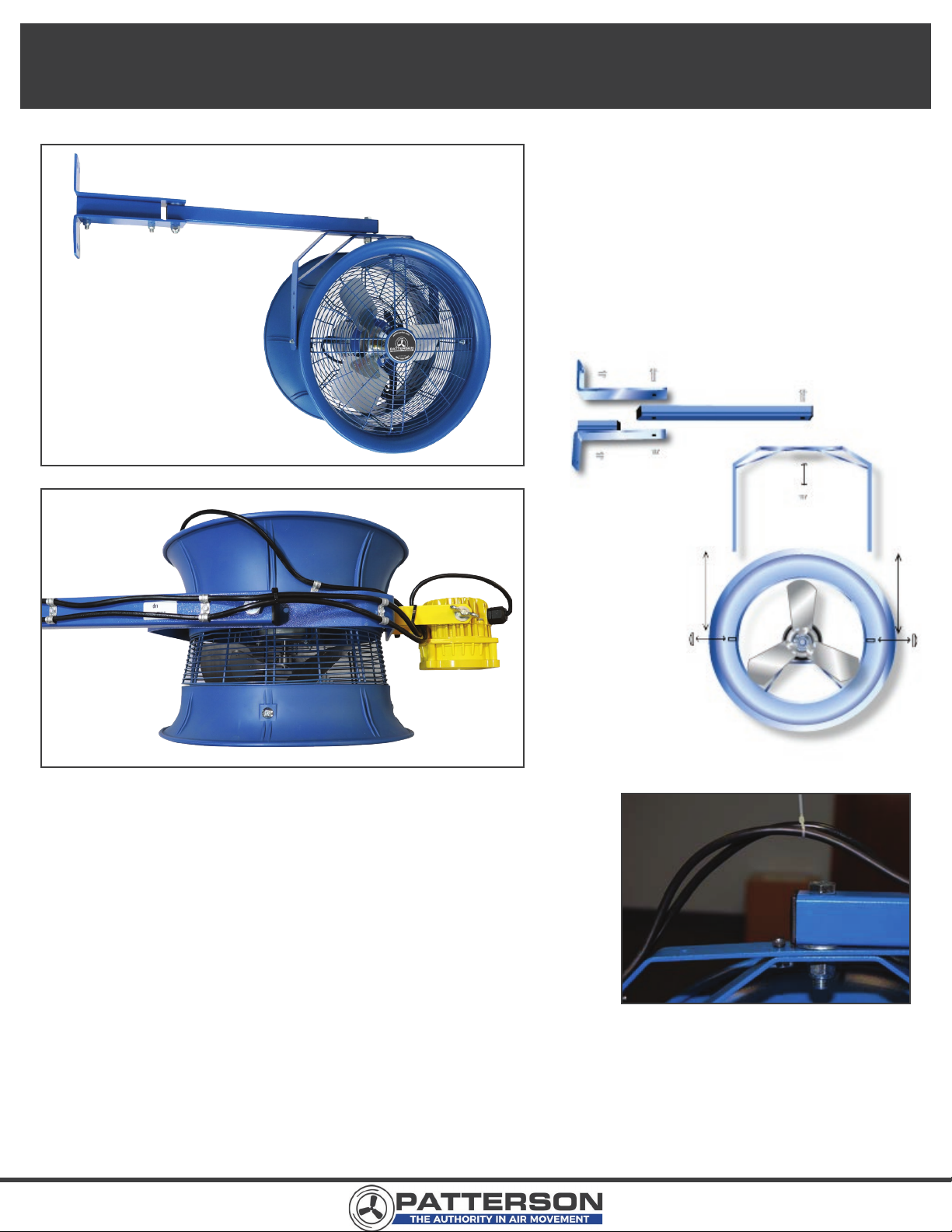

1. Secure the wall bracket and arm to the solid surface where you will
hang the fan. A structurally secure or solid wall/beam is best.
2. Secure the “U“ shaped yoke to the arm of the wall bracket. Use the
5/8” bolt and 5/8” nut supplied. Tighten the nut onto the bolt using a
15/16” box end wrench and ratchet with a 15/16” socket. For clearance
reasons, the “U” shaped yoke must open down.
3. The fan head fits inside the “U” shaped yoke. Threaded studs on each
side of the fan fit through the pre-drilled holes on the yoke.
4. Use the included cord clips and self drilling screws to secure the power
cord to the fan housing, yoke and top side of the arm. The cord clips
can also accommodate the power cord for the optional dock light.
Zip ties are included to bundle the power cords together and prevent
them from getting caught on the end of the arm when rotating the fan.
The wall mount should be a solid structure
able to safely support the weight of the fan.
The fan should not be at a height that will
cause head injury to employees. Ideally, the
fan should be mounted on the top corner of
either side of the dock door, allowing the fan
to blow down into the back of the truck.
IMPORTANT
TRUCK COOLER
ASSEMBLY
TC
pattersonfan.com
800.768.3985
THE AUTHORITY IN
AIR MOVEMENT
5. Install 5/16” nut and bolt into hole
next to 5/8” bolt opposite of the
arm. This prevents over rotation
of the fan and damage to power
wiring.
Note: DO NOT operate fan if the finger guards are damaged or missing.

TRUCK COOLER
ASSEMBLY
TC
pattersonfan.com
800.768.3985
THE AUTHORITY IN
AIR MOVEMENT
TC-18 INSTALL LOCATION
FOR COMMON 8’x9’ LOADING DOCK DOORS
Note: The TC-18 is designed to purge a trailer of hot air. Mounting in the top corner pushes
air through the trailer and out the opposite corner of the door, as shown below, with an
exit velocity of approximately 200 FPM. The fan will not be as eective if positioned other
than what is recommended or by directing on an individual.
Centerline
of fan
Optional
Dock Light
8’6”
at least
17”
As close
to door
jamb as
possible
6’7”
8’
9’
Door
jamb
