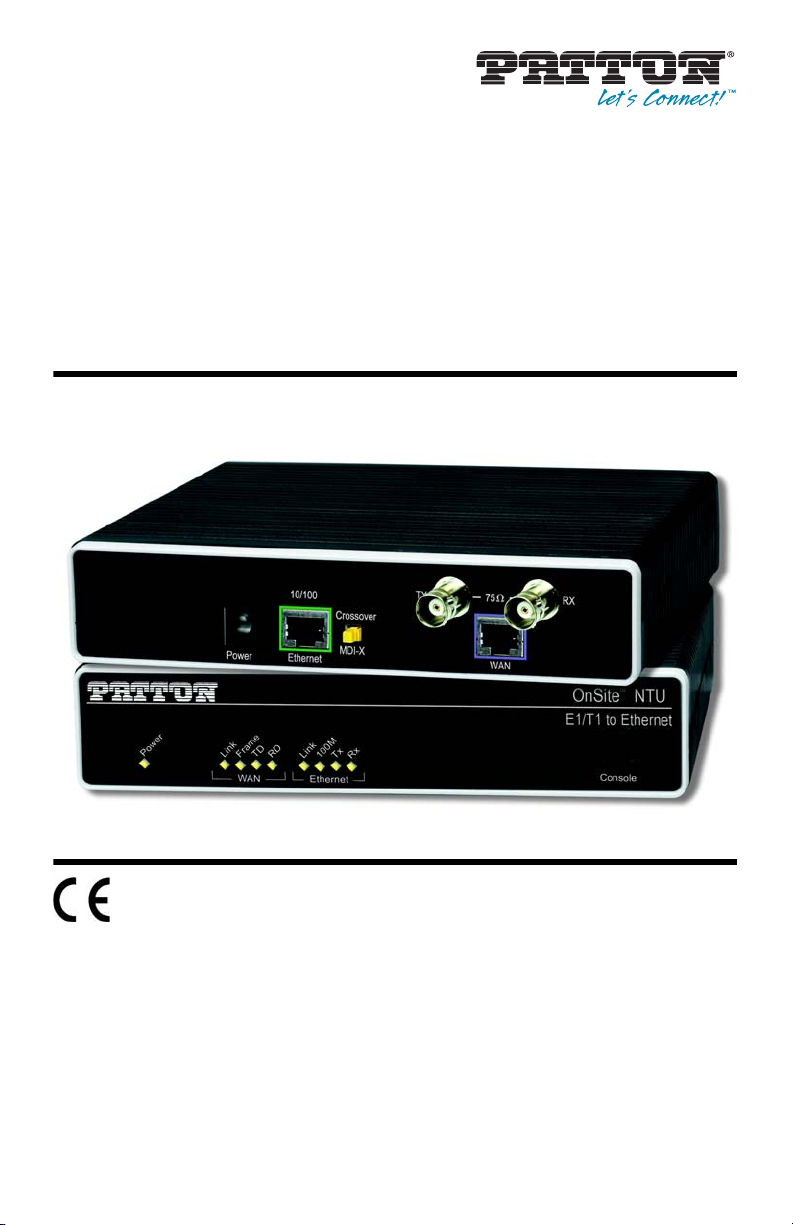

Patton OnSite 2701A/I User manual

OnSite™ Model 2701A/I
E1/T1 Ethernet Bridge (NTU)
Quick Start Guide
Important—This is a Class A device and is intended for use in a light
industrial environment. It is not intended nor approved for use in
an industrial or residential environment.
Part Number: 07MOS2701AI-QS, Rev. A
Revised: February 13, 2017
Sales Office: [phone]
Technical Support: [phone]
E-mail: [e-mail]
Web: www.patton.com

2OnSite 2701A/I Quick Start Guide
1.0 Introduction
Your OnSite device comes with one of the following power supply options:
•External AC adapter with included power cord
•Internal AC power supply
•Internal DC power supply—no power accessories are included
• The device contains no user serviceable parts. The
equipment shall be returned to Patton Electronics for
repairs, or repaired by qualified service personnel.
• Mains Voltage: Do not open the case the when the
power cord is attached. Line voltages are present
within the power supply when the power cords are
connected. The mains outlet that is utilized to power
the device shall be within 10 feet (3 meters) of the
device, shall be easily accessible, and protected by a
circuit breaker.
• For AC powered units, ensure that the power cable
used meets all applicable standards for the country
in which it is to be installed, and that it is connected
to a wall outlet which has earth ground.
• For units with an external power adapter, the adapter
shall be a listed Limited Power Source.
• Hazardous network voltages are present in WAN
ports regardless of whether power to the unit is ON
or OFF. To avoid electric shock, use caution when
near WAN ports. When detaching the cables, detach
the end away from the device first.
• Do not work on the system or connect or disconnect
cables during periods of lightning activity.
• The interconnecting cables shall be acceptable for
external use and shall be rated for the proper applica-
tion with respect to voltage, current, anticipated tem-
perature, flammability, and mechanical serviceability.
Use only a 12V certified Limited Power Source external
power adapter marked LPS.
WARNING
CAUTION
CAUTION

OnSite 2701A/I Quick Start Guide 3
1.1 Models with external AC adaptor
1. Connect female plug of the AC power cord to the AC adapter provided.
2. Connect the barrel-type connector of the AC adapter to the barrel-type Power jack
on the OnSite device.
3. Insert the male plug of the AC power cord into an AC power outlet (100–240 VAC).
1.2 Models with internal AC power supply
1. Insert the female end of the AC power cord into the internal power supply connec-
tor.
2. Connect the male end of the power cord into an AC power outlet (100–240 VAC).
1.3 Models with internal DC power supply
1. Strip insulation 1/4-inch from the electrical wires that will connect the DC power
source to the OnSite device.
2. Connect the positive (+) terminal from the power source to the positive (+) termi-
nal on the OnSite device.
3. Connect the ground terminal from the power source to the ground terminal (E) on
the OnSite device.
4. Connect the negative (-) terminal from the power source with to the negative (-)
terminal on the OnSite device.
Figure 1. Connecting the DC power supply
Note “+”, “E”, and “-” may be unlabeled.
1.4 Power-up indication
The Power LED blinks as the OnSite device is powering up. When the Power LED stops
blinking and remains lit, the device is ready for you to configure.
2.0 Configure the IP address
The OnSite device is shipped with a factory-configured IP address assigned to the
Ethernet LAN port (green outline). The address is 192.168.200.10/24. In most cases,
+E-

4OnSite 2701A/I Quick Start Guide
you must change the address to be on the same subnet as your PC, as described in the
procedures below. If you are not sure which IP address to use for your installation,
contact your network administrator.
2.1 Connecting a PC and logging in
1. Using the included combination RS232/Ethernet cable and DB9-RJ45 adapter,
connect a PC’s serial port to the OnSite device’s Console port (see figure 2).

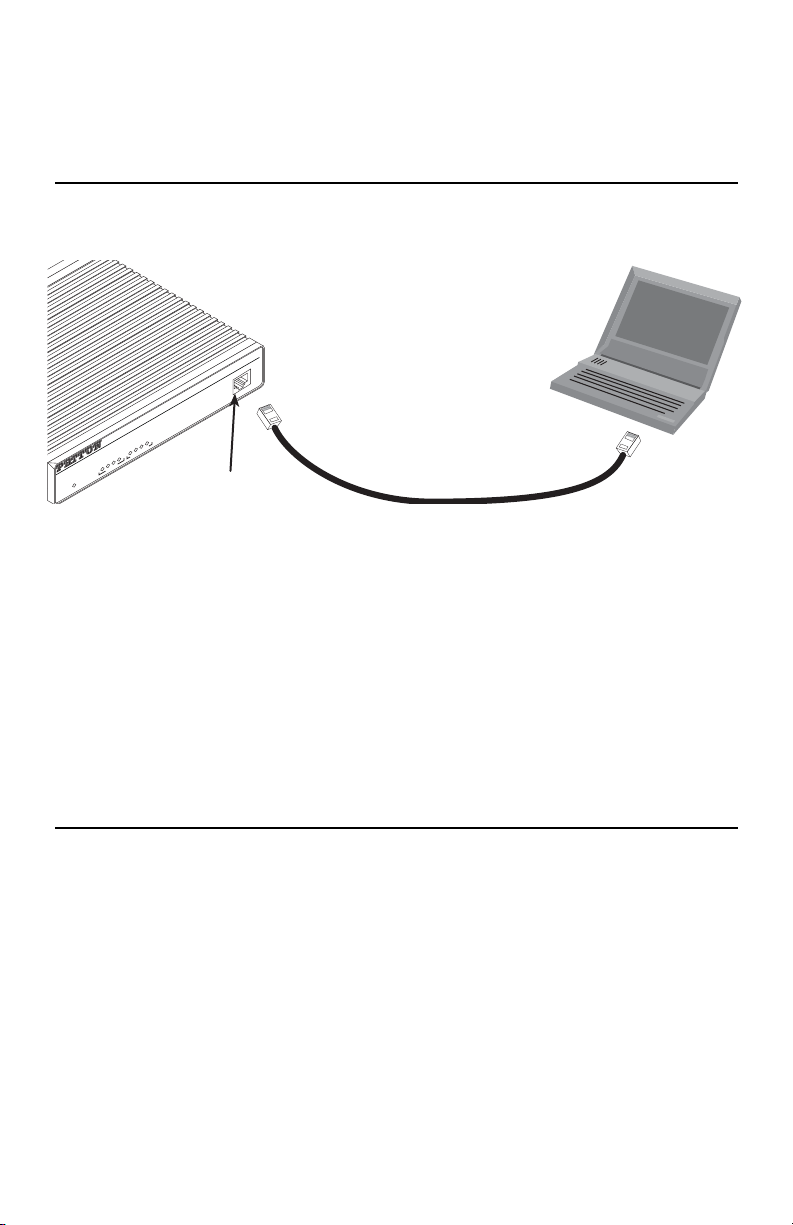

Figure 2. Connecting OnSite device to the PC’s serial port
2. Start a HyperTerminal session on the PC using the settings: 9600 bps, 8 data bits,
1 stop bit, no parity, no flow control
3. Log in to the OnSite device using the factory-default login and password:
Login: superuser
Password: superuser
Login successful
Note A power supply can be installed on the remote unit even if the unit is
receiving power across the line.
2.2 Modifying the IP address
1. Display current IP interface settings for the OnSite device’s Ethernet LAN port.
→ip list interfaces <enter>
IP Interfaces:
ID | Name | IP Address | DHCP | Transport
---|------|----------------|----------|--------------
1 | ip1 | 192.168.200.10 | disabled | <eth1>
----------------------------------------------------
2. Modify the IP address for the LAN port according to your network requirements.
→ip set interface ip1 ipaddress 10.10.10.5 255.255.255.0
Link
Frame
TD
RD
Link
100M
Tx
Rx
WANEthernet
Power
Console
Connect to Console port
Serial port
PC with
terminal emulator
OnSite™NTU
E1/T1 to Ethernet

OnSite 2701A/I Quick Start Guide 5
Note The above IP address (10.10.10.5/24) is only an example. You must
choose an IP address on the same subnet as your PC.
3. Verify the new address is correct and save it in system boot memory.
→ip list interfaces <enter>
→system config save <enter>
→
Now you can connect the OnSite device to your local IP network and complete the
remaining configuration from your PC using a standard web browser.
3.0 Connect to the local IP network
1. Connect the OnSite device’s (green) Ethernet port to the same Ethernet segment as
your PC (see figure 3).
2. Press the MDI-X switch until the Ethernet Link LED turns on.
Figure 3. Connecting the OnSite device to the local IP network
You can check the network connection with the ping command. For example, you
would ping 10.10.10.5 from your PC.
4.0 Log onto the web management interface
You will now access the web management Graphical User Interface (GUI) to configure
the OnSite device using a standard web browser (such as Microsoft Edge or Google
Chrome web browser).
1. At your PC, open a web browser and enter the IP address you assigned to the
OnSite device’s Ethernet LAN port in step 2 of section 2.2 “Modifying the IP
address” on page 4.
2. Log in to the web management home page using the username superuser and the
password superuser.
Crossover
10/100
EthernetWAN
Power
MDI-X
RXTX
Connect to
Ethernet port
Ethernet port
MDI-X switch
PC

6OnSite 2701A/I Quick Start Guide
Figure 4. OnSite device’s web management home page
3. Now you can use the OnSite device’s web management pages to complete your
configuration (see section 3. “Plug one end of the cable into the receive socket
(labeled RX) on the OnSite device. Plug the other end of the cable into the
transmit port of the E1 device.” on page 7).
5.0 Connect the WAN port
The OnSite device comes with a T1/E1 WAN interface (presented on a single RJ-48C
connector with selectable line impedances of 100-ohms for T1 and 120-ohms for E1
lines). The OnSite device also comes with dual BNC connectors for alternate connection
to unbalanced 75-ohm E1 lines.
To connect the WAN port on an OnSite device, or if you plan to use the RJ-48C port on
an OnSite device, refer to section “Connecting to the RJ-48C WAN port”. Otherwise,
refer to section “Connecting to the unbalanced 75-ohm TX and RX WAN ports” to
install cables onto the BNC connectors on the OnSite device.
5.1 Connecting to the RJ-48C WAN port
1. Obtain a twisted-pair cable with an RJ-48C plug connector at each end.
2. Plug one end of the cable into the RJ-48C socket (labeled WAN) on the OnSite
device.
3. Plug the other end of the cable into the T1/E1 device.
5.2 Connecting to the unbalanced 75-ohm TX and RX WAN ports
1. Obtain a coaxial cable with a BNC connector at each end.

OnSite 2701A/I Quick Start Guide 7
2. Plug one end of the cable into the transmit socket (labeled TX) on the OnSite
device. Plug the other end of the cable into the receive port of the E1 device.
3. Plug one end of the cable into the receive socket (labeled RX) on the OnSite device.
Plug the other end of the cable into the transmit port of the E1 device.
6.0 Complete the installation
To finish configuring your OnSite device, and for detailed information about installing,
configuring, operating, and troubleshooting, refer to the OnSite Model 2701A/I E1/T1
Ethernet Bridge (NTU) User Manual available online at www.patton.com/manuals/.
7.0 Customer and Technical Support
Toll-Free VoIP support: call sip:[e-mail] with a VoIP SIP phone
Online support: www.patton.com
E-mail support: [e-mail]—answered within 1 business day
Telephone support:
A.0 Compliance Information
A.1 Compliance
EMC:
•FCC Part 15, Class A
•EN55022, Class A
•EN55024
Safety:
•UL60950-1/CSA C22.2 No. 60950-1
•IEC/EN 60950-1
•AS/NZS 60950-1
Standard USA [phone] Monday–
Friday
8:00 am–5:00 pm
EST (1300–2200 UTC/GMT)
Alternate Switzerland [phone] Monday–
Friday
8:00 am–5:00 pm
CET (0900–1800 UTC/GMT)

8OnSite 2701A/I Quick Start Guide
PSTN Regulatory:
•These devices are not intended for connection to the PSTN.
A.2 Radio and TV Interference (FCC Part 15)
This equipment generates and uses radio frequency energy, and if not installed and
used properly—that is, in strict accordance with the manufacturer's instructions—may
cause interference to radio and television reception. This equipment has been tested
and found to comply with the limits for a Class A computing device in accordance with
the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide
reasonable protection from such interference in a commercial installation. However,
there is no guarantee that interference will not occur in a particular installation. If the
equipment causes interference to radio or television reception, which can be detemined
by disconnecting the cables, try to correct the interference by one or more of the fol-
lowing measures: moving the computing equipment away from the receiver, re-orient-
ing the receiving antenna, and/or plugging the receiving equipment into a different AC
outlet (such that the computing equipment and receiver are on different branches).
A.3 CE Declaration of Conformity
Product Description: OnSite 2701A/I
We certify that the apparatus described above conforms to the requirements of Council
Directive 2004/108/EC on the approximation of the laws of the member states relating
to electromagnetic compatibility; and Council Directive 2006/95/EC on the approxima-
tion of the laws of the member states relating to electrical equipment designed for use
within certain voltage limits.
The safety advice in the documentation accompanying this product shall be obeyed.
The conformity to the above directive is indicated by the CE sign on the device.
The signed Declaration of Conformity can be downloaded from www.patton.com/certi-
fications/.
A.4 Authorized European Representative
D R M Green
European Compliance Services Limited
Avalon House, Marcham Road
Abingdon,
Oxon, OX14 1UD, UK
The safety notices in the documentation accompanying the
products shall be obeyed. The conformity to the above direc-
tive is indicated by the CE sign on the device.

OnSite 2701A/I Quick Start Guide 9
Copyright statement
Copyright © 2017, Patton Electronics Company. All rights reserved.
The information in this document is subject to change without notice. Patton Electron-
ics assumes no liability for errors that may appear in this document.
Trademarks statement
The term OnSite is a trademark of Patton Electronics Company. All other trademarks
presented in this document are the property of their respective owners.
Warranty, Trademark, & Compliance Information
For warranty, trademark and compliance information, refer to the OnSite Model 2701A/
I E1/T1 Ethernet Bridge (NTU) User Guide available online at www.patton.com/manu-
als.
In accordance with the requirements of council directive
2002/96/EC on Waste of Electrical and Electronic Equip-
ment (WEEE), ensure that at end-of-life you separate this
product from other waste and scrap and deliver to the
WEEE collection system in your country for recycling.

10 OnSite 2701A/I Quick Start Guide
NOTES
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________

OnSite 2701A/I Quick Start Guide 11
NOTES
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________

12 OnSite 2701A/I Quick Start Guide
NOTES
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
