PBZ LLC CropCare ATX-VB72 User manual
by PBZ
Vertical Boom, 72 High, 72 Wide,10 Nozzles
Model: ATX-VB72
Form: ATX-VB72AM
Rev A Date 1/21
Assembly Manual
Manufactured by PBZ LLC
A Paul B Zimmerman Inc. Company
www.CropCareEquipment.com
3
4
5
9
10
11
12
13
14
2
6
7
8
1
2
The ATX-VB72 requires some assembly. Use the assembly instructions to ensure proper assembly. Before assembling, ensure that
the boxes contain the necessary components and parts.
Assembly Instructions

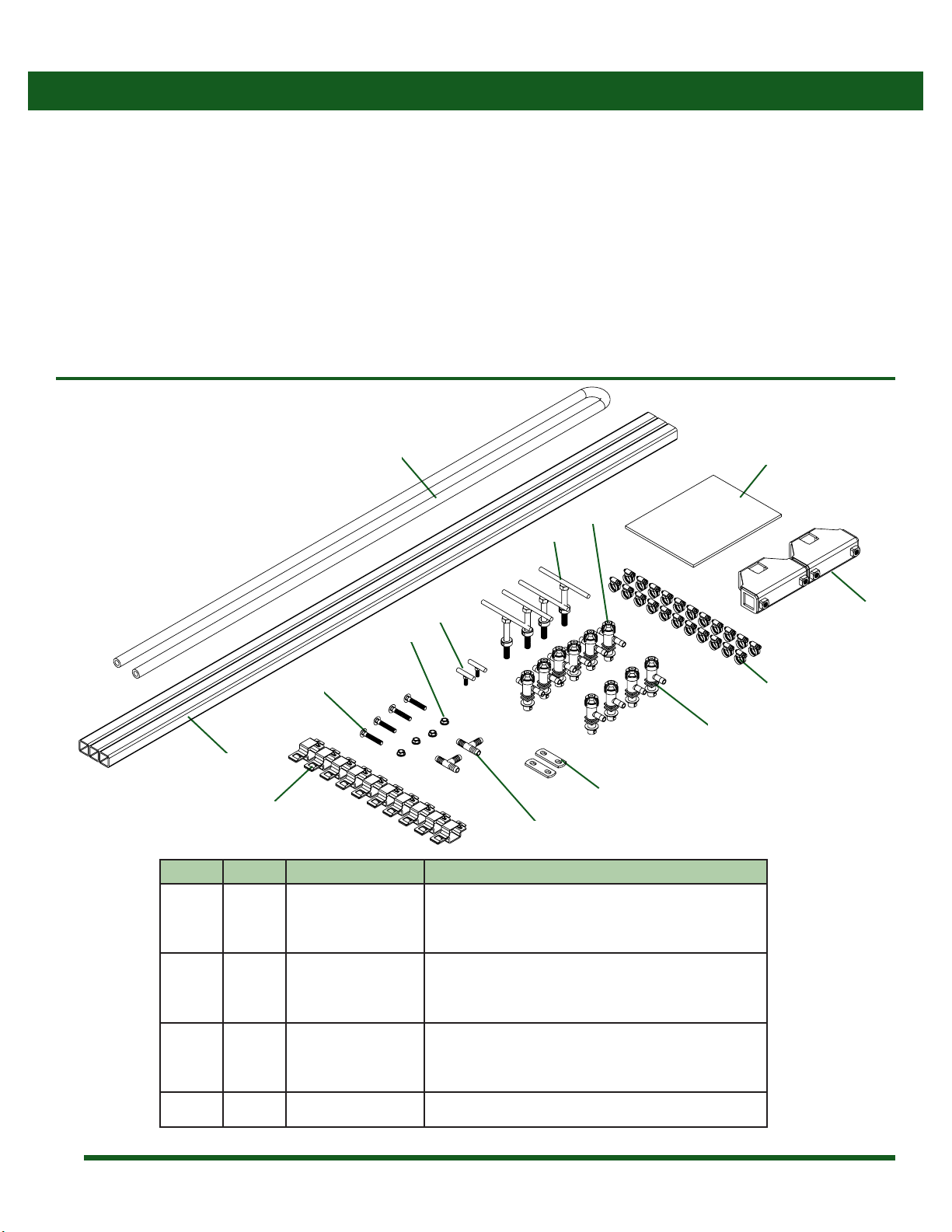

Box Contents
Item Qty. Part Number Description
1 10 FT 1008 Hose, EPDM Rubber 1/2" 300 PSI
2 22 6806052 Hose Clamp, 1/2" - 29/32" SS
3 4 22251311500NYB Body, Nozzle Elbow 1/2" QJ300
4 6 22252312500NYB Body, Nozzle Tee 1/2" QJ300
5 1 ATX-VB72OM Owners Manual, ATX-VB72BL
6 4 BF10S20 T-bolt, 1/2"
7 2 BF10S23 T-bolt, 5/16"
8 2 BF1210 Boom mounting clip, 12' boom, black
9 4 CB38*214G5 Bolt, Carriage 3/8-16 x 2-1/4" Gr 5
10 4 FN38 Nut, Flange 3/8-16
11 10 QJ111SQ114 Clamp, Nozzle Body 1-1/4" Sq Tube Steel
12 2 T12 Tee, 1/2" Hose Barbs Nylon
13 2 T748 Vertical Boom System, Clamp
14 3 T751 Vertical Boom System, Bar
Installation Time:
• Approximately 1 hour
Recommended Tools
• 9/16” socket or wrench
• Hose cutter or knife to cut hoses to length
• Phillips head screw driver.
• Drill or air gun
3
4
2
1
1
2
3
3
Assembly Instructions
Step 1
• Install the horizontal spray bar onto the sprayer. NOTE: There are several height settings for installing this.
Item Qty. Part Number Description
1 2 BF1210 Boom mounting clip, 12' boom, black
2 4 CB38*214G5 Bolt, Carriage 3/8-16 x 2-1/4" Gr 5
3 4 FN38 Nut, Flange 3/8-16
4 1 T751 Vertical Boom System, Bar
2
1
4
Assembly Instructions
Step 2 (x2)
• Install the clamp (Item 2) onto the horizontal bar, and tighten with T-bolts (Item 1).
Item Qty. Part Number Description
1 2 BF10S23 T-bolt, 5/16"
2 2 T748 Vertical Boom System, Clamp
2
1
5
Assembly Instructions
Step 3 (x2)
• Install the vertical spray bar (Item 2) into the clamp and tighten with T-bolts (Item 1).
Item Qty. Part Number Description
1 4 BF10S20 T-bolt, 1/2"
2 2 T751 Vertical Boom System, Bar
3
2
1
1
1
3
6
Assembly Instructions
Step 4 (x2)
Item Qty. Part Number Description
1 4 22251311500NYB Body, Nozzle Elbow 1/2" QJ300
2 6 22252312500NYB Body, Nozzle Tee 1/2" QJ300
3 10 QJ111SQ114 Clamp, Nozzle Body 1-1/4" Sq Tube Steel
• Install the nozzle bodies and clamps onto the vertical spray bars. NOTE: Determine desired spacing and number of nozzles needed
for your application. (Shown at 15” spacing and (5) nozzles per side.)
2
1
2
2
2
2
7
Assembly Instructions
Step 5 (x2)
Item Qty. Part Number Description
1 10 FT 1008 Hose, EPDM Rubber 1/2" 300 PSI
2 16 6806052 Hose Clamp, 1/2" - 29/32" SS
• Install hoses in between the nozzles.
a
2
1
1
8
Assembly Instructions
Step 6 (x2
Item Qty. Part Number Description
1 6 6806052 Hose Clamp, 1/2" - 29/32" SS
2 2 T12 Tee, 1/2" Hose Barbs Nylon
• Install the tees (Item 2) in between the bottom nozzle bodies.
• Connect hose (a) from sprayer to the tee.
IMPORTANT: Before use, read the owner’s manual. Follow all safety and use instructions.
Manufactured by PBZ LLC
A Paul B Zimmerman Inc. Company
Congratulations, your new CropCare Sprayer is assembled
and ready for years of use!
Contact us with questions or concerns at:
Info.cropcare@pbzinc.com
Or nd additional support materials at:
CropCareEquipment.com
