PCB Piezotronics 103B01 User manual

Model 103B01
Acoustic ICP® Pressure Sensor
Installation and Operating Manual
For assistance with the operation of this product,
contact PCB Piezotronics, Inc.
Toll-free: 800-828-8840
24-hour SensorLine: 716-684-0001
Fax: [phone]
E-mail: [email protected]
Web: www.pcb.com

The information contained in this document supersedes all similar information that
may be found elsewhere in this manual.
Total Customer Satisfaction –PCB
Piezotronics guarantees Total Customer
Satisfaction. If, at any time, for any
reason, you are not completely satisfied
with any PCB product, PCB will repair,
replace, or exchange it at no charge.
You may also choose to have your
purchase price refunded in lieu of the
repair, replacement, or exchange of the
product.
Service –Due to the sophisticated
nature of the sensors and associated
instrumentation provided by PCB
Piezotronics, user servicing or repair is
not recommended and, if attempted,
may void the factory warranty. Routine
maintenance, such as the cleaning of
electrical connectors, housings, and
mounting surfaces with solutions and
techniques that will not harm the
physical material of construction, is
acceptable. Caution should be observed
to insure that liquids are not permitted to
migrate into devices that are not
hermetically sealed. Such devices
should only be wiped with a dampened
cloth and never submerged or have
liquids poured upon them.
Repair –In the event that equipment
becomes damaged or ceases to
operate, arrangements should be made
to return the equipment to PCB
Piezotronics for repair. User servicing or
repair is not recommended and, if
attempted, may void the factory
warranty.
Calibration –Routine calibration of
sensors and associated instrumentation
is recommended as this helps build
confidence in measurement accuracy
and acquired data. Equipment
calibration cycles are typically
established by the users own quality
regimen. When in doubt about a
calibration cycle, a good “rule of thumb”
is to recalibrate on an annual basis. It is
also good practice to recalibrate after
exposure to any severe temperature
extreme, shock, load, or other
environmental influence, or prior to any
critical test.
PCB Piezotronics maintains an ISO-
9001 certified metrology laboratory and
offers calibration services, which are
accredited by A2LA to ISO/IEC 17025,
with full traceability to SI through
N.I.S.T. In addition to the normally
supplied calibration, special testing is
also available, such as: sensitivity at
elevated or cryogenic temperatures,
phase response, extended high or low
frequency response, extended range,
leak testing, hydrostatic pressure
testing, and others. For information on
standard recalibration services or
special testing, contact your local PCB
Piezotronics distributor, sales
representative, or factory customer
service representative.
Returning Equipment –Following
these procedures will insure that your
returned materials are handled in the
most expedient manner. Before
Warranty, Service, Repair, and
Return Policies and Instructions

returning any equipment to PCB
Piezotronics, contact your local
distributor, sales representative, or
factory customer service representative
to obtain a Return Warranty, Service,
Repair, and Return Policies and
Instructions Materials Authorization
(RMA) Number. This RMA number
should be clearly marked on the outside
of all package(s) and on the packing
list(s) accompanying the shipment. A
detailed account of the nature of the
problem(s) being experienced with the
equipment should also be included
inside the package(s) containing any
returned materials.
A Purchase Order, included with the
returned materials, will expedite the
turn-around of serviced equipment. It is
recommended to include authorization
on the Purchase Order for PCB to
proceed with any repairs, as long as
they do not exceed 50% of the
replacement cost of the returned
item(s). PCB will provide a price
quotation or replacement
recommendation for any item whose
repair costs would exceed 50% of
replacement cost, or any item that is not
economically feasible to repair. For
routine calibration services, the
Purchase Order should include
authorization to proceed and return at
current pricing, which can be obtained
from a factory customer service
representative.
Warranty –All equipment and repair
services provided by PCB Piezotronics,
Inc. are covered by a limited warranty
against defective material and
workmanship for a period of one year
from date of original purchase. Contact
PCB for a complete statement of our
warranty. Expendable items, such as
batteries and mounting hardware, are
not covered by warranty. Mechanical
damage to equipment due to improper
use is not covered by warranty.
Electronic circuitry failure caused by the
introduction of unregulated or improper
excitation power or electrostatic
discharge is not covered by warranty.
Contact Information –International
customers should direct all inquiries to
their local distributor or sales office. A
complete list of distributors and offices
can be found at www.pcb.com.
Customers within the United States may
contact their local sales representative
or a factory customer service
representative. A complete list of sales
representatives can be found at
www.pcb.com. Toll-free telephone
numbers for a factory customer service
representative, in the division
responsible for this product, can be
found on the title page at the front of this
manual. Our ship to address and
general contact numbers are:
PCB Piezotronics, Inc.
3425 Walden Ave.
Depew, NY14043 USA
Toll-free: [phone]
24-hour SensorLineSM: [phone]
Website: www.pcb.com
E-mail: [email protected]

PCB工业监视和测量设备 - 中国RoHS2公布表
PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table
部件名称
有害物质
铅(Pb)
汞
(Hg)
镉
(Cd)
六价铬(Cr(VI))
多溴联苯 (PBB)
多溴二苯醚(PBDE)
住房
O
O
O
O
O
O
PCB板
X
O
O
O
O
O
电气连接器
O
O
O
O
O
O
压电晶体
X
O
O
O
O
O
环氧
O
O
O
O
O
O
铁氟龙
O
O
O
O
O
O
电子
O
O
O
O
O
O
厚膜基板
O
O
X
O
O
O
电线
O
O
O
O
O
O
电缆
X
O
O
O
O
O
塑料
O
O
O
O
O
O
焊接
X
O
O
O
O
O
铜合金/黄铜
X
O
O
O
O
O
本表格依据 SJ/T 11364 的规定编制。
O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。
X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。
铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。
CHINA RoHS COMPLIANCE

DOCUMENT NUMBER: 21354
DOCUMENT REVISION: C
ECN: 45605
Component Name
Hazardous Substances
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Chromium VI
Compounds
(Cr(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl
Ethers (PBDE)
Housing
O
O
O
O
O
O
PCB Board
X
O
O
O
O
O
Electrical
Connectors
O
O
O
O
O
O
Piezoelectric
Crystals
X
O
O
O
O
O
Epoxy
O
O
O
O
O
O
Teflon
O
O
O
O
O
O
Electronics
O
O
O
O
O
O
Thick Film
Substrate
O
O
X
O
O
O
Wires
O
O
O
O
O
O
Cables
X
O
O
O
O
O
Plastic
O
O
O
O
O
O
Solder
X
O
O
O
O
O
Copper Alloy/Brass
X
O
O
O
O
O
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit
requirement of GB/T 26572.
X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above
the limit requirement of GB/T 26572.
Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

Drawing Number: 21082
Revision: NR
OPERATION MANUAL FOR
MICROPHONE
Series 103A 1
1.0 DESCRIPTION
The Series 103A microphones are high-sensitivity
pressure sensors featuring miniature size, built-in
solid state electronics and acceleration compensation.

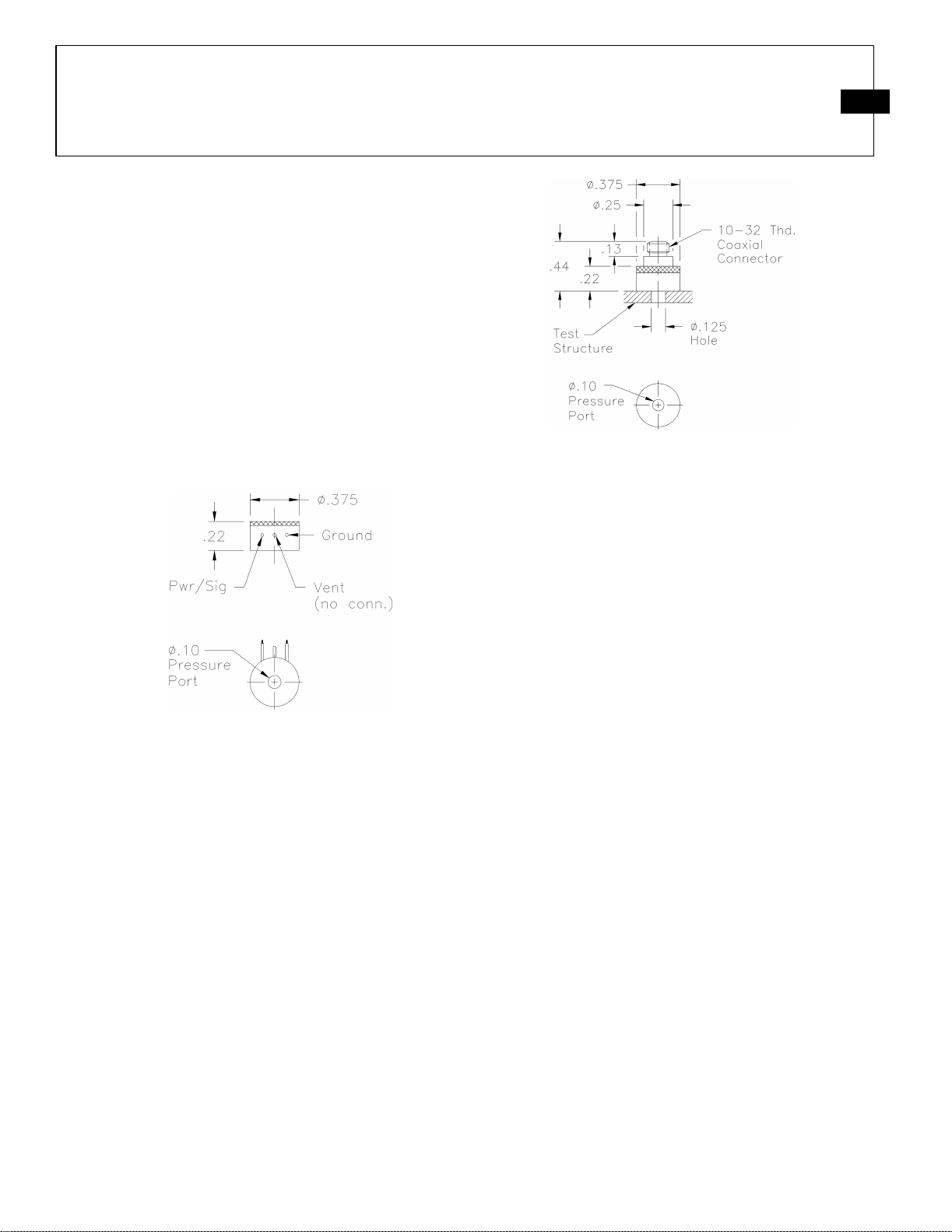

The Model 103A (see installation drawing) has
pigtail leads extending radially from the side of the
unit and has a nominal sensitivity of 1500 mV/psi.
The Model 103A11 is similar in appearance and in
mode of electrical connection, but differs from the
Model 103A in that the sensitivity is nominally 500
mV/psi.
Models 103A and 103A11: ICP® Sound Pressure
Sensors
The Model 103A02 is similar physically to the 103A
and has similar sensitivity (1500 mV/psi), but the
electrical connection is made through a top mounted
10-32 coaxial connector.
The Model 103A12 also has the top connector like
the 103A02 but the sensitivity is 500 mV/psi.
These units are ideal for wind tunnel testing of
models because of the small size and high sensitivity.
Models 103A02 and 103A12: ICP®Sound
Pressure Sensors
2.0 DESCRIPTION
(Refer to installation drawing no. 103-1010-90
included as part of this manual.)
The 103A Series Sensors utilize a bimorph bender
crystal cantilevered from the side wall and attached to
the center of a thin recessed invar diaphragm.
Pressure acting on the surface of the diaphragm
results in a net force which strains (or deflects) the
diaphragm in proportion to the applied pressure. The
diaphragm bends the crystal creating an output
voltage which is also proportional to applied
pressure.
This voltage is fed to the gate of a miniature
MOSFET source follower amplifier which reduces
the output impedance to less than 100 Ohms allowing
the driving of long cables and permitting operating
directly into most readout instruments.
Refer to Bulletin G-0001B, “General Guide to ICP®
Instrumentation”for a detailed description of the
built-in amplifier concept.
Models 103A, A02, A11, and A12 have output
signals superimposed upon a +4 V (approx.) bias
level at the amplifier output. All PCB signal
conditioners are designed to eliminate this bias
voltage while supplying power to the internal
amplifier.

Drawing Number: 21082
Revision: NR
OPERATION MANUAL FOR
MICROPHONE
Series 103A 2
The result is a two-wire system, precluding the need
for multi-conductor cabling.
A second diaphragm, located behind the pressure
diaphragm and attached to another bimorph bender
crystal acting in opposition to the pressure crystal,
provides acceleration compensation to the Series
103A Sensors.
3.0 INSTALLATION

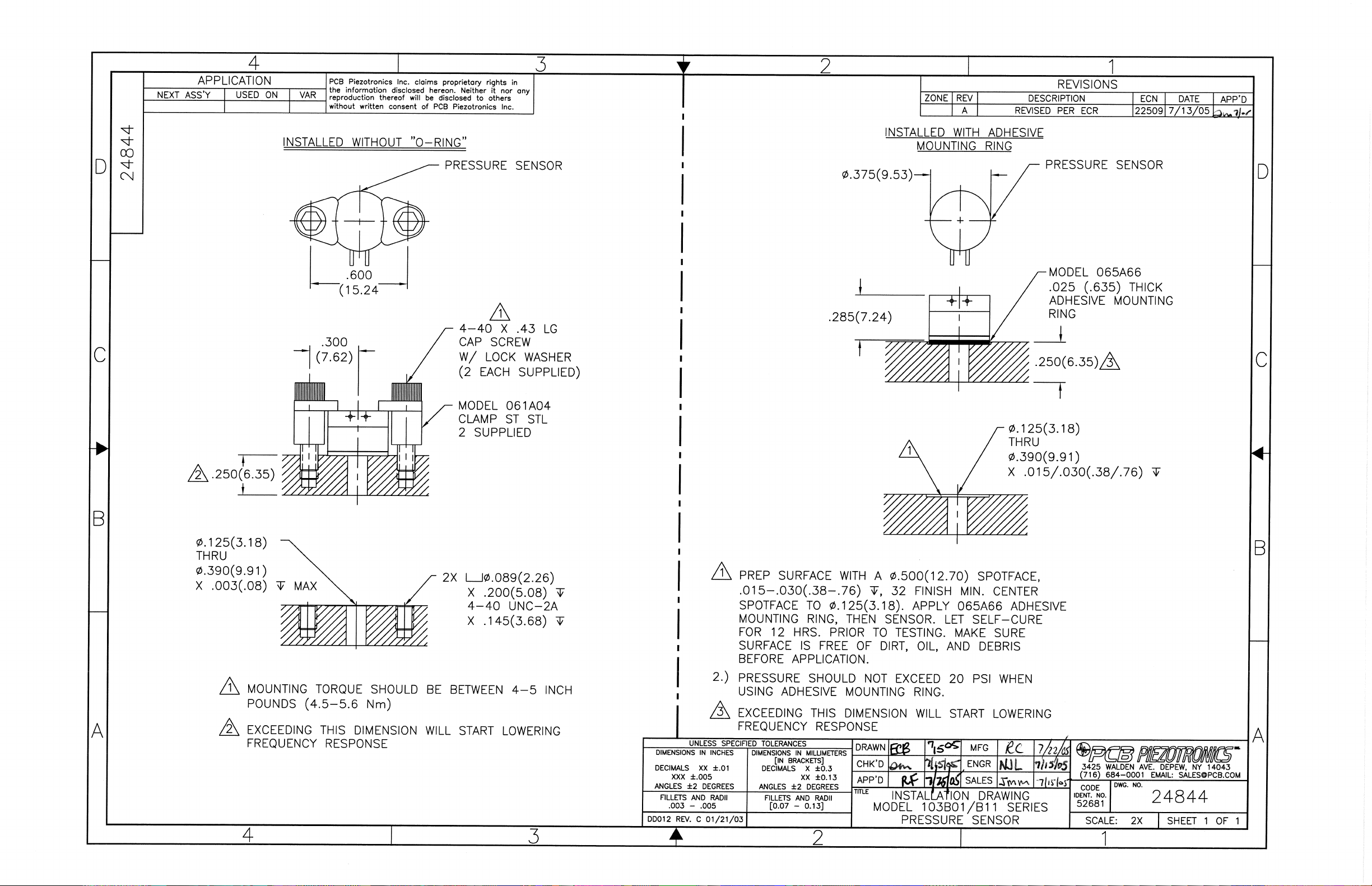

As shown in installation drawing 103-1010-90, the
Series 103A Microphones may be properly mounted
in several ways, the exact method chosen being a
function of the space available along with other use
dictated parameters.
The simplest method of mounting, and also the one
that utilizes the least volume, is the adhesive method.
The microphone is simply bonded directly to the
mounting surface with an (at least) .10”diameter hole
through the surface to feed the pressure signal to the
diaphragm.
Many different types of adhesives may be used to
bond the 103A in this manner. The important point
being to apply the adhesive very sparingly so that
removal does not damage the sensor.
The 103A may also be mounted using the Model
061A04 Servo clamps if space is available.
The Model 060A11 Clamp Nut may only be used
with the top connector Models 103A02 and 103A12
since the radial wire leads of the Model 103A and
103A11 would interfere with the clamp nut. The
installation drawing gives detailed instructions on
preparation of the port for this type of installation.
3.1 ELECTRICAL

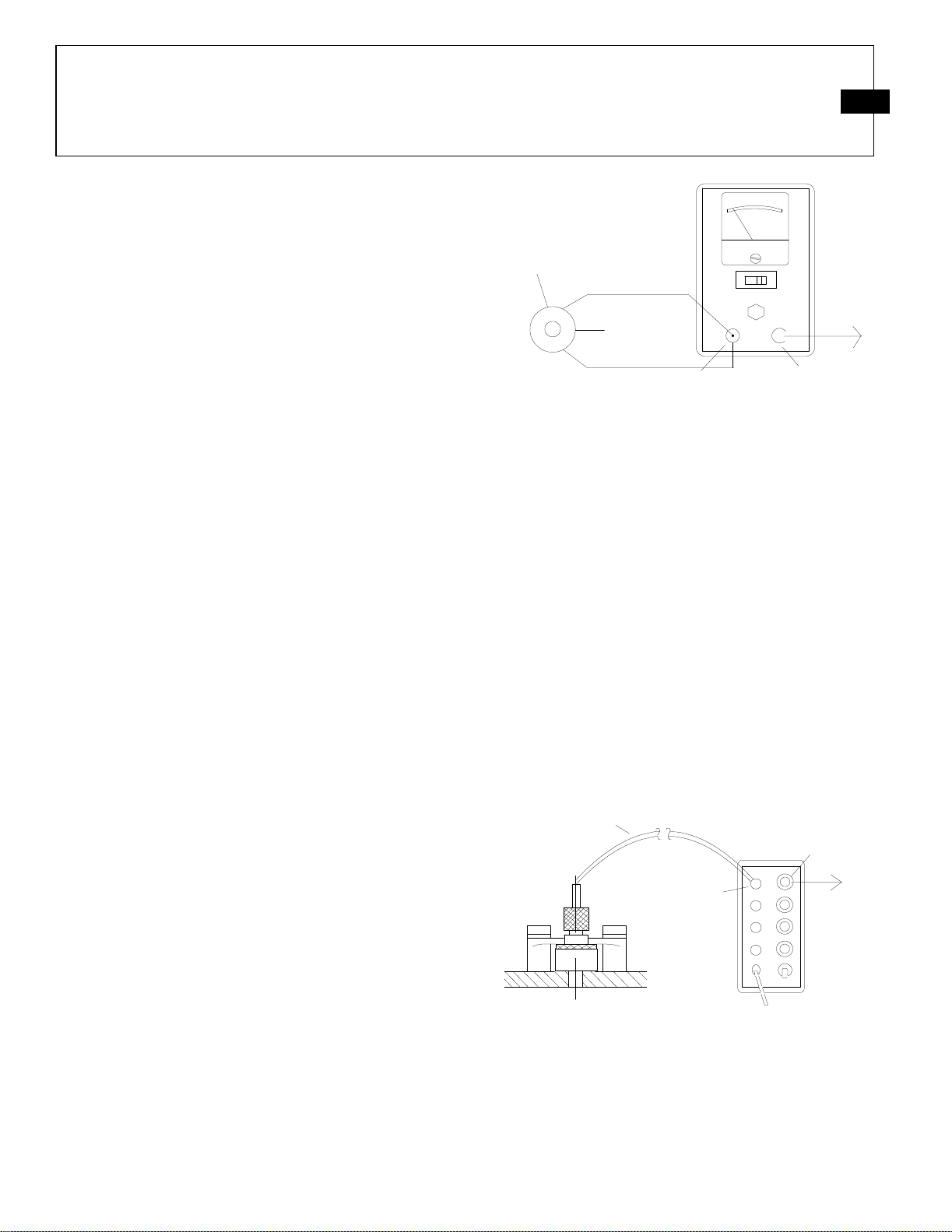

For the Models 103A and 103A11 (pigtail models),
connect the center conductor from the “Xducer”
output of any ICP®power unit to the white (Pwr/Sig)
lead and connect the outer shell of the “Xducer”
connector to the black (ground) lead. The black lead
is electrically connected to the outer case. (See figure
below.)
Models 103A & All: Electrical Connection
NOTE: No electrical connection is made to the
blue (vent) lead. This lead serves to vent internal
pressure within the sensor when the 103A and
103A11 are used in evacuated chambers. The
internal pressure bleeds out slowly around the wires
of this lead. This lead may be cut off flush with body
if the sensor will never be used in this manner.
To make the electrical connection to the Models
103A02 and 103A12 (top connector models), simply
connect the “Xducer”output of the power unit to the
10-32 coaxial connector using a PCB Model 002C
Series coaxial cable.
The output signal is taken from the power unit
connector labeled “Scope”or “Output”. (See figure
below.)
1
2
3
4
MODEL 103A02 & A12
0
0
2
A
C
A
B
L
E
XDUCER
MODEL 482A04
P
O
W
E
R
U
N
I
T
SCOPE
TO
READOU
T
Models 103A02 & A12: Electrical Connection
WHITE
BLUE (N.C.)
XDUCER
BLACK
VIEW FROM
DIAPHRAGM
END
SCOPE
TO
READOUT
SERIES 480
B
A
T
T
E
R
Y
S
I
G
N
A
L
C
O
N
D
I
T
I
O
N
E
R

Drawing Number: 21082
Revision: NR
OPERATION MANUAL FOR
MICROPHONE
Series 103A 3
Refer to Guide G-0001B for tips on power and signal
utilization.
NOTE: The internal low-noise amplifier in the
Model 103A, A02, A11 and A12 differ from the
standard ICP®amplifiers described in Guide G-
0001B in that the turn-on (or bias) voltage is
nominally +4 volts.
Proper turn-on for Models 103A02, A11 and Al 2
will not give center scale reading on the fault monitor
meters found on most PCB signal conditioners but
will show a reading of approximately 20% of F.S. on
these meters. This puts it at the lower limit of the
green (or normal) area of the meters. This is normal
and in no way indicates faulty operation.
4.0 OUTPUT SIGNAL
The output signal from the 103A Series is a voltage
proportional to input pressure. The polarity is
positive-going for increasing input pressure.
The signal is of high enough level and low enough
output impedance to be fed directly into most
oscilloscopes, tape recorders, strip chart recorders, A
to D converters, etc.
Consult the factory for information regarding galvo
driving since special amplifiers are needed to drive
most high-current galvanometers.
Low-frequency response is limited by sensor
discharge TC (given in the specification sheet) and by
coupling time constants throughout the system. To
take full advantage of the TC of the sensor, make sure
that coupling TC's from power unit to readout are at
least an order of magnitude longer than the discharge
TC or use a direct-coupled signal conditioner such as
the Model 484B. Consult factory for details.
5.0 CALIBRATION
The 103A Series Sensors must be dynamically
calibrated using a known step function or pulse, or
with a microphone calibrator.
At PCB, the units are subjected to various calibrated
steps of pneumatic pressure to obtain a linearity curve
over the full range of the instruments.
6.0 MAINTENANCE AND REPAIR
The small size and sealed construction of the Series
103A precludes field maintenance and repair.
Should the time constant degrade or an abnormality
appear in the normal bias voltage, bake the unit out in
a +250° F oven for 1 to 2 hours, then re-test.
If this is not effective or if other problems should
occur, contact the factory for assistance in tracing the
problem or for instructions on returning the unit for
repair.
7.0 PRECAUTIONS
l.) Do not apply voltage to the unit without a
current-limiting device in the line such as
incorporated in all PCB signal conditioners, (20 mA
maximum) to do so will destroy the internal amplifier.
2.) Do not subject these units to temperatures
higher than 250° F.
3.) Do not attempt to disassemble these units as
to do so voids the warranty.
4.) Use caution when removing units that have
been mounted with epoxies or other strong adhesives.
Excessive squeezing or torquing may damage the
units and/or cause a calibration shift.
5.) In vibratory environments, secure cables and
leads to surrounding structures to avoid lead or cable
damage.
6.) Do not over torque when using the Servo
clamps or the clamp nut since this could damage the
units.
7.) Do not overpressure (see specs for
maximum pressure), to do so may change the
calibration.
®ICP is a registered trademark of PCB Piezotronics

Model Number
103B01
ACOUSTIC ICP® PRESSURE SENSOR Revision: C
ECN #: 40794
Performance
ENGLISH
SI
Measurement Range 3.00 psi 180.3 dB
Useful Overrange 6.00 psi 186.3 dB
[1]
Sensitivity(± 15 %) 1500 mV/psi 217.5 mV/kPa
Maximum Pressure 250 psi 1724 kPa
Resolution 0.02 mpsi 77 dB
Resonant Frequency ≥13 kHz ≥13 kHz
Rise Time ≤25 µ sec ≤25 µ sec
Low Frequency Response(-5 %) 5 Hz 5 Hz
Non-Linearity ≤2.0 % FS ≤2.0 % FS
[2]
Environmental
Acceleration Sensitivity ≤0.0005 psi/g ≤0.0035 kPa/(m/s²)
Temperature Range(Operating) -100 to 250 °F -73 to 121 °C
Temperature Coefficient of Sensitivity ≤0.2 %/°F ≤0.36 %/°C
Maximum Flash Temperature 1000 °F 538 °C
Maximum Shock 1000 g pk 9807 m/s² pk
Electrical
Discharge Time Constant(at room temp) ≥0.1 sec ≥0.1 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 7 to 13 VDC 7 to 13 VDC
Physical
Sensing Element Ceramic Ceramic
Housing Material Stainless Steel Stainless Steel
Diaphragm 316L Stainless Steel 316L Stainless Steel
Sealing Epoxy Epoxy
Electrical Connector Integral Cable Integral Cable
Cable Termination Pigtail Ends Pigtail Ends
Weight 0.115 oz 3.260 gm
Cable Type 32 AWG stranded wires 32 AWG stranded wires
Cable Length 15 in 38.1 cm
All specifications are at room temperature unless otherwise specified.
In the interest of constant product improvement, we reserve the right to change specifications without notice.
ICP
®
is a registered trademark of PCB Group, Inc.
OPTIONAL VERSIONS
Optional versions have identical specifications and accessories as listed for the standard model
except where noted below. More than one option may be used.
M
- Metric Mount
Supplied Accessory : Model M061A04 Clamp (2)
NOTES:
[1] For +10 volt output, minimum 24 VDC supply voltage required. Negative 10 volt output may
be limited by output bias.
[2]
Zero
-
based, least
-
squares, straight line method.
SUPPLIED ACCESSORIES:
Model 061A04 Sleeve clamp 4-40 cap screw (2)
Model 065A66 Adhesive Mounting Ring (3)
Entered: AP Engineer: jg Sales: KWW
Approved: BAM
Spec Number:
Date: 3/18/2013 Date: 3/18/2013 Date: 3/18/2013 Date: 3/18/2013
24845
3425 Walden Avenue, Depew, NY 14043
Phone: [phone]
Fax: [phone]
E-Mail: [e-mail]
