PCB Piezotronics 176M12 User manual

Model 176M12
Charge Output Pressure Sensor
Installation and Operating Manual
For assistance with the operation of this product,
contact PCB Piezotronics, Inc.
Toll-free: 800-828-8840
24-hour SensorLine: 716-684-0001
Fax: 716-684-0987
E-mail: [email protected]
Web: www.pcb.com
The information contained in this document supersedes all similar information that
may be found elsewhere in this manual.
Total Customer Satisfaction – PCB
Piezotronics guarantees Total Customer
Satisfaction. If, at any time, for any
reason, you are not completely satisfied
with any PCB product, PCB will repair,
replace, or exchange it at no charge. You
may also choose to have your purchase
price refunded in lieu of the repair,
replacement, or exchange of the product.
Service – Due to the sophisticated nature
of the sensors and associated
instrumentation provided by PCB
Piezotronics, user servicing or repair is
not recommended and, if attempted, may
void the factory warranty. Routine
maintenance, such as the cleaning of
electrical connectors, housings, and
mounting surfaces with solutions and
techniques that will not harm the
physical material of construction, is
acceptable. Caution should be observed
to insure that liquids are not permitted to
migrate into devices that are not
hermetically sealed. Such devices should
only be wiped with a dampened cloth
and never submerged or have liquids
poured upon them.
Repair – In the event that equipment
becomes damaged or ceases to operate,
arrangements should be made to return
the equipment to PCB Piezotronics for
repair. User servicing or repair is not
recommended and, if attempted, may
void the factory warranty.
Calibration – Routine calibration of
sensors and associated instrumentation is
recommended as this helps build
confidence in measurement accuracy and
acquired data. Equipment calibration
cycles are typically established by the
users own quality regimen. When in
doubt about a calibration cycle, a good
“rule of thumb” is to recalibrate on an
annual basis. It is also good practice to
recalibrate after exposure to any severe
temperature extreme, shock, load, or
other environmental influence, or prior
to any critical test.
PCB Piezotronics maintains an ISO-
9001 certified metrology laboratory and
offers calibration services, which are
accredited by A2LA to ISO/IEC 17025,
with full traceablility to N.I.S.T. In
addition to the normally supplied
calibration, special testing is also
available, such as: sensitivity at elevated
or cryogenic temperatures, phase
response, extended high or low
frequency response, extended range, leak
testing, hydrostatic pressure testing, and
others. For information on standard
recalibration services or special testing,
contact your local PCB Piezotronics
distributor, sales representative, or
factory customer service representative.
Returning Equipment – Following
these procedures will insure that your
returned materials are handled in the
most expedient manner. Before returning
any equipment to PCB Piezotronics,
contact your local distributor, sales
representative, or factory customer
service representative to obtain a Return
Warranty, Service, Repair, and
Return Policies and Instructions
Materials Authorization (RMA)
Number. This RMA number should be
clearly marked on the outside of all
package(s) and on the packing list(s)
accompanying the shipment. A detailed
account of the nature of the problem(s)
being experienced with the equipment
should also be included inside the
package(s) containing any returned
materials.
A Purchase Order, included with the
returned materials, will expedite the
turn-around of serviced equipment. It is
recommended to include authorization
on the Purchase Order for PCB to
proceed with any repairs, as long as they
do not exceed 50% of the replacement
cost of the returned item(s). PCB will
provide a price quotation or replacement
recommendation for any item whose
repair costs would exceed 50% of
replacement cost, or any item that is not
economically feasible to repair. For
routine calibration services, the Purchase
Order should include authorization to
proceed and return at current pricing,
which can be obtained from a factory
customer service representative.
Warranty – All equipment and repair
services provided by PCB Piezotronics,
Inc. are covered by a limited warranty
against defective material and
workmanship for a period of one year
from date of original purchase. Contact
PCB for a complete statement of our
warranty. Expendable items, such as
batteries and mounting hardware, are not
covered by warranty. Mechanical
damage to equipment due to improper
use is not covered by warranty.
Electronic circuitry failure caused by the
introduction of unregulated or improper
excitation power or electrostatic
discharge is not covered by warranty.
Contact Information – International
customers should direct all inquiries to
their local distributor or sales office. A
complete list of distributors and offices
can be found at www.pcb.com.
Customers within the United States may
contact their local sales representative or
a factory customer service
representative. A complete list of sales
representatives can be found at
www.pcb.com. Toll-free telephone
numbers for a factory customer service
representative, in the division
responsible for this product, can be
found on the title page at the front of this
manual. Our ship to address and general
contact numbers are:
PCB Piezotronics, Inc.
3425 Walden Ave.
Depew, NY 14043 USA
Toll-free: (800) 828-8840
24-hour SensorLineSM: (716) 684-0001
Website: www.pcb.com
E-mail: [email protected]
DOCUMENT NUMBER: 21354
DOCUMENT REVISION: B
ECN: 17900

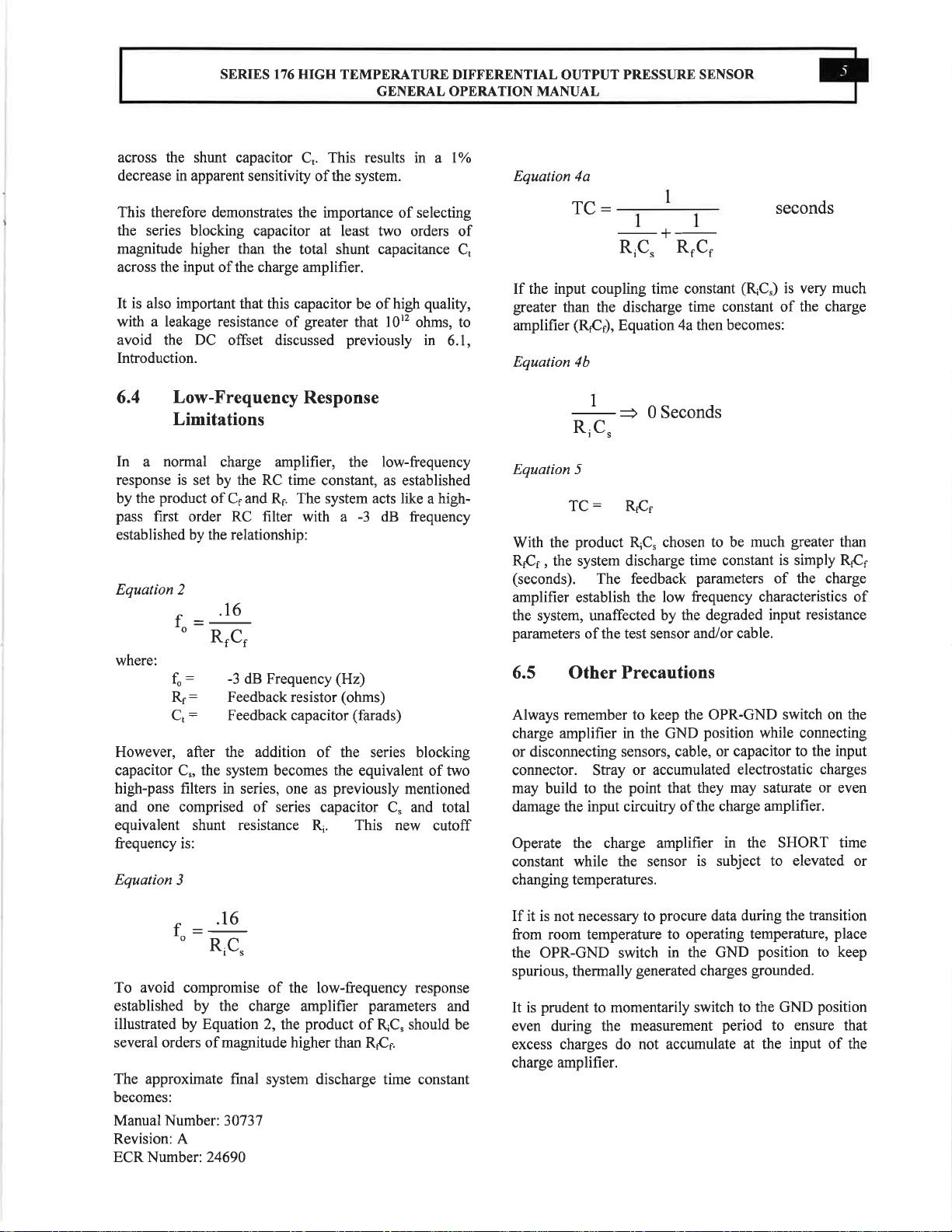

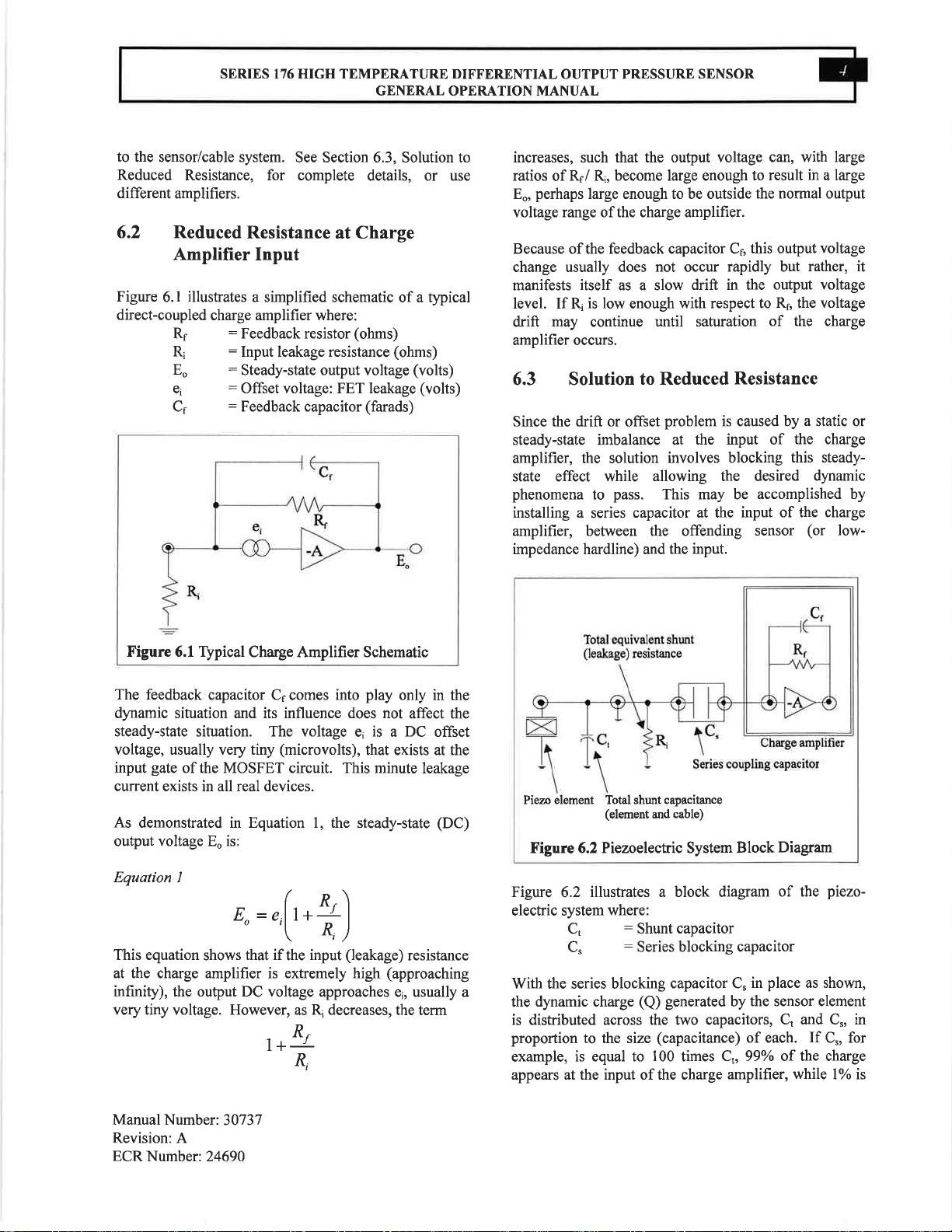

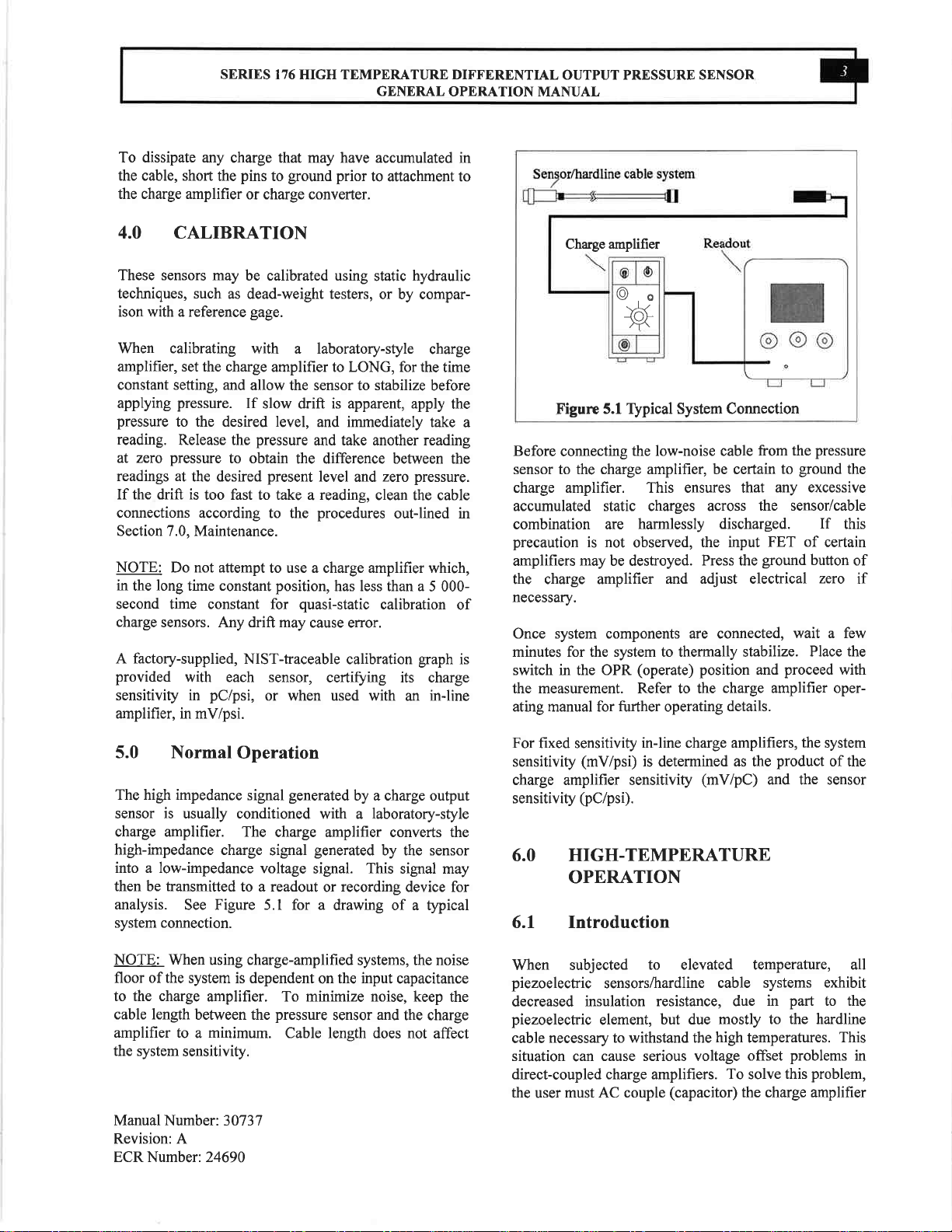

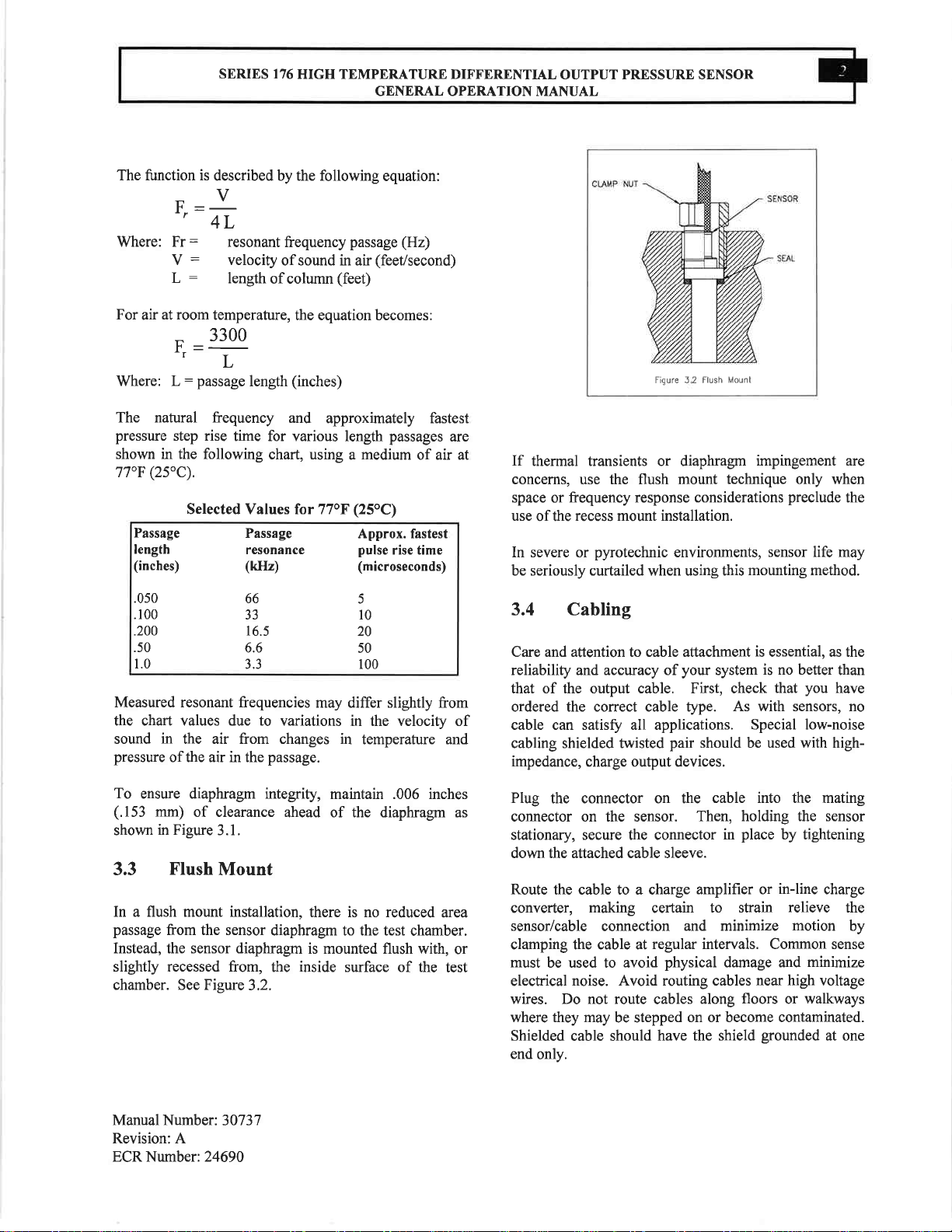

Model Number
176M12
CHARGE OUTPUT PRESSURE SENSOR Revision C
ECN #: 41257
Performance ENGLISH SI
Sensitivity (±20 %) 17 pC/psi 2.47 pC/kPa
Measurement Range 20 psi 137.9 kPa
Maximum Pressure (static) 400 psi 2758 kPa
Resonant Frequency >30 kHz >30 kHz
Non-Linearity ≤1 % FS ≤1 % FS [15]
Environmental
Acceleration Sensitivity ≤0.01 psi/g ≤0.007 kPa/(m/s²)
Temperature Range (Continuous) 986 °F 530 °C
Temperature Range (Intermittent) 1040 °F 560 °C
Temperature Range (Receptacle) 500 °F 260 °C
Temperature Coefficient of Sensitivity ≤0.01 %/°F ≤0.02 %/°C
Hazardous Area Approval CSA (C-US) NRTL
- Canadian
Standards
Association
CSA (C-US) NRTL -
Canadian Standards
Association
[1][2][3][
4]

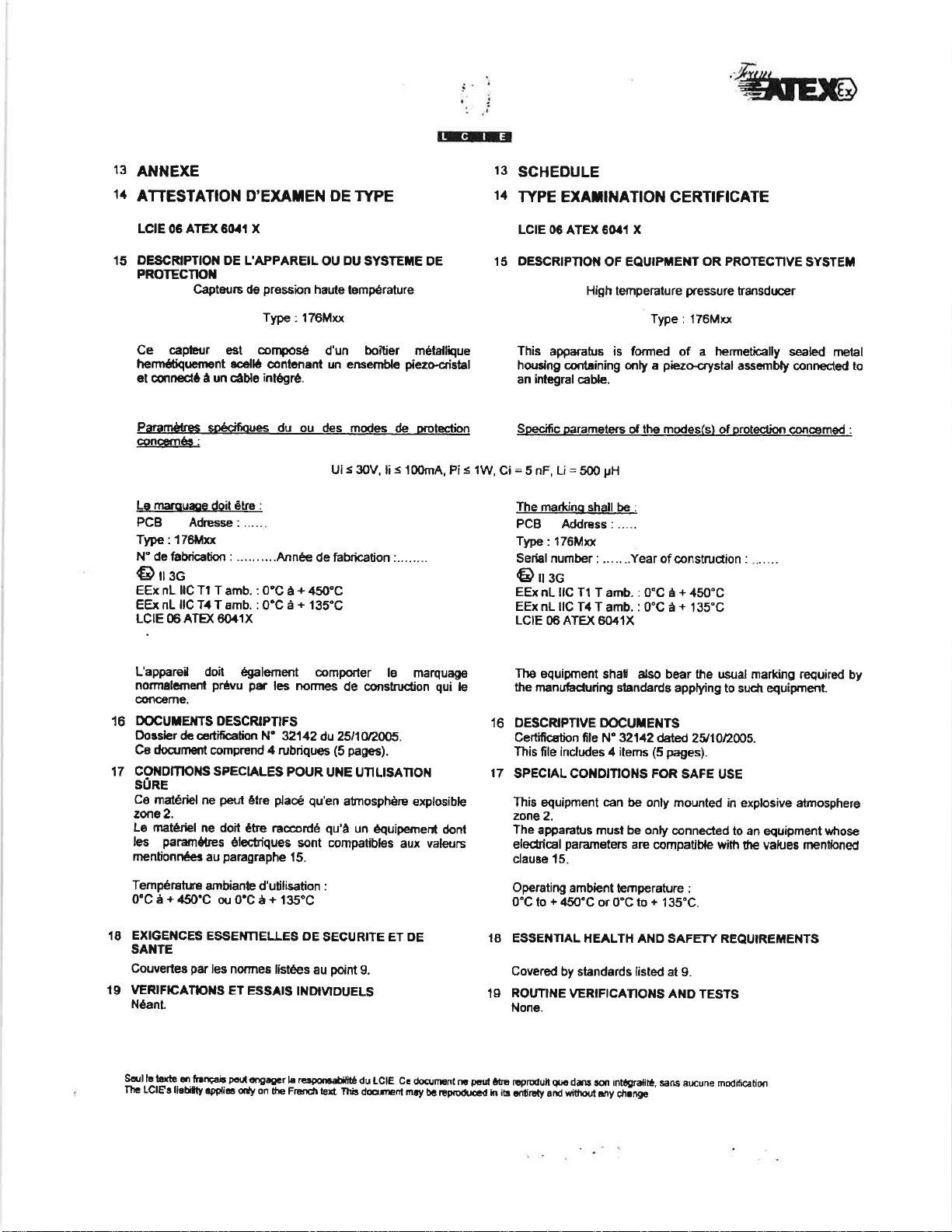

Hazardous Area Approval ATEX ATEX [5][6][7][
8]
Hazardous Area Approval IECEx IECEx [9][10][1
1]
Hazardous Area Approval IECEx IECEx [12][13][
14]
Electrical
Capacitance <165 pF <165 pF
Internal Resistance (room temp ) ≥1012 Ohm ≥1012 Ohm
Insulation Resistance (room temp ) ≥1012 Ohm ≥1012 Ohm
Internal Resistance (986°F/527°C ) ≥50 kohm ≥50 kohm
Insulation Resistance (986°F/527°C ) ≥100 kohm ≥100 kohm
Physical
Sensing Geometry Compression Compression
Housing Material Inconel Inconel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin 2-Pin
Cable Type 2-conductor 2-conductor
Weight 11.1 oz 315 gm
[16]
All specifications are at room temperature unless otherwise specified.
In the interest of constant product improvement, we reserve the right to change specifications without
notice.
Optional Versions (Optional versions have identical specifications and accessories as listed
for standard model except where noted below. More than one option maybe used.)
Notes
[1] AEx nA IIC T1, DIV2 CL1 GR A-D
[2] AEx nA IIC T4, DIV2 CL1 GR A-D
[3] Ex nL IIC T1, DIV2 CL1 GR A-D
[4] Ex nL IIC T4, DIV2 CL1 GR A-D
[5] Ex nL IIC T4, II 3 G
[6] Ex nL IIC T1, II 3 G
[7] Ex ia IIC T4, II IG
[8] Ex ia IIC T1, II IG
[9] Ex nA IIC T4 Gc
[10] Ex nA IIC T3 Gc
[11] Ex nA IIC T1 Gc
[12] Ex ia IIC T4 Ga
[13] Ex ia IIC T3 Ga
[14] Ex ia IIC T1 Ga
[15] Zero-based, least-squares, straight line method.
[16] See PCB Declaration of Conformance PS058 for details.
Entered: AP Engineer: RPF Sales: DPC Approved: RPF Spec Number:
Date:
04/17/2013 Date:
04/17/2013 Date:
04/17/2013 Date:
04/17/2013 41205
3425 Walden Avenue
Depew, NY 14043
UNITED STATES
Phone: 800-828-8840
Fax: 716-684-0987
E-mail: [email protected]
Web site: www.pcb.com
ICP® is a registered trademark of PCB group, Inc.
Model Number
176M12
CHARGE OUTPUT PRESSURE SENSOR Revision C
ECN #: 41257
Performance ENGLISH SI
Sensitivity (±20 %) 17 pC/psi 2.47 pC/kPa
Measurement Range 20 psi 137.9 kPa
Maximum Pressure (static) 400 psi 2758 kPa
Resonant Frequency >30 kHz >30 kHz
Non-Linearity ≤1 % FS ≤1 % FS [15]
Environmental
Acceleration Sensitivity ≤0.01 psi/g ≤0.007 kPa/(m/s²)
Temperature Range (Continuous) 986 °F 530 °C
Temperature Range (Intermittent) 1040 °F 560 °C
Temperature Range (Receptacle) 500 °F 260 °C
Temperature Coefficient of Sensitivity ≤0.01 %/°F ≤0.02 %/°C
Hazardous Area Approval CSA (C-US) NRTL
- Canadian
Standards
Association
CSA (C-US) NRTL -
Canadian Standards
Association
[1][2][3][
4]
Hazardous Area Approval ATEX ATEX [5][6][7][
8]
Hazardous Area Approval IECEx IECEx [9][10][1
1]
Hazardous Area Approval IECEx IECEx [12][13][
14]
Electrical
Capacitance <165 pF <165 pF
Internal Resistance (room temp ) ≥1012 Ohm ≥1012 Ohm
Insulation Resistance (room temp ) ≥1012 Ohm ≥1012 Ohm
Internal Resistance (986°F/527°C ) ≥50 kohm ≥50 kohm
Insulation Resistance (986°F/527°C ) ≥100 kohm ≥100 kohm
Physical
Sensing Geometry Compression Compression
Housing Material Inconel Inconel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin 2-Pin
Cable Type 2-conductor 2-conductor
Weight 11.1 oz 315 gm
[16]
All specifications are at room temperature unless otherwise specified.
In the interest of constant product improvement, we reserve the right to change specifications without
notice.
Optional Versions (Optional versions have identical specifications and accessories as listed
for standard model except where noted below. More than one option maybe used.)
Notes
[1] AEx nA IIC T1, DIV2 CL1 GR A-D
[2] AEx nA IIC T4, DIV2 CL1 GR A-D
[3] Ex nL IIC T1, DIV2 CL1 GR A-D
[4] Ex nL IIC T4, DIV2 CL1 GR A-D
[5] Ex nL IIC T4, II 3 G
[6] Ex nL IIC T1, II 3 G
[7] Ex ia IIC T4, II IG
[8] Ex ia IIC T1, II IG
[9] Ex nA IIC T4 Gc
[10] Ex nA IIC T3 Gc
[11] Ex nA IIC T1 Gc
[12] Ex ia IIC T4 Ga
[13] Ex ia IIC T3 Ga
[14] Ex ia IIC T1 Ga
[15] Zero-based, least-squares, straight line method.
[16] See PCB Declaration of Conformance PS058 for details.
Entered: AP Engineer: RPF Sales: DPC Approved: RPF Spec Number:
Date:
04/17/2013 Date:
04/17/2013 Date:
04/17/2013 Date:
04/17/2013 41205
3425 Walden Avenue
Depew, NY 14043
UNITED STATES
Phone: 800-828-8840
Fax: 716-684-0987
E-mail: [email protected]
Web site: www.pcb.com
ICP® is a registered trademark of PCB group, Inc.
Model Number
176M12
CHARGE OUTPUT PRESSURE SENSOR Revision C
ECN #: 41257
Performance ENGLISH SI
Sensitivity (±20 %) 17 pC/psi 2.47 pC/kPa
Measurement Range 20 psi 137.9 kPa
Maximum Pressure (static) 400 psi 2758 kPa
Resonant Frequency >30 kHz >30 kHz
Non-Linearity ≤1 % FS ≤1 % FS [15]
Environmental
Acceleration Sensitivity ≤0.01 psi/g ≤0.007 kPa/(m/s²)
Temperature Range (Continuous) 986 °F 530 °C
Temperature Range (Intermittent) 1040 °F 560 °C
Temperature Range (Receptacle) 500 °F 260 °C
Temperature Coefficient of Sensitivity ≤0.01 %/°F ≤0.02 %/°C
Hazardous Area Approval CSA (C-US) NRTL
- Canadian
Standards
Association
CSA (C-US) NRTL -
Canadian Standards
Association
[1][2][3][
4]
Hazardous Area Approval ATEX ATEX [5][6][7][
8]
Hazardous Area Approval IECEx IECEx [9][10][1
1]
Hazardous Area Approval IECEx IECEx [12][13][
14]
Electrical
Capacitance <165 pF <165 pF
Internal Resistance (room temp ) ≥1012 Ohm ≥1012 Ohm
Insulation Resistance (room temp ) ≥1012 Ohm ≥1012 Ohm
Internal Resistance (986°F/527°C ) ≥50 kohm ≥50 kohm
Insulation Resistance (986°F/527°C ) ≥100 kohm ≥100 kohm
Physical
Sensing Geometry Compression Compression
Housing Material Inconel Inconel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin 2-Pin
Cable Type 2-conductor 2-conductor
Weight 11.1 oz 315 gm
[16]
All specifications are at room temperature unless otherwise specified.
In the interest of constant product improvement, we reserve the right to change specifications without
notice.
Optional Versions (Optional versions have identical specifications and accessories as listed
for standard model except where noted below. More than one option maybe used.)
Notes
[1] AEx nA IIC T1, DIV2 CL1 GR A-D
[2] AEx nA IIC T4, DIV2 CL1 GR A-D
[3] Ex nL IIC T1, DIV2 CL1 GR A-D
[4] Ex nL IIC T4, DIV2 CL1 GR A-D
[5] Ex nL IIC T4, II 3 G
[6] Ex nL IIC T1, II 3 G
[7] Ex ia IIC T4, II IG
[8] Ex ia IIC T1, II IG
[9] Ex nA IIC T4 Gc
[10] Ex nA IIC T3 Gc
[11] Ex nA IIC T1 Gc
[12] Ex ia IIC T4 Ga
[13] Ex ia IIC T3 Ga
[14] Ex ia IIC T1 Ga
[15] Zero-based, least-squares, straight line method.
[16] See PCB Declaration of Conformance PS058 for details.
Entered: AP Engineer: RPF Sales: DPC Approved: RPF Spec Number:
Date:
04/17/2013 Date:
04/17/2013 Date:
04/17/2013 Date:
04/17/2013 41205
3425 Walden Avenue
Depew, NY 14043
UNITED STATES
Phone: 800-828-8840
Fax: 716-684-0987
E-mail: [email protected]
Web site: www.pcb.com
ICP® is a registered trademark of PCB group, Inc.
1

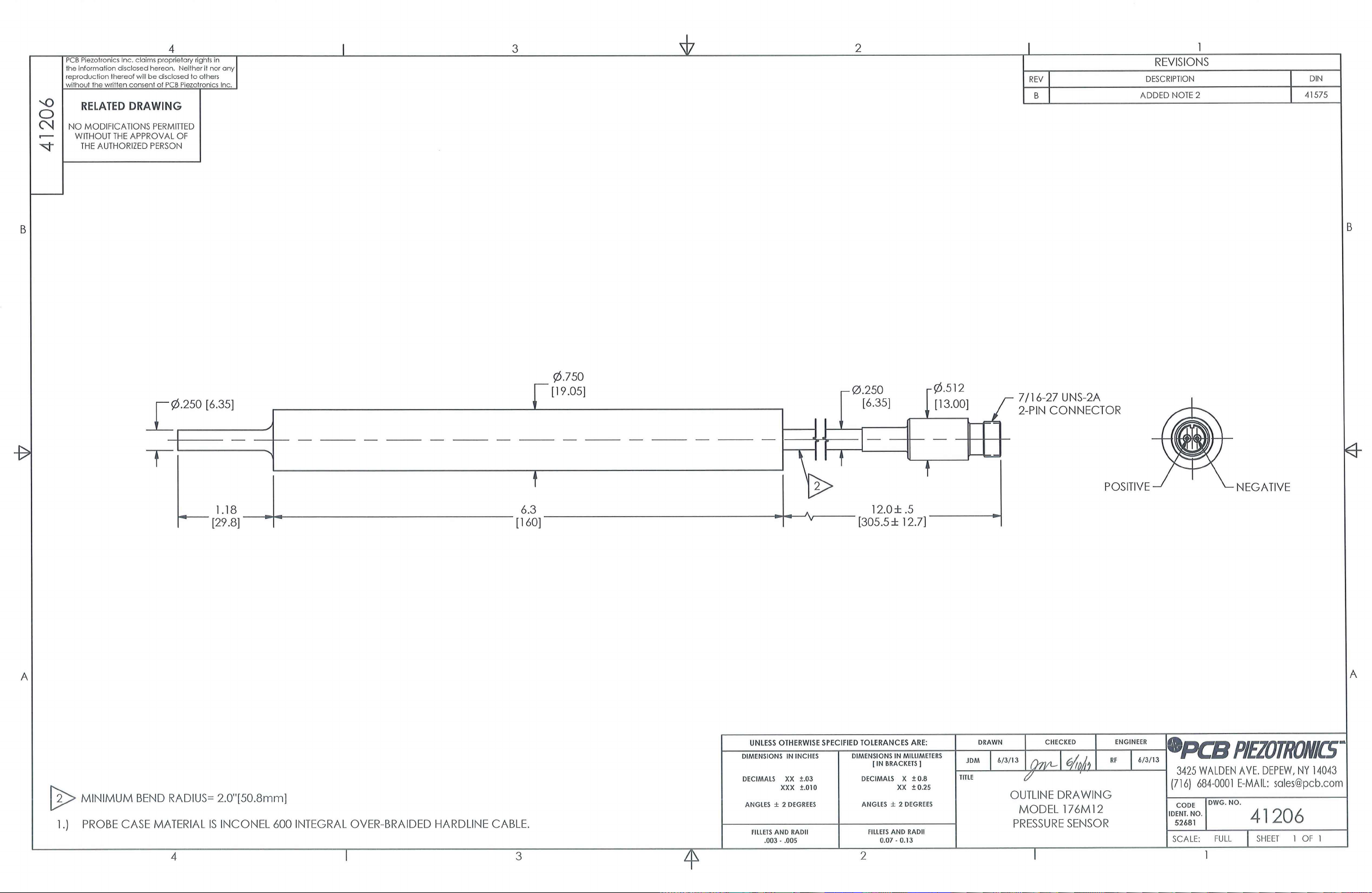

Drawing Number: 35030
Revision: E
Ecn Number: 39670
ATEX Approved Sensors
Pressure Sensors
(Models 176 Series)
English
This sensor has been approved for Hazardous Locations Directive 94/9/EC, Ex nA IIC T4, Ex nA IIC T1, Ex ia IIC T4 and Ex ia IIC T1.
For safe use:
- All applicable local electrical laws must be followed
- The supply electrical parameters must not exceed any of the following values:
oUo ≤30V, Io≤300mA, Po≤1W, C≤5nF, L≤500µH
- Ambient operating temperature range:
o0°C to +450°C or 0°C to +135°C
Deutsch
Dieser ist genehmigt worden für Gefährliche Orte Direktive 94/9/EC, Ex nA IIC T4, Ex nA IIC T1, Ex ia IIC T4 und Ex ia IIC T1.
Für sicheren Gebrauch:
- Alle zutreffenden örtlichen elektrischen Gesetze müssen gefolgt werden
- Die Versorgung elektrische Parameter müssen kein von den Folgenden Werten überschreiten:
oUo ≤30V, Io≤300mA, Po≤1W, C≤5nF, L≤500µH
- Umgebungsbedienungstemperaturbereich:
o0°C to +450°C or 0°C to +135°C
Français
Ce détecteur a été approuvé pour les Emplacements Hasardeux Directif 94/9/EC, Ex nA IIC T4, Ex nA IIC T1, Ex ia IIC T4 et Ex ia IIC T1.
Pour l'usage sûr :
- Toutes lois électriques, locales et applicables doivent être suivies
- La provision les paramètres électriques ne doivent pas dépasser n'importe quel des valeurs suivantes :
oUo ≤30V, Io≤300mA, Po≤1W, C≤5nF, L≤500µH
- La gamme de température d'opération Ambiante :
o0°C to +450°C or 0°C to +135°C
Italiano
Questo sensore è stato approvato per le Posizioni Pericolose Direttivo 94/9/EC, Ex nA IIC T4, Ex nA IIC T1, Ex ia IIC T4 ed EX ia IIC T1.
Per l'uso sicuro:
- Tutte le leggi applicabili, locali elettriche devono essere seguite
- La provvista i parametri elettrici non devono eccedere qualunque dei valori seguenti: seguenti:
oUo ≤30V, Io≤300mA, Po≤1W, C≤5nF, L≤500µH
- la gamma di temperatura di funzionamento di Ambiente:
o0°C to +450°C or 0°C to +135°C
Español
Este sensor se ha aprobado para Ubicaciones Peligrosas Directivas 94/9/EC, Ex nA IIC T4, Ex nA IIC T1, Ex ia IIC T4, y Ex ia IIC T1.
Para el uso seguro:
- Todas leyes eléctricas, locales y aplicables se deben seguir
- El suministro los parámetros eléctricos no deben exceder cualquiera de los siguientes valores:
oUo ≤30V, Io≤300mA, Po≤1W, C≤5nF, L≤500µH
- Ell Ambiente que opera la gama de la temperatura:
o0°C to +450°C or 0°C to +135°C
Русский
Этот датчик был одобрен для Опасной Директивы 94/9/EC Местоположений, Ex nA IIC T4, Ex nA IIC T1, Ex ia IIC T4 иEx ia IIC T1.
Для безопасного использования:
- Все применимые местные электрические законы должны сопровождаться
- Поставка электрические параметры не должна превысить ни одной из следу щих ценностей:
oUo ≤30V, Io≤300mA, Po≤1W, C≤5nF, L≤500µH
- Окружа щий операционный температурный диапазон:
o0°C to +450°C or 0°C to +135°C
2
Drawing Number: 35030
Revision: E
Ecn Number: 39670
Norsk
Denne sensoren godkjenner for Farlige Plasseringer Direktiv 94/9/EC, Ex nA IIC T4, Ex nA IIC T1, Ex ia IIC T4 og Ex ia IIC T1.
For sikker bruk:
- Alle anvendelige lokale elektriske lover fulgt
- Forsyningen elektriske parametre må ikke overskride noe av de følgende verdiene:
oUo ≤30V, Io≤300mA, Po≤1W, C≤5nF, L≤500µH
- Omgivende betjeningsav temperaturrekkevidde:
o0°C to +450°C or 0°C to +135°C
Nederlands
Deze sensor is voor Gevaarlijke Locaties Leidinggevende 94/9/EC, Ex nA IIC T4, Ex nA IIC T1 goedgekeurd worden, Ex ia IIC T4 en EX ia IIC T1.
Voor veilige gebruik:
- Alle toepasbare plaatselijke elektrische wetten moeten gevolgd worden
- De aanbod elektrische parameters moeten de volgende waarde niet overschrijden:
oUo ≤30V, Io≤300mA, Po≤1W, C≤5nF, L≤500µH
- Het omgevend bediening temperatuur bereik:
o0°C to +450°C or 0°C to +135°C
Português
Este sensor foi aprovado para a Diretiva 94/9/EC de Posições Arriscada, Ex nA IIC T4, Ex nA IIC T1, Ex ia IIC T4 e EX ia IIC T1.
Para uso seguro:
- Todas as leis elétricas locais aplicáveis devem ser seguidas
- O estoque parâmetros elétricos não devem exceder qualquer dos seguintes valores:
oUo ≤30V, Io≤300mA, Po≤1W, C≤5nF, L≤500µH
- Variedade de temperatura operacional ambiente:
o0°C to +450°C or 0°C to +135°C
Svensk
Den här sensoren er blitt gillat för Riskabel Lokaliseringarna Direktiv 94/9/ EC Ex nA IIC T4, Ex nA IIC T1, Ex ia IIC T4 och Ex ia IIC T1.
För kassaskåp använda :
- All användbar lokal elektrisk lag måste bli följde efter
- Tillförselen som elektriska parametrar inte måste överskrida några av värderar efter:
oUo ≤30V, Io≤300mA, Po≤1W, C≤5nF, L≤500µH
- Omgivande opera- temperatur ställa i rad :
o0°C to +450°C or 0°C to +135°C
35028-H
ECO#: 41399

Other PCB Piezotronics Accessories manuals

PCB Piezotronics 352B30 User manual

PCB Piezotronics

PCB Piezotronics 352B30 User manual

PCB Piezotronics ICP 105C02 User manual

PCB Piezotronics

PCB Piezotronics ICP 105C02 User manual

PCB Piezotronics IMI SENSORS TO640B11 User manual

PCB Piezotronics

PCB Piezotronics IMI SENSORS TO640B11 User manual

PCB Piezotronics F8159-0011A User manual

PCB Piezotronics

PCB Piezotronics F8159-0011A User manual

PCB Piezotronics 356A33 User manual

PCB Piezotronics

PCB Piezotronics 356A33 User manual

PCB Piezotronics 124B23 User manual

PCB Piezotronics

PCB Piezotronics 124B23 User manual

PCB Piezotronics IMI SENSORS B Series User manual

PCB Piezotronics

PCB Piezotronics IMI SENSORS B Series User manual

PCB Piezotronics YM101A02 User manual

PCB Piezotronics

PCB Piezotronics YM101A02 User manual

PCB Piezotronics 109C12 User manual

PCB Piezotronics

PCB Piezotronics 109C12 User manual

PCB Piezotronics ICP 106B Series User manual

PCB Piezotronics

PCB Piezotronics ICP 106B Series User manual

PCB Piezotronics 4106-01A User manual

PCB Piezotronics

PCB Piezotronics 4106-01A User manual

PCB Piezotronics IMI SENSORS 640B62 User manual

PCB Piezotronics

PCB Piezotronics IMI SENSORS 640B62 User manual

PCB Piezotronics 740M04 User manual

PCB Piezotronics

PCB Piezotronics 740M04 User manual

PCB Piezotronics IMI SENSORS 686B Series User manual

PCB Piezotronics

PCB Piezotronics IMI SENSORS 686B Series User manual

PCB Piezotronics M209C12 User manual

PCB Piezotronics

PCB Piezotronics M209C12 User manual

PCB Piezotronics 111A03 User manual

PCB Piezotronics

PCB Piezotronics 111A03 User manual

PCB Piezotronics 482C54 User manual

PCB Piezotronics

PCB Piezotronics 482C54 User manual

PCB Piezotronics 106M131 User manual

PCB Piezotronics

PCB Piezotronics 106M131 User manual

PCB Piezotronics 113B23 User manual

PCB Piezotronics

PCB Piezotronics 113B23 User manual

PCB Piezotronics ICP RH201A76 User manual

PCB Piezotronics

PCB Piezotronics ICP RH201A76 User manual

PCB Piezotronics 175A01 User manual

PCB Piezotronics

PCB Piezotronics 175A01 User manual

PCB Piezotronics M117B30 User manual

PCB Piezotronics

PCB Piezotronics M117B30 User manual

PCB Piezotronics 208A14 User manual

PCB Piezotronics

PCB Piezotronics 208A14 User manual

PCB Piezotronics IMI SENSORS 670A01 User manual

PCB Piezotronics

PCB Piezotronics IMI SENSORS 670A01 User manual

Popular Accessories manuals by other brands

IMG STAGE LINE USB-SOUNDBOX instruction manual

IMG STAGE LINE

IMG STAGE LINE USB-SOUNDBOX instruction manual

wattstopper LMDC-100 quick start guide

wattstopper

wattstopper LMDC-100 quick start guide

Bin Master NCR-21 operating instructions

Bin Master

Bin Master NCR-21 operating instructions

Heath Zenith Secure Home 5215 quick start guide

Heath Zenith

Heath Zenith Secure Home 5215 quick start guide

Delta DPA Series instruction sheet

Delta

Delta DPA Series instruction sheet

ICON VH4 user manual

ICON

ICON VH4 user manual

holthausen elektronik ESW-small-Compact user manual

holthausen elektronik

holthausen elektronik ESW-small-Compact user manual

K-Rain 3208-WRFS Owner's manual and installation instructions

K-Rain

K-Rain 3208-WRFS Owner's manual and installation instructions

Alfalaval Alfa-V VDD Series instruction manual

Alfalaval

Alfalaval Alfa-V VDD Series instruction manual

EMU 202 Getting started

EMU

EMU 202 Getting started

Durabilt DFSOC-10 Assembly and installation instructions

Durabilt

Durabilt DFSOC-10 Assembly and installation instructions

Entrematic DITEC LAB4 installation manual

Entrematic

Entrematic DITEC LAB4 installation manual

Auto Page RS-325 Installation & operation manual

Auto Page

Auto Page RS-325 Installation & operation manual

AVLink AVPB2.5 user manual

AVLink

AVLink AVPB2.5 user manual

Delta PB-C1001 user manual

Delta

Delta PB-C1001 user manual

RF Technology Eclipse2 Technical manual

RF Technology

RF Technology Eclipse2 Technical manual

RED FUEL SL4 Original instructions

RED FUEL

RED FUEL SL4 Original instructions

New Air STONE Brewing Arrogant Bastard SBF125AB00 owner's manual

New Air

New Air STONE Brewing Arrogant Bastard SBF125AB00 owner's manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
