PCB Piezotronics 208C01 User manual

Model 208C01
ICP® Force Sensor
Installation and Operating Manual
For assistance with the operation of this product,
contact PCB Piezotronics, Inc.
Toll-free: 800-828-8840
24-hour SensorLine: 716-684-0001
Fax: [phone]
E-mail: [email protected]
Web: www.pcb.com

The information contained in this document supersedes all similar information that
may be found elsewhere in this manual.
Service –Due to the sophisticated
nature of the sensors and associated
instrumentation provided by PCB
Piezotronics, user servicing or repair is
not recommended and, if attempted,
may void the factory warranty. Routine
maintenance, such as the cleaning of
electrical connectors, housings, and
mounting surfaces with solutions and
techniques that will not harm the
physical material of construction, is
acceptable. Caution should be observed
to ensure that liquids are not permitted
to migrate into devices that are not
hermetically sealed. Such devices
should only be wiped with a dampened
cloth and never submerged or have
liquids poured upon them.
Repair –In the event that equipment
becomes damaged or ceases to
operate, arrangements should be made
to return the equipment to PCB
Piezotronics for repair. User servicing or
repair is not recommended and, if
attempted, may void the factory
warranty.
Calibration –Routine calibration of
sensors and associated instrumentation
is recommended as this helps build
confidence in measurement accuracy
and acquired data. Equipment
calibration cycles are typically
established by the users own quality
regimen. When in doubt about a
calibration cycle, a good “rule of thumb”
is to recalibrate on an annual basis. It is
also good practice to recalibrate after
exposure to any severe temperature
extreme, shock, load, or other
environmental influence, or prior to any
critical test.
PCB Piezotronics maintains an ISO-
9001 certified metrology laboratory and
offers calibration services, which are
accredited by A2LA to ISO/IEC 17025,
with full traceability to SI through
N.I.S.T. In addition to the normally
supplied calibration, special testing is
also available, such as: sensitivity at
elevated or cryogenic temperatures,
phase response, extended high or low
frequency response, extended range,
leak testing, hydrostatic pressure
testing, and others. For information on
standard recalibration services or
special testing, contact your local PCB
Piezotronics distributor, sales
representative, or factory customer
service representative.
Returning Equipment –Following
these procedures will ensure that your
returned materials are handled in the
most expedient manner. Before
returning any equipment to PCB
Piezotronics, contact your local
distributor, sales representative, or
factory customer service representative
to obtain a Return Warranty, Service,
Repair, and Return Policies and
Instructions Materials Authorization
(RMA) Number. This RMA number
should be clearly marked on the outside
of all package(s) and on the packing
Service, Repair, and Return
Policies and Instructions

list(s) accompanying the shipment. A
detailed account of the nature of the
problem(s) being experienced with the
equipment should also be included
inside the package(s) containing any
returned materials.
A Purchase Order, included with the
returned materials, will expedite the
turn-around of serviced equipment. It is
recommended to include authorization
on the Purchase Order for PCB to
proceed with any repairs, as long as
they do not exceed 50% of the
replacement cost of the returned
item(s). PCB will provide a price
quotation or replacement
recommendation for any item whose
repair costs would exceed 50% of
replacement cost, or any item that is not
economically feasible to repair. For
routine calibration services, the
Purchase Order should include
authorization to proceed and return at
current pricing, which can be obtained
from a factory customer service
representative.
Contact Information –International
customers should direct all inquiries to
their local distributor or sales office. A
complete list of distributors and offices
can be found at www.pcb.com.
Customers within the United States may
contact their local sales representative
or a factory customer service
representative. A complete list of sales
representatives can be found at
www.pcb.com. Toll-free telephone
numbers for a factory customer service
representative, in the division
responsible for this product, can be
found on the title page at the front of this
manual. Our ship to address and
general contact numbers are:
PCB Piezotronics, Inc.
3425 Walden Ave.
Depew, NY14043 USA
Toll-free: [phone]
24-hour SensorLineSM: [phone]
Website: www.pcb.com
E-mail: [email protected]

PCB工业监视和测量设备 - 中国RoHS2公布表
PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table
部件名称
有害物质
铅(Pb)
汞
(Hg)
镉
(Cd)
六价铬(Cr(VI))
多溴联苯 (PBB)
多溴二苯醚(PBDE)
住房
O
O
O
O
O
O
PCB板
X
O
O
O
O
O
电气连接器
O
O
O
O
O
O
压电晶体
X
O
O
O
O
O
环氧
O
O
O
O
O
O
铁氟龙
O
O
O
O
O
O
电子
O
O
O
O
O
O
厚膜基板
O
O
X
O
O
O
电线
O
O
O
O
O
O
电缆
X
O
O
O
O
O
塑料
O
O
O
O
O
O
焊接
X
O
O
O
O
O
铜合金/黄铜
X
O
O
O
O
O
本表格依据 SJ/T 11364 的规定编制。
O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。
X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。
铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。
CHINA RoHS COMPLIANCE

DOCUMENT NUMBER: 21354
DOCUMENT REVISION: D
ECN: 46162
Component Name
Hazardous Substances
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Chromium VI
Compounds
(Cr(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl
Ethers (PBDE)
Housing
O
O
O
O
O
O
PCB Board
X
O
O
O
O
O
Electrical
Connectors
O
O
O
O
O
O
Piezoelectric
Crystals
X
O
O
O
O
O
Epoxy
O
O
O
O
O
O
Teflon
O
O
O
O
O
O
Electronics
O
O
O
O
O
O
Thick Film
Substrate
O
O
X
O
O
O
Wires
O
O
O
O
O
O
Cables
X
O
O
O
O
O
Plastic
O
O
O
O
O
O
Solder
X
O
O
O
O
O
Copper Alloy/Brass
X
O
O
O
O
O
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit
requirement of GB/T 26572.
X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above
the limit requirement of GB/T 26572.
Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

ICPFORCE SENSOR OPERATION MANUAL
1
1.0 INTRODUCTION
ICPforce sensors incorporate a built-in MOSFET
microelectronic amplifier. This serves to convert the high
impedance charge output into a low impedance voltage signal
for analysis or recording. ICPsensors, are powered from a
separate constant current source, operate over long ordinary
coaxial or ribbon cable without signal degradation. The low
impedance voltage signal is not affected by triboelectric cable
noise or environmental contaminants.

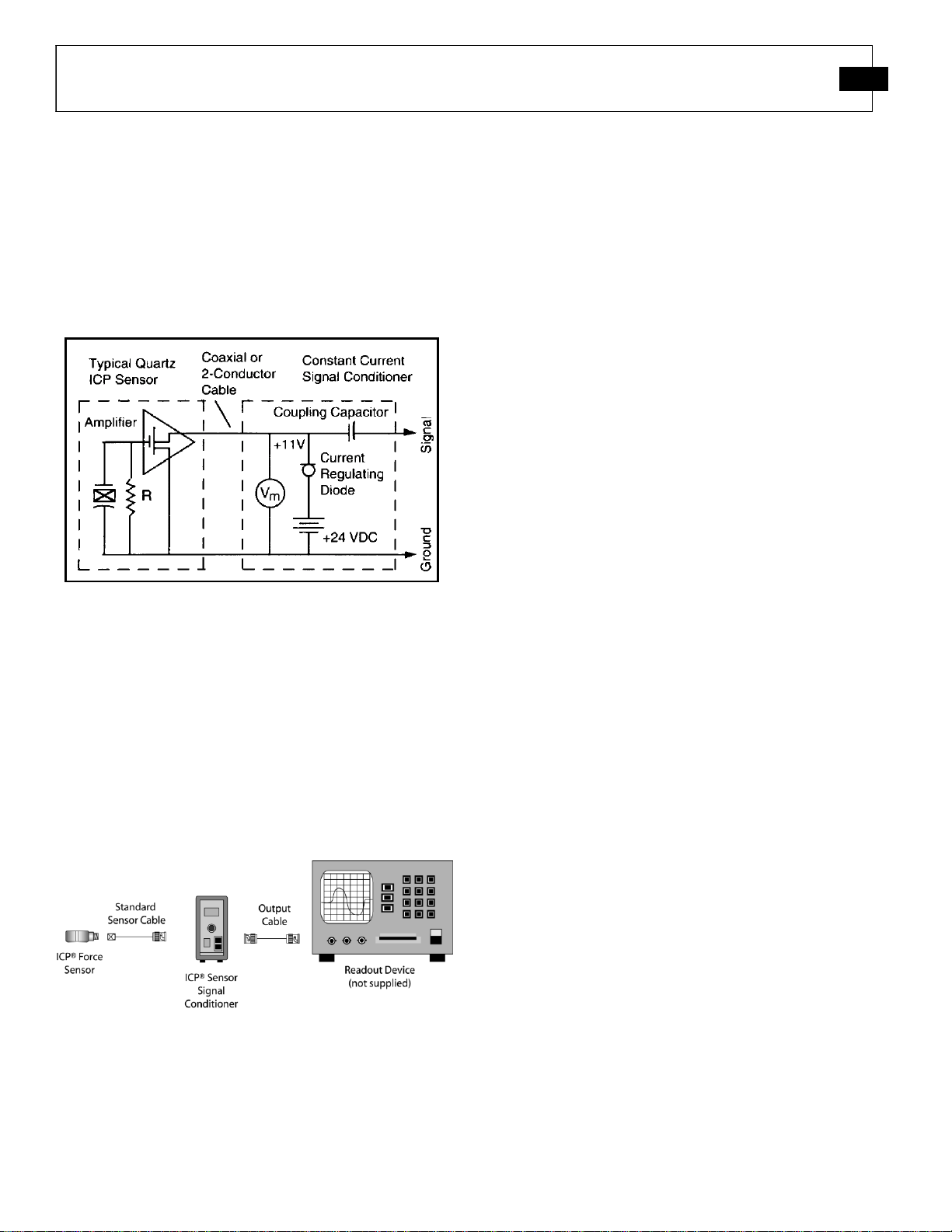

Figure 1 - ICPSensor System Schematic
Power to operate ICPsensors is generally in the form of a
low cost, 24-27 VDC, 2-20 mA constant current supply.
Figure 1 schematically illustrates a typical ICPsensor
system. PCB offers a number of AC or battery-powered, single
or multi-channel power/signal conditioners, with or without
gain capabilities for use with force sensors. In addition, many
data acquisition systems now incorporate constant current
power for directly powering ICPsensors. Because static
calibration or quasi-static short-term response lasting up to a
few seconds is often required, PCB manufactures signal

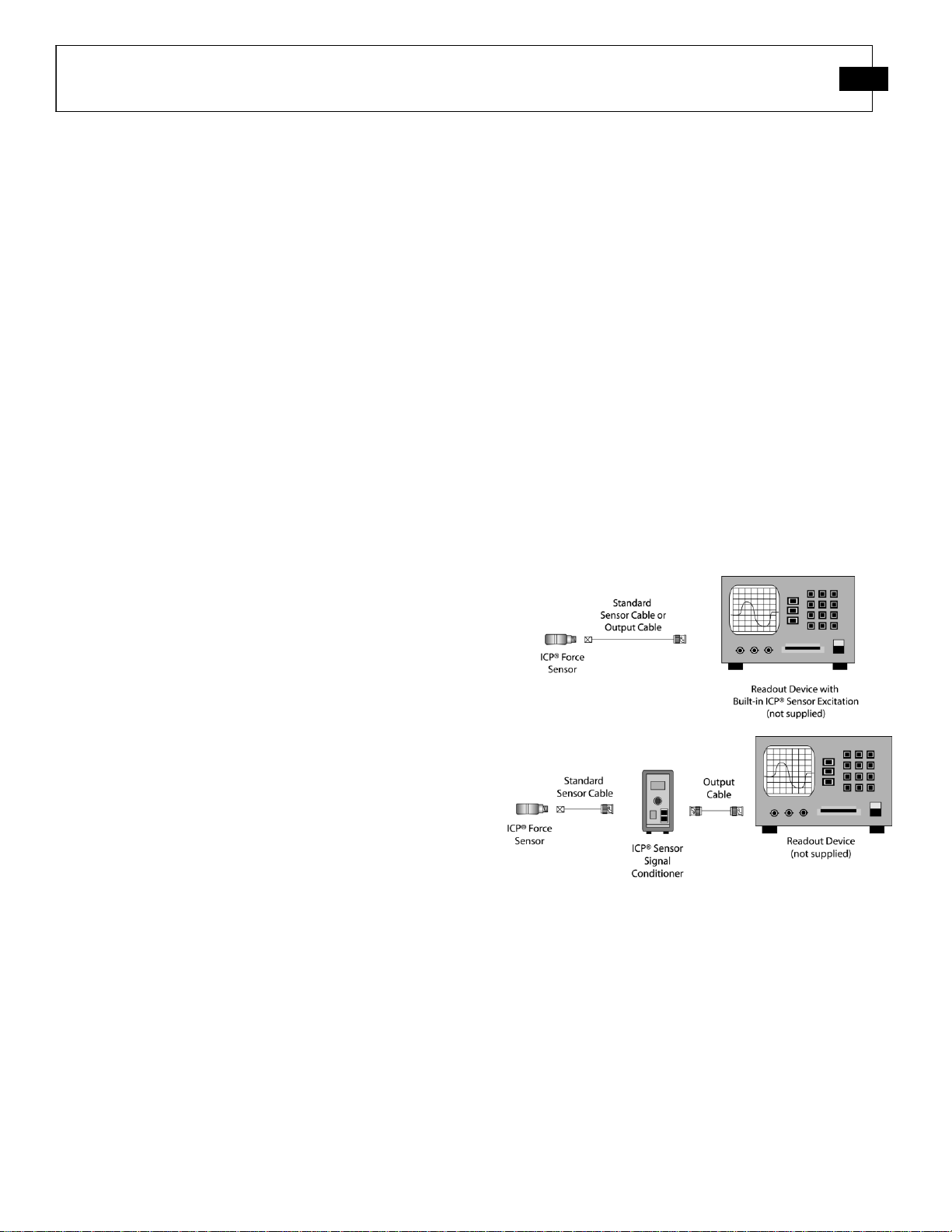

conditioners that provide DC coupling. Figure 2 summarizes
a complete 2-wire ICPsystem configuration.
Figure 2 Typical ICPSensor System
In addition to ease of operation, ICPforce sensors offer
significant advantages over charge mode types. Because of the
low impedance output and solid-state, hermetic construction,
ICPforce sensors are well suited for continuous, unattended
force monitoring in harsh factory environments. Also, ICP
sensor cost-per-channel is substantially lower, since they
operate through standard, low-cost coaxial cable, and do not
require expensive charge amplifiers.
Refer to the installation/outline drawing and specification
sheet at the back of this manual for details and dimensions of
the particular sensor model number(s) purchased. The
following pages give a brief description of the various sensor
series available, recommended mounting procedures,
operation and recommended calibration.
In addition to PCB’s line of ICP® sensors, each ICP® sensor
series outlined has corresponding charge output versions.
Charge mode versions with high output impedance are suited
for higher temperature, metal-to-metal and very high shock
applications. These models can also be used for applications
where it is desirable to manually set the output range.
In addition to standard products, PCB has the ability to design
and manufacture custom sensors/systems for specific
applications.
If questions arise regarding the operation or characteristics of
the force sensor products as outlined in this manual, feel free
to contact an experienced PCB applications engineer toll-free
at 1-800-828-8840.
2.0 DESCRIPTION
IMPACT
Series 200 Impact Sensors are designed to measure
compression and impact forces from a fraction of a lb(N) to
50,000 lbs (to 22.4 kN). The flat sensing surface located on
the top of the sensor is designed to measure a dynamic force
quickly applied axially to the sensor.
As highlighted in Figure 3 compression forces directed
against the sensing surface produce a positive-going output. A
tensile output could be obtained if a static, steady-state load
were applied to the sensor. The maximum tensile output to be
measured would be that of the applied static, steady state load
as that load is quickly removed.
This force-directed input and corresponding output will
provide a positive going output signal in ICPmodels and a
negative going output in charge mode sensors. If desired,
adding the prefix “N” to a model number upon order,
sometimes desired for charge mode models, will indicate
polarity reversal.

ICPFORCE SENSOR OPERATION MANUAL
2
Figure 3 - Series 200 ICPImpact Sensor
Polyimide film tape covers the cap surface to reduce high
frequency ringing associated with metal-to-metal impacts.
Internal mounting holes with uniform 10-32 threads are
prepared on each end of the sensor in the smaller models.
Two Model 081B05-mounting studs (M081B05 for metric
installation) are supplied. Larger ICP® Models 200C20 and
200C50, as well as charge mode model 210B50, have ¼-28
mounting provisions and are supplied with ¼-28 stud both
ends as well as a 1/4-28 to M6x1.0 for metric mounting.
Versions offering full-scale measurement ranges of 10 lb to
5000 lb compression (45 to 22kN) tension are available. For
higher ranges, consider the dedicated ring, link, or impact style
sensor configurations.
Applications include drop testing, machinery studies, punching
and forming operations, tensile testing, fatigue testing, fracture
analysis, and materials testing.
RINGS
Series 201B to 207C Ring Sensors are designed to measure
compression forces from a fraction of a lb(N) to 100,000 lbs
(to 444.8k N).
Each sensor is provided with a calibration certificate reflecting
the sensitivity of the sensor when calibrated with a PCB
supplied Beryllium Copper (BeCU)mounting stud. In the event
a customer is going to install the sensor in a fixture without a
mounting stud or with a stud of a stiffer material than the
supplied BeCu stud, the sensor sensitivity will be slightly
different.
Refer to Section 3 for recommended force ring mounting and
preload requirements.

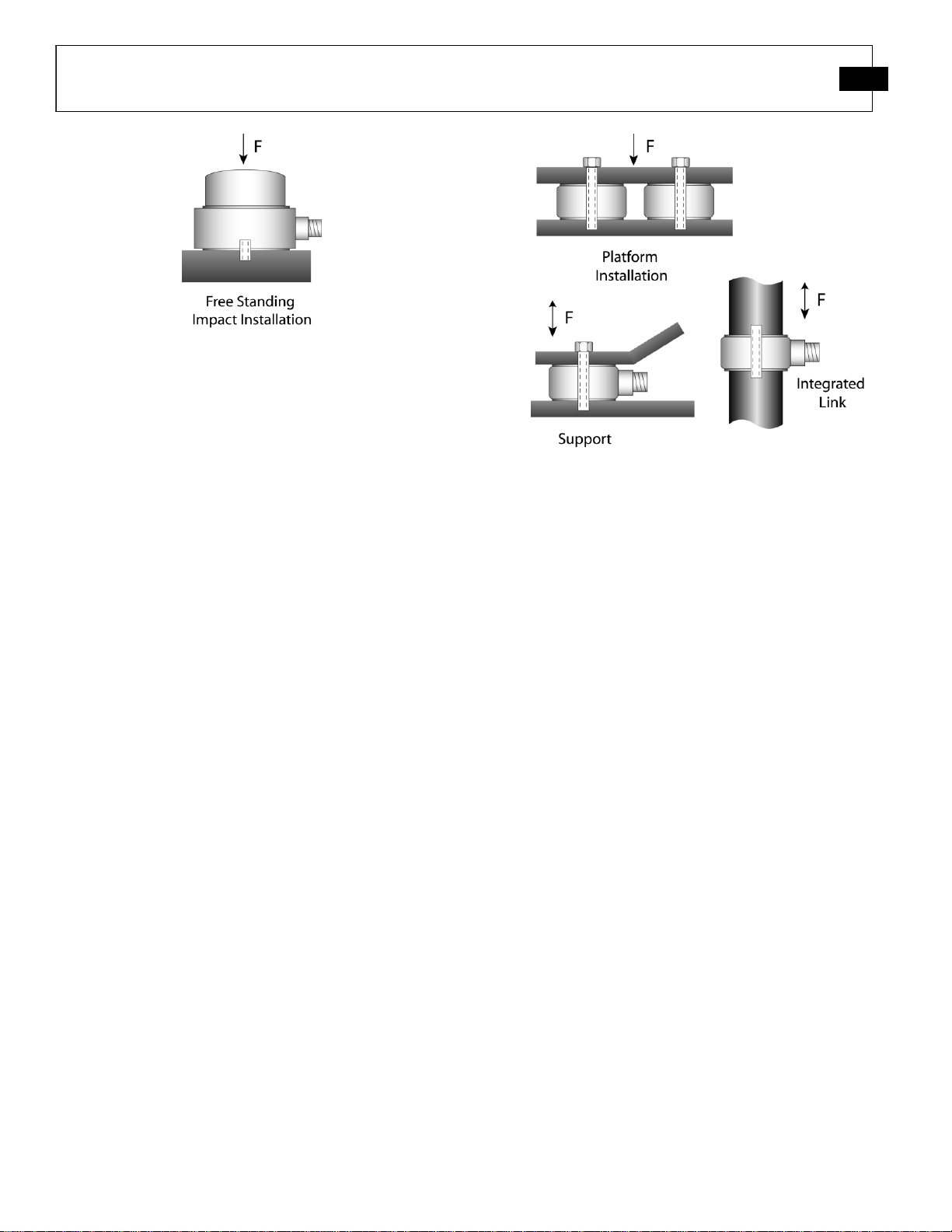

Figure 4 outlines some possible mounting configurations to
which the ring series may be installed
Figure 4 - Series 201 to 207 ICP® Ring Force Sensor
Possible Installation Methods
GENERAL PURPOSE - RADIAL
Model 208C01-C05 General Purpose Sensors are designed to
measure compression and impact forces from a fraction of a
lb(N) to 5,000 lbs (to 22.24 kN). Tension forces can be
measured to 500 lbs (2.224 kN). Model 084A03, a supplied
convex, stainless steel cap with integral 10-32 mounting stud,
converts this tension/compression model to a sensor capable of
impact measurements. Polyimide film tape covers the cap
surface to reduce high frequency ringing associated with
metal-to-metal impacts.
GENERAL PURPOSE - AXIAL
Models 208A11-A15 Axial Sensors provide performance and
specifications similar to the Model 208C Sensors. These
sensors are designed primarily to measure compression and
impact forces from a few pounds(N) to 5,000 lbs (to 22.24
kN). Tensile forces can be measured to 500 lbs (2.224 kN).
The 10-32 axial electrical connector orientation associated
with these sensors makes them ideal for installations where
radial space is restricted or where physical connector damage
may occur due to the nature of the specific application. The
M7 x 0.75-6g mounting threads (all models) may be installed
directly into a test structure so that the 10-32 electrical
connector exits from the opposite side of the mounting fixture.
This helps prevent potential damage during drop test
applications. This version also uses the Model 084A03 cap
for impact measurements.

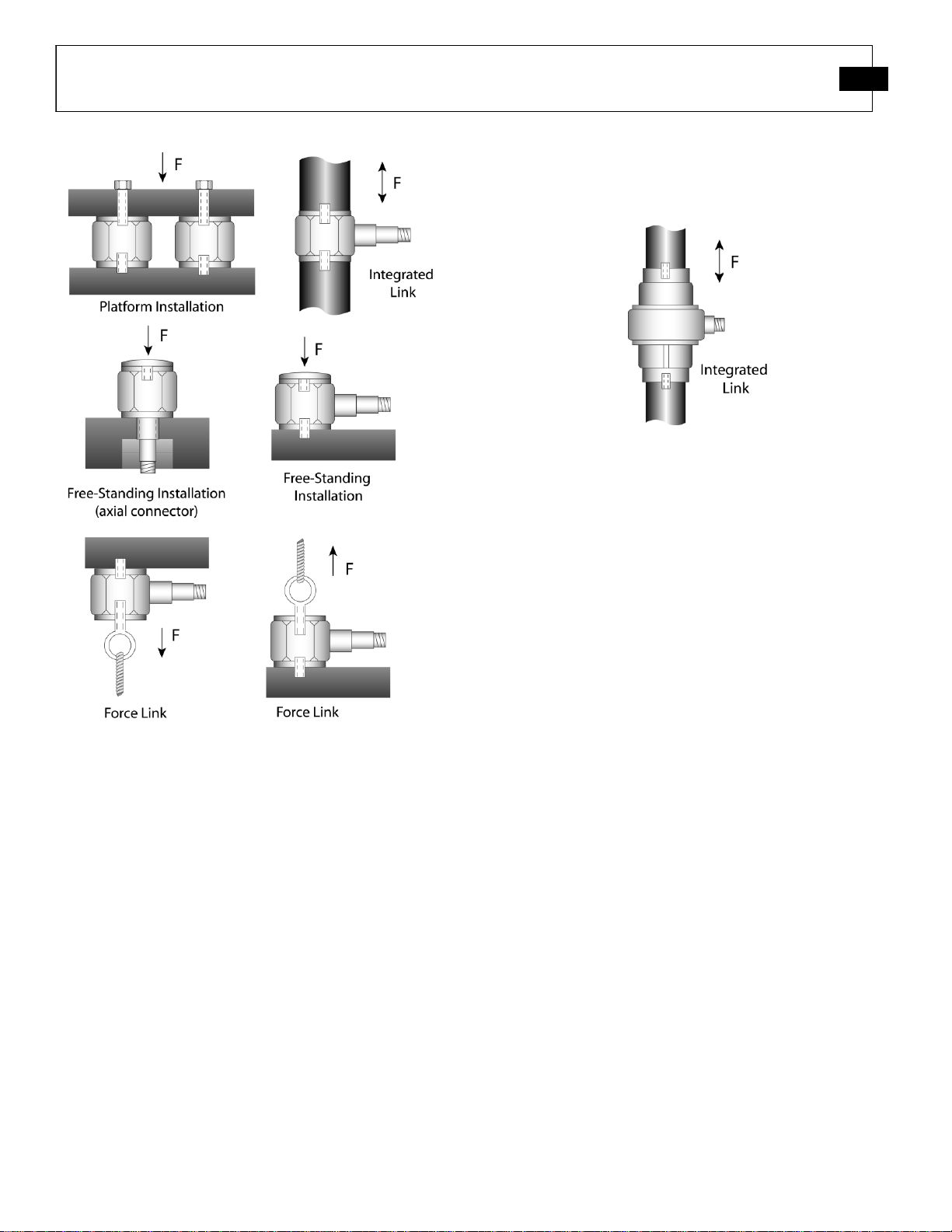

Figure 5 outlines some possible mounting configurations to
which the ring series may be installed

ICPFORCE SENSOR OPERATION MANUAL
3
Figure 5 - Series 208 General Purpose and Axial
Connector ICP® Force Sensor Installation Methods
LINKS
Series 221B to 227C ICPLink Sensors are designed for
measuring compression from a few pounds(N) to 50,000 lbs
(to 222.4 kN), and tension forces from a few pounds (N) to
30,000 lbs (to 133.4 kN). A link consists of a standard PCB
ring sensor preloaded between two hex end nuts. All hex nuts
are internally threaded for mounting ease to a customer test
structure. Unlike ring design sensors, additional external
preloading is not required as the factory installed external
mounting hardware places the sensor in a preloaded state.
The hex nuts do not loosen naturally. DO NOT ADJUST
THE NUTS WITH A WRENCH. Loosening or tightening
of the hex nuts will change the preload applied to the sensor.
The result is that the sensor output will no longer match the
factory supplied calibration certificate. In the unlikely event
the mounting hardware becomes loose, contact PCB’s service
and repair document for proper instructions for returning the
sensor to PCB for recalibration..
Figure 6 outlines some possible mounting configurations of the
link series of sensors.
Figure 6 –Series 221 to 227 ICP®Force Link Sensor
Mounting Method
3- COMPONENT TRIAX SENSORS
PCB’s line of 3-Component force sensors is capable of
simultaneously measuring force in three (3) orthogonal
directions (X, Y, and Z). Internally, three sets of quartz
crystals are cut, oriented and preloaded so the maximum
output from the crystal cut for the specific plane is obtained
when a force is applied axially to the specific x, y or z plane.
Sensor output from loads applied in the alternate, transverse
planes(considered channel cross-talk) is negligible as the
crystal sets are cut for maximum output in a specific plane.
Optimum performance and linear operation of 3-component
force sensors is obtained when a preload is applied to the
sensor. Versions are available with ranges up to 10K lb
(45kN) in the Z-axis (perpendicular to the top surface), and up
to 4,000 lbs (18kN) in the X and Y (shear) axes.
There are two modes of triaxial force sensors. ICPtriaxial
designs utilize built-in microelectronic circuitry that provides a
low-impedance voltage, the electrical output of which is
passed to external signal conditioning via one multi-pin
connector mounted on the sensor housing This design
mechanically has one 4-pin electrical connector that may be
coupled to a single multi-conductor sensor cable.
High impedance charge mode models contain three (3)
separate electrical output connectors on the sensor housing,
each corresponding to the respective x, y, or z axis. Low noise
cables should be used in low impedance system arrangements.
These models are ideal for use in harsh industrial or high
temperature environments.

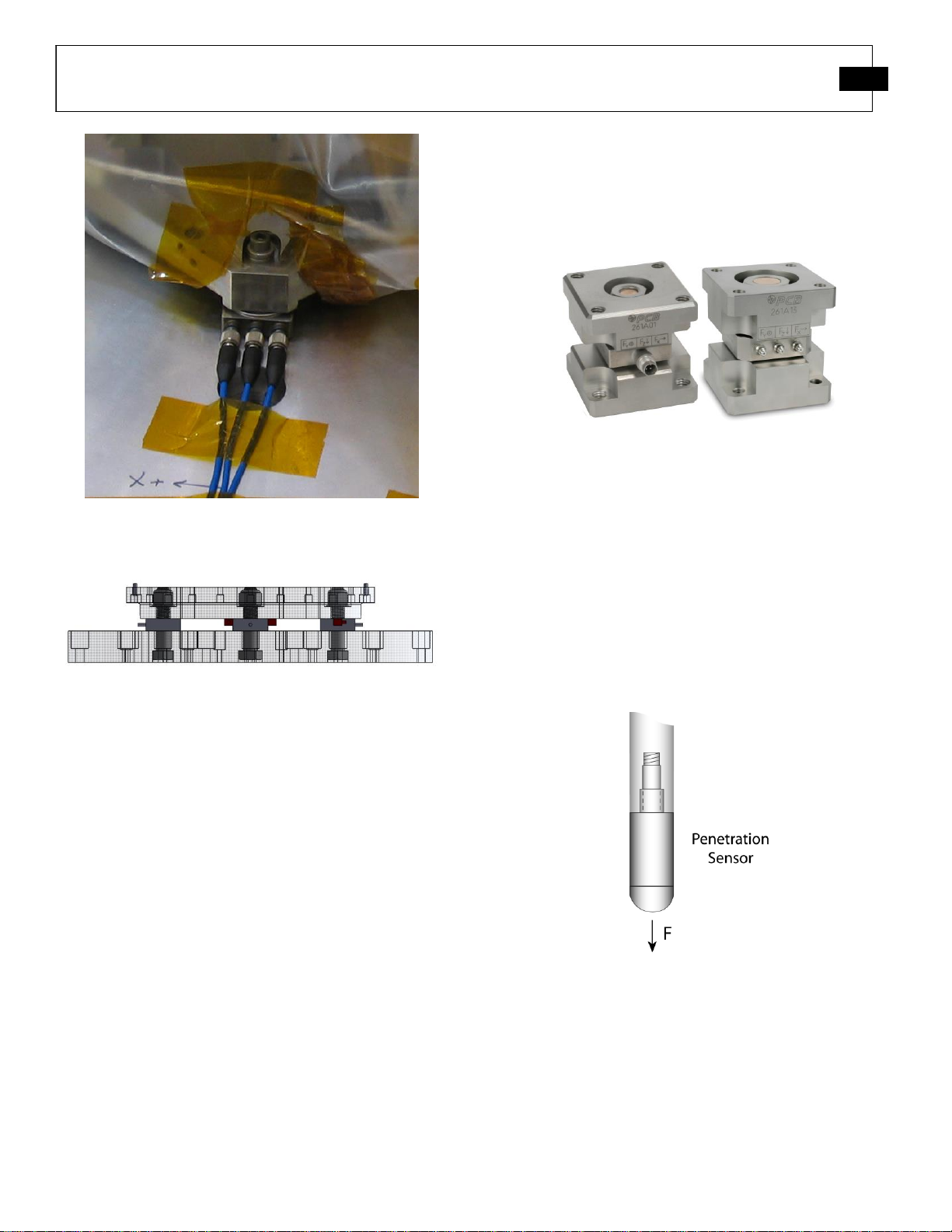

Figure 7 outlines installation possibilities of triax force
sensors.

ICPFORCE SENSOR OPERATION MANUAL
4
Figure 7 - Series 260 Mounting 3-Component
Force Sensor
3-COMPONENT LINK TRIAX SENSORS
Series 261 3-component force sensors are designed for
measuring z-axis compression loads from a fraction of a
pound(N) to 10,000 lbs (to 45 kN), and x and y-axis radial
forces from a few pounds (N) to 4,000 lbs (to 18 kN).
These sensors are designed to simultaneously monitor three
measurements in the x, y, and z-planes. Similar to the
piezoelectric link series, this series consists of a triaxial force
sensor factory installed and preloaded between mounting
hardware. Additional customer applied preload during
installation is not required.
The mounting hardware does not loosen naturally. DO NOT
ADJUST THE MOUNTING HARDWARE as loosening or
tightening of the hardware will change the preload applied to
the sensor. Changes to the preload result in changes the
factory supplied calibration. In the unlikely event the
mounting hardware becomes loose, contact PCB’s service and
repair document for proper instructions for returning the
sensor to PCB for recalibration.
Figure 8 –SERIES 3-COMPONENT TRIAX FORCE
SENSORS
PENETRATION
Penetration style sensors are similar to the axial models but are
specifically designed for compression and impact force
measurements in materials testing applications. Smooth,
cylindrical housings and curved impact caps avoid cutting
through specimens. This enables measurements to be taken to
determine yield, deformation, and break point measurements
of polymers, composites, and other materials. The axial
connector configuration installs into force thruster apparatus
and protects the connector from potential damage. Versions
offering full-scale measurements to 5,000 lb (to 22.24kN) are
available. Tension measurements are possible with units
having removable caps.
Figure 9 - Series 208A20 ICPPenetration Force Sensor
MINIATURE/HIGH SENSITIVITY
Series 209 Miniature Sensitivity Sensors permit low
amplitude, dynamic compression, tension, and impact force
measurements. A full-scale measurement range to 2.2 lbs
(9.79 N) compression and to 1 lb (to 4.45 N) tension is
standard. Two configurations are available, one with a tapped
mounting hole and impact cap, and the other with tapped holes
ICP®version Charge mode version

ICPFORCE SENSOR OPERATION MANUAL
5
on both ends of the sensor. Link, integrated link, and
freestanding installations are possible as outlined in Figure 9.
Caution –Bending moment concerns
In this model, axial application of forces is critical during
measurements due to the sensitivity to bending moments. This
sensor series has a very high output (2200mV/lb, 500mV/N)
so care should be taken that applied forces are axial to prevent
unwanted output (noise) due to bending moments. In addition,
the “hat” applied to certain models enabling direct tensile
measurements is very small. Axial loads or excessive masses
applied to this “hat” could cause it to break away from the
main sensor body.
Due to its highly sensitive characteristic, Series 209 sensors
may be susceptible to thermal drift caused by temperature
transients. These sensors are recommended for use in
temperature stable environments only.
Figure 10 - Series 209 Miniature/High Sensitivity
ICPForce Sensor
3.0 INSTALLATION
Refer to the Installation Drawing supplied with this manual for
specific outline dimensions and installation details for your
particular model. The specification is also included to provide
details of the sensor’s characteristic properties.
It is important that the surface to which each sensor is mounted
be perfectly flat to avoid flexing of the base, which could
affect sensor sensitivity and result in erroneous data (see
Figure 11). A good mating surface may be obtained by
lapping, turning, spot-facing, or surface grinding. Surface
flatness should be held to within 0.001 (TIR) over the entire
mating surface. When mounting sensors between two plates
care should be taken to assure mounting surfaces are flat and
parallel. Non-parallel surfaces could place unwanted stress on
internal components leading to premature sensor failure. The
protective cap should remain on the electrical connector during
installation to prevent connector contamination or damage.
Figure 11 - Force Sensor Installation
A light coating of silicon grease (DC-4 or equivalent) on the
mating surface enhances the coupling between the mounting
base and mounting surface and provides the best high-
frequency response.
Connect one end of the coaxial cable to the sensor connector
and the other end to the XDCR jack input on the signal
conditioner. Make sure to tighten the cable connector to the
sensor. DO NOT spin the sensor onto the cable, as this
fatigues the cable’s center pin, resulting in a signal with a
shorted output or intermittent signal and a damaged cable.
For installation in dirty, humid, or rugged environments, it is
suggested that the electrical connection be shielded against
dust or moisture with shrink tubing or other protective
material. Strain relieving the cable/sensor connection can also
prolong cable life. Mounting cables to a test structure with
tape, clamps, or adhesives minimizes cable whip. See Figure
12 for an example of a sensor installation with a securely
fastened cable.
CAUTION!
Please read all instructions before attempting to
operate this product.
Damage to built-in amplifier
due to incorrect power or misapplication is NOT
covered by warranty

ICPFORCE SENSOR OPERATION MANUAL
6

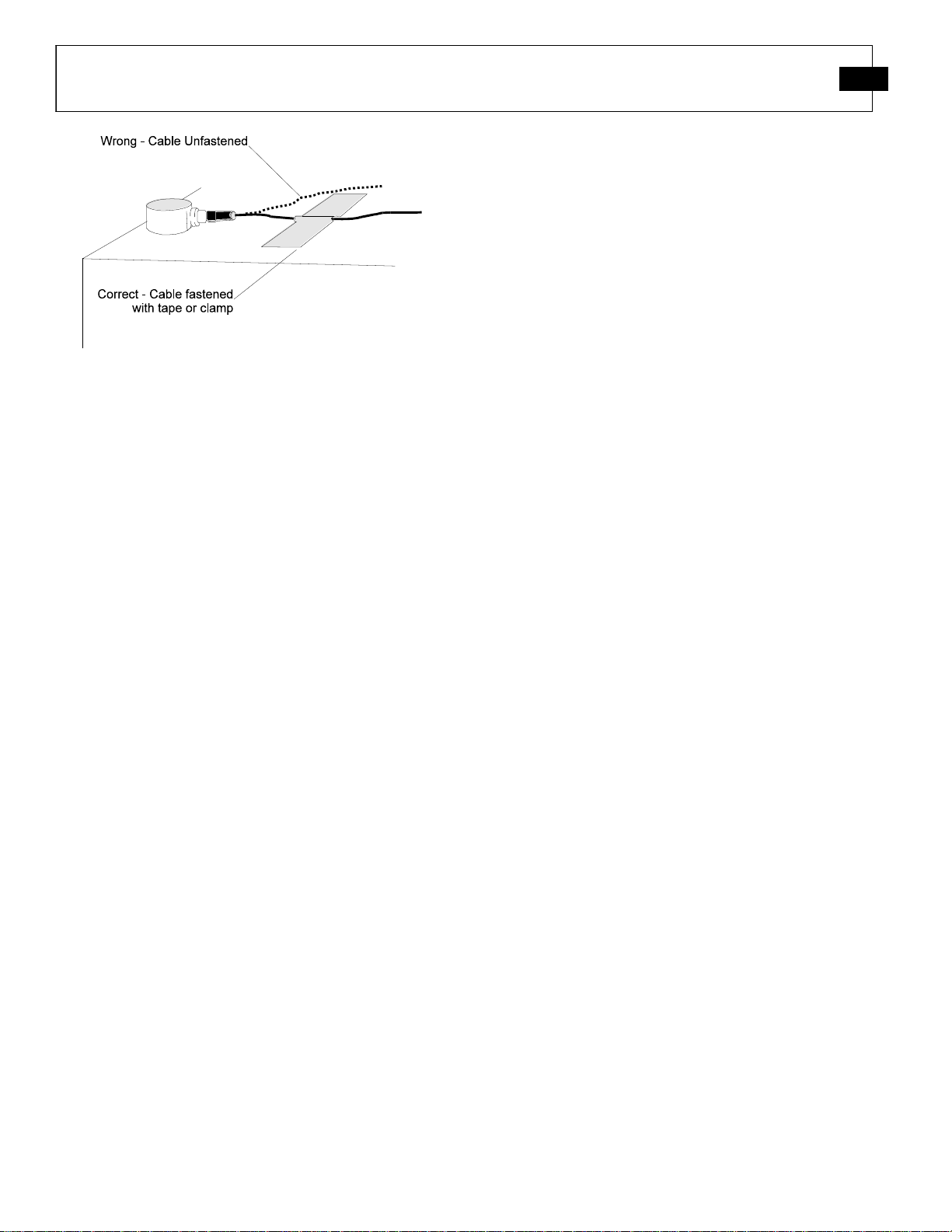

Figure 12 - Cable Strain Relief

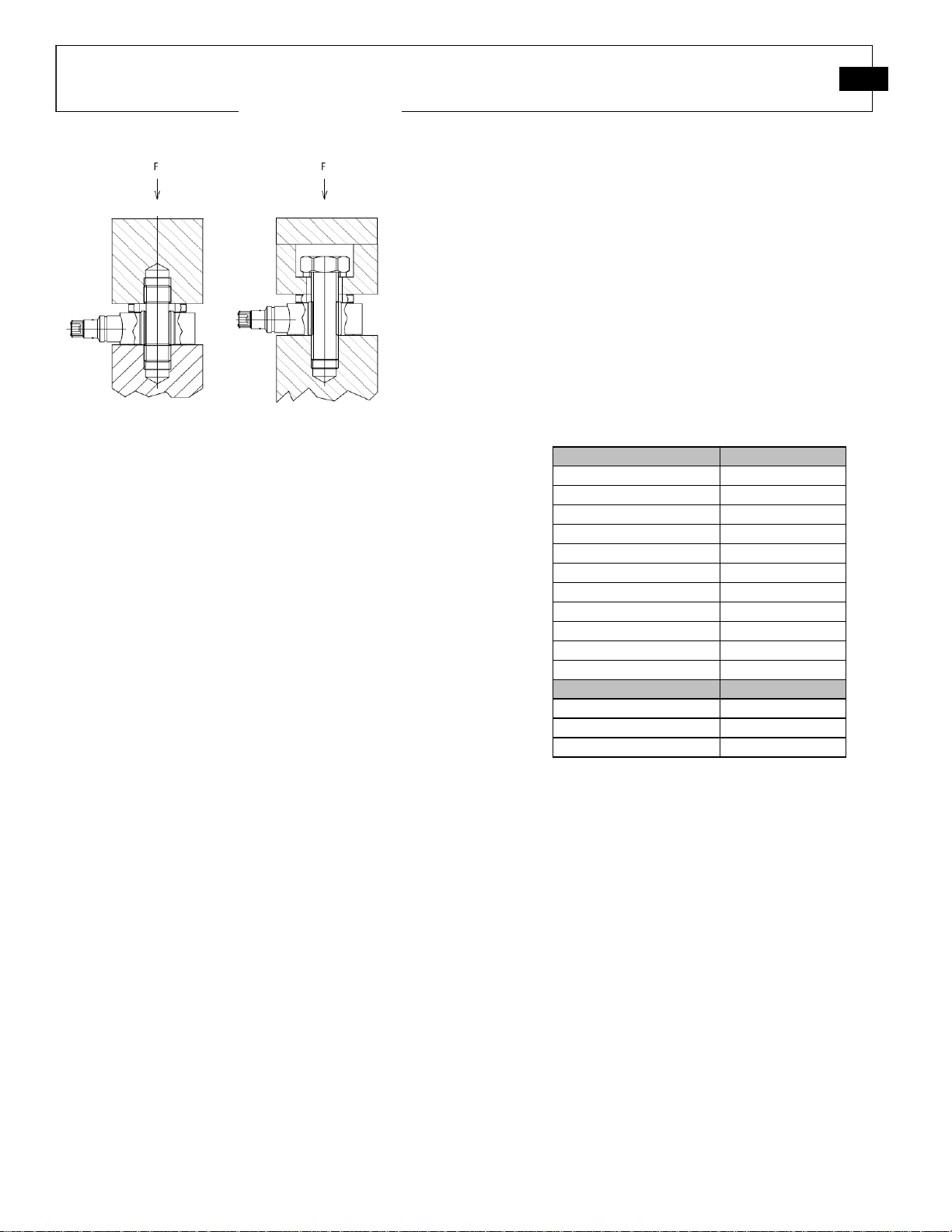

FORCE RING INSTALLATION
The sensor is mounted using the supplied mounting stud and
pilot bushing. The supplied beryllium copper (BeCu) stud is
elastic so it allows force transmission to the sensor while
holding the sensor in place. The pilot bushing centers the
sensor about the mounting stud. After installing the mounting
stud in the lower of the two surfaces, the pilot bushing is
threaded over the mounting stud. The sensor is then placed
over the stud and pilot bushing combination. The pilot
bushing should fit loosely inside of the sensor inner diameter,
holding it in place. Properly machined holes for the mounting
stud will ensure proper vertical orientation of the sensor. The
upper surface should be installed and tightened onto the
mounting stud. Refer to the installation drawing for additional
mounting details.
When installing the sensor as an integrated member, it is
recommended that the supplied antifriction washers be used to
eliminate the possibility of damage to the sensing surface of
the sensor. This type of damage may occur when
imperfections in the mounting surface grind against the sensor
surface while the mounting surfaces are being twisted during
installation. Refer to the installation drawing for additional
mounting details.
PRELOAD REQUIREMENTS FOR FORCE RING AND
3-COMPONENT FORCE SENSORS
PCB ICPForce Rings (Models 201B01 through 207C) and
3-Component Force Sensors (Models 260A01 through A03)
are generally installed between two parts of a test structure, as
shown in Figure 4. During installation, the sensor should be
pre-loaded to the amount specified on the specification sheet
using the supplied elastic beryllium-copper stud. Preloading
in this arrangement ensures that the sensor will perform as
calibrated and have good output linearity at the sensor’s lower
operating range. Use of a mounting stud of stiffer material or
no stud will alter PCB calibrated sensitivity.
The stud or bolt holds the structure together and applies
preload to the force ring as shown in Figure 13. In the typical
link installation, shown on the left in Figure 13, part of the
force between the two structures is shunted through the
mounting stud. The amount of force shunted is dependent on
the stud material, but may be up to 5% of the total force for the
beryllium-copper stud supplied with the sensor and up to 50%
for steel studs. This typical installation setup is used by PCB
during standard calibrations of force ring models 201B01
through 207C. PCB’s standard calibration, when using the
BeCu stud, takes this shunted force into account with the final
calibration value.
A non-typical installation is shown on the right side of Figure
13. In this installation, the stud or bolt used to apply the
preload does not shunt part of the applied force. The plate on
top of the sensor has a clearance hole that the stud or bolt
passes through. In this installation, the stud or bolt is not
directly connected to the top plate by its threads, as it is in the
typical installation, so it does not shunt any force. This non-
typical installation setup is used by PCB during standard
calibrations of 3-component sensors. This method of
installation accommodates mounting a group of sensors under
a common plate.
NOTE: If any of the following conditions apply to the
preloading of the force ring in the actual application, the
sensitivity and linearity performance of the sensor will not
match the standard PCB calibration values.
1. Use of a stud or bolt other than the supplied
beryllium-copper stud.
2. Use of no stud or bolt.
3. Use of an amount of preload other than the
recommended amount.
4. Use of installation that is different from PCB setup
during calibration.
5. On rare occasions, a ring sensor may be installed
WITHOUT a mounting stud (as installed in precise
fixture). In these cases, the sensor sensitivity will be
HIGHER than that shown on the PCB calibration
certificate.
In these cases, please contact a PCB applications engineer at
800-828-8840 of the intended installation to discuss your
special calibration requirements. PCB can calibrate the
sensor without a stud OR ask that a customer supplied
mounting stud be provided for use in PCB’s calibration
process.

ICPFORCE SENSOR OPERATION MANUAL
7
Figure 13 - Force Ring Sensor Installations
PCB in-house calibration procedure requires the installation of
a force ring with BeCu stud, in the typical installation setup
above. This sensor is then placed in series with a NIST
traceable reference sensor. Generally, a preload of 20% (full
scale operating range of the force ring) is applied before
recording of measurement data. Allow the static component of
the signal to discharge before calibration.
3-component force sensors must be preloaded to achieve
proper operation, particularly for the shear x-, and y-axis. This
preload provides the sensing crystals with the compressive
loading required to achieve an output in response to shear
direction input forces. The recommended applied preload in
the z-axis for 3-component force sensors is 10 times the
desired measurement range in the x or y-axis. This higher
level z-axis preload is required as the resultant output in the x
and y axis is a result of friction generated on the internal
crystals specifically cut to provide output in the x or y axis.
As an example, to maximize the sensors output in all three
(3ea) axis of a 1000 lb (4500 N) triax load cell, a preload of
5000 lbs (22K) should be applied, This will enable
measurements in the x and y axis to be 500 lbs (2225 N).
Please refer to the specific model specifications for the
recommended preload. A preload chart in Figure 14 is also
provided for quick reference.
As with force rings, the sensitivity achieved from a 3-
component force sensor is dependent upon the applied preload
and the elasticity characteristics of the mounting bolt or stud
used. If the unit is to be installed with a stud or bolt other than
the supplied elastic, beryllium copper stud, a calibration using
the actual mounting hardware is recommended to be
performed. Errors in sensitivity of up to 50% can result by
utilizing studs or bolts of different materials.
When installing ICPring and 3-component type sensors, a
PCB signal conditioner with at least one channel of DC
coupling capability is recommended to properly monitor
sensor output voltage as it corresponds to the desired preload.
A DC-coupled signal conditioner will provide a longer system
discharge time constant, which will result in slower signal
decay. When used with a DVM or similar readout device, the
installer can monitor the sensor output voltage directly for
correct preloading.
Monitor the output from the Z-axis connector when
preloading 3-component type sensors. These sensors require a
preload in the Z-axis that is 10 times their shear range. Some
models require this to be accomplished in steps, not to exceed
the usable voltage. To prevent “clipping” of the signal,
increments should not exceed 10 VDC.
Force Ring Models
Pre-Load (lbs)
201B01
60
201B02
100
201B03
200
201B04
400
201B05
1,000
202B
2,000
203B
4,000
204C
8,000
205C
12,000
206C
16,000
207C
33,750
3-Component Models
260A01
5,000
260A02
10,000
260A03
40,000
Figure 14 - ICPForce Sensor Preload Requirements
WORKING RANGE, PRELOAD, AND MAXIMUM
LOAD RELATIONSHIP IN RING STYLE and Triaxial
FORCE SENSORS
The Working Range is the ideal dynamic working load that
may be applied to a sensor during operation. In most sensors,
the product of the working range and the sensor sensitivity will
provide a 5 Volt output, following the equation;
5Volts = range x sensitivity.
The Sensor Preload is the load applied to the sensor before
the sensor is used in an operation. In ring and triax models,
preload is essential to match PCB’s calibrated sensitivity as
well it assure sensor linearity at the lower measurement range.
The Maximum Load is the dynamic load that may be applied
before the sensor approaches physical damage. In some
sensors this value is a result of a mechanical limitation. In
Typical Link Installation
Non-Typical Installation
Used for Force Limited
Vibration Testing

ICPFORCE SENSOR OPERATION MANUAL
8
ICP® models this may be an electrical limitation (applying an
excessive load under sudden dynamic condition outside the
specified range may damage the internal electronic circuitry).
With most sensors, the specified dynamic working range and
maximum compression is riding ON TOP OF the applied
preload. As an example, triax force sensor Model 260A01
has a specified preload of 5000 lbs (22kN), a working range of
1000 lb (4500N), and a maximum compression range of 1320
lbs (6000 N). To provide the best linear response of the sensor,
a 5000 lbs (22kN) preload should be loaded on it. From there
one may take dynamic measurements through the entire 1000
lb (4500N) working range of the sensor. Dynamically one
should not take measurements above 1320 lbs (6000) as this
total load value approaches physical damage to the sensor.
5.0 OPERATION
APPLICATION OF A FORCE
For best results, the applied force should be distributed evenly
over the contact surface of the sensor. Care should be taken to
limit the bending moment induced into the sensor by edge
loading or off-axis loading of the sensor. This is accomplished
by applying a force to the sensor as close as possible to the
center of the sensor. In the event sensor is to be installed to
measure a unit under test with a much larger area than that of
the sensing surface of sensor, such as a large metal plate, it
may be necessary to use an arrangement of two to four sensors
in a measuring platform. Independent sensor output can be
monitored or the sensors can be connected electrically in
parallel to measure the resulting summed forces when used in
a multiple sensor type arrangement.
TYPICAL ICPSYSTEM CONFIGURATION
Sensors with built-in ICPcircuitry require a constant-current
excitation voltage for operation. The enclosed specification
sheet provides specific power requirements. Required supply
voltage is normally 20 to 30 VDC, while the constant current
required ranges from 2 to 20 mA.
PCB standard battery-powered signal conditioners are factory
set at 2 mA and may be used to adequately drive a 5.5 kHz
signal using a typical PCB 29 pF/ft. cable to a desired 5-Volt
full scale output, or about 175 feet (53 meters). PCB line
signal supplies are factory set at 4 mA (and adjustable from 2
to 20 mA), enabling signals to be transmitted over hundreds of
feet (meters), depending on the frequency of interest.
It is necessary to supply the sensor with a 2 to 20 mA constant
current at +20 to +30 VDC through a current-regulating diode
or equivalent circuit, contained in all PCB signal conditioners.
See Guide G-0001B for powering and signal conditioning
information pertaining to all ICPinstrumentation.
Most of the line powered signal conditioners manufactured by
PCB have an adjustable current feature allowing a choice of
input currents from 2 to 20 mA. In general, for lowest noise
(best resolution), choose the lower current ranges. When
driving long cables (to several thousand feet(meters)), use
higher current, up to 20 mA maximum. Consult a factory
applications engineer or local distributor to determine if higher
current settings are required.
For sensor operation, connect the sensor to the signal
conditioner as shown in the typical ICPsensor systems
below. Compete system operation requires the connection of
the force sensor to a signal conditioner, then to a readout
device (oscilloscope, meter, recorder, or A-to-D board) or to a
readout device with built-in ICPsensor excitation. Insert the
cable center pin into the sensor electrical receptacle. Tighten
the coaxial cable to the sensor by turning the cable nut by hand
to ensure good electrical contact. Do not spin the sensor
onto the cable as this will fatigue the electrical center pin
resulting in an intermittent connector or damaged cable.
Figure 15 - Typical ICPSystem Configurations
6.0 POLARITY
Compressive forces upon an ICPforce sensor produce a
positive-going voltage output. Tensile forces produce a
negative-going voltage output. Sensors with reversed polarity
are available upon request.

ICPFORCE SENSOR OPERATION MANUAL
9
7.0 LOW-FREQUENCY MONITORING
Force sensors used for applications in short term, steady state
monitoring, such as sensor calibration, or short term, quasi-
static testing should be powered by signal conditioners that
operate in DC-coupled mode. PCB Series 482 and 484 Signal
Conditioner operates in either AC or DC-coupled mode and
may be supplied with gain features or a zero “clamped” output
often necessary in repetitive, positive polarity pulse train
applications.
If you wish to learn more about ICPsensors, consult PCB’s
General Signal Conditioning Guide, a brochure outlining the
technical specifics associated with piezoelectric sensorsThis
brochure is available from PCB’s website at:
http://www.pcb.com/techsupport/tech_signal or from PCB by
request, free of charge.
8.0 DISCHARGE TIME CONSTANT
The discharge time constant (DTC) of the entire transduction
system from sensor to readout must be considered when
attempting to calibrate an ICP force sensor by static methods.
In order to take full advantage of the long DTC built into the
force sensor, it is best to DC couple from the sensor to the
readout device. Several dual-mode PCB signal conditioners
(e.g., Series 484) use direct coupling techniques to decouple
the output signal from the sensor bias voltage. With the output
of the signal conditioner coupled to a DC readout, such as a
digital voltmeter (DVM) or oscilloscope, the time constant of
the sensor is not compromised by AC coupling elsewhere
within the system.
When DC coupling is required to maximize a sensors DTC in
low frequency applications, it is important to DC couple the
entire system, not just from the sensor to the signal
conditioner. The system time constant is determined by the
shortest time constant in the system. For this reason, the
readout device as well as the signal conditioner must be DC
coupled.
Figure 16 - Characteristic Discharge Time Constant Curve
The discharge time constant represents the decay rate of an
input signal. One DTC represents the amount of time taken for
the signal to decay to 37% of the initial peak value. As
illustrated in Figure 16, this is an exponential decay.
Approximately five DTC intervals are needed for a peak signal
to naturally decay back to zero.
The rule of thumb for signal discharge, as outlined in Figure
17, is this: for the first 10% of the DTC, the signal lost is
approximately proportional to the time elapsed.
Figure 17 - Step Function Response
Step Function Response
For example, a sensor with a 500-second DTC loses
approximately 1% of its output level the first five seconds (1%
of 500) after the application of a steady state force within the
measuring range. In this case, the output reading must be
taken within five seconds of the force application for 1%
accuracy. If it is impossible to avoid AC coupling somewhere
in the sensing system, try to keep the coupling DTC at least an
order of magnitude longer than the DTC of the force sensor.
This avoids compromising the sensor DTC.
9.0 CALIBRATION
A NIST (National Institute of Standards and Technology)
traceable calibration graph is supplied with each force sensor
certifying its voltage sensitivity (mV/lb). Calibration
procedures follow accepted guidelines as recommended by
ANSI (American National Standards Institute), ISA
(Instrument Society of America), and ISO (International
Organization for Standardization). These standards provide
the establishment and management of complete calibration
systems, thus controlling the accuracy of a sensor’s
specifications by controlling measuring and test equipment
accuracy. PCB is A2LA accredited for technical competence
in the field of calibration, meeting the requirements of
ISO/IEC 17025-1999 and ANSI/NCSL 2540-1-1994.

ICPFORCE SENSOR OPERATION MANUAL
10

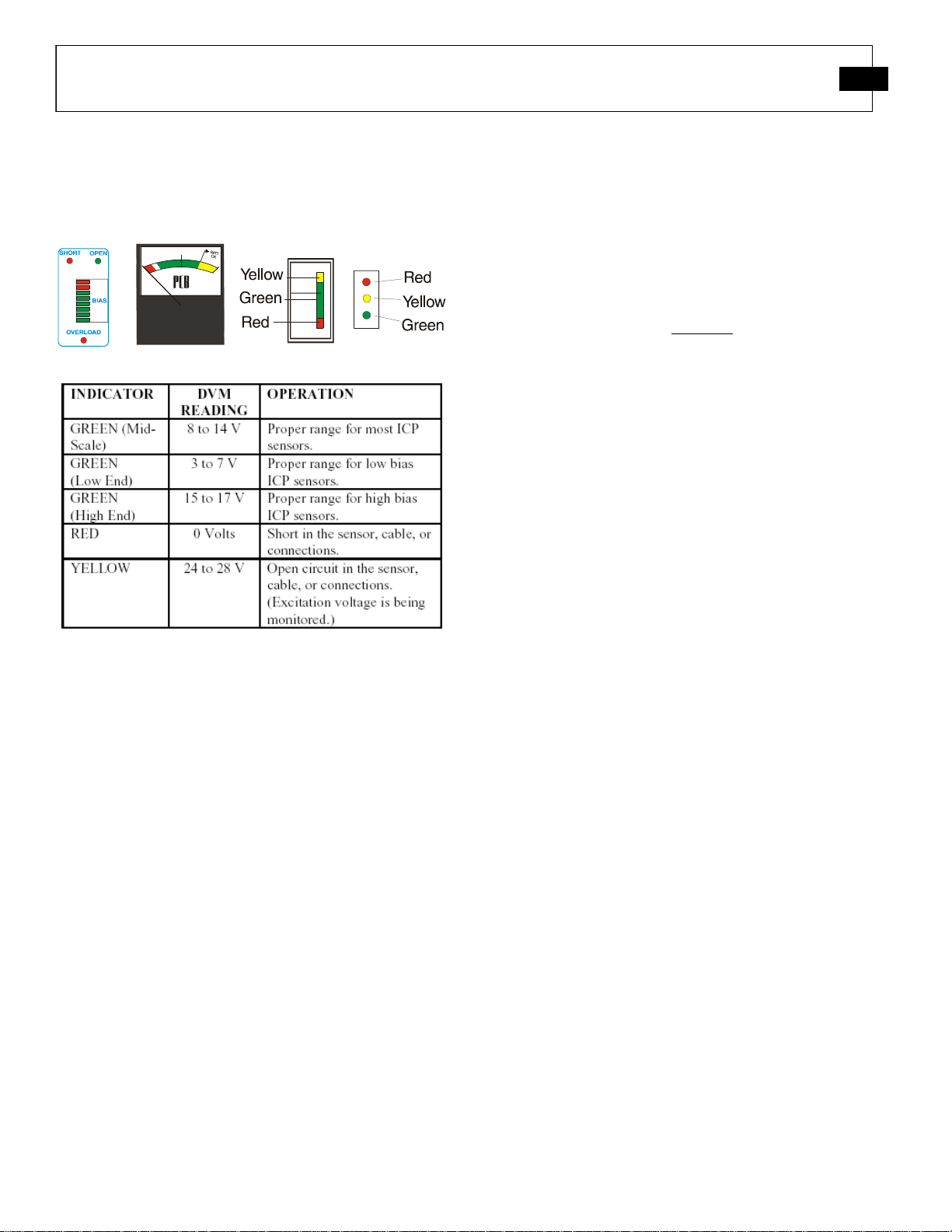

10.0 TROUBLESHOOTING
When a PCB signal conditioner with any of the following
indicators are used, turn the power on and observe the
voltmeter (or LED’s) on the front panel.
NORMAL OPERATION
Output voltage moves from YELLOW to GREEN slowly until
charging is complete. AC coupled signal conditioners require
sufficient time to charge the internal coupling capacitor.
Allow signal conditioner to charge for five (5) discharge time
constants for stable operation. In most cases, this is just a few
seconds.
Note: Most PCB force sensors have an output bias of 8-14
VDC. Refer to the specification sheet in this manual for the
bias range of the model you are using. If you are using a low
bias sensor, the indicator will be at the bottom end of the green
portion of the dial indicator, and may even be in the red
portion. This is the expected range and indicates proper
operation.
11.0 MAINTENANCE
The sensor connector must be kept clean, especially if it is
operating in a dusty and/or wet environment. Because the
force sensor is of welded construction, it should be returned to
the factory for servicing in the event of serious malfunction.
Observe the following precautions in using the sensor:
A. Do not exceed the maximum load levels for the force
sensor (see specification sheet).
B. Do not subject the sensor to temperatures exceeding
that of the specification, normally 250°F (121°C).
C. Do not apply voltage to the sensor without current-
limiting diodes or other current protection.
D. Do not apply more than 20 mA of current to the force
sensor.
E. When mounting the force sensor, observe installation
procedures detailed in Section 3.0 and as outlined on
the specific sensor Installation Drawing to avoid over-
torquing when mounting.
F. Do not apply more than 30 volts to the sensor.
G. Avoid metal-to-metal impacts during applications as
this application produces high-frequency energy and
ringing within the sensor which could damage the
internal crystal(s) or ICP amplifier. Electrical low-pass
filtering or a mechanical damping material can help
reduce such effects.
H. Do not spin the sensor onto the cable. This may fatigue
the cable center pin, causing cable damage. Always
insert the cable pin into the sensor and tighten the
knurled cable nut to the sensor.
ICPis a registered trademark of PCB Piezotronics
MANUAL NUMBER: 18218
MANUAL REVISION: G
ECN NUMBER: 46192

The information contained in this document supersedes all similar information that
may be found elsewhere in this manual.
Service –Due to the sophisticated
nature of the sensors and associated
instrumentation provided by PCB
Piezotronics, user servicing or repair is
not recommended and, if attempted,
may void the factory warranty. Routine
maintenance, such as the cleaning of
electrical connectors, housings, and
mounting surfaces with solutions and
techniques that will not harm the
physical material of construction, is
acceptable. Caution should be observed
to ensure that liquids are not permitted
to migrate into devices that are not
hermetically sealed. Such devices
should only be wiped with a dampened
cloth and never submerged or have
liquids poured upon them.
Repair –In the event that equipment
becomes damaged or ceases to
operate, arrangements should be made
to return the equipment to PCB
Piezotronics for repair. User servicing or
repair is not recommended and, if
attempted, may void the factory
warranty.
Calibration –Routine calibration of
sensors and associated instrumentation
is recommended as this helps build
confidence in measurement accuracy
and acquired data. Equipment
calibration cycles are typically
established by the users own quality
regimen. When in doubt about a
calibration cycle, a good “rule of thumb”
is to recalibrate on an annual basis. It is
also good practice to recalibrate after
exposure to any severe temperature
extreme, shock, load, or other
environmental influence, or prior to any
critical test.
PCB Piezotronics maintains an ISO-
9001 certified metrology laboratory and
offers calibration services, which are
accredited by A2LA to ISO/IEC 17025,
with full traceability to SI through
N.I.S.T. In addition to the normally
supplied calibration, special testing is
also available, such as: sensitivity at
elevated or cryogenic temperatures,
phase response, extended high or low
frequency response, extended range,
leak testing, hydrostatic pressure
testing, and others. For information on
standard recalibration services or
special testing, contact your local PCB
Piezotronics distributor, sales
representative, or factory customer
service representative.
Returning Equipment –Following
these procedures will ensure that your
returned materials are handled in the
most expedient manner. Before
returning any equipment to PCB
Piezotronics, contact your local
distributor, sales representative, or
factory customer service representative
to obtain a Return Warranty, Service,
Repair, and Return Policies and
Instructions Materials Authorization
(RMA) Number. This RMA number
should be clearly marked on the outside
of all package(s) and on the packing
Service, Repair, and Return
Policies and Instructions

list(s) accompanying the shipment. A
detailed account of the nature of the
problem(s) being experienced with the
equipment should also be included
inside the package(s) containing any
returned materials.
A Purchase Order, included with the
returned materials, will expedite the
turn-around of serviced equipment. It is
recommended to include authorization
on the Purchase Order for PCB to
proceed with any repairs, as long as
they do not exceed 50% of the
replacement cost of the returned
item(s). PCB will provide a price
quotation or replacement
recommendation for any item whose
repair costs would exceed 50% of
replacement cost, or any item that is not
economically feasible to repair. For
routine calibration services, the
Purchase Order should include
authorization to proceed and return at
current pricing, which can be obtained
from a factory customer service
representative.
Contact Information –International
customers should direct all inquiries to
their local distributor or sales office. A
complete list of distributors and offices
can be found at www.pcb.com.
Customers within the United States may
contact their local sales representative
or a factory customer service
representative. A complete list of sales
representatives can be found at
www.pcb.com. Toll-free telephone
numbers for a factory customer service
representative, in the division
responsible for this product, can be
found on the title page at the front of this
manual. Our ship to address and
general contact numbers are:
PCB Piezotronics, Inc.
3425 Walden Ave.
Depew, NY14043 USA
Toll-free: [phone]
24-hour SensorLineSM: [phone]
Website: www.pcb.com
E-mail: [email protected]

PCB工业监视和测量设备 - 中国RoHS2公布表
PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table
部件名称
有害物质
铅(Pb)
汞
(Hg)
镉
(Cd)
六价铬(Cr(VI))
多溴联苯 (PBB)
多溴二苯醚(PBDE)
住房
O
O
O
O
O
O
PCB板
X
O
O
O
O
O
电气连接器
O
O
O
O
O
O
压电晶体
X
O
O
O
O
O
环氧
O
O
O
O
O
O
铁氟龙
O
O
O
O
O
O
电子
O
O
O
O
O
O
厚膜基板
O
O
X
O
O
O
电线
O
O
O
O
O
O
电缆
X
O
O
O
O
O
塑料
O
O
O
O
O
O
焊接
X
O
O
O
O
O
铜合金/黄铜
X
O
O
O
O
O
本表格依据 SJ/T 11364 的规定编制。
O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。
X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。
铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。
CHINA RoHS COMPLIANCE

DOCUMENT NUMBER: 21354
DOCUMENT REVISION: D
ECN: 46162
Component Name
Hazardous Substances
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Chromium VI
Compounds
(Cr(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl
Ethers (PBDE)
Housing
O
O
O
O
O
O
PCB Board
X
O
O
O
O
O
Electrical
Connectors
O
O
O
O
O
O
Piezoelectric
Crystals
X
O
O
O
O
O
Epoxy
O
O
O
O
O
O
Teflon
O
O
O
O
O
O
Electronics
O
O
O
O
O
O
Thick Film
Substrate
O
O
X
O
O
O
Wires
O
O
O
O
O
O
Cables
X
O
O
O
O
O
Plastic
O
O
O
O
O
O
Solder
X
O
O
O
O
O
Copper Alloy/Brass
X
O
O
O
O
O
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit
requirement of GB/T 26572.
X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above
the limit requirement of GB/T 26572.
Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

ICPFORCE SENSOR OPERATION MANUAL
1
1.0 INTRODUCTION
ICPforce sensors incorporate a built-in MOSFET
microelectronic amplifier. This serves to convert the high
impedance charge output into a low impedance voltage signal
for analysis or recording. ICPsensors, are powered from a
separate constant current source, operate over long ordinary
coaxial or ribbon cable without signal degradation. The low
impedance voltage signal is not affected by triboelectric cable
noise or environmental contaminants.
Figure 1 - ICPSensor System Schematic
Power to operate ICPsensors is generally in the form of a
low cost, 24-27 VDC, 2-20 mA constant current supply.
Figure 1 schematically illustrates a typical ICPsensor
system. PCB offers a number of AC or battery-powered, single
or multi-channel power/signal conditioners, with or without
gain capabilities for use with force sensors. In addition, many
data acquisition systems now incorporate constant current
power for directly powering ICPsensors. Because static
calibration or quasi-static short-term response lasting up to a
few seconds is often required, PCB manufactures signal
conditioners that provide DC coupling. Figure 2 summarizes
a complete 2-wire ICPsystem configuration.
Figure 2 Typical ICPSensor System
In addition to ease of operation, ICPforce sensors offer
significant advantages over charge mode types. Because of the
low impedance output and solid-state, hermetic construction,
ICPforce sensors are well suited for continuous, unattended
force monitoring in harsh factory environments. Also, ICP
sensor cost-per-channel is substantially lower, since they
operate through standard, low-cost coaxial cable, and do not
require expensive charge amplifiers.
Refer to the installation/outline drawing and specification
sheet at the back of this manual for details and dimensions of
the particular sensor model number(s) purchased. The
following pages give a brief description of the various sensor
series available, recommended mounting procedures,
operation and recommended calibration.
In addition to PCB’s line of ICP® sensors, each ICP® sensor
series outlined has corresponding charge output versions.
Charge mode versions with high output impedance are suited
for higher temperature, metal-to-metal and very high shock
applications. These models can also be used for applications
where it is desirable to manually set the output range.
In addition to standard products, PCB has the ability to design
and manufacture custom sensors/systems for specific
applications.
If questions arise regarding the operation or characteristics of
the force sensor products as outlined in this manual, feel free
to contact an experienced PCB applications engineer toll-free
at 1-800-828-8840.
2.0 DESCRIPTION
IMPACT
Series 200 Impact Sensors are designed to measure
compression and impact forces from a fraction of a lb(N) to
50,000 lbs (to 22.4 kN). The flat sensing surface located on
the top of the sensor is designed to measure a dynamic force
quickly applied axially to the sensor.
As highlighted in Figure 3 compression forces directed
against the sensing surface produce a positive-going output. A
tensile output could be obtained if a static, steady-state load
were applied to the sensor. The maximum tensile output to be
measured would be that of the applied static, steady state load
as that load is quickly removed.
This force-directed input and corresponding output will
provide a positive going output signal in ICPmodels and a
negative going output in charge mode sensors. If desired,
adding the prefix “N” to a model number upon order,
sometimes desired for charge mode models, will indicate
polarity reversal.
