1. GETTING STARTED
What’s In The Box?
• 1 x Puck™ RGBAW Flat LED PAR Fixture
• 1x IEC Power Cord
• This Lovely User Manual
Getting It Out Of The Box
Congratulations on purchasing one way cool, way THIN LED PAR fix-
ture! Now that you’ve got The Puck™ RGBAW (or hopefully, Pucks!),
you should carefully unpack the box and check the contents to ensure
that all parts are present and in good condition. If anything looks as
if it has been damaged in transit, notify the shipper immediately and
keep the packing material for inspection. Again, please save the car-
ton and all packing materials. If a fixture must be returned to the fac-
tory, it is important that the fixture be returned in the original factory
box and packing.
Powering Up!
All fixtures must be powered directly off a switched circuit and cannot
be run off a rheostat (variable resistor) or dimmer circuit, even
if the rheostat or dimmer channel is used solely for a 0% to
100% switch.
AC Voltage Switch - Not all fixtures have a voltage select switch, so
please verify that the fixture you receive is suitable for your local pow-
er supply. See the label on the fixture or refer to the fixture’s specifi-
cations chart for more information. A fixture’s listed current rating is
its average current draw under normal conditions. Check the fixture or
device carefully to make sure that if a voltage selection switch exists
that it is set to the correct line voltage you will use.
Warning! Verify that the voltage select switch on your unit
matches the line voltage applied. Damage to your fixture may
result if the line voltage applied does not match the voltage
indicated on the voltage selector switch. All fixtures must be
connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something is wrong, just give us a call or send an email.
We’ll be happy to help, honest.
Blizzard Lighting
W220 N1531 Jericho Ct. Suite E, Waukesha, WI 53186 USA
[email protected]
www.blizzardlighting.com
866-493-6025

Page 4
The Puck RGBAW Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC
SAFETY INSTRUCTIONS
• Please keep this User Guide for future use. If you sell the unit to someone
else, be sure that they also receive this User Guide.
• ALWAYS make sure that you are connecting to the proper voltage, and that
the line voltage you are connecting to is not higher than that stated on the de-
cal or rear panel of the fixture.
• This product is intended for indoor use only.
• To prevent risk of fire or shock, do not expose fixture to rain or moisture.
• Make sure there are no flammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least
20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are
blocked.
• ALWAYS disconnect from the power source before servicing or replacing fuse
and be sure to replace with same fuse size and type.
• ALWAYS secure fixture using a safety chain. NEVER carry the fixture by its
cord. Use its carrying handles.
• DO NOT operate at ambient temperatures higher than 104°F (40°C).
• In the event of a serious operating problem, stop using the unit immediately.
NEVER try to repair the unit by yourself. Repairs carried out by unskilled people
can lead to damage or malfunction. Please contact the nearest authorized tech-
nical assistance center. Always use the same type spare parts.
• NEVER connect the device to a dimmer pack.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.
Caution! There are no user serviceable parts inside the unit. Do not
open the housing or attempt any repairs yourself. In the unlikely event
your unit may require service, please contact Blizzard Lighting at sup-
[email protected].

Page 5
The Puck RGBAW Manual Rev. B Copyright (c) 2011 Blizzard Lighting, LLC
2. MEET The Puck™RGBAW Flat LED PAR Can
CONTROL FEATURES
• RGBAW color mixing via 198 10mm R/G/B/A/W LEDs
• Variable electronic strobe
• Variable electronic dimmer
• Built-in automated programs via DMX and master/slave
• Built-in sound active programs
• Full RGBAW color mixing in standalone and master/slave
• Color Preset (3-Channel), RGBAW (5-Channel) and extended
(12-Channel) DMX modes
ADDITIONAL FEATURES
• Lightweight and Compact (It kept its New Years’ resolution!)
• 4-Button LED control panel for easy programming
• Light source: 198x 10mm LEDs, 36 each
Red/Green/Blue/Amber/White
• Dual bracket for flexibility in mounting
• Power outlet for fixture linking (up to 50 fixtures)
DMX Quick Reference (12-Channel Mode)
Channel What It Does
1 Dimmer
2 Strobe (0-15 off, 16-255 strobe
slow <-> fast)
3 Red Intensity
4 Green Intensity
5 Blue Intensity
6 Amber Intensity
7 White Intensity
8 Color Snap
9 Snap Speed (0-15 off, 16-255
Snap Slow <--> Fast)
10 Color Fade
11 Fade Speed (0-15 off, 16-255
Snap Slow <--> Fast)
12 Sound Active (0-127 off, 128-255
Sound Active)

Page 6
The Puck RGBAW Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC
DMX Quick Reference (3-Channel Mode)
Channel What It Does
1 Dimmer (0-15 off, 16-255 Dim <--> Bright)
2 Strobe (0-15 off, 16-255 strobe slow <-> fast)
3 Color Select
Value Red Green Blue Amber White
001-004 ON
005-008 ON
009-012 ON
013-016 ON
017-020 ON
021-024 ON ON
025-028 ON ON
029-031 ON ON
032-035 ON ON
036-039 ON ON
040-043 ON ON
044-047 ON ON
048-051 ON ON
052-055 ON ON
056-059 ON ON
060-062 ON ON ON
063-066 ON ON ON
067-070 ON ON ON
071-074 ON ON ON
075-078 ON ON ON
079-082 ON ON ON
083-086 ON ON ON
087-090 ON ON ON
091-093 ON ON ON
094-097 ON ON ON
098-101 ON ON ON ON
102-105 ON ON ON ON
106-109 ON ON ON ON
110-113 ON ON ON ON
114-117 ON ON ON ON
118-120 ON ON ON ON ON
121-255 Chase (Slow <--> Fast)

Page 7
The Puck RGBAW Manual Rev. B Copyright (c) 2011 Blizzard Lighting, LLC
DMX Quick Reference (5-Channel Mode)
Channel What It Does
1 Red Intensity
2 Green Intensity
3 Blue Intensity
4 Amber Intensity
5 White Intensity

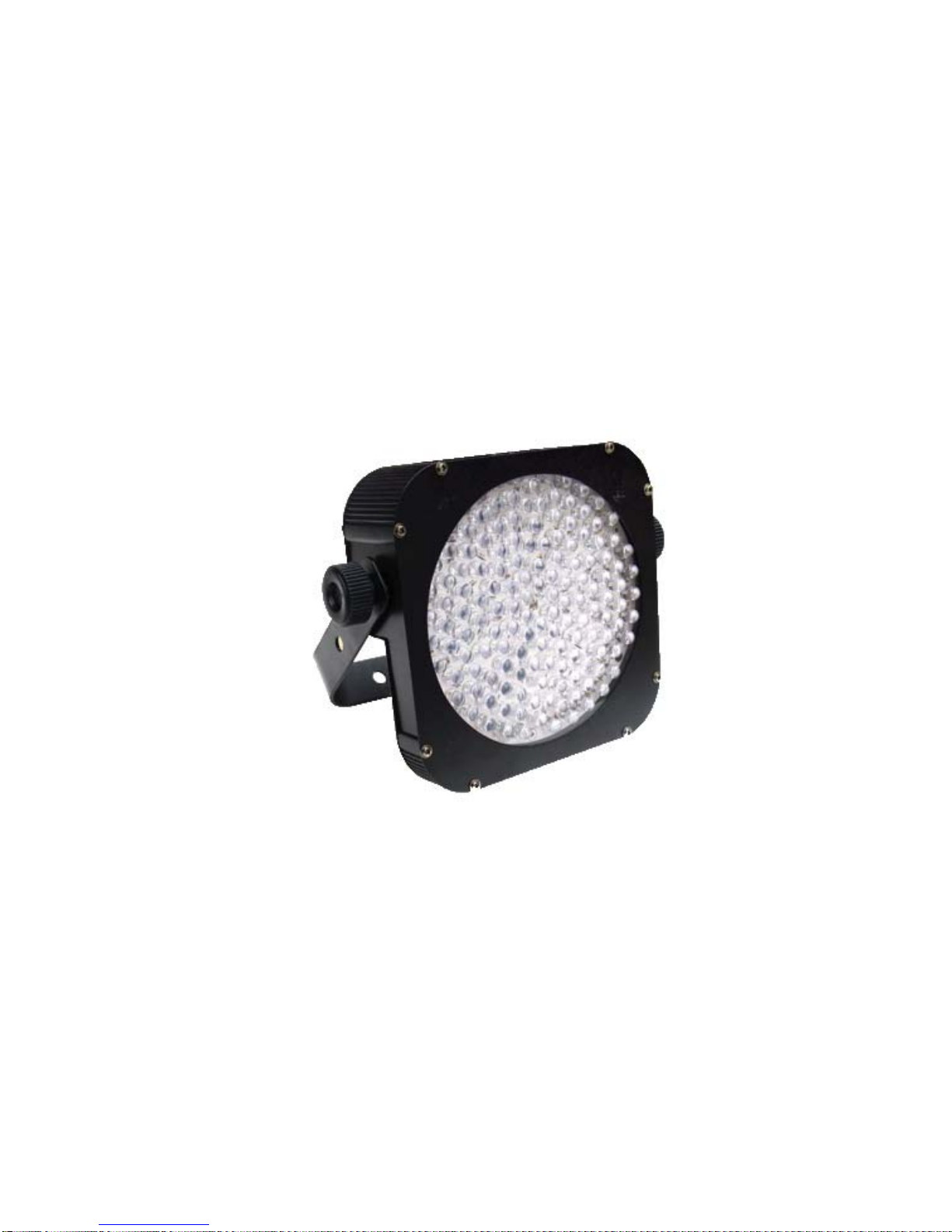

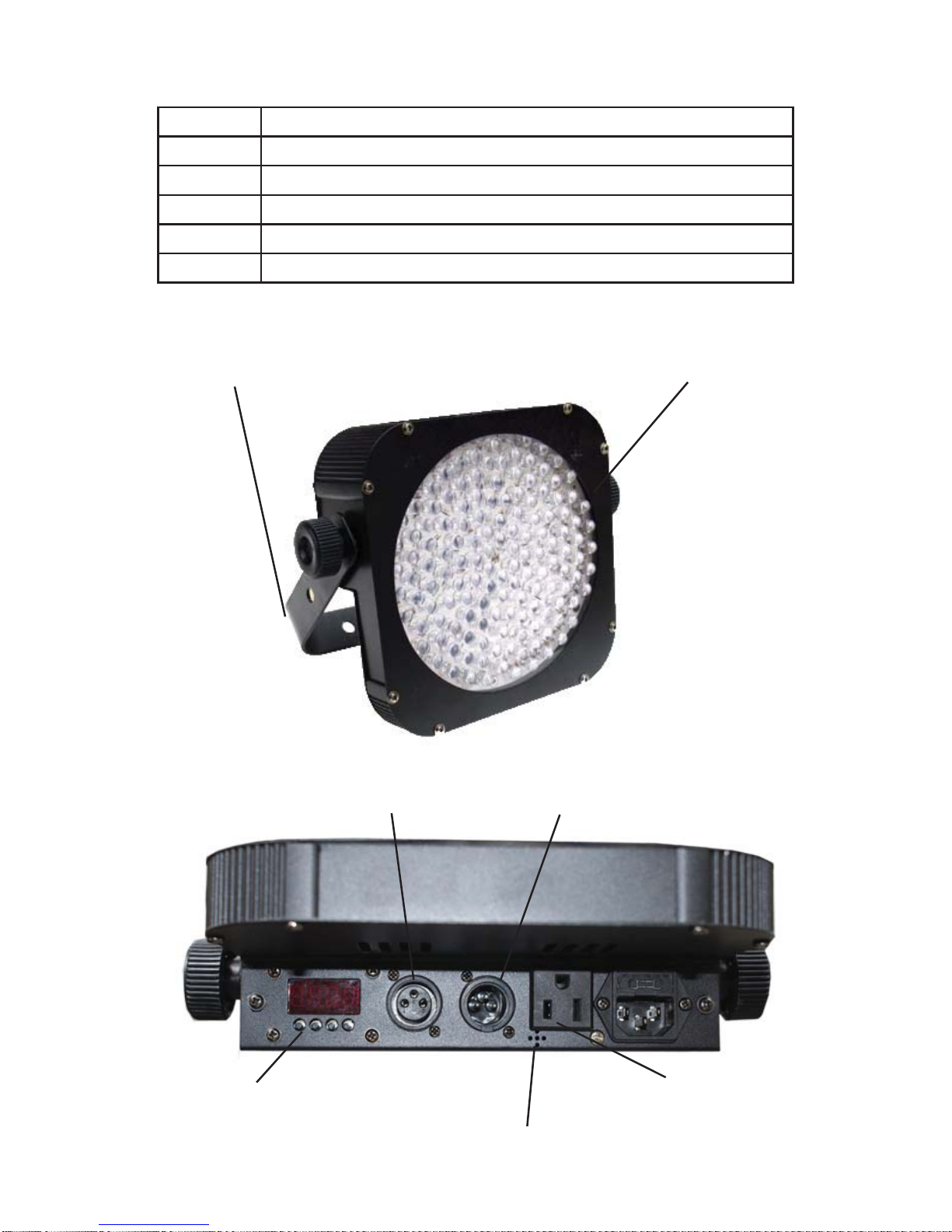

Figure 1: The Puck™ RGBAW Pin-Up Picture
High Power
LEDs
Dual Mounting
Yokes
Figure 2: The Rear Connections
AC Power In/Out
DMX In DMX Out
LED Control Panel
Microphone

Page 8
The Puck RGBAW Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC
3. SETUP

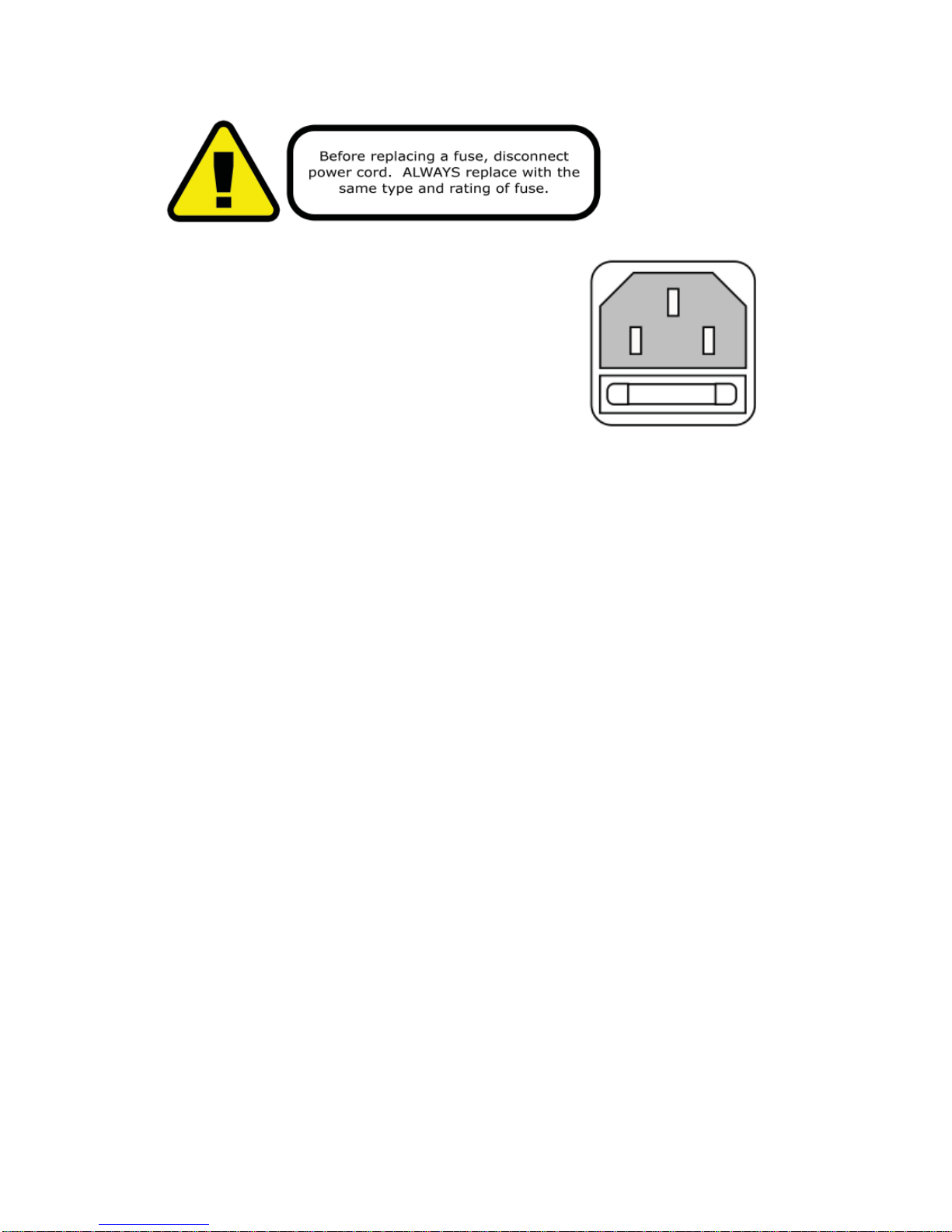

Fuse Replacement
With a flat head screwdriver, wedge the
fuse holder out of its housing. Remove the
damaged fuse from its holder and replace
with exact same type fuse. Insert the fuse
holder back in its place and reconnect
power.
Connecting A Bunch of The Puck™ RGBAW Flat LED PAR Cans
You will need a serial data link to run light shows using a DMX-512
controller or to run shows on two or more fixtures set to sync in mas-
ter/slave operating mode. The combined number of channels required
by all the fixtures on a serial data link determines the number of fix-
tures the data link can support.
Fixtures on a serial data link must be daisy chained in one single line.
Also, connecting more than 32 fixtures on one serial data link without
the use of a DMX optically-isolated splitter may result in deterioration
of the digital DMX signal.
The maximum recommended cable-run distance is 500 meters (1640
ft). The maximum recommended number of fixtures on a serial data
link is 32 fixtures.
Data/DMX Cabling
To link fixtures together you’ll need data cables. You should use data-
grade cables that can carry a high quality signal and are less prone to
electromagnetic interference.
For instance, Belden© 9841 meets the specifications for EIA RS-485
applications. Standard microphone cables will “probably” be OK, but
note that they cannot transmit DMX data as reliably over long distanc-
es. In any event, the cable should have the following characteristics:
2-conductor twisted pair plus a shield
Maximum capacitance between conductors – 30 pF/ft.
Maximum capacitance between conductor & shield – 55 pF/ft.
Maximum resistance of 20 ohms / 1000 ft.
Nominal impedance 100 – 140 ohms

Page 9
The Puck RGBAW Manual Rev. B Copyright (c) 2011 Blizzard Lighting, LLC
4. OPERATING ADJUSTMENTS
NOTE: After making any change, the unit will return to the correct mode in about 10 seconds.
DMX Mode
Allows the unit to be controlled by any universal DMX controller.
1.) The default mode for the fixture is DMX, which appears as Addr on the LED
Readout. Use the <ENTER> button then the <UP> and <DOWN> buttons to
choose a channel between 1and 512. Press <ENTER> again to confirm.
2.) To change between 3 and 6 channel DMX mode, select ChNd, then press
<ENTER>. Select either 3Ch, 5Ch or 12Ch, then press <ENTER> again
to confirm.
Master/Slave Mode (Auto/Sound Active/Color Preset/Custom):
1.) Use standard DMX cables to daisy chain your units together via the DMX con-
nector on the rear of the units.
2.) Choose a unit to function as the Master. Select MAST. The master unit must
be the first unit. Finally, chain the units together using DMX cable.
Master SLNd then NASt to confirm.
3.) Select slave function by using the <UP>/<DOWN> keys to reach SLAV in
the Master/Auto menu on the slave units, and they will react in the same as the
Master.
Slave SLNd then SLAu to confirm.
NOTE: When a unit is set to slave and no master is connected, Stby will
appear on the LED display.
4.) On the master fixture, use the <UP>/<DOWN> keys to reach SHND, which
allows you to select the Master/Slave mode.
Sound active SoUn then <ENTER> to confirm.
Auto mode CoLo then Auto, then <ENTER> to confirm.
Color preset CoLo then CoL 1 - CoL 31, <ENTER>
Color strobe StCo then 0-255 (Slowest <-.-> Fastest)
then CoL 1 - CoL 31, <ENTER>
To set a custom color in Master/Slave / Standalone Mode:
Using this function, you can select any color by adjusting the Red, Green, Blue, Amber and
White values from 0-255. You may also adjust the color balance of the fixture.
Please note that modifying the values in this step will affect ALL modes, therefore
we recommend resetting all levels to their highest value (255) after using this
mode.
1.) Select NAnu from the control panel, then hit <ENTER>.
2.) Choose rEd, GrEE, bLuE, ANbE or Uhit, then hit <ENTER> to
confirm.
3.) Using the <UP>/<DOWN> keys, select the color you wish to display by
varying Red/Green/Blue intensity between 0 and 255, then hit <ENTER> to
confirm each color choice.
4.) Select Color preset mode as instructed above, then select CoL 15. then
<ENTER> to confirm.

Page 10
The Puck RGBAW Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC
To Show the Fixture Running Hours:
1.) Select FhrS from the control panel, then hit <ENTER> to confirm.
Menu Conventions
Addr = “ADDR,” DMX Address Set/Adjust
ChNd = “CHMD,” Channel Mode Adjust
3/5/12 Ch = “3 Ch,” 3/5/12-Channel DMX Mode
SLNd = “SLMD,” Slave Mode Adjust
NASt = “MAST,” Master, set the unit to Master Mode.
SLAv = “SLAV” Slave, set the unit to Slave Mode.
StbY
= “STBY,” Standby, unit is in Slave with no Master Fixture.
SHNd
SouN = “SOUN,” Sound Active Mode.
CoLo = “COLO,” Color Preset Mode.
Co XX = “CO 1 - CO31," Color Preset X.
AUto = “AUTO,” Auto (Color Snap) Mode.
FAdE = “FADE,” Color Fade Mode.
SP X = “SP 1 - SP 8,” Fade Speed 1-8 (Fast <-> Slow)
StCo = “STCO,” Color Strobe Mode.
Co XX = “CO 1 - CO31,” Color Preset X.
NANu = “MANU,” Manual Color / White Point Adjustment Mode.
REd = “RED," Adjust Red Intensity from 0 to 255.
GrEE = “GREE,” Adjust Green Intensity from 0 to 255.
bLuE = “BLUE,” Adjust Blue Intensity from 0 to 255.
ANbE = “AMBE,” Adjust Amber Intensity from 0 to 255.
UhIt = “WHIT,” Adjust White Intensity from 0 to 255.
FhrS = “FHRS,” Displays Fixture Running Hours
tESt = “TEST," Test Mode.

Page 11
The Puck RGBAW Manual Rev. B Copyright (c) 2011 Blizzard Lighting, LLC
Quick Tips & Tricks:
Problem: The Puck LED readout says “StbY,” (Standby), no output.”
Solution: The Puck is in Slave mode with no master fixture connected.
Press <MENU>, select “SLNd,” hit <ENTER>, select “NASt” by pressing up
or down, hit <ENTER> to confirm. The unit will reset after approximately 10
seconds.
Problem: The Puck is only displaying certain colors (an entire color group of
LEDs is dimly lit or entirely off.)
Solution: The manual color adjustments have been set at levels less than the
full intensity for each color.
Press <MENU>, select “MANu,” and ensure that all of the color settings (rEd,
GrEE, bLuE, ANbE or WHIt) are set to 255. This is the maximum value
and the fixture should be left in this mode unless setting a custom standalone
color (See page 9. Should the problem persist, please contact technical sup-
port.
Problem: The fade you’ve selected is too fast/too slow.
Solution: Press <MENU>, select “SHNd,” hit <ENTER>, select “FAdE,” hit
<ENTER>, and select the speed by selecting “SP 1 - SP 8,”. 1 is the fastest,
8 is the slowest.

Page 12
The Puck RGBAW Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC
Troubleshooting
Symptom Solution
Fixture Auto-
Shut Off Check the fan in the fixture. If it is stopped or moving slower than normal, the unit may have shut itself off due to
high heat. This is to protect the fixture from overheating.
Clear the fan of obstructions, or return the unit for service.
Beam is Dim Check optical system and clean excess dust/grime. Also
ensure that the 220V/110V switch is in the correct position,
if applicable.
No Light Output Check to ensure fixture is operating under correct mode, IE
sound active/auto/DMX/Etc., if applicable. Contact service
for more information.
Chase Speed
Too Fast/Slow Check to ensure proper setup of speed adjustment.
No Power Check fuse, AC cord and circuit for malfunction.
Blown Fuse Check AC cord and circuit for damage, verify that moving
parts are not restricted and that unit’s ventilation is not
obstructed
Slow Movement Verify that 220V/110V switch is in the correct position, if
applicable. Also check that speed channels are set appropri-
ately.
No Response to
Audio Verify that the fixture is in “Sound Active” mode. Adjust Audio Sensitivity, If Applicable.
Fixture Not
Responding /
Responding Er-
raticly
Make sure all connectors are seated properly and securely.
Use Only DMX Cables.
Install a Terminator.
Check all cables for defects.
Reset fixture(s).
Intermittant
Lamp Check lamp for properly installation. Relamp, lamp may have reached end of life.
Remote Doesn’t
Work Verify remote control cable is installed properly and securely. Verify remote is correct type (CA-9 or other as applicable.)
Fixture Moving
On Its Own Verify proper mode of operation. Is the fixture in “Auto” mode?
If your problem isn’t listed, or if problems persist,
please contact support: [email protected].

Page 13
The Puck RGBAW Manual Rev. B Copyright (c) 2011 Blizzard Lighting, LLC
5. APPENDIX
Keeping Your Puck™RGBAW As Good As New
The fixture you’ve received is a rugged, tough piece of pro lighting equip-
ment, and as long as you take care of it, it will take care of you. That said, like
anything, you’ll need to take care of it if you want it to operate as designed.
You should absolutely keep the fixture clean, especially if you are using it in an
environment with a lot of dust, fog, haze, wild animals, wild teenagers or spilled
drinks.
Cleaning the optics routinely with a suitable glass cleaner will greatly improve
the quality of light output. Keeping the fans free of dust and debris will keep
the fixture running cool and prevent damage from overheating.
In transit, keep the fixtures in cases. You wouldn’t throw a prized guitar,
drumset, or other piece of expensive gear into a gear trailer without a case,
and similarly, you shouldn’t even think about doing it with your shiny new light
fixtures.
Common sense and taking care of your fixtures will be the single biggest thing
you can do to keep them running at peak performance and let you worry about
designing a great light show, putting on a great concert, or maximizing your cli-
ent’s satistfaction and “wow factor.” That’s what it’s all about, after all!
Returns (Gasp!)
We’ve taken a lot of precautions to make sure you never even have to worry
about sending a defective unit back, or sending a unit in for service. But, like
any complex piece of equipment designed and built by humans, once in a while,
something doesn’t go as planned. If you find yourself with a fixture that isn’t
behaving like a good little fixture should, you’ll need to obtain a Return Authori-
zation (RA).
Don’t worry, this is easy. Just send an email to [email protected],
and we’ll issue you an RA. Then, you’ll need to send the unit to us using a
trackable, pre-paid freight method. We suggest using USPS Priority or UPS.
Make sure you carefully pack the fixture for transit, and whenever possible, use
the original box & packing for shipping.
When returning your fixture for service, be sure to include the following:
1.) Your contact information (Name, Address, Phone Number, Email address).
2.) The RA# issued to you
3.) A brief description of the problem/symptoms.
We will, at our discretion, repair or replace the fixture. Please remember that
any shipping damage which occurs in transit to us is the customer’s responsibil-
ity, so pack it well!
Shipping Issues
Damage incurred in shipping is the responsibility of the shipper, and
must be reported to the carrier immediately upon receipt of the items.
Claims must be made within seven (7) days of receipt.

Page 14
The Puck RGBAW Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC
Tech Specs!
Weight & Dimensions
Length 8.25 inches (210 mm)
Width 2.5 inches (63.5 mm)
Height 8.25 inches (210 mm)
Weight 4.0 lbs (1.8 kg)
Power
Operating Voltage 90-230VAC, 50-60 Hertz
Fuse 3A 250V
Power Consumption 20W
Light Source
LED 198x 10mm Red/Green/Blue/Amber/White
100K hrs.
Optical
Beam Angle 21 degrees
32 degree field
Luminous Intensity 4,075 Lux @ 1m
Thermal
Max. Operating Temp. 104 degrees F (40 degrees C) ambient
Control
Protocol USITT DMX-512
DMX Channels 5 or 8 (User Selectable)
Input 3-pin XLR Male
Output 3-pin XLR Female
Other Operating Modes Standalone, Master/Slave, Sound Active, Color Preset, Standalone color mixing
Might As Well
Jump!
Warranty 2-year limited warranty, does not cover mal- function caused by damage to LED’s.

Page 15
The Puck RGBAW Manual Rev. B Copyright (c) 2011 Blizzard Lighting, LLC

Enjoy your product!
Our sincerest thanks for your purchase!
--The team @ Blizzard Lighting
