1. Introduction
AD series balances are destined for laboratory weighing where high accuracy is required.
AD6F balances are designed for precise paint weighing in automatic paint pouring process.
All balances are metrologically tested - calibration or legal verification certificate on demand.
Legal verification is required for balances used in some applications: direct trade,
pharmaceutical prescriptions, medical and pharmaceutical analysis, goods packing and
others.
Balances with legal verification are mark with the following:
-protective seal placed on the casing mounting screw,
-notified body stamps and green M sticker placed on balance name plate.
Legal verification is valid for 3 years (until verification seals are not broken).
As weight indication depends on gravitational acceleration in a place of the installation, the
manufacturer adjusts balance indication for specific gravity zone basing on delivery address.
Gravity zone is specified with gravitational acceleration range given on a sticker placed at the
back of a balance.
In case installation place is changed or balance indications are not accurate, it is advised to
contact a nearest service in order to re-adjust the balance.
NACE classification: 33.20.31.
2. Completeness
A standard set consist of:
1. Balance
2. Pan base and a pan
3. Feeder (ZN12V/500mA)
4. User manual
5. Guarantee Card

4
3. Balance description

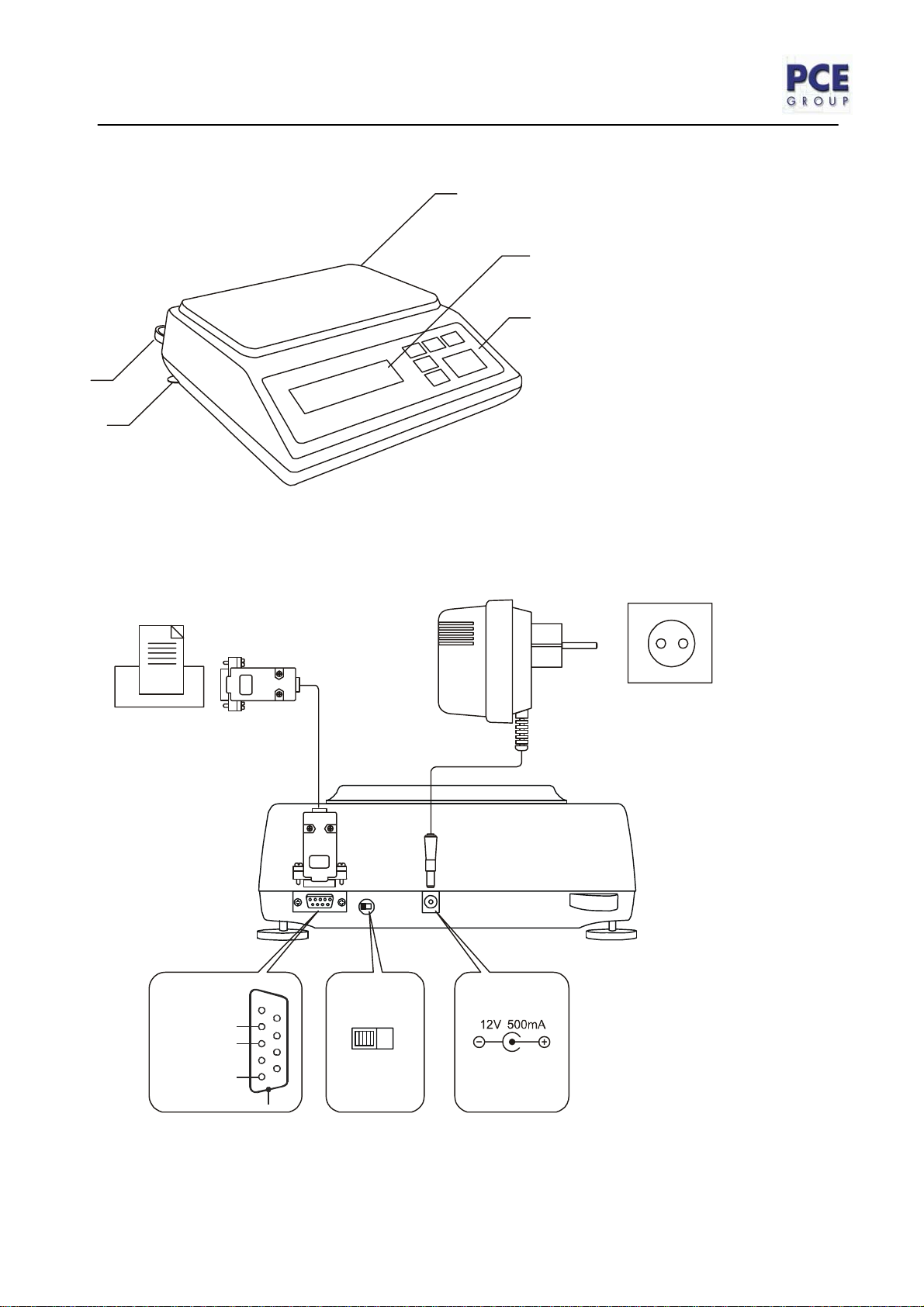

FRONT VIEW
Balances 50-AD600:
1 – pan
2 – pan support (under the pan)
3 – pan ring
4 – LCD display
5 – keys
6 – rotating legs
7 – water level
Balances AD510, AD1000-AD3000 and AD2.5-AD5:
1 – pan
2 – pan support (under the pan)
3 – pan ring
4 – LCD display
5 – keys
6 – rotating legs
7 – water level
7
6
1
2
4
3
5
7
6
1
2
4
5

5
Balances AD6-AD12:
1 – pan
2 – pan support (under the pan)
3 – pan ring
4 – LCD display
5 – keys
6 – rotating legs
7 – water level
REAR VIEW
7
6
1
2
4
5
ON OFF
Adjust switch
RxD (receiver)
TxD (transmitter)
gnd
chassis
RS232C Feeder
FeederPrinter or computer
1
2
3
4
5
6
7
8
9
~230V

6
4. Keys and indicators
→T←-tare (subtract package weight from weighed mass),
→0←-zeroing (balances for direct sale use only)
-data output (print / transmission),
-calibration/ navigation,
-mode switch,
MENU -menu,
I/ -switch-off (standby),
indicator -result stabilisation,
bar indicator -total load indicator (0-100%),
indicator OFF -stand-by mode,
Max, Min, d, e, II -metrologic parameters and accuracy class.
Additional:
- digit incrementation,
- decimal point,
→T←- next digit,
MENU - end.
OFF
A
UTMODE
0
50
100
SUM
Max Min e d

7
5. Technical data
T
yp
e
A
D50
A
D60
A
D100
A
D200
A
D300
A
D500
A
D600
Capacity (Max) 50g 60g 100g 200g 300g 500g
6
00
g
Min load (Min) 0,02g 0,02g 0,02g 0,02g 0,02g 0,02
g
0,04g
Reading unit (d) 0,001g 0,001g 0,001g 0,001g 0,001g 0,001g 0,002g
Verification unit (e) 0,01g 0,01g 0,01g 0,01g 0,01g 0,01g 0,02g
Tare range -50g -60g -100g -200g -300g -500g -600g
Accuracy class II
Working temperature +18 ÷+33 °C
Weighing time <8s
Pan dimensions φ115mm
Balance base dim. 240x275x90mm
Power ~230V 50Hz 6VA / =12V 160mA
Balance wei
g
ht 4kg
Calibration weight F2 50g F2 50g F2 100g F2 200g F2 200g F1 500g F2 500g
T
yp
e
A
D250
A
D510
A
D1000
A
D2000
A
D3000
Capacity (Max) 250g 500g 1000g 2000g 3000g
Min load (Min) 0,2g 0,5g 0,5g 0,5g 0,5g
Reading unit (d) 0,01g 0,01g 0,01g 0,01g 0,01g
Verification unit (e) 0,05g 0,1g 0,1g 0,1g 0,1g
Tare range -250g -500g -1000g -2000g -3000g
Accuracy class II
Working temperature +18 ÷+33 °C
Weighing time <5s
Pan dimensions φ115mm φ150mm
Balance base dim. 240x275x90mm
Power ~230V 50Hz 6VA / =12V 160mA
Balance weight 4kg
Calibration weight F2 200g F2 500g F2 1000g F2 2000g F2 2000g
T
yp
e
A
D2.5
A
D5
A
D6
(
F
)
A
D10
A
D12
Capacity (Max) 2500g 5000g 6000g 10kg 12kg
Min load (Min) 5g 5g 5g 5g 5g
Reading unit (d) 0,1g 0,1g 0,1g 0,1g 0,1g
Verification unit (e) 0,5g 1g (0,5g) 1g (0,5g) 1g (0,5g) 1g (0,5g)
Tare range -2500g -5000g -6000g -10kg -12kg
Accuracy class II
Working temperature +18 ÷+33 °C
Weighing time <5s
Pan dimensions φ150mm 225x165mm 230x180mm
Balance base dim. 240x275x90mm 270x305x120mm
Power ~230V 50Hz 6VA / =12V 160mA
Balance wei
g
ht 4kg 4,5kg 7kg
Calibration weight F2
1000g F2 2000g F2 2000g F2 5000g

8
6. Security rules
To avoid electrical shock or damage of a balance or
connected peripheral devices, it is necessary to follow
the security rules below.
•All repairs and necessary regulations can be made by authorised personnel
only.
•To avoid fire risk use a feeder of an appropriate type (supplied with a
balance). Pay attention that supply voltage is compatible with specified
technical data.
•Do not use a balance when its cover is opened.
•Do not use a balance in explosive conditions.
•Do not use a balance in high humidity.
•If a balance seems not to operate properly, plug it out of the mains and do not
use it until checked by authorised service.

9
7. Preparations – working environment
+18°C
+33°C
When choosing a location to set up the balance, remember the following rules to ensure
proper working conditions and user-friendly operating:
-setup the balance on an even, flat surface leaving necessary room for easy access,
-maintain proper working temperature,
-avoid strong air drafts, vibrations, dust, big temperature changes and humidity over 90%,
-avoid locations with extreme heat radiation and electromagnetic or magnetic fields.

10
8. Preparing a balance to work
1. Take all content out of a package.
2. Place the balance on a stable ground not
affected by mechanical vibrations and
airflows.
3. Level the balance with rotating rear legs
6so that the air bubble in water-level at the
back of the balance is in the middle.
4. (AD50-AD500) Put a pan base 2 on the
mandrel sticking out of a balance cover 3.
Put a pan 1 on a pan base (pan φ150mm is
connected to pan base).
5. (AD10-AD12) Put elements 2 on the
mandrel sticking out of a balance, put a
pan 1 .
6. Plug a feeder to the power socket at the
back of the balance.
Leave the pan empty and plug the feeder to the mains 230V. At the end of self-tests, the
balance displays zero indication and is now ready to work
Moisture in the air may condense on the surface of the balance when
transferred to the warmer environment. In this case leave the balance for at
least 4 hours unplugged from the mains for conditioning to avoid wrong
operating or damage of the balance.
7
6
12
3
7
6
1
2

11
9. Start-up
After switching-on, the balance performs
automatic self-test.
Program version
Zeroing.
Ready to work.
C-1
C-5
-------
0.000g
AC-...

12
10. Operation principles
1. Weighed sample should be placed in the centre of the pan.
2. In direct sale use (d=e), make sure that zero indicator is displayed. If not, press 0 key
and wait until zero indication and zero indicator appears. In other balances the key does
not operate.
3. The balance is equipped with a tare equal to its range. To tare the balance press →T←
key. Storing a tare value does not extend measuring range, but only subtracts it from a
load placed on a pan. To make weight control easier and to avoid range overdrawing, the
balance is equipped with a load indicator (graduated in percentages).
4. Weighing result should be read when the indicator " " lights, which signalises
stabilisation of a result.
5. When the balance is not used but it is necessary to be ready to work immediately, it can
be switched off by pressing I/ key. The balance reading system is then switched off to
"standby" mode (signalled by the indicator "OFF"). To switch the balance on press I/
key. The balance is immediately ready to operate maximum accuracy (after self tests).
6. The mechanism of the balance is a precise device, sensitive to mechanical strokes and
shocks.
The balance should not be used to weigh ferromagnetic materials due to accuracy decrease.
Do not overload the balance more then 20% of maximum load (Max).
Do not press a pan with a hand.
Before transportation take off the pan (move it slightly and lift it up) and
the pan base and preserve from any damages.

13
11.Balance checking
As weight indication depends on gravitational acceleration, it is advised to check balance
indication accuracy before and after series of measurement using any load with known
weight.
To check a balance with legal verification use calibration weight as stated in Technical Data
table with valid calibration certificate. In case permissible error is exceeded it is advised to
contact the nearest service to calibrate a balance.
12. Adjusting a balance
If balance indications exceed permissible error it is necessary to adjust a balance. To
calibrate a balance use calibration weight as stated in Technical Data table (or of better
accuracy) with valid calibration certificate.
To adjust a balance it is necessary to break protective marks – please contact the
nearest service for legal verification in a place of installation or the nearest
Measurements Office.

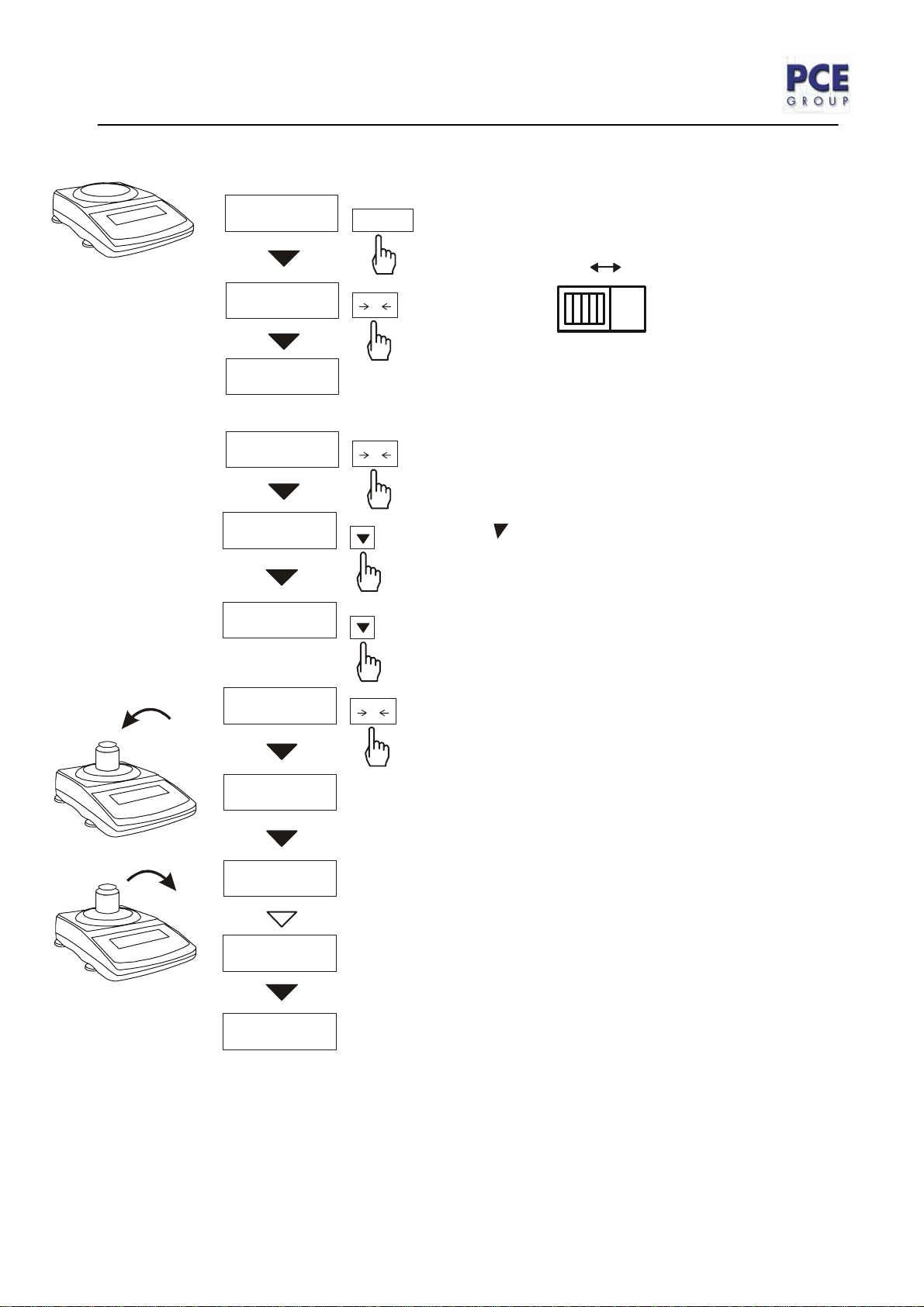

Calibration report (CAL Prn):
Data:
CALIBRATION REPORT
------------------------------------------------------
FACTORY NUMBER: ...
PROGRAM NUMBER: (version, date)

14
Operation sequence:
Remove a protective mark from a calibration
switch at the back of a balance.
Switch to Pr ON position using small screwdriver
(signalised on a display).
Press MENU to call special functions. Press →T←
to choose CALIbr and CAL on.
Press several times to select desired weight
value. It is advised to use as great weight value as
possible.
Press →T←to accept.
When LOAD appears put the weight no a pan.
Wait.
When unLOAD appears take off the weight.
Switch to Pr OFF position using small screwdriver
( Pr ON disappears).
T
m
m
unLOAD
m
m
LO AD
CC
1
2
...
MENU
T
T
0.00g
0.00g
CALIbr
CAL on
CAL oFF
...
ONOFF

15
13.Connecting a balance to a computer or a printer
The balance may send data to a computer or a printer via RS232C interface.
When cooperating with a computer, the balance
sends weighing result after initialising signal from a
computer or after pressing key.
When cooperating with the balance, a computer
should be equipped with a program that enables
receiving and processing data from the balance.
AXIS offers computer programs to cooperate with balances. Demo versions and program
descriptions are available on the website: www.axis.pl:
-RS 232C Test – free serial port testing program,
-ProCell – residual program for cooperation with Microsoft EXCEL and other Microsoft
Windows applications (demo version).
Detailed information for programmers:
The balance sends data with a following method:
Computer → Balance: initiation signal S I CR LF (53h 49h 0Dh 0Ah),
Balance → Computer: weighing result in the following format:
(16Bytes, LONG protocol - 8bits, 1stop, no parity, 4800bps),
Bytes description:
1 - „-„ mark or space
2 - space
34 - digit or space
5÷9 - digit, decimal point or space
10 - digit
11 - space
12 - k, l, c, p or space
13 - g, b, t, c or %
14 - space
15 - CR
16 - LF
RxD (receiver)
TxD (transmitter)
GND
Case
RS232C
1
2
3
4
5
6
7
8
9

16
14.Special functions description
All balances, beside basic functions like weighing and tare, are equipped with the set of
additional functions.
Standard set of special functions include:
-pieces counting,
-autozeroing,
-serial port working mode setting,
-serial port parameters setting,
-percentage weighing,
-weighing unit change (grams / carats / pounds)
-prescriptions making
-calibration options
Other special functions may be enabled as an option on customer request (described in
additional brochure when ordered).
For easy access to the most frequently used functions, use ACtIV function to select functions
to be displayed in functions menu.
When special function is active, MODE indicator is displayed.

17
15.Legend
-loaded pan
-unloaded pan
-press a key when ... (on left)
-forced change
-automatic change
16.Normal weighing
When a pan is empty and indication is different
than zero press →T←key.
Weighing result should be read when the
indicator " " lights.
17.Weighing with tare
A balance is equipped with tare equal to its
range.
12g T
0.00 g
43.04 g
23.13 g
0.00 g
63.24 g
T
T

18
18.Weigh summing (rECIPE)
This function enable to weigh few ingredients
in one container and to display aggregated
sum of all ingredients.
The function has the following options:
-rEC oFF – leave the function and display
aggregated sum of all ingredients,
-rEC on – activate the function,
-rEC Con - return to previous series of
weighing.
Before weighing each ingredient (A, B, C,
etc.) remember to tare the balance.
To read aggregated sum of all previously
weighed components press key or use
rEC oFF option. To return to ingredients
weighing press key again.
Note:
When rECIPE function is active, the sign o
is displayed at the left of the display.
When rEC oFF option was used, SUM
indicator disappears after pressing →T←
key.
0.00 g
rECIPE
rEC o FF
rEC o n
10.01g
10.02g
10.03g
0.00g
0.00g
30.06g
A
B
C
MENU
T
T
T
T
o
o
o
o
o
SUM

19
19.Pieces counting (PCS)
This function enables to count identical
pieces, e.g. turnbuckles or buttons.
A measurement is performed in two phases:
- first phase - single piece weight calculation
on the basis of defined pieces amount (5, 10,
20, 50, 100, 200 or 500 pieces),
- second phase – pieces counting.
It is advised that single piece weight is not
less than one reading unit and sample
weight used in first phase is bigger than 100
reading units.
To leave function press F key and then with
→T←, key chose PCS and PCS oFF .
Note:
Err-3 communicate signalises that a sample
was not put on a pan. The same
communicate appears if single piece weight
is less than one reading unit (it is possible to
count pieces but measuring error is bigger).

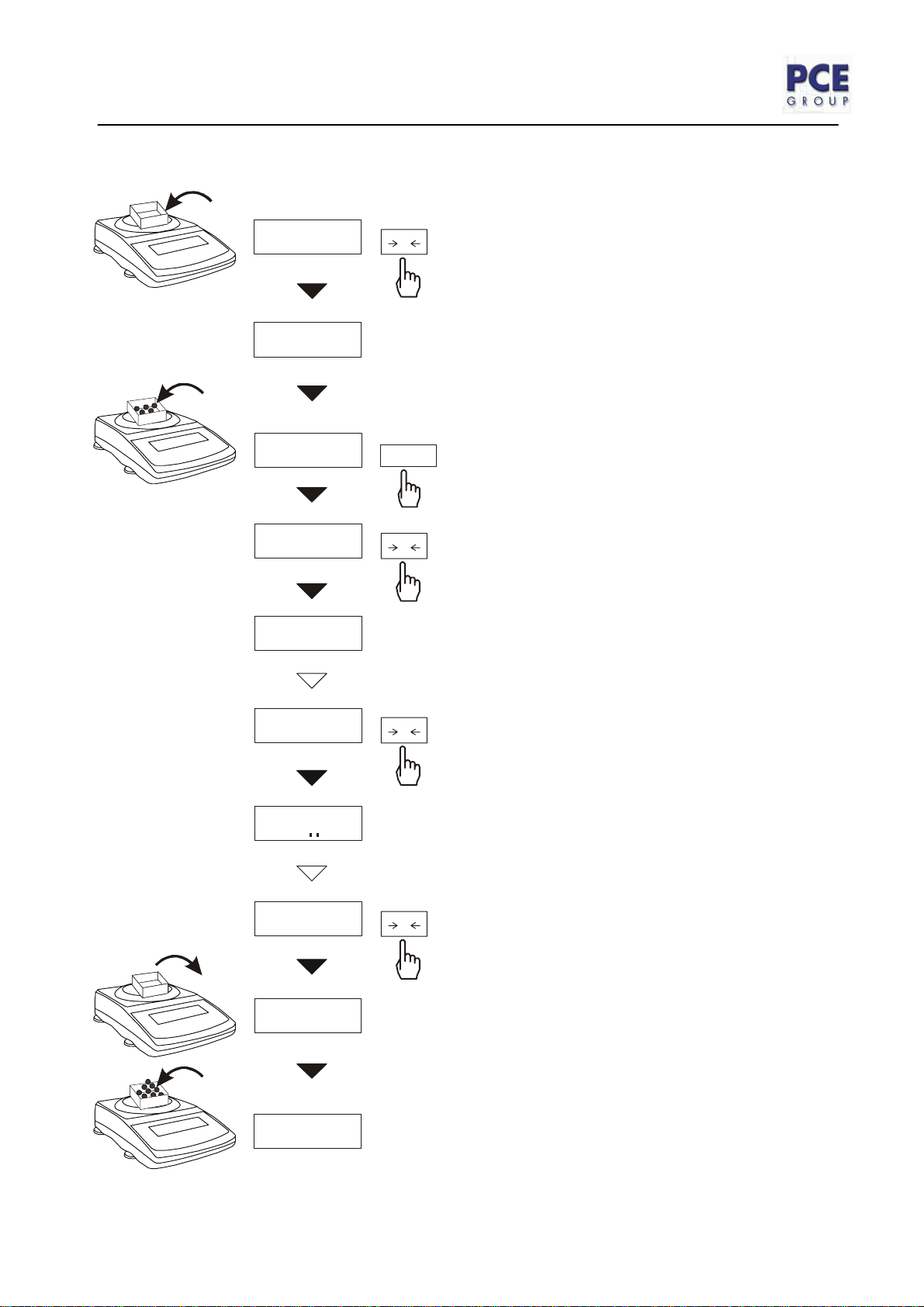

To chose previously used pieces amount
select “..” in first phase.
During pieces counting →T←key function
does not change.
0 pcs
0.00 g
12.05 g
23.04 g
PC S
PC S o FF
PC S o n
5
5
12
12 pc s
MENU
T
T
T
T

20
20.Autozeroing (AUtOtAr)
When AUtotAr function is activated, a
balance automatically keeps zero indication
if a pan is empty or if zero indication was
acquired by pressing →T←key.
To leave the function press MENU key, then
with →T←key chose AUtOtAr and AUt oFF.
Note: Autozeroing function is activated
automatically for 10 min. after switching-on
21.Serial port working mode selection (LPt)
This function enables to select serial port
working mode.
When function is active, weighing result with
successive number is printed automatically
after putting and replacing weighed sample
(after result stabilisation).
In order to change working mode (to work
with a computer) press MENU key, then with
→T←key chose LPt and LPt oFF. Weighing
result is send only after pressing key and
result stabilisation (without successive
measurement number).
0.01g
AUtOtAr
AUT
AUt on
AUt oFF
0.00g
0.00g
LPt
LPt o n
LPt o FF
0.00g
MENU
MENU
T
T
T
T
