PCsensor TEMPerHUM User manual

1. Description
Hid TEMPerHUM thermometer & hygrometer is a measurement
device using USB port to connect to a computer . It can measure the
temperature and the humidity of the machine and the environment
accurately and can calculate the dewpoint automatable. It must be
connect to the computer to start working .Hid TEMPerHUM can be
use in computer room, weather, environment and special
environment temperature and humidity testing.
2. Function & Feature
Range of temperature: TEMPerHUM -40~+85 C; -40~+185F;
Resolution rate of temperature: 0.06C
Temperature sensor :
(1) +/- 0.5C accuracy (Typical)
(2) +/-1C accuracy (Maximum @ 0 to 70C)
Range of humidity:0~100RH%
Resolution rate of humidity:0.03RH%;
Precision of humidity: +/- 4.5 RH% 20RH%~80 RH%;
Voltage: 4~6V;

Electricity:< 10 mA;
Voltage : 5V
Support Windows NT,XP, VIST;
Memory requirement: 20M
Data autosave to be txt Or csv format, can be open by excel;
Send mails function
Graph transfer function
New Function
(1)TXT Special button:
As long as you long pressing the TXT button for 1 seconds, you can
read the temperature and humidity no matter in excel, text or word
form without running software. If to stop the reading, press the TXT
button again . Easy operation! Solve your installed software and
cross-platform used troubles!

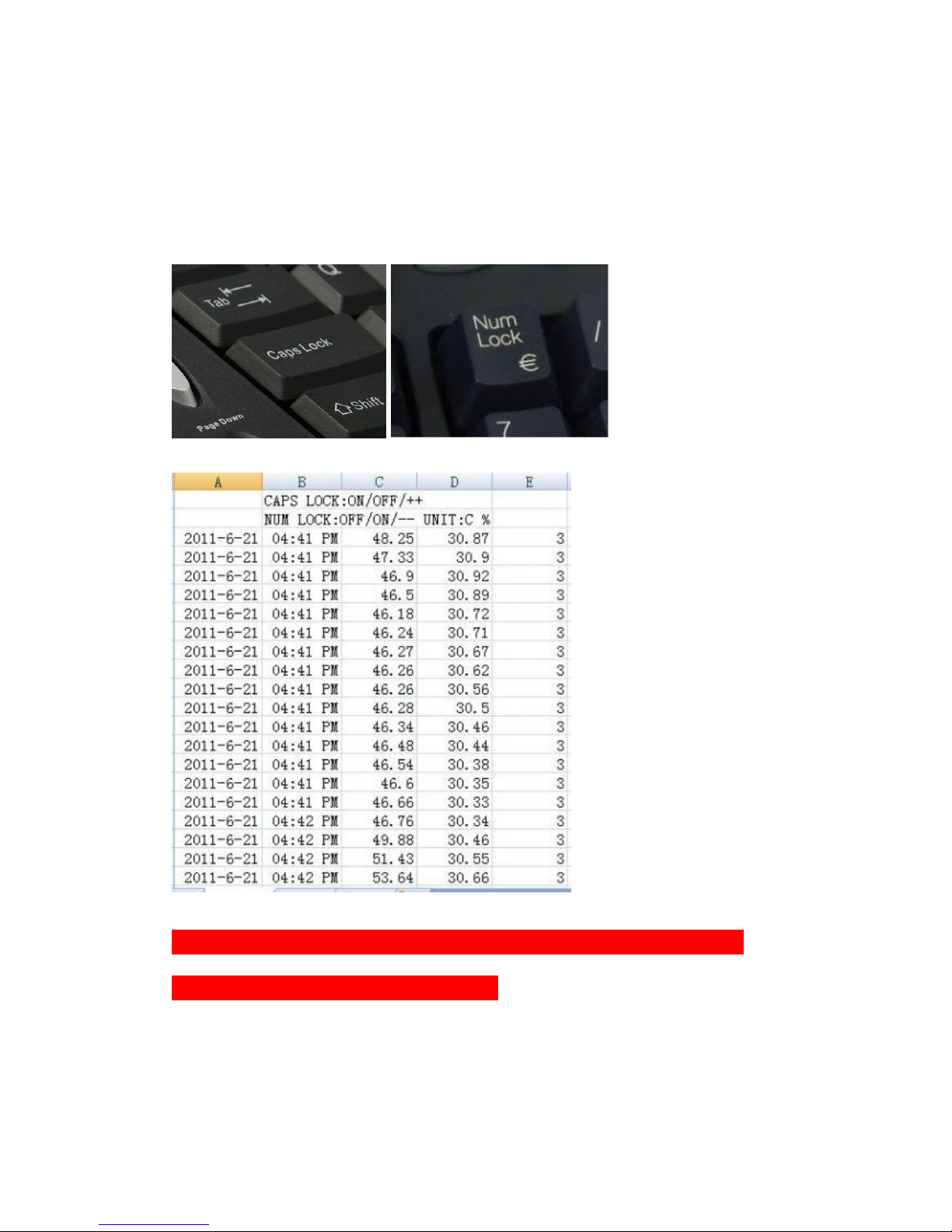

(2) Caps lock and Num Lock:
You don’t want to install software, OK! You can use the Caps lock
and Num lock function.

As long as you long press the caps lock or num lock for 3 seconds,
you can read the temperature and humidity no matter in excel, text or
word form without running software. Then you can create curve.

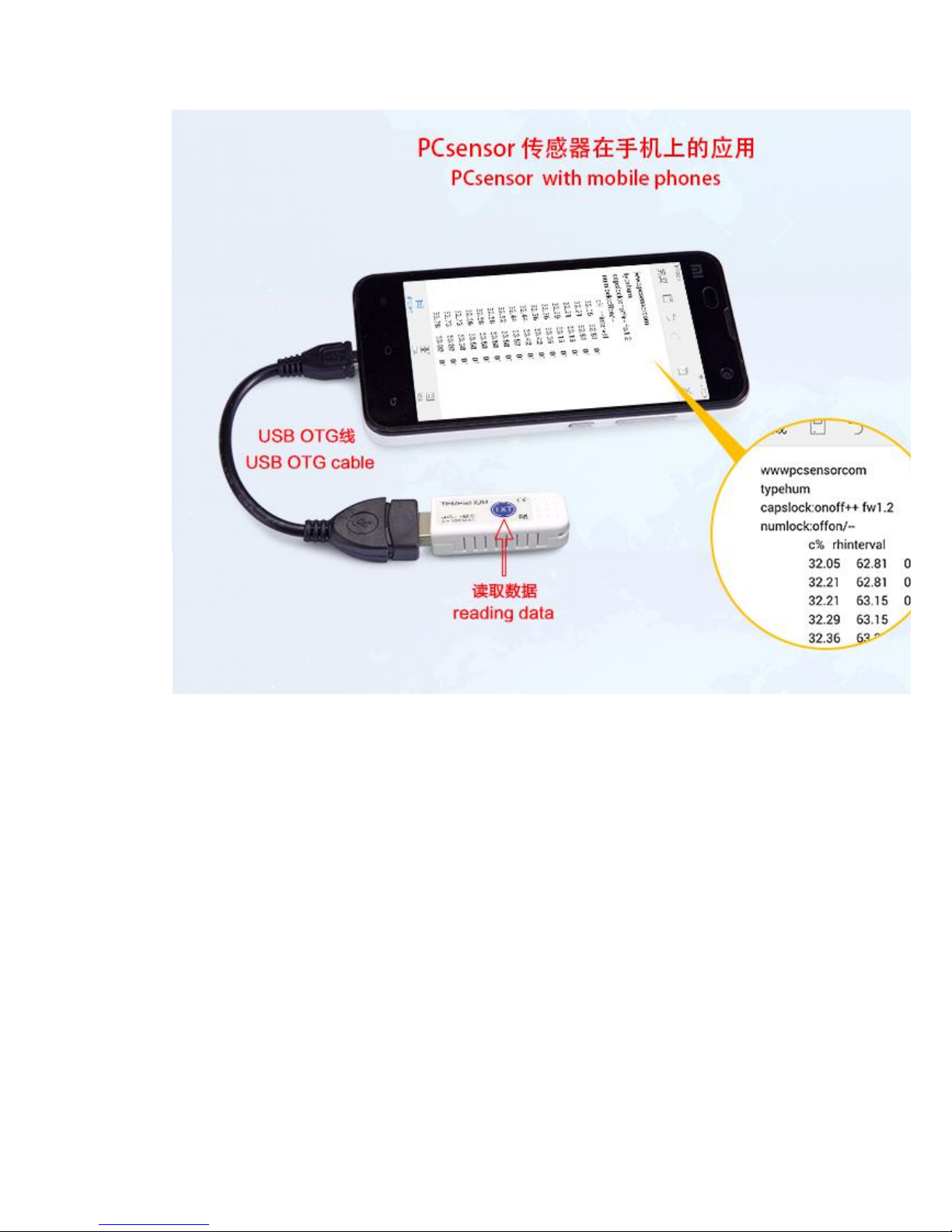

(3) PCsensor USB series products, can be used on the mobile
phone through OTG interface line.

Q1: What are these products mainly include?
A: TEMPer2 ,TEMPerNTC, TEMPer1F, TEMPer1F_H1,
TEMPerHUM, TEMPer1K3, TEMPer1K4, TH1000 ISO, TEMPerF,
TEMPe8 series (TEMPer8_D2, TEMPer8_D4
TEMPer8_D8,TEMPer8_H2 TEMPer8_H4, TEMPer8_H8
TEMPer8_T2, TEMPer8_T4, TEMPer8_T8, etc.)
Q2: what are the common OTG interface of mobile phone?

A: millet, samsung, etc.
Q3: how to validate if your mobile phone is in line with the
OTG?
A: Use OTG line connecting a mouse or keyboard, see if the mouse
is normally used in conformity with the OTG.
3. INSTALLING INSTRUCTION
Software installing instruction: please go to our website to download
the process
a) Install dotnetfx.exe, if your computer system is Vista, may be you
don’t need to install this process. Dotnetfx.exe is framework 2.0 of
Microsoft; you can download it from the website of Microsoft;
b) Decompress TEMPerHUM V22.2.rar to you computer, and
running TEMPerHUM V22.2.exe.
Hardware installing:
Plug the Hygrometer into the USB port of the computer to connect it.
If you plug it correctly the red light in the device will be turned on.
5. Operating instruction (Note: Our software just only support
windows system .)

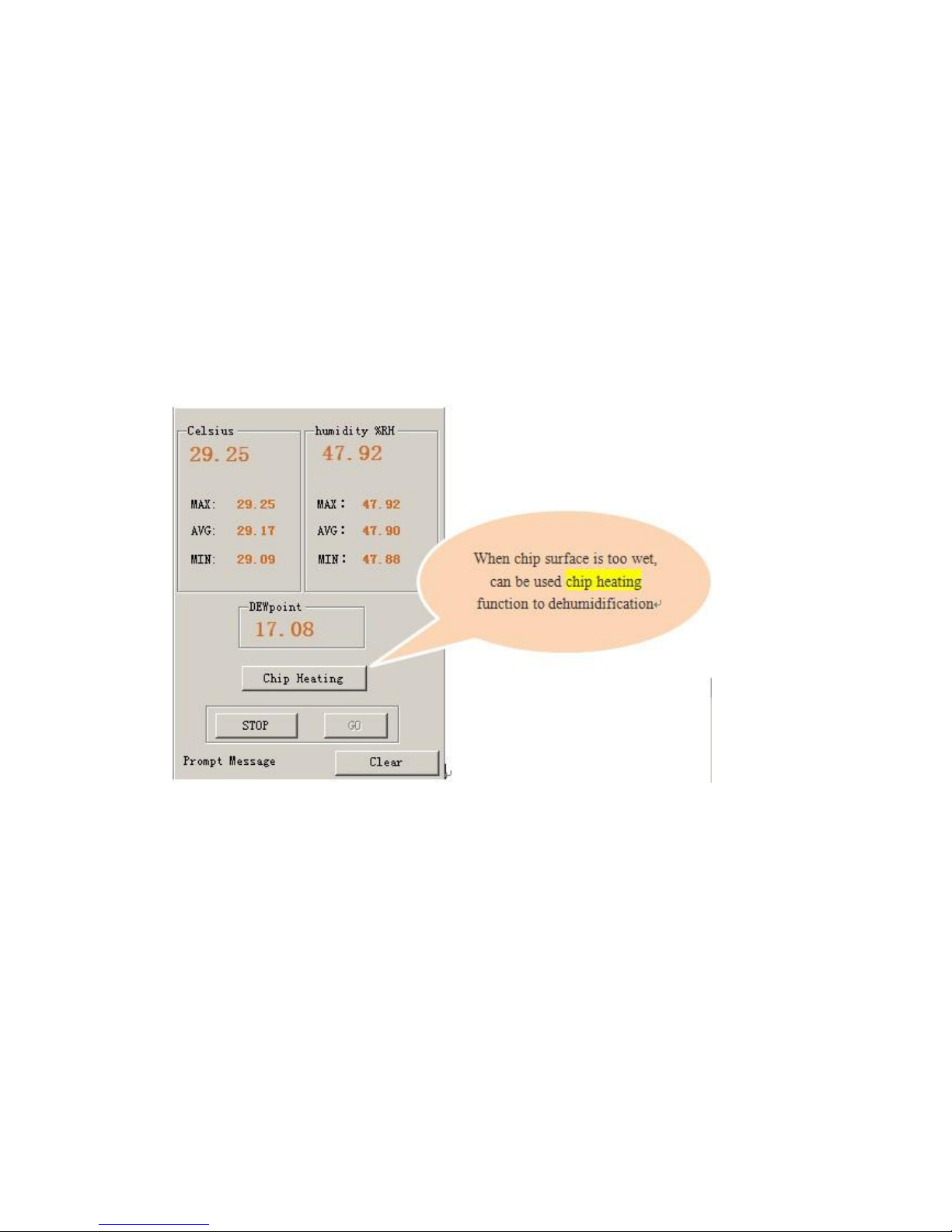

1) THE TEMPERATURE & HUMIDITY DISPLAY BOX
and MESSAGE FRAME
The Real Time Temperature and humidity will Display in the Box
on the Top Left Corner of software interface and the Action of
Operation will Display on the Top Right Corner (see picture1).
Picture 1 TEMPerHUM_Real time temperature

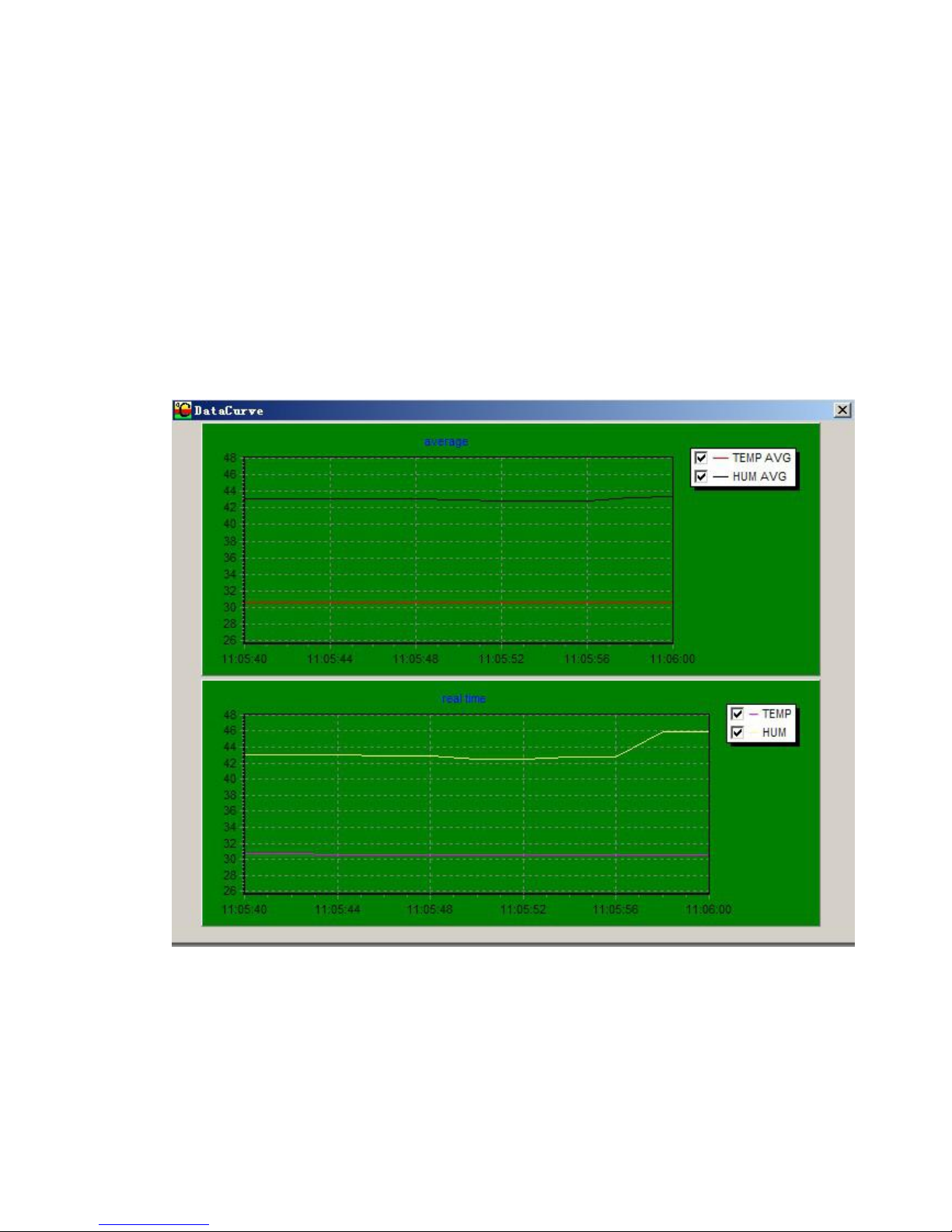

2) CURVES DISPLAY
There is Two Curves, One is AVG Line and the Other is Current
Line. The User can Check the Situation of Temperature and

humidity Contrastively. The Curves can Real-time Display the
Changing Situation of Temperature and humidity . The Tendency of
Curves Responds the Real-time Temperature and humidity Situation.
(see picture2)
ADVISE: Please Check the Log or Data File in Save Contents When
You Want to Check the Historical Data.
Picture 2 TEMPerHUM_Curve
3) LOG

Picture 3 TEMPerHUM_Log .exe

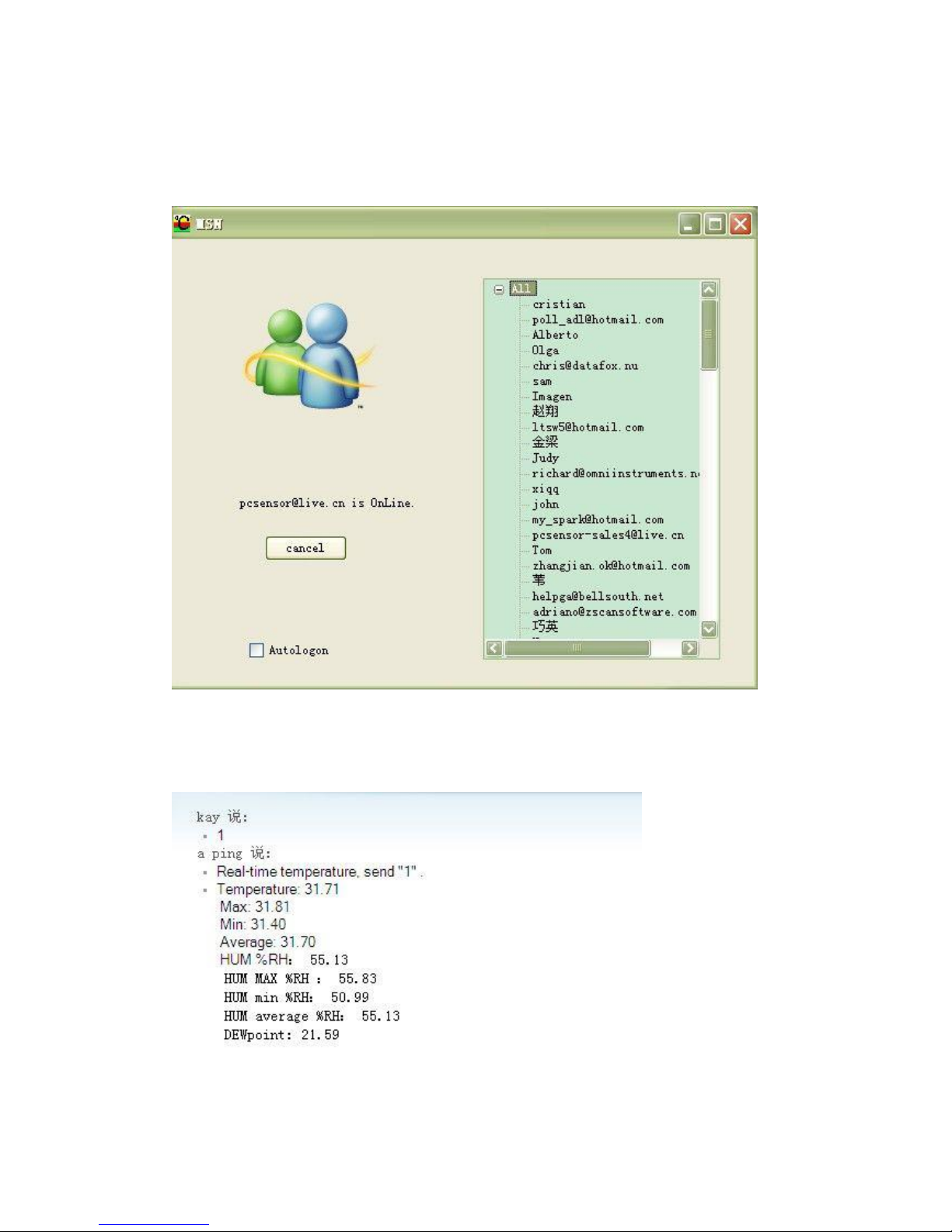

4) MSN remote access to the temperature
After the MSN User Log in, His Friends can Operate by Related
Tips and Obtain the Temperature Data and the humidity data. Your
Friends can obtain the Temperature Data and humidity data
Automatically When He Send “1”in According with Tips. The
Temperature Data Including: Real-time Temperature, Maximum
Value, Minimum Value and Average Value. The humidity Data
including :Real-time humidity,Maximum Value Minimum Value

and Average Value. (see picture 4)
Picture 4 TEMPerHUM_MSN
Picture 4 TEMPerHUM_MSN

5) Skype remote access to the temperature

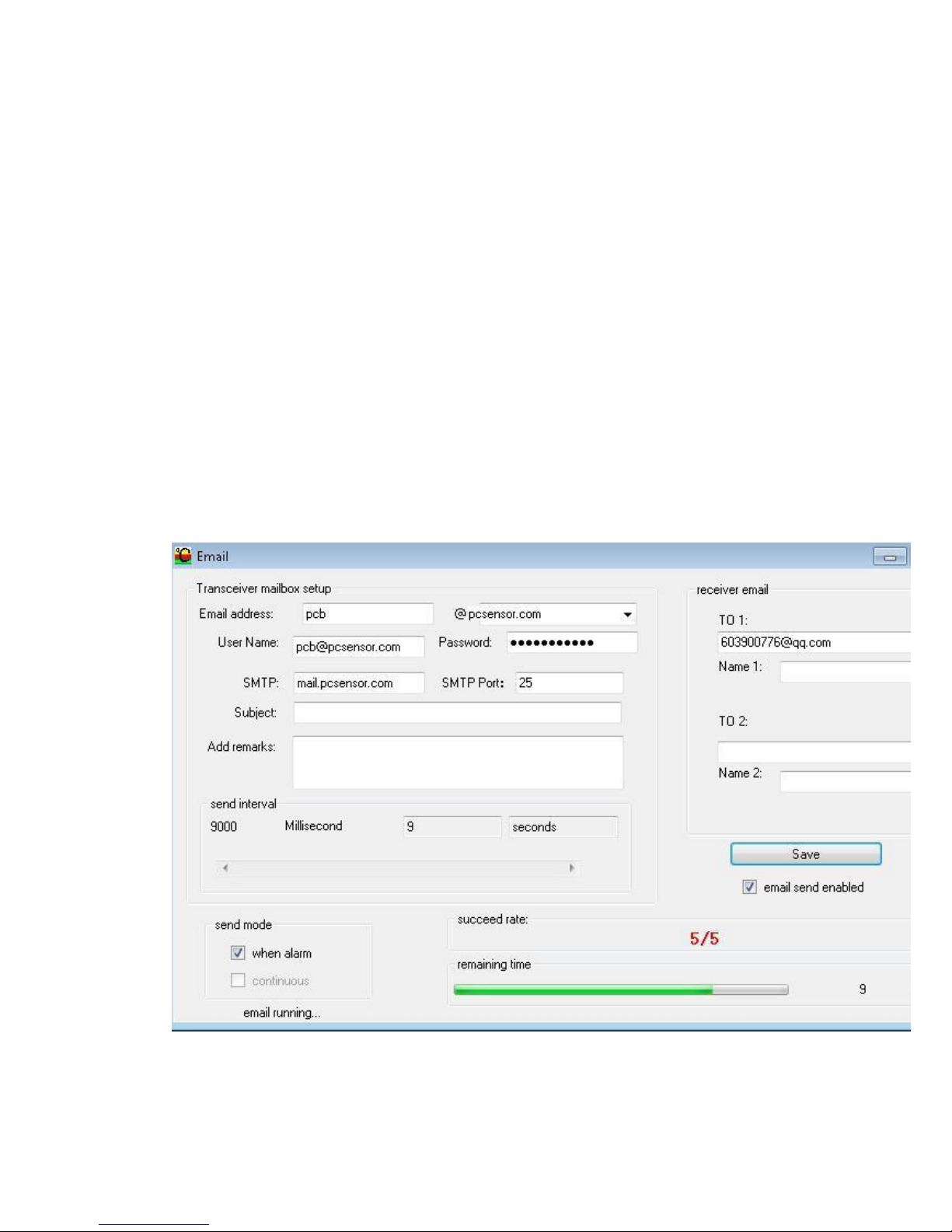

5) EMAIL FUNCTION

Fill in the Related Information of Email and Save it. The
Requirement of Send Email: Support POP3/SMTP and Other Server
Port. Receive Email you can fill in two.
Related Function: 1) when the Alarm is on, it will send the Email to
Specified Email Box Automatically if the Temperature or
humidity Reach the Alarm Limit. 2) You can set the Sending
Interval, and then it will send the Email to the Specified Mail Box at
Set Intervals. (Advise) 3) it can Send Email Continuously to the
Specified Mail Box. (Deprecated feature) (See picture )
Picture 4 TEMPerHUM_Email

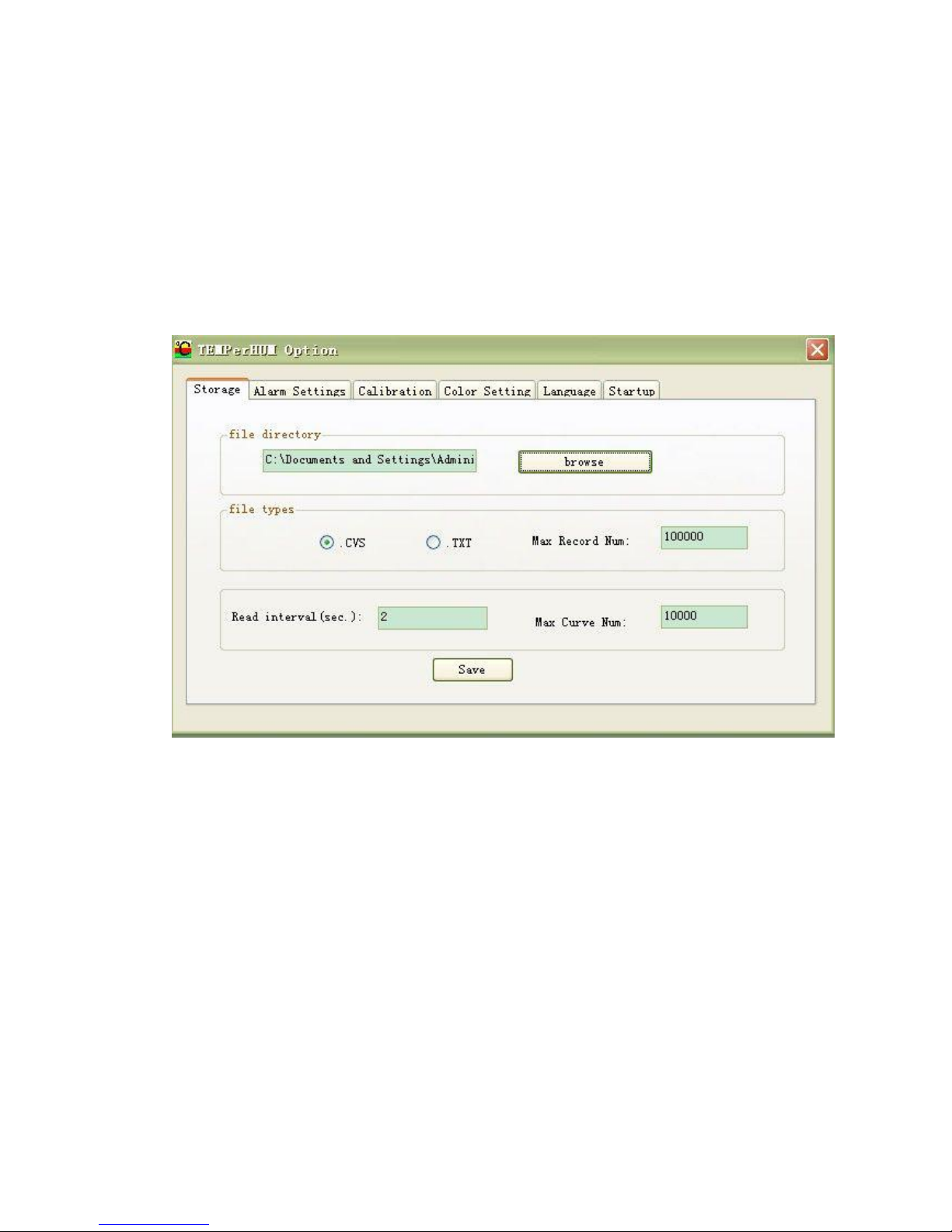

6) THE SAVING SETTING OF FILE
Select “Tool->Option->Memory Setting” then you can Set the
Saving File Catalog, File Type and the Maximum Record Count the
File can Save. (see picture5)
Picture 5 TEMPerHUM_Storage

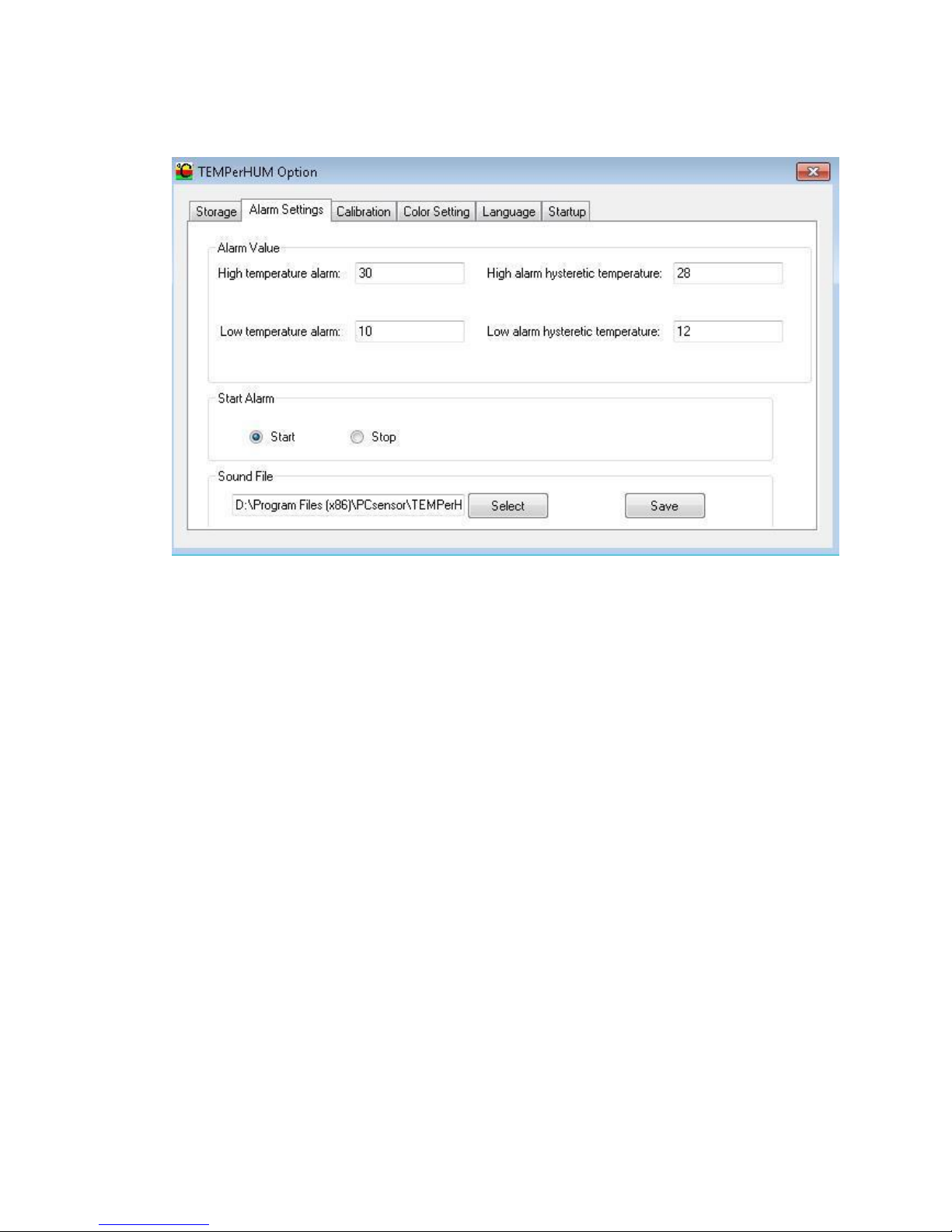

7)THE ALARM SETTING
Set the Temperature of Alarm or the humidity of alarm and Open it.
When the Temperature or humidity Reach the Higher Limit, the
Voice of Alarm will Play, and it will Stop when the Temperature or
humidity Drop to the Lower Limit.

Select “Toll->Select->Alarm” (see picture 6)
Picture6 TEMPerHUM_ Alarm setting

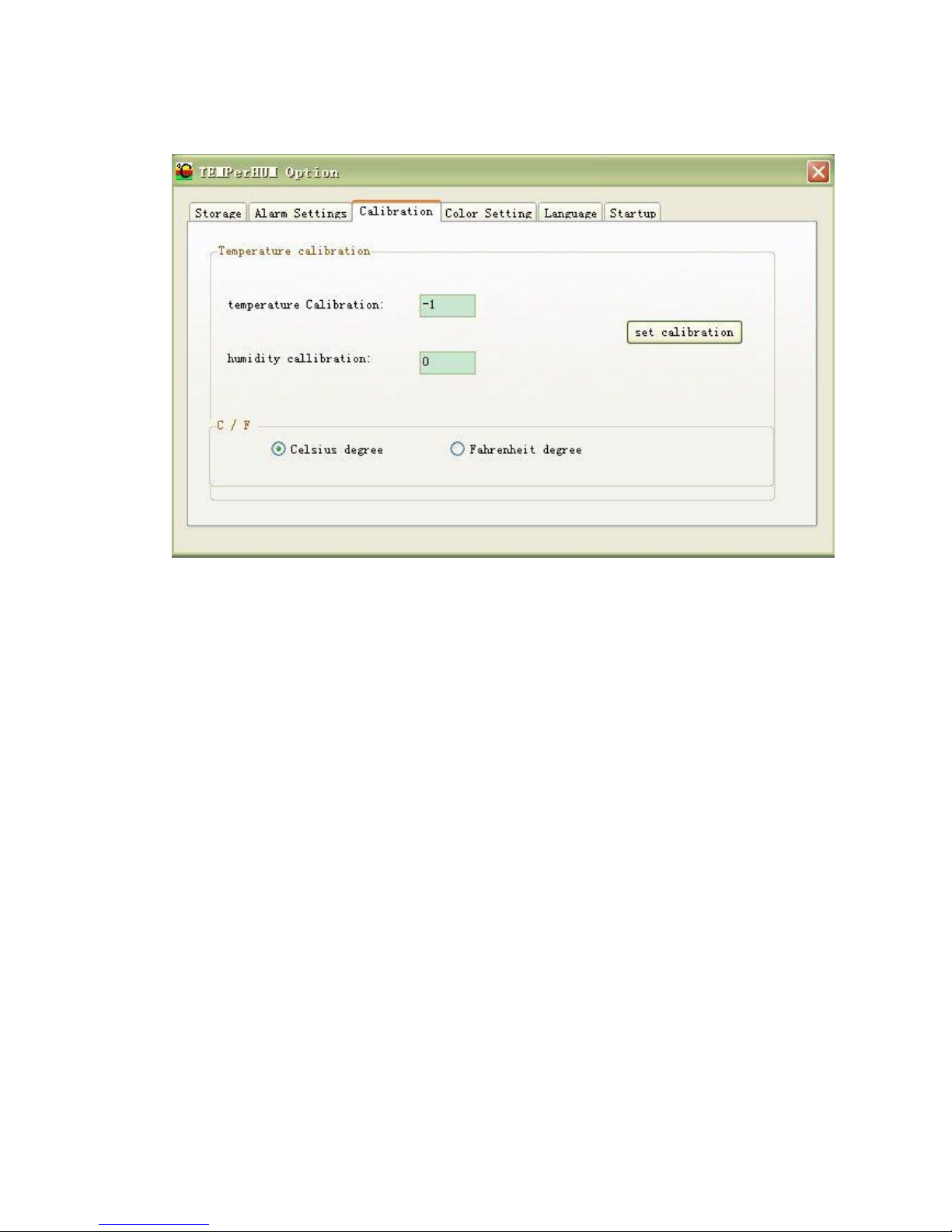

8)TEMPERATURE CORRECTION and UNIT
SELECTION
When a Small Deviation occurs between the Displaying
Temperature or humidity and the Actual Temperature or humidity ,
you can correct it through this Function. And you can select the unit
of the temperature or humidity . (See picture 7)

Picture7 TEMPerHUM_Calibration
9)CHANGE THE COLOR OF BACKGROUD
Select “Tool->Select->Color Setting”, Click Color Frame or Button
to Choose the Color you Like (see picture8)

Picture8 TEMPerHUM_Color setting

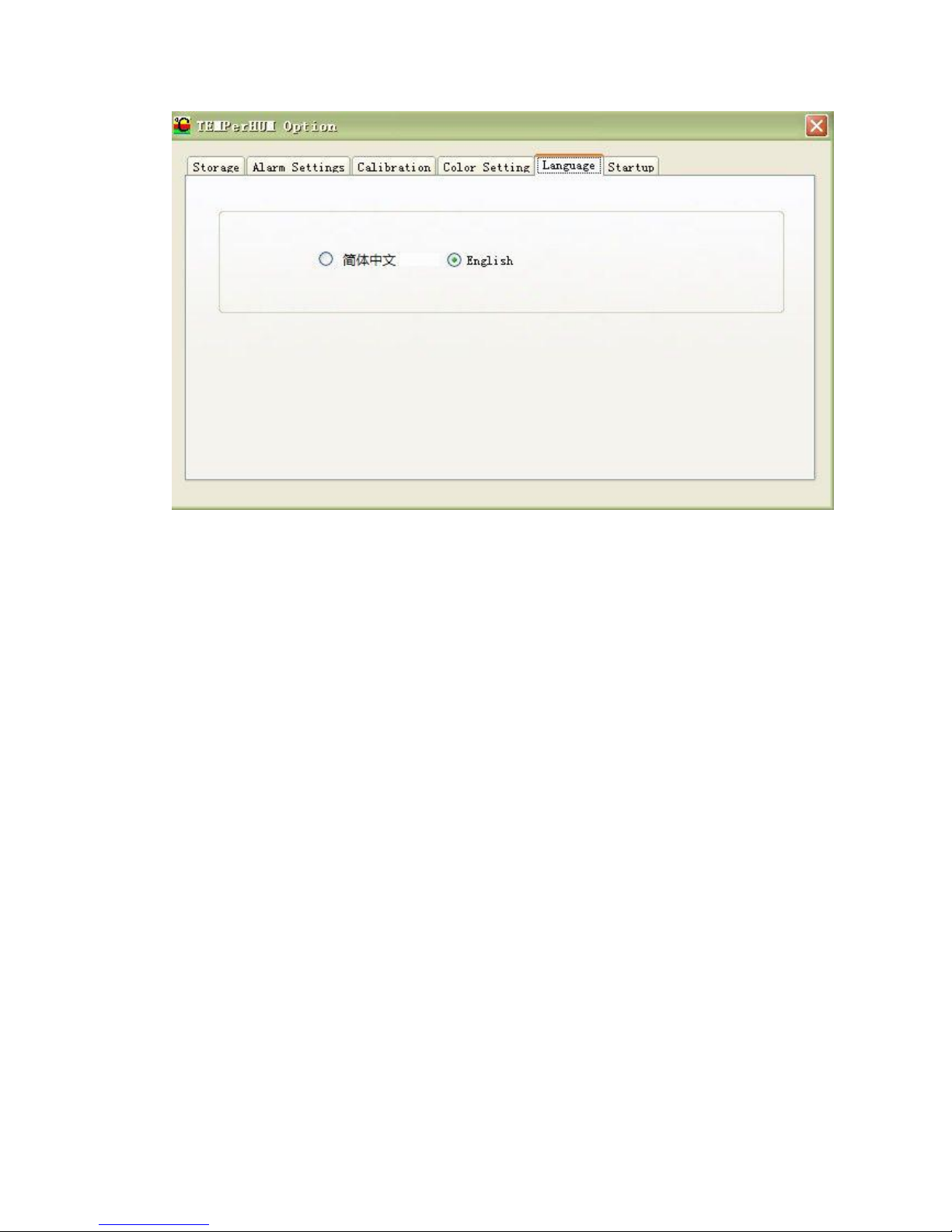

10)CHANGE LANGUAGE
Select “Tool->Select->Language, then Choose English or Chinese”
(see picture 9)

Picture9 TEMPerHUM_Language
11) HELP

Picture10 TEMPerHUM_Help
12) ABOUT
You can see the vision of the software here, and if the vision is not
the latest one, you can go to our website to download the latest one.
That can make the device work better.

Picture11 TEMPerHUM_About
4. Packing specification
(Weight of TEMPerHUM: 60g)
