PCT Brands Lyrix Outloud User manual

FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Note 1: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular in-
stallation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures: a) Reorient or relocate the receiving antenna b) Increase the
separation between the equipment and receiver c) Connect the equipment into an outlet different from that to which
the receiver is connected d) Consult the dealer or an experienced radio/TV technician for help.
Note 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
One (1) Year Limited Warranty
PCT Brands, LLC warrants this product to be free from defects in materials and workmanship. This warranty covers
the original purchaser only, and is not transferable to anyone who subsequently buys, leases, or otherwise obtains
from you. Your One Year Limited Warranty begins on the date of purchase. Your original purchase invoice or sales
receipt, showing date of purchase, is your proof of warranty period. The duration of this warranty does not extend
beyond the initial period of coverage should any repairs or replacements be made or performed.
This warranty does not extend to any product not purchased from PCT Brands, LLC, or an authorized PCT Brands,
LLC reseller. This warranty does not extend to product that has been damaged or rendered defective as a result of
use for which the product is not intended, is contrary to instructions provided in the user manual, as a result of the
use of parts not manufactured or sold by PCT Brands, LLC, or due to any misuse, abuse, negligence, modification,
or improper packing when returning product to PCT Brands, LLC.
EXCEPT FOR THE WARRANTY SET FORTH HEREIN, PCT BRANDS, LLC DISCLAIMS ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED OR STATUTORY, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED
BY APPLICABLE LAW ARE LIMITED TO THE TERM OF THIS WARRANTY. IN NO EVENT SHALL PCT BRANDS, LLC BE
LIABLE FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO LOSS OF
BUSINESS, PROFITS, DATA OR USE, WHETHER IN AN ACTION IN CONTRACT OR TORT OR BASED ON A WARRANTY,
ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT. YOU AGREE THAT
REPAIR, AND (UPON AVAILABILITY) REPLACEMENT, AS APPLICABLE, UNDER THE WARRANTY SERVICES DESCRIBED
HEREIN IS YOUR SOLE AND EXCLUSIVE REMEDY WITH RESPECT TO ANY BREACH OF THE PCT BRANDS, LLC LIMITED
WARRANTY SET FORTH HEREIN. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE
OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
How Do I Obtain Warranty Service?
For warranty service, please email [email protected] or call [phone] to report a claim, at
which time PCT Brands, LLC technicians will attempt to solve any issues. If unable to resolve your issue, you will
be issued an RMA to authorize the return of the item for repair/replacement. All charges incurred while returning
product, including postage, duties, export taxes, and customs duties, are the responsibility of purchaser, and
purchaser assumes all risk of loss during shipment. For more information visit www.pctbrands.com
PCT Brands is a division PC Treasures, LLC, 3720 Lapeer Rd., Auburn Hills, MI 48326. Made in China.
PCT Brands, the PCT Brands logo, Lyrix, and the OutLoud logo are trademarks or registered trademarks of
PCT Brands. Bluetooth is a registered trademark of Bluetooth SIG, Inc. All rights reserved.
OutLoud_MAN_06/16

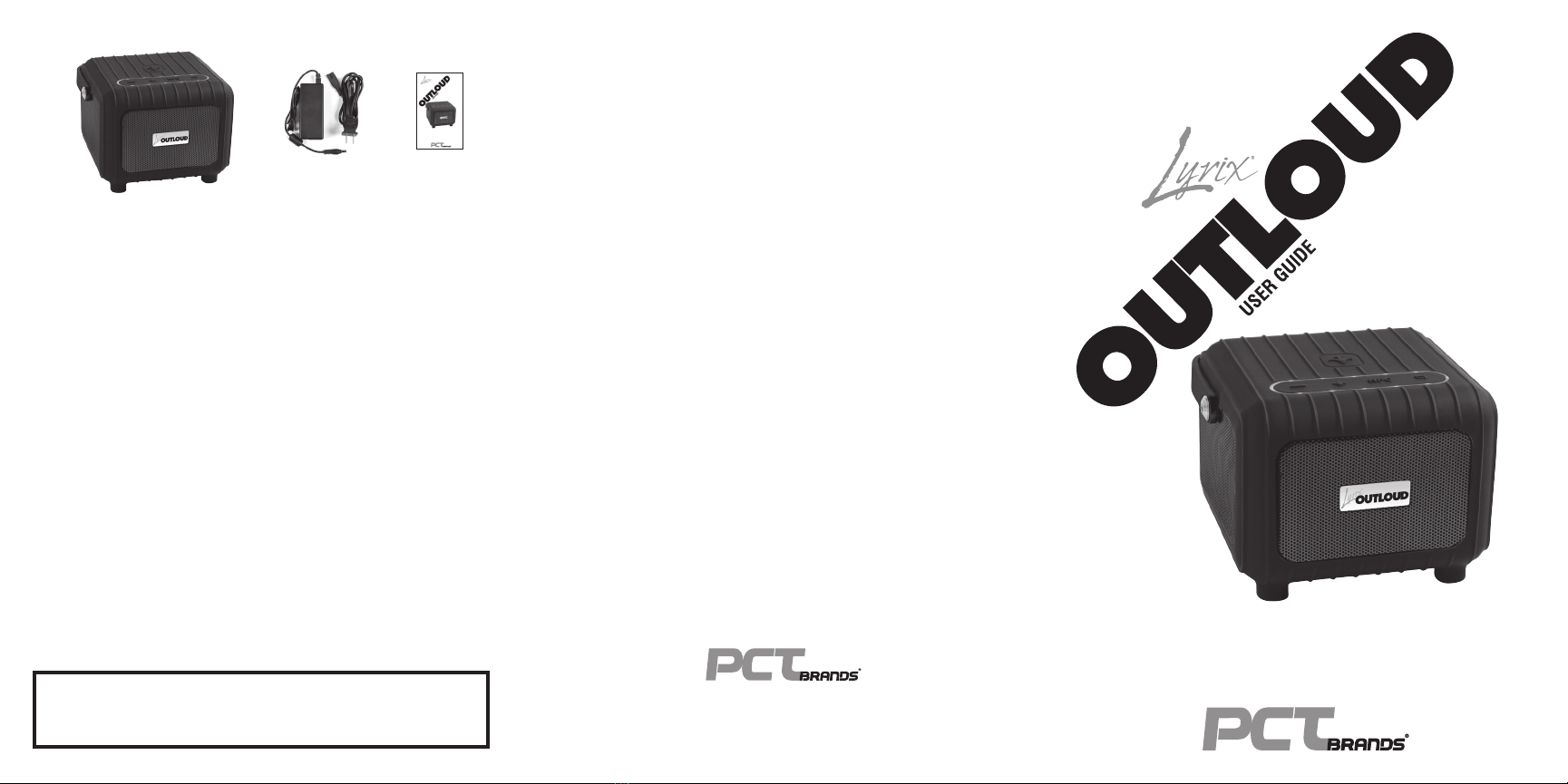

Package Contents
Warnings
• The OutLoud speaker is designed to deliver substantial volumes; prolonged exposure to excessive
volume may lead to hearing loss. You are responsible for the safe operation of the OutLoud.
•Do not leave the OutLoud unattended while charging or during use while plugged into a wall outlet.
Do not leave the OutLoud plugged in when not in use or recharging.
• When using with a tripod, please make sure it can support the weight of the OutLoud. Failure to
do so may result in the OutLoud falling, damaging the unit or causing injury.
Properly Dispose of Batteries
This product contains a Lithium-Ion battery. To properly dispose of expired batteries, view your city/
state’s website or newsletter to determine what disposal guidelines, if any, should be followed, and
make note of designated hazardous waste collection days.
Technical Support
Email: [email protected]
Phone: [phone]:30am - 5:30pm EST, M-F.
User Guide
Charger/AC Adapter
and Power Cord
Lyrix OutLoud Speaker
Speakers:
3 Watt High/Mid Range Driver x 4
20 Watt Sub Woofer x 1
Output Power: RMS @ 32 Watts, Peak Power
60 Watts
Frequency Response: 50Hz to 18KHz
Battery: 14.8V 2000mAh (Four 3.6V
Li-ion Cells Connected in Series)
Dimensions: 6” x 4.3” x 5.5”
Weight: 3.5 lbs.
Water Resistant IPX5
One-Year Warranty
Specifications
Wireless:
2.4GHz Bluetooth®
5.8GHz Wireless Broadband
NFC
Pairing:
Connect 1 Speaker via 2.4GHz Bluetooth or
3.5mm Line-In
Connect Up to 7 Satellite Speakers via 5.8GHz
Lossless
Range: Satellite Speakers Up to 150 feet from
Bluetooth-Connected Speaker
Stereo Channels: Switch-Select Left, Right, Center
or Stereo Channel

Charging
Your OutLoud speaker includes a charger that lets you choose between operating your OutLoud via
the built-in rechargeable battery or while plugged into a standard wall outlet. Your OutLoud speaker
delivers eight hours of sound from a single charge. To charge your OutLoud’s internal battery:
1. Lift the access panel on the back of your OutLoud.
2. Plug the included charger into the 19V port on your OutLoud and into any standard wall outlet.
3. A red charging indicator light will appear. When this indicator light turns off, your
OutLoud is fully charged.
4. Once charged, unplug your OutLoud to use on the go, or use while plugged into the power source.
Function Buttons & Lights
1. Sync Button – This button allows you to sync your OutLoud speakers
with up to seven additional OutLoud speakers.
2. Volume Down – Press this button to lower the volume of your OutLoud
speaker. Volume is indicated by the LED lights, the fewer lights lit, the
lower the volume of the speaker.
3. Volume Up – Press this button to raise the volume of your OutLoud
speaker. Volume is indicated by the LED lights on top of the unit; the
more lights that are on, the higher the volume of the speaker.
4. NFC – To pair your OutLoud with an NFC-capable device, first enable NFC on your device and
then place the device in close proximity to the NFC label on the OutLoud to pair.
5. Mode- Switch select between three modes:
1) Bluetooth (as indicated by blue flashing LEDs)
2) 5.8GHz Paring to Bluetooth Connected OutLoud (as indicated by purple flashing LEDs)
3) 3.5mm Auxiliary-In Source (as indicated by white flashing LEDs)
6. Indicator Lights
Green (Battery Charge Indicator): Pressing the Sync Button twice quickly will show how much
charge remains in the battery.
Blue (Bluetooth): Blinks when searching for a device. Remains lit when it is paired with your
Bluetooth device.
Purple (Pairing with Additional Speakers): Blinks while searching for other OutLoud Speakers
with which to pair. Remains lit when successfully paired with another OutLoud speaker.
White (Auxiliary): This light must be lit in order to use with a 3.5mm cable (not included)
plugged into your device.
Access Panel
Pairing with Bluetooth Device
To pair with your smartphone, tablet, PC, or other Bluetooth device, first make sure your Bluetooth
settings are turned on and searching for devices.
1. Open the access panel and turn on the OutLoud; you will hear a resonating tone as it powers
up. The green LED lights that first turn on indicate the amount of remaining battery charge;
after a moment these lights will turn blue, indicating that the unit is in Bluetooth mode. The
blue LEDs will blink until paired with a device. If they do not blink but remain on, the unit is
indicating that it is already paired with a device. To pair with a different device you must first
unpair the one currently connected.
2. Open your device’s Bluetooth settings and find and select “OutLoud.” A tone will sound on the
OutLoud and the blue LED lights will remain on.
3. Your device is now paired with the OutLoud – turn it up and enjoy your music with the clarity
and volume it deserves!
Connecting to Your Device with a 3.5mm Cable
In addition to the convenience of Bluetooth connectivity, the OutLoud also lets you hardwire
directly into the OutLoud using a 3.5mm cable (not included). You’ll still be able to enjoy the
superior sound and versatility of the OutLoud, including pairing with multiple OutLoud speakers.
To connect with a 3.5mm cable:
1. Open the access panel and turn on the OutLoud; you will hear a resonating tone as it powers
up. The green LED lights that first appear indicate the amount of remaining battery charge.
2. Plug one end of the 3.5mm cable (not included) into your device and the other end into the
3.5mm jack on the OutLoud.
3. Press the Mode Button on top of the OutLoud twice. The white LED lights indicate that the unit
is in Auxiliary mode for playback via 3.5mm cable.
4. You may pair your OutLoud with up to seven other OutLoud speakers, connecting either by
Bluetooth or 3.5mm cable.
Pairing Multiple OutLoud Speakers
For an amazing all-around sound experience, you can pair up to seven additional OutLoud speakers.
To pair additional speakers:
1. Pair your device with the OutLoud speaker, connecting either via Bluetooth connection or
3.5mm cable (not included). This will be the master speaker. You will be able to control the
volume of all paired speakers using the Volume Buttons on the top of this unit.
2. Once your device is paired with the master OutLoud speaker, turn on the additional OutLoud
speaker(s) you want to link.
3. Press the Mode button on the additional speakers you want to link until the LED lights on top
are blinking purple, then press the Sync Button on the Master OutLoud speaker one time.
After a short moment your speakers will be linked as indicated by the flashing purple LEDs
switching to non-flashing purple LEDs.
Sound Settings
Your OutLoud speaker lets you choose from a variety of sound settings. These settings are especially
helpful for designing the ideal sound when pairing multiple OutLoud speakers.
S – Ideal setting for use of a single speaker, providing a balanced mix of left/right stereo sound.
R – In this setting, the speaker will play the right channel of stereo sound.
C – In this setting, the speaker will play the center channel of stereo sound.
L – In this setting, the speaker will play the left channel of stereo sound.
Using with a Tripod
The OutLoud features a pre-drilled and threaded socket on the back for use with a standard
tripod. To use with a tripod, screw the tripod’s fastening screw into the OutLoud. NOTE: It is
important to make sure the tripod you use can support the weight of the OutLoud and is firmly
placed on level ground.
Troubleshooting
The Lyrix Outloud works within the effective range of approximately 150’ (45m). If it does not,
please try the following:
1. Should you experience any performance issues upon first use, please reset it by turning the
unit off and then back on.
2. Make sure that your speaker is charged up and turned on.
3. Make sure that the device with which you want to pair has its Bluetooth setting in the “On”
position and is within the effective range of 150’ (45m).
4. Move your Lyrix OutLoud and/or Bluetooth Device away from sources of electromagnetic
interference such as cordless phones, microwave ovens, wireless network routers, or other
Bluetooth devices.
5. If you have difficulty connecting your device with your Lyrix OutLoud after it has been paired
with your device, delete it from your device and re-pair.
6. If you have too many Bluetooth devices listed under “Devices,” the pairing process
may take longer or be unsuccessful. Delete one or more of the devices to improve pairing
performance.
7. Make sure you are following the instructions for Pairing with a Bluetooth device, or connecting
with a 3.5mm cable.
2
3
4
5
6
On/Off
Charge Indicator
Light
3.5mm
Auxiliary Port
Sound
Settings
19V
Charging Port
