PDi PDI-P19LCDC User manual

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 1 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

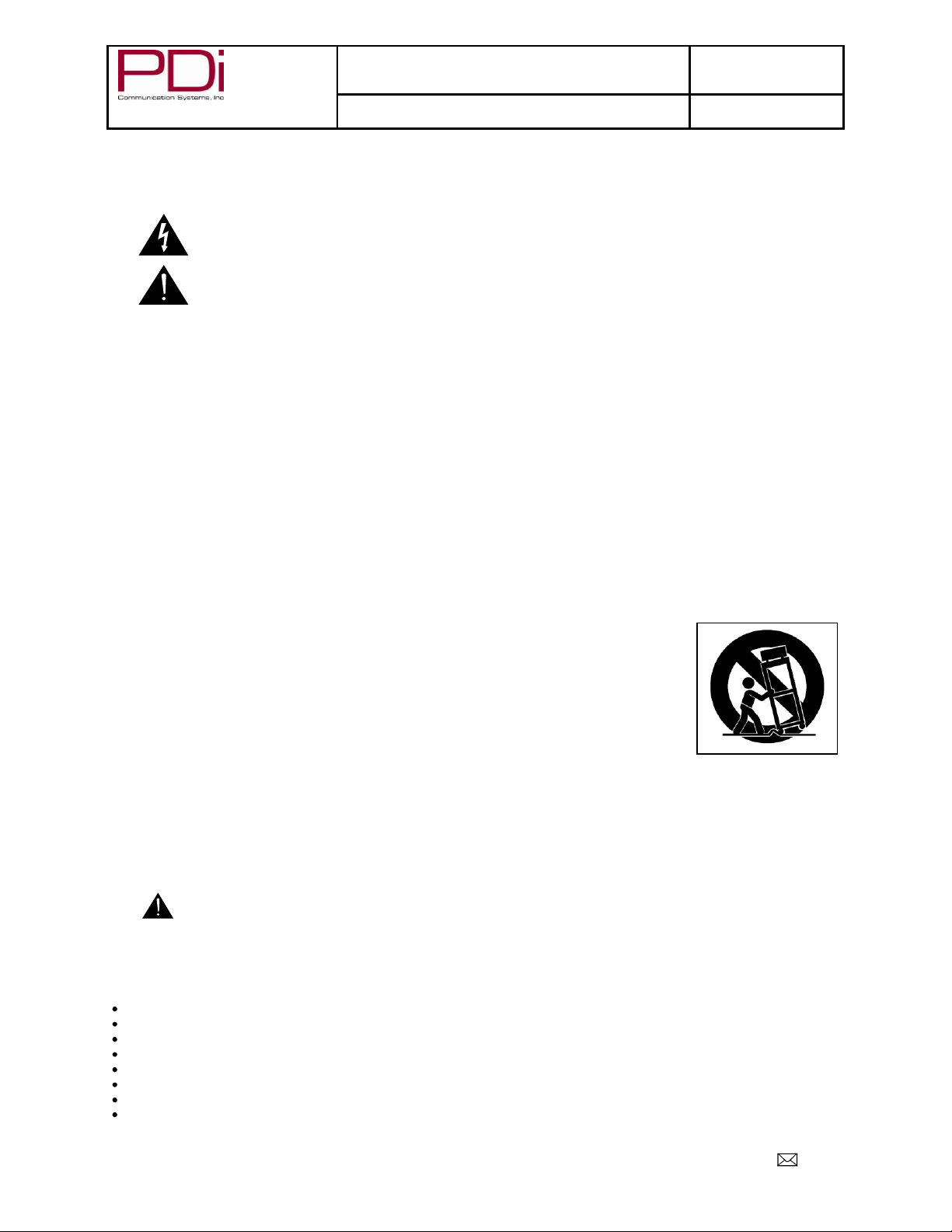

WARNINGS
To reduce the risk of electric shock, DO NOT perform any servicing other than what is contained in the operating instructions, unless
you are qualified to do so.
This symbol is intended to alert the user of the presence of un-insulated ‘dangerous voltage’ within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user of the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
NOTE TO CABLE TV INSTALLER
This reminder is provided to call the cable TV systems installer’s attention to Article 820-40 of the National Electrical Code. The code
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of the cable entry as practical.
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat source such as radiators, heat registers, stove, or other apparatus (including amplifiers) that
produces heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart / apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for log period of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
15. Use only PDI mounts and appropriate hardware. Failure to do so could cause the set to fall and subsequent injury or death.
MAINTENANCE AND SERVICING
Servicing is required when the TV has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the TV, the TV has been exposed to rain or moisture, does not operate normally, or has been
dropped.
Never remove the back cover of the TV; this can expose you to high voltage and other hazards. If the TV does not operate properly,
unplug it and call an authorized service center or PDI.
CAUTION: These servicing instructions are for use by qualified service personnel only.
POWER CORD
Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and the point where they exit
from the apparatus.
To avoid any malfunctions of the unit and unwanted electric shock or fire accidents, please observe the following:
Hold the plug firmly when connecting or disconnecting the AC power cord to/from an outlet.
DO NOT connect or disconnect the AC power cord when your hands are wet.
Keep the AC power cord away from heating appliances.
Never put heavy objects on the AC power cord.
DO NOT attempt to repair or reconstruct the AC power cord under any circumstance.
Remove dust, dirt, etc. from the plug periodically.
If the unit has been dropped or otherwise damaged, turn off the power and disconnect the AC power cord from the outlet.
If smoke, odors, or noises are emitting from the unit, disconnect the AC power cord immediately.

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 2 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
PLACEMENT
Avoid placing the unit in surroundings with:
Direct sunlight or heat sources, like radiators or ovens.
High temperature (over 40 C) or high humidity (over 90%).
Excessive dust.
Electro-static effect.
Vibration, impact, or tilted surface.
Otherwise the internal parts may be damaged.
NON-USE PERIODS
Turn off the power when the unit is not used.
The power cord should be unplugged from the AC outlet when the unit is idle for a long period of time.
DVD PLAYER
Because of high voltage inside the unit, touching internal parts is dangerous and may lead to serious damage to the unit and
even personal injury.
DO NOT attempt to disassemble this unit under any circumstance.
Only put a DVD or CD into the slot.
CAUTION: Disconnect TV main AC cord from wall before plugging in the DVD cable.
STACKING
Place the unit in a horizontal place, and DO NOT lay anything heavy on it.
CONDENSATION
Moisture may condense on the lens if placed in a steamy or very humid room or if moved from a cold environment to a warm one. If
moisture appears inside this unit, it may not operate normally. In this case, unplug the power cord and wait for about 1 hour to let it
dry.
CAUTION: DO NOT defeat the safety of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two plates and a third grounding prong. The wide blade or
the third prong is provided for your safety. If the plug does not fit into your outlet, consult an electrician.
RAIN AND MOISTURE
WARNING: To avoid the hazards of fire or electrical shock, DO NOT expose this TV to rain or moisture.
INSTALLATION
DO NOT block any ventilation openings. DO NOT install near any heat source such as radiators, heat registers, stoves, or other
apparatus that produce heat.
WET LOCATION
The TV SHOULD NOT be exposed to dripping or splashing. Objects filled with liquids, such as vases, SHOULD NOT be placed on
the TV.
OXYGEN ENVIRONMENT
WARNING: DO NOT use in an oxygen tent or an oxygen chamber. Such use may cause a fire hazard.
CLEANING AND DISINFECTION
Clean the exterior of this TV by removing dust with a lint-free cloth.
CAUTION: DO NOT use abrasive or chemical cleaning agents. Clean only with a dry cloth.
PRODUCT MODIFICATION
DO NOT attempt to modify this product in any way without written authorization. Unauthorized modification could void the user’s
authority to operate this product.
OVERHEAD FALLING HAZARD
WARNING: To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation
instructions. TVs can pose a striking hazard when mounted at an elevated position.
OTHER EQUIPMENT
Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the TV. Use caution when moving the
cart.
WARNING: To reduce the chance of fire or electric shock, only utilize the accessories recommended by the
manufacturer.

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 3 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
FCC, Copyright, Disclaimer, and Trademarks
FCC
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
residential or commercial installation. If this equipment does cause harmful interference to radio or TV reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Copyright
PDI Communication Systems, Inc. claims proprietary right to the material disclosed in this user manual. This manual is issued for
user information only and may not be used to manufacture anything shown herein. Copyright 2009-2011 by PDI Communication
Systems, Inc. All rights reserved.
Disclaimer
The author and publisher have used their best efforts in preparing this manual. PDI Communication Systems, Inc. makes no
representation or warranties with respect to the accuracy or completeness of the contents of this manual and specifically disclaims
any implied warranties or merchantability or fitness for any particular purpose and shall in no event be liable for any loss of profit or
any other damages. The information contained herein is believed to be accurate, but is not warranted, and is subject to change
without notice or obligation.
Trademarks
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
All other brand names and product names used in this manual are trademarks, registered trademarks, or trade names of their
respective holder. PDI and Better Solutions Are Within Reach are registered trademarks of PDI Communication Systems, Inc.,
Springboro, Ohio.

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 4 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Table of Contents
Warnings...........................................................................................................................................................................2
Note to Cable Installer ................................................................................................................................................2
Safety Instructions ...........................................................................................................................................................2
Important Safety Instructions ......................................................................................................................................2
Maintenance and Servicing.........................................................................................................................................2
Power Cord.................................................................................................................................................................2
Placement ..................................................................................................................................................................3
Non-Use Periods ........................................................................................................................................................3
DVD Player.................................................................................................................................................................3
Stacking......................................................................................................................................................................3
Condensation .............................................................................................................................................................3
Rain and Moisture.......................................................................................................................................................3
Installation..................................................................................................................................................................3
Wet Location...............................................................................................................................................................3
Oxygen Environment..................................................................................................................................................3
Cleaning and Disinfection...........................................................................................................................................3
Product Modification...................................................................................................................................................3
Overhead Falling Hazard............................................................................................................................................3
Other Equipment.........................................................................................................................................................3
FCC, Copyright, Disclaimer, & Trademarks....................................................................................................................4
Wall Mounting with PD168-005 Standard Wall Bracket .................................................................................................7
Connections......................................................................................................................................................................8
Across Room Wiring......................................................................................................................................................9
Antenna Connection....................................................................................................................................................11
AC Power ....................................................................................................................................................................11
Product Accessories......................................................................................................................................................12
Buttons on TV.................................................................................................................................................................12
Programming Remote Control.......................................................................................................................................12
Patient Remote Control..................................................................................................................................................13
Programming..................................................................................................................................................................14
Service Levels.............................................................................................................................................................14
Picture.. ......................................................................................................................................................................15
Brightness, Contrast, Color, Tint, and Sharpness....................................................................................................15
Color Temperature..................................................................................................................................................15
Sound..........................................................................................................................................................................16
Minimum Volume....................................................................................................................................................16
Maximum Volume...................................................................................................................................................16
Power on Volume....................................................................................................................................................16
Internal Speaker Enabled........................................................................................................................................17
HDMI Audio Port.....................................................................................................................................................17
Channels.....................................................................................................................................................................17
Signal .....................................................................................................................................................................17
Auto Program..........................................................................................................................................................18
Add/Delete Channels..............................................................................................................................................18
Clear Service Level.................................................................................................................................................19
Copy Service Level.................................................................................................................................................20
Parental Control......................................................................................................................................................20
TV Rating............................................................................................................................................................21
TV Parental Guideline Rating System ............................................................................................................21
The sub-rating of TV rating.............................................................................................................................21
MPAA Rating ......................................................................................................................................................22
Motion Picture Association of USA (MPAA) Rating System............................................................................22
Change Password...............................................................................................................................................22
Aux. Block Source..............................................................................................................................................23
Parental Lock Duration.......................................................................................................................................23
Parental Lock.....................................................................................................................................................23
Power on Channel ..................................................................................................................................................23
Channel Lock..........................................................................................................................................................23
Channel Memory Override......................................................................................................................................23

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 5 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Features...........................................................................................................................................................................24
Power On Caption Mode.........................................................................................................................................24
Auto Power On/Lock...............................................................................................................................................24
Inactive Power Off (h:mm) ......................................................................................................................................24
Bed A/B ..................................................................................................................................................................25
Caption Text Modes................................................................................................................................................25
Digital Captions.......................................................................................................................................................25
Digital Mode Time Setup.........................................................................................................................................26
Diagnostics.............................................................................................................................................................26
Channel up Power Off.............................................................................................................................................27
Channel to Other Source ........................................................................................................................................27
Power on ARC Mode ..............................................................................................................................................27
Standby Power.......................................................................................................................................................27
Wireless Audio........................................................................................................................................................27
On Screen Menu Language Selection .........................................................................................................................27
Sources.......................................................................................................................................................................28
Power On Source....................................................................................................................................................28
FM Radio.....................................................................................................................................................................29
Enable FM Radio....................................................................................................................................................29
Auto Program .........................................................................................................................................................29
Add/Delete Stations................................................................................................................................................29
Cloning............................................................................................................................................................................30
Save Settings to USB Flash Drive................................................................................................................................30
Restore Setting to TV...................................................................................................................................................31
Firmware .....................................................................................................................................................................32
Optional DVD Module Operation....................................................................................................................................33
DVD Module installation...............................................................................................................................................33
Enable DVD Module....................................................................................................................................................34
DVD Playback .............................................................................................................................................................35
Basic Controls.........................................................................................................................................................35
Navigating menus...................................................................................................................................................35
Advanced DVD playback features...........................................................................................................................35
Repeating a Chapter or Title..............................................................................................................................35
Changing the Subtitle and Audio........................................................................................................................37
Audio............................................................................................................................................................37
Subtitle..........................................................................................................................................................37
DVD Content Information...................................................................................................................................37
Setup menu............................................................................................................................................................38
CD Playback................................................................................................................................................................39
Basic Controls.........................................................................................................................................................39
Advanced CD playback features.............................................................................................................................39
Setting a track or whole CD to loop....................................................................................................................39
Skipping to a certain place on a CD...................................................................................................................39
Adjusting Audio output.......................................................................................................................................39
Viewing JPG photos on a USB drive, SD card or CD...................................................................................................40
Access USB/SD card..............................................................................................................................................40
Access Photo CD....................................................................................................................................................40
View JPEG .............................................................................................................................................................40
Control slide show...................................................................................................................................................40
Selecting thumbnail photos................................................................................................................................40
Selecting more thumbnails.................................................................................................................................40
Other thumbnail screen controls .............................................................................................................................40
Limited Warranty............................................................................................................................................................41

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 6 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
WALL Mounting With PD168-005 Standard Wall Bracket
(Not supplied with TV)
1. Refer to Figure 1. Select a location on the wall
approximately 5 inches below the ceiling.
NOTE:DO NOT locate AC, Across-Room Wiring,
and CATV Signal outlets below the Wall Bracket’s
location as it will cause clearance issues and
interfere with the TV’s cabinet when mounted to
the bracket.
Position the Wall Bracket and locate two mounting
holes. Secure the bracket to the wall (mounting
hardware is not included).
2. Refer to Figure 2. The TV can be mounted with 4
mm hardware (not provided) using a compatible
mount. Position the Back Mount on the LCD TV
cabinet. Attach with four M4 x 6mm screws
provided with the mount.
3. Mate the Back Mount to the Wall Bracket making
sure the pivot pins are retained in the “U” shaped
slot. Using the pilfer security driver packed with
the hardware, secure with two 10x32 pilfer screws.
4. Connect the AC power cord, Pillow Speaker
Jumper Cable, and CATV Coax Cable.
5. The TV’s tilt can be adjusted by loosening both
Pilfer Screws, adjusting tilt, and then tightening the
screws.
Figure 2
5”
Unit Weight w/DVD: 12.5 lbs
Unit Weight w/o DVD: 11.5 lbs
13.0”
18.0”
2.75”

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 7 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Connections

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 8 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

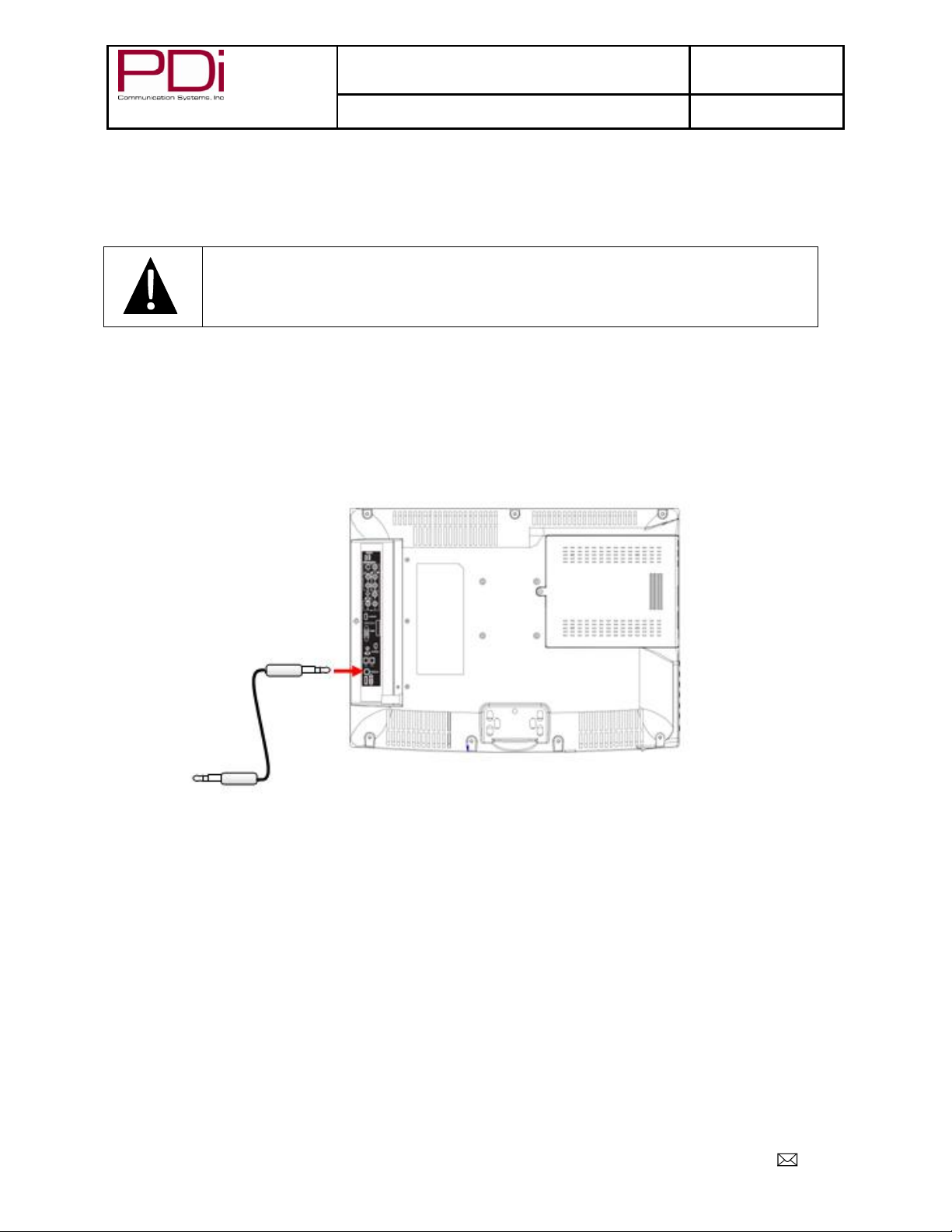

Across Room Wiring
A ¼” stereo style pillow speaker (pendant control) jack is located on the TV’s connections panel.
This TV is designed to work with either a digital pillow speaker that generates digital style control codes or a single-button analog
(switch-style) pillow speaker. A rear panel mounted switch allows use of different brands of pillow speakers: Zenith, Philips, and
RCA compatible pillow speakers.
1. Select the appropriate brand of digital pillow speaker using the recess slide switch below the PILLOW jack.
CZ for Zenith©
CP for Philips©
CR for RCA©
OFF to disable the pillow speaker.
2. Connect the pillow speaker to the PILLOW jack.
3. Operate the pillow speaker.
CAUTION: Confirm the pillow speaker type and set the side switch appropriately
BEFORE connecting the pillow speaker to the TV. Failure to follow this procedure
could result in damage to the pillow speaker and/or TV.
To Wall Plate
Pillow Speaker
Connection

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 9 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

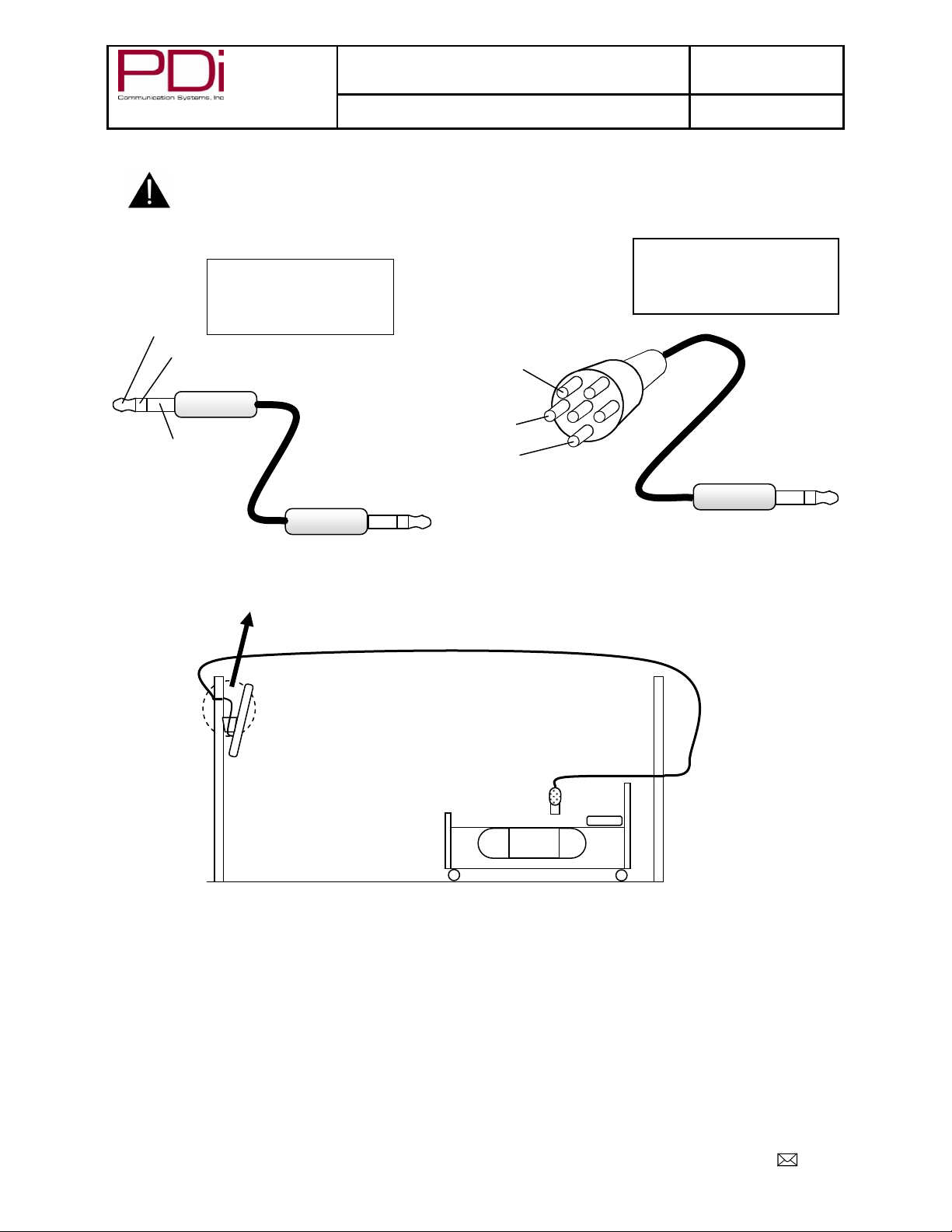

WARNING: DO NOT connect the pillow speaker circuit Common to earth ground. Grounding of the Common will
defeat the isolation circuitry of the TV and possibly expose the patient to harmful shock currents should a wiring fault
occur.
NOTE: A Jumper Cable is NOT supplied with the TV and must be ordered
separately.
SPEAKER
DATA / SWITCH
COMMON
¼” to 6-Pin Jumper
Cable
PD106-416
¼” to ¼” Jumper
Cable
PD106-417
ACROSS ROOM WIRING
SPEAKER
DATA / SWITCH
COMMON

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 10 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Antenna Connection
An “F” style jack is located on the TV’s connector panel.
CAUTION: Some hospital cable systems provide power voltage on the coaxial cable.
This TV is NOT designed to be powered via a coaxial cable. DO NOT connect to a powered coaxial cable. Damage will
result to the TV.
AC Power
A right-angled AC power cord is
attached to each TV.
Connect the AC power cord to a
powered outlet.
Hospital Coax Cable

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 11 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Product Accessories
(Not Included with TV)
75mm VESA Wall Mount PD168-005
Patient Remote Control PD108-421
(*For TV’s without DVD module)
Programming Remote Control PD108-420
¼” to 6-Pin Jumper Cable PD106-416
Patient Remote Control PD108-427
(*Remote comes with DVD module)
¼” to ¼” Jumper Cable PD106-417
Buttons on TV
There are buttons on the left side of the P19 that allow basic operation of the TV.
TV/AV
CC –Closed Caption
CH ▲
CH ▼
VOL▲
VOL▼
Power

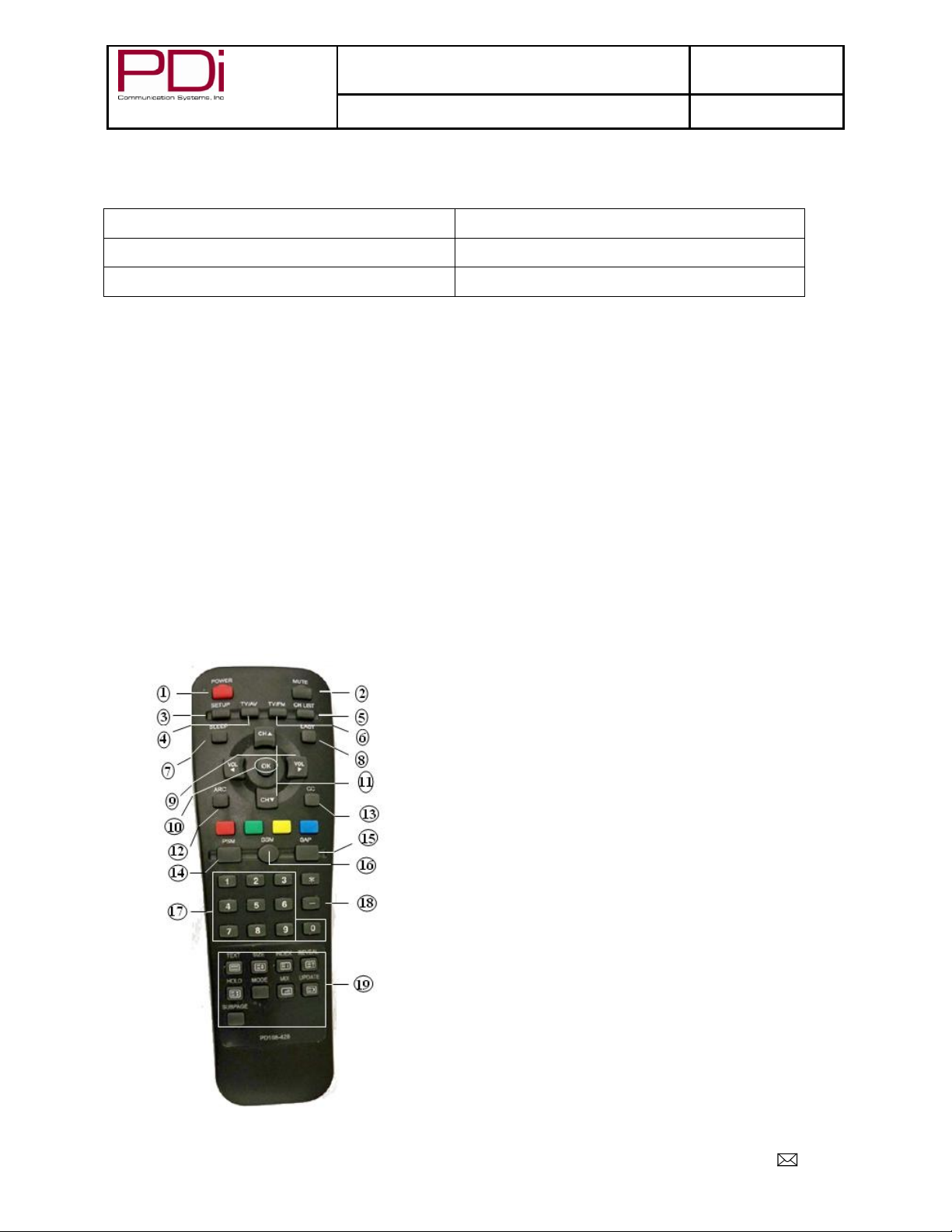

Programming Remote Control
The P19 requires a programming remote control, part number PD108-420, to program it. You will NOT find a remote control packed
with the TV. The remote control is an option and would ship separate from the TV.
The remote control has a limited range to prevent dual programming of an adjacent room TV. Stand within 3 feet of the front of the
TV to use the remote control.
NOTE: Before you use the remote control, please install the batteries.
1. POWER button
Turns the TV on or off.
2. MUTE button
Turns the sound on or off.
3. SETUP button
Access programming menus.
4. TV/AV button
Selects enabled external inputs
or TV.
5. CH LIST button
Display list of channels
programmed into TV.
6. TV/FM button
Switch between TV and FM
Radio sources.
7. SLEEP button
Sets the sleep timer.
8. LAST button
Return to previously viewed
channel.
9. VOL ◄► buttons
Raises or lowers volume. Also
used to navigate programming
menus.
10. OK button
Confirms the current channel
selection.
11. CH ▲▼ buttons
Selects next channel. Also
used to navigate programming
menus.
12. ARC button
Changes the aspect ratio. Repeatedly
press the ARC button to select your
desired picture format. (See page 27
for instructions on adjusting picture
up or down.)
13. CC button
Cycles through Closed caption
choices.
14. PSM button
Adjust sound setting for content type:
User, Standard, Dynamic, Mild, or
Game.
15. SAP button
Adjust audio mode: MTS-
Stereo, Mono, or SAP
16. SSM button
Adjust sound setting for content type:
User, Flat, Speech, Movie, or Music.
17. Number buttons
Use to directly enter channels. 0-9
18. DASH button
Use to enter second part of a digital
channel.
19. Teletext buttons
Navigates teletext displays. Teletext
is not actively used in the USA.

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 12 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Patient Remote Control - PD108-427
This remote can be used by patients to control the TV and DVD Module
NOTE: Before you use the remote control, please install the batteries.
1. POWER button
Turns the TV on or
off.
2. ►PLAY button
Starts to play the disc
in DVD mode.
3. PAUSE button
Pause the playback or
start step by step
playback in DVD
mode.
4. button
Activates fast
backward playback
during disc playback
in DVD mode.
5. button
Activates fast forward
playback during disc
playback in DVD
mode.
6. Number buttons
Use to directly enter
channels. 0-9.
7. LAST button
Returns to the
previously viewed
channel.
8. MUTE button
Turns the sound on or
off.
9. VOL +/- button
Adjusts the sound
level or adjusts menu
settings.
10. MTS/SAP button
Adjust the audio
mode for SAP,
Mono, or Stereo.
11. TV/AV button
Selects enabled
external inputs.
12. Direction buttons
(▲▼◄►)
Selects a menu item
or adjusts menu
settings.
13. OK button
Confirms the current
selection.
14. SLEEP button
Sets the sleep timer.
15. SETUP button
Displays the DVD’s
feature setup menu.
16. MENU button
Displays the disc
menu in DVD
mode.
17. SUBTITLE
button
Selects a desired
subtitle language
if the disc
contains multi-
subtitle languages
during disc
playback in DVD
mode.
18. CODE button
The remote offers
independent Bed
A or Bed B
selectable codes
and independent
control of a single
TV in a two TV
room.
Insert a paperclip
in this hole to set
to Bed A or Bed
B.
19. AUDIO button
Selects a desired
audio language, if
the disc contains
multi-audio
languages during
disc playback in
DVD mode.
20. EJECT button
Ejects the disc in
DVD mode.
21. STOP button
Stops the disc
playback.
22. button
Press to go to the
next chapter/track
during disc
playback.
23. button
During disc
playback, press
once to go to the
beginning of
current
chapter/track;
press twice to go
to the previous
chapter/track.
24. +10 button
In TV mode, press
to select DTV
(Digital TV)
channels.
For example, to
select channel
‘54-3’, press ‘54’,
then press this
button and ‘3’. In
DVD mode, press
to select numbers
greater than 9.
25. PSM button
Recalls your
preferred picture
setting.
26. CH +/- button
Selects next
channel or a menu
item.
27. CC button
Sets the caption
function.
28. ARC button
Changes the
aspect ratio.
Repeatedly press
the ARC button to
select your
desired picture
format.
29. TV/FM button
Selects either TV
or FM mode.
30. REPEAT button
Press to repeat a
chapter or title in
DVD mode.
31. TITLE button
Press to enter or
exit the title menu
of the disc during
disc playback in
DVD mode.
32. CARD button
In DVD mode,
press to shift
among disc, USB
and CARD
playback mode
when an external
USB device or
card is connected.
33. GOTO button
Press to access or
exit the DVD
search menu.

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 13 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Programming
The P19 is programmed by a series of menus that can be accessed with a remote, part number PD108-420. Access the menus by
pressing SETUP on the remote. These menus allow you to add TV channels, adjust the picture and sound, setup external
components, and change other settings.
Setup Mode
■ Service Level
Free
■ Picture
►
■ Sound
►
■ Channel Setup
►
■ Features
►
■ OSD Language
English
■ Sources
►
■ FM RADIO Setup
►
■ Cloning
►
Position: ▲▼
Exit: SETUP
Next: ◄►
The SETUP menu is the first menu that appears. All the other menus and all the settings can be accessed through it. This manual
explains and shows how to setup the different features of the P19.
Service Levels
The P19 contains four separate Service Levels, allowing the hospital to offer either basic or enhanced viewing. The current Service
Level can be quickly determined by accessing the SETUP menu using the remote control. The Service Level can be changed to
any of the 4 levels at any time by entering the SETUP menu and changing the Service Level menu items.
Setup Mode
■ Service Level
Free
■ Picture
►
■ Sound
►
■ Channel Setup
►
■ Features
►
■ OSD Language
English
■ Sources
►
■ FM RADIO Setup
►
■ Cloning
►
Position: ▲▼
Exit: SETUP
Next: ◄►
DISABLED –This is like a mechanical key lock. When in Disabled Service Level, the TV can be turned off and on, but it cannot be
used for viewing. A standard message appears on a black screen.
FREE –This lets patients watch hospital education and information channels without renting the TV. The channels containing
programming for no charge are typically programmed into this level of service. This is the factory default setting for Service Level.
BASIC –This service typically allows additional channels beyond those offered in the FREE level.
PREMIUM –This is the highest service level with typically the most channels available for viewing.

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 14 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
This menu allows you to make changes to settings that will change the picture’s appearance.
Setup Mode
■ Service Level
Free
■ Brightness
65
■ Picture
►
■ Contrast
70
■ Sound
►
■ Color
75
■ Channel Setup
►
■ Tint
0
■ Features
►
■ Color Temperature
►
■ OSD Language
English
■ Sharpness
60
■ Sources
►
■ PC Analog/HDMI
►
■ FM RADIO Setup
►
■ Component Input Picture
►
■ Cloning
►
Position: ▲▼
Position: ▲▼
Exit: SETUP
Next: ◄►
Exit: SETUP
Next: ◄►
1. Press the SETUP button on the remote control.
2. Press ▲ or ▼ to highlight Picture.
3. Press ► to enter the Picture sub-menu.
Brightness, Contrast, Color, Tint, and Sharpness
These settings have a range of 1-100. To change one of them, change the number by following this process.
1. Enter the Picture menu
2. Press ▲ or ▼ to highlight the setting you want to change.
3. Press ◄ or ► to the desired number.
4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear.
Color Temperature
Color Temperature adjusts the color balance of the picture. Standard, Reddish, Greenish, and Bluish are preset adjustments. You
can customize the color temperature with the User setting.
Color Temperature
■ Brightness
65
■ Standard
■ Contrast
70
■ Reddish
■ Color
75
■ Greenish
■ Tint
0
■ Bluish
■ Color Temperature
►
■ User
■ Sharpness
60
■ PC Analog/HDMI
►
■ Component Input Picture
►
Position: ▲▼
Position: ▲▼
Exit: SETUP
Next: ◄►
Exit: SETUP
Next: ◄►
1. Enter the Picture menu
2. Press ▲ or ▼ to highlight Color Temperature.
3. Access the menu by pressing ►.
4. Press ▲ or ▼ to highlight and select one of the five settings.
5. For User, press ◄ and ► to select R, G, or B or to get out of the customized adjustments.
6. Press ▲ or ▼ to adjust R,G, or B
NOTE: When you select one of the three colors to adjust, the other two turn grey.
7. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear.
B
G
R

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 15 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Sound
The sound menu allows precise adjustment of several sound parameters.
Setup Mode
Sound
■ Service Level
Free
■ Balance
0
■ Picture
►
■ Minimum Volume
25
■ Sound
►
■ Maximum Volume
100
■ Channel Setup
►
■ Power on Volume
Last
■ Features
►
■ Internal Speaker Enable
►
■ OSD Language
English
■ HDMI Audio Port
HDMI
■ Sources
►
■ FM RADIO Setup
►
■ Composite/S-Video Sound Mode
L+R
■ Cloning
►
Position: ▲▼
Position: ▲▼
Exit: SETUP
Next: ◄►
Exit: SETUP
Next: ◄►
1. Press the SETUP button on the remote control.
2. Press ▲ or ▼ on to highlight Sound.
3. Press ► to enter the Sound sub-menu.
Minimum Volume
Sets the minimum volume level the TV can reach. Setting this to any value other than 0 guarantees that some level of sound will
always be heard when the TV is operating.
1. Enter the Sound menu.
2. Press ▲ or ▼ to highlight Minimum Volume.
3. Press ◄ or ► to select the desired number (0-100).
4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear.
Maximum Volume
Sets the maximum volume level the TV is allowed to reach.
1. Enter the Sound menu
2. Press ▲ or ▼ to highlight Maximum Volume.
3. Press ◄ or ► to select the desired number (0-100).
4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear.
Power on Volume
Sets the initial volume for when the TV is turned on.
NOTE: If Power on Volume is set to Last and the physical power
is removed, the TV will power on with a volume of zero.
1. Enter the Sound menu
2. Press ▲ or ▼ to highlight Power on Volume.
3. Press ◄ or ► to select the desired number (0-100) or Last.
NOTE: Last will cause the TV to be at the last setting before it was turned off.
4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear.

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 16 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Internal Speaker Enabled
This allows audio for different sources to be enabled. Sound also is routed externally to the attached pillow speaker.
Sound
Internal Speaker Enabled
Speaker
■ Balance
0
■ TV
Enabled
■Minimum Volume
25
■ Composite Video
Enabled
■ Maximum Volume
100
■ S-Video
Enabled
■ Power on Volume
Last
■ Component
Enabled
■ Internal Speaker Enable
►
■ HDMI
Enabled
■ HDMI Audio Port
HDMI
■ PC-ANALOG
Enabled
■ FM RADIO
Enabled
■ Slot 1
Enabled
Position: ▲▼
Position: ▲▼
Exit: SETUP
Next: ◄►
Exit: SETUP
Next: ◄►
1. Enter the Sound menu
2. Press ▲ or ▼ to highlight the component you want to change.
3. Press ◄ or ► to select Enabled or Disabled.
4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear.
HDMI Audio Port
Sound can be set to come from one of several other sources when the TV is set to HDMI video. The HDMI Audio Port has three
settings: HDMI, PC, and Component.
1. Enter the Sound menu
2. Press ▲ or ▼ to highlight HDMI Audio Port.
3. Press ◄ or ► to select HDMI, PC, or Component
4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear.
Channels
The Channels menu allows you to program different signal sources into three Service Levels (Free, Basic, or Premium) and to add
or delete individual channels. It also allows you to block channels, TV programs, movies, and auxiliary sources that can be input to
the TV. Each Service Level contains a different channel map.
Setup Mode
Channel Setup
■ Service Level
Free
■ Signal
Cable STD
■ Picture
►
■ Auto Program
►
■ Sound
►
■ Add/Delete Channels
►
■ Channel Setup
►
■ Clear Service Level
►
■ Features
►
■ Copy Service Level
►
■ OSD Language
English
■ Parental Control
►
■ Sources
►
■ Power On Channel
►
■ FM RADIO Setup
►
■ Channel Lock
Disabled
■ Channel Memory Override
Enabled
■ Cloning
►
Position: ▲▼
Position: ▲▼
Exit: SETUP
Next: ◄►
Exit: SETUP
Next: ◄►
1. Press the SETUP button on the remote control.
2. Press ▲ or ▼ to highlight Channels.
3. Press ► to enter the Channels sub-menu.
Signal
Four different tuning types are available depending upon the healthcare facility’s signal type. Selection of the correct signal type is
required for the TV to recognize all possible channels and before any channel programming can begin.
1. Enter the Channels menu
2. Press ▲ or ▼ to highlight Signal.
3. Press ◄ or ► to select Air, Cable STD, Cable IRC, or Cable HRC.
NOTE: Most hospitals use the Cable STD signal style.
4. Now perform Auto Program or Add/Delete Channels to adjust the channels.

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 17 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Auto Program
The TV automatically scans each available channel for activity. Channels that display activity are memorized into the selected
Service Level.
Channel Setup
Auto Program
■ Signal
Cable
STD
■ Mode
Analog Only
■ Auto Program
►
■ Channel Sequence
Interleave A+D
■ Add/Delete Channels
►
■ Additional Digital Signal
None
■ Clear Service Level
►
■ Free
Blank ►
■ Copy Service Level
►
■ Basic
Blank ►
■ Parental Control
►
■ Premium
Blank ►
■ Power On Channel
►
■ Channel Lock
Disabled
■ Channel Memory Override
Enabled
Position: ▲▼
Position: ▲▼
Exit: SETUP
Next: ◄►
Exit: SETUP
Next: ◄►
1. After setting Signal, press ▲ or ▼ to highlight Auto Program.
2. Press ► to select it.
3. On Mode, press ◄ or ► to select the scope of channel scanning.
Analog Only: TV searches for analog channels only.
Digital Only: TV searched for digital channels only.
Analog and Digital: TV searches for both analog and digital channels.
4. Press ▲ or ▼ to highlight Channel Sequence.
5. Press ◄ or ► to select the Channel Sequence in which the channels are displayed.
Interleave A+D: Channels are displayed in the order of channel number.
All A then D: All digital channels are displayed after all analog channels.
6. Press ▲ or ▼ to highlight the Service Level (Free, Basic, or Premium) you wish to program. The menu displays the
current programming status of each level as either Programmed or Blank.
NOTE: A programmed service level also can be reprogrammed if desired.
7. Press ► to start auto programming.
8. A confirmation menu will appear before proceeding. Press ▲ to start auto programming. Press ▼ to cancel the operation.
The TV now will search all available channels. Auto programming requires several minutes to complete.
NOTE: Digital channel auto programming may take longer than 10 minutes to complete.
9. Press the SETUP button to return to normal TV viewing.
Add/Delete Channels
Individual analog TV channels that are missing can be manually added to a Service Level. Analog channels that require deletion can
be manually removed from a Service Level. Digital channels found during auto programming can be enabled or disabled in each
Service Level.
Channel Setup
Add/Delete Channel Service Level
■ Signal
Cable
STD
■ Free
Programmed ►
■ Auto Program
►
■ Basic
Blank ►
■ Add/Delete Channels
►
■ Premium
Blank ►
■ Clear Service Level
►
■ Copy Service Level
►
■ Parental Control
►
■ Power On Channel
►
■ Channel Lock
Disabled
■ Channel Memory Override
Enabled
Position: ▲▼
Position: ▲▼
Exit: SETUP
Next: ◄►
Exit: SETUP
Next: ◄►
1. Enter the Channels menu
2. Press ▲ or ▼ to highlight Add/Delete Channels.
3. Press ► to select it.
4. Press ▲ or ▼ to highlight the Service Level (Free, Basic, or Premium).
5. Press ► to select the highlighted Service Level.
6. If you want to add or delete an analog channel, press ◄ or ► to select the desired analog channel. If you want to enable
or disable digital channels, go to step 10.

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 18 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Add/Delete Channels
■ Analog Channel
68
■ Add/Delete Channel
Added
■ Enable/Disable Digital Channel
►
Position: ▲▼
Exit: SETUP
Next: ◄►
7. After you have selected the desired analog channel, press ▲ or ▼ to highlight Add/Delete Analog Channel.
8. Press ◄ or ► to select Added or Deleted.
9. If you are done, Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus
disappear. If there are more analog channels to be added or deleted, repeat steps 6 through 8. For enabling or disabling
digital channels, go to the next step.
10. Press ▲ or ▼ to highlight Enable/Disable Digital Channel.
11. Press ► to select Enable/Disable Digital Channel.
NOTE: If there are not any channels programmed in the Service Level, “No Channels Present” will appear in the menu.
12. Press ▲ or ▼ to highlight the digital channel that needs to be enabled or disabled.
Enable/Disable Digital Chanel
■ 28-1
Enable
■ 28-2
Disable
■ 28-3
Disable
■ 28-4
Disable
■ 48-1
Disable
■ 48-2
Enable
■ 28-1
Enable
Position: ▲▼
Exit: SETUP
Next: ◄►
13. Press ◄ or ► to select Enable or Disable.
14. Press the SETUP button to return to the previous menu.
Clear Service Level
This empties a service level of all its programmed channels, leaving it blank.
Channel Setup
Clear Service Level
■ Signal
Cable
STD
■ Free
Blank ►
■ Auto Program
►
■ Basic
Blank ►
■ Add/Delete Channels
►
■ Premium
Blank►
■ Clear Service Level
►
■ Copy Service Level
►
■ Parental Control
►
■ Power On Channel
►
■ Channel Lock
Disabled
■ Channel Memory Override
Enabled
Position: ▲▼
Position: ▲▼
Exit: SETUP
Next: ◄►
Exit: SETUP
Next: ◄►
1. Enter the Channels menu
2. Press ▲ or ▼ to highlight Clear Service Level.
3. Press ► to select it.
4. Press ▲ or ▼ to highlight the Service Level (Free, Basic, or Premium).
5. Press ► to select the highlighted Service Level.

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 19 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
6. A confirmation page will appear. Press ▲ to proceed. Press ▼ or SETUP to return to the previous menu.
NOTE: After a Service Level is cleared, the TV returns to the Clear Service Level menu. “Blank” will appear to the right of
the Service Level.
7. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear.
Copy Service Level
This copies one Service Level’s channels to another.
Channel Setup
Copy Service Level
■ Signal
Cable
STD
■ From: Free
To: Basic ►
■ Auto Program
►
■ Add/Delete Channels
►
■ Clear Service Level
►
■ Copy Service Level
►
■ Parental Control
►
■ Power On Channel
►
■ Channel Lock
Disabled
■ Channel Memory Override
Enabled
Position: ▲▼
Position: ▲▼
Exit: SETUP
Next: ◄►
Exit: SETUP
Next: ◄►
1. Enter the Channels menu
2. Press ▲ or ▼ to highlight Copy Service Level.
3. Press ► to select it.
4. Press ▲ to set the From Service Level. Press ▼ to set the To Service Level.
5. Press ► to copy the Service Level.
6. A confirmation page will appear. Press ▲ to proceed. Press ▼ or SETUP to return to the previous menu.
NOTE: After a Service Level is copied, the TV returns to the Copy Service Level menu. If the To Service Level has been
set to active in the Service Level setting (see Service Levels on page 14), TV programming will appear.
7. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear.
Parental Control
Parental Control allows you to block channels, TV shows, movies, and devices that are connected to the P19.
Parental Control
■ TV Rating
►
■ MPAA Rating
►
■ Advanced Rating
Disabled
■ Advanced Rating Option
►
■ Change Password
►
■ Aux. Block Source
Unblocked
■ Block Hour
Always
■ Parental Lock
Disabled
Position: ▲▼
Exit: SETUP
Next: ◄►
1. Enter the Channels menu
2. Press ▲ or ▼ to highlight Parental Control.
3. Press ► to select it.

Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P19LCDC
Document Number:
PD196-149R3
Hospital-grade Television
Page 20 of 39
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
TV Rating
Most TV programs are now rated. TV Rating allows the TV to selectively present only programming content that is unblocked
per its preset level. A program that is blocked, displays a black screen only.
TV Rating
ALL FV V S L D
■ TV-Y
U
■ TV-Y7
U U
■ TV-G
U
■ TV-PG
U U U U U
■ TV-14
U U U U U
■ TV-MA
U U U U
Position: ▲▼
Exit: SETUP
Next: ◄►
1. From the Parental Control menu, enter the TV Rating menu.
2. Press ▲ or ▼ to move to one of the six age-based categories.
3. Press ◄ or ► to cycle through the sub-ratings (ALL, FV, V, S, L or D) or exit out of the sub-categories in that category.
NOTE: The U or B (unblocked or blocked) will turn red when it is highlighted
4. Press ▲ or ▼ to change the sub-rating.
5. Press the SETUP button to return to the previous menu. Or press ◄ to get out of the sub-category.
NOTE: Categories that are rated for older audiences will be automatically blocked. If you block TV-Y category, then
TV-Y7 will be blocked automatically. Similarly, if you block TV-G category, then TV-PG, TV-14 and TV-MA will also
be blocked.
TV Parental Guideline Rating System
Guide
Meaning
TV-Y
Young Children
Content not offensive to most viewers
TV-Y7
Children 7 and over
Considered suitable for children over 7, may contain Fantasy Violence
Scenes
TV-G
General Audience
Considered suitable for all audiences; children may watch unattended.
TV-PG
Parental Guidance
Suggested Unsuitable for younger children, may contain: Suggestive
Dialog, Bad Language, Sex, and Violence Scenes
TV-14
Parents Strongly
Cautioned
Unsuitable for children under 14, may contain: Strong Dialog, Bad
Language, Sex, and Violence Scenes.
TV-MA
Mature Audience
Only
Adults only, may contain: Strong Dialog, Bad Language, Sex, and
Violence Scenes.
The sub-rating of TV rating
