PDi P10LCD PERSONA 10 User manual

Document Number PD196-068 R1 14 October 2004 Page 1 of 24
Service
Manual
Communication
Systems, Inc.
40 Greenwood Lane
Springboro, Ohio
45066
PH: 937-743-6010
FX: 937-743-5664
http://www.pdiarm.com
PERSONA10

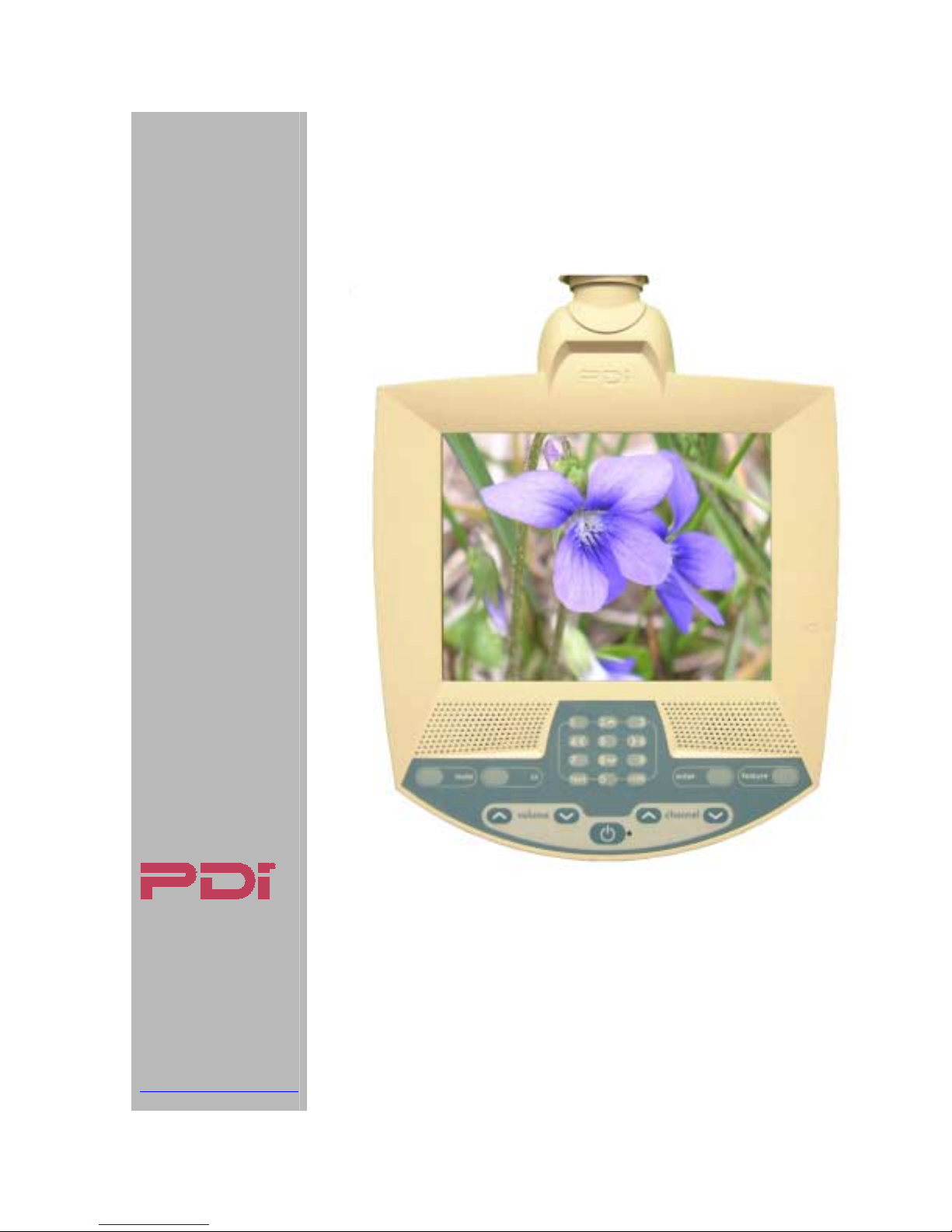

Hospital-Grade LCD Television
Model P10LCD
Color Television
Better Solutions Are Within Reachâ

Document Number PD196-068 R1 14 October 2004 Page 2 of 24
Voltage Range
AC 18-32 Volts
DC 18-32 Volts
Graphical Symbols
This lightning flash with arrowhead symbol, within an equilateral is
intended to alert the user of the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user of the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
This service manual contains various CAUTIONS and WARNINGS
indicated by triangular warning symbols, which should be read and
understood in order to minimize the risk of personal injury to service
personnel and customers. The possibility exits that improper service
methods may damage the equipment or result in property damage or
user injury. It also is important to understand that these CAUTIONS and
WARNINGS are not exhaustive. PDI could not possibly know, evaluate
and advise the service industry of all conceivable methods in which
service might be done or of the possible hazardous consequences
of each method. Accordingly, a servicer who uses a service procedure or
tool which is not recommended by PDI must first satisfy themselves
thoroughly that neither their safety nor the safe operation of the
equipment will be compromised by the service method selected.
Product Safety Servicing Precautions
1. MODIFICATIONS Do not attempt to modify this product in any way
without written authorization from PDI. Unauthorized modifications
will not only void the warranty, but may lead to your being liable for
any resulting property damage or user injury.
2. POWER SOURCE Use only a power source from a CSA Certified /
UL Approved Class 2 Power Supply suitable for use in a Health Care
Facility. This TV will operate on either DC or AC voltage.
3. X-RAYS X-Ray Radiation is not a concern since this TV does not
incorporate a CRT.
4. REPLACEMENT PARTS Parts critical to the safe operation of this
television are marked with a on schematics or drawings.
Replace only with the part number specified.
5. SAFETY CHECKS This hospital grade television requires special
safety checks before returning to service. Observe and follow the
“Safety Check” section in this service manual.

Document Number PD196-068 R1 14 October 2004 Page 3 of 24
Table of Contents
Graphical Symbols...........................................................................................................................2
Product Safety Servicing Precautions .............................................................................................2
Table of Contents.............................................................................................................................3
Copyright, Disclaimer, and Trademarks ..........................................................................................4
Regulatory Information.....................................................................................................................4
Product Identification .......................................................................................................................5
Remote Control................................................................................................................................6
General Specification.......................................................................................................................7
Disinfecting and Cleaning..............................................................................................................12
Hidden Factory Menu.....................................................................................................................13
Picture and Power Supply Adjustments.........................................................................................14
Pan Adjustment..............................................................................................................................15
Tilt Adjustment ...............................................................................................................................16
Main Circuit Board Interconnections..............................................................................................17
IR / Speaker Board Interconnections.............................................................................................18
Safety Checks................................................................................................................................19
Schematic & Troubleshooting........................................................................................................22

Document Number PD196-068 R1 14 October 2004 Page 4 of 24
Copyright, Disclaimer, and Trademarks
Copyright
PDI Communication Systems, Inc. claims proprietary right to the material disclosed in this service
manual. This manual is issued in confidence for servicing information only and may not be used
to manufacture anything shown herein. Copyright 2004 by PDI Communication Systems, Inc. All
rights reserved.
Disclaimer
The author and publisher have used their best efforts in preparing this manual. PDI
Communication Systems, Inc. makes no representation or warranties with respect to the
accuracy or completeness of the contents of this manual and specifically disclaim any implied
warranties of merchantability or fitness for any particular purpose and shall in no event be liable
for any loss of profit or any other damages, including but not limited to special, incidental,
consequential or other damages. The information contained herein is believed accurate, but is
not warranted, and is subject to change without notice or obligation.
Trademarks
All brand names and product names used in this manual are trademarks, registered trademarks,
or trade names of their respective holders.
PDI and Better Solutions Are Within Reach are registered trademarks of PDI Communication
Systems, Inc., Springboro, Ohio.
Regulatory Information
FCC
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a residential or commercial
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Underwriters Laboratories
The model PDI-P10LCD Hospital Grade LCD TV is a specialized LCD
television and should be installed to National Electrical Code specifications.
This device is safety tested and listed by the Underwriters Laboratories as a
product suitable for use in health care facilities in both the United States
and Canada.

Document Number PD196-068 R1 14 October 2004 Page 5 of 24
Product Identification
PRODUCT LABEL
The P10LCD is easily identified using the product label located in the center of the back cabinet..
SERIAL NUMBER
The serial number is located at the lower right corner of the product label.
Serial Number Format Explanation
a. Digits 01 are year of manufacture. Example year 2003 would be 03.
b. Digits 23 are week of manufacture. Example13 would be week 13.
c. Digits 456789 is the TV unit serial number. Example 000001 is the first unit
manufactured.
d. Letter A is single letter denoting the TV model revision level. For example, A would be
the initial model. First model revision would be B. The second model revision would be
C and so on.






0123-456789-A
Communication
Systems, Inc.
CAUTION ATTENTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN RISQUE DE CHOC ELECTRIETUE NE PAS QUVRIR
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFED SERVICE
PERSONNEL.
AFIN DE REDUIRE LES RISQUES DE CHOC ELECTIQUE, NE
PAS RETIRER LE COUVERCLE (OU LE PANNEAU ARRIER).
AUCUN ORGANE INTERNE NE PEUT ETRE REPARE PAR
L’UTILISATEUR. CONFIER L’APPAREIL A UN DEPANNEUR
QUALIFIE.
Hospital Grade
LCD TV Receiver
E136994
2L94
PDI Communication Systems, Inc.
40 Greenwood Lane Springboro, Ohio 45066 USA
MADE IN USA / FABRIQUE EN USA
PERSONA10 LCD TV
RATED: 28V ~ 60 Hz 15W
LISTED
For additional information please refer to the user instructions.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO
THE CONDITION THAT THIS DEVICE DOES NOT CAUSE HARMFUL INTERFERENCE.






0123-456789-A
TM

Document Number PD196-068 R1 14 October 2004 Page 6 of 24
Remote Control
The P10LCD requires a remote control (part number PD108-412) to program the set. You will
NOT find a remote control packed with the television. The remote control is shipped separate
from the television. The remote control has a limited range to prevent dual programming of an
adjacent room TV. Stand within 3 feet or closer from the front of the TV to use the remote.
PROGRAMMING REMOTE (PD108-412)
SETUP
Activates On-Screen
Programming Menus
TIERS
Set current service level
(tier) directly without
accessing setup Menu
FEATURE LOCK
Enable or disable “Feature”
button for rental operations
PAID
Turns TV Rental Lamp On
Channel, Volume,
Setup Cursor Controls
POWER
MUTE
CLOSED CAPTIONS
ENTER
FEATURE
NOTE: All non-labeled
buttons inactive
CHANNEL NUMBERS

Document Number PD196-068 R1 14 October 2004 Page 7 of 24
General Specification
1. SYSTEM
LCD
Size 10.4” Diagonal
Type Amorphous Silicon TFT (Thin Film Transistor)
Format 640 x 480 Pixel (RGB)
Brightness 330 NITS
Viewing Angle 55º Vertical, 110º Horizontal
Contrast Ratio 180:1
Surface Treatment Antiglare Hard Coating
Back-Lights
Quantity 2
Type CCFL
Color System
Type NTSC 3.58
Color Depth 262,144
Speaker
Quantity 1
Location Front Mounted
Size 28.5 x 40 mm
Impedance 8 ohms
Output 1 Watt Max.
Distortion 10% at 0.8W
Earphone
Location Side Mounted
Size 3.5mm
Monaural Yes
Stereo No
Internal Speaker Disabled during Earphone Use
Computer Monitor Capable No
Internal DVD No
Keylock None, TV Disable Available Via IR Remote
2. TUNING
Type North American NTSC Type M
System Frequency Synthesized
Input Impedance 75 ohms
Channel Range VHF: 2 – 13, UHF: 14 – 69, CABLE 2 –125
Stereo Sound No
3. POWER
Multi-Voltage Yes
Externally Powered Yes, External Power Source Required
DC Voltage 18-32 Volts DC
AC Voltage 18-32 Volts AC
Power Consumption 15 Watts
Standby Power 5 Watts
Protection 4A, 125V Fuse, Internal
Coax Powered
Yes, Power and RF Diplexed
4. REGULATION
Safety
Testing Laboratory Underwriters Laboratories

Document Number PD196-068 R1 14 October 2004 Page 8 of 24
Testing Type UL and cUL
Healthcare Certified Yes, UL6500 and cUL6500
Interference FCC, CFR 47 Part 15 Class B, DOC Class B
X-Radiation N/A
Manufacturing Origin United States
5. ON SCREEN DISPLAY
Menu Type Character
Menu Entrance IR Remote Control Only
Format 15 Rows by 30 Columns
Colors 15 Foreground, 7 Background
Menus
Brightness Yes
Contrast Yes
Color Yes
Tint Yes
Channel Setup
Signal Air, CATV, CATV-IRC, CATV-HRC
Autoprogram
Free Programmable Tier
Basic Programmable Tier
Premium Programmable Tier
Clear Service Level
Free Erasable Tier
Basic Erasable Tier
Premium Erasable Tier
Add/Delete Channels
Free Individual Channels
Basic Individual Channels
Premium Individual Channels
Copy Service Levels Yes, Tier to Tier Copy
Features
Power ON Channel & Spkr Selectable by Tier
Free Start Channel, Speaker On/OFF
Basic Start Channel, Speaker On/OFF
Premium Start Channel, Speaker On/OFF
Volume Limiter Yes
Caption Text Mode Enabled, Disabled
Language English, French, Spanish
Service Levels Disabled, Free, Basic, Premium
Paid Yes, No
Self Rent Locked, Unlocked
Channel Number Yes
Channel Labels No
Sleep Timer No
Sound Mute Yes
V-Chip Rating No
5. FEATURES
Sleep Timer No
On/Off Timer No
Auto Shut OFF Yes - Disable Mode, Empty (Blank) Tier

Document Number PD196-068 R1 14 October 2004 Page 9 of 24
Auto Degauss N/A
Anti-Theft Alarm No
Rental Yes
Service Levels 3
Rental Lamps 3, Red, Green, Amber
Patient Self Rent Yes – Programmable
Payment Lamp Yes
Non-Volatile Memory Yes
Last Channel Yes
Last Volume Yes
Power On Channel Yes, Selectable per Tier
Direct Channel Entry Yes, Active Tier Channels Only
Channel Numbers Yes
Hospital Welcome Channel Yes, Selectable on per Tier Basis
Comb Filter Yes
Auto Channel Memory Yes
Closed Captions Yes, CC1, CC2, TEXT1, TEXT2
Text Mode Disable Yes
Speaker Mute Yes
6. KEYPAD CONTROLS
Switch
Type Domed Membrane
Tactile Feedback Yes
Actuation Force 12 Ounces
Life 1,000,000 Cycle Minimum
Front
Power Yes
Volume Up Yes
Volume Down Yes
Channel Up Yes
Channel Down Yes
Mute Yes
CC Yes
Feature Yes
Enter Yes
1 Yes
2 Yes
3 Yes
4 Yes
5 Yes
6 Yes
7 Yes
8 Yes
9 Yes
0 Yes
Last Yes
+100 Yes
Cursor Up Yes
Cursor Down Yes
Cursor Left Yes
Cursor Right Yes
Rear Controls None

Document Number PD196-068 R1 14 October 2004 Page 10 of 24
Indicator
Power Yes, Green LED
Stand-By No
Terminals
Video Input No
Audio Input No
Video Input No
Video Output No
S-Video Input No
S-Video Output No
Earphone Yes, Side Mounted, 3.5MM
External Speaker No
Power/RF Input F-Type
7. REMOTE
IR Format Custom
IR Range Range Limited to1 Meter
Power Source “AAA” x 2
Total Keys 29
Keys
Power Yes
1 Yes
2 Yes
3 Yes
4 Yes
5 Yes
6 Yes
7 Yes
8 Yes
9 Yes
0 Yes
+100 Yes
Last Yes
CH Up Yes
CH Down Yes
Vol Up Yes
Vol Down Yes
Setup Yes
Mute Yes
Feature Yes
Enter Yes
CC (Closed Caption) Yes
Paid Yes
Locked Yes
Unlocked Yes
Disabled Yes
Free Yes
Basic Yes
Premium Yes
Blank(s) Yes – Non Functional

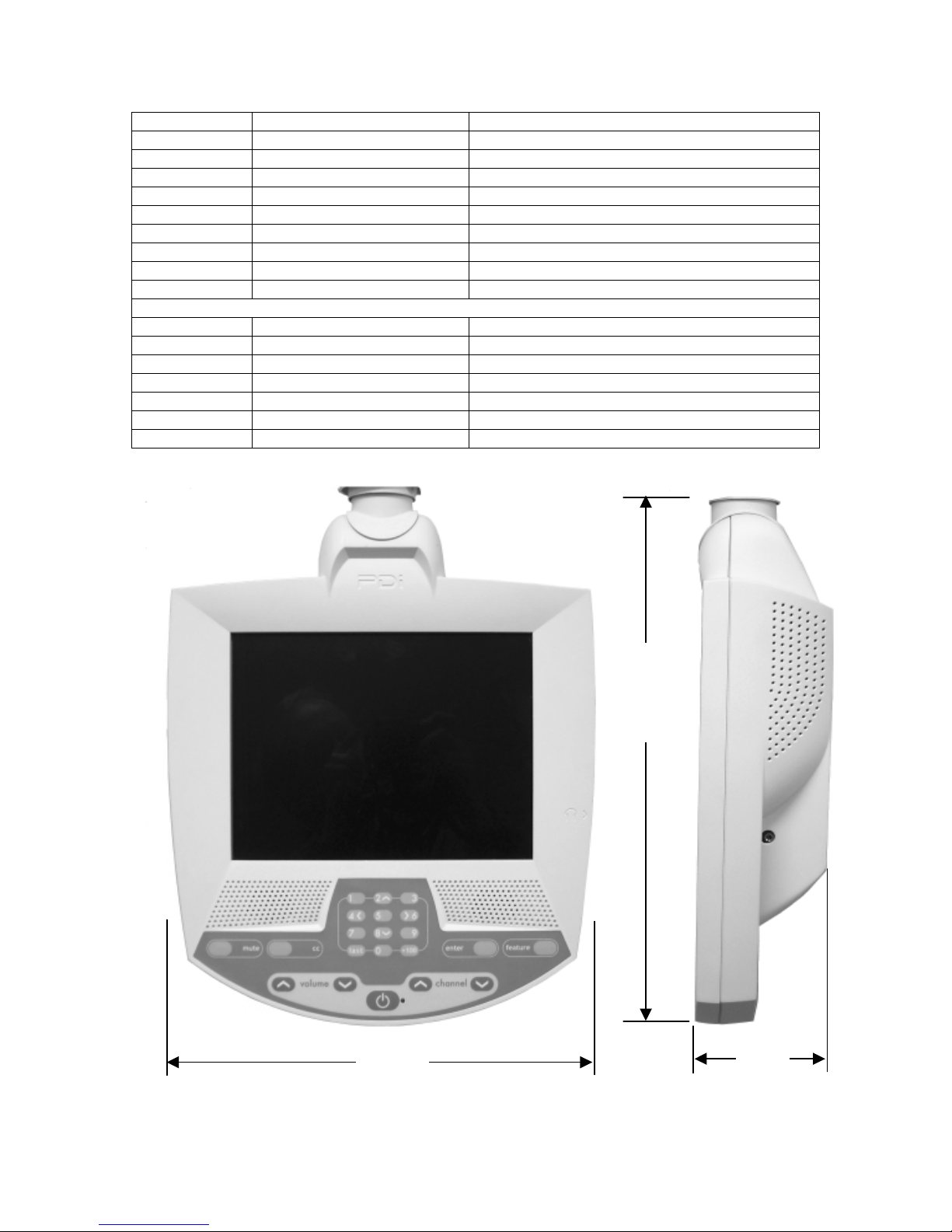

8. PHYSICAL
Cabinet

Document Number PD196-068 R1 14 October 2004 Page 11 of 24
Size 12 x 3 x 15.5 (W x D x H) inches
Finish Smooth
Ventilation Bottom and Sides Only, Top None
LCD Screen Protector Yes, Supplemental Non-Scratch
Weight (Approx.) 7 lbs.
Ambient Temperature
Operating +15ºC to +30ºC
Storage -20ºC to +60ºC
Relative Humidity 5 to 80% Operational
9. SERVICE
Reliability
MTBF 50,000 Hours Minimum
Service Information & Parts
Service Manual Yes
Parts List Yes
Transportation Standard Meets ISTA Test Procedure 1G
12”
15 ½”
3”

Document Number PD196-068 R1 14 October 2004 Page 12 of 24
Disinfecting and Cleaning
The P10LCD should be disinfected before performing any service. The following procedure is
only a recommendation. Your hospital or company may have a different procedure to follow.
CAUTION – Before using any cleaning or disinfecting
agent on the P10LCD, perform a spot check by wetting
a small area of the cabinet. Verify the agent does not
discolor or deteriorate the cabinet.
Disinfecting
1. The P10LCD has been designed to withstand up to a 5% chlorine based disinfectant.
Many alcohol and ammonia based disinfectants have also been tested with success.
However, before using any cleaner or disinfectant, spot check a small area on the
cabinet.
2. Apply the cleaner or disinfectant per its recommended instructions. Note – most
disinfectants require a waiting time following application and prior to wipe-down.
Cleaning
Stubborn ink and other scratch type marks may prove difficult to remove. A dilute solution of
Isopropyl alcohol will generally work when all else fails. However, full strength Isopropyl will
remove the cabinet’s paint. Use with caution!

Document Number PD196-068 R1 14 October 2004 Page 13 of 24
Hidden Factory Menu
A hidden factory service menu is available to the knowledgeable service man using the following
procedure. To access the menu use the PDI remote control (part number PD108-412).
1. With the TV turned OFF, activate the hidden factory menu by pressing the following
IR remote key sequence:
SETUP + SETUP + 4 + 0
2. The TV will turn ON automatically. The factory screen is displayed..
PDI Communications Systems, Inc
PDI-P10LCD
LCD Healthcare Television
Main Sfw: V 1.00 CKSUM: 1C0D
KBIR Sfw: V 11 CKSUM: 6895
3. The service menu consists of one read-only menu screen which provides firmware
checksum values indicating which revision is currently programmed into each of the
TV’s two microprocessors.
4. Exit the service menu by turning the TV OFF. Or after 30 seconds the TV will
automatically turn itself OFF.

Document Number PD196-068 R1 14 October 2004 Page 14 of 24
Picture and Power Supply Adjustments
The LCD display does not use magnetic deflection (like a CRT tube display) and does not require
any internal adjustments. Dynamic picture adjustments to Brightness, Contrast, Color, and Tint
are available using the IR Remote Control part number PD108-412 using the Setup / Picture
Menu.
Power Supply Alignment
The P10LCD television utilizes a fixed-voltage switch mode power supply. Internal power supply
adjustment is not necessary.

Document Number PD196-068 R1 14 October 2004 Page 15 of 24

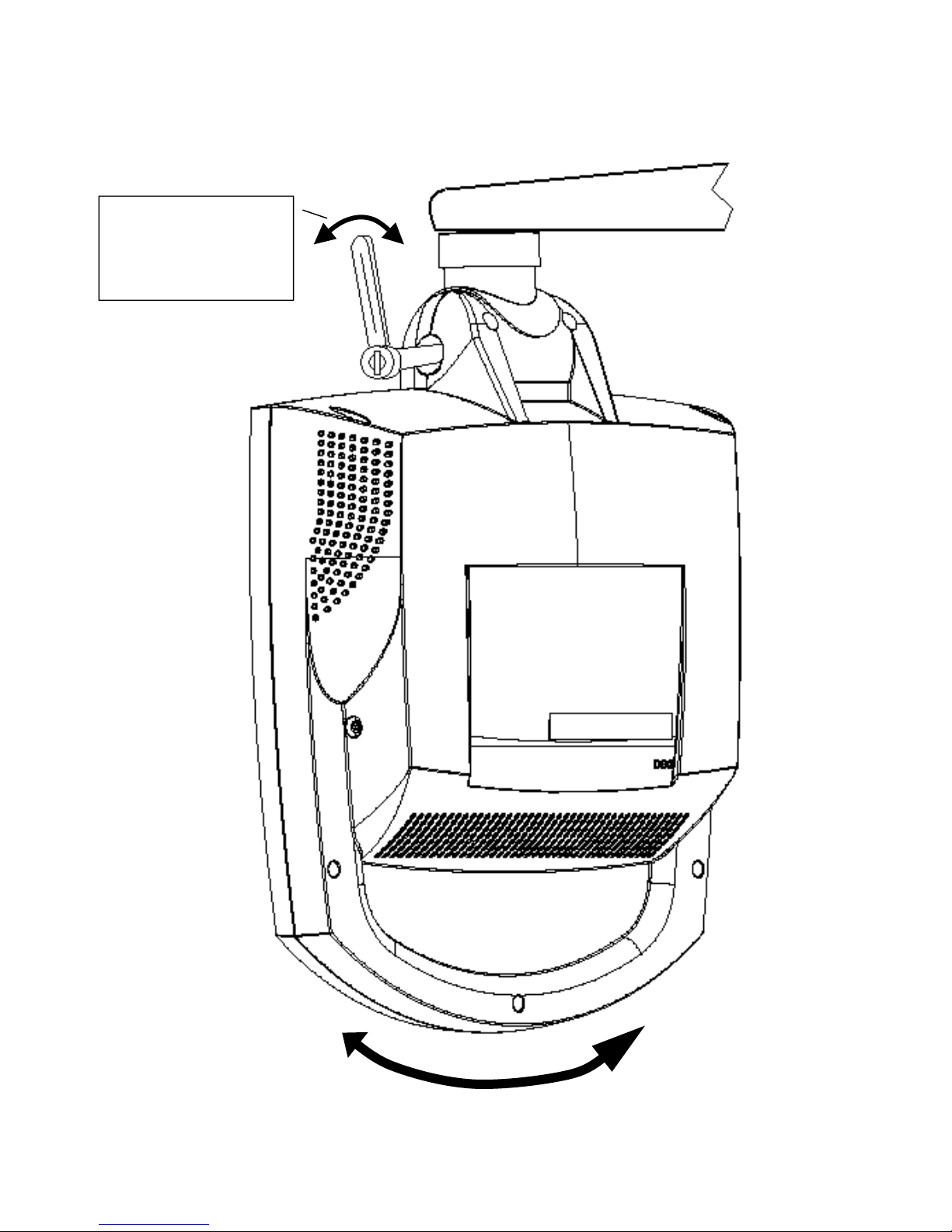

Pan Adjustment
Tighten or Loosen
Tension Nut to
Adjust PAN Friction
Arm Nose

Document Number PD196-068 R1 14 October 2004 Page 16 of 24
Tilt Adjustment
1. Remove Access
Cover.
2. Adjust Tension Nut
to Hold Tilt Position.
3. Replace Cover.

Document Number PD196-068 R1 14 October 2004 Page 17 of 24
Main Circuit Board Interconnections
J18
J12 J11
J5 J7
LCD Panel
Backlight
Connector
LCD Panel
Backlight
Connector
LCD Panel
Data Ribbon Coax Swivel
Cable Assy
PD106-430
Keyboard
Ribbon

Document Number PD196-068 R1 14 October 2004 Page 18 of 24
IR / Speaker Board Interconnections
ESD Ground Ribbon to
Metal Sub-Plate
IR Ribbon to
J11 Main PCB
Speaker Assy
PD106-431
EMI Shield
IR / Speaker
Board

Document Number PD196-068 R1 14 October 2004 Page 19 of 24
Safety Checks
Before returning the P10LCD to service, the following safety checks should be performed.
1. PARTS PLACEMENT
Confirm that the screws, parts, and wiring which were removed to allow servicing are put
back in the original positions.

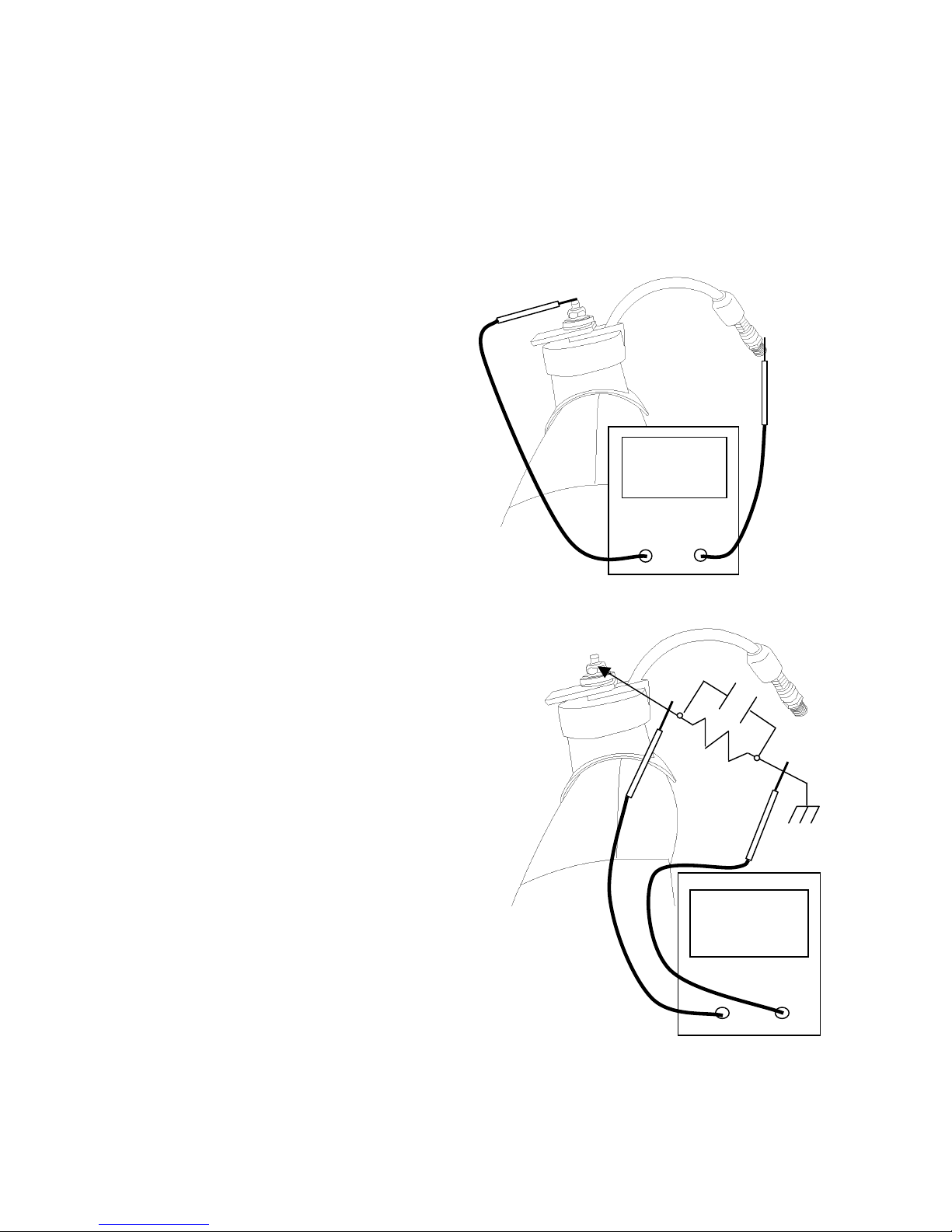

2. SWIVEL RESISTANCE TEST
1. Expose the mounting swivel.
2. Measure the DC resistance between
the input coax shield and swivel as
shown. The resistance value should
read greater than 1 Meg. A lesser
reading indicates a possible
insulation breakdown or short
between the internal metal U-
Bracket and chassis ground which
could increase leakage currents
touchable by the patient.
3. It is recommended that the reading
of the swivel resistance be recorded
as part of the service record.
3. AC LEAKAGE CURRENT TEST
Following re-assembly of the P10LCD
always perform an AC Leakage Current
Test. Use either an approved hospital
leakage meter or the R-C network shown.

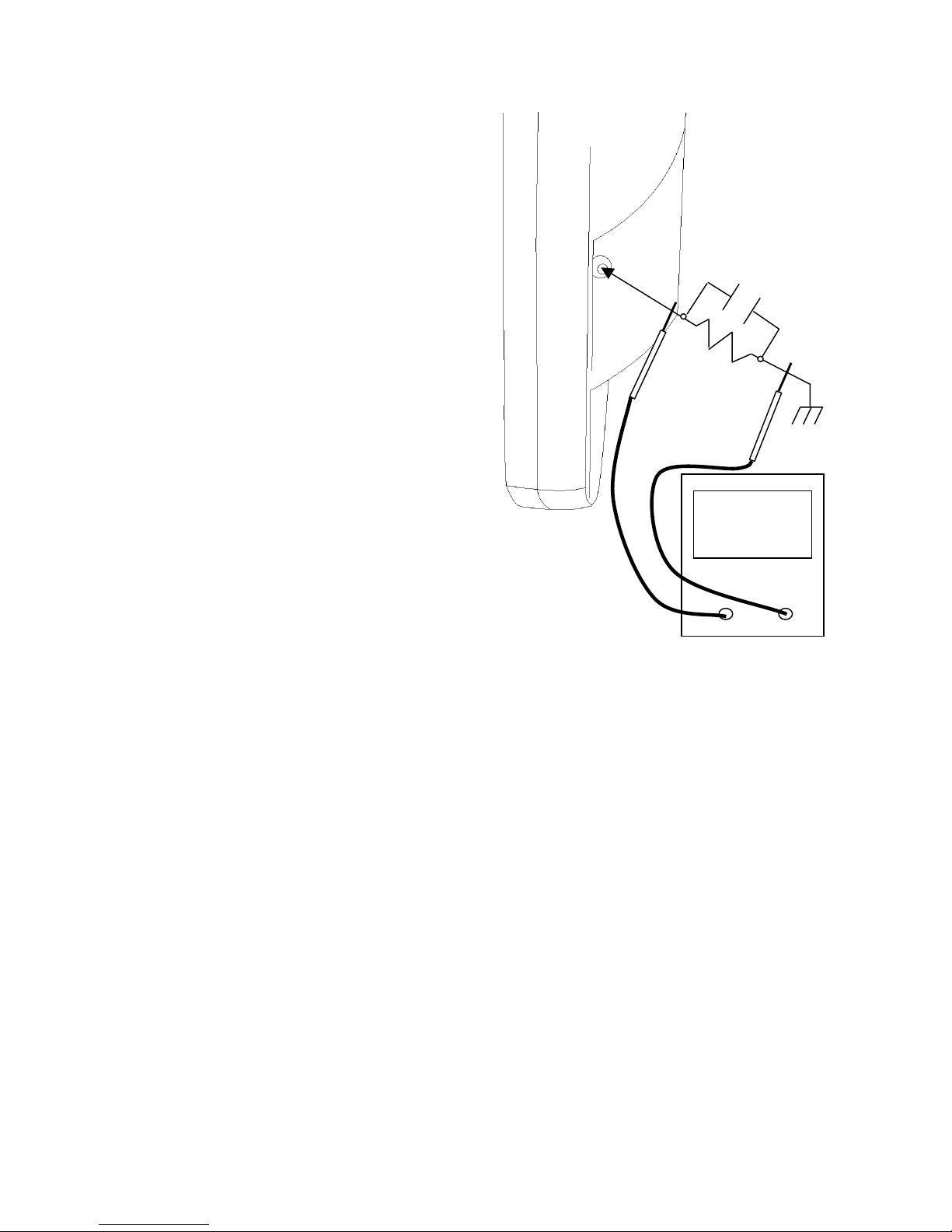

SWIVEL LEAKAGE
a. Power the TV using an approved
external 28 VAC power supply. DO
NOT USE A LINE ISOLATION
TRANSFORMER DURING THIS
TEST.
b. Connect one side of the R-C network
to a good earth ground such as a
water pipe, conduit, etc. Touch the
other side of the R-C network to the
top of the metal swivel.
c. Measure the AC voltage drop across
the R-C network. The measured
voltage must not exceed 0.10 volts
RMS (100 millivolts RMS). This
corresponds to 100 microamperes of
AC current. Any value exceeding this
limit constitutes a potential shock
hazard and must be correct
immediately.
d. Record the reading as part of the
service record.
> 1 Meg
1,000 ohm
.15 MFD
< 100 millivolt

Document Number PD196-068 R1 14 October 2004 Page 20 of 24
EARPHONE JACK LEAKAGE
e. Now, connect one side of the R-C
network to a good earth ground
such as a water pipe, conduit, etc.
Touch the other side of the R-C
network to the metal ring on the
earphone jack.
f. Measure the AC voltage drop
across the R-C network. The
measured voltage must not exceed
0.10 volts RMS (100 millivolts
RMS). This corresponds to 100
microamperes of AC current. Any
value exceeding this limit
constitutes a potential shock
hazard and must be correct
immediately.
g. Record the reading as part of the
service record.
1,000 ohm
.15 MFD
< 100 millivolt
