Peak IPEH-003026 User manual

PCAN-PCI Express
PCI Express to CAN Interface
User Manual
V3.2.0

PCAN-PCI Express – User Manual
2
Products taken into account
Product Name Model Part Number Ser. No.
PCAN-PCI Express Single
Channel galv. isolated
One CAN channel IPEH-003026
PCAN-PCI Express Dual
Channel galv. Isolated
Two CAN channels IPEH-003027
starting at
01000
PCAN-PCI Express Four
Channel galv. isolated
Four CAN channels IPEH-003040
The cover picture shows the product PCAN-PCI Express Four Channel galvanic
isolated. Other product versions have an identical form factor but vary in equipment.
CANopen® and CiA® are registered community trade marks of CAN in Automation
e.v.
All other product names mentioned in this manual may be the trademarks or
registered trademarks of their respective companies. They are not explicitly marked
by “™” and “®”.
© 2012 PEAK-System Technik GmbH
PEAK-System Technik GmbH
Otto-Roehm-Strasse 69
64293 Darmstadt
Germany
Phone: [phone]
Fax: [phone]
www.peak-system.com
[e-mail]
Document version 3.2.0 (2012-10-15)

PCAN-PCI Express – User Manual
3
Contents
1Introduction 4
1.1 Properties at a Glance 4
1.2 System Requirements 5
1.3 Scope of Supply 5
2Installing the Software and the Card 6
3Connecting the CAN Bus 9
3.1 D-Sub connector 9
3.2 Supplying External Devices via the CAN
Connector 11
3.3 Cabling 13
3.3.1 Termination 13
3.3.2 Example of a Connection 13
3.3.3 Maximum Bus Length 14
4Using the Software 15
4.1 CAN Monitor PCAN-View for Windows 15
4.1.1 Receive/Transmit Tab 17
4.1.2 Trace Tab 19
4.1.3 Status Bar 20
4.2 Linking Own Programs with PCAN-Basic 21
4.2.1 Features of PCAN-Basic 22
4.2.2 Principle Description of the API 23
4.2.3 Notes about the License 24
5Technical Specifications 25
Appendix A CE Certificate 27
Appendix B Dimension Drawing 28
Appendix C Quick Reference 29

PCAN-PCI Express – User Manual
4
1Introduction
The PCAN-PCI Express card enables the connection of a PC with
PCI Express slots to CAN networks. The card is available as a single,
dual, or four-channel version. Device drivers and programming
interfaces exist for different operating systems, so programs can
easily access a connected CAN bus.
Tip: At the end of this manual (Appendix C) you can find a
Quick Reference with brief information about the installation
and operation of the PCAN-PCI Express card.
1.1 Properties at a Glance
PC plug-in card (PCIe-x1) for PCI Express slots
1, 2 or 4 High-speed CAN channels (ISO 11898-2)
Bit rates up to 1 Mbit/s
Compliant CAN specifications 2.0A (11-bit ID)
and 2.0B (29-bit ID)
CAN bus connection via D-Sub,
9-pin (in accordance with CiA® 102)
NXP SJA1000-compatible CAN controller
(FPGA implementation)
NXP PCA82C251 CAN transceiver
Galvanic isolation on the CAN connection up to 500 V, separate
for each CAN channel
5-Volts supply to the CAN connection can be connected through
a solder jumper, e.g. for external bus converter

PCAN-PCI Express – User Manual
5
Extended operating temperature range from -40 to 85 °C
(-40 to 185 °F)
Note: This manual describes the use of the PCAN-PCI Express
card with Windows. You can find device drivers for Linux and
the corresponding application information on the provided DVD
in the directory branch Develop and on our website under
www.peak-system.com/linux.
1.2 System Requirements
A vacant PCI Express slot in the computer
Operating system Windows 7/Vista/XP (32/64-bit)
or Linux (32/64-bit)
1.3 Scope of Supply
PCAN-PCI Express card
Slot bracket with D-Sub connectors for the CAN bus (only four-
channel version)
Device drivers for Windows 7/Vista/XP (32/64-bit)
and Linux (32/64-bit)
PCAN-View CAN monitor for Windows
PCAN-Basic programming interface consisting of an interface
DLL, examples, and header files for all common programming
languages
Manual in PDF format

PCAN-PCI Express – User Manual
6
2Installing the Software and
the Card
This chapter covers the software setup for the PCAN-PCI Express
card (short: PCIe card) under Windows and the installation of the
card in the computer.
Setup the driver before installing the PCIe card.
Do the following to install the driver:
1. Make sure that you are logged in as user with administrator
privileges (not needed for normal use of the PCIe card later
on).
2. Insert the supplied DVD into the appropriate drive of the
computer. Usually a navigation program appears a few
moments later. If not, start the file Intro.exe from the root
directory of the DVD.
3. On the page English > Drivers activate the entry PCAN-PCI.
4. Click on Install now. The setup program for the driver is
executed.
5. Follow the instructions of the setup program.
Tip: If you don't want to install the CAN monitor PCAN-View for
Windows onto the hard disk together with the driver, you have
the option to start the program later directly from DVD without
prior installation.

PCAN-PCI Express – User Manual
7
Do the following to install the PCIe card into the computer:
Attention! Electrostatic discharge (ESD) can damage or destroy
components on the PCAN-PCI Express card. Take precautions
to avoid ESD when handling the card.
1. Four-channel version only: Connect the 10-pin connector of
CAN ports 3 and 4 with a cable from the slot bracket.

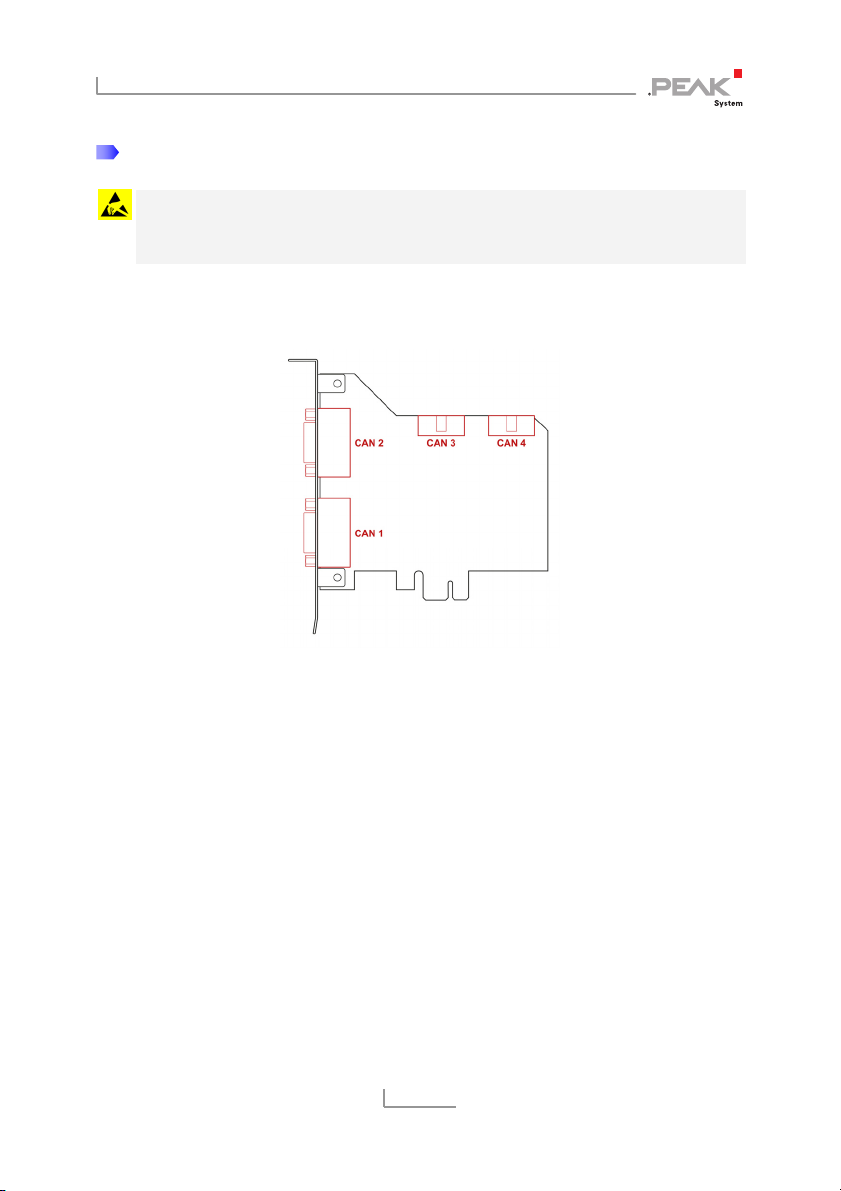

Figure 1: Position of the sockets for the CAN connection,
CAN 3 (upper left position), CAN 4 (upper right position)
2. Shut down the computer and switch it off.
3. Disconnect the computer from the power supply.
4. Open the computer's casing.
5. If applicable, remove a front blind in front of the desired slot
of the PCIe card. The additional slot bracket with connectors
used by the four-channel version needs a further place.
6. Insert the PCIe card into a vacant PCI Express slot. For
details refer to the documentation of the computer.
7. Close the computer's casing.
8. Reconnect the power supply of the computer.

PCAN-PCI Express – User Manual
8
Do the following to complete the initialization:
1. Turn on the computer and start Windows. Make sure again
that you are logged in as user with administrator privileges.
Windows notifies that new hardware has been detected.
2. Windows XP only: A Wizard dialog box appears. Follow its
instructions. Deny the search for driver software at
Windows update and select the automatic software
installation during the procedure.
All Windows operating systems: The drivers are found and
installed by Windows.
3. Afterwards you can work as user with restricted rights
again.
After the initialization process is finished successfully you can find
the entry “PCAN-PCI Express” in the branch “CAN-Hardware” of the
Windows Device Manager.

PCAN-PCI Express – User Manual
9
3Connecting the CAN Bus
3.1 D-Sub connector
A High-speed CAN bus (ISO 11898-2) is connected to the 9-pin
D-Sub connector. The pin assignment for CAN corresponds to the
specification CiA® 102.

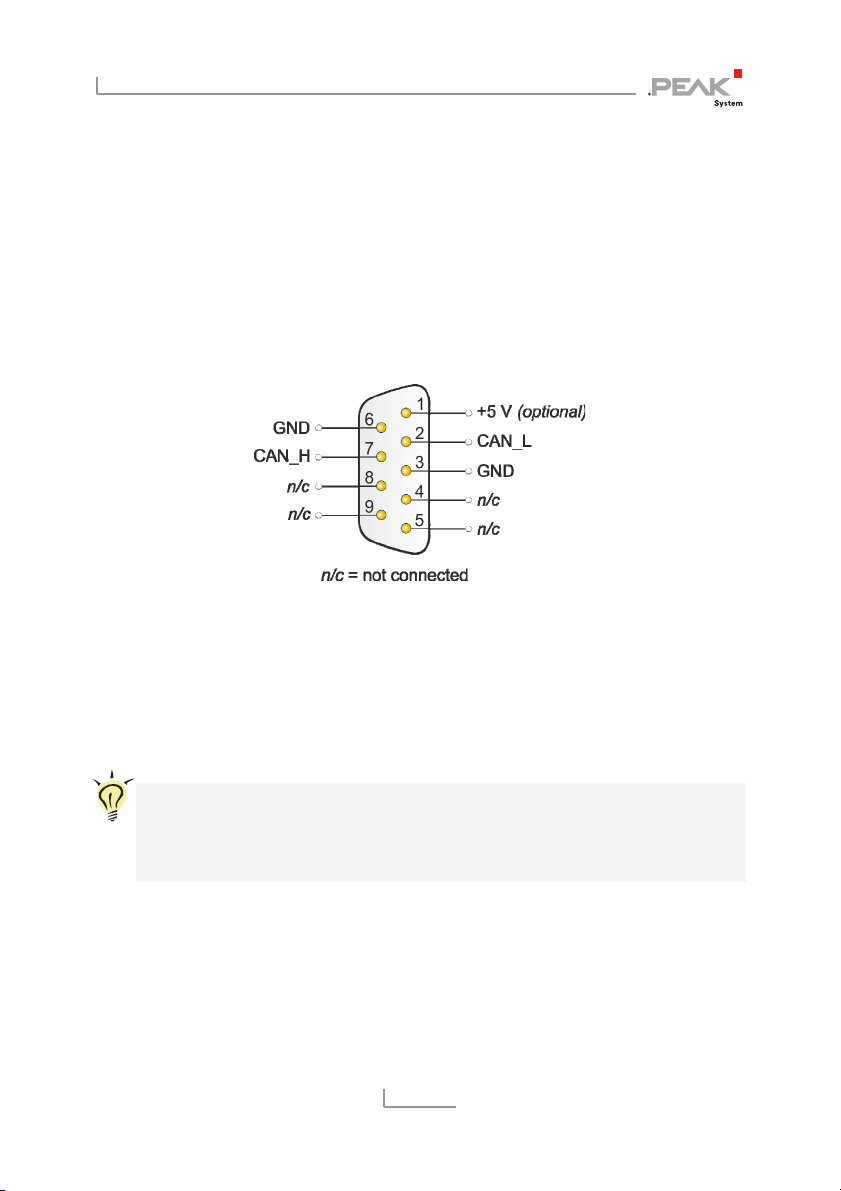

Figure 2: Pin assignment of High-speed CAN connection
(view onto a male connector on the PCAN-PCI Express card)
With pin 1 devices with low power consumption (e.g. bus conver-
ters) can be directly supplied via the CAN connector. At delivery this
pin is not assigned. You can find a detailed description in the follo-
wing section 3.2.
Tip: You can connect a CAN bus with a different transmission
standard via a bus converter. PEAK-System offers different bus
converter modules (e.g. PCAN-TJA1054 for a Low-speed CAN
bus according to ISO 11898-3).

PCAN-PCI Express – User Manual
10
The pin assignment between the D-Sub port and the 10-pin connec-
tor on the PCAN-PCI Express Four Channel card for channel 3 and 4
is as follows:
Figure 3: Numbering at the 10-pin connector
Pin Assignment Assignment
D-Sub
1 +5 V (optional) 1
2 GND 6
3 CAN_L 2
4 CAN_H 7
5 GND 3
6 not connected 8
7 not connected 4
8 not connected 9
9 not connected 5
10 not connected
