Peak IPEH-003026 User manual

PCAN-PCI Express
CAN Interface for PCI Express
User Manual
Document version 3.5.1 (2017-01-30)

PCAN-PCI Express – User Manual
2
Relevant products
Product name Model Part number Ser. no.
PCAN-PCI Express Single
Channel galv. isolated
One CAN channel IPEH-003026
PCAN-PCI Express Dual
Channel galv. Isolated
Two CAN channels IPEH-003027
starting at
01000
PCAN-PCI Express Four
Channel galv. isolated
Four CAN channels IPEH-003040
The cover picture shows the product PCAN-PCI Express Four Channel galvanic
isolated. Other product versions have an identical form factor but vary in equipment.
CANopen® and CiA® are registered community trade marks of CAN in Automation
e.v.
All other product names mentioned in this manual may be the trademarks or
registered trademarks of their respective companies. They are not explicitly marked
by “™” and “®”.
Copyright © 2017 PEAK-System Technik GmbH
Duplication (copying, printing, or other forms) and the electronic distribution of this
document is only allowed with explicit permission of PEAK-System Technik GmbH.
PEAK-System Technik GmbH reserves the right to change technical data without
prior announcement. The general business conditions and the regulations of the
license agreement apply. All rights are reserved.
PEAK-System Technik GmbH
Otto-Roehm-Strasse 69
64293 Darmstadt
Germany
Phone: [phone]
Fax: [phone]
www.peak-system.com
[e-mail]
Document version 3.5.1 (2017-01-30)

PCAN-PCI Express – User Manual
3
Contents
1 Introduction 5
1.1 Properties at a Glance 5
1.2 System Requirements 6
1.3 Scope of Supply 6
2 Installing the Software and the Card 8
3 Connecting the CAN Bus 10
3.1 Connection over D-Sub connector 10
3.1.1 Slot Bracket with D-Sub Connectors 12
3.2 Voltage Supply of External Devices 13
3.3 Cabling 15
3.3.1 Termination 15
3.3.2 Example of a Connection 15
3.3.3 Maximum Bus Length 16
4 Software and API 17
4.1 Monitor Software PCAN-View 17
4.1.1 Receive/Transmit Tab 19
4.1.2 Trace Tab 21
4.1.3 PCAN-PCI Express Tab 22
4.1.4 Status Bar 22
4.2 Linking Own Programs with PCAN-Basic 23
4.2.1 Features of PCAN-Basic 24
4.2.2 Principle Description of the API 25
4.2.3 Notes about the License 26
5 Technical Specifications 27
Appendix A CE Certificate 29

PCAN-PCI Express – User Manual
4
Appendix B Dimension Drawing 30
Appendix C Quick Reference 31

PCAN-PCI Express – User Manual
5
1 Introduction
The PCAN-PCI Express card enables the connection of a PC with
PCI Express slots to CAN networks. There is galvanic isolation of up
to 500 Volts between the computer and CAN sides. The card is
available as a single, dual, or four-channel version.
The monitor software PCAN-View and the programming interface
PCAN-Basic for the development of applications with CAN
connection are included in the scope of supply.
Device drivers exist for different operating systems, so programs
can easily access a connected CAN bus.
Tip: At the end of this manual (Appendix C) you can find a
Quick Reference with brief information about the installation
and operation of the PCAN-PCI Express card.
1.1 Properties at a Glance
PC plug-in card (PCIe x1) for PCI Express slots
1, 2 or 4 High-speed CAN channels (ISO 11898-2)
Bit rates from 5 kbit/s up to 1 Mbit/s
Compliant CAN specifications 2.0A (11-bit ID)
and 2.0B (29-bit ID)
CAN bus connection via D-Sub,
9-pin (in accordance with CiA® 303-1)
FPGA implementation of the CAN controller
(SJA1000 compatible)
NXP PCA82C251 CAN transceiver

PCAN-PCI Express – User Manual
6
Galvanic isolation on the CAN connection up to 500 V, separate
for each CAN channel
5-Volt supply to the CAN connection can be connected through a
solder jumper, e.g. for external bus converter
Extended operating temperature range from -40 to 85 °C
(-40 to 185 °F)
Note: This manual describes the use of the PCAN-PCI Express
card with Windows. You can find device drivers for Linux and
the corresponding application information on the provided DVD
in the directory branch Develop and on our website under
www.peak-system.com/linux.
1.2 System Requirements
A vacant PCI Express slot in the computer
Operating system Windows 10, 8.1, 7 (32/64-bit)
or Linux (32/64-bit)
1.3 Scope of Supply
PCAN-PCI Express card
Slot bracket with D-Sub connectors for the CAN bus
(only four-channel version)
Device drivers for Windows 10, 8.1, 7 and Linux (32/64-bit)
CAN monitor PCAN-View for Windows
Programming interface PCAN-Basic for developing applications
with CAN connection

PCAN-PCI Express – User Manual
7
Programming interfaces for standardized protocols from the
automotive sector
Manual in PDF format

PCAN-PCI Express – User Manual
8
2 Installing the Software and
the Card
This chapter covers the software setup for the PCAN-PCI Express
card in Windows and the installation of the card in the computer.
Install the driver before you install the card.
Do the following to install the driver:
1. Start Intro.exe from the root directory of the DVD.
The navigation program starts.
2. Select in the main menu Drivers and click on Install now.
3. Confirm the message of the User Account Control related
"Installer database of PEAK Drivers".
The driver setup starts.
4. Follow the program instructions.
Do the following to install the card:
Attention! Electrostatic discharge (ESD) can damage or destroy
components on the card. Take precautions to avoid ESD.
1. Four-channel version only: Connect the 10-pin connector of
CAN ports 3 and 4 with a cable from the slot bracket.
2. Shut down the computer.
3. Disconnect the computer’s power supply.
4. Open the computer case.
5. Insert the PCI Express card into an available PCI Express
slot.

PCAN-PCI Express – User Manual
9
6. Four-channel version only: The additional slot bracket with
connectors used by the four-channel version needs a further
place.
7. Insert the PCI Express card into an available PCI Express
slot.
8. Close the computer case.
9. Reconnect the computer power supply.
10. Turn on the computer and start Windows.
Windows detects the new hardware and completes the driver
installation.
Do the following to check the operational readiness:
1. Open the Windows Start menu.
2. Type peakcpl and press Enter .
The information window for PEAK hardware appears. The plug-in
card must be displayed in the table on the CAN Hardware tab.

PCAN-PCI Express – User Manual
10
3 Connecting the CAN Bus
3.1 Connection over D-Sub connector
A High-speed CAN bus (ISO 11898-2) is connected to the 9-pin
D-Sub connector. The pin assignment for CAN corresponds to the
specification CiA® 303-1.

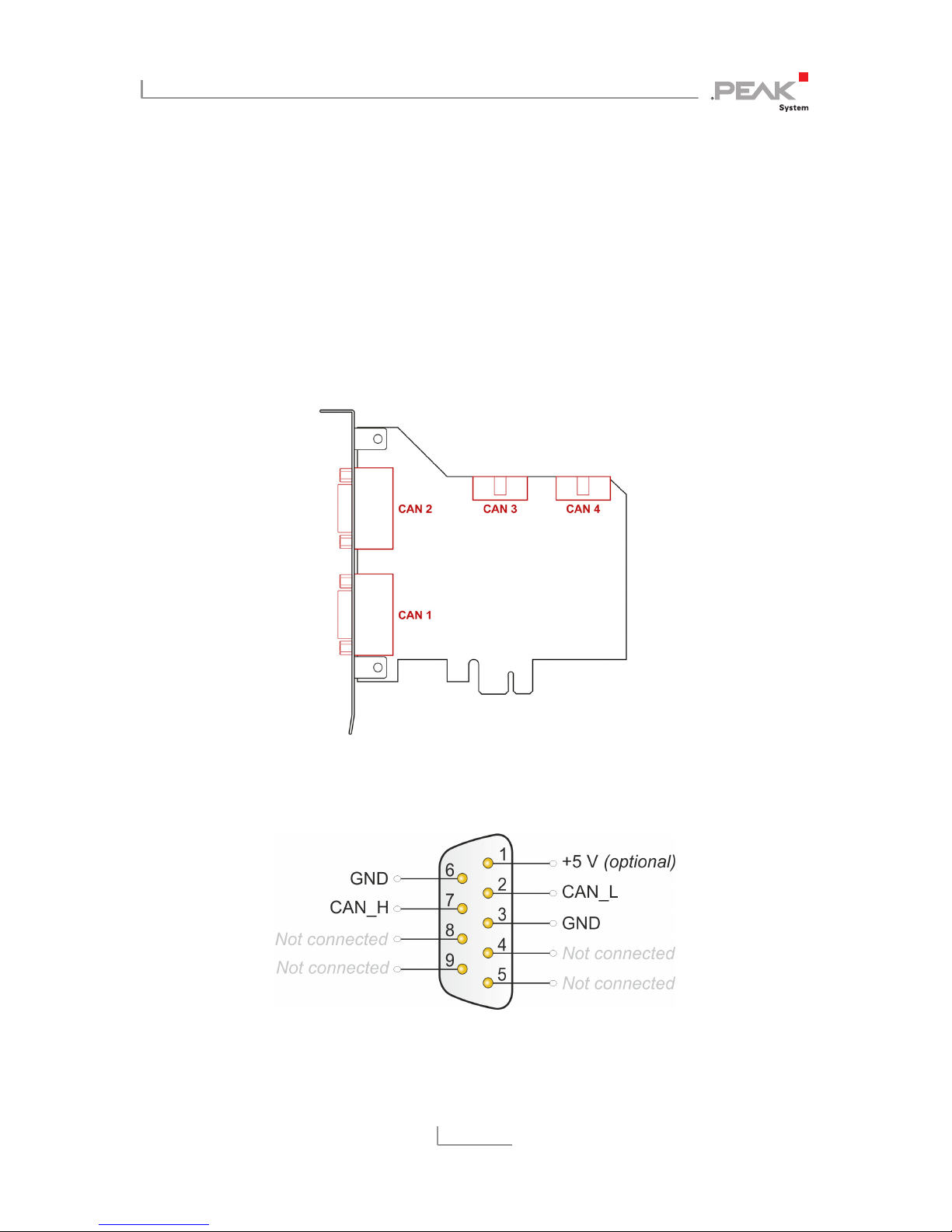

Figure 1: Position of the sockets for the CAN connection,
CAN 3 (upper left position), CAN 4 (upper right position)
Figure 2: Pin assignment of High-speed CAN connection
(view onto a male connector on the PCAN-PCI Express card)

PCAN-PCI Express – User Manual
11
Low power devices (e.g. bus converters) can be supplied directly
with 5 volts over pin 1 of the CAN connector. Pin 1 is not in use at
the delivery state. For more information see the next section 3.2.
Tip: Connect a CAN bus with a different transmission standard
via a bus converter. PEAK-System offers different bus converter
modules like the PCAN-TJA1054 for a Low-speed CAN bus
according to ISO 11898-3.
The pin assignment between the D-Sub port and the 10-pin connec-
tor on the PCAN-PCI Express Four Channel card for channel 3 and 4
is as follows:
Figure 3: Numbering at the 10-pin connector
Pin Assignment Assignment
D-Sub
1 +5 V (optional) 1
2 GND 6
3 CAN_L 2
4 CAN_H 7
5 GND 3
6 not connected 8
7 not connected 4
8 not connected 9
9 not connected 5
10 not connected

PCAN-PCI Express – User Manual
12
3.1.1 Slot Bracket with D-Sub Connectors

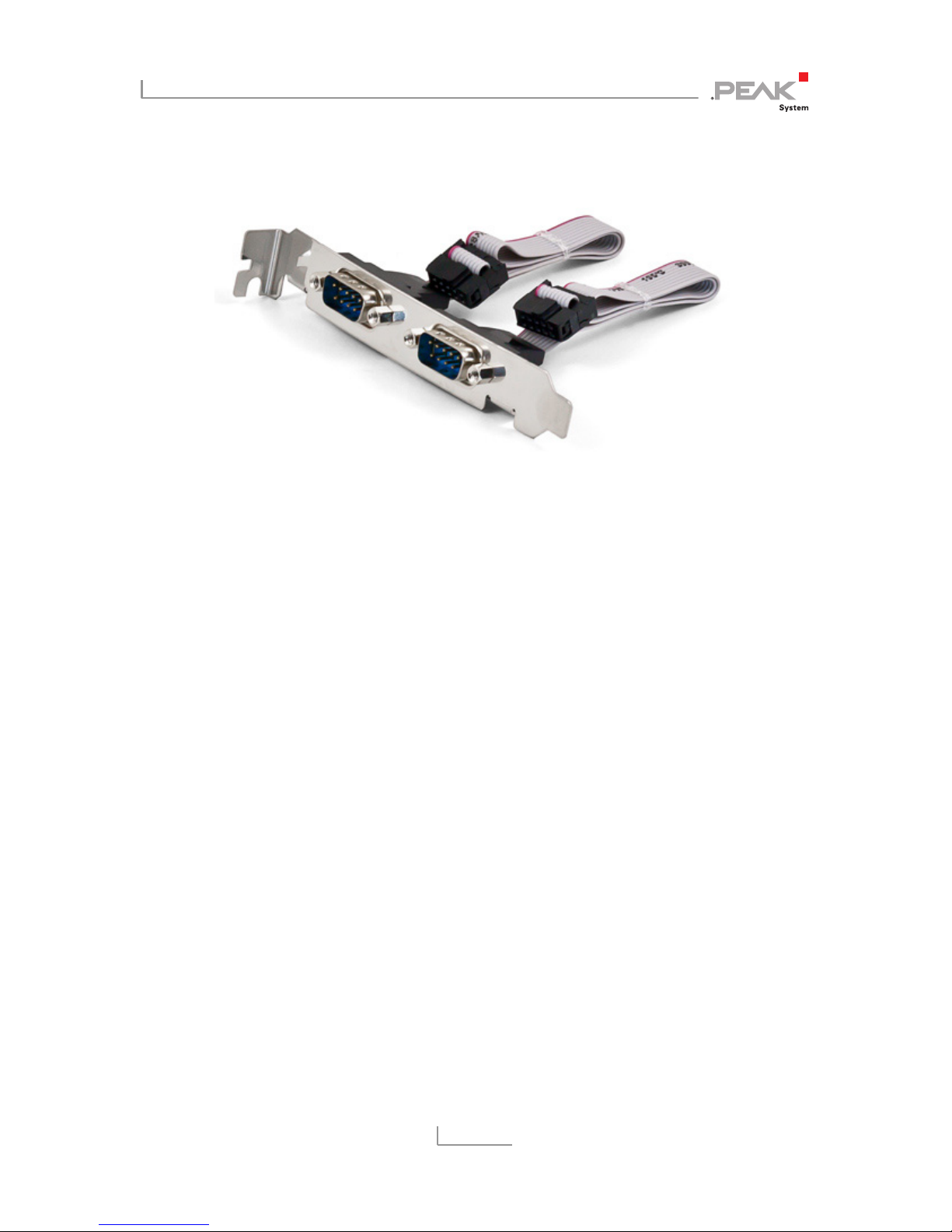

Figure 4: Dual channel slot bracket
Four-channel version only: To connect a CAN bus to the PCAN-PCI
Express card, use the supplied slot bracket. After you have con-
nected the cables from the slot bracket with the 10-pin sockets of
CAN port 3 and 4, you can connect the CAN busses with the
D-Sub sockets.

PCAN-PCI Express – User Manual
13
3.2 Voltage Supply of External Devices
External devices with low power consumption (e.g. bus converters)
can be directly supplied via the CAN connector (independently for
each connector on the dual or four-channel version). With a solder
bridge per CAN channel on the PCAN-PCI Express board, a 5-Volt
supply can optionally be routed to pin 1 of the D-Sub connector.
The current output is limited to 50 mA.
Do the following to activate the voltage supply:
Risk of short circuit! Solder with great care to avoid unwanted
short circuits on the card.
Attention! Electrostatic discharge (ESD) can damage or destroy
components on the card. Take precautions to avoid ESD.
Set the solder bridges corresponding to the desired settings.
Figure 5 shows the solder field positions on the card. The table
below contains the possible settings.

PCAN-PCI Express – User Manual
14
Figure 5: Position of the solder fields on the board’s bottom side for a 5-Volt supply
at the CAN connection
5-Volt supply
D-Sub connector
Solder field Without
(Standard)
With
(Pin 1)
CAN 1 JP100
CAN 2 JP200
CAN 3 JP300
CAN 4 JP400
Risk of short circuit! The 5-Volt supply is not protected
separately. Therefore, turn off the computer before you
connect and disconnect CAN cables or peripheral systems.

PCAN-PCI Express – User Manual
15
3.3 Cabling
3.3.1 Termination
The High-speed CAN bus (ISO 11898-2) must be terminated with
120 ohms at both ends. The termination prevents interfering signal
reflections and ensures the proper operation of the transceiver of
the connected CAN nodes (CAN interface, control device).
The PCAN-PCI Express card does not have an internal termination.
Use the card on a terminated CAN bus.
3.3.2 Example of a Connection

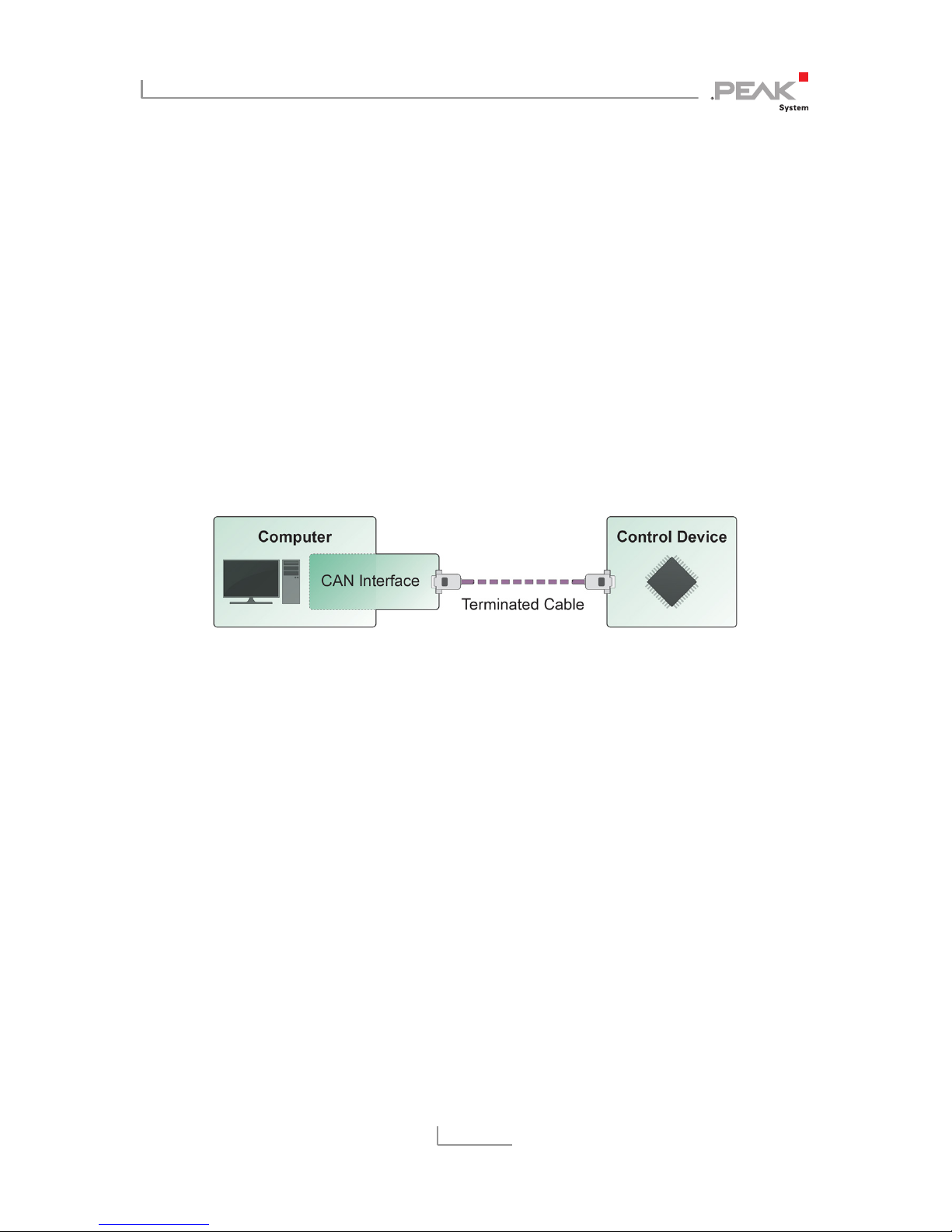

Figure 6: Simple CAN connection
In this example, the PCAN-PCI Express card is connected with a
control unit by a cable that is terminated with 120 ohms at both
ends.

PCAN-PCI Express – User Manual
16
3.3.3 Maximum Bus Length
High-speed CAN networks may have bit rates of up to 1 Mbit/s. The
maximum bus length depends primarily on the bit rate.
The following table shows the maximum possible CAN bus length
at different bit rates:
Bit rate Bus length
1 Mbit/s 40 m
500 kbit/s 110 m
250 kbit/s 240 m
125 kbit/s 500 m
50 kbit/s 1.3 km
20 kbit/s 3.3 km
10 kbit/s 6.6 km
5 kbit/s 13.0 km
The listed values have been calculated on the basis of an idealized
system and can differ from reality.

PCAN-PCI Express – User Manual
17
4 Software and API
This chapter covers the provided software PCAN-View and the
programming interface PCAN-Basic.
4.1 Monitor Software PCAN-View
PCAN-View is simple Windows software for viewing, transmitting,
and logging CAN and CAN FD messages.
Note: This chapter describes the use of PCAN-View with a CAN
adapter.
Figure 7: PCAN-View for Windows

PCAN-PCI Express – User Manual
18
Do the following to start and initialize PCAN-View:
1. Open the Windows Start menu and select PCAN-View.
The Connect dialog box appears.
Figure 8: Selection of the hardware and parameters
2. Select an interface from the list.
3. From the drop-down list, select the Bit rate that is used by
all nodes on the CAN bus.
Tip: You can create custom bit rates by using the button ().
4. Under Filter settings you can limit the range of CAN IDs to
be received, either for standard frames (11-bit IDs) or for
extended frames (29-bit IDs).
5. Activate the Listen-only mode if you do not actively
participate in the CAN traffic and just want to observe. This
also avoids an unintended disruption of an unknown CAN
environment (e.g. due to different bit rates).
6. Confirm the settings in the dialog box with OK. The main
window of PCAN-View appears (see Figure 9).

PCAN-PCI Express – User Manual
19
4.1.1 Receive/Transmit Tab
Figure 9: Receive/Transmit Tab
The Receive/Transmit tab is the main element of PCAN-View. It
contains two lists, one for received messages and one for the
transmit messages. The CAN data format is hexadecimal by default.
Do the following to transmit a CAN message with PCAN-View:
1. Select the menu command Transmit > New Message
(alternatively or Ins ).
The New Transmit Message dialog box appears.
Figure 10: Dialog box new transmit message

PCAN-PCI Express – User Manual
20
2. Enter the ID, the data Length, and the CAN message Data.
Note: With the program version 4 of PCAN-View, the DLC field
was renamed to Length. Latter reflects the actual data length.
3. Enter a value into the Cycle Time field to choose manually
or periodically message transmission. Enter a value greater
than 0 to transmit periodically. Enter the value 0 to transmit
only manually.
4. Confirm the entries with OK.
The created transmit message appears on the
Receive/Transmit tab.
5. Trigger selected transmit messages manually with the menu
command Transmit > Send (alternatively Space bar). The
manual transmission for CAN messages being transmitted
periodically is carried out additionally.
Tip: Under the menu command File > Save, you can save the
current transmit messages into a transmit list. Saved transmit
lists are available for reuse.
