Peak PCAN-PCI/104-Express User manual

PCAN-PCI/104-Express
User Manual
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH

Relevant Products
Product name Model Part number
PCAN-PCI/104-Express SingleChannel One CAN channel IPEH-003054
PCAN-PCI/104-Express DoubleChannel Two CAN channels IPEH-003055
PCAN-PCI/104-Express SingleChannel
opto-decoupled
One CAN channel, galvanic isolation for
CAN connection IPEH-003056
PCAN-PCI/104-Express DoubleChannel
opto-decoupled
Two CAN channels, galvanic isolation for
CAN connection IPEH-003057
PCAN-PCI/104-Express QuadChannel
opto-decoupled
Four CAN channels, galvanic isolation for
CAN connection IPEH-003058
The cover picture shows the product PCAN-PCI/104-Express DoubleChannel opto-decoupled. Other
product versions have an identical form factor but vary in equipment.
Imprint
PCAN is a registered trademark of PEAK-System Technik GmbH. CiA® is a registered community trade mark
of CAN in Automation e.V.
All other product names in this document may be the trademarks or registered trademarks of their
respective companies. They are not explicitly marked by ™ or ®.
© 2022 PEAK-System Technik GmbH
Duplication (copying, printing, or other forms) and the electronic distribution of this document is only
allowed with explicit permission of PEAK-System Technik GmbH. PEAK-System Technik GmbH reserves the
right to change technical data without prior announcement. The general business conditions and the
regulations of the license agreement apply. All rights are reserved.
PEAK-System Technik GmbH
Otto-Röhm-Straße 69
64293 Darmstadt
Germany
Phone: [phone]
Fax: [phone]
www.peak-system.com
[email protected]
Document version 3.0.1 (2022-04-21)
Relevant Products PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
2

Contents
Imprint 2
Relevant Products 2
Contents 3
1 Introduction 4
1.1 Properties at a Glance 5
1.2 System Requirements 5
1.3 Scope of Supply 5
2 Configuration 7
2.1 Voltage Supply of External Devices 7
3 Installation 10
3.1 Install Device Driver Setup 10
3.2 Install CAN interface 10
3.3 Check Operational Readiness 11
4 Connecting the CAN Bus 12
4.1 Connection over D-Sub Connector 12
4.2 Cabling 12
4.3 Example Application under Windows 14
5 CAN Monitor PCAN-View 15
5.1 CAN interface initialize 16
5.2 Transmit CAN message 18
5.3 Additional Tabs 19
6 API PCAN-Basic 24
6.1 Features of PCAN-Basic 25
6.2 Principle Description of the API 26
7 Technical Data 27
Appendix A CE Certificate 29
Appendix B Dimension Drawings 30
Appendix C Quick Reference 31
Appendix D Linux 32
Contents PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
3

1 Introduction
The CAN interface PCAN-PCI/104-Express for a PC/104-Plus computer is available as a
version with one, two, or four channels. The CAN bus is connected via a 9-pin D-Sub
connector on the supplied slot bracket. Operation of up to four CAN interfaces
plugged into each other is possible.
Opto-decoupled CAN interfaces only: Galvanic isolation up to 500 V for each CAN
channel protects against the transmission of electrical interference peaks between
the CAN channels and the computer.
The monitor software PCAN-View and the programming interface PCAN-Basic for the
development of applications with CAN connection are included in the scope of
supply.
Device drivers exist for different operating systems, so programs can easily access a
connected CAN bus.
This manual describes the use of the CAN interface with Windows.
Device drivers and application information for Linux:
www.peak-system.com/quick/DL-Driver-E
At the end of this manual you can find a Quick Reference with brief
information about the installation and operation of the CAN interface.
1 Introduction PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
4

1.1 Properties at a Glance
■PCI/104-Express card, 1 Lane (x1)
■Form factor PC/104
■Up to four cards can be used in one system
■1, 2 or 4 High-speed CAN channels (ISO 11898-2)
■Bit rates from 5 kbit/s up to 1 Mbit/s
■Complies with CAN specifications ISO 11898-1 for CAN
■Connection to CAN bus through D-Sub slot brackets, 9-pin
(in accordance with CiA® 303-1)
■FPGA implementation of the CAN controller (SJA1000 compatible)
■NXP PCA82C251 CAN transceiver
■Voltage supply for external devices via CAN connection can be connected through
a solder jumper
■Galvanic isolation up to 500 V per CAN connection
(opto-decoupled versions only)
■Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)
■Optional available: PC/104-ISA stack-through connector
1.2 System Requirements
PC/104-Plus computer with
■PCIe/104 connectivity to the host
■Operating system Windows® 11 (64 bit), 10 (32/64 bit) or Linux(32/64-bit)
1.3 Scope of Supply
■CAN interface PCAN-PCI/104-Express
■Slot bracket with D-Sub connector(s) for the CAN bus
(two for the four-channel version)
1 Introduction PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
5

Downloads
■Device drivers for Windows® 11 (64 bit), 10 (32/64 bit) and Linux (32/64-bit)
■CAN monitor PCAN-View for Windows
■Programming interface PCAN-Basic for developing applications with CAN
connection
■Programming interfaces for standardized protocols from the automotive sector
1 Introduction PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
6

2 Configuration
Before installing the CAN interface into a PC/104-Plus computer:
Check if you need the following configuration.
2.1 Voltage Supply of External Devices
Attention! The voltage supply for external devices is not protected
separately. Therefore, turn off the computer before you connect and
disconnect CAN cables or peripheral systems.
Optionally, an external voltage supply can be connected separately for each CAN
channel via solder bridges at pin 9 on the D-Sub connector. This allows external
devices to be supplied with a voltage of 5 V DC, for example bus converters
(PCAN-TJA1054 for Low-Speed-CAN). Pin 9 is not connected at delivery.
The current output is limited to
■100 mA without galvanic isolation.
■50 mA with galvanic isolation.
The lower current output of the versions with galvanic isolation is due to an
intermediate DC/DC converter.
2 Configuration PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
7

2.1.1 Activate voltage supply
Risk of short circuit! Soldering on the CAN interface may only be
performed by qualified electrical engineering personnel.
Attention! Electrostatic discharge (ESD) can damage or destroy
components on the card. Take precautions to avoid ESD.
The solder fields for the power supply of external devices are located on the bottom

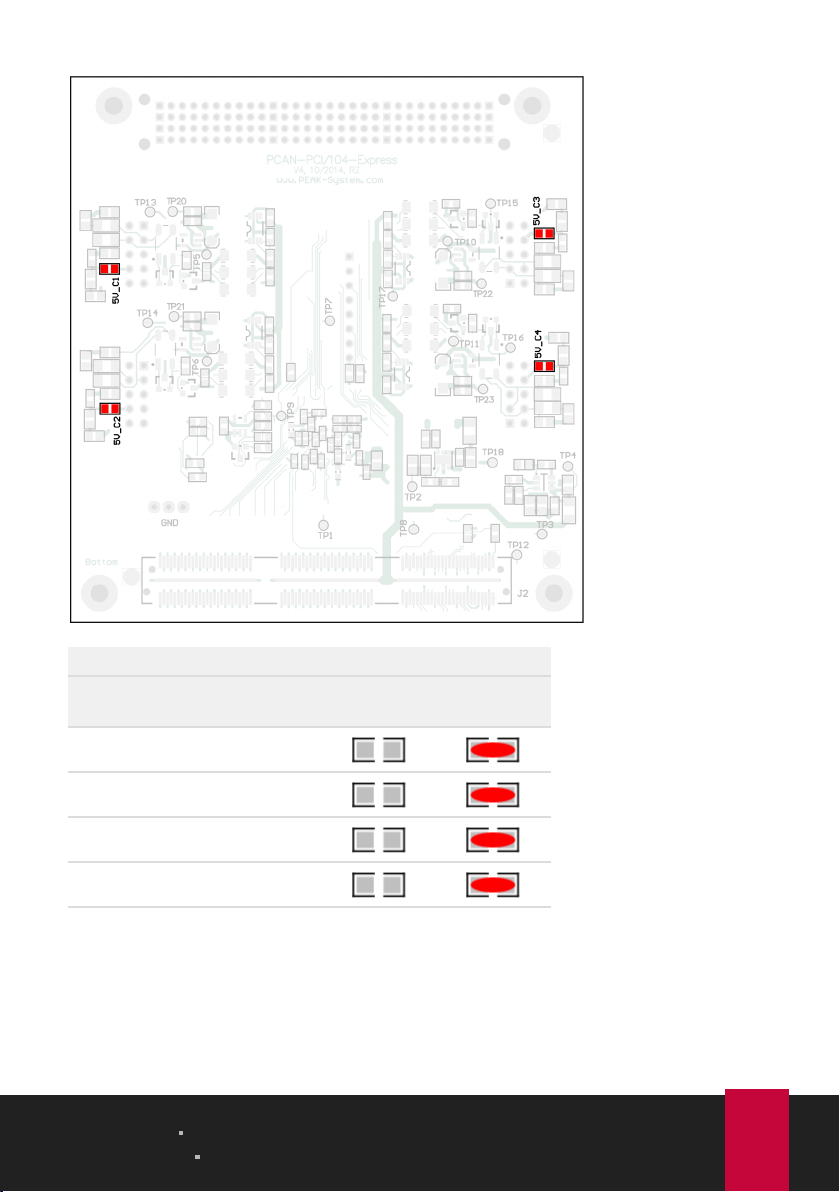

side of the bottom side of the CAN interface. The following picture shows the solder
field positions on the fourchannel card. The solder fields for the single and dual
channel versions are located in the same positions.
Set the solder bridge(s) on the card according to the desired settings.
2 Configuration PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
8

5-Volt supply via D-Sub plug
D-Sub connector Solder field Without
(Standard)
PIN 9
CAN 1 5V_C1
CAN 2 5V_C2
CAN 3 5V_C3
CAN 4 5V_C4
2 Configuration PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
9

3 Installation
This chapter covers the software setup for the CAN interface PCAN-PCI/104-Express
under Windows and the installation of the CAN interface into the PC/104 computer.
Note: For installation on Linux, see Appendix D Linux.
Install the driver before you install the CAN interface.
3.1 Install Device Driver Setup
1. Download the device driver setup from our website:
www.peak-system.com/quick/DL-Driver-E
2. Unpack the file PEAK-System_Driver-Setup.zip
3. Double-click the file PeakOemDrv.exe
The driver setup starts.
4. Follow the program instructions.
3.2 Install CAN interface
Attention! Electrostatic discharge (ESD) can damage or destroy
components on the card. Take precautions to avoid ESD.
1. Connect one cable per CAN connection from the slot bracket to a 10-pin socket
on the CAN interface.
3 Installation PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
10

2. Shut down the computer.
3. Disconnect the computer’s power supply.
4. Plug the CAN interface directly onto the host or onto another PCI/104 Express
card of the PC/104 computer.
A maximum of four PCI/104-Express cards per stack is possible, either all on top
or all beneath the host.
5. Install the slot bracket.
6. Reconnect the computer power supply.
7. Turn on the computer and start Windows.
Windows detects the new hardware and completes the driver installation.
3.3 Check Operational Readiness
1. Open the Windows Start menu.
2. Type Peak Settings and press |Enter|.
The window PEAK Settings appears.
3. Select CAN Hardware.
The connected CAN interface is displayed.
3 Installation PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
11

4 Connecting the CAN Bus
4.1 Connection over D-Sub Connector
After the slot bracket has been connected to the CAN interface a CAN bus can be
connected to the D-Sub connector. The pin assignment of the D-Sub connector
corresponds to the specification CiA® 303-1:
10-pin connector
on CAN interface
D-Sub plug on
slot bracket, 9-pin
Assignment
2 6 GND
3 2 CAN_Low
4 7 CAN_High
5 3 GND
8 9 +5 V (optional)
1, 6, 7, 9, 10 1, 4, 5, 8 None
4.2 Cabling
4.2.1 Termination
The High-speed CAN bus (ISO 11898-2) must be terminated with 120 Ω on both ends.
The termination prevents interfering signal reflections and ensures the proper
operation of the transceivers of the connected CAN nodes (CAN interfaces,
controldevices).
The CAN interface PCAN-PCI/104-Express does not have an internal termination. Use
the CAN interface on a terminated CAN bus.
4 Connecting the CAN Bus PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
12

4.2.2 Example of a Connection

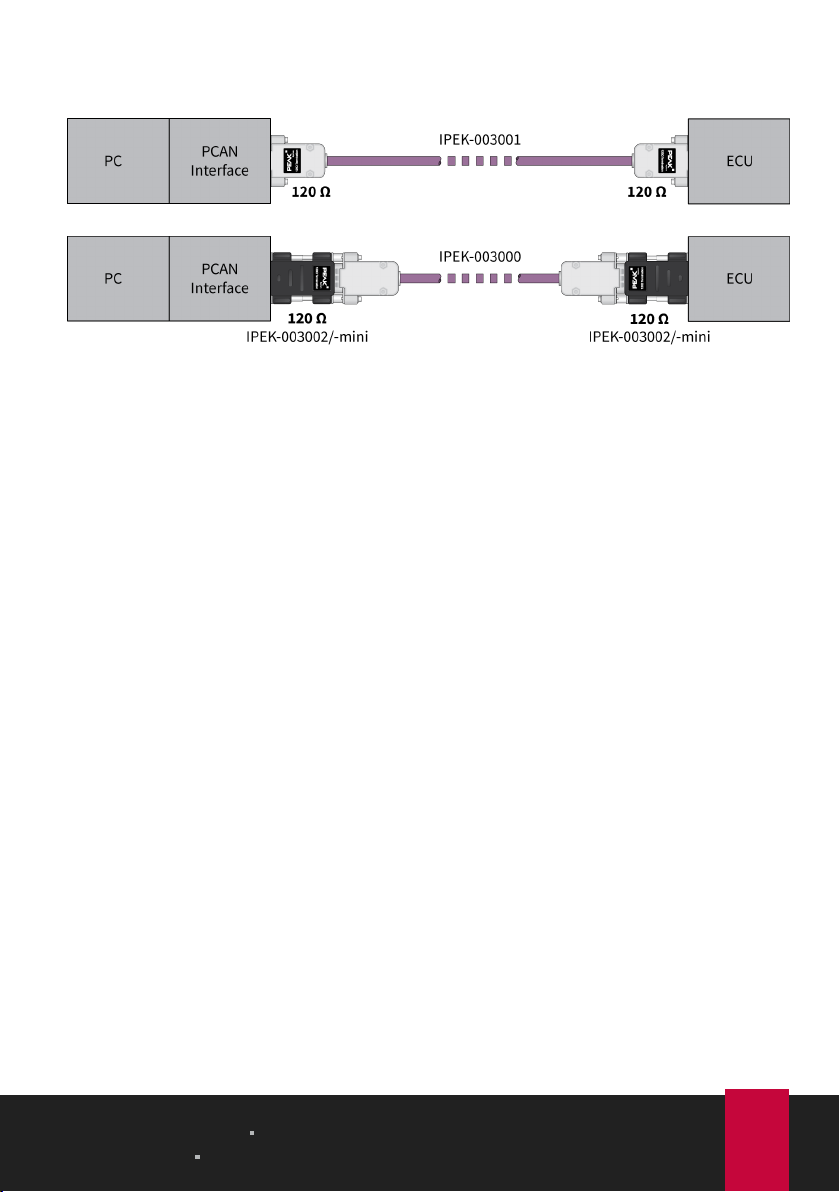

This example shows a connection between the PCAN Interface and a control unit
(ECU). The upper example shows a connection with a cable which is terminated with
120 Ω at both ends. At the lower example the connection is made with termination
adapters.
4 Connecting the CAN Bus PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
13

4.2.3 Maximum Bus Length
The maximum bus length depends primarily on the bit rate:
Nominal bit rate Buslength
1 Mbit/s 40 m
500 kbit/s 110 m
250 kbit/s 240 m
125 kbit/s 500 m
50 kbit/s 1.3 km
20 kbit/s 3.3 km
10 kbit/s 6.6 km
5 kbit/s 13 km
The listed values have been calculated on the basis of an idealized system and can
differ from reality.
4.3 Example Application under Windows
As an example application for accessing the CAN interface, run the CAN monitor
PCAN-View from the Windows Start menu.
4 Connecting the CAN Bus PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
14

5 CAN Monitor PCAN-View
The CAN monitor PCAN-View is a Windows software for viewing, sending, and
recording CAN and CAN FD messages. The software is installed with the installation
of the device driver package under Windows.
In the following the initialization of a CAN interface is described as an example.
Detailed information about using PCAN-View can be found in the program window
under the menu item Help.
5 CAN Monitor PCAN-View PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
15

5.1 CAN interface initialize
1. Open the program PCAN-View via the Windows Start menu.

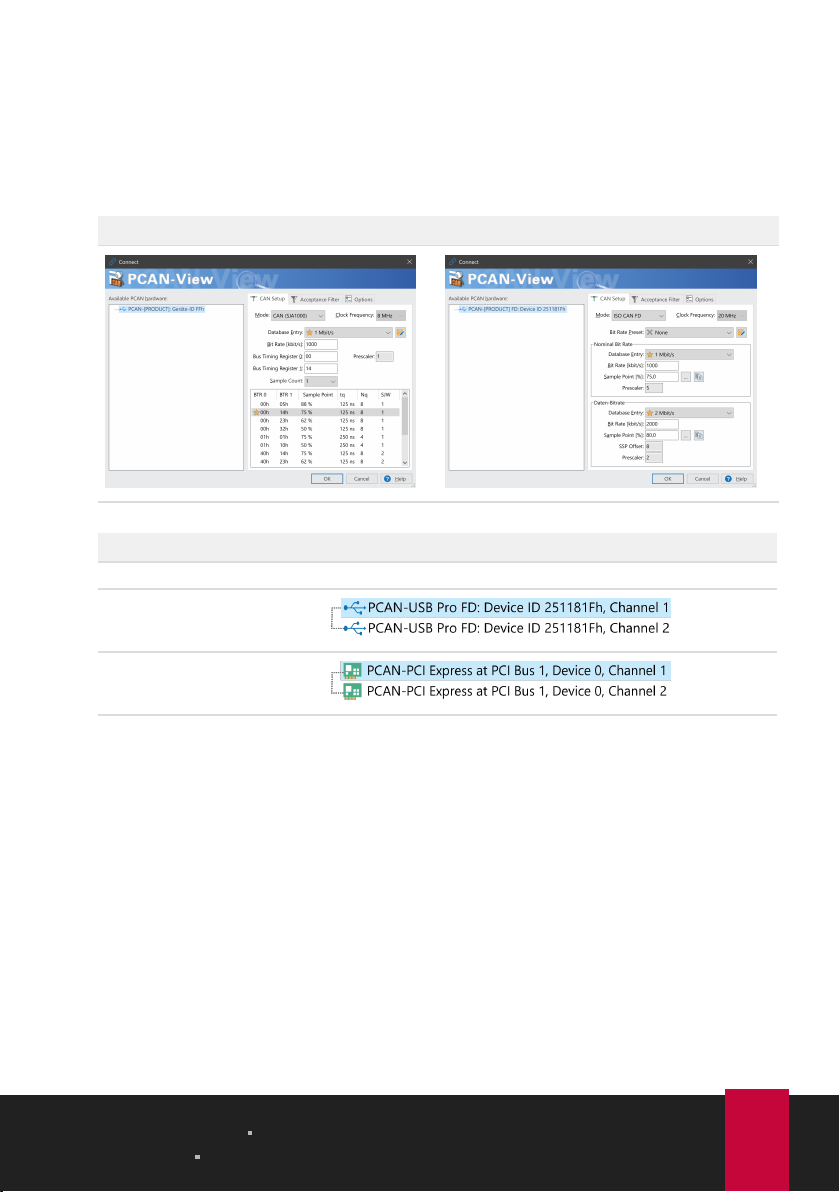

Depending on the CAN interface the Connect dialog is displayed with or without
settings for CAN FD.
CAN CAN FD
CAN interface List entry in Available Hardware
USB Interface, 1-channel see example above
USB Interface, 2-channel
PCIe Interface, 2-channel
2. If there are several CAN interfaces, select the desired interface. For multiple
channels, select the desired channel from the list.
3. Enter the bit rate(s) and other settings according to the connected CAN bus.
5 CAN Monitor PCAN-View PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
16

4. Confirm the entries with OK. The main window appears and displays the Receive /
Transmit tab.
5. For initializing another channel or CAN interface, open another instance of PCAN-
View.
5 CAN Monitor PCAN-View PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
17

5.2 Transmit CAN message
1. Select the menu command Transmit / New Message.
Depending on the CAN interface, the dialog box New Transmit Message is
displayed with or without settings for CAN FD.
CAN CAN FD
1. Enter the ID,Length and Data of the message. Other settings can be made
according to the connected CAN bus.
2. Enter a value into the Cycle Time field to choose manually or periodically message
transmission.
Enter a value greater than 0 to transmit periodically.
Enter the value 0 to transmit only manually.
3. Confirm the entries with OK.
The created transmit message appears on the Receive / Transmit tab.
4. To send the message manually, select the menu command Transmit > Send or
press the |space|bar.
The manual transmission process is performed additionally for periodically
transmitted CAN messages.
5 CAN Monitor PCAN-View PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
18

5.3 Additional Tabs
Depending on the CAN interface, additional tabs are available.

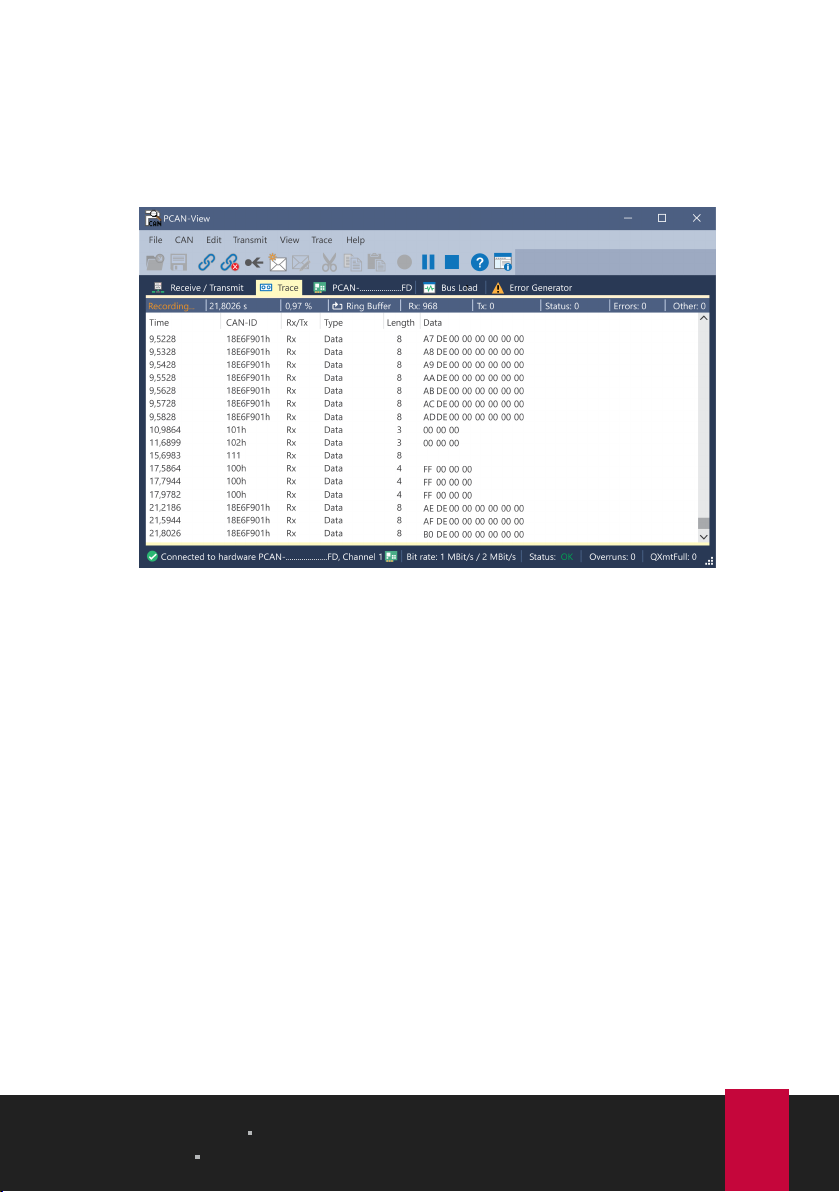

5.3.1 Trace Tab
The tracer (data logger) records the communication of the CAN bus in linear or
ringbuffer mode. The trace data can be saved to a file.
5 CAN Monitor PCAN-View PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
19

5.3.2 CAN interface Tab
The CAN interface tab shows information about the hardware and the used Windows
device driver. In this case exemplary for the PCAN-miniPCIe FD. Depending on the
CAN interface, a hardware ID can be determined to distinguish several interfaces of
the same type. For interfaces with CAN FD a transmission according to "ISO" or
"Non-ISO" can be set as default of the hardware.
5 CAN Monitor PCAN-View PCAN-PCI/104-Express
User Manual 3.0.1 © 2022 PEAK-System Technik GmbH
20
