Peak PCAN-USB Pro FD User manual

PCAN-USB Pro FD
CAN FD and LIN Interface for
High-Speed USB 2.0
User Manual
Document version 1.3.0 (2016-04-11)

PCAN-USB Pro FD – User Manual
2
Relevant products
Product name Model Part number
PCAN-USB Pro FD IPEH-004061
CANopen® and CiA® are registered community trade marks of CAN in Automation
e.V.
All other product names mentioned in this document may be the trademarks or
registered trademarks of their respective companies. They are not explicitly marked
by “™” or “®”.
© 2016 PEAK-System Technik GmbH
Duplication (copying, printing, or other forms) and the electronic distribution of this
document is only allowed with explicit permission of PEAK-System Technik GmbH.
PEAK-System Technik GmbH reserves the right to change technical data without
prior announcement. The general business conditions and the regulations of the
license agreement apply. All rights are reserved.
PEAK-System Technik GmbH
Otto-Roehm-Strasse 69
64293 Darmstadt
Germany
Phone: [phone]
Fax: [phone]
www.peak-system.com
[e-mail]
Document version 1.3.0 (2016-04-11)

PCAN-USB Pro FD – User Manual
3
Contents
1 Introduction 5
1.1 Properties at a Glance 6
1.2 System Requirements 7
1.3 Scope of Supply 8
2 Installing the Software and the Adapter 9
3 Connecting the CAN and LIN Bus 10
3.1 CAN Connection over D-Sub Connector 10
3.2 LIN Connection over D-Sub Connector 11
3.3 Voltage Supply of External Devices 12
3.4 Activating the Internal CAN Termination 15
3.5 Cabling 18
3.5.1 Termination 18
3.5.2 Example of a Connection 18
3.5.3 Maximum Bus Length 19
4 Operation 20
4.1 Status LEDs 20
4.2 Unplugging the USB Connection 21
4.3 Distinguishing Several PCAN-USB Pro FD
Adapters 21
5 Software and API 22
5.1 Monitor Software PCAN-View 22
5.1.1 Receive/Transmit Tab 25
5.1.2 Trace Tab 27
5.1.3 PCAN-USB Pro FD Tab 28
5.1.4 Bus Load Tab 29
5.1.5 Error Generator Tab 30
5.1.6 Status Bar 31

PCAN-USB Pro FD – User Manual
4
5.2 LIN Monitor PLIN-View Pro for Windows 32
5.2.1 Receive/Transmit or Receive/Publisher
Tab 34
5.2.2 Trace Tab 36
5.2.3 Status Bar 37
5.3 Linking Own Programs with PCAN-Basic Version
4 or Higher 38
5.3.1 Features of PCAN-Basic 39
5.3.2 Principle Description of the API 40
5.3.3 Notes about the License 41
5.4 Linking Own Programs with the PLIN-API 42
6 Technical Specifications 44
Appendix A CE Certificate 46
Appendix B Dimension Drawing 47
Appendix C Quick Reference 48

PCAN-USB Pro FD – User Manual
5
1 Introduction
The PCAN-USB Pro FD adapter enables the connection of CAN FD
and LIN networks to a computer via USB. Two field busses can be
connected at the same time, up to four with appropriate adapter
cables (2 x CAN FD, 2 x LIN). Each CAN FD channel is separately
isolated against USB and LIN with a maximum of 500 Volts. Its
robust aluminum casing makes the PCAN-USB Pro FD adapter
suitable for mobile applications.
The new CAN FD standard (CAN with Flexible Data Rate) is prima-
rily characterized by higher bandwidth for data transfer. The maxi-
mum of 64 data bytes per CAN FD frame (instead of 8 so far) can be
transmitted with bit rates up to 12 Mbit/s. CAN FD is downward-
compatible to the CAN 2.0 A/B standard, thus CAN FD nodes can be
used in existing CAN networks. However, in this case the CAN FD
extensions are not applicable.
The monitor software PCAN-View and the programming interface
PCAN-Basic for the development of applications with CAN
connection are included in the scope of supply and support the new
standard CAN FD.
The monitor application PLIN-View Pro as well as the PLIN
programming interface are included in the scope of supply.
Device drivers exist for different operating systems, so programs
can easily access a connected CAN and/or LIN bus.
Tip: At the end of this manual (Appendix C) you can find a
Quick Reference with brief information about the installation
and operation of the PCAN-USB Pro FD adapter.

PCAN-USB Pro FD – User Manual
6
1.1 Properties at a Glance
Adapter for High-speed USB 2.0
(compatible to USB 1.1 and USB 3.0)
Transmitting and receiving of CAN FD and LIN messages using
2 D-Sub connections (both with pin assignment for CAN FD and
LIN bus)
Time stamp resolution 1 μs
5-Volt supply at the D-Sub connector can be activated through a
solder jumper, e.g. for external bus converter
Voltage supply via USB
Extended operating temperature range -40 - 85 °C (-40 - 185 °F)
CAN operation properties
Complies with CAN specifications 2.0A/B and FD
CAN FD support for ISO and Non-ISO standard switchable
CAN FD bit rates for the data field (64 bytes max.) from 25 kbit/s
up to 12 Mbit/s
CAN bit rates from 25 kbit/s up to 1 Mbit/s
FPGA implementation of the CAN FD controller
NXP TJA1044GT CAN transceiver
Each CAN FD channel is separately opto-decoupled against USB
and LIN up to 500 V
CAN termination can be activated through a solder jumper,
separately for each CAN channel
Measurements of bus load including error frames and overload
frames on the physical bus
Induced error generation for incoming and outgoing CAN
messages

PCAN-USB Pro FD – User Manual
7
LIN operation properties
Bit rates from 1 up to 20 kbit/s
TJA1021/20 LIN transceiver
Both LIN channels (common ground) are opto-decoupled
against USB and CAN FD
Can be used as a LIN master or slave (1 ms master task
resolution)
Automatic bit rate, frame length, and checksum type recognition
Autonomous scheduler with support for unconditional, event,
and sporadic frames
Hardware can work through a schedule table (up to 8 tables can
be configured with a total of 256 slots)
Note: This manual describes the use of the PCAN-USB Pro FD
with Windows. You can find CAN drivers for Linux and the
corresponding application information on the provided DVD in
the directory branch Develop and on our website under
www.peak-system.com/linux.
1.2 System Requirements
Operating system Windows 10, 8.1, 7 (32/64-bit)
or Linux (32/64-bit)
A vacant USB port (USB 1.1, USB 2.0 or USB 3.0 ) at the
computer or at a USB hub connected to the computer
For LIN operation: supply voltage 8 to 18 V for the LIN
transceiver (e.g. car battery)

PCAN-USB Pro FD – User Manual
8
Note: Do not use a USB extension cable to connect the PCAN-
USB Pro FD adapter to the computer. The use of an extension
cable does not comply with the USB specification and can lead
to malfunction of the adapter.
1.3 Scope of Supply
PCAN-USB Pro FD in aluminum casing
CAN FD interface drivers for Windows 10, 8.1, 7
and Linux (32/64-bit)
LIN interface drivers for Windows 10, 8.1, 7 (32/64-bit)
CAN monitor PCAN-View for Windows
LIN monitor PLIN-View Pro for Windows
Programming interface PCAN-Basic for developing applications
with CAN connection
Programming interface PLIN-API for developing applications
with LIN connection
Programming interfaces for standardized protocols from the
automotive sector
Manual in PDF format
Note: Since the application possibilities of the PCAN-USB Pro
FD adapter are various, special cable adapters for connecting
the CAN and LIN busses are not provided. Therefore you need
a 9-pin D-Sub female connector for your appliances to be
connected individually.

PCAN-USB Pro FD – User Manual
9
2 Installing the Software and
the Adapter
This chapter covers the software setup for the PCAN-USB Pro FD
adapter under Windows and the connection of the adapter to a
computer.
Install the driver before you connect the adapter to the computer.
Do the following to install the drivers:
1. Start Intro.exe from the supplied DVD.
The navigation program starts.
2. Select in the main menu Drivers and click on Install now.
3. Confirm the message of the User Account Control related to
"Installer database of PEAK Drivers".
The driver setup starts.
4. Follow the instructions of the program. When getting to the
components selection, add the LIN Driver.
Do the following to connect the adapter:
Note: Do not use a USB extension cable to connect the PCAN-
USB Pro FD adapter to the computer. The use of an extension
cable does not comply with the USB specification and can lead
to malfunction of the adapter.
1. Connect the adapter to a USB port at the computer. The
computer can remain powered on.
Windows detects the new hardware and completes the
driver installation.
2. Check the LEDs on the adapter. If the LEDs are green, then
the driver was initialized successfully.

PCAN-USB Pro FD – User Manual
10
3 Connecting the CAN and LIN
Bus
Both D-Sub connectors on the PCAN-USB Pro FD adapter are each
used for connecting one CAN and one LIN bus. The pin assignment
is identical for both D-Sub connectors.
Note: Since the application possibilities of the PCAN-USB Pro
FD adapter are various, special cable adapters for connecting
the CAN and LIN busses are not provided. Therefore you need
a 9-pin D-Sub female connector for your appliances to be
connected individually.
3.1 CAN Connection over D-Sub Connector
Two High-speed CAN busses (ISO 11898-2) can be connected, one
to each D-Sub connector. The pin assignment for CAN corresponds
to the specification CiA® 303-1.

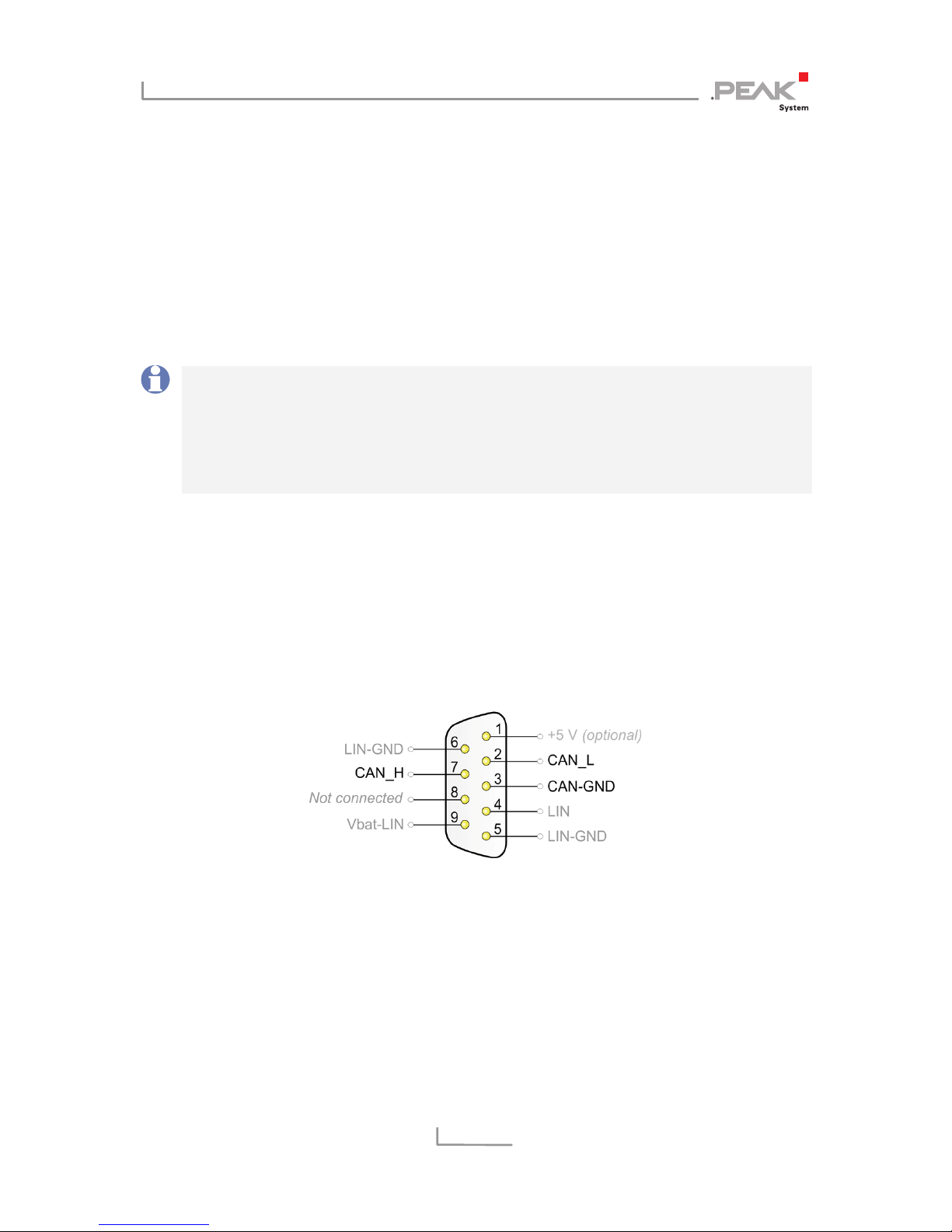

Figure 1: CAN pin assignment of the D-Sub connector
With the pin 1 devices with low power consumption (e.g. bus
converters) can be directly supplied via the CAN connector. At
delivery these pin are not assigned. You can find a detailed
description about the activation in the following section 3.3.

PCAN-USB Pro FD – User Manual
11
Each CAN connection separately has a galvanic isolation up to
500 V against USB and LIN.
Tip: You can connect a CAN bus with a different transmission
standard via a bus converter. PEAK-System offers different bus
converter modules (e.g. PCAN-TJA1054 for a Low-speed CAN
bus according to ISO 11898-3).
3.2 LIN Connection over D-Sub Connector
Two LIN busses can be connected, one to each D-Sub connector.
Figure 2: LIN pin assignment of the D-Sub connector
For the LIN operation an additional supply voltage must be applied
to pin Vbat-LIN (8 - 18 V DC, e.g. car battery). Both LIN connections
need their own supply.
Both LIN connections have a common galvanic isolation up to 500 V
against USB and CAN. The LIN connections are not galvanically
isolated against each other.

PCAN-USB Pro FD – User Manual
12

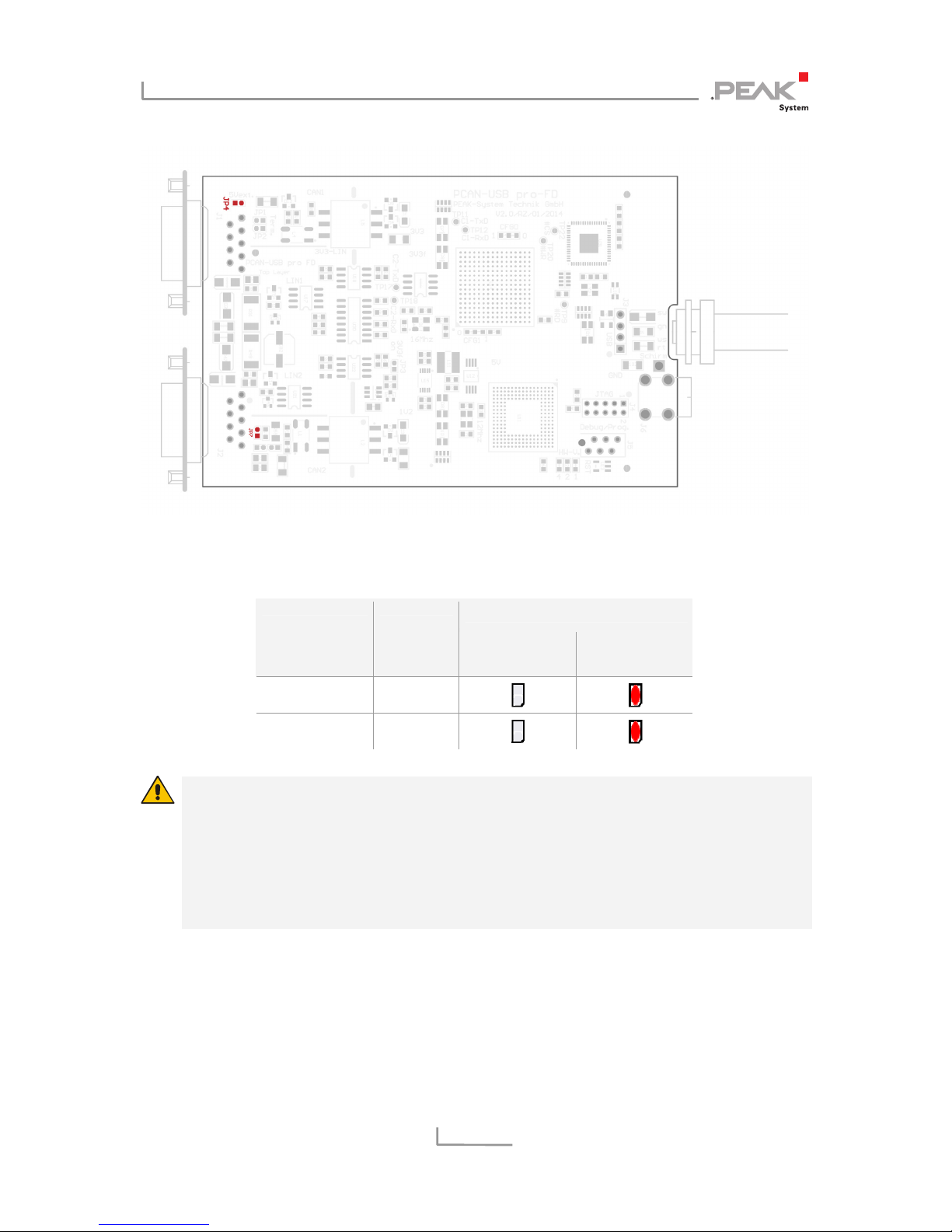

3.3 Voltage Supply of External Devices
External devices with low power consumption (e.g. bus converters)
can be directly supplied via the CAN connector. With a solder bridge
per CAN channel on the PCAN-USB Pro FD board (casing opened), a
5-Volt supply can optionally be routed to pin 1 of the D-Sub
connector. The current output is limited to 50 mA.

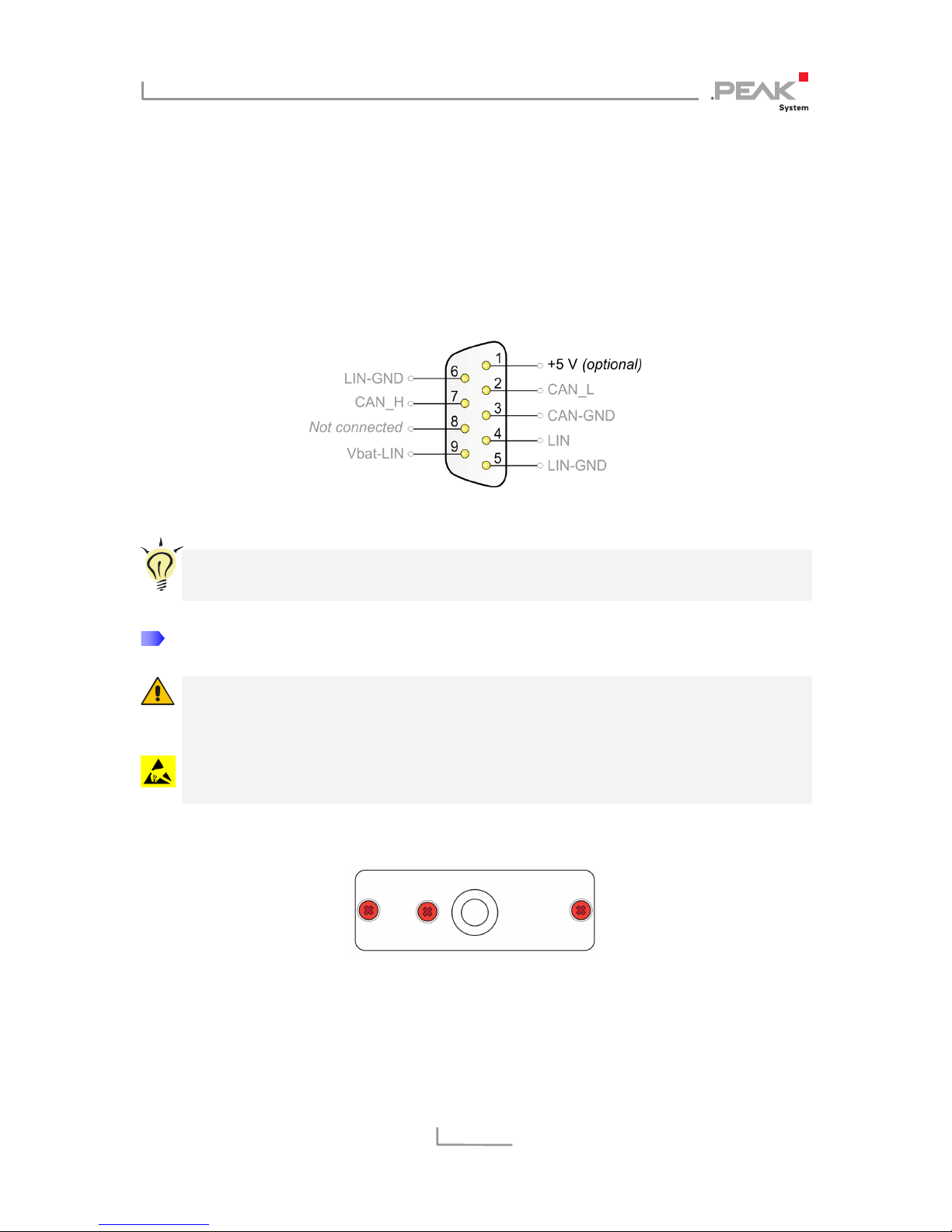

Figure 3: External 5-Volt supply at the D-Sub connectors
Tip: On request we deliver the device configured with this
option.
Do the following to activate the voltage supply:
Risk of short circuit! Solder with great care to avoid unwanted
short circuits on the card.
Attention! Electrostatic discharge (ESD) can damage or destroy
components on the card. Take precautions to avoid ESD.
1. Remove the three screws at the back of the casing.
Figure 4: Attachment points at the back side of the casing

PCAN-USB Pro FD – User Manual
13
2. Remove the two outer screws next to the D-Sub connectors
at the front of the casing.
Figure 5: Attachment points of the D-Sub connectors
at the front side of the casing
3. Remove the casing cover.
4. Lift the back of the case and slide the circuit board in
direction of the front over the lower part of the casing. The
bottom of the circuit board is accessible now.
5. Set the solder bridges on the circuit board of the adapter to
activate the termination.
Figure 6 shows the positions of the solder fields for the
termination.
6. Reassemble the device. Slide the circuit board back into the
lower part of the casing.
7. Close the casing cover.
8. Screw the front and back side (Figure 4 and Figure 5).

PCAN-USB Pro FD – User Manual
14
Figure 6: Top view PCAN-USB Pro FD board,
solder fields JP4/JP7
5-Volt supply
D-Sub
connector
Solder
field Without
(standard)
With
(Pin 1)
CAN1 JP4
CAN2 JP7
Risk of short circuit! The 5-Volt supply is not protected
separately. Therefore, turn off the computer before you connect
and disconnect CAN cables or peripheral systems.
Consider that some computers still supply the USB ports with
power even when they are turned off (standby operation).

PCAN-USB Pro FD – User Manual
15
3.4 Activating the Internal CAN
Termination
The termination can be activated by solder jumpers for each
channel on the board. At delivery the termination is not activated.
A High-speed CAN bus (ISO 11898-2) must be terminated on both
ends with 120 Ohms. Otherwise disturbances may arise. If a CAN
bus is not terminated correctly, activate the internal termination.
Do the following to activate the internal termination:
Risk of short circuit! Solder with great care to avoid unwanted
short circuits on the card.
Attention! Electrostatic discharge (ESD) can damage or destroy
components on the card. Take precautions to avoid ESD.
1. Remove the three screws at the back of the casing.
Figure 7: Attachment points at the back side of the casing
2. Remove the two outer screws next to the D-Sub connectors
at the front of the casing.
Figure 8: Attachment points of the D-Sub connectors
at the front side of the casing
3. Remove the casing cover.

PCAN-USB Pro FD – User Manual
16
4. Lift the back of the case and slide the circuit board in
direction of the front over the lower part of the casing. The
bottom of the circuit board is accessible now.
5. Set the solder bridges on the circuit board of the adapter to
activate the internal termination.
Figure 9 shows the positions of the solder fields for the
termination.
6. Reassemble the device. Slide the circuit board back into the
lower part of the casing.
7. Close the casing cover.
8. Screw the front and back side (Figure 7and Figure 8).

PCAN-USB Pro FD – User Manual
17
Figure 9: Top view PCAN-USB Pro FD board,
solder fields JP1/JP2 and JP5/JP6
Internal termination
D-Sub
connector
Solder
fields Without
(standard) Active
CAN1 JP2 and
JP3
CAN2 JP5 and
JP6

PCAN-USB Pro FD – User Manual
18
3.5 Cabling
3.5.1 Termination
The High-speed CAN bus (ISO 11898-2) must be terminated with
120 ohms at both ends. The termination prevents interfering signal
reflections and ensures the proper operation of the transceiver of
the connected CAN nodes (CAN interface, control device).
The PCAN-USB Pro FD adapter has an internal termination. For
more information, see chapter 3.4.
3.5.2 Example of a Connection
Figure 10: Simple CAN connection
In this example, the PCAN-USB Pro FD adapter is connected with a
control unit by a cable that is terminated with 120 ohms at both
ends.

PCAN-USB Pro FD – User Manual
19
3.5.3 Maximum Bus Length
High-Speed-CAN networks may have bit rates of up to 1 Mbit/s. The
maximum bus length depends primarily on the bit rate.
The following table shows the maximum possible CAN bus length
at different bit rates:
Bit rate Bus length
1 Mbit/s 40 m
500 kbit/s 110 m
250 kbit/s 240 m
125 kbit/s 500 m
50 kbit/s 1.3 km
25 kbit/s 2.5 km
The listed values have been calculated on the basis of an idealized
system and can differ from reality.
Note: For CAN FD, the same maximum bus lengths apply as for
CAN, despite the higher data bit rate of CAN FD.
The dependency is based on the bit rate during the arbitration,
called nominal bit rate. The nominal bite rate at CAN FD can be
up to 1 Mbit/s.

PCAN-USB Pro FD – User Manual
20
4 Operation
4.1 Status LEDs
For indication of operating conditions the PCAN-USB Pro FD
adapter has several LEDs.
Figure 11: Layout of the LEDs on the casing
LED Status Meaning
Green on A High-speed USB connection (USB 2.0) with a
computer is established.
Green blinking Communication is occurring on the High-speed
USB connection (USB 2.0).
A Full-speed USB connection (USB 1.1) with a
computer is established.
Orange on
The PCAN-USB Pro FD adapter is in suspend
mode (only voltage supply via USB cable, e.g.
during computer standby).
USB
Orange blinking Communication is occurring on the Full-speed
USB connection (USB 1.1).
